Engine Ignition Components - Exploded View

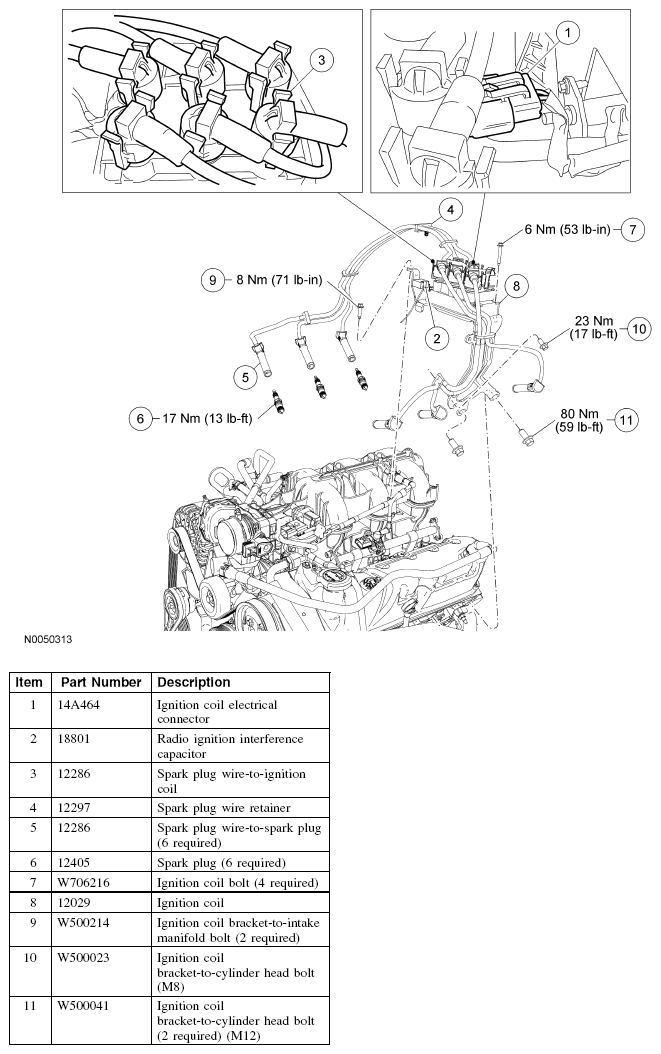

Fig 1: Identifying Engine Ignition Remove/Install Components
G04695989Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
