Test A: The Speed Control Is Inoperative

PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE

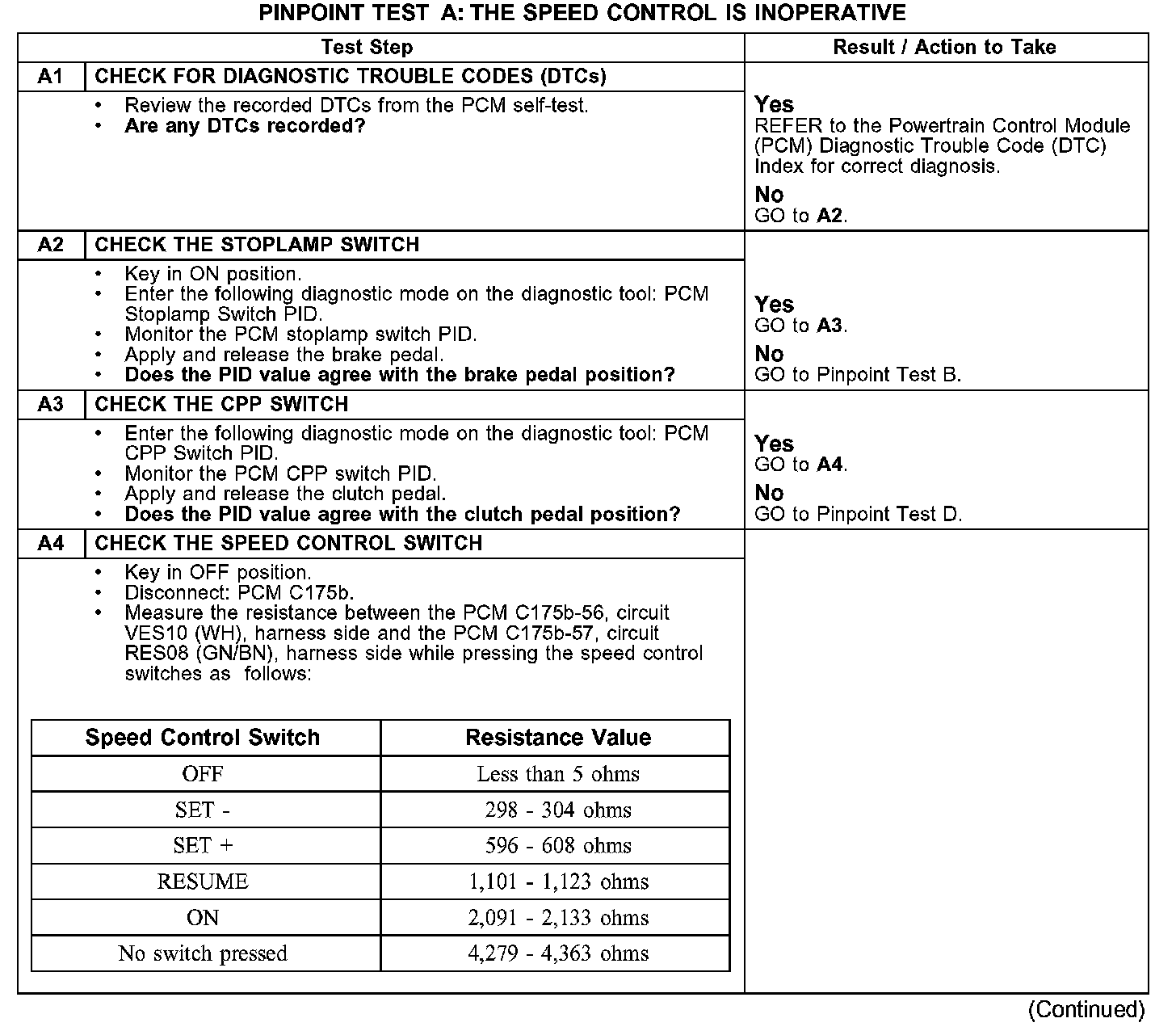

A1-A4:

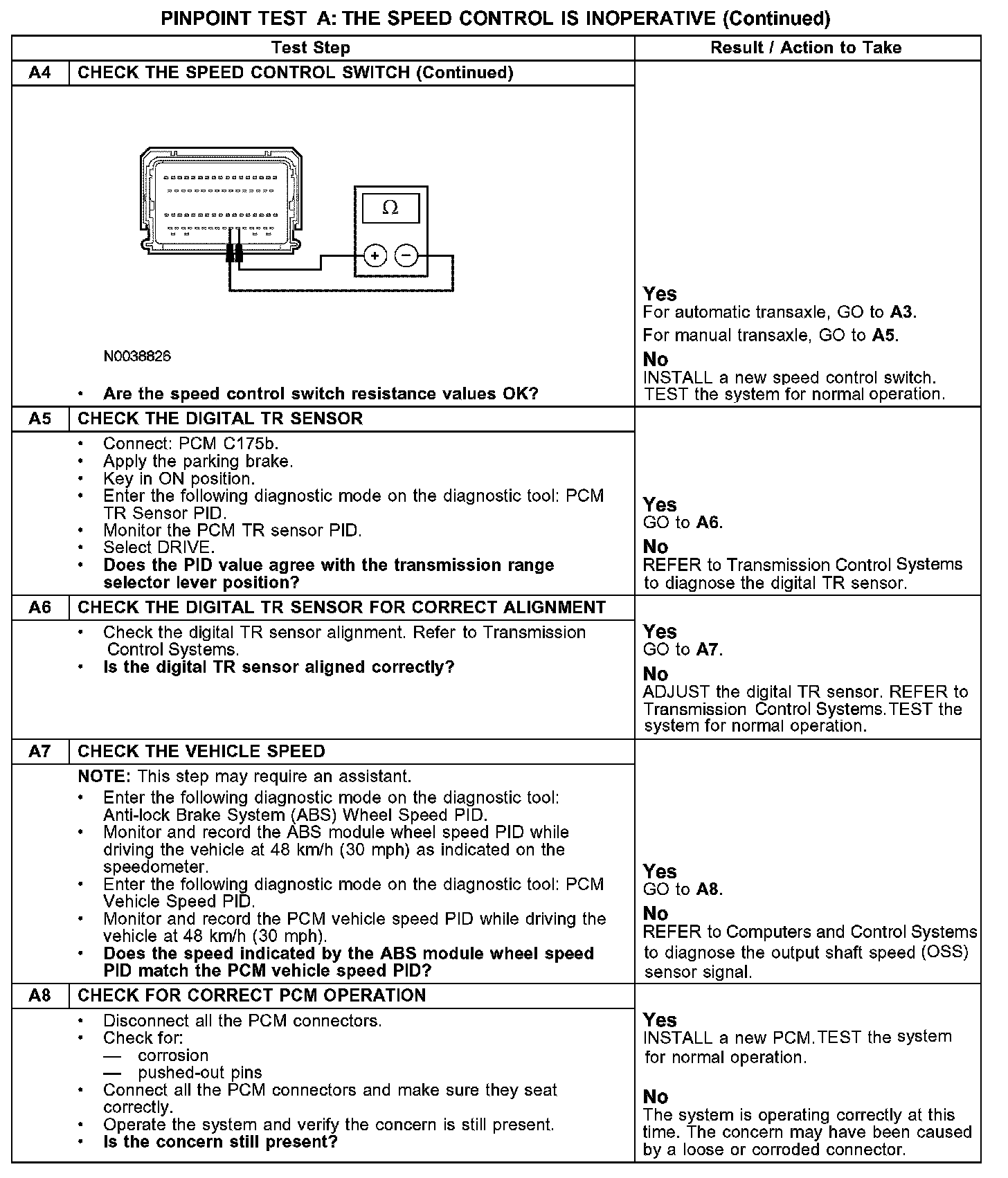

A4-A8:

Normal Operation
The powertrain control module (PCM) sends a signal through circuit VES10 (WH) to the speed control switches, which passes through the clockspring. The return signal is sent to the PCM through circuit RES08 (GN/BN) and the clockspring. When the brake pedal is applied, the smart junction box (SJB) sends a message to the PCM to deactivate the speed control if engaged.The speed control deactivator switch interrupts circuit CES09 (VT/OG) removing the voltage signal to the PCM when the brake pedal is applied. This is a redundant signal to the PCM.

Possible Causes
- Stoplamp Switch
- Clutch pedal position (CPP) switch
- Speed control switch
- Digital transmission range (TR) sensor
- Vehicle speed signal
- PCM
