Pinpoint Tests

PINPOINT TEST A: NO COMMUNICATION WITH THE DRIVER DOOR MODULE (DDM)

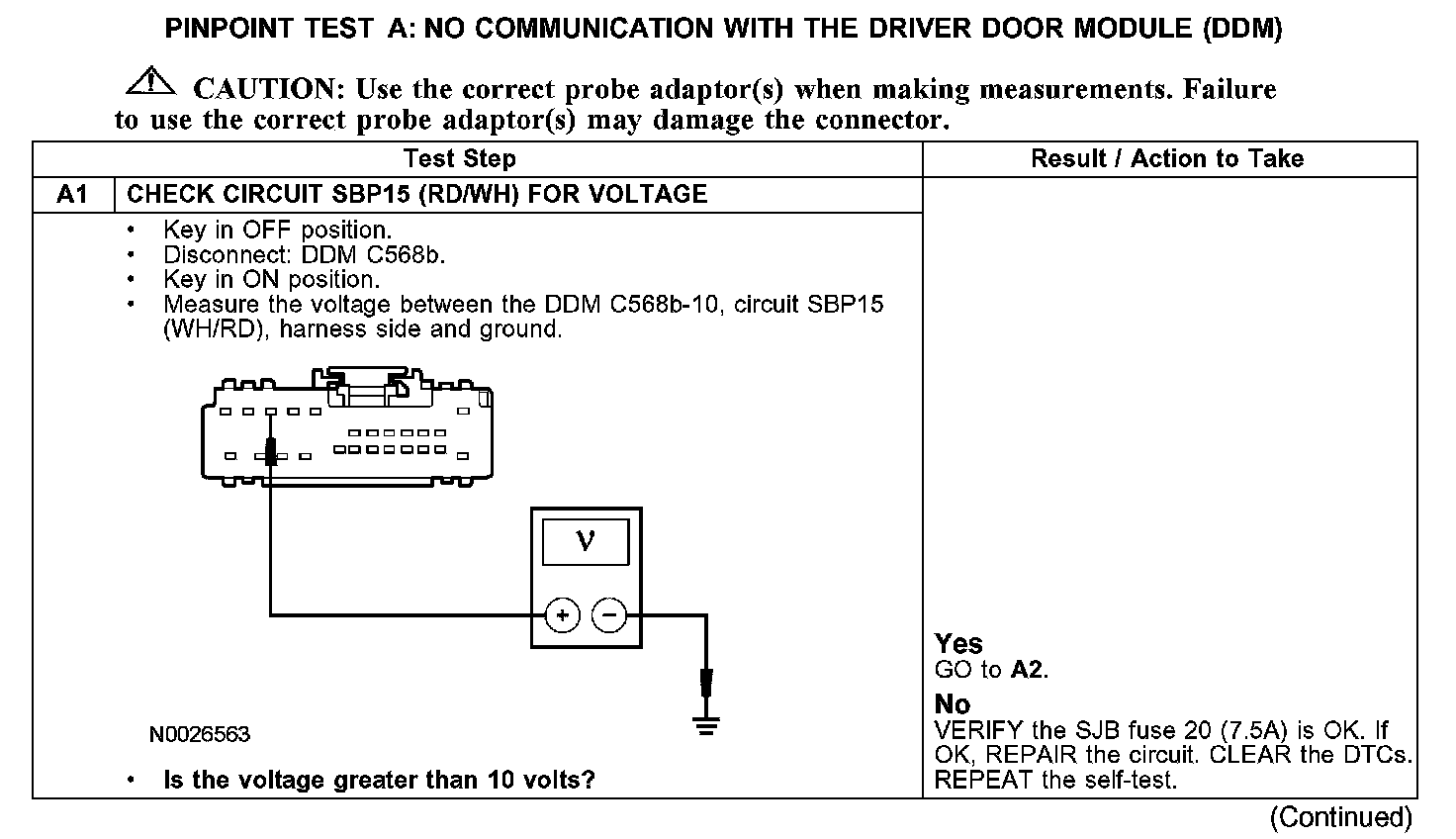

A1:






A2:






Normal Operation
The DDM receives voltage from the smart junction box (SJB) through circuit SBP15 (WH/RD). The DDM is grounded through circuit GD126 (BK/WH).

Possible Causes
- fuse
- circuit GD126 (BK/WH) open
- circuit SBP15 (WH/RD) open
- DDM
