Antitheft Mode Switch: Service and Repair

ANTI-THEFT INHIBIT SWITCH







Removal and Installation
1. Remove the LH front door trim panel.
2. Position the watershield aside.

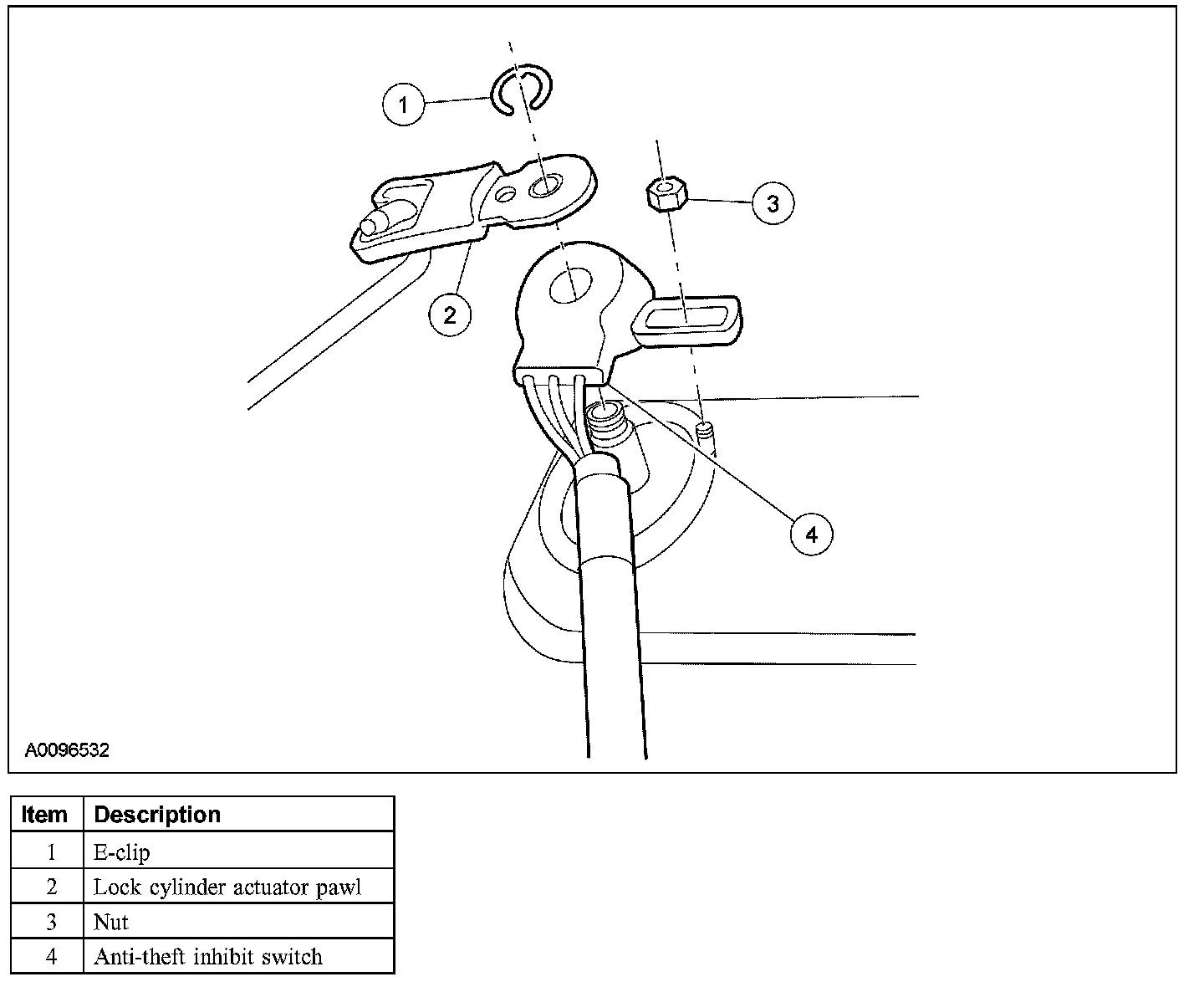

3. Remove the E-clip.
4. Remove the lock cylinder actuator pawl.
5. Remove the nut and the anti-theft inhibit switch.
- Disconnect the electrical connector.







6. To install, reverse the removal procedure.
- The anti-theft inhibit switch mark must be positioned towards the harness side of the switch prior to installation.
