Fuel Pump Module - Exploded View

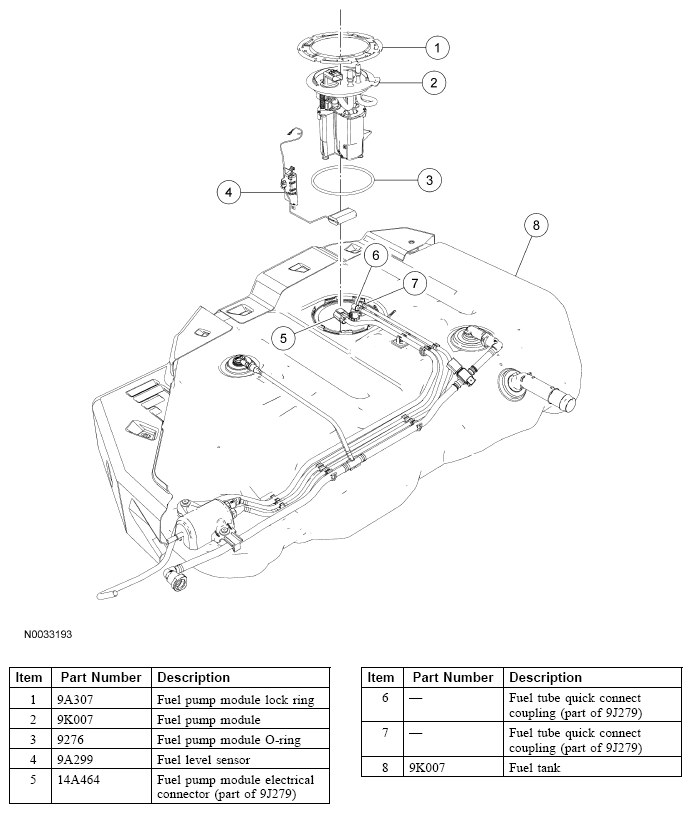

Fig 1: Exploded View Of Fuel Pump Module
G04661855Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
