Safety Belt Shoulder Height Adjuster: Notes

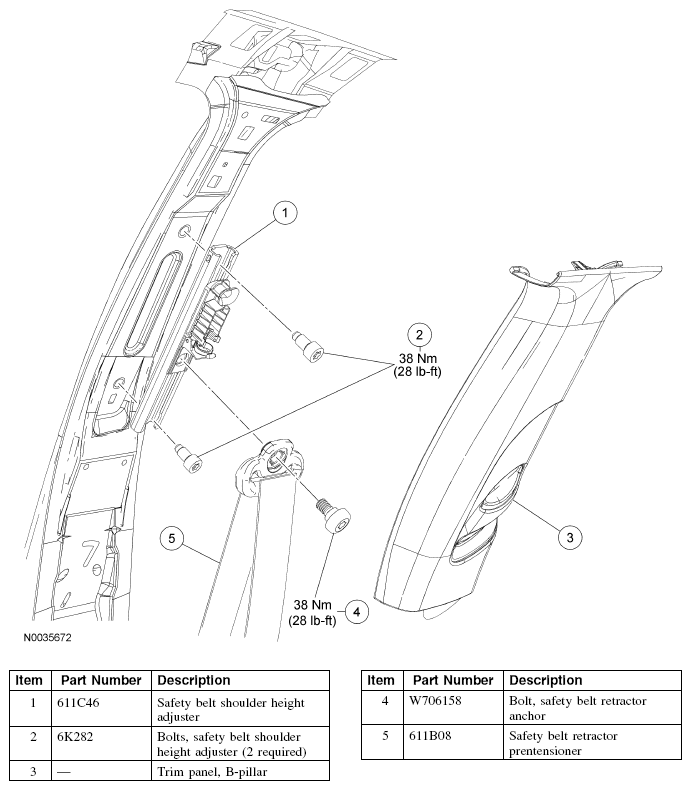

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components With Torque Specifications
G04654805Courtesy of FORD MOTOR CO.
