Power window switches: Schematic

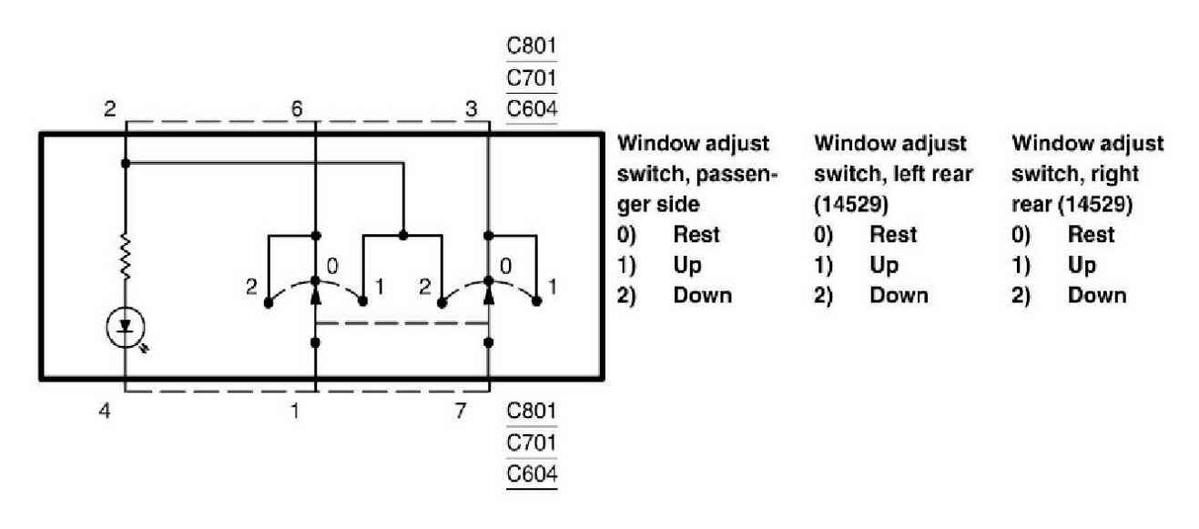

Fig 1: Power Window Switches - Schematic Diagram

G04597107

Courtesy of FORD MOTOR CO.
