Safety Belt Buckle - Rear: Notes

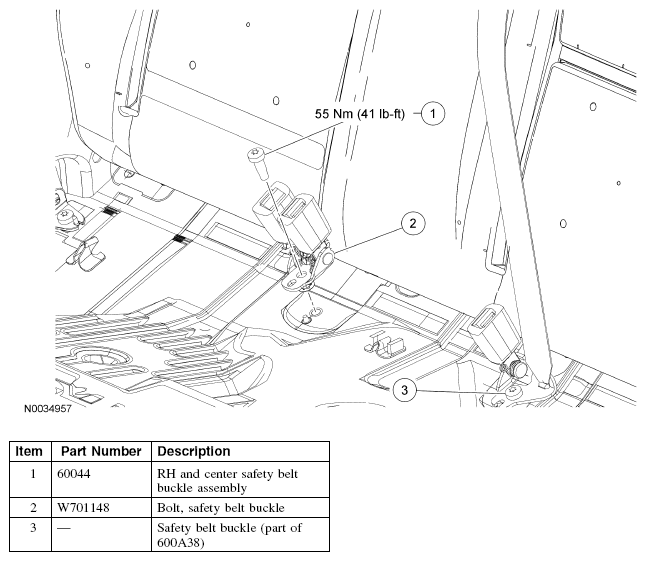

Fig 1: Rear Safety Belt Buckle With Torque Specifications
G04654790Courtesy of FORD MOTOR CO.
