Child Safety Seat Tether Anchor - Latch: Notes

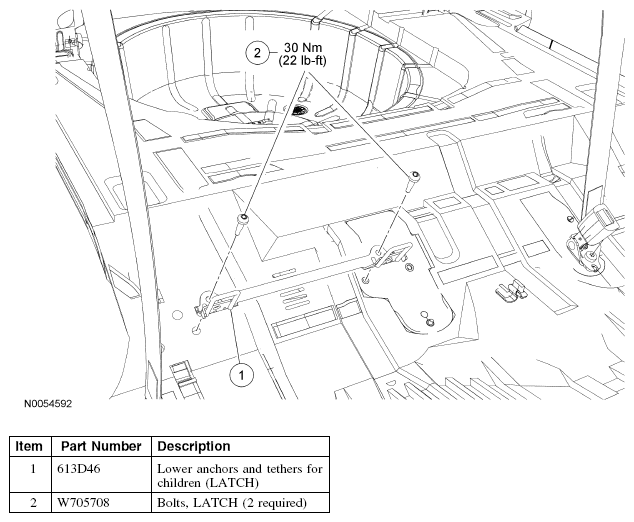

Fig 1: Child Safety Seat Tether Anchor -- Latch Replacement Components With Torque Specifications
G04654809Courtesy of FORD MOTOR CO.
