Secondary Air Injection System (AIR) Components - Exploded View

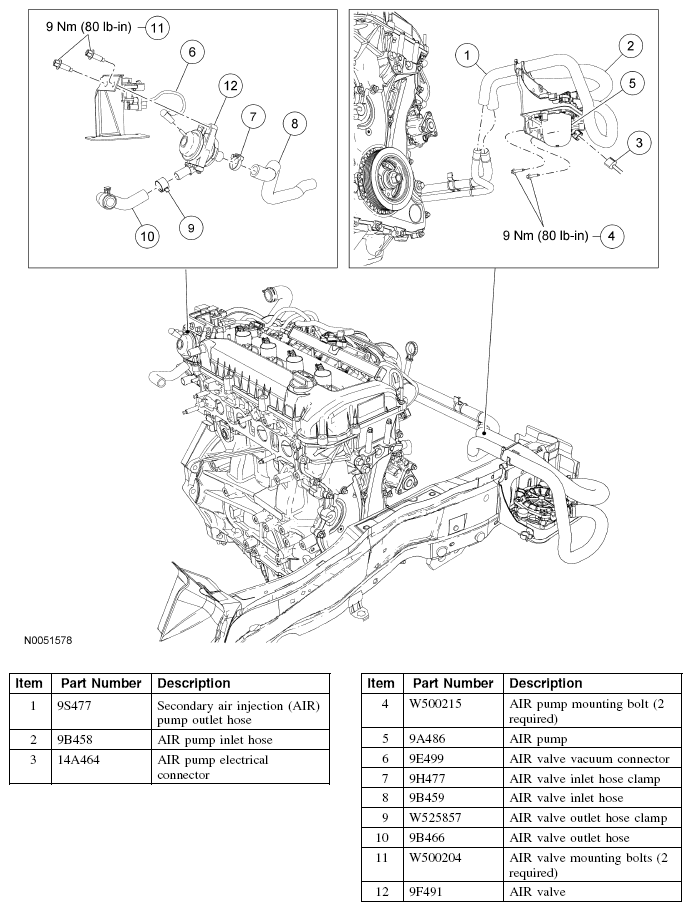

Fig 1: Secondary Air Injection System (AIR) Components - Exploded View
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure in this article.
