Positive Crankcase Ventilation (PCV) System Components - Exploded View

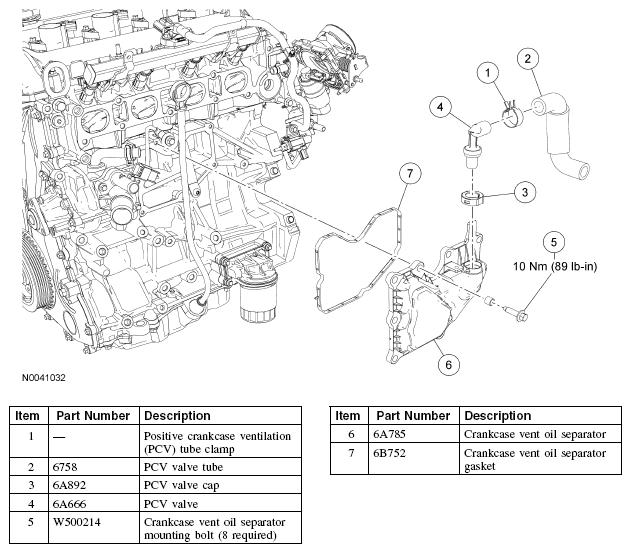

Fig 1: Positive Crankcase Ventilation (PCV) System Components - Exploded View
G04652563Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure in this article.
