Safety Belt Buckle - Third Row: Notes

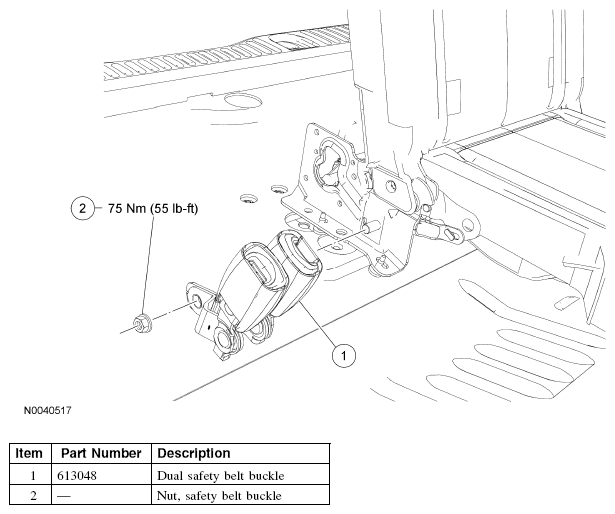

Fig 1: Safety Belt Buckle -- Third Row Replacement Components With Torque Specifications
G04642623Courtesy of FORD MOTOR CO.
