Radiator

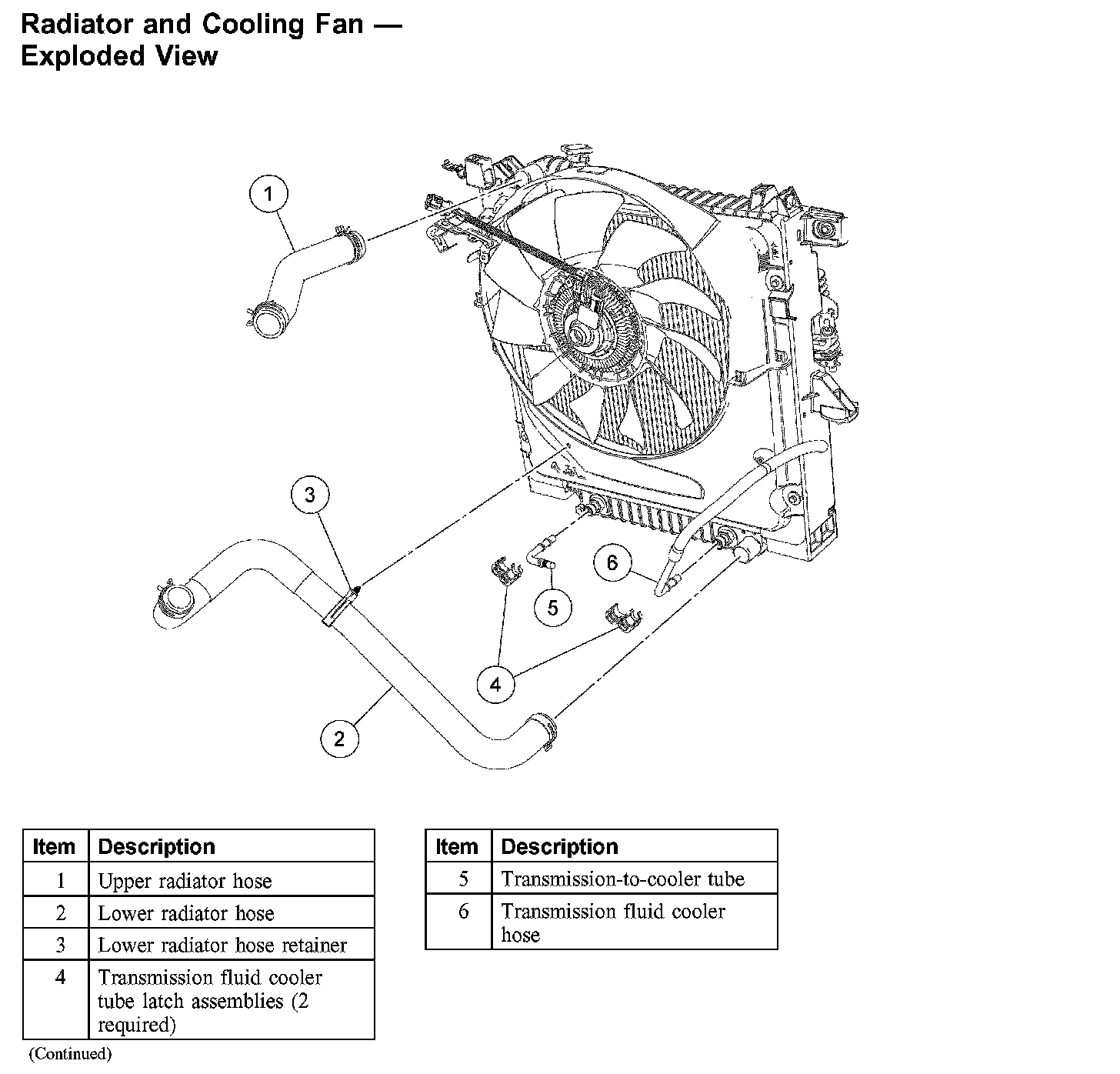

Radiator and Cooling Fan Exploded View:

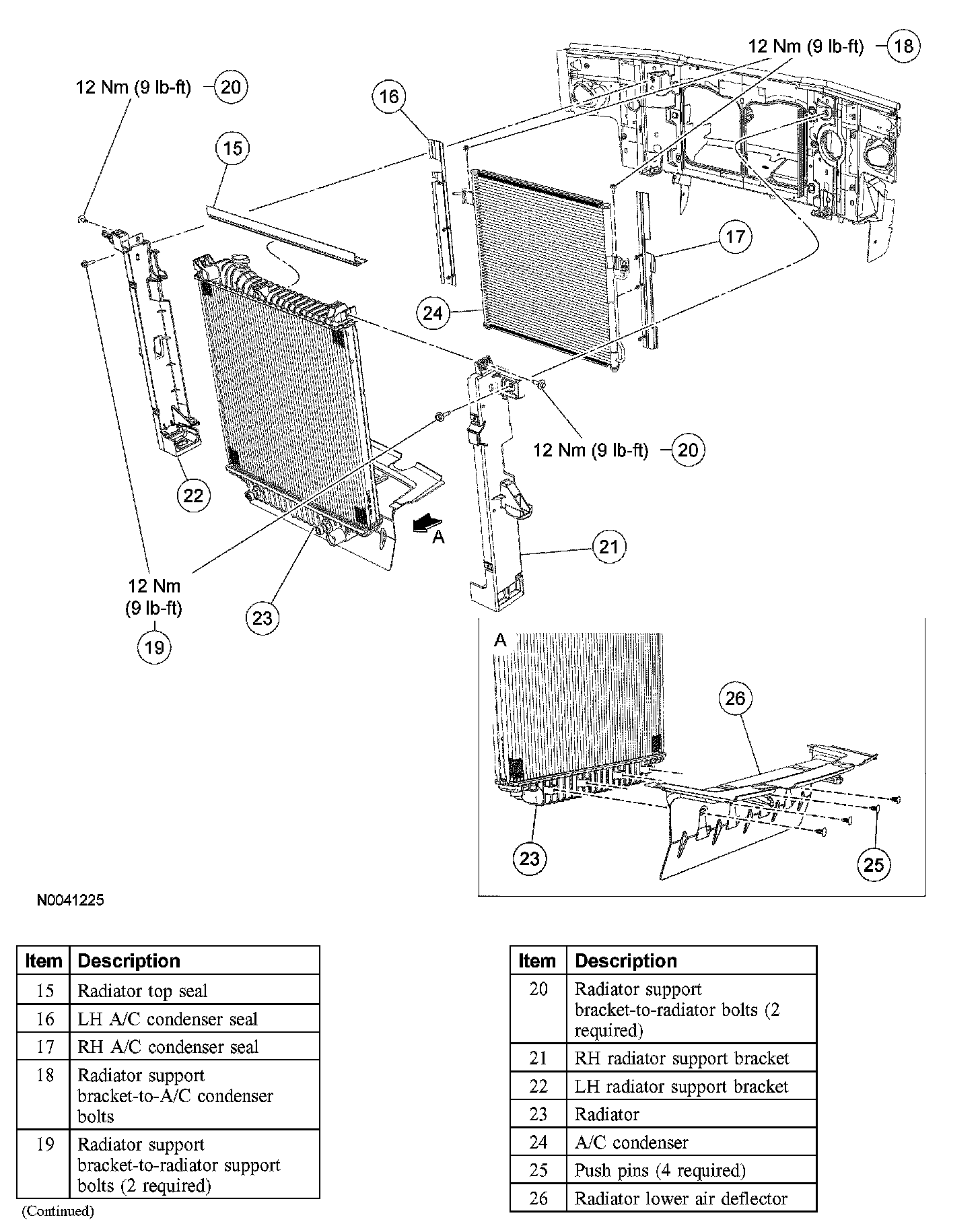

Radiator and Cooling Fan Exploded View:

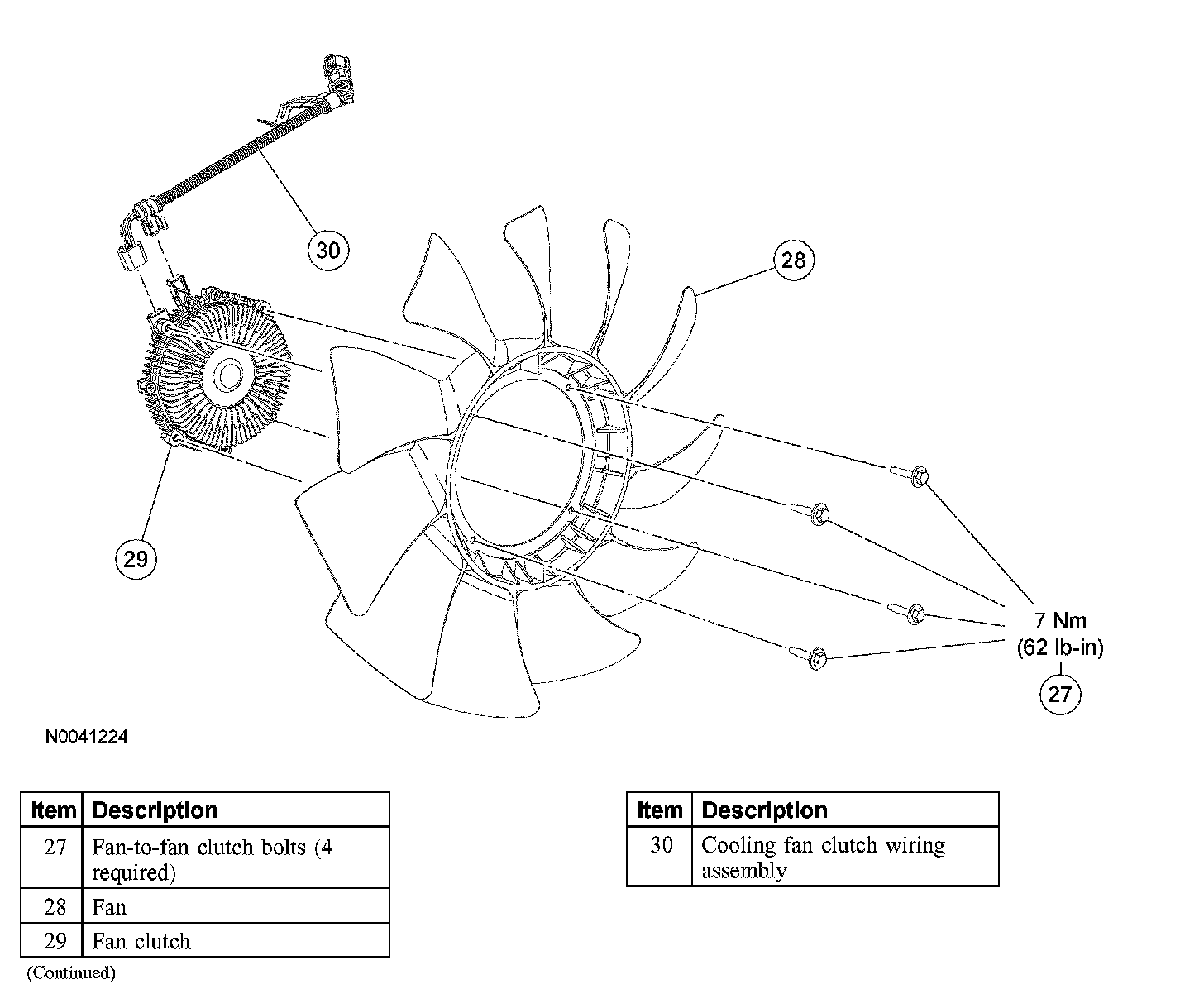

Radiator and Cooling Fan Exploded View:

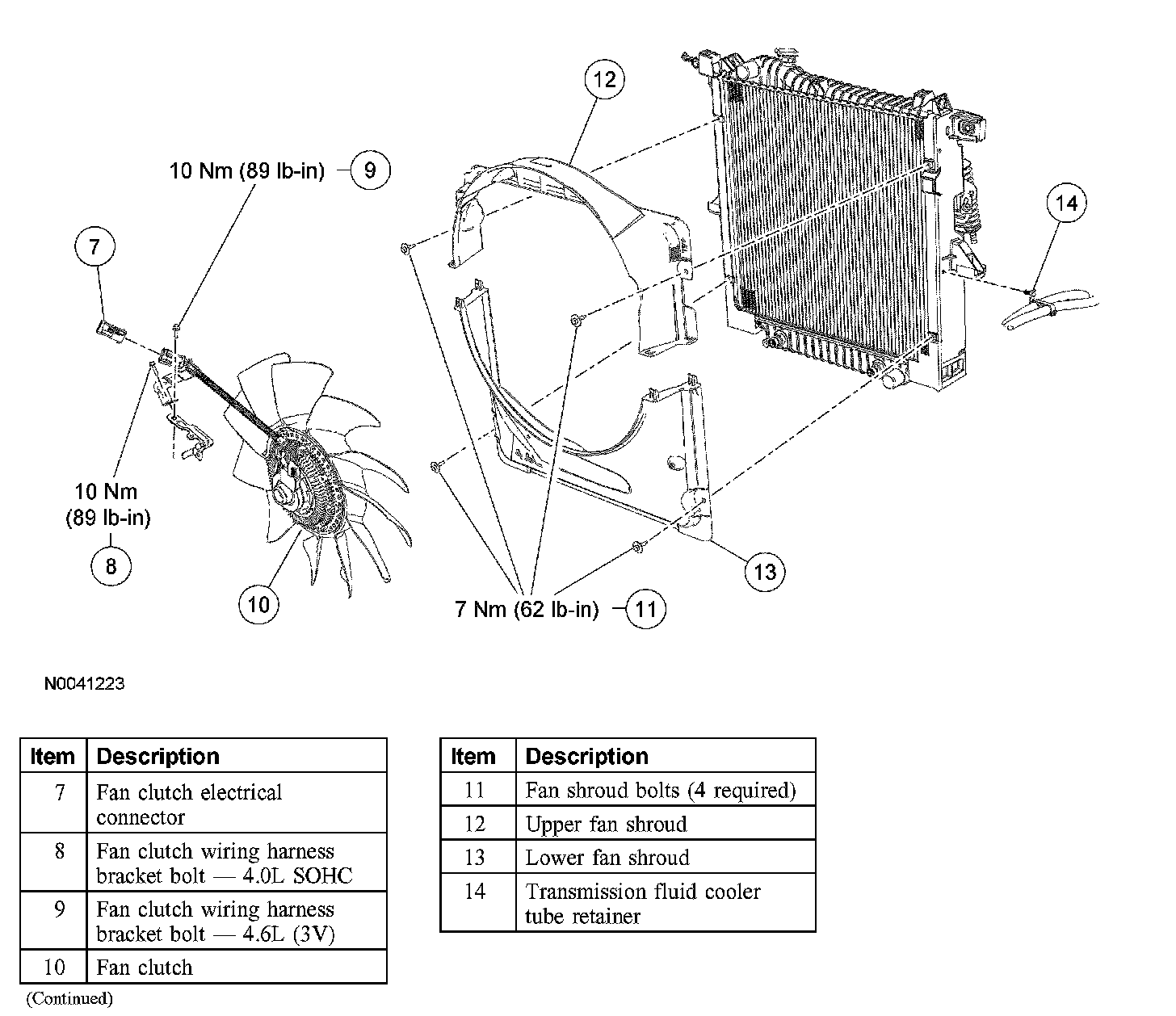

Radiator and Cooling Fan Exploded View:
