Ignition Lock Cylinder - Functional

IGNITION LOCK CYLINDER - FUNCTIONAL







Removal and Installation
1. Remove the passive anti-theft system (PATS) transceiver.

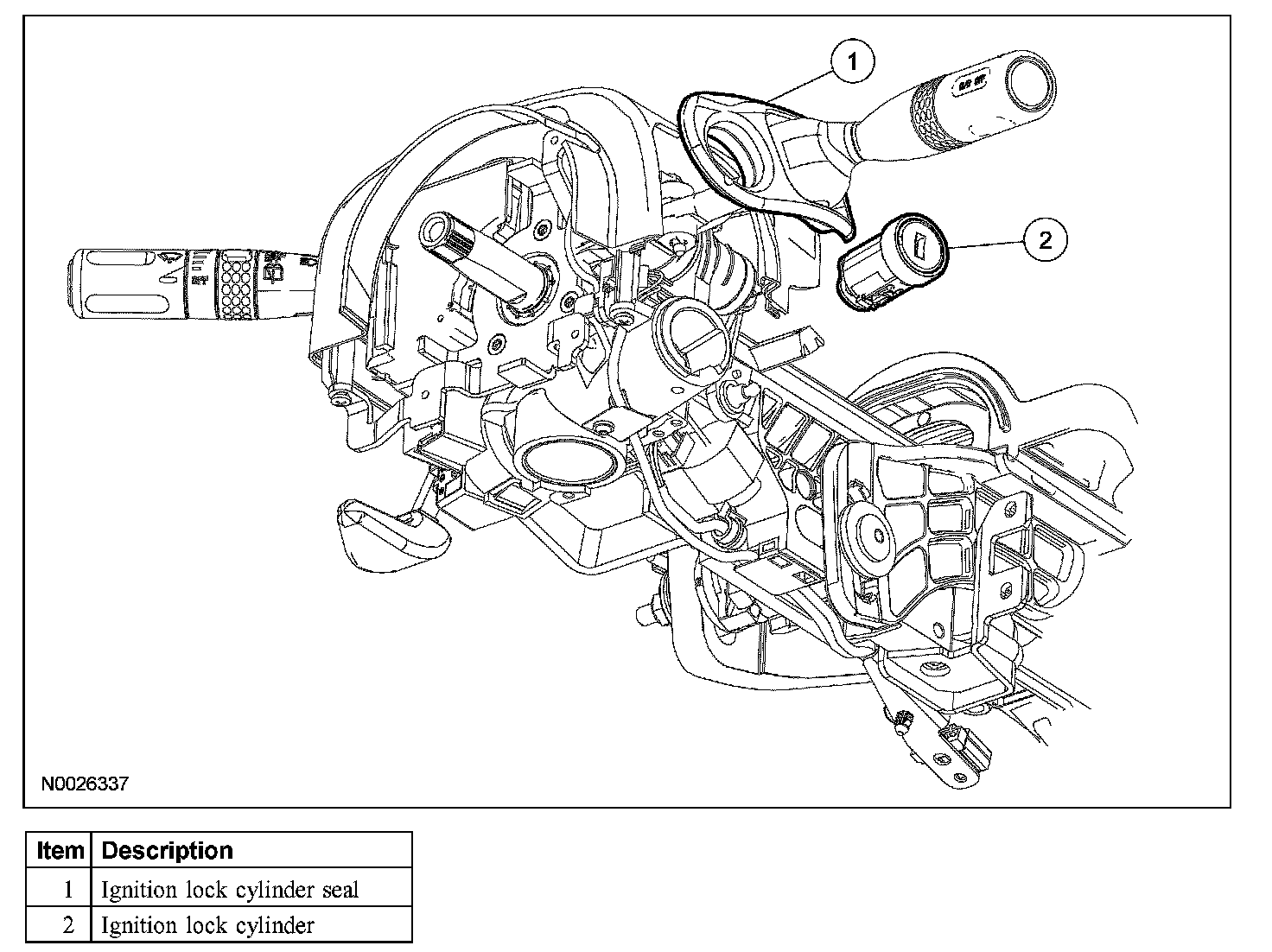

2. NOTE: The ignition lock cylinder must be in the accessory position.

Remove the ignition lock cylinder.
1. Press the release pin.
2 Remove the lock cylinder.
- Verify the ignition switch lock operation.

3. To install, reverse the removal procedure.
