Front Suspension - Exploded View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

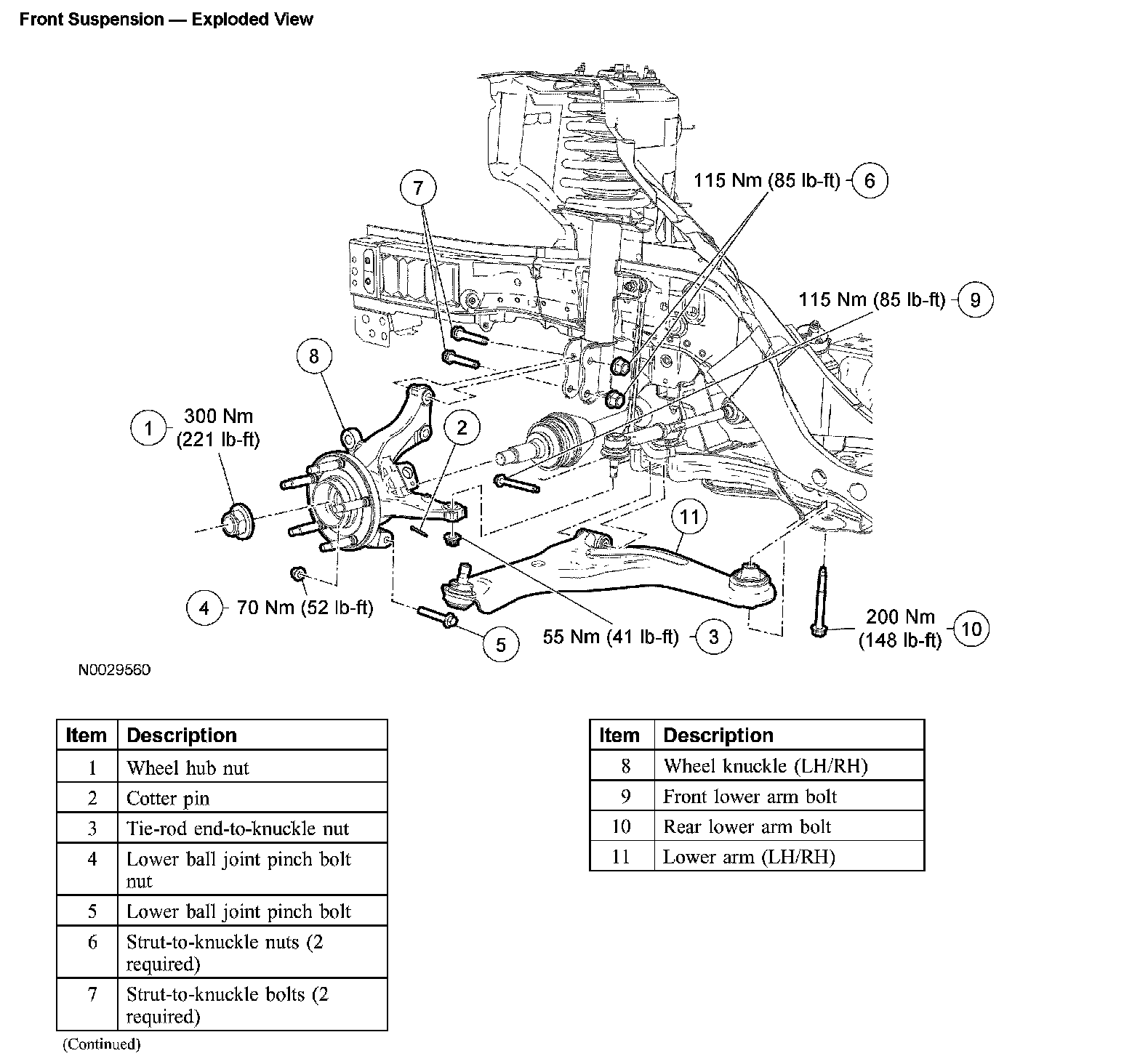

Front Suspension - Exploded View
Front Suspension - Exploded View:
