High Pressure Sensor / Switch: Service and Repair

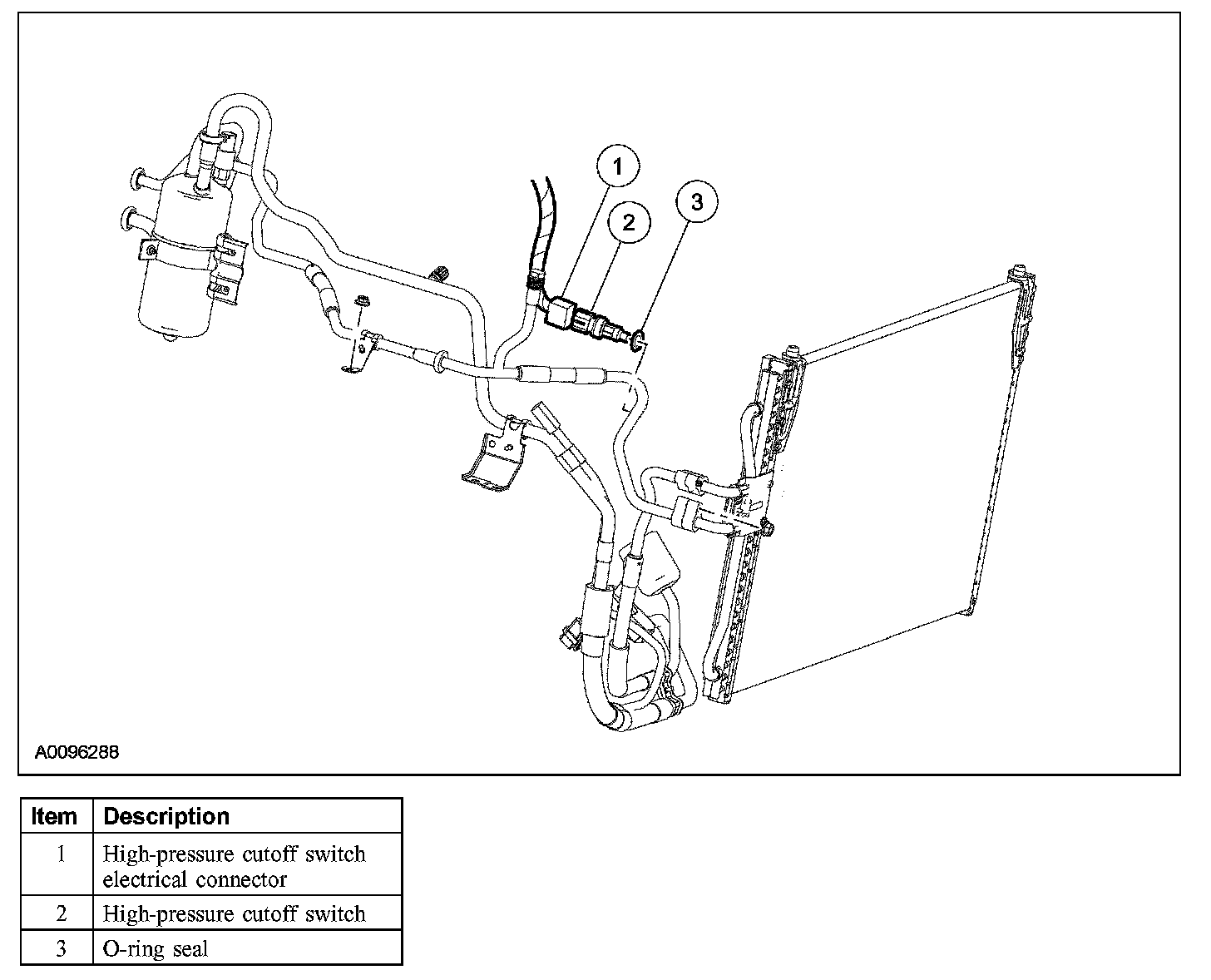

HIGH PRESSURE CUTOFF SWITCH







Removal and Installation
1. Disconnect the high-pressure cutoff switch electrical connector.
2. Remove the high-pressure cutoff switch.
- Discard the O-ring seal.

3. To install, reverse the removal procedure.
- Install a new O-ring seal.
