Tests HD: Misfire Detection Monitor
PINPOINT TEST HD: MISFIRE DETECTION MONITOR

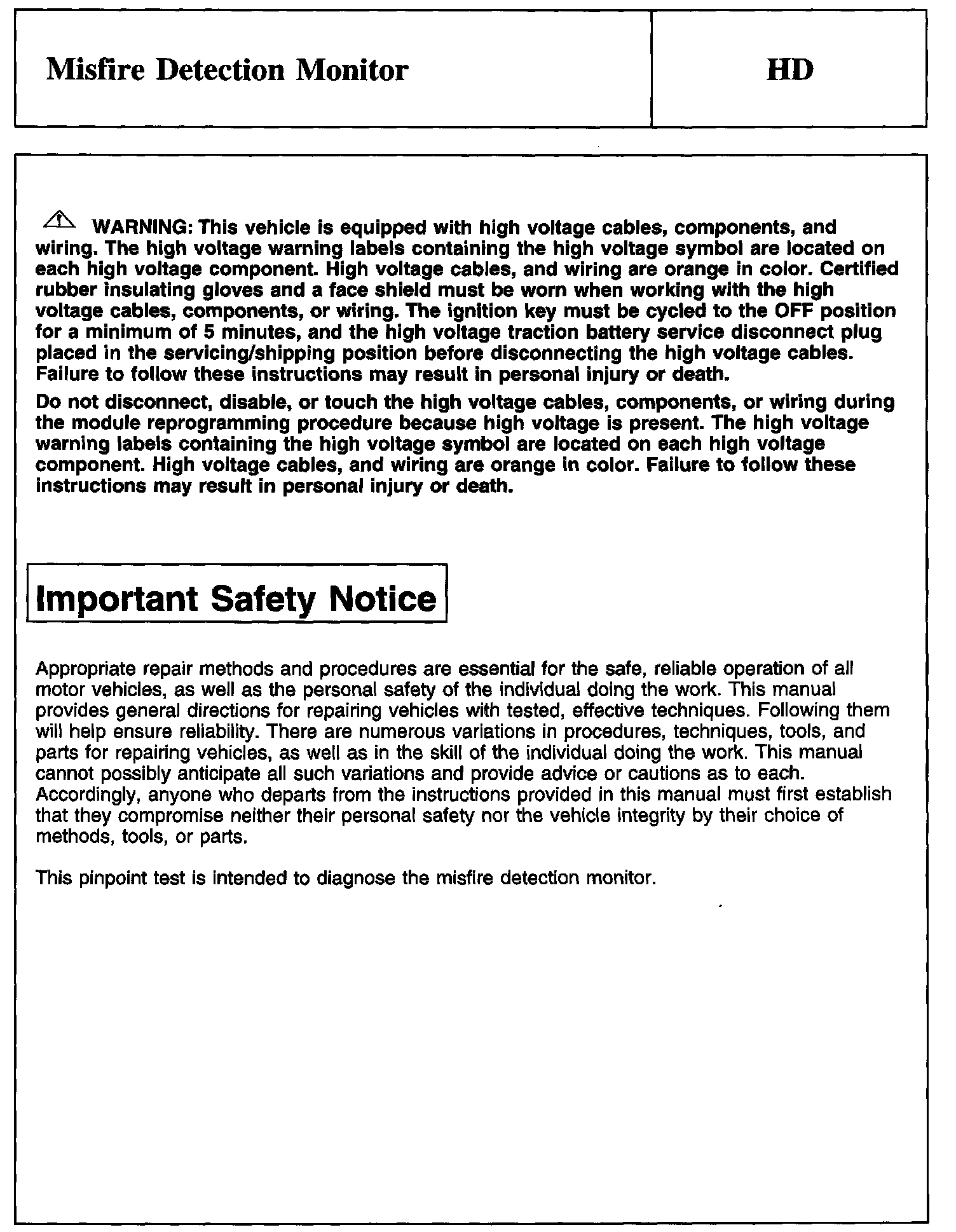

Warning And Important Safety Notice:

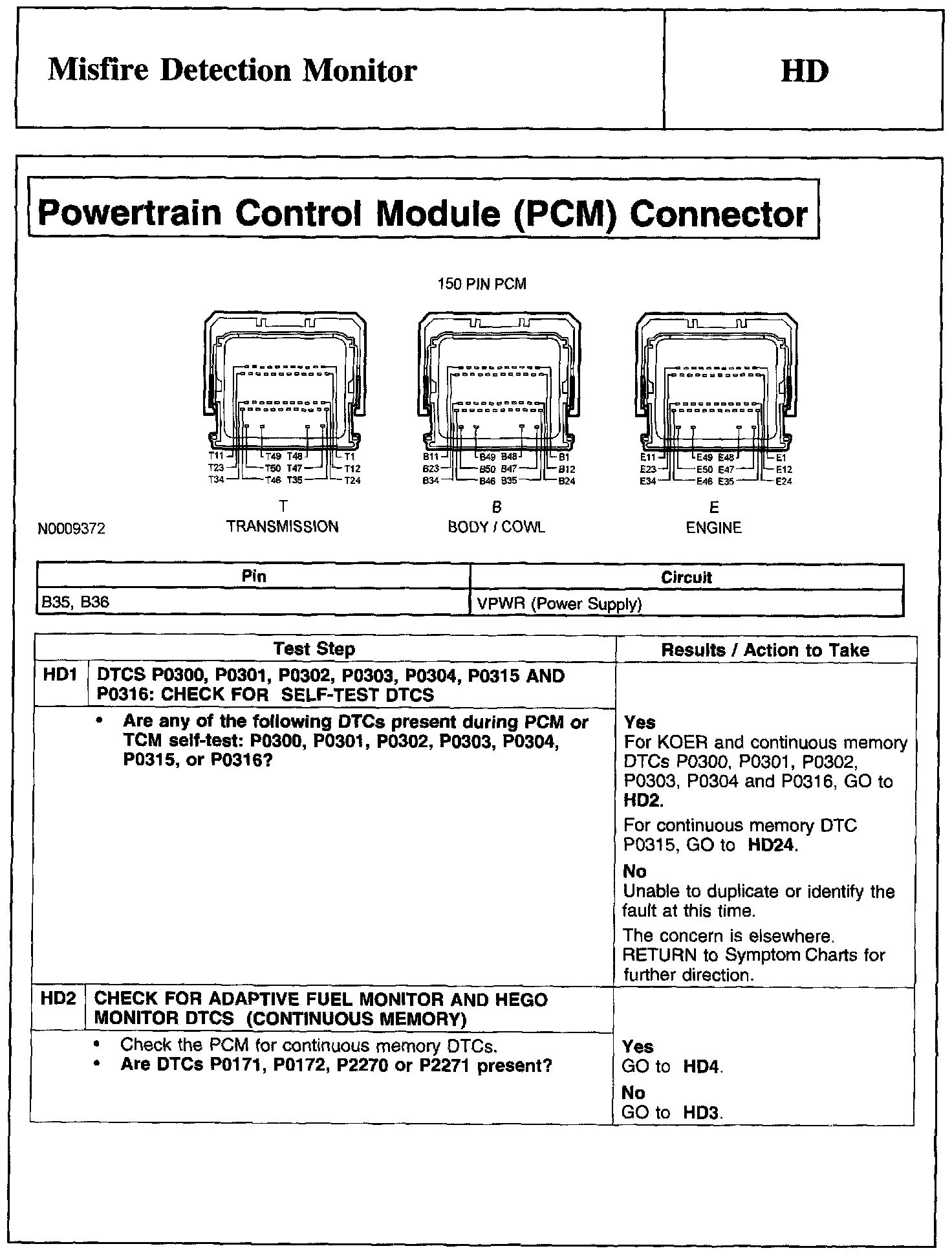

Powertrain Control Module (PCM) Connector And HD1-HD2:

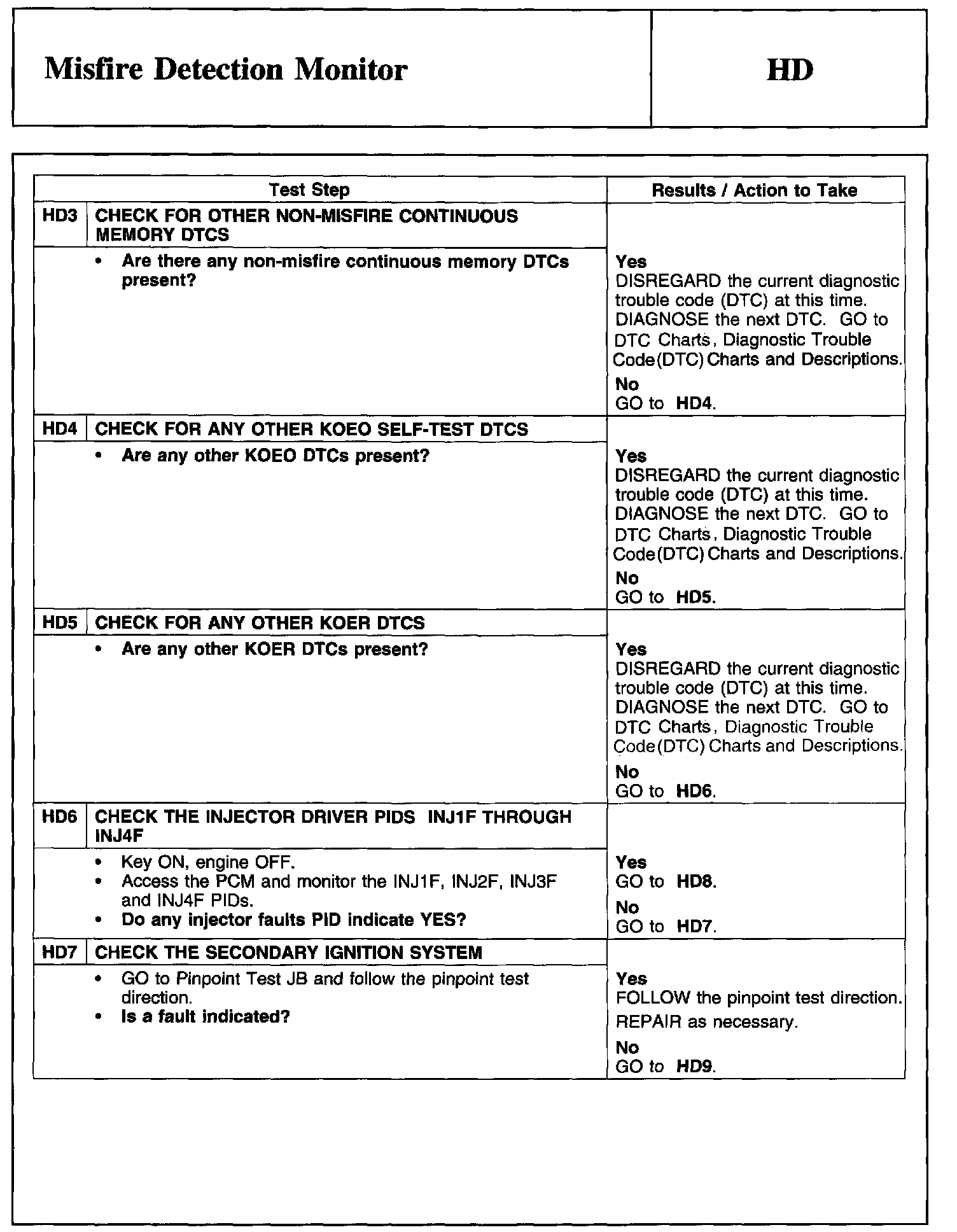

HD3-HD7:

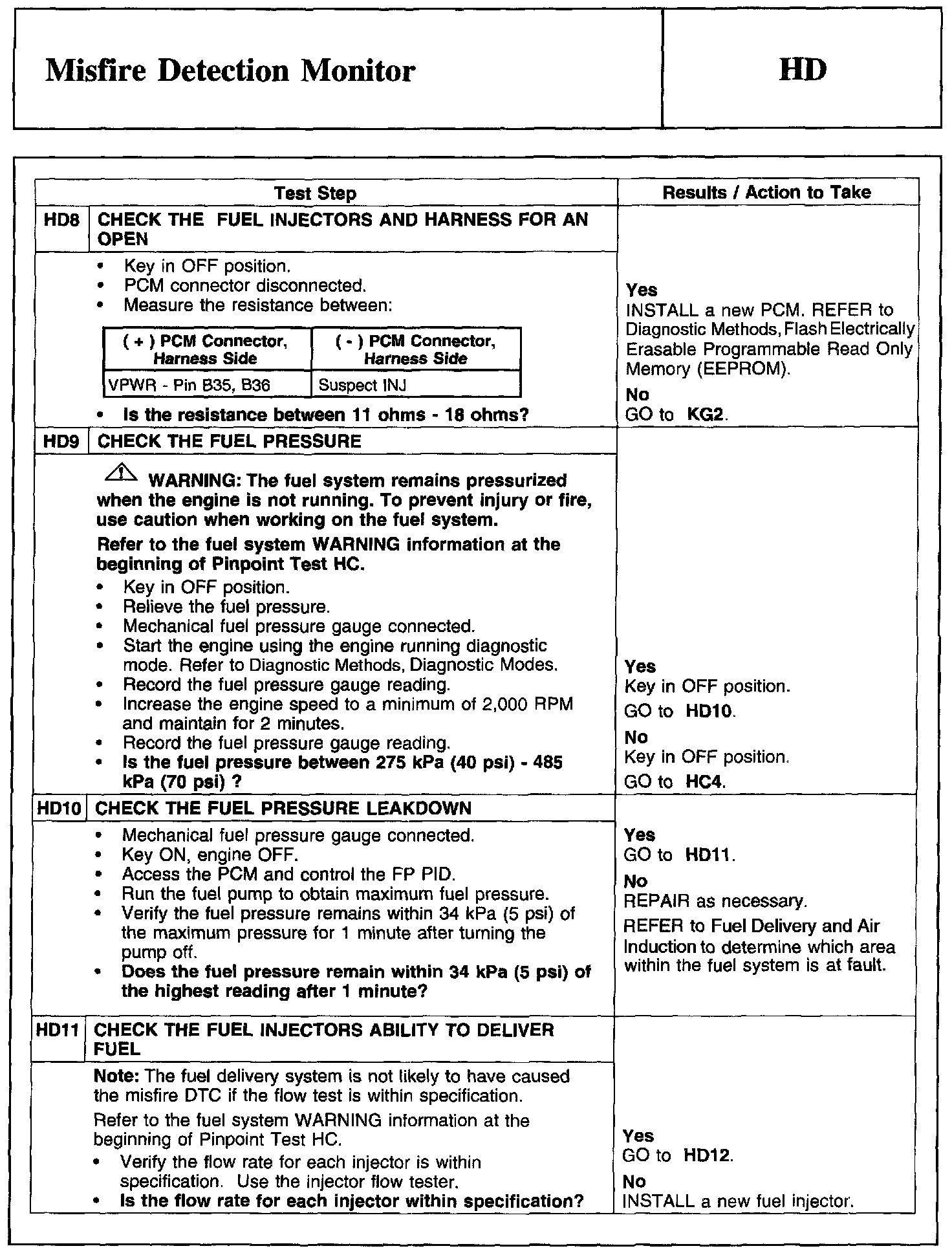

HD8-HD11:

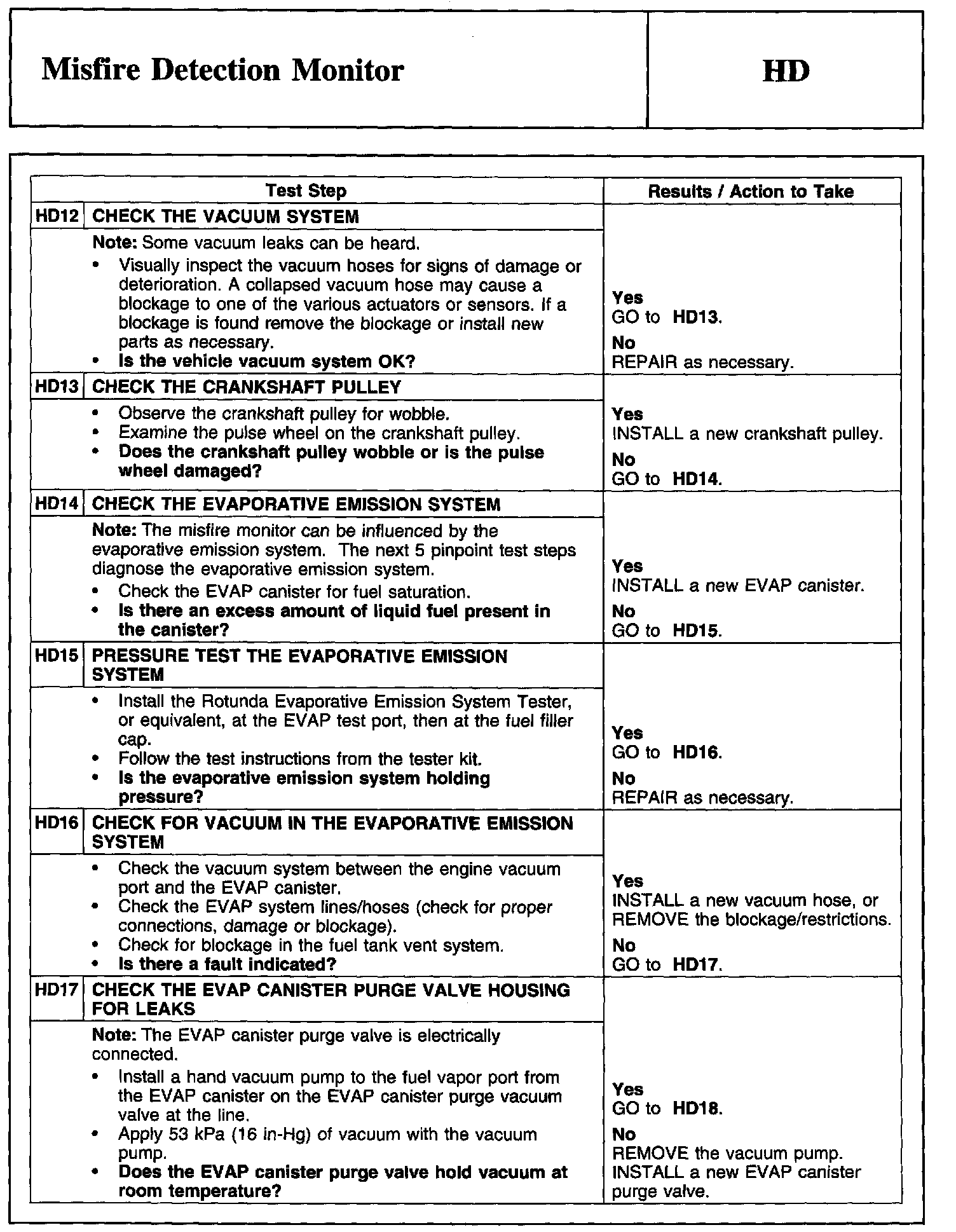

HD12-HD17:

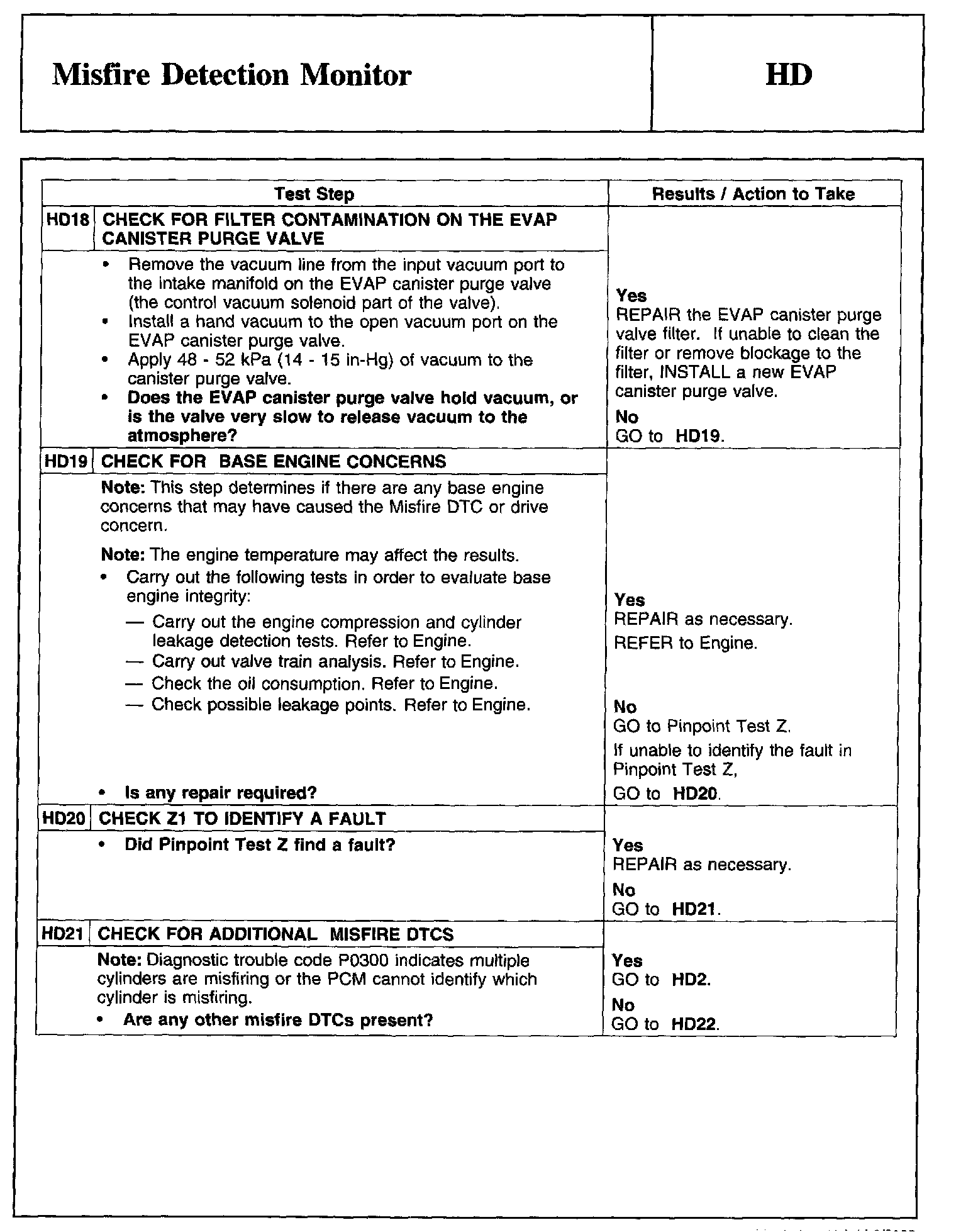

HD18-HD21:

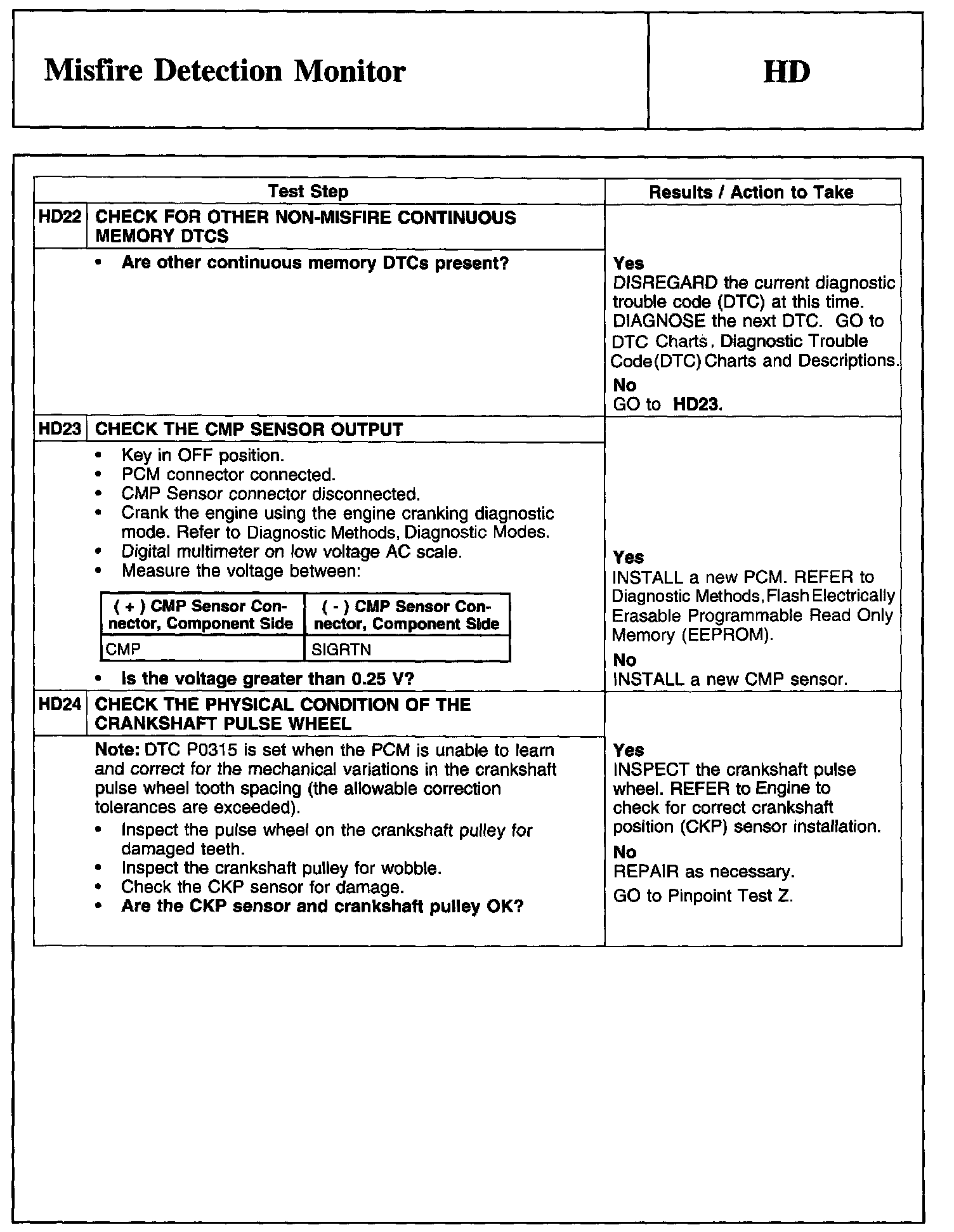

HD22-HD24:
