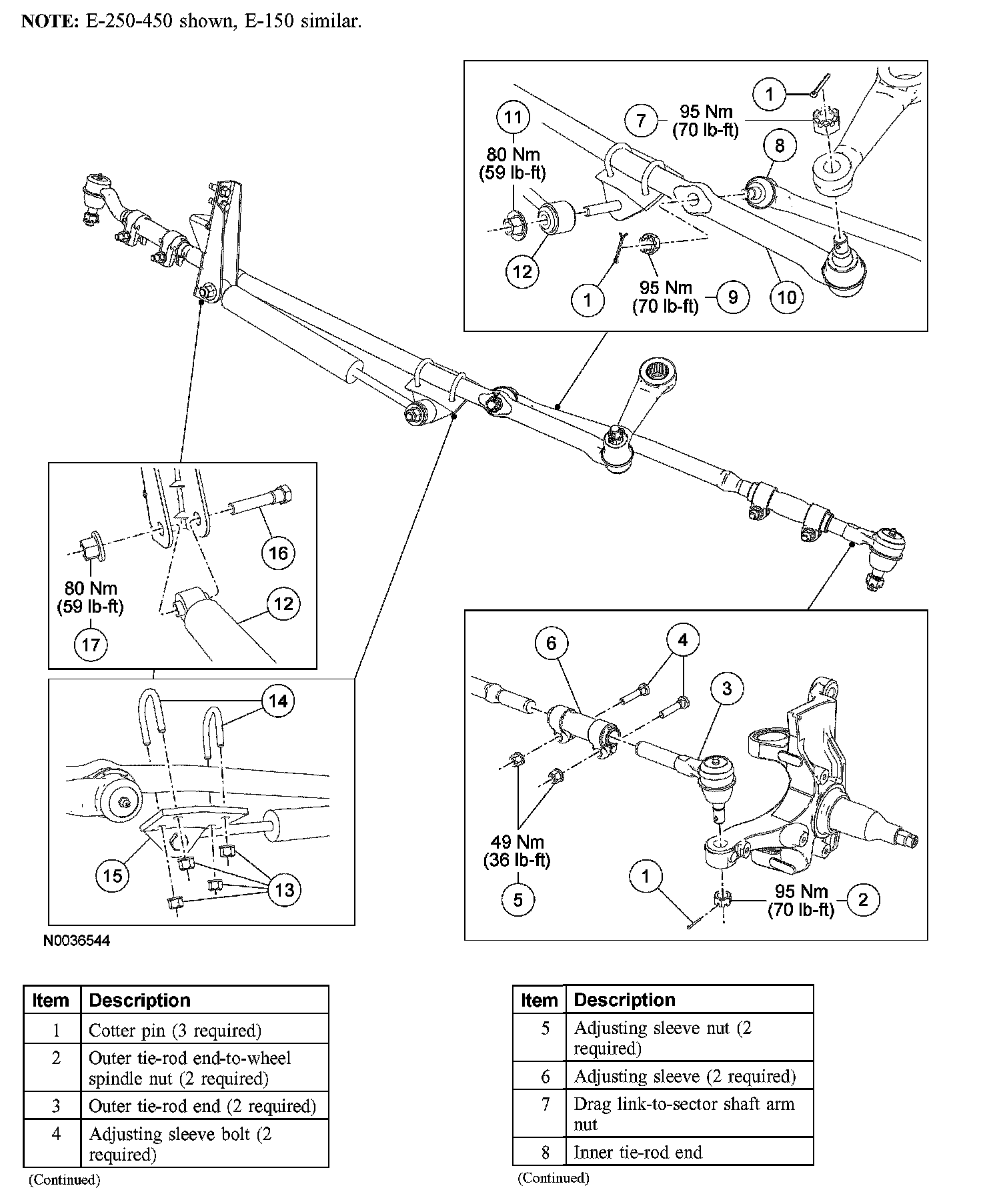

Steering Linkage - Exploded View
Steering
Linkage - Exploded View
NOTE: E-250-450 shown, E-150 similar. (Part 1):
NOTE: E-250-450 shown, E-150 similar. (Part 2):
