System Diagram

Engine Components - Exploded View

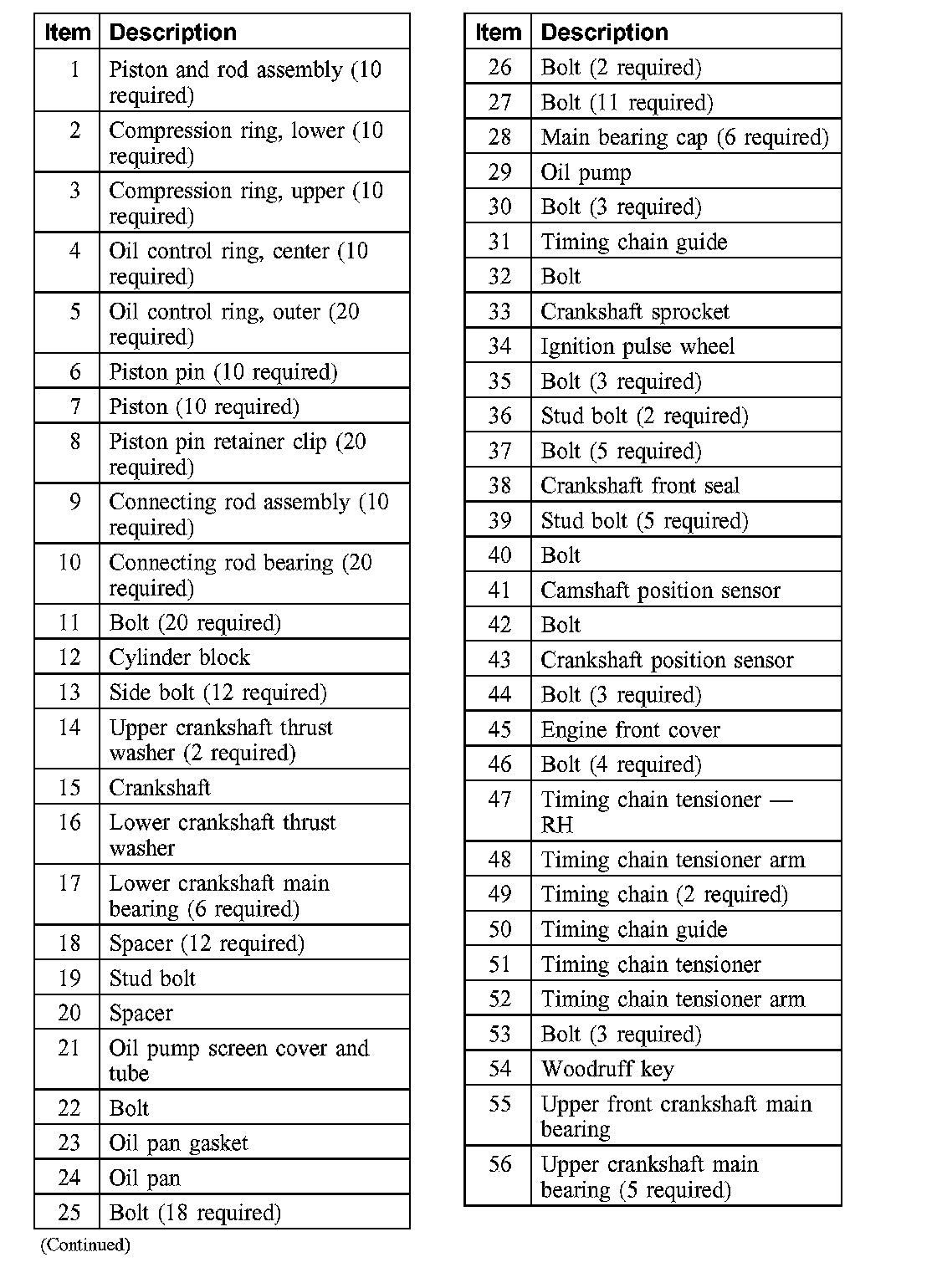

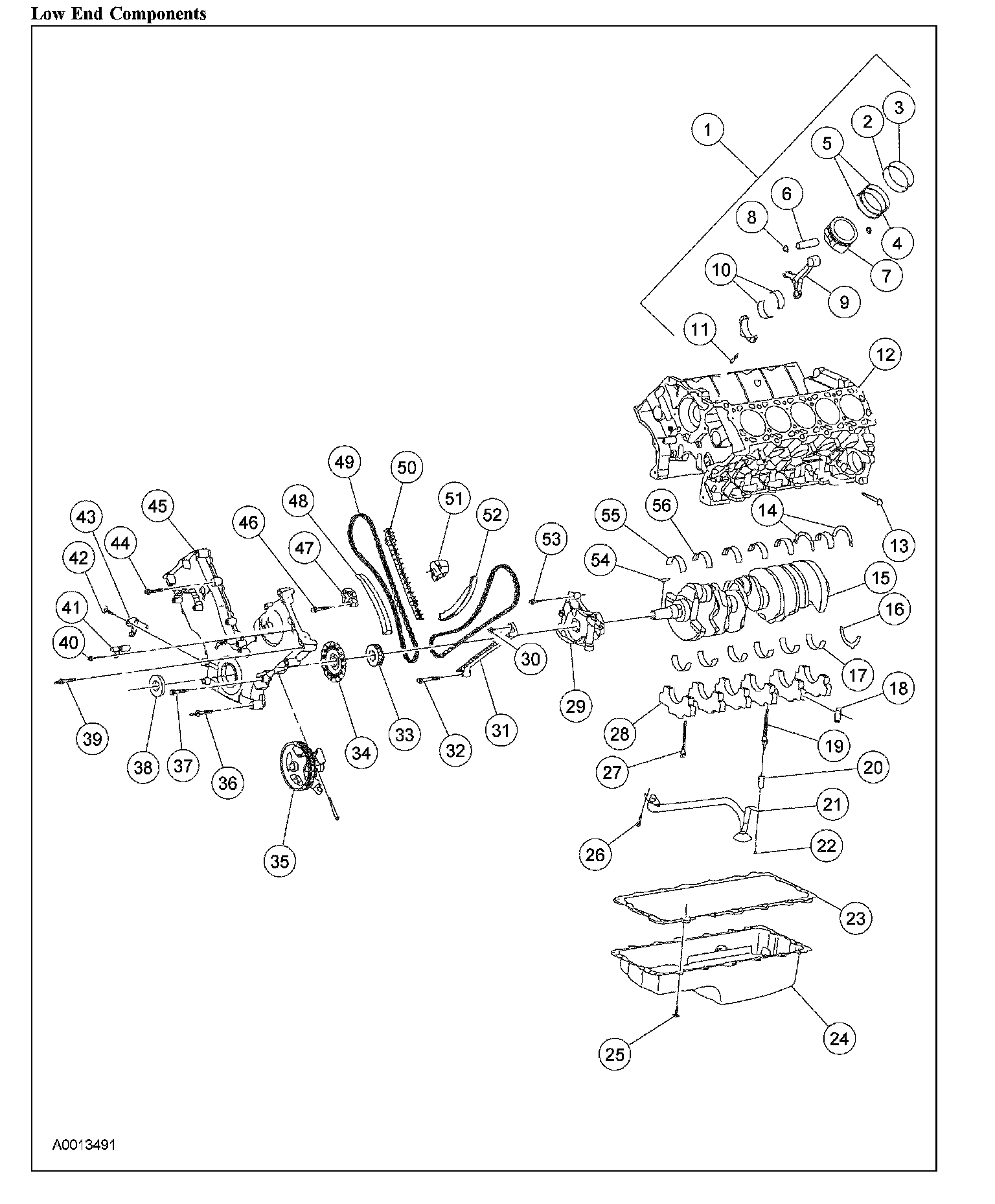

Low End Components:




Low End Components:

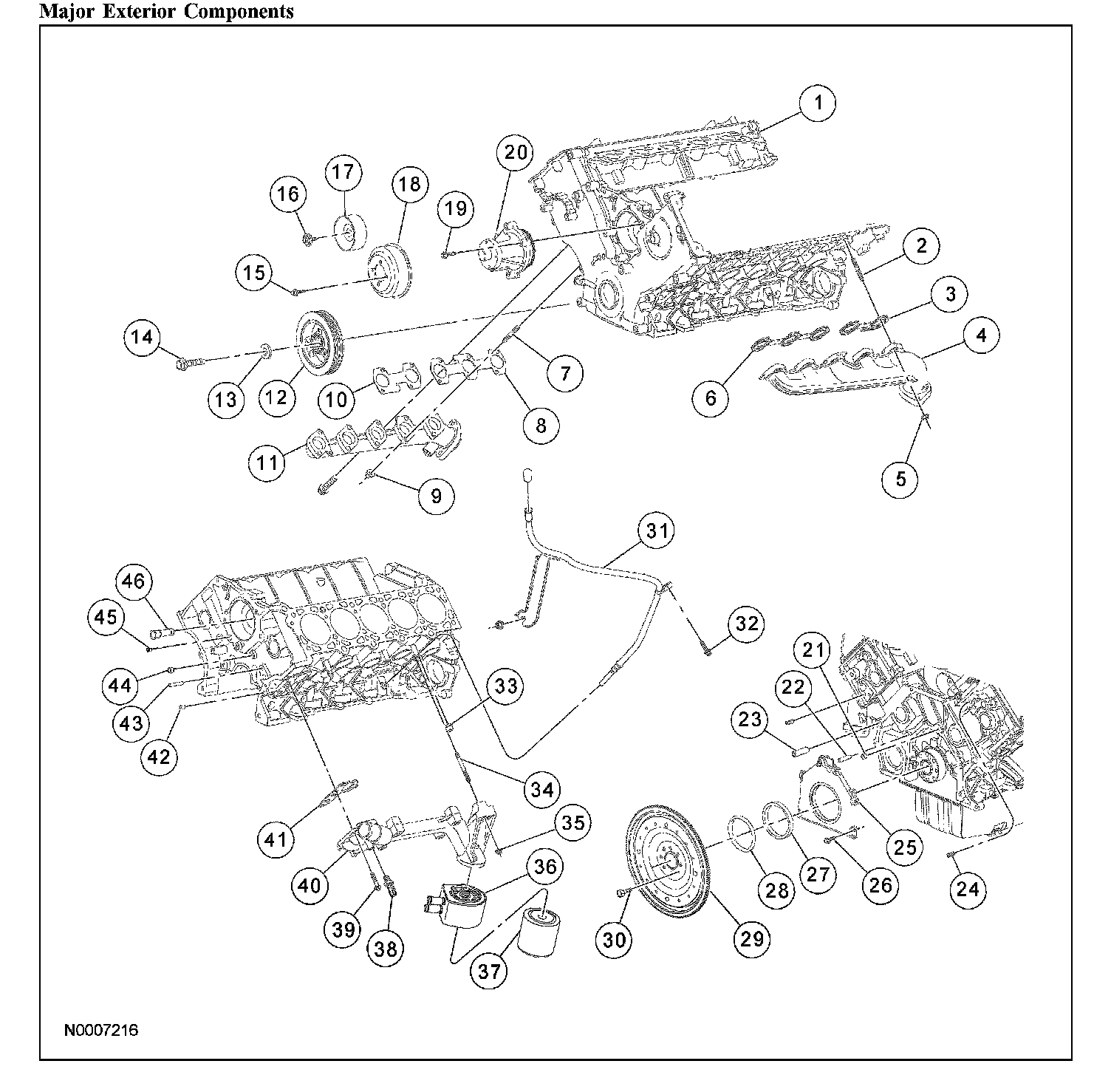

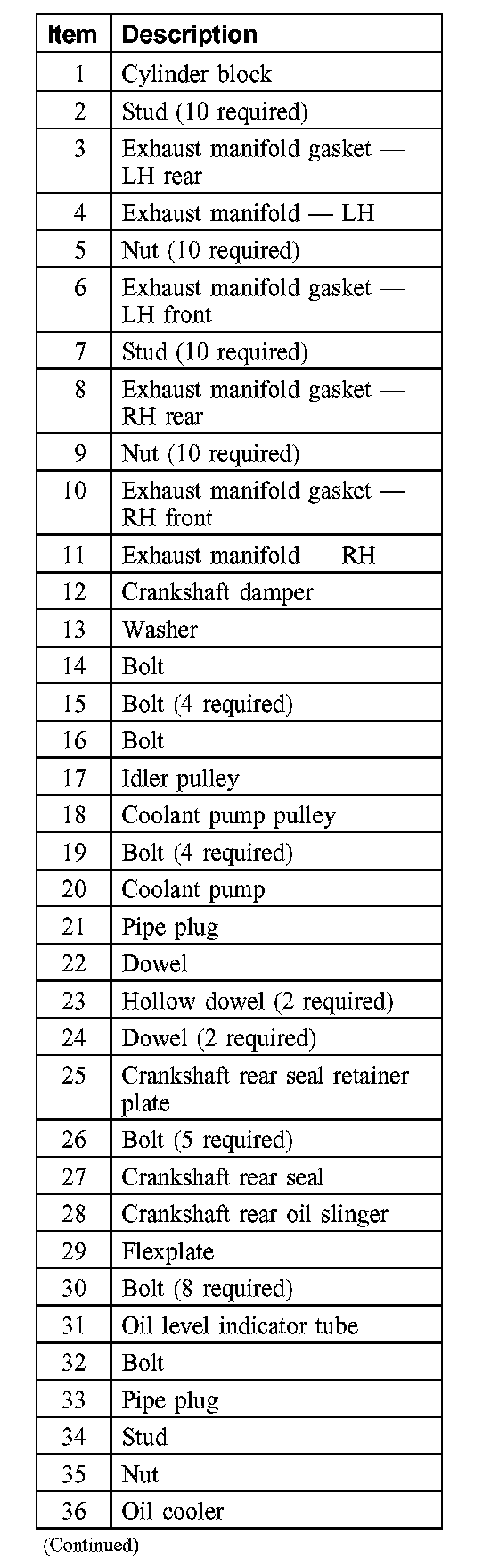

Major Exterior Components:




Major Exterior Components:




Major Exterior Components:
