Pressure Feedback Exhaust Sensor: Service and Repair

DIFFERENTIAL PRESSURE FEEDBACK EXHAUST GAS RECIRCULATION (EGR) SYSTEM

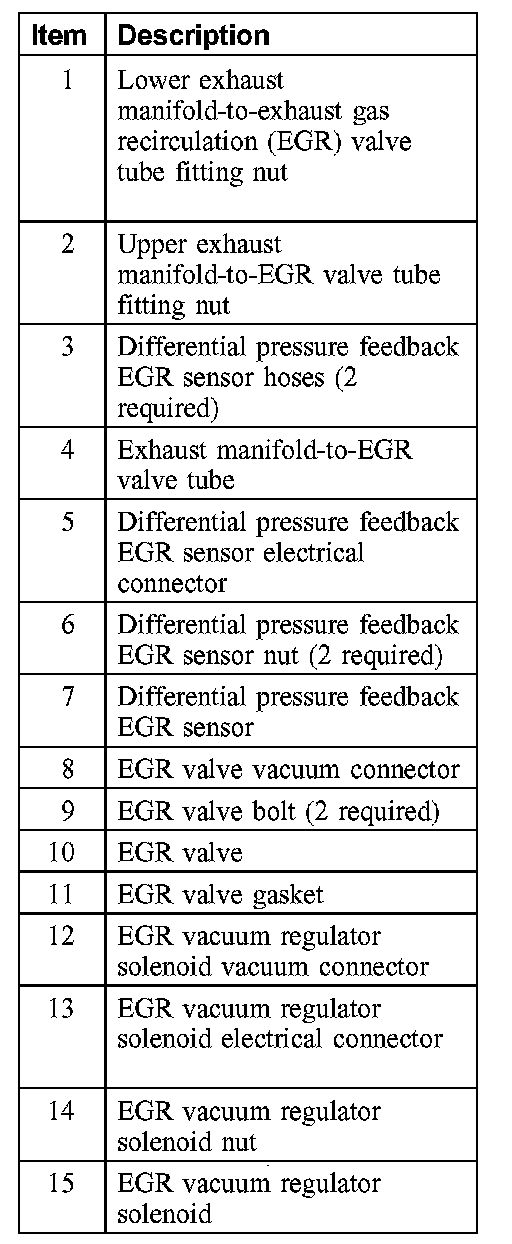

Part 1:

Part 2:

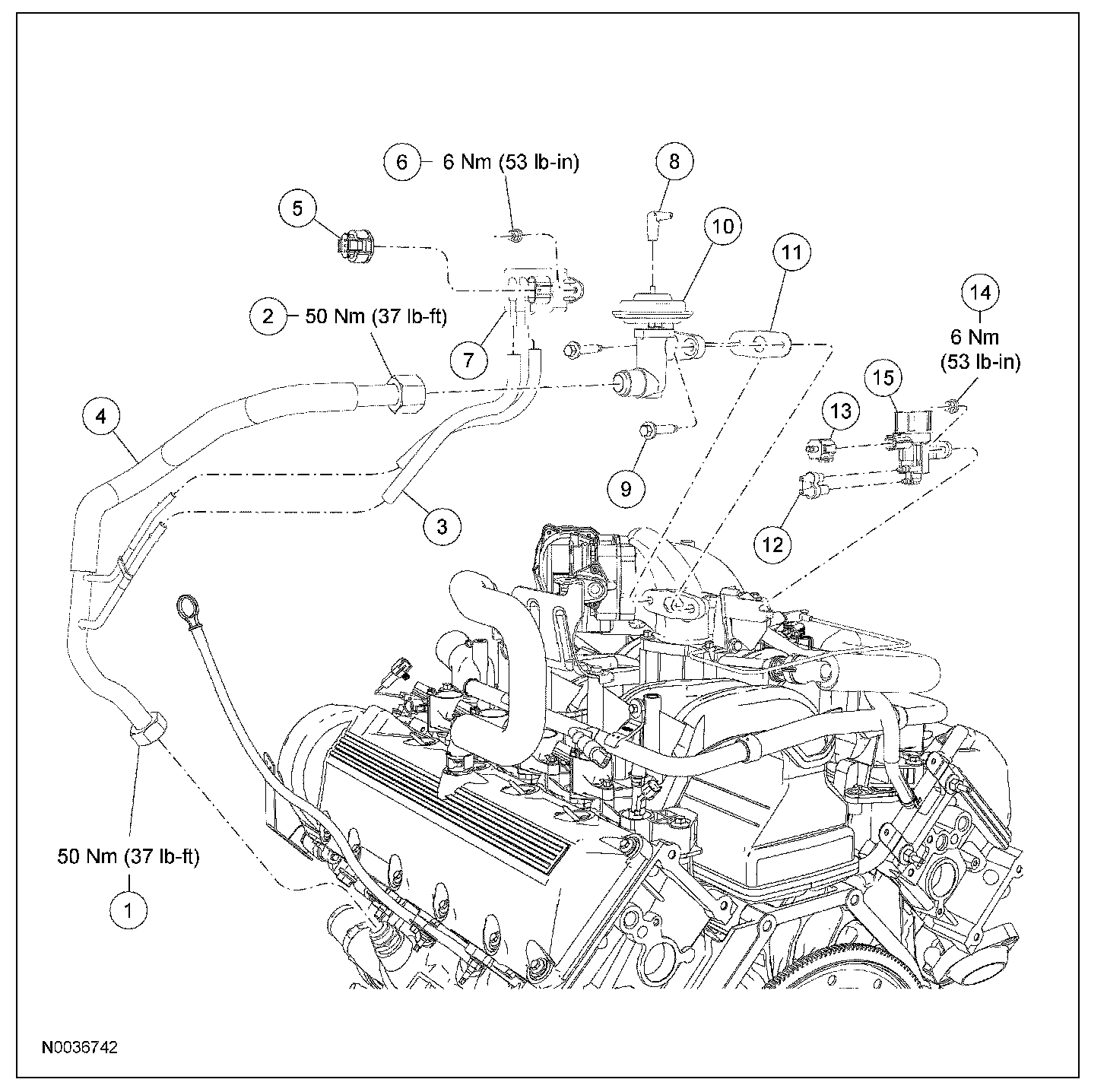

Exploded View

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the engine cover.
3. Disconnect the differential pressure feedback exhaust gas recirculation (EGR) sensor electrical connector.
4. Disconnect the 2 differential pressure feedback EGR sensor hoses.
5. Remove the 2 nuts and the differential pressure feedback EGR sensor.
- To install, tighten to 6 Nm (53 lb-in).

6. To install, reverse the removal procedure.
