Ignition Switch: Service and Repair

Ignition Switch





Removal and Installation
1. Depower the supplemental restraint system (SRS).





2. Pull the steering column opening cover off the lower instrument panel.

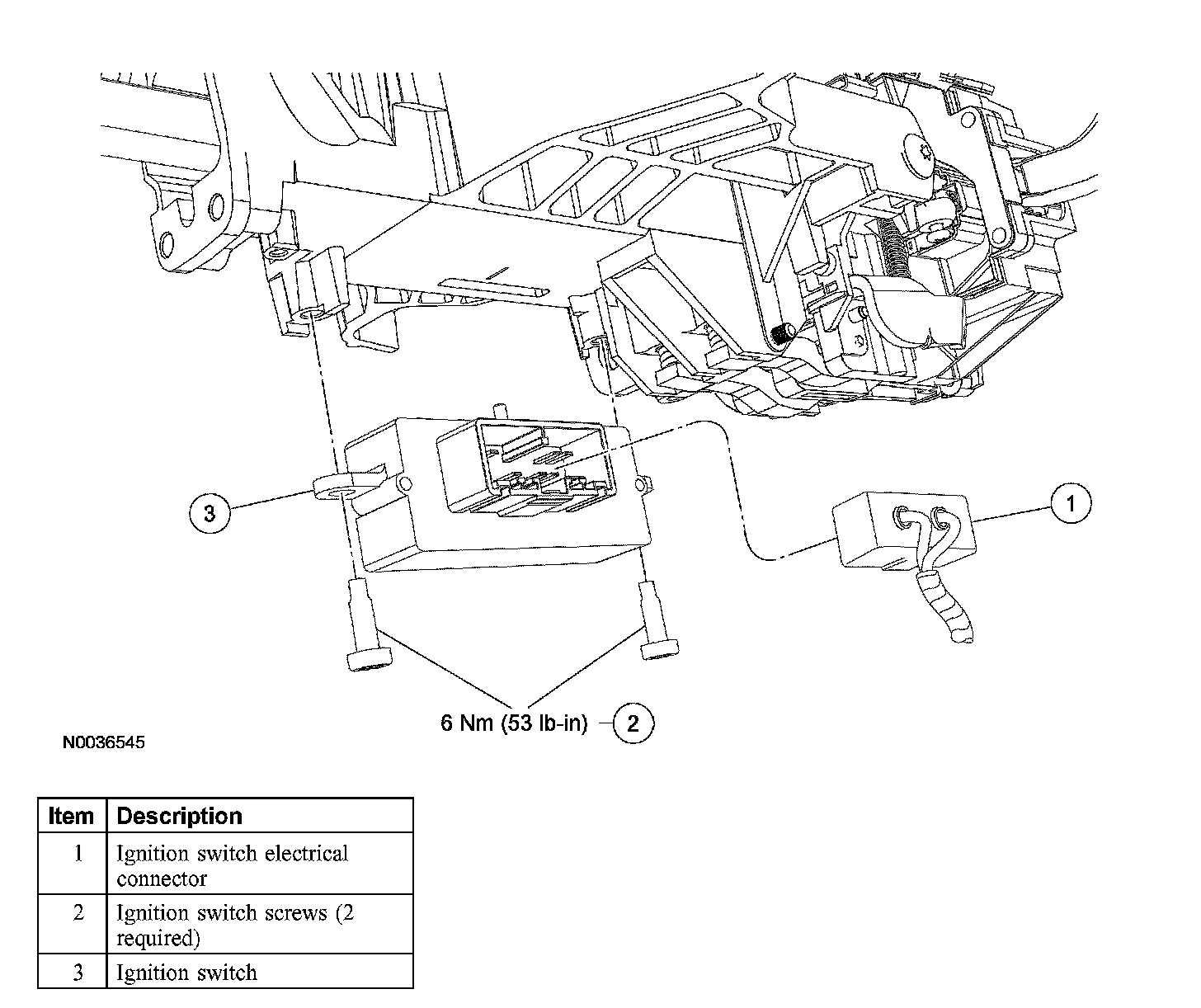

3. Disconnect the ignition switch electrical connector.
4. Remove the 2 ignition switch screws and the ignition switch.
^ To install, align the ignition switch with the slot and index mark on the steering column and tighten the screws to 6 Nm (53 inch lbs.).
5. To install, reverse the removal procedure.
6. Repower the supplemental restraint system (SRS).
