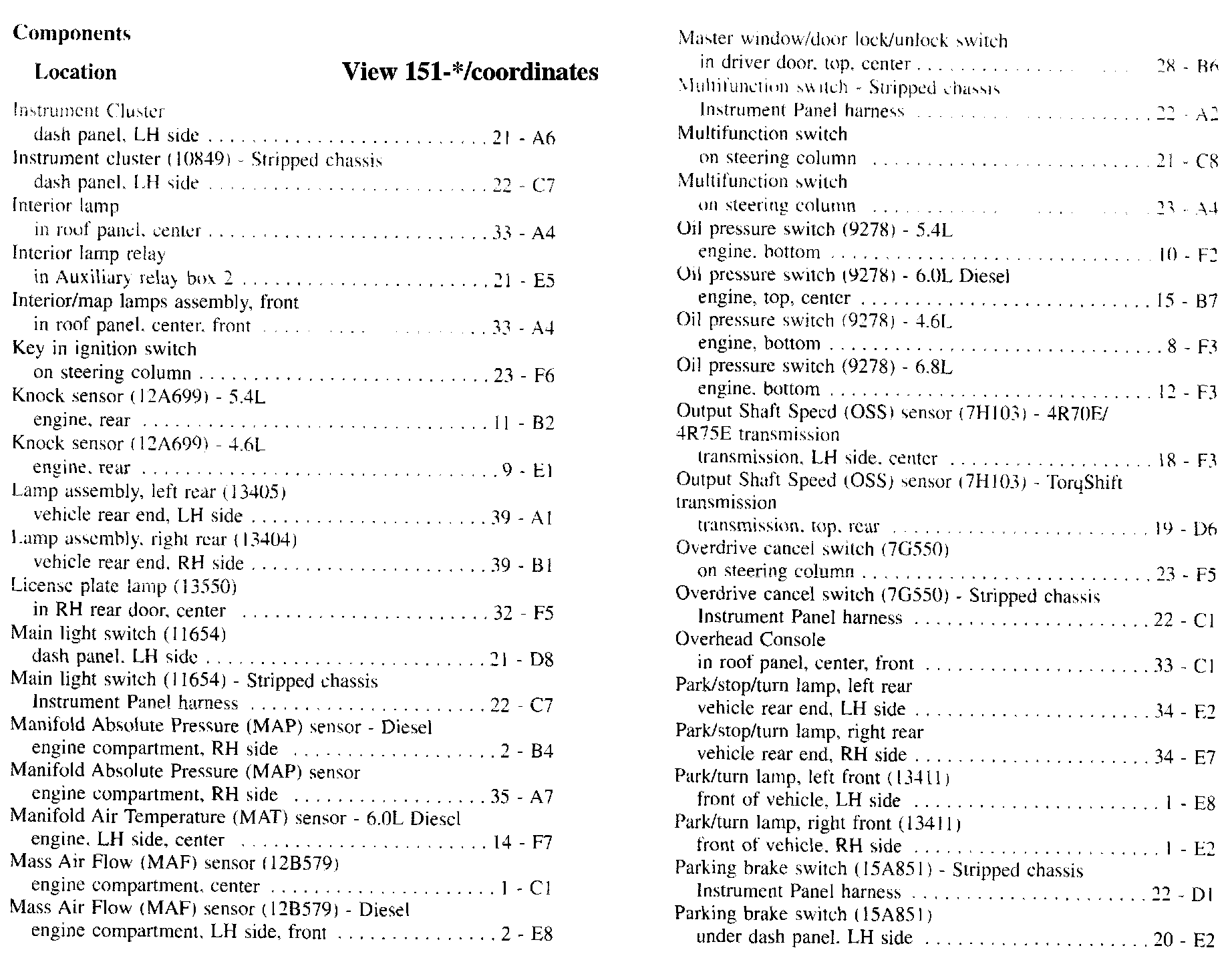

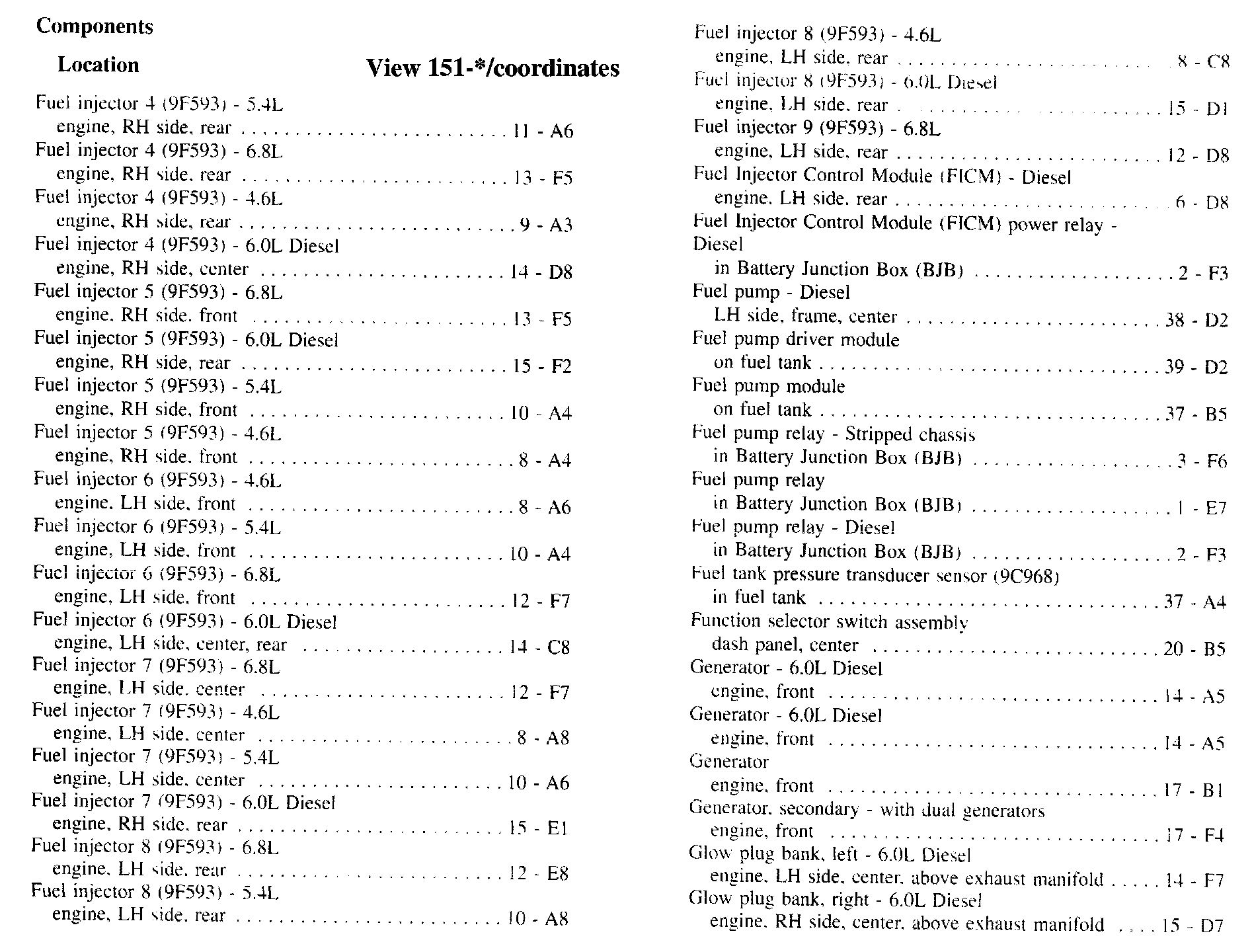

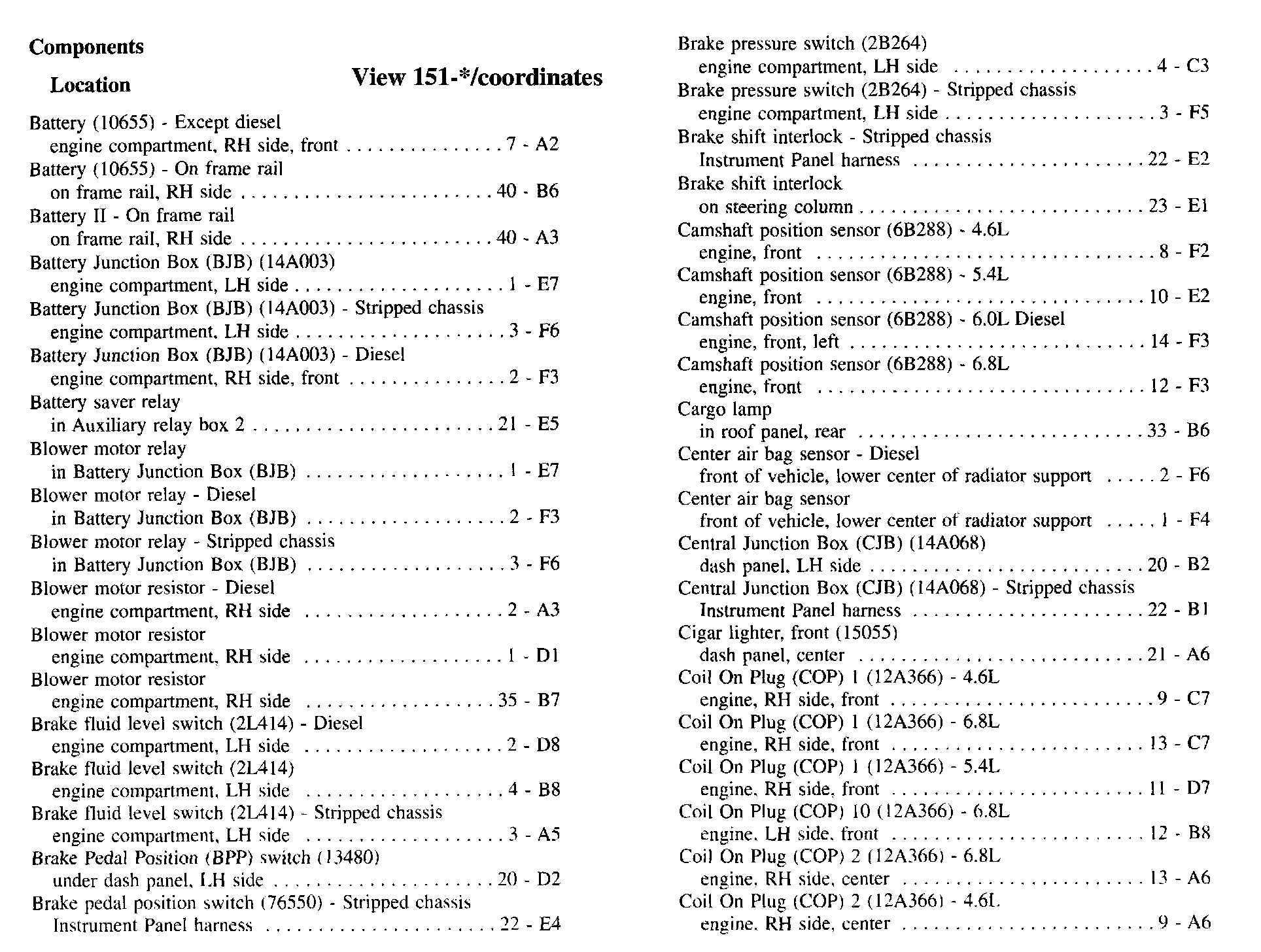

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

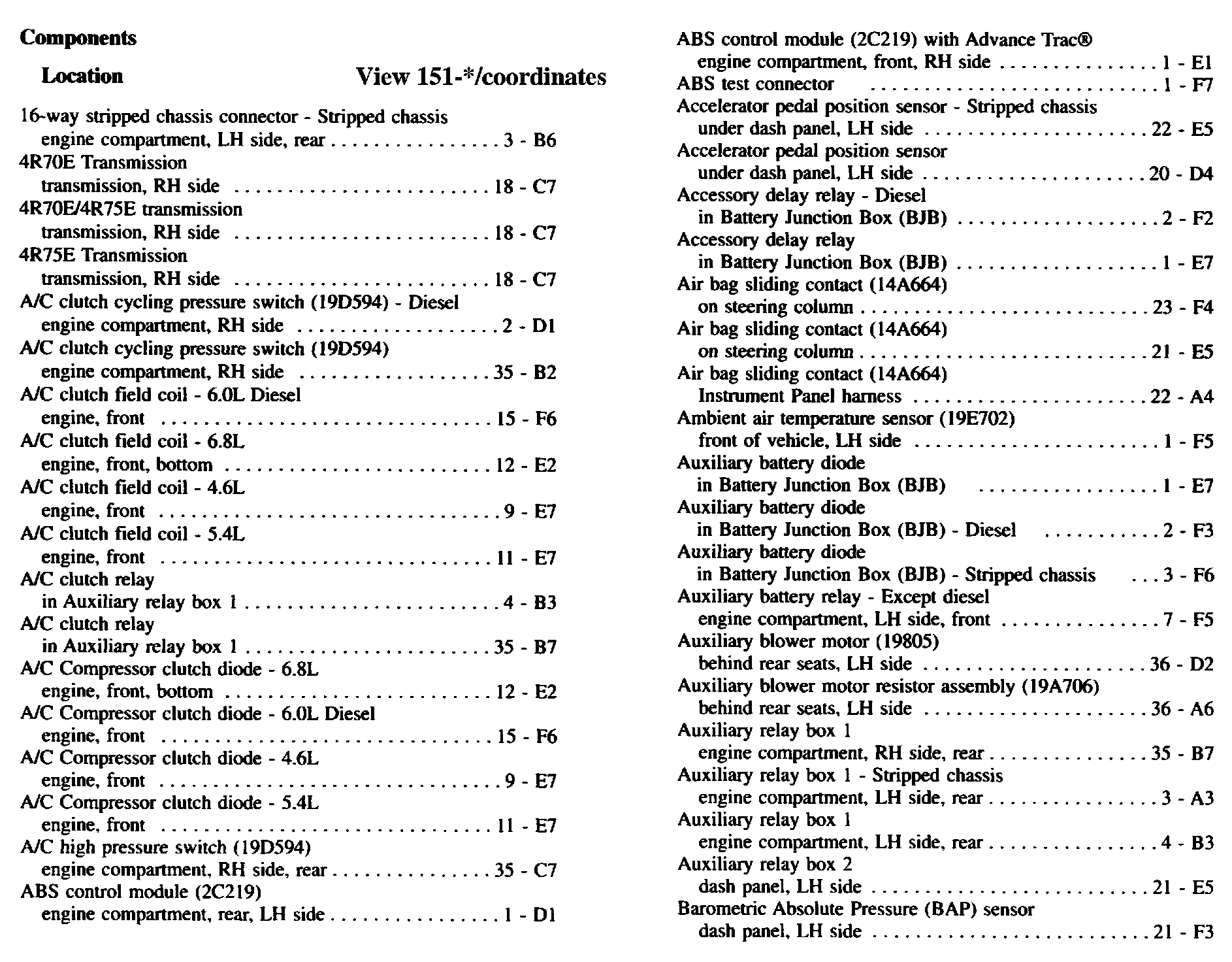

16-Ba:
Ba-Co:

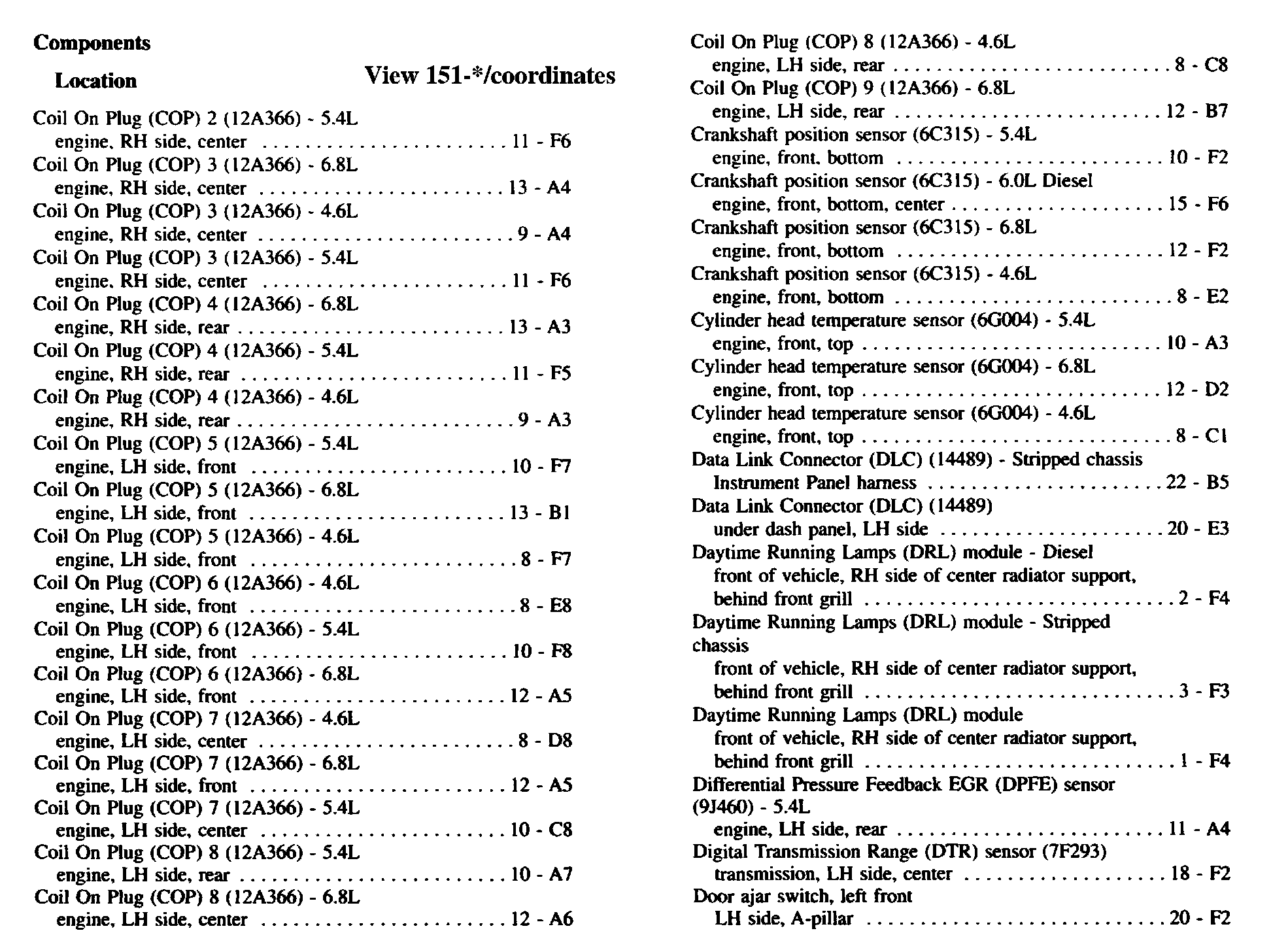

Co-Do:

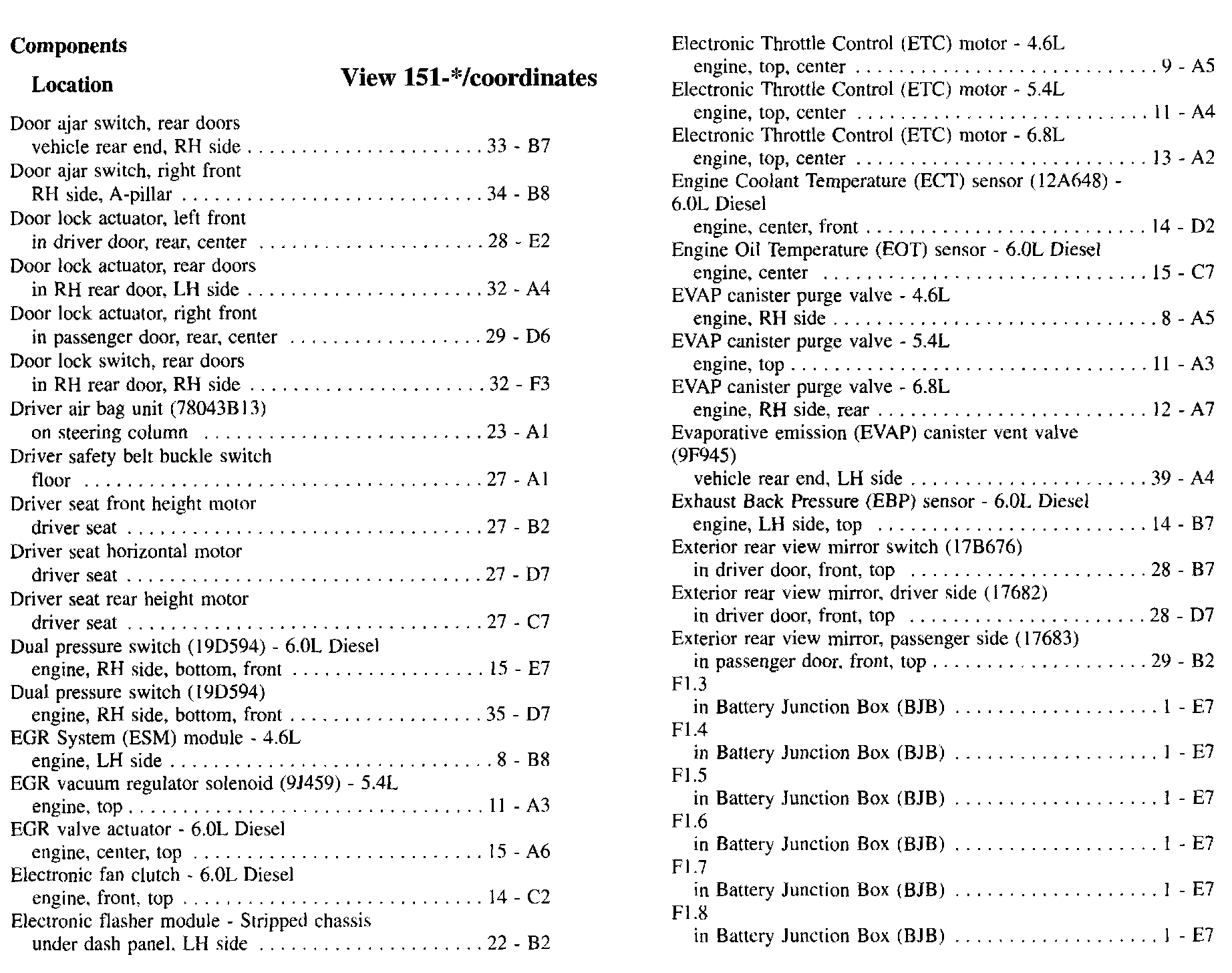

Do-F1.8:

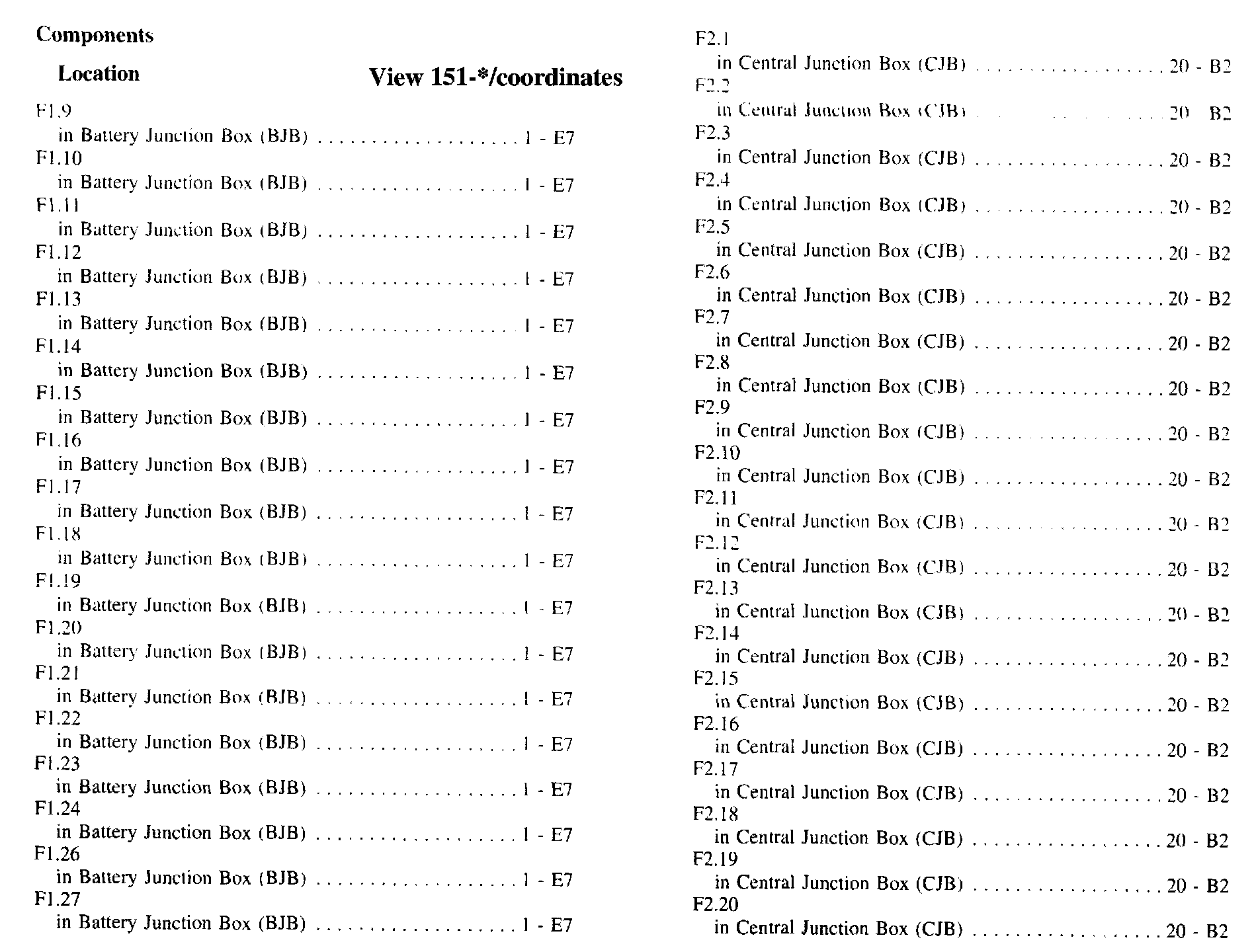

F1.9-F2.20:

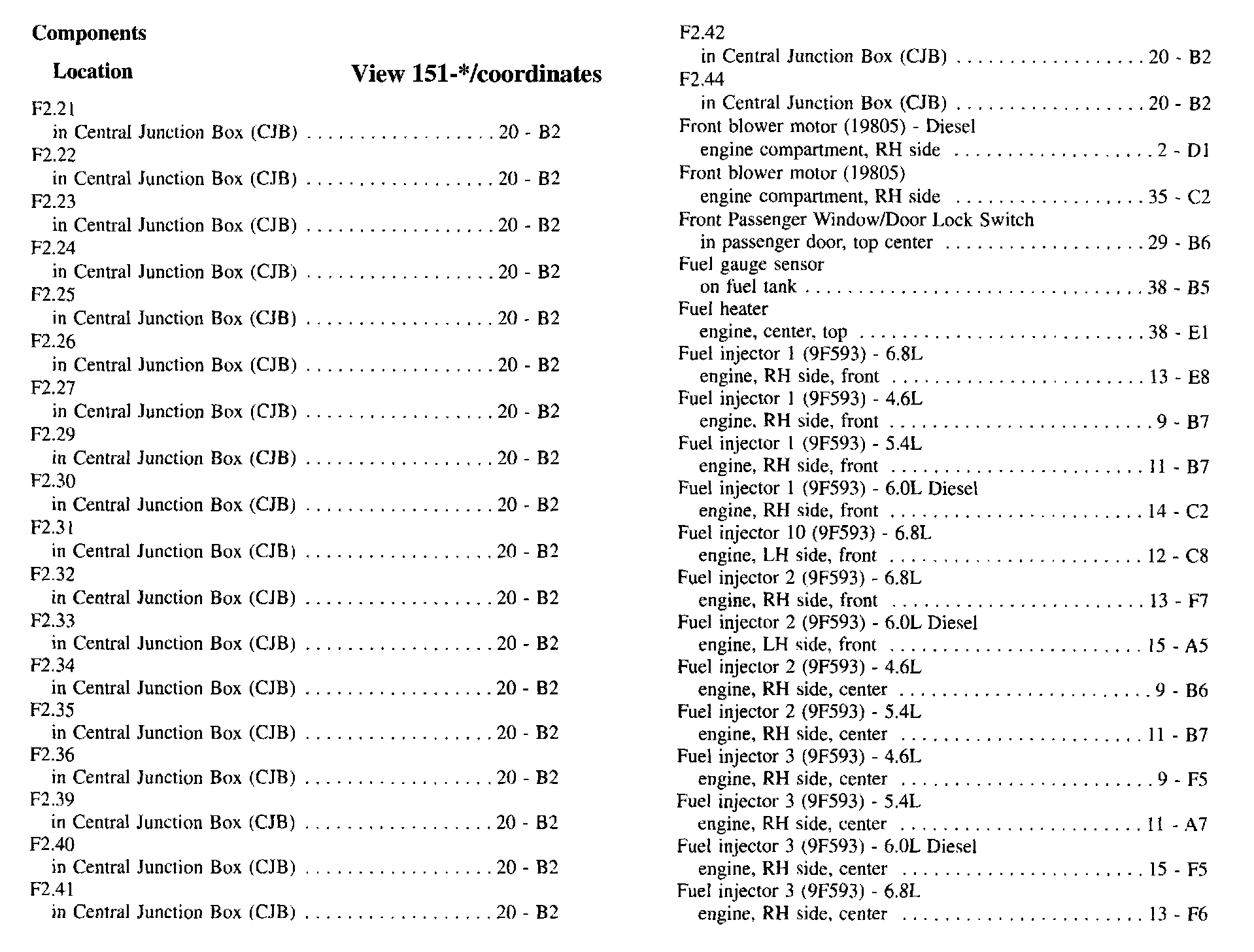

F2.21-Fu:
Fu-Gl:

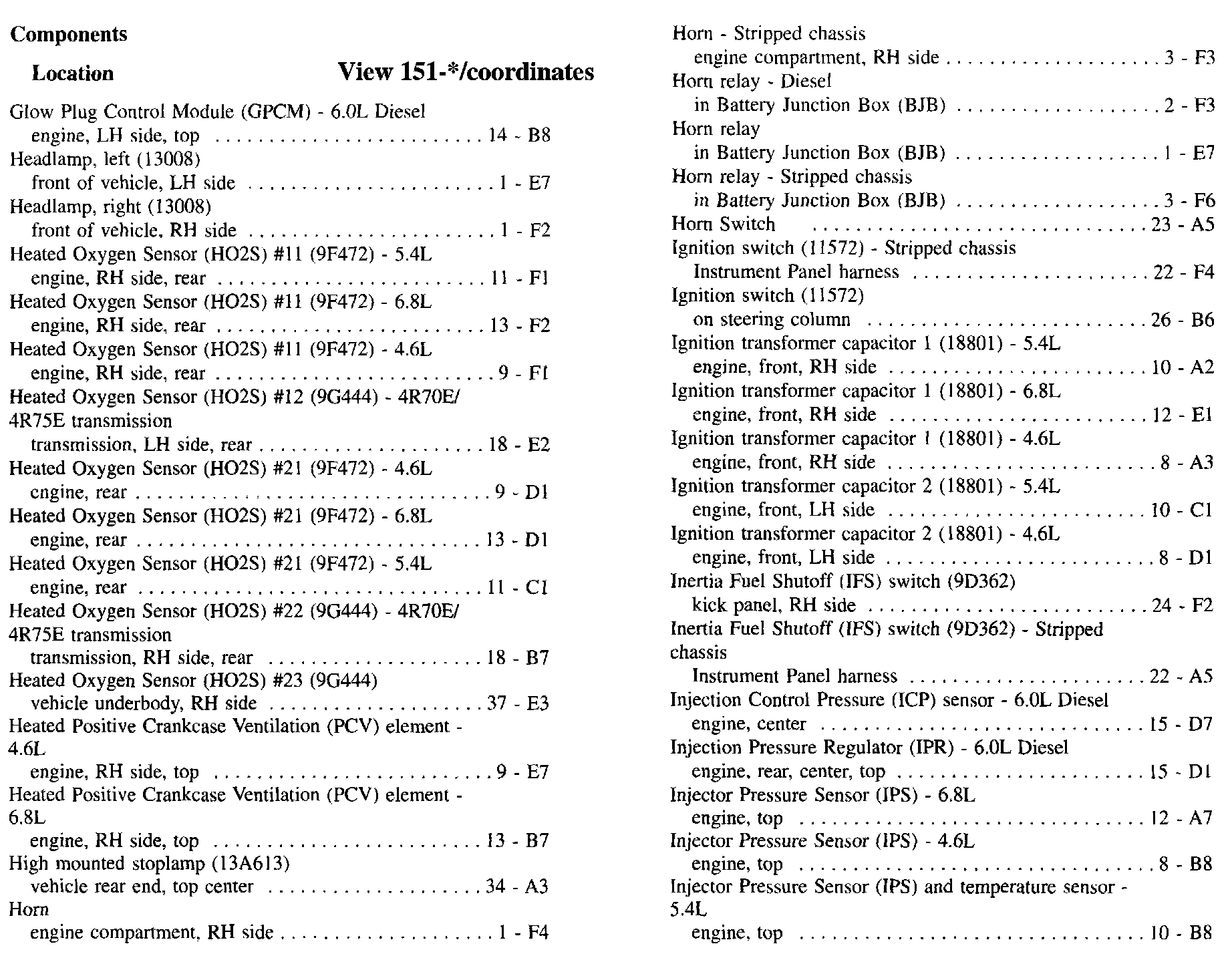

Gl-In:
In-Pa:

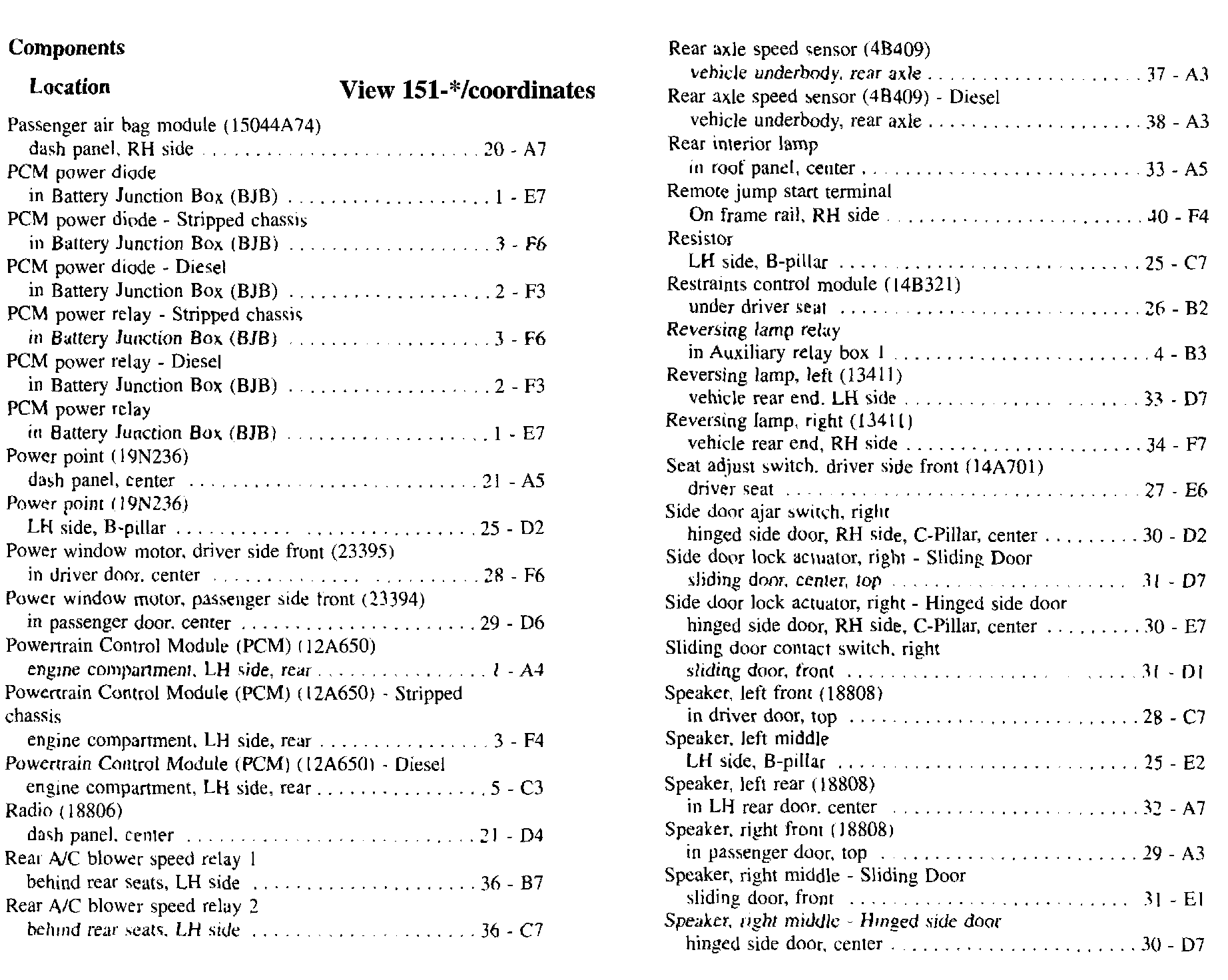

Pa-Sp:

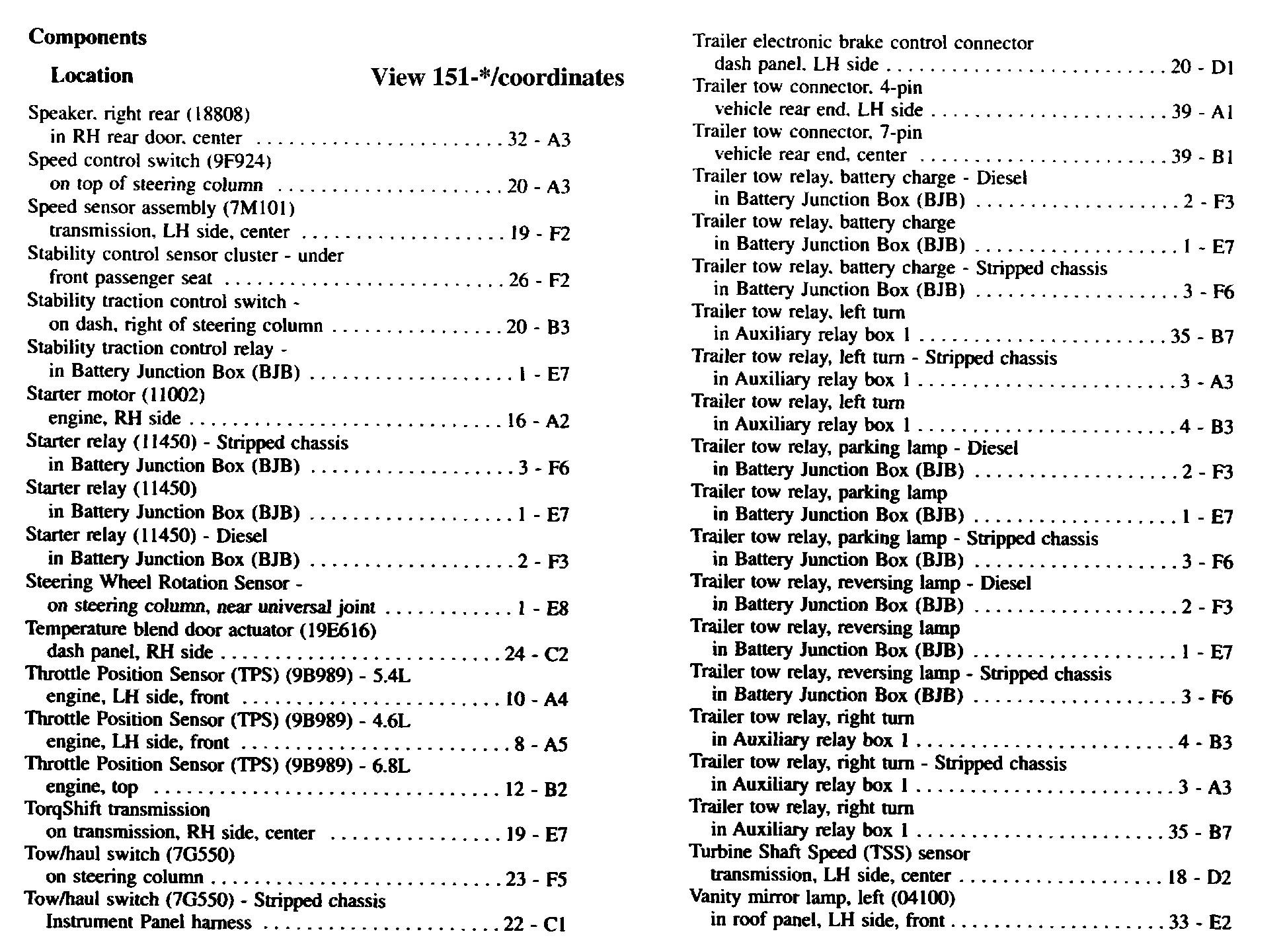

Sp-Va:

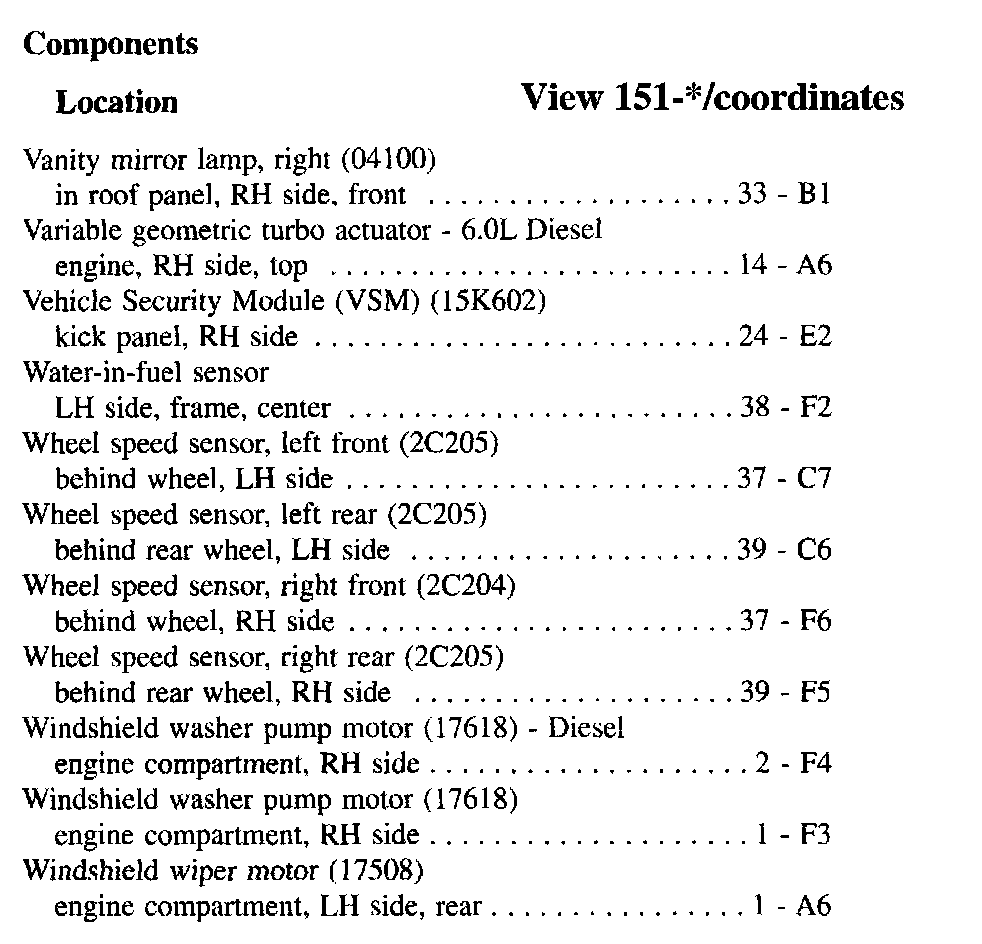

Va-Wi:
