Electronic Brake Control Module: Service and Repair

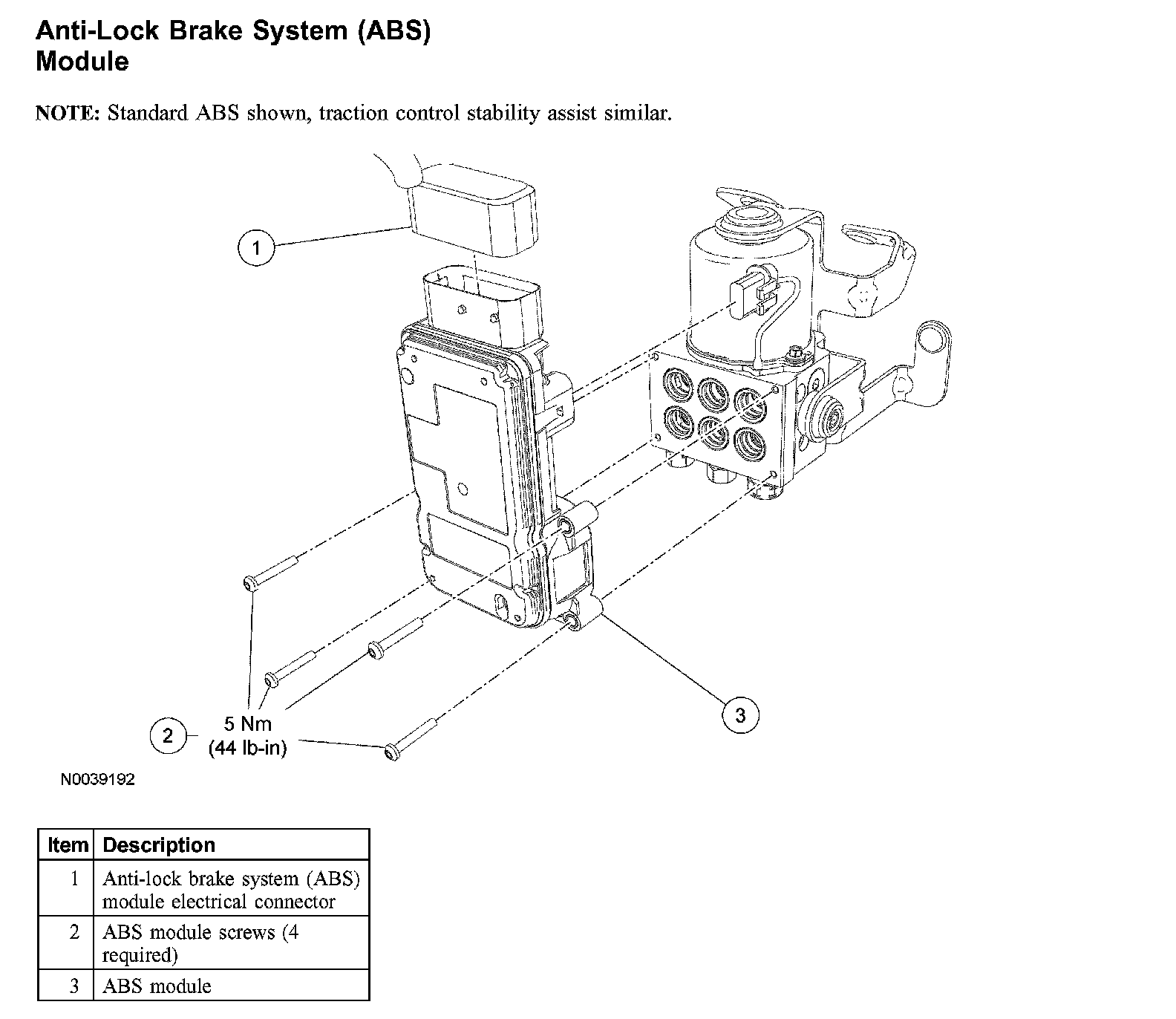

Anti-Lock Brake System (ABS) ModuleAnti-Lock Brake System (ABS) Module:
NOTE: Standard ABS shown, traction control stability assist similar.
Removal and Installation
1. Disconnect the battery ground. For additional information, refer to Battery.
2. Remove the 3 bolts and position the degas bottle aside.
^ To install, tighten to 10 Nm (89 inch lbs.).
3. Remove the 4 screws and position the ABS module to gain access to the electrical connector.
^ To install, tighten to 5 Nm (44 inch lbs.).
4. Disconnect the ABS module electrical connector.
^ Release the lock tab.
^ Pull the connector from the module.
5. Remove the ABS module.
1 Lift the ABS module slightly and disconnect the ABS pump motor electrical connector.
2 Remove the ABS module from the vehicle.
6. To install, reverse the removal procedure.
^ For vehicles with traction control and stability assist, calibrate the ABS module. Follow the diagnostic tool directions. Clear the DTCs. Carry out the self test with the brakes not applied.
