Connector Views

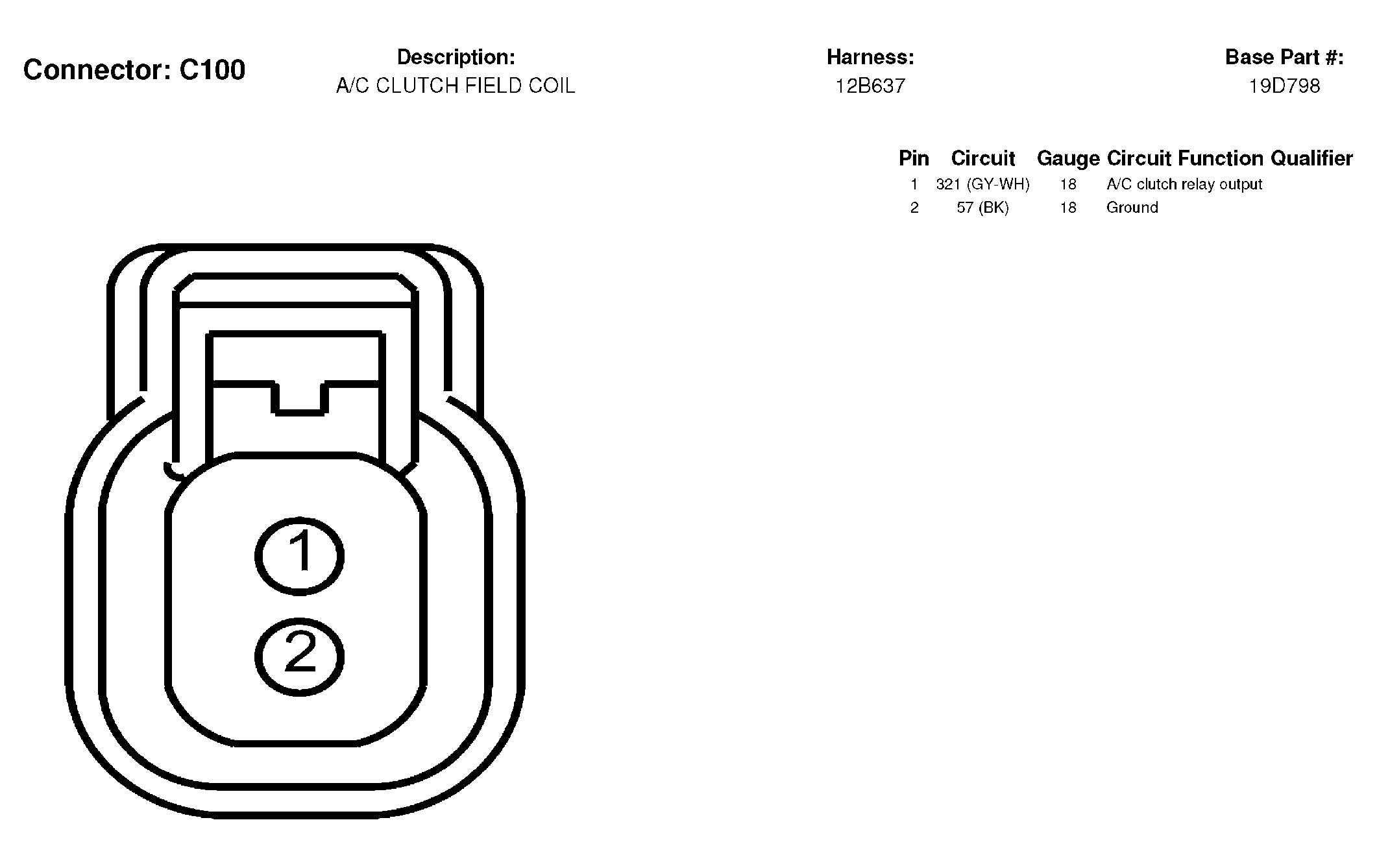

Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.

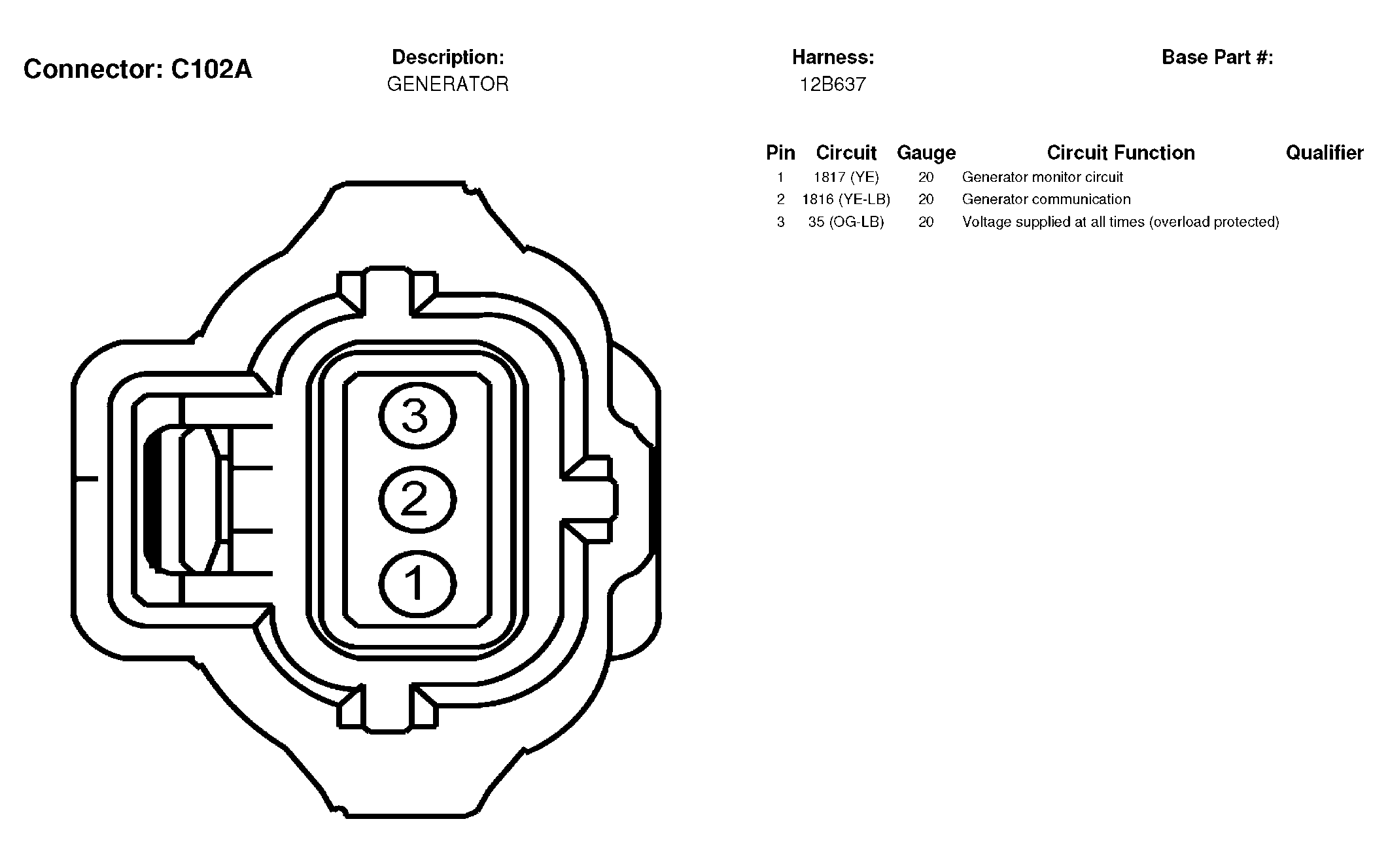

Fig 2: Generator Connector End View (C102A)
Courtesy of FORD MOTOR CO.

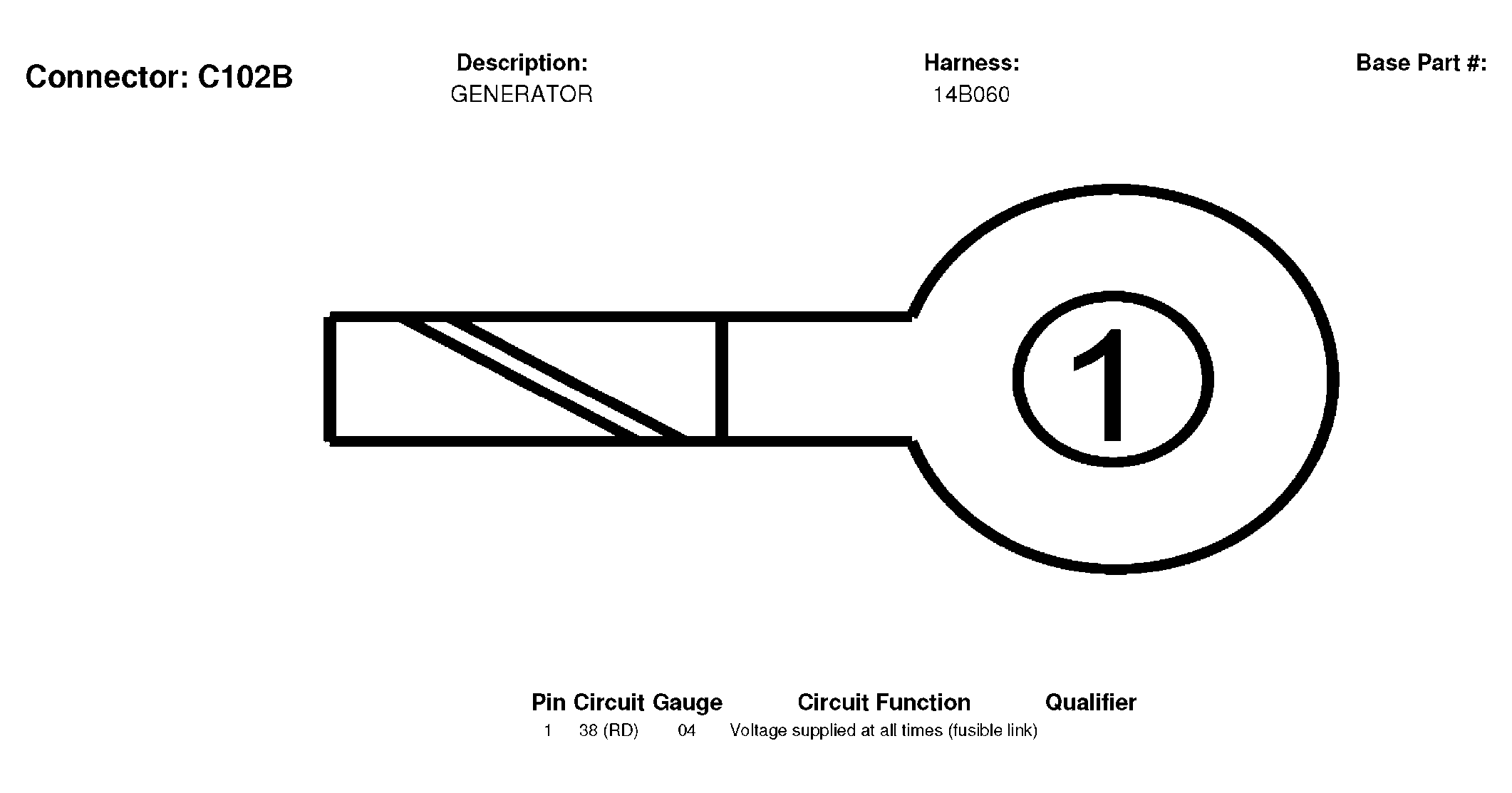

Fig 3: Generator Connector End View (C102B)
Courtesy of FORD MOTOR CO.

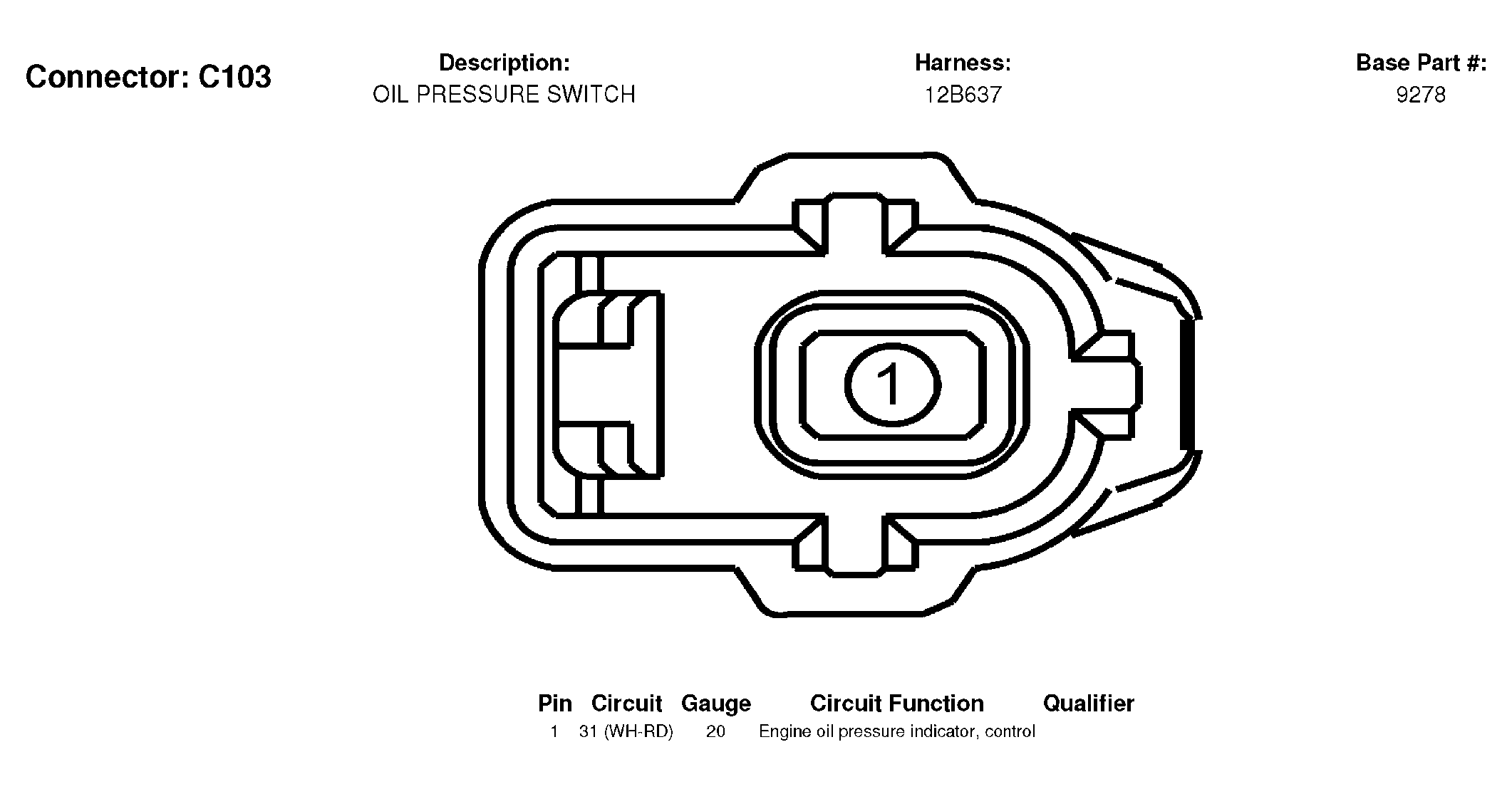

Fig 4: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.

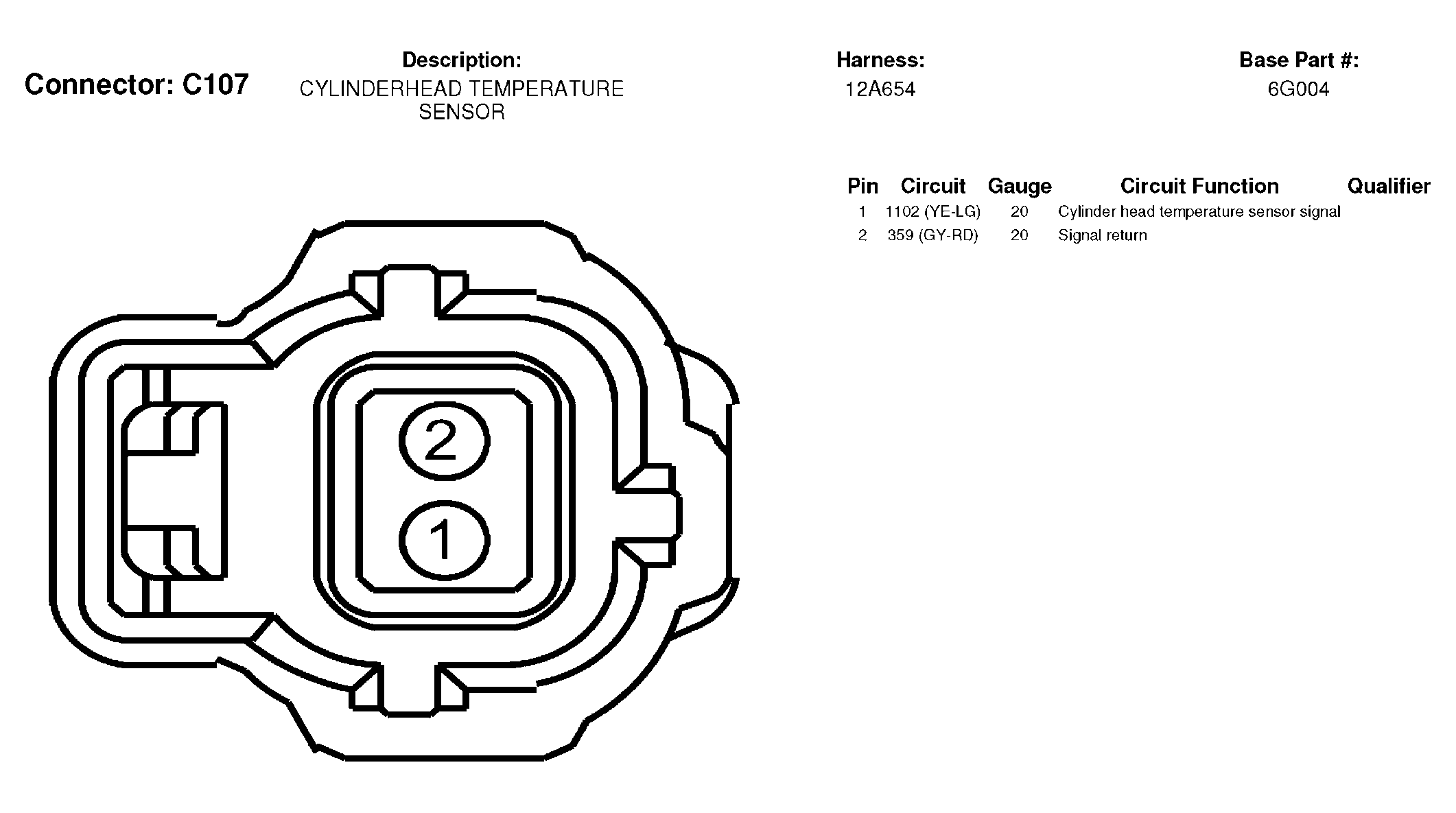

Fig 5: Cylinder Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.

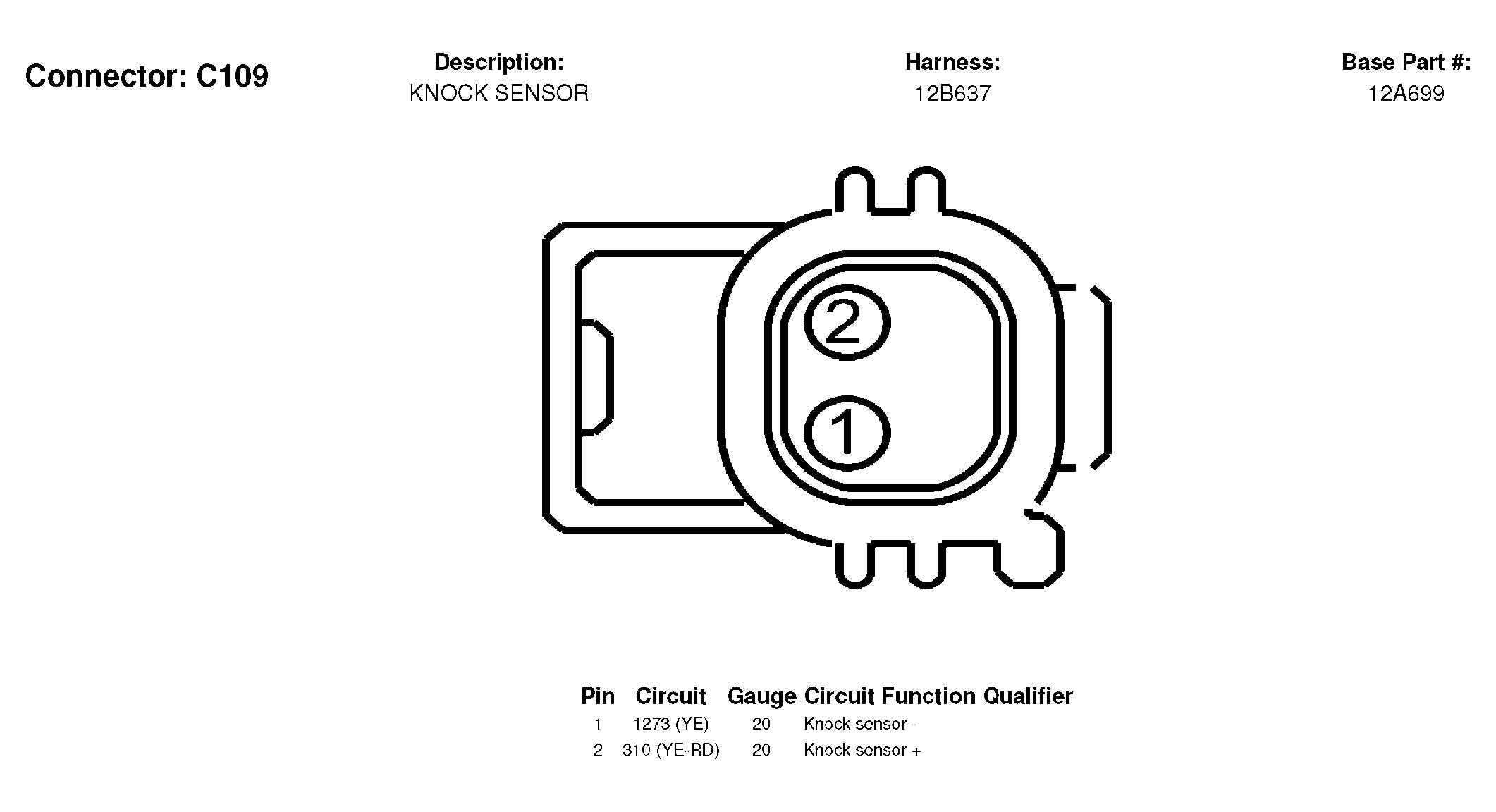

Fig 6: Knock Sensor Connector End View (C109)
Courtesy of FORD MOTOR CO.

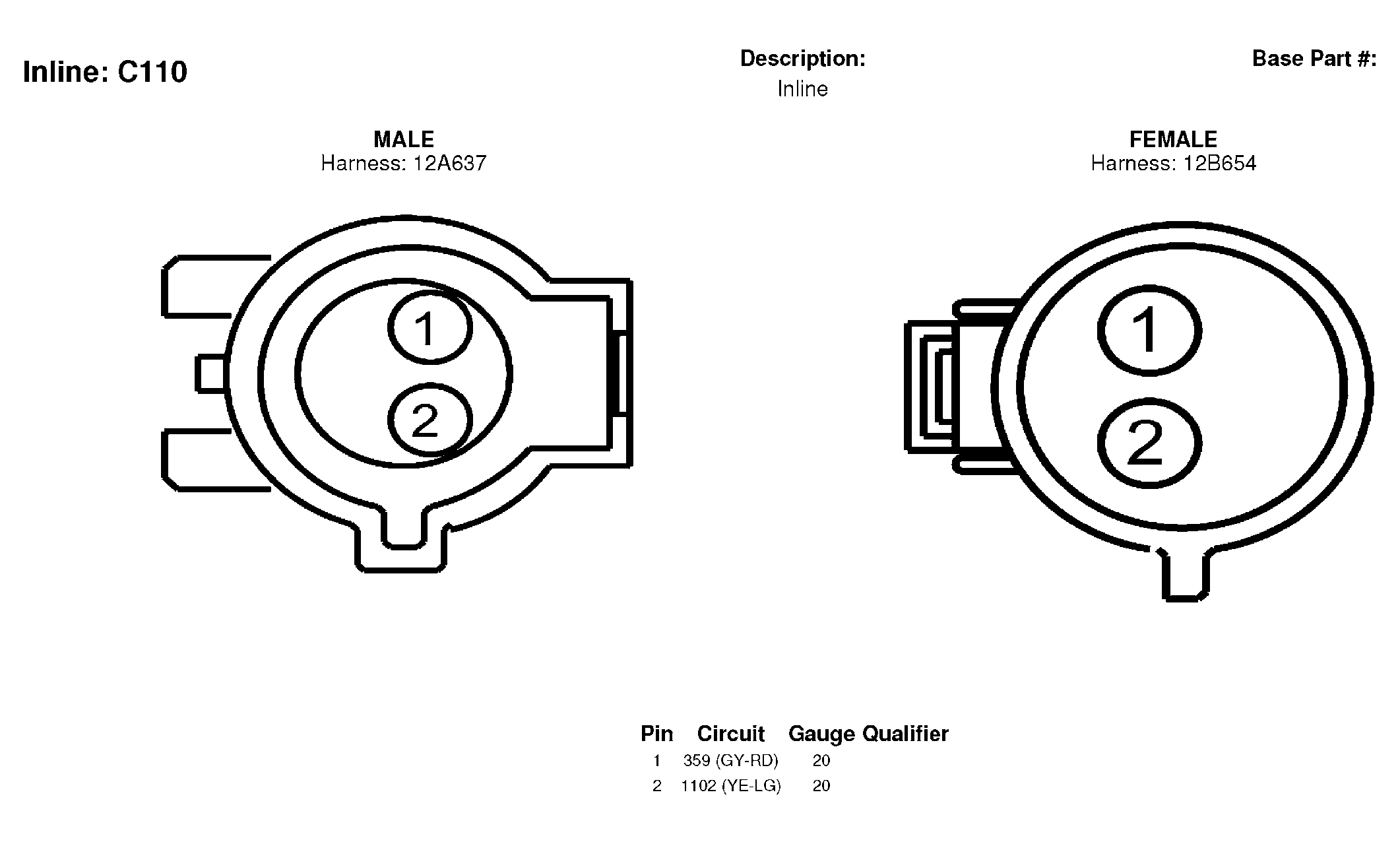

Fig 7: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.
Fig 8: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.
Fig 9: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.
Fig 10: Coil On Plug (COP) 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.
Fig 11: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.

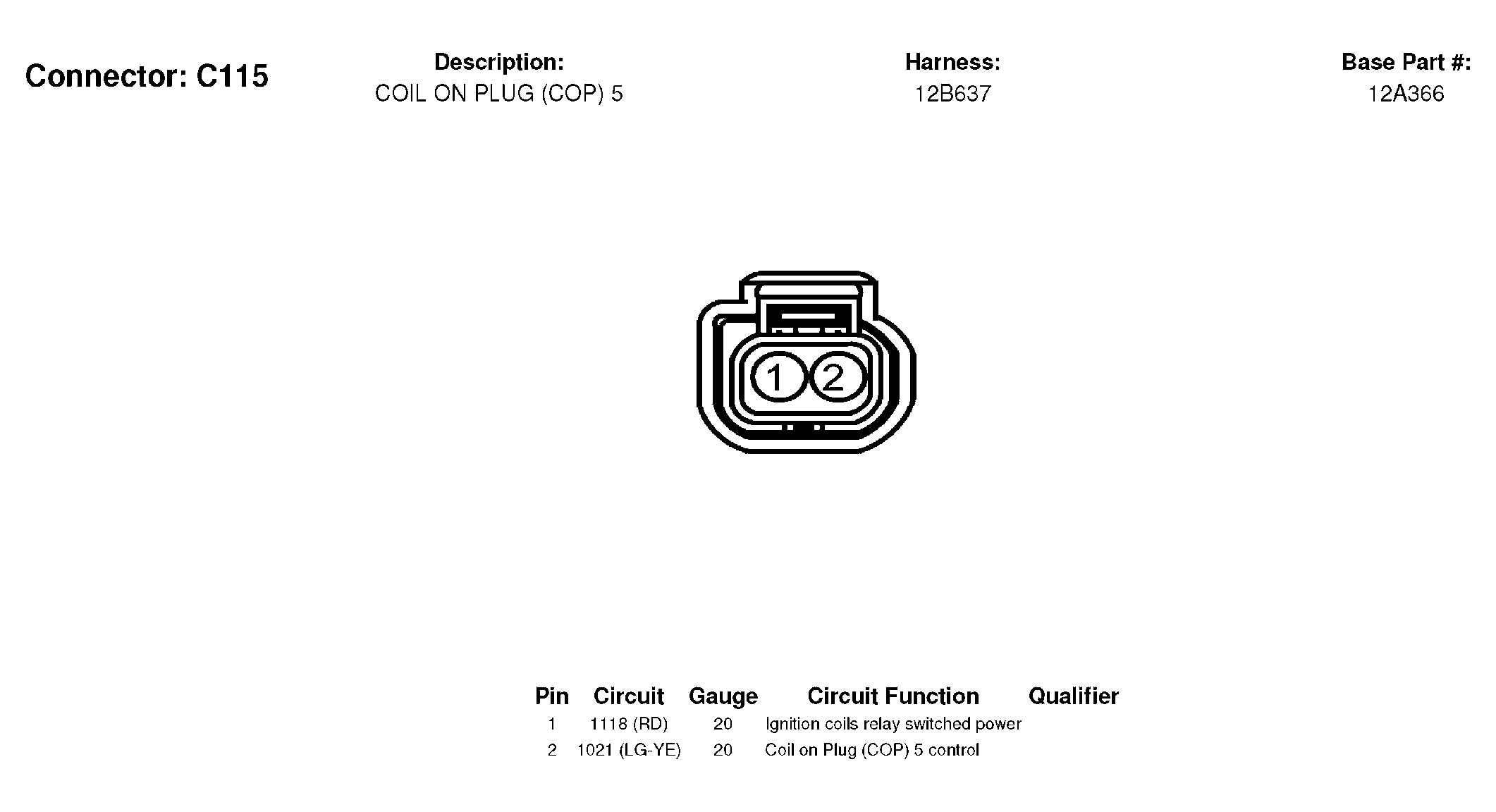

Fig 12: Coil On Plug (COP) 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.
Fig 13: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.
Fig 14: Coil On Plug (COP) 7 Connector End View (C117)
Courtesy of FORD MOTOR CO.
Fig 15: Coil On Plug (COP) 8 Connector End View (C118)
Courtesy of FORD MOTOR CO.

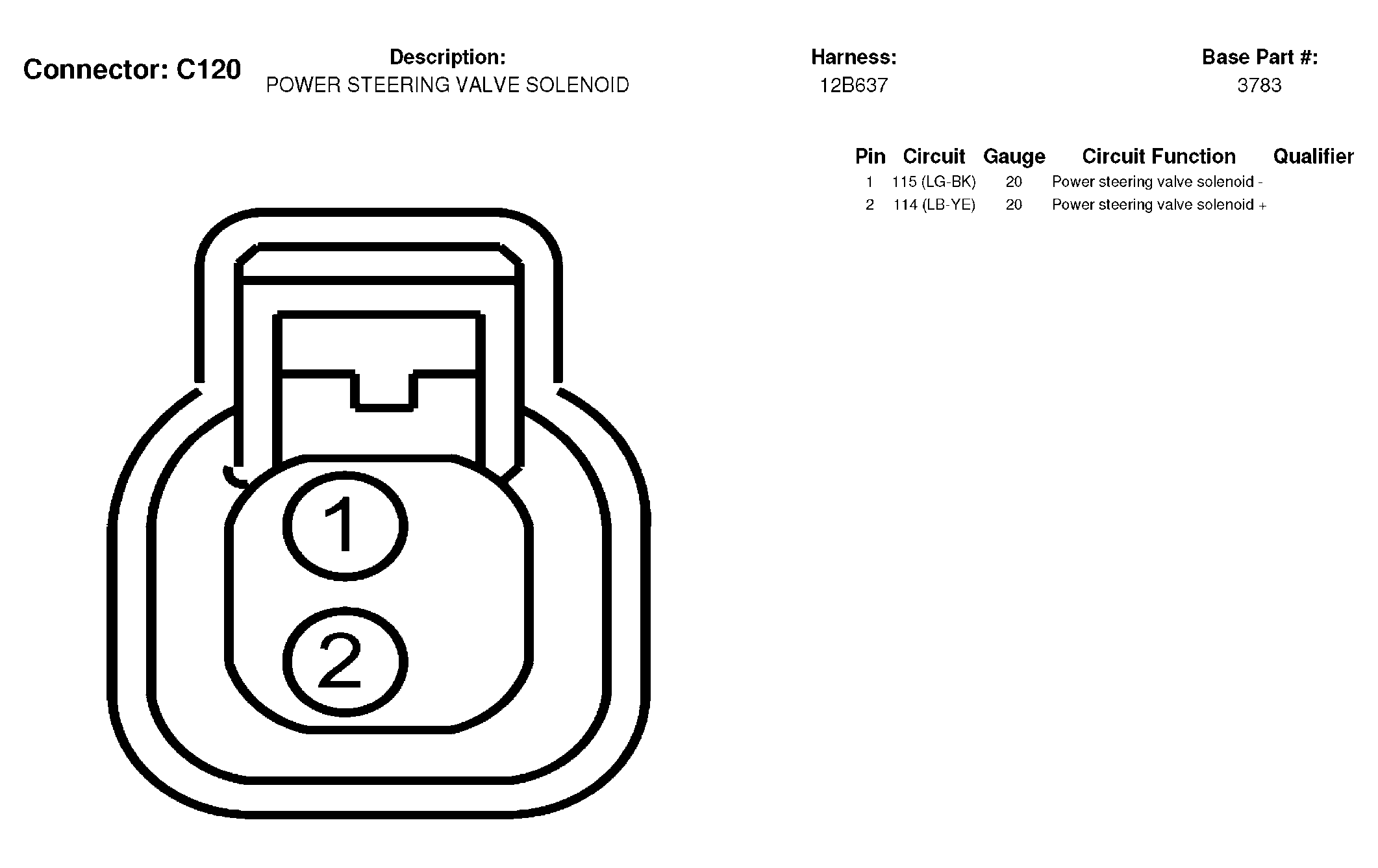

Fig 16: Power Steering Valve Solenoid Connector End View (C120)
Courtesy of FORD MOTOR CO.

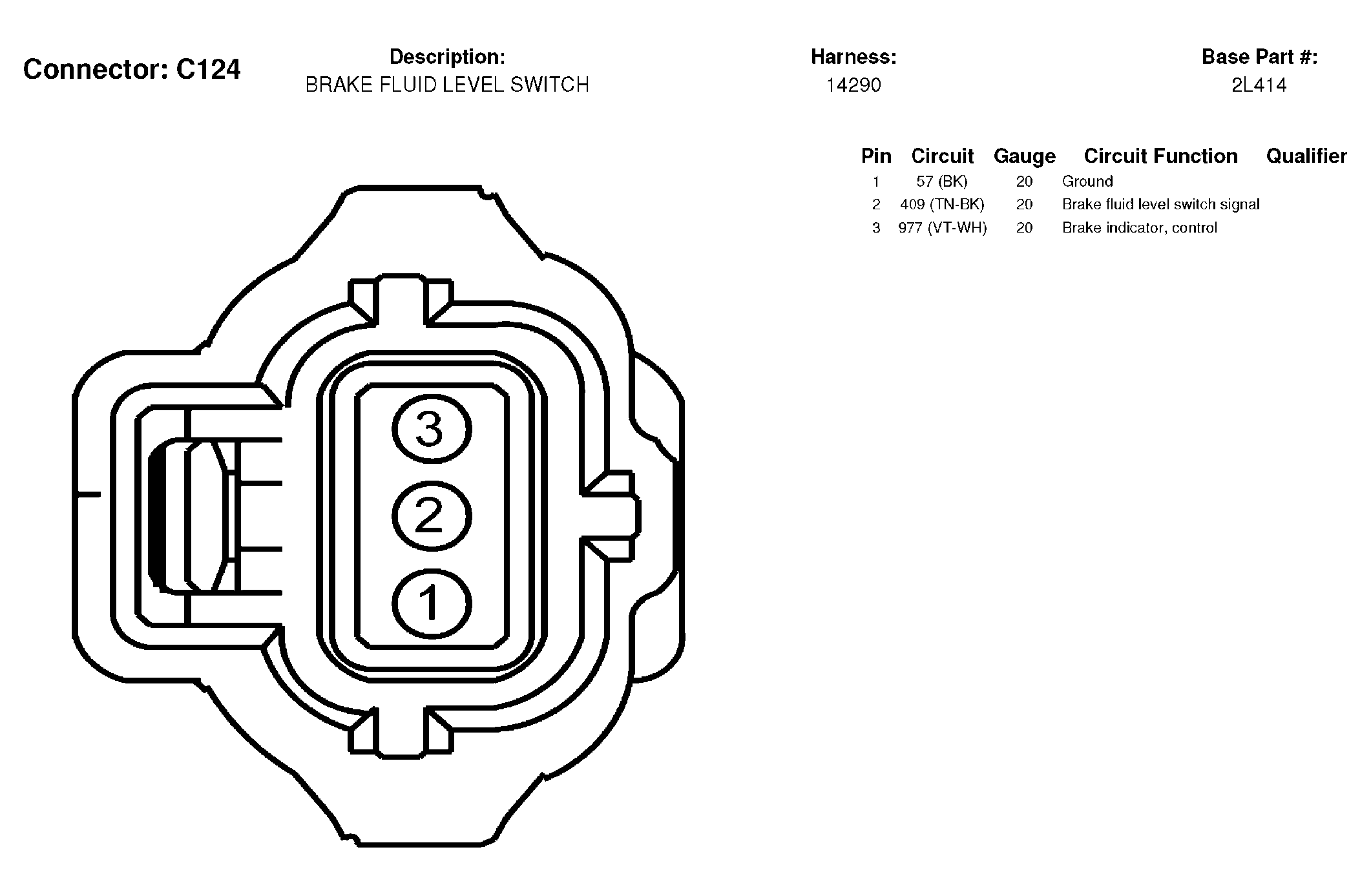

Fig 17: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.

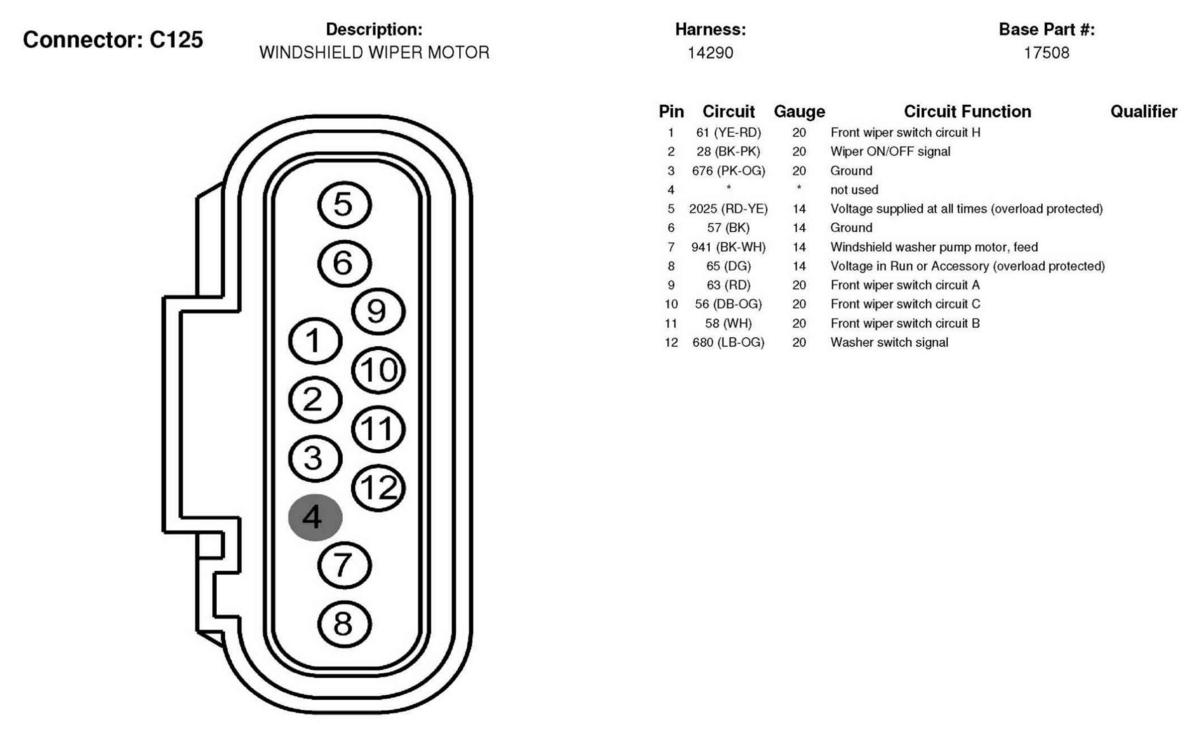

Fig 18: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.

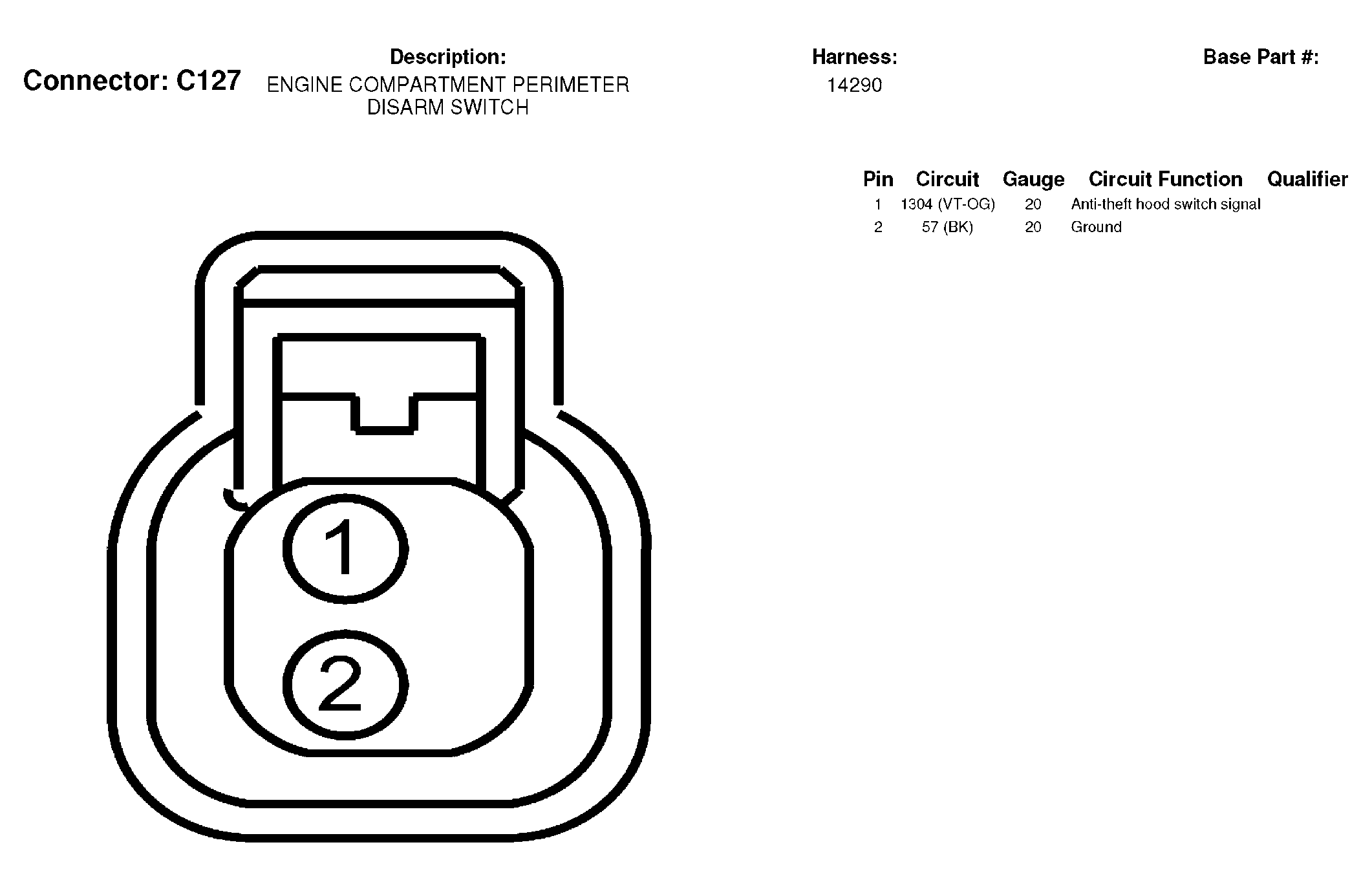

Fig 19: Engine Compartment Perimeter Disarm Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.

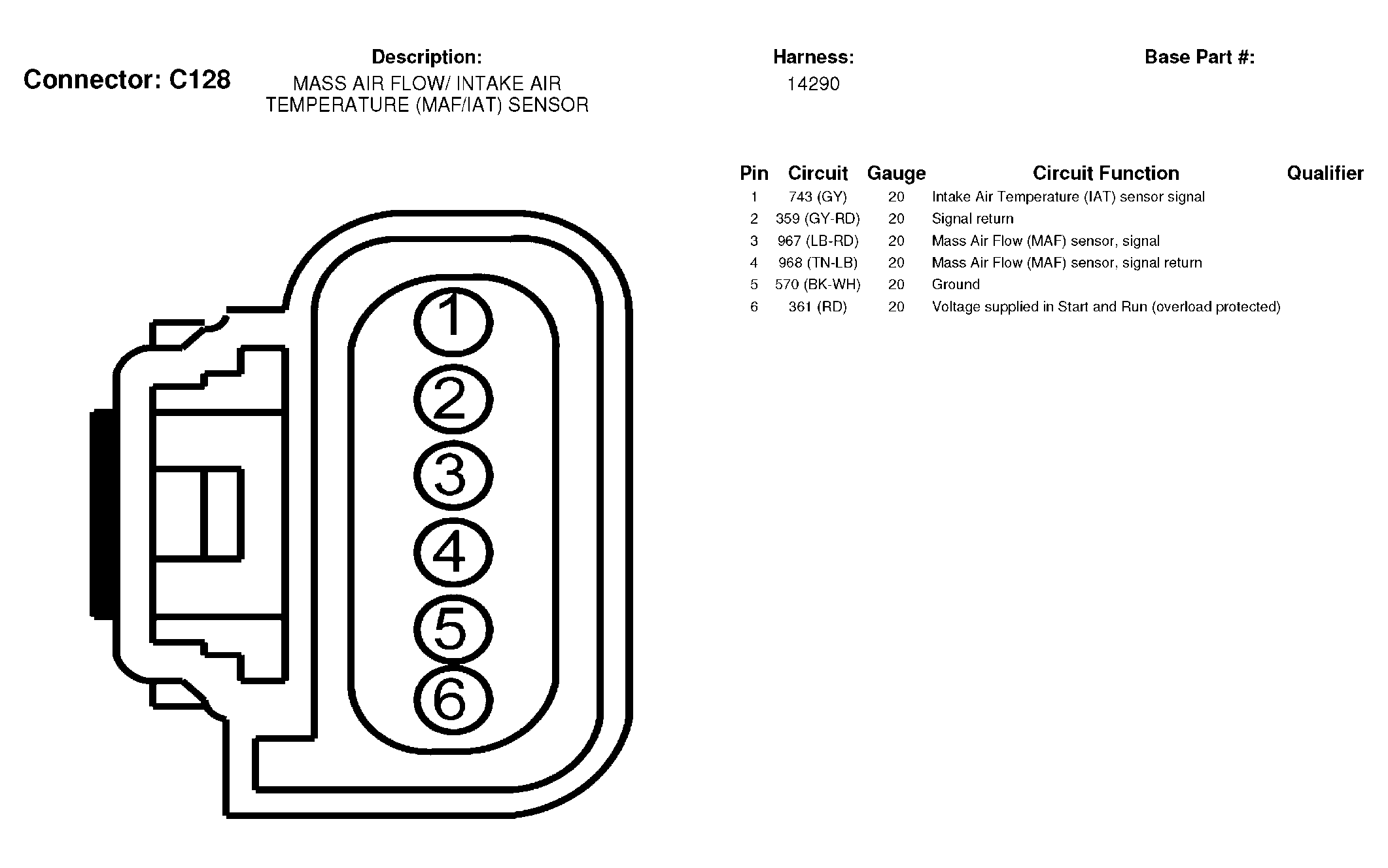

Fig 20: Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.

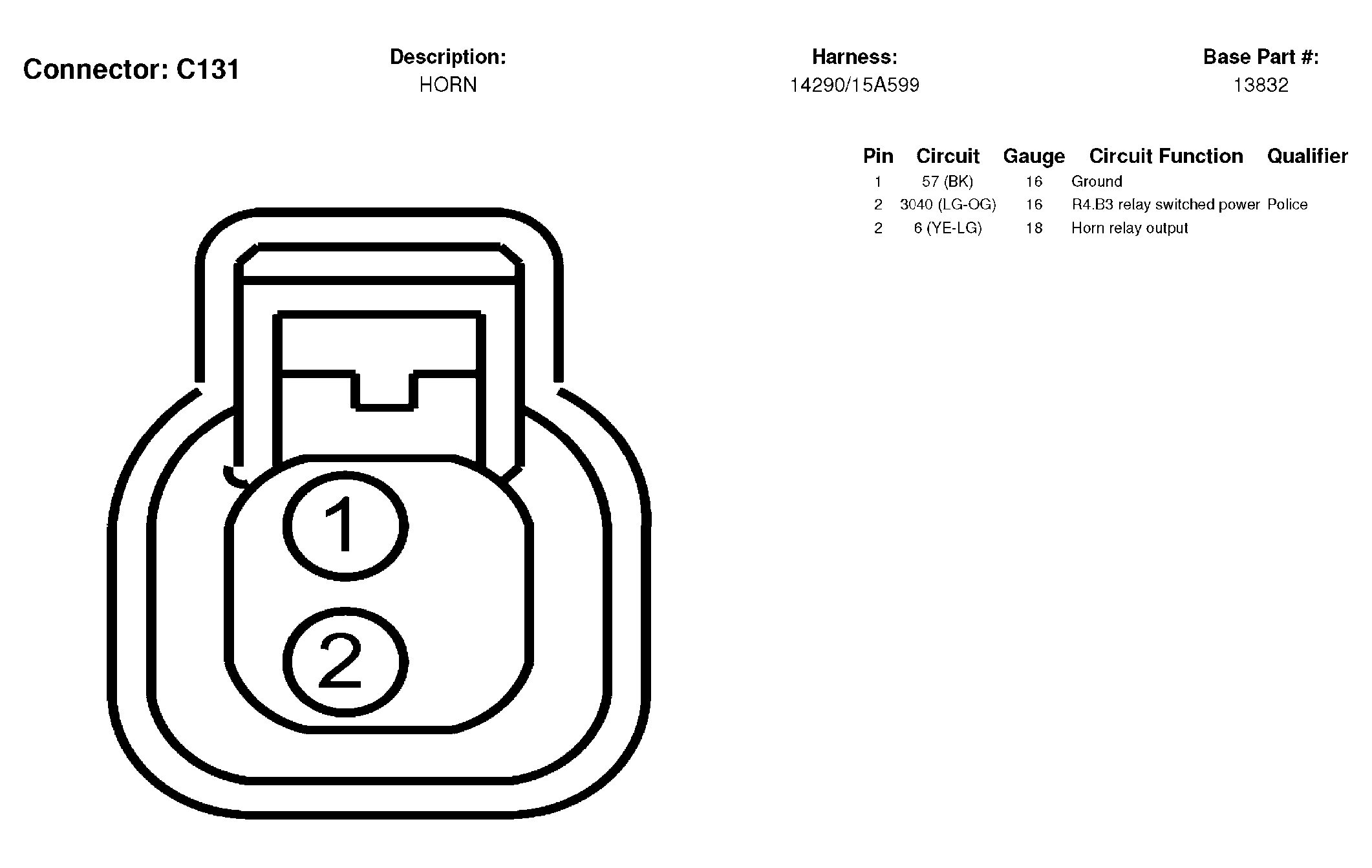

Fig 21: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.

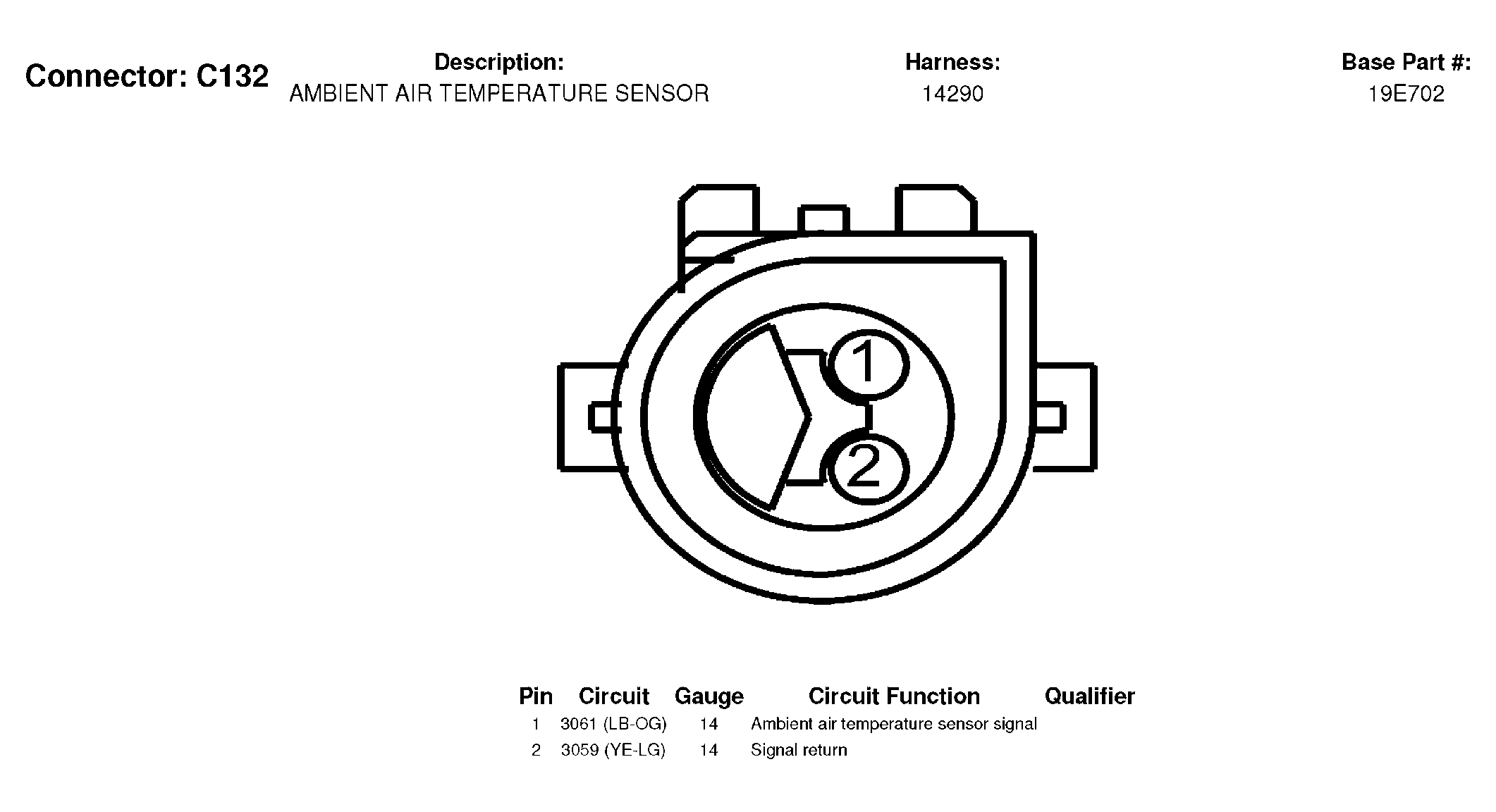

Fig 22: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.

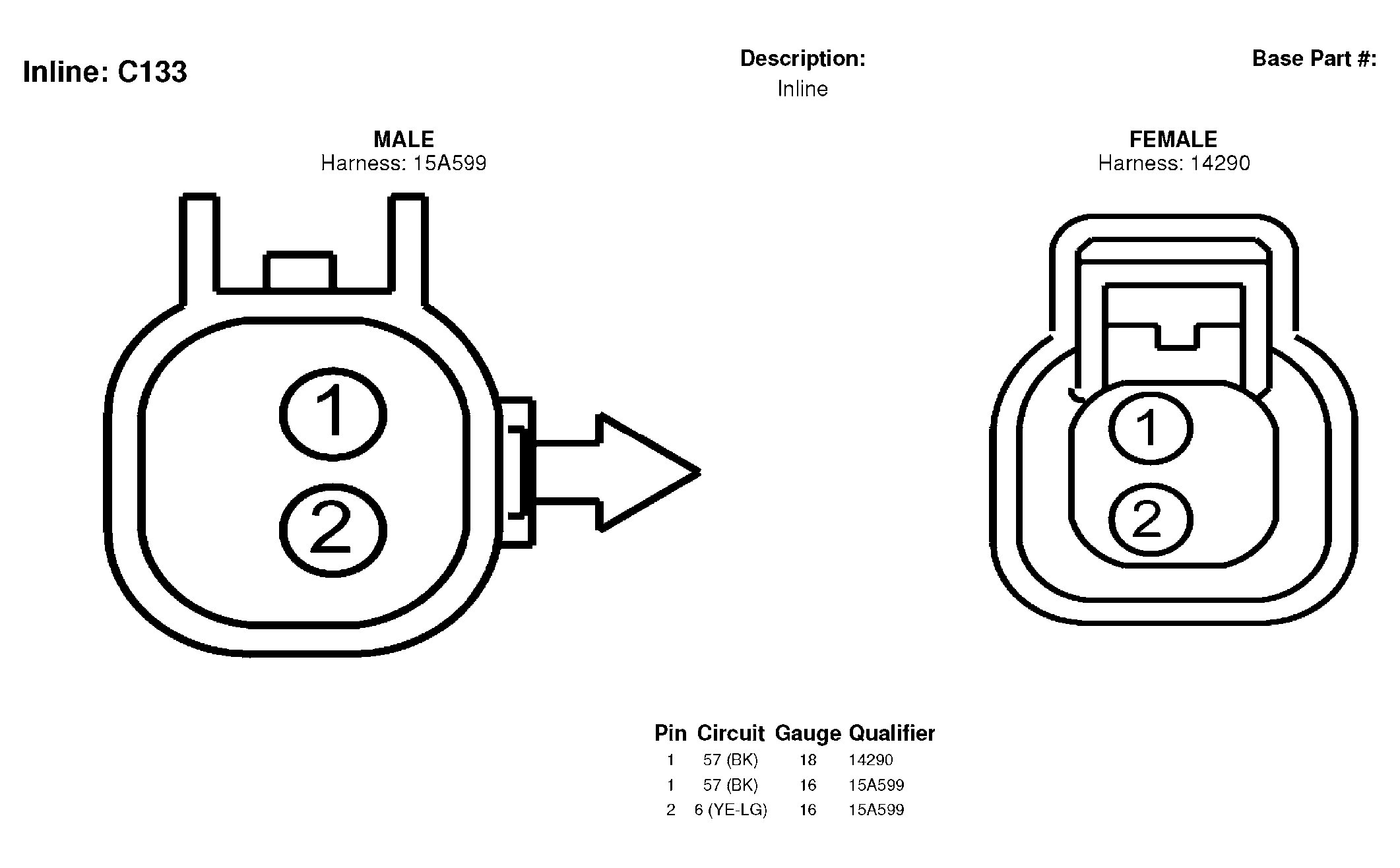

Fig 23: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

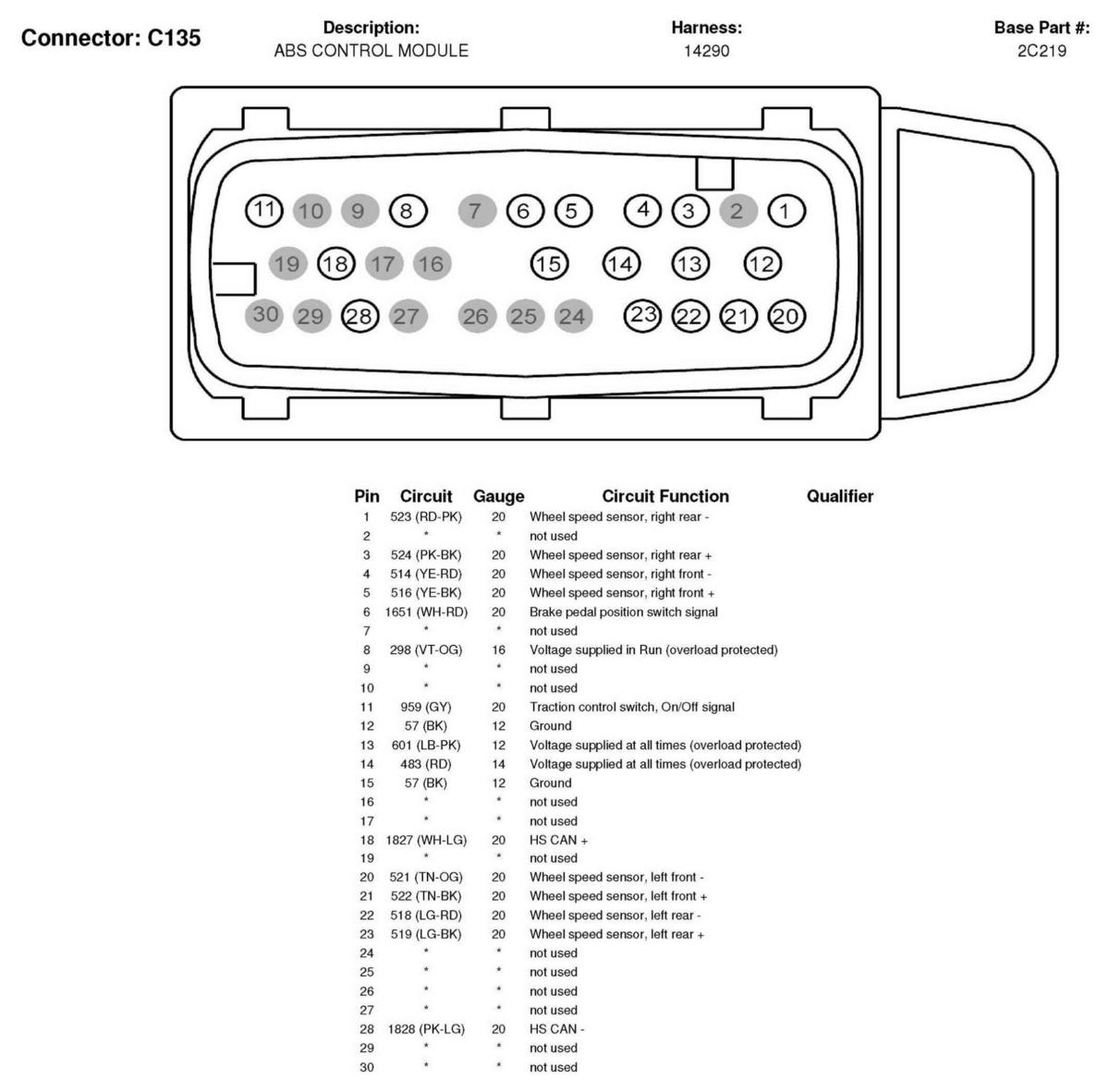

Fig 24: ABS Control Module Connector End View (C135)
Courtesy of FORD MOTOR CO.

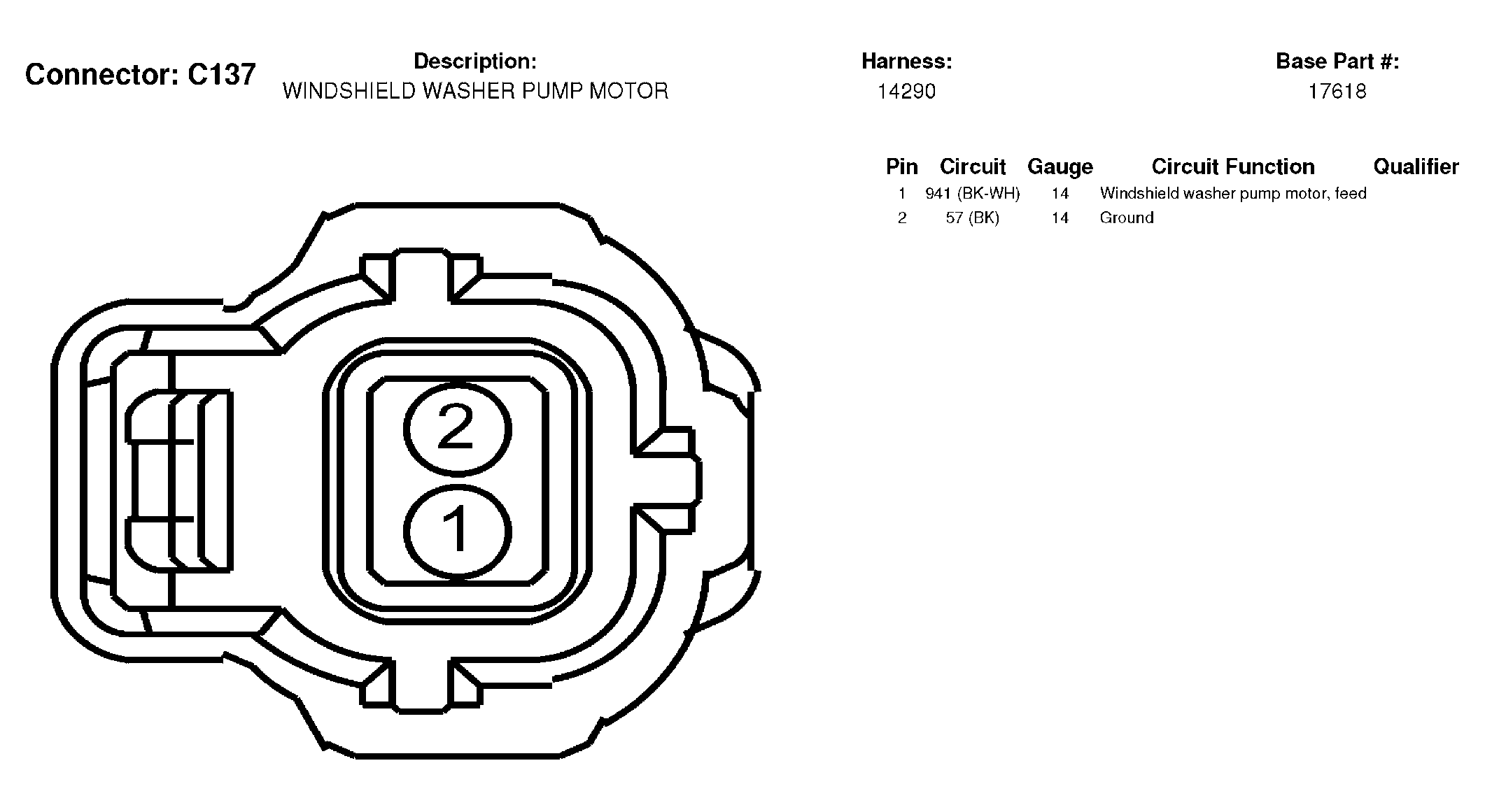

Fig 25: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.

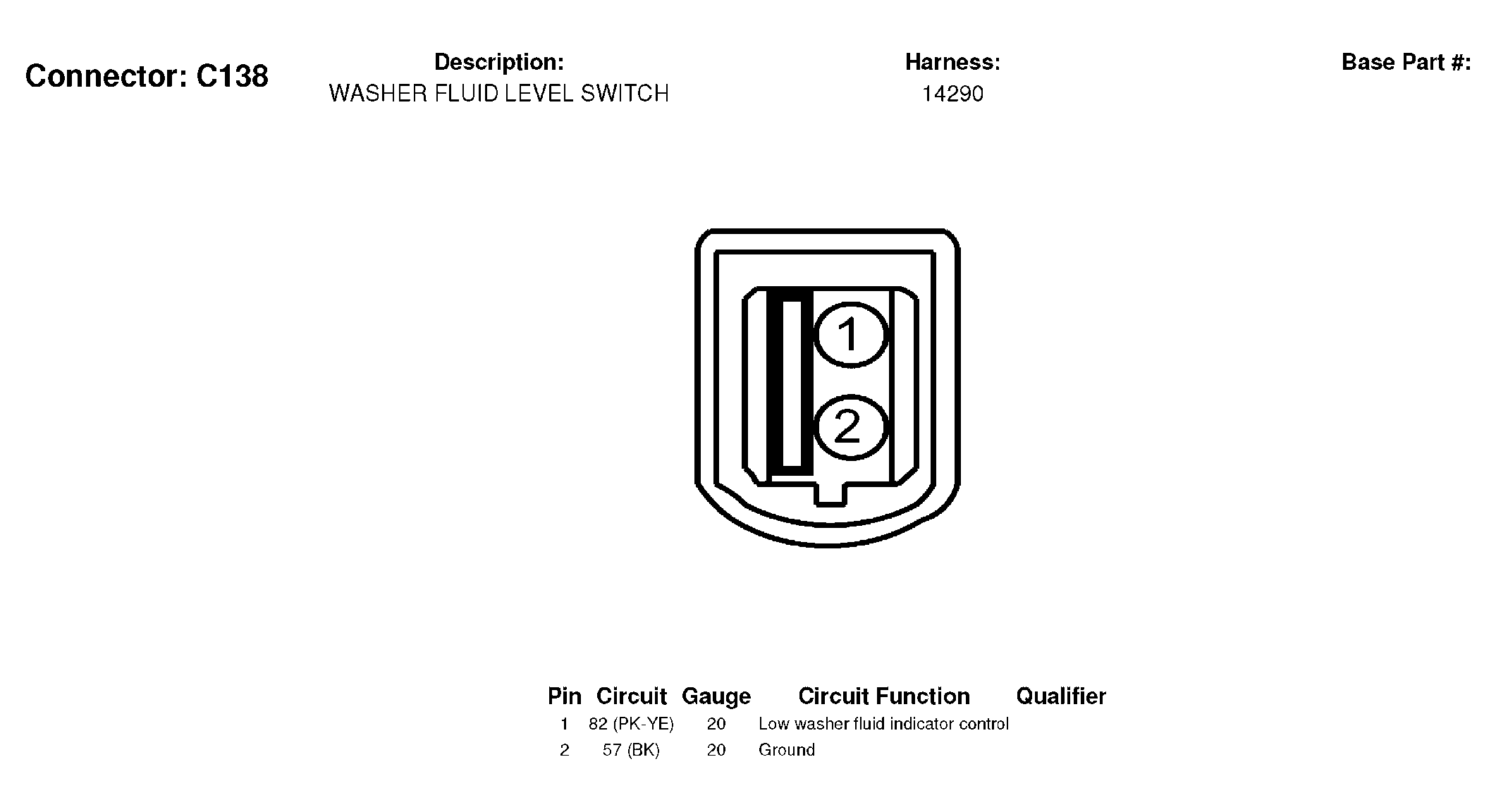

Fig 26: Washer Fluid Level Switch Connector End View (C138)
Courtesy of FORD MOTOR CO.

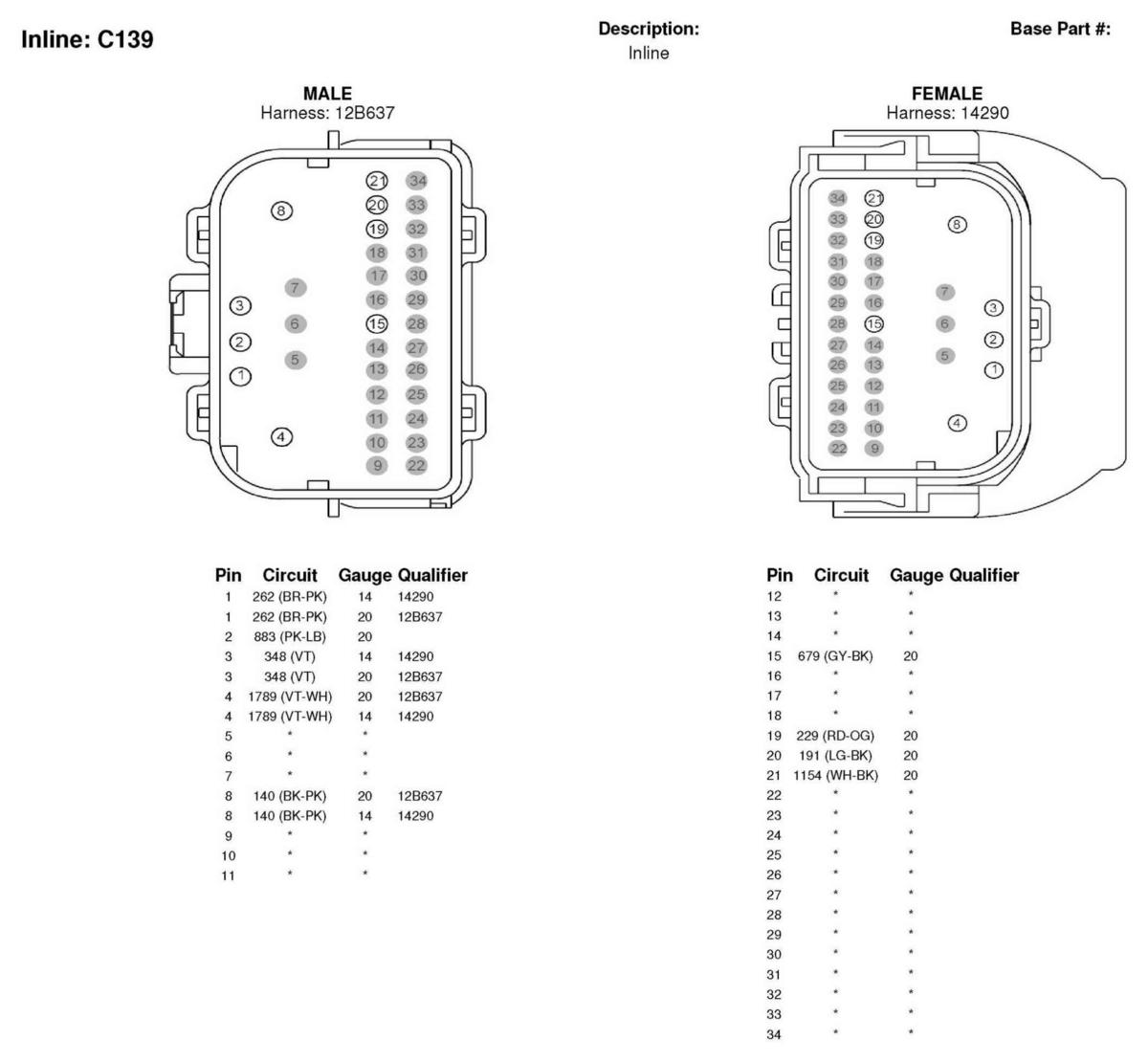

Fig 27: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

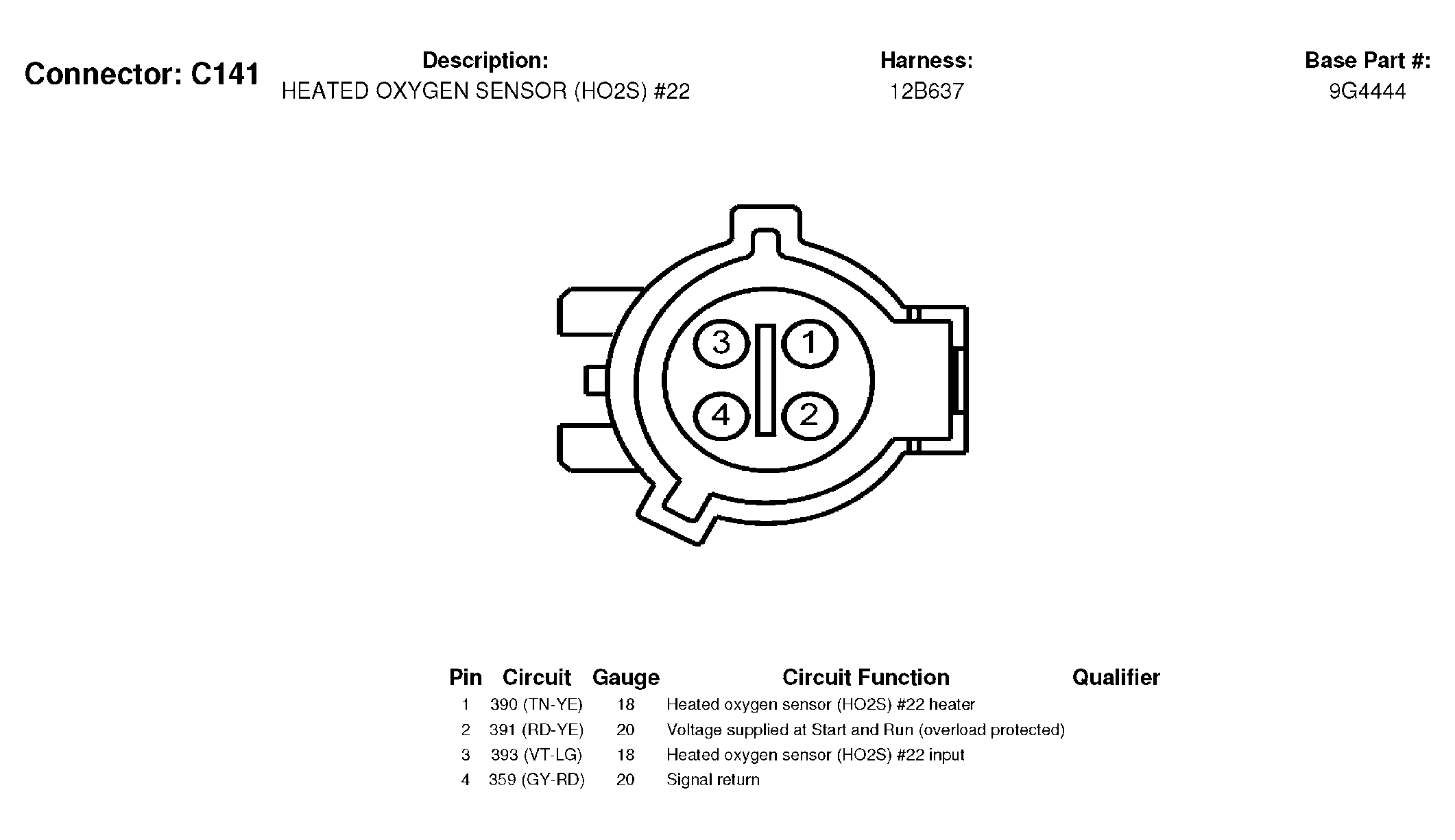

Fig 28: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.
Fig 29: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.
Fig 30: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

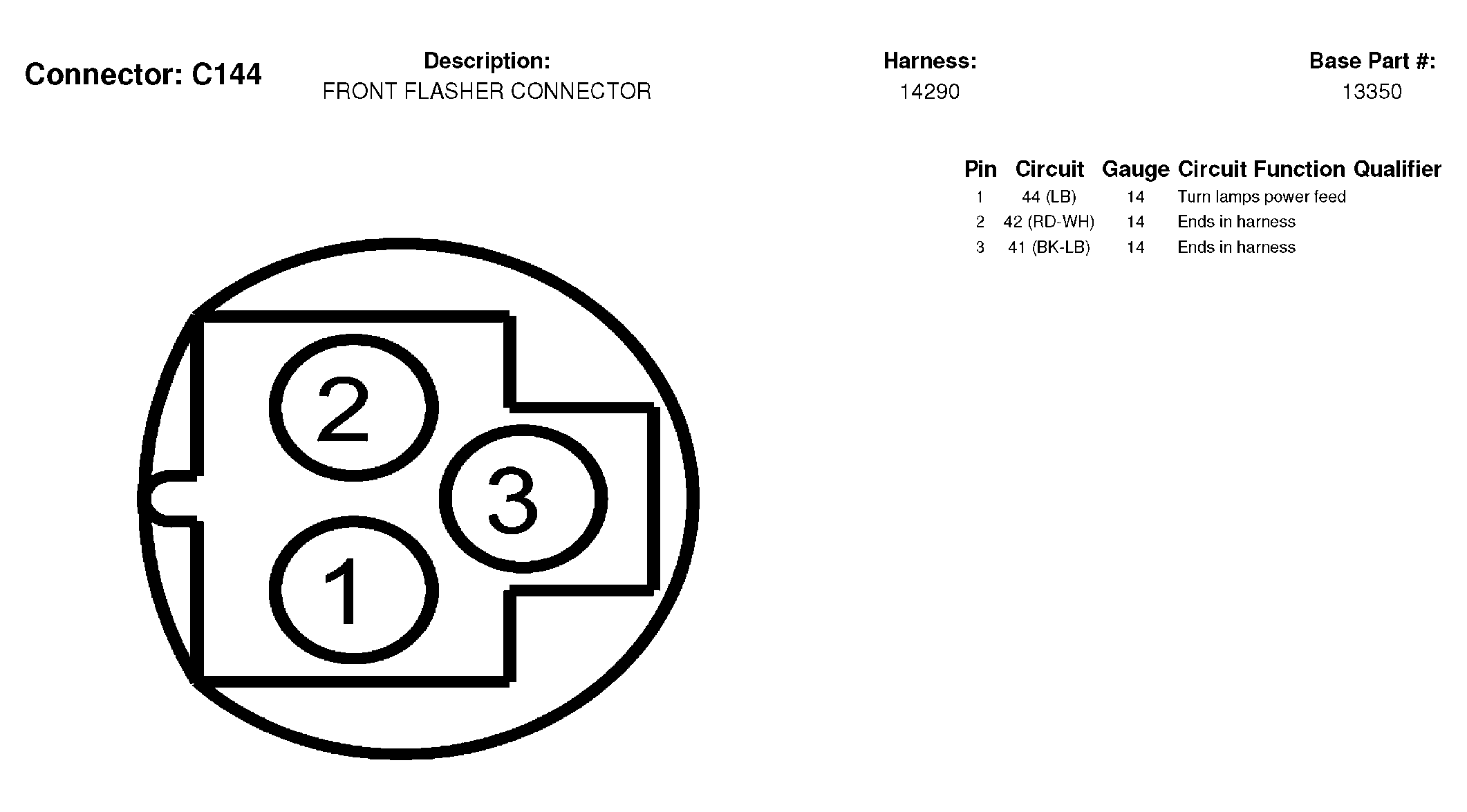

Fig 31: Front Flasher Connector, Connector End View (C144)
Courtesy of FORD MOTOR CO.

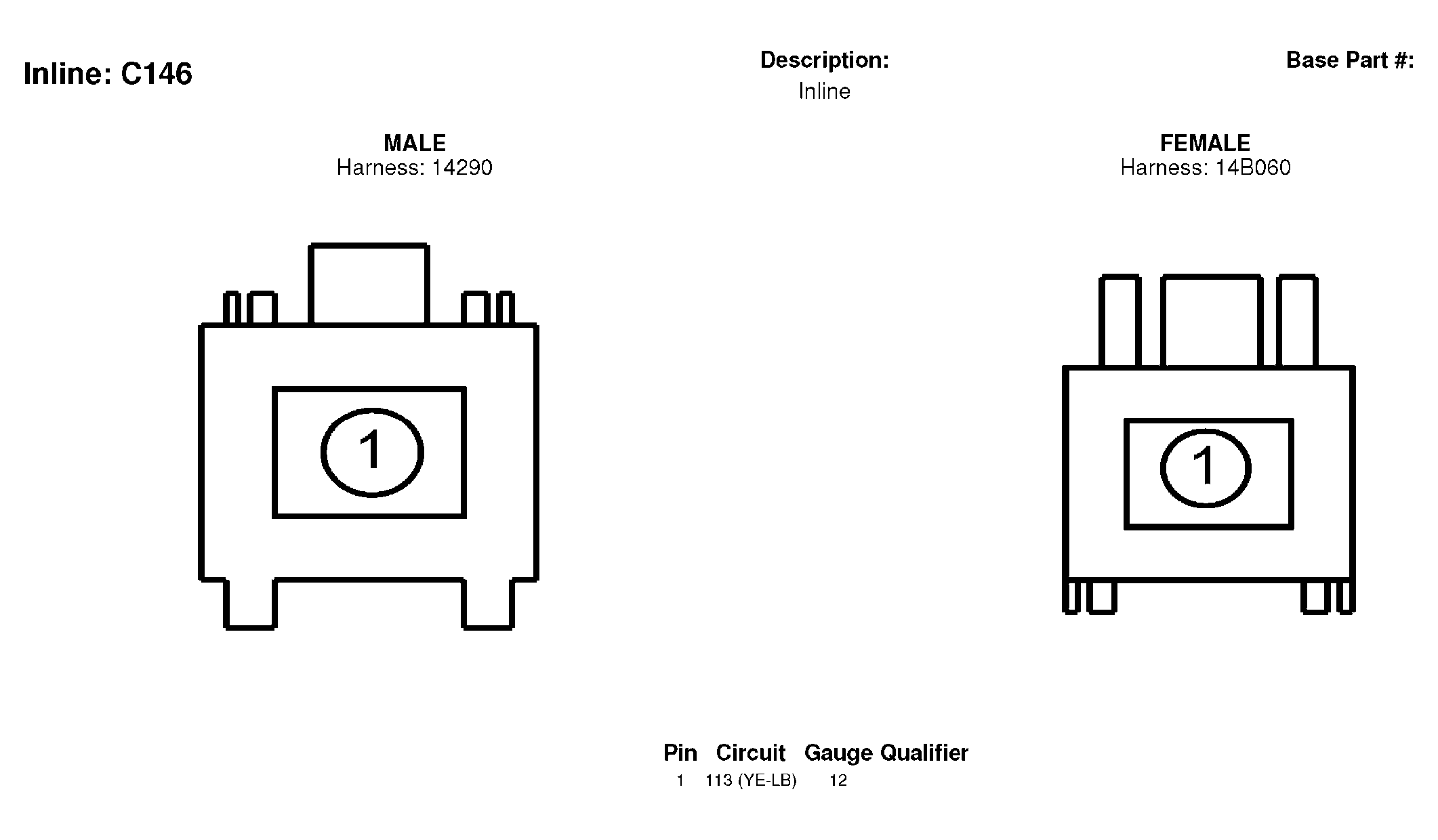

Fig 32: Inline Connector End View (C146)
Courtesy of FORD MOTOR CO.

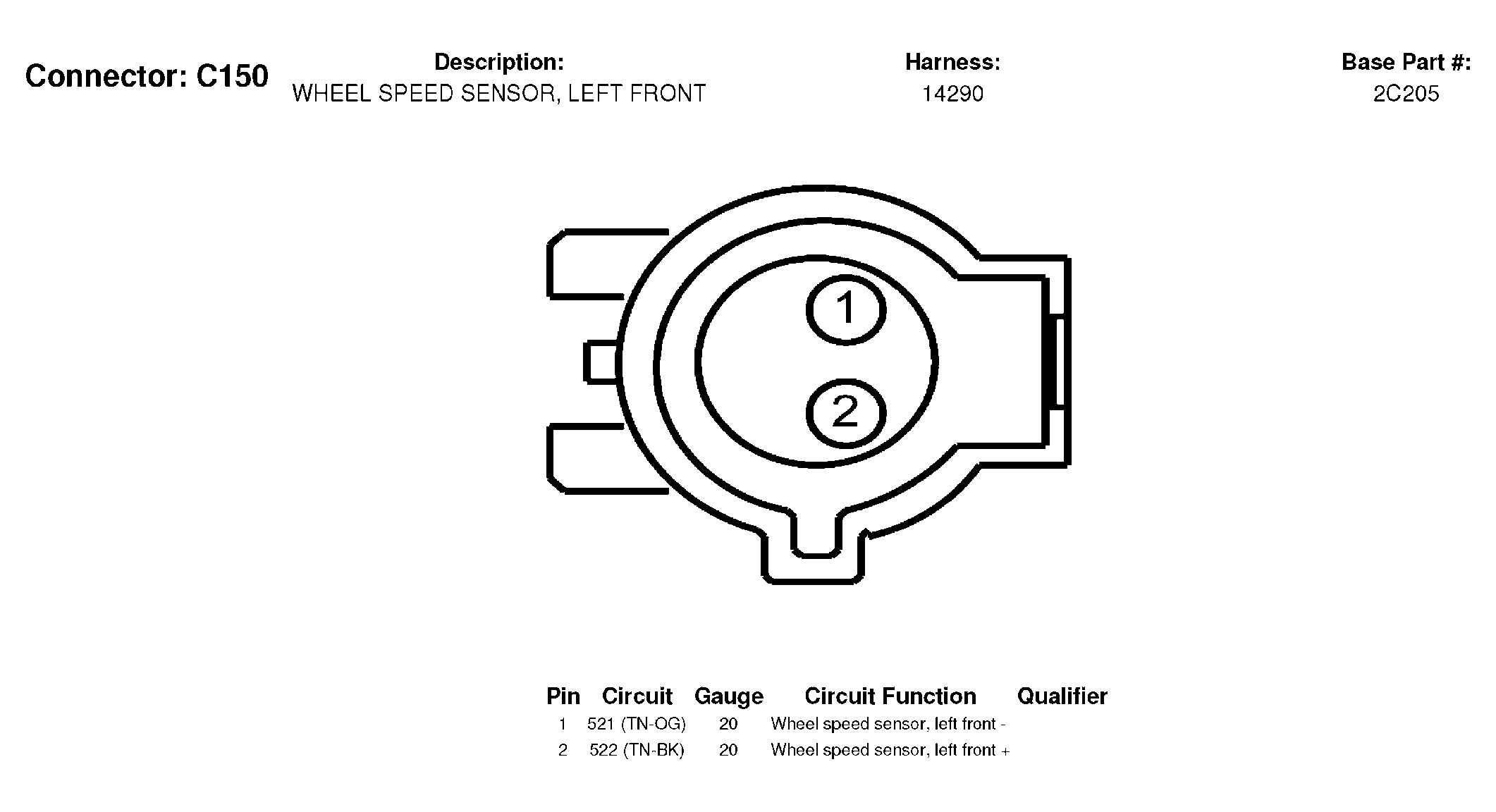

Fig 33: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.

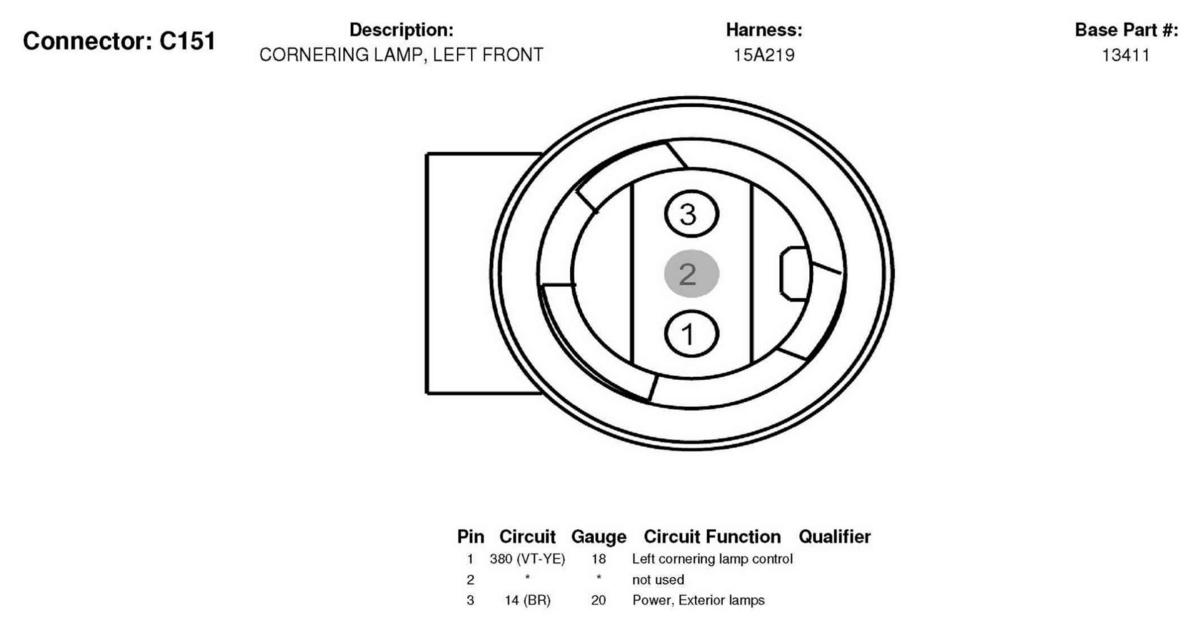

Fig 34: Cornering Lamp, Left Front Connector End View (C151)
Courtesy of FORD MOTOR CO.
Fig 35: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.
Fig 36: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.

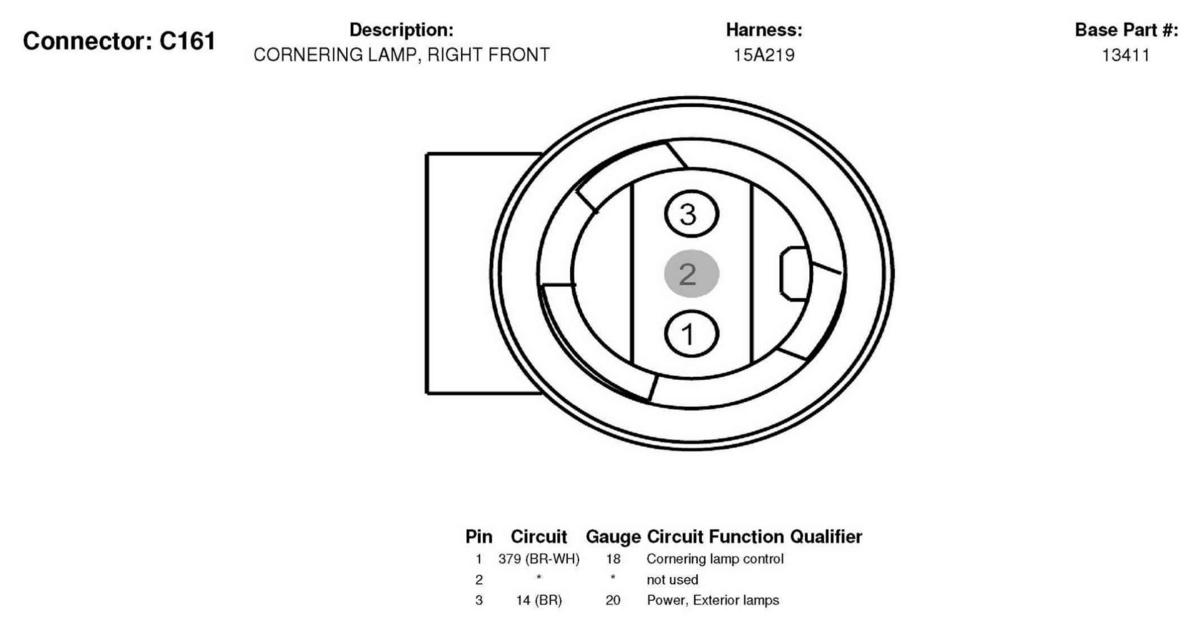

Fig 37: Cornering Lamp, Right Front Connector End View (C161)
Courtesy of FORD MOTOR CO.

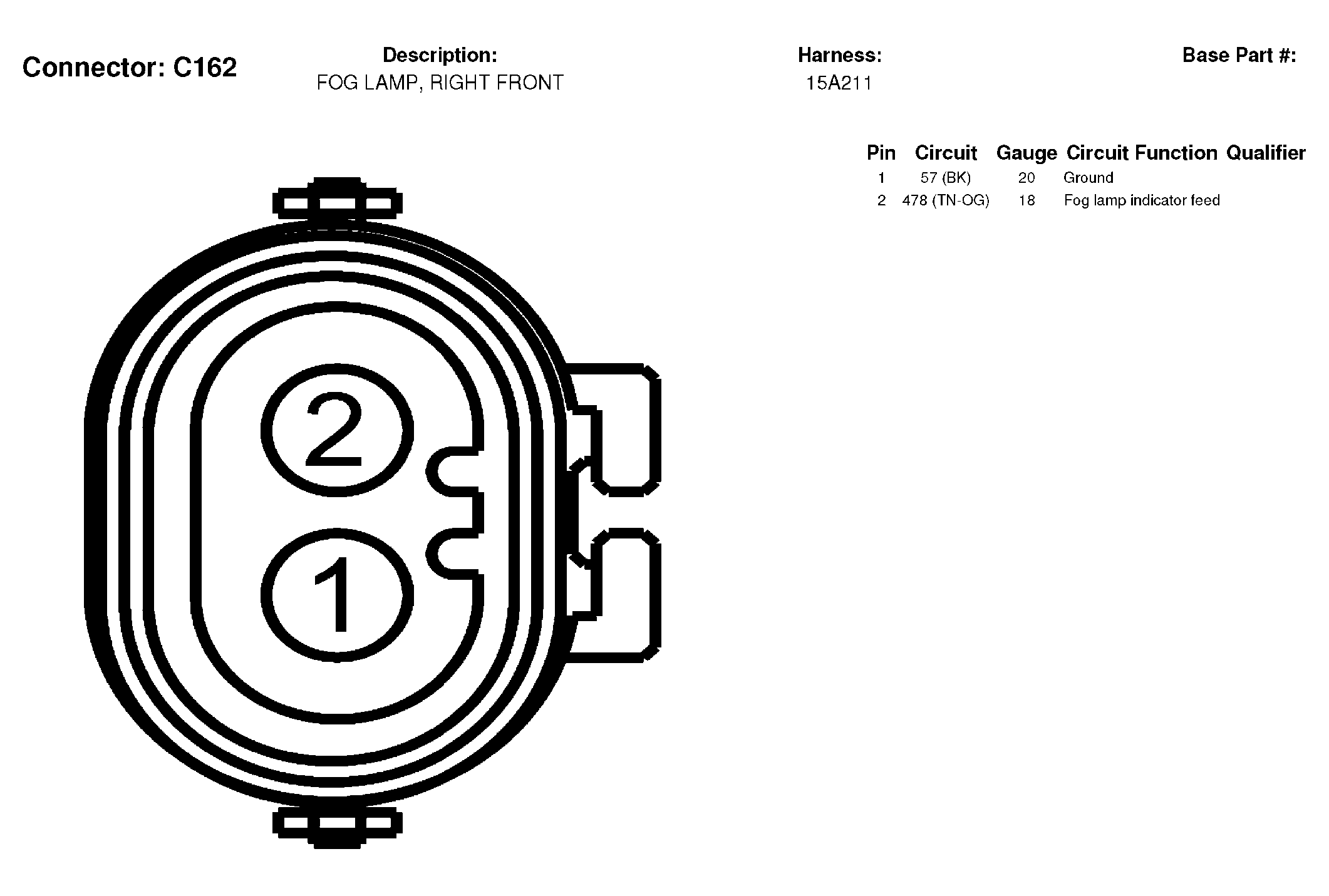

Fig 38: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.

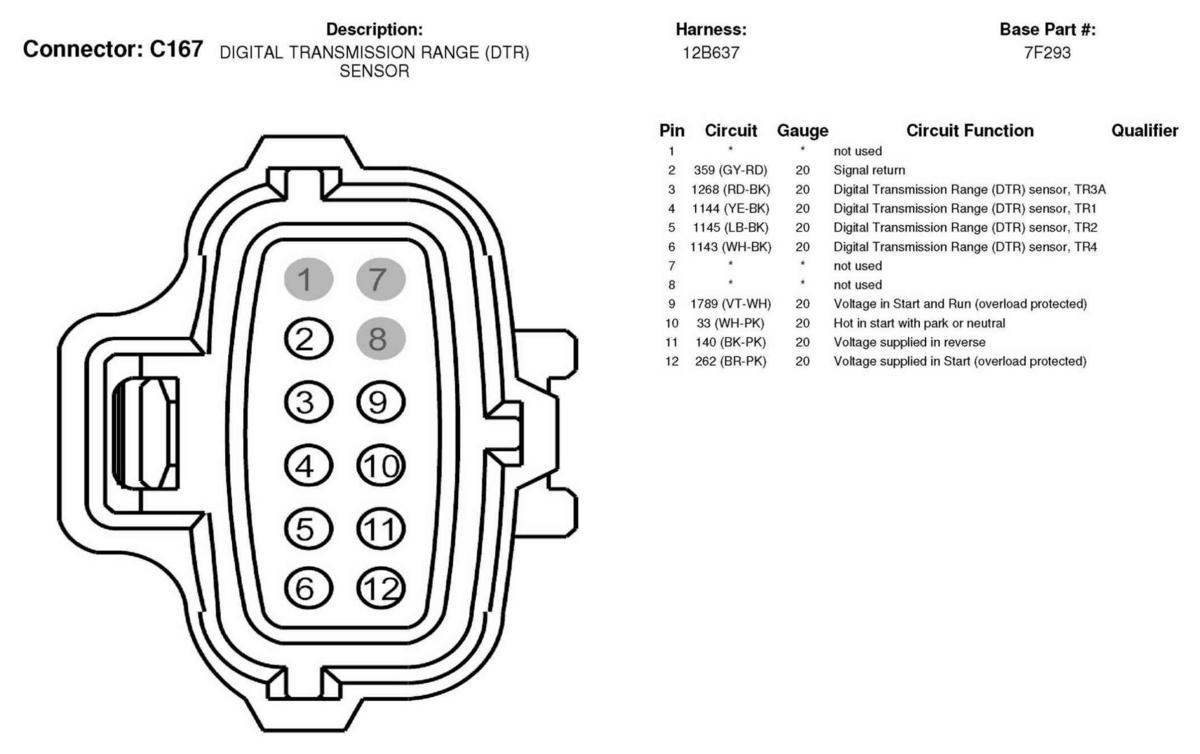

Fig 39: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

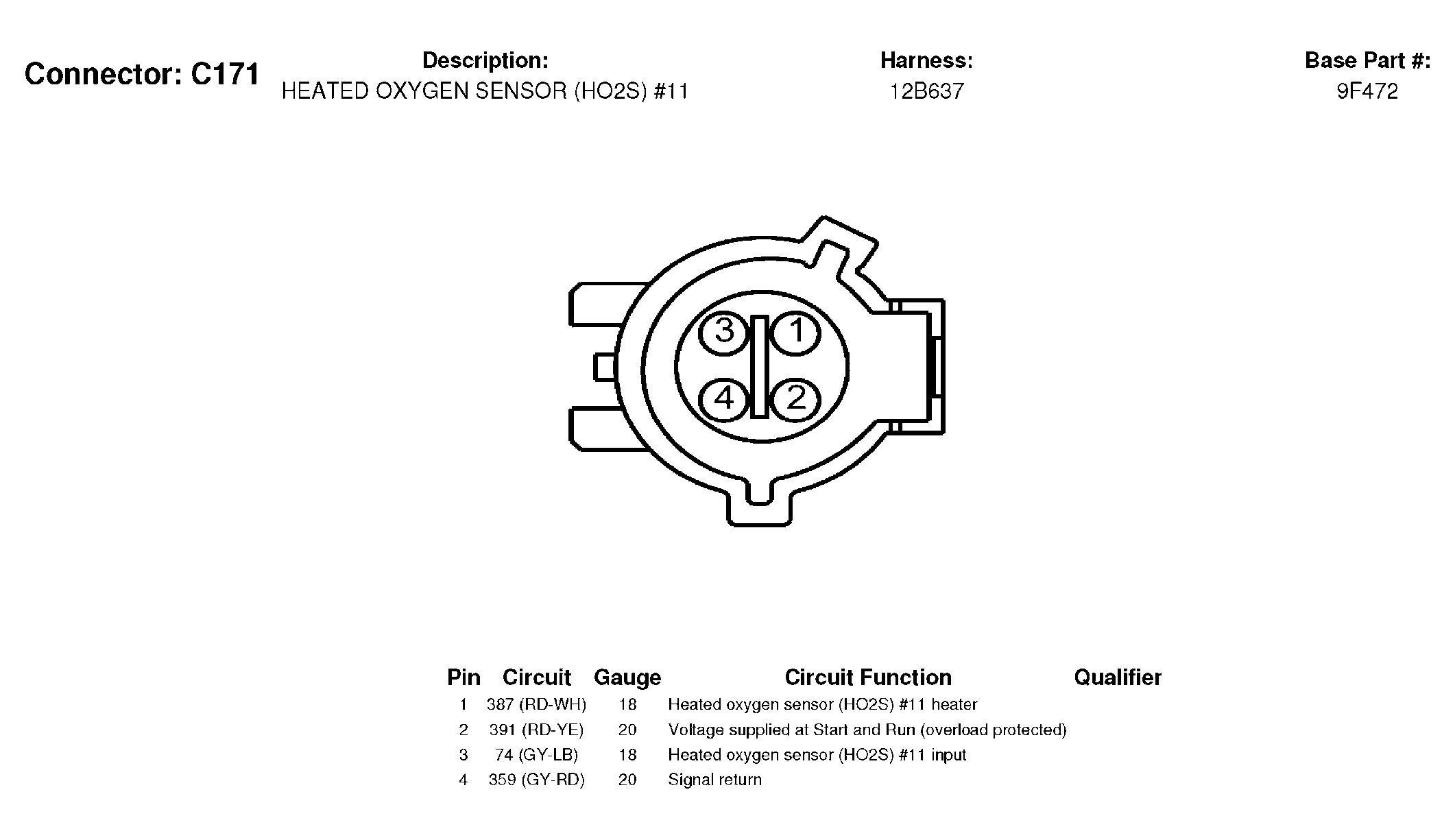

Fig 40: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

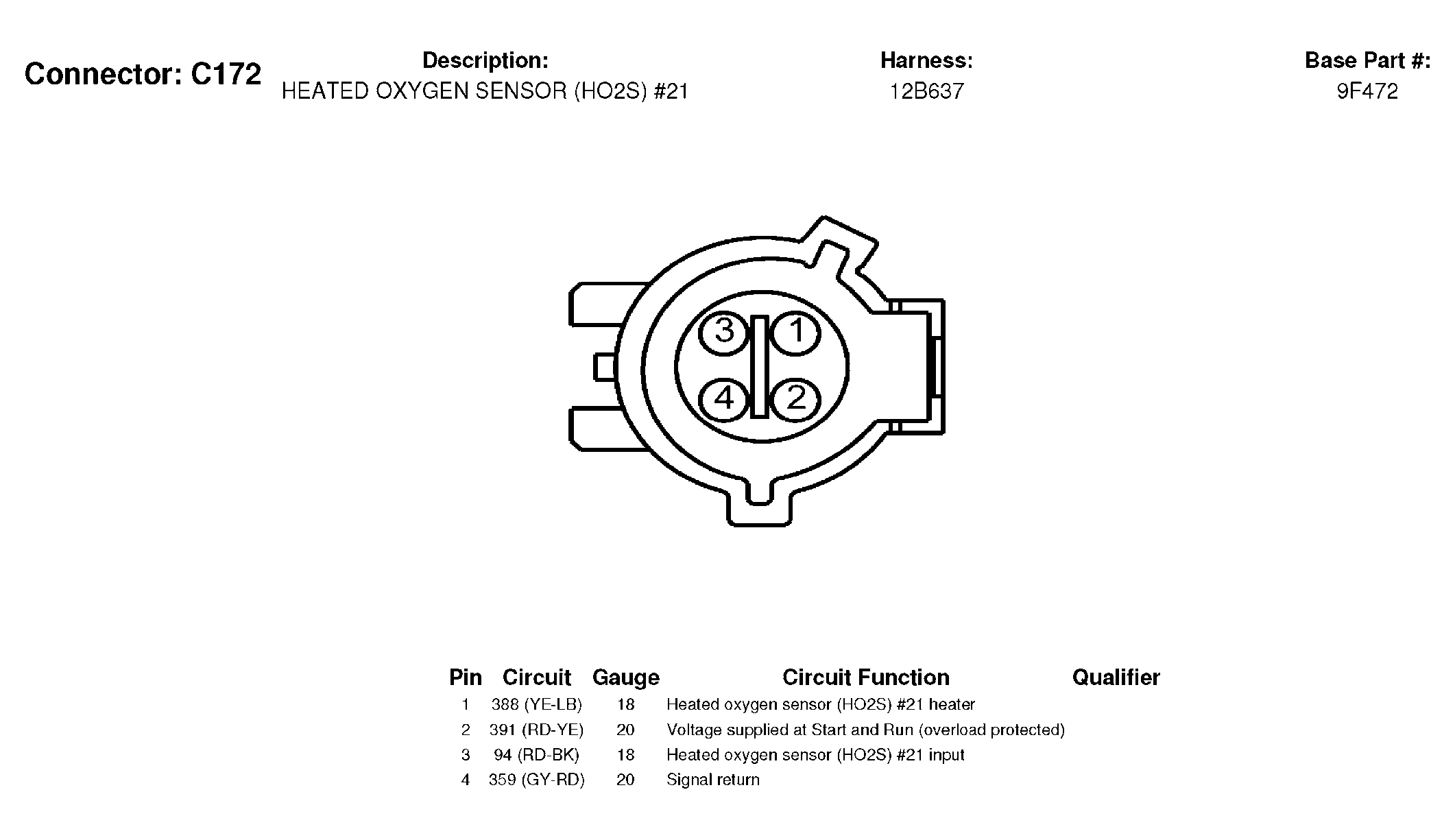

Fig 41: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

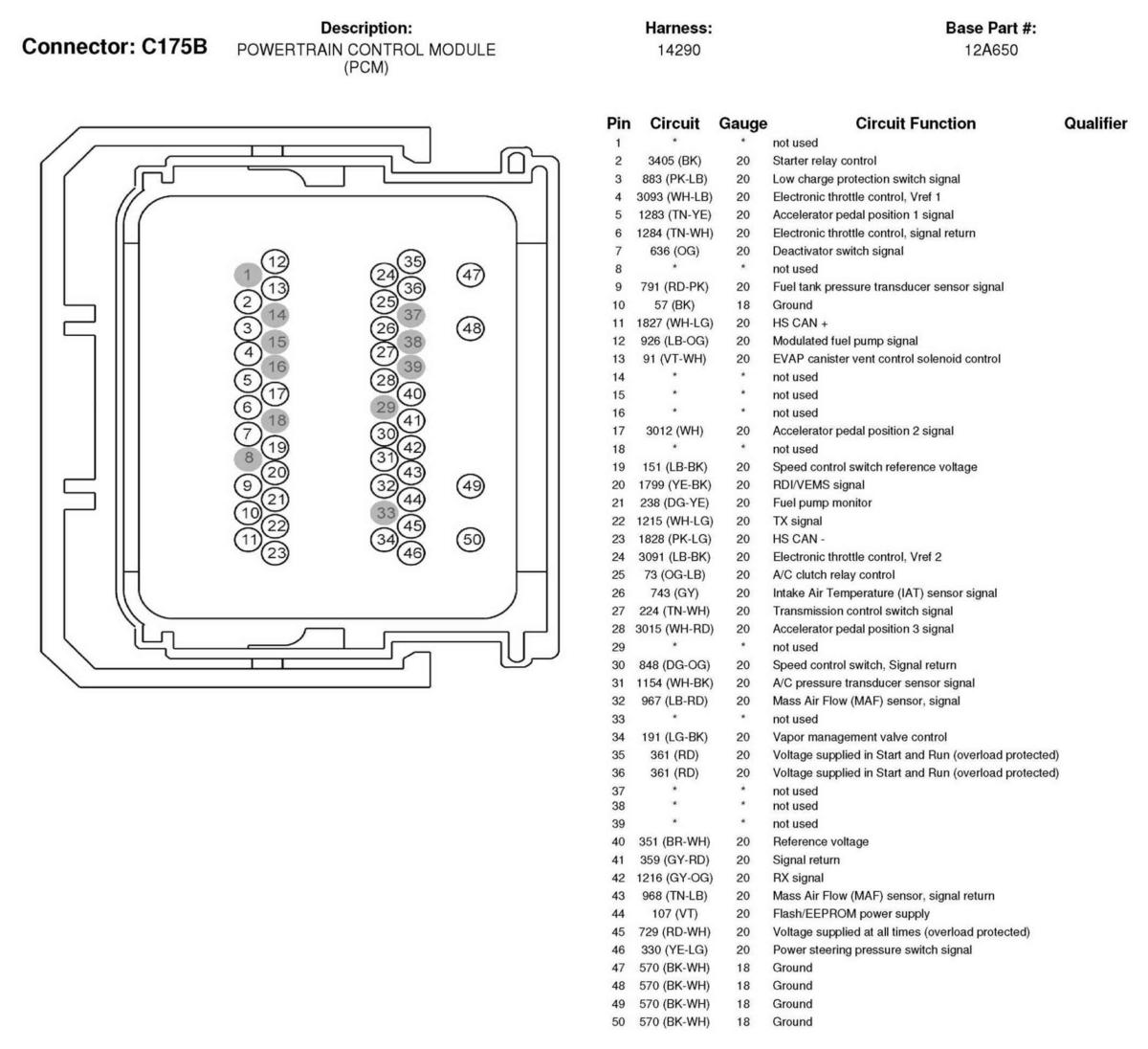

Fig 42: Powertrain Control Module (PCM) Connector End View (C175B)
Courtesy of FORD MOTOR CO.

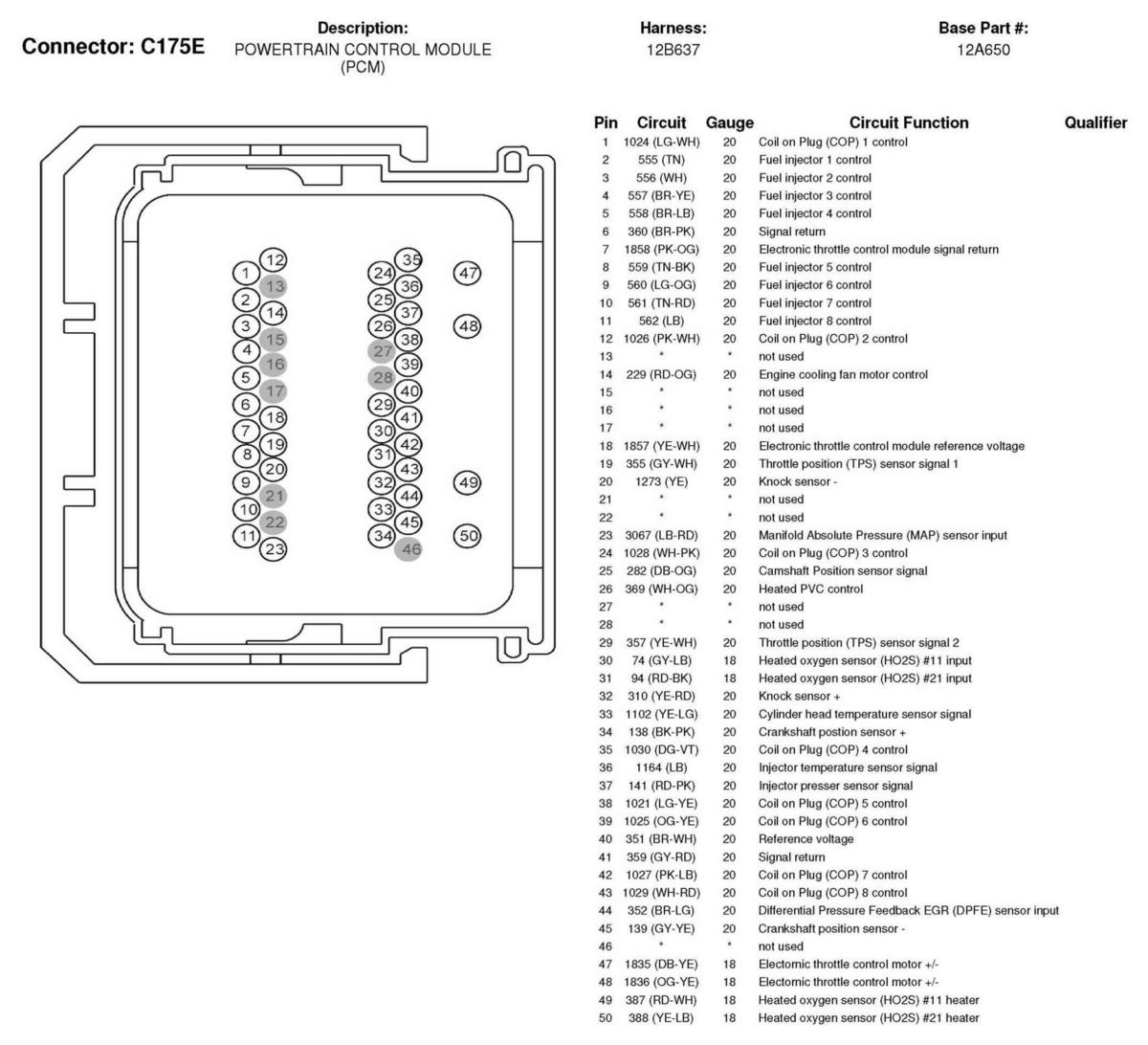

Fig 43: Powertrain Control Module (PCM) Connector End View (C175E)
Courtesy of FORD MOTOR CO.

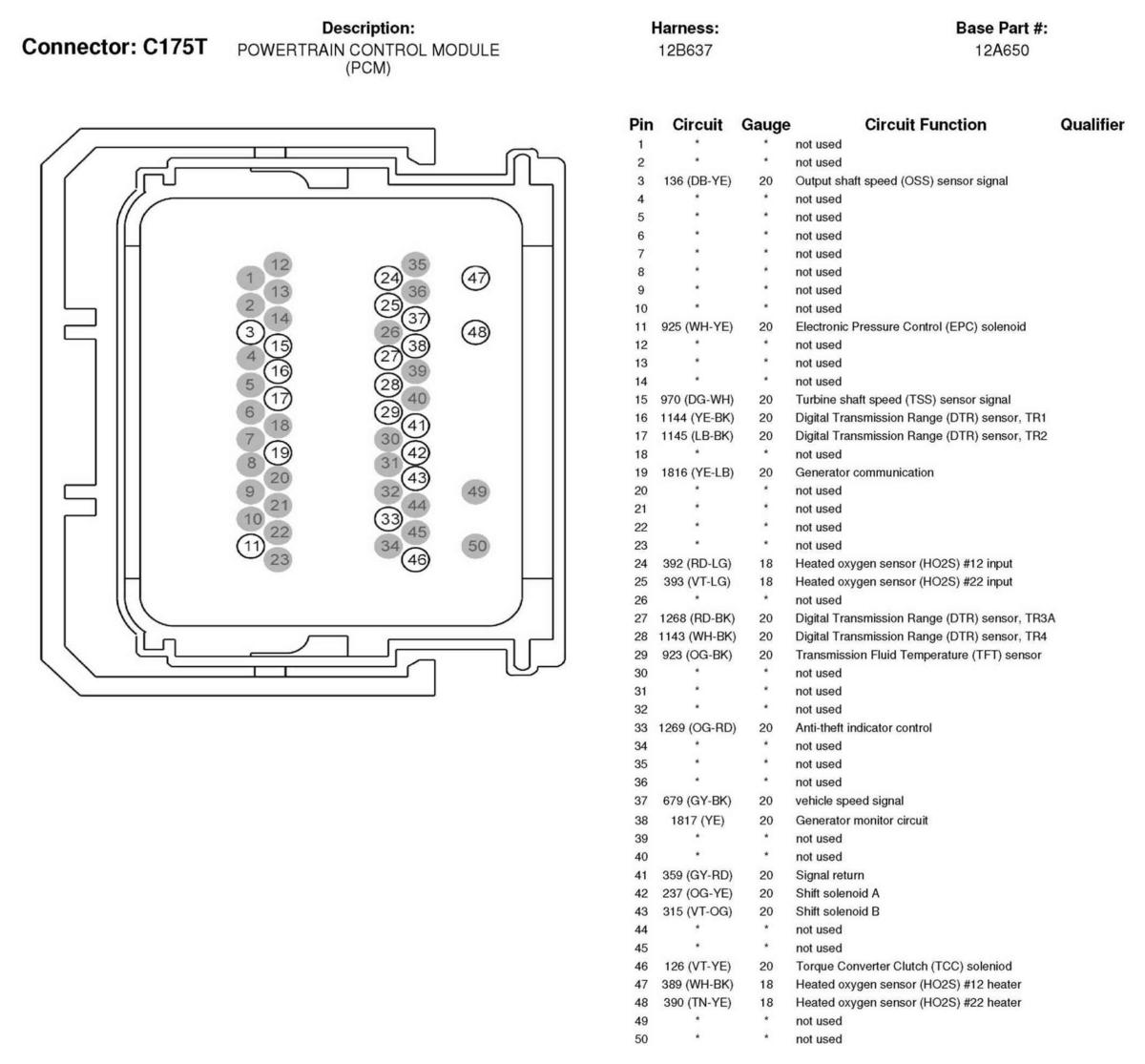

Fig 44: Powertrain Control Module (PCM) Connector End View (C175T)
Courtesy of FORD MOTOR CO.
Fig 45: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.
Fig 46: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 47: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.
Fig 48: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.

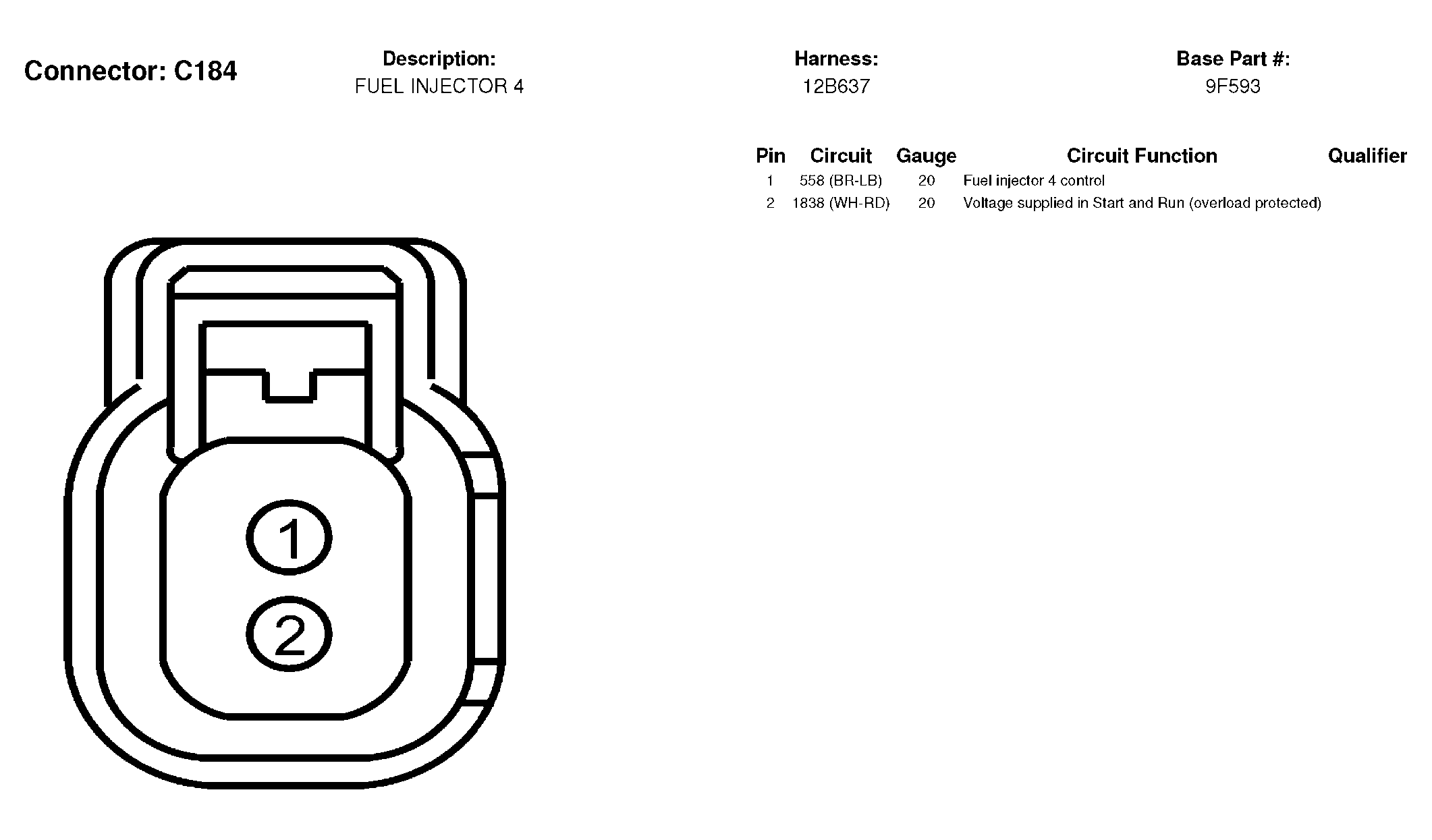

Fig 49: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.

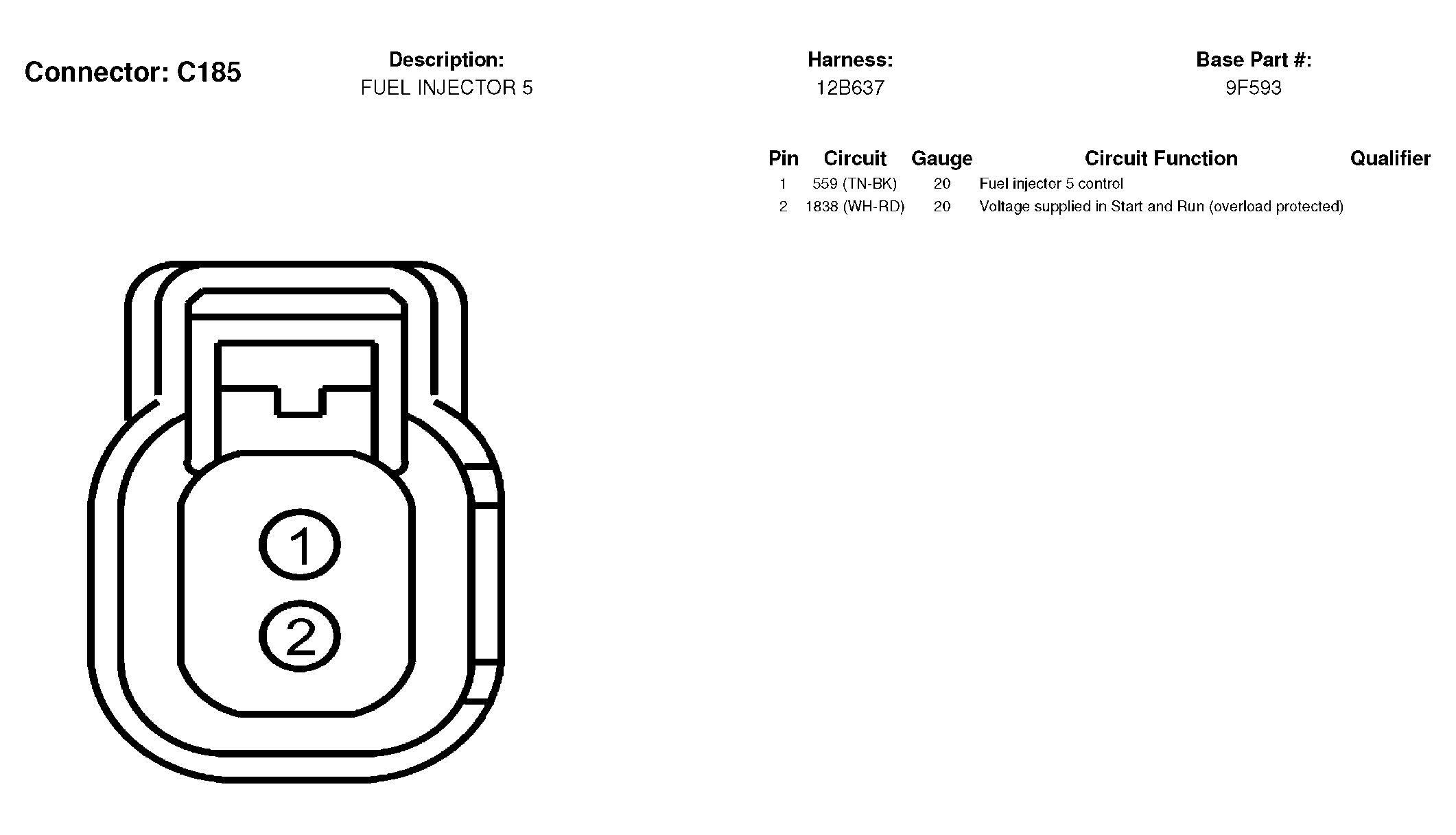

Fig 50: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.
Fig 51: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.
Fig 52: Fuel Injector 7 Connector End View (C187)
Courtesy of FORD MOTOR CO.
Fig 53: Fuel Injector 8 Connector End View (C188)
Courtesy of FORD MOTOR CO.

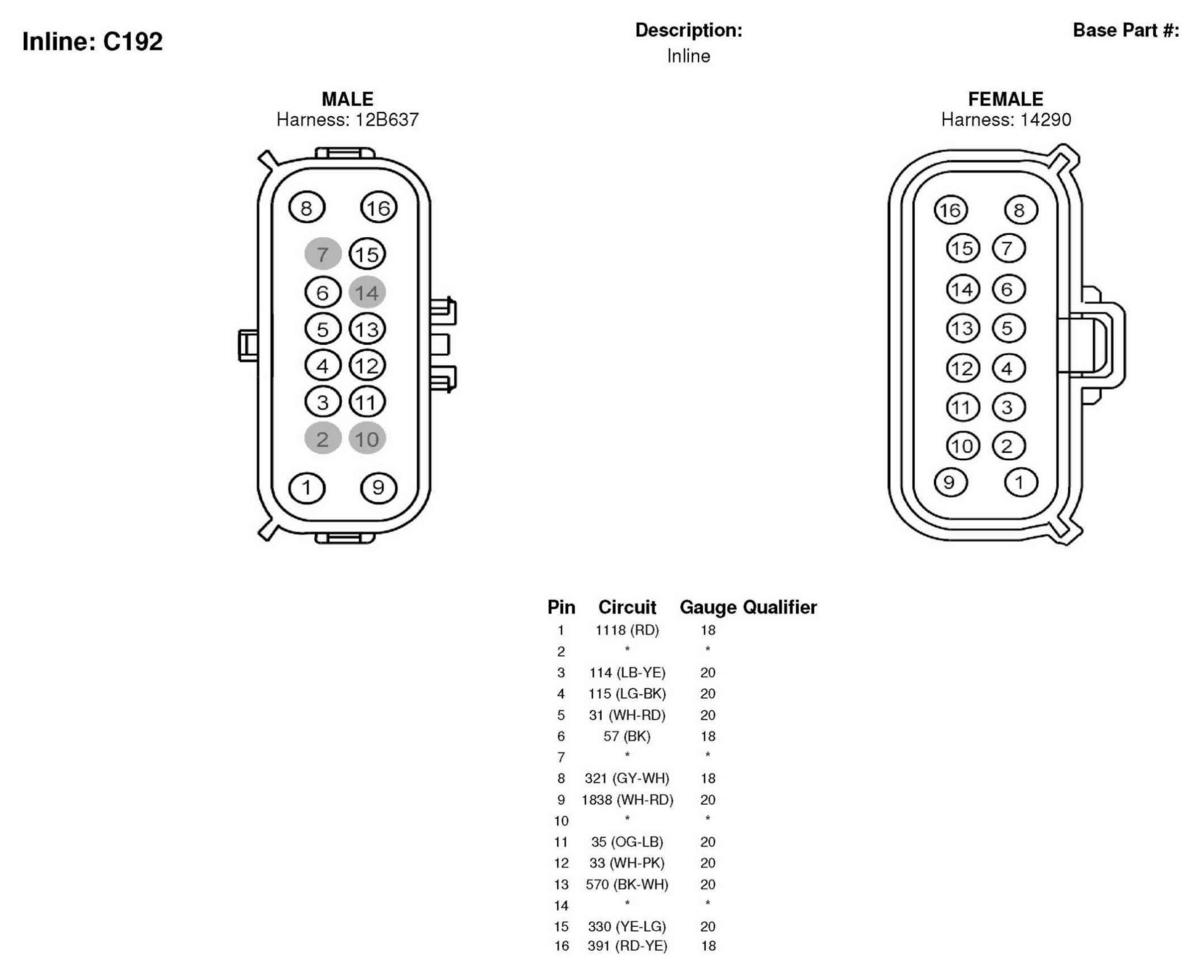

Fig 54: Inline Connector End View (C192)
Courtesy of FORD MOTOR CO.
Fig 55: Starter Motor Connector End View (C197A)
Courtesy of FORD MOTOR CO.
Fig 56: Starter Motor Connector End View (C197B)
Courtesy of FORD MOTOR CO.

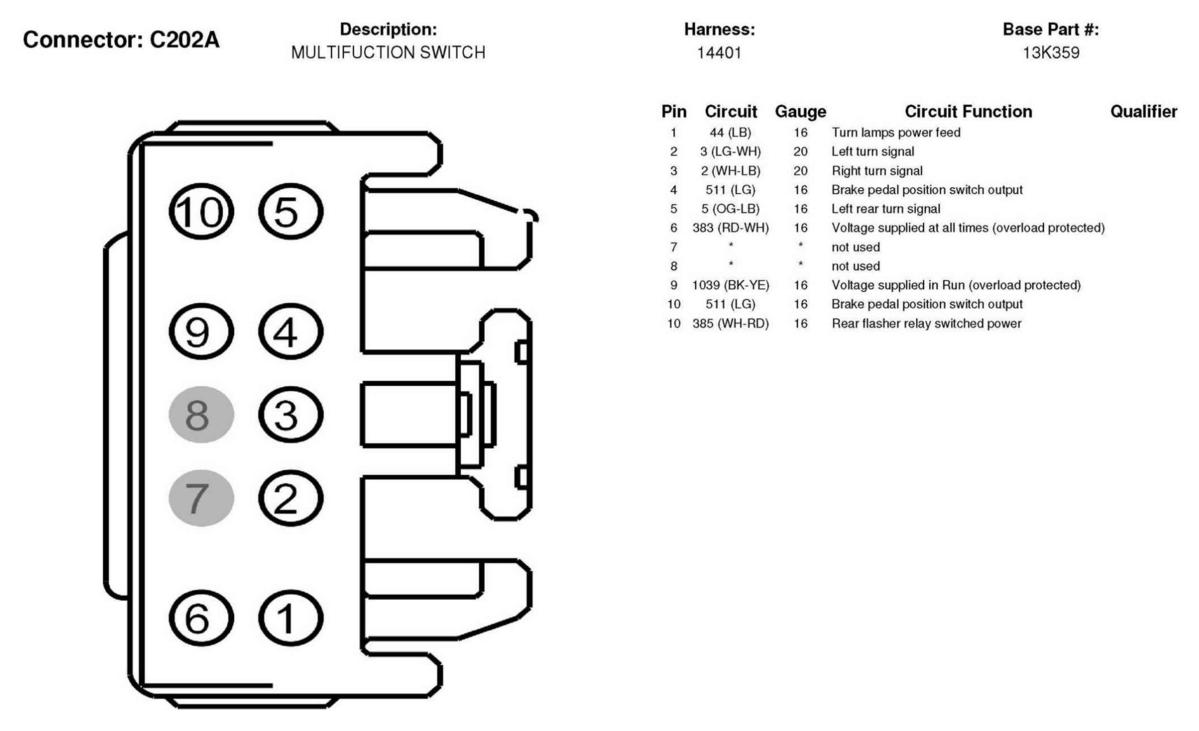

Fig 57: Multifunction Switch Connector End View (C202A)
Courtesy of FORD MOTOR CO.

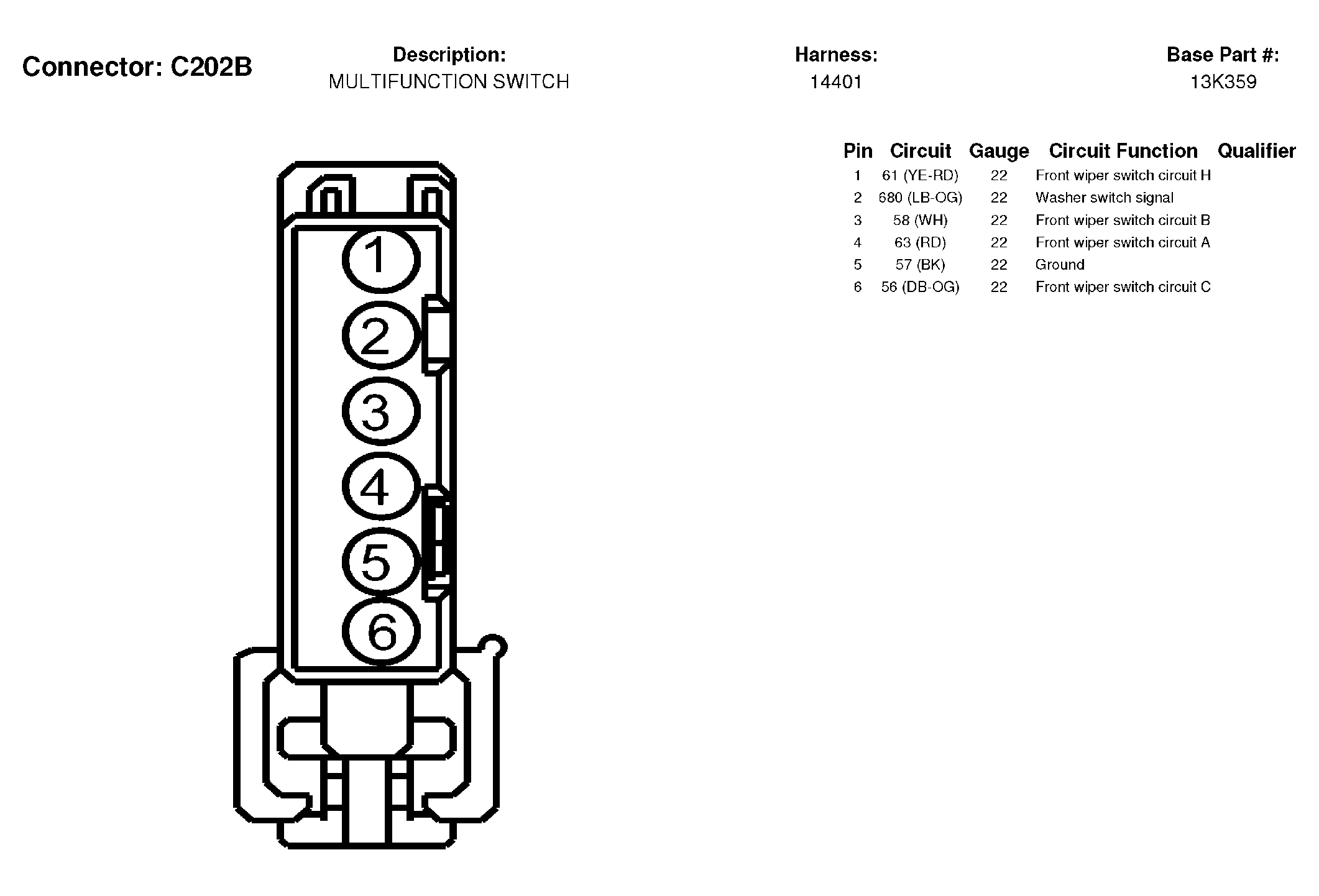

Fig 58: Multifunction Switch Connector End View (C202B)
Courtesy of FORD MOTOR CO.

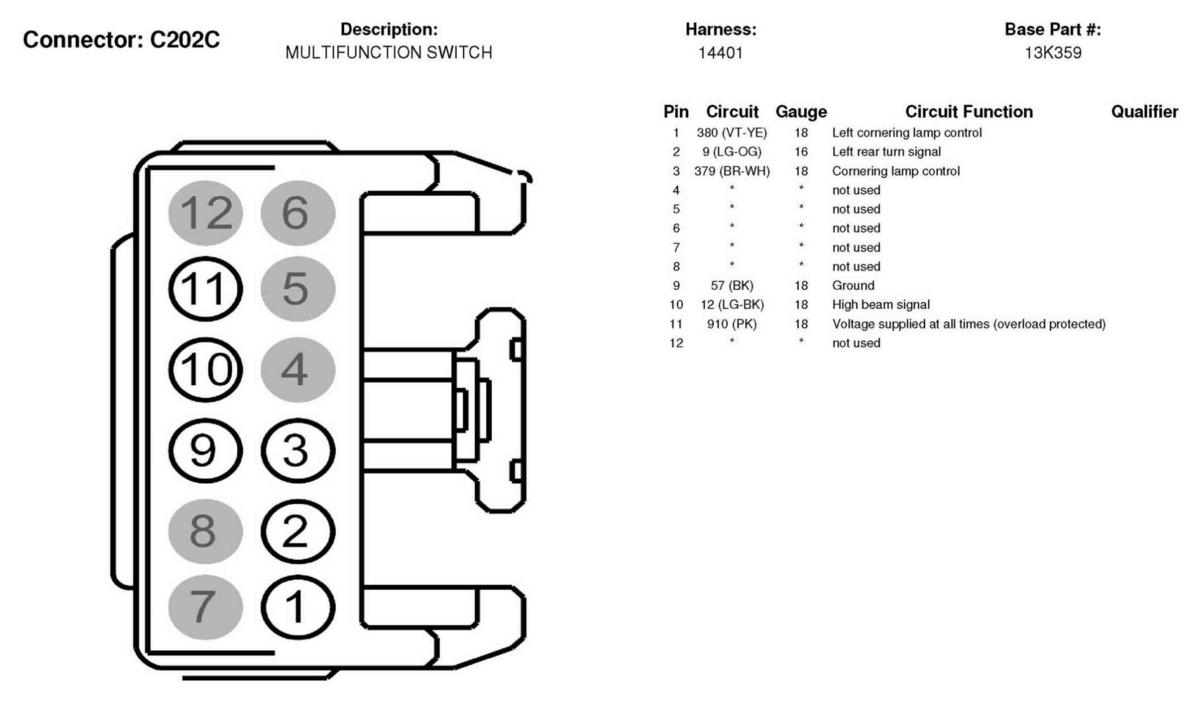

Fig 59: Multifunction Switch Connector End View (C202C)
Courtesy of FORD MOTOR CO.

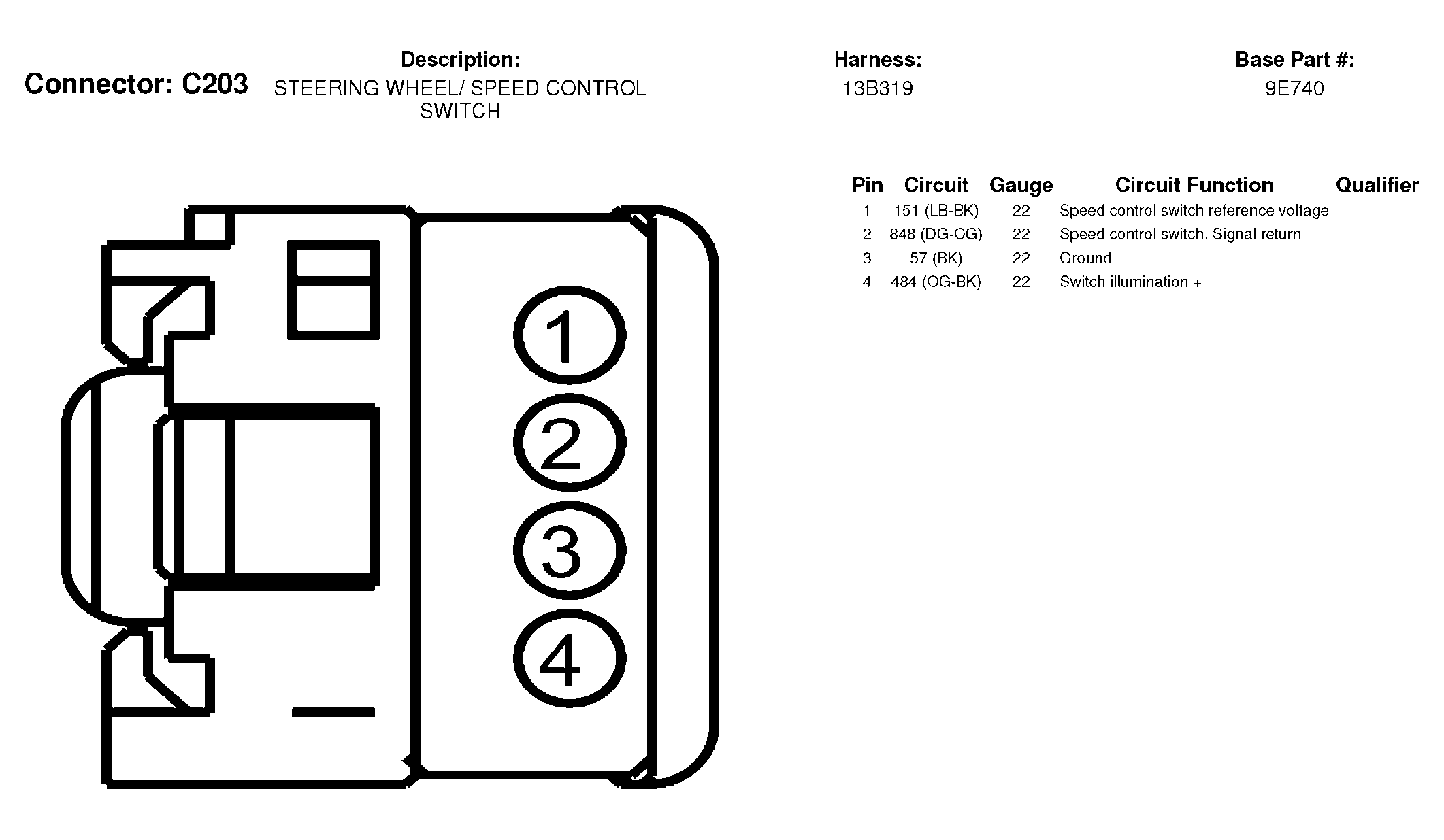

Fig 60: Steering Wheel/Speed Control Switch Connector End View (C203)
Courtesy of FORD MOTOR CO.

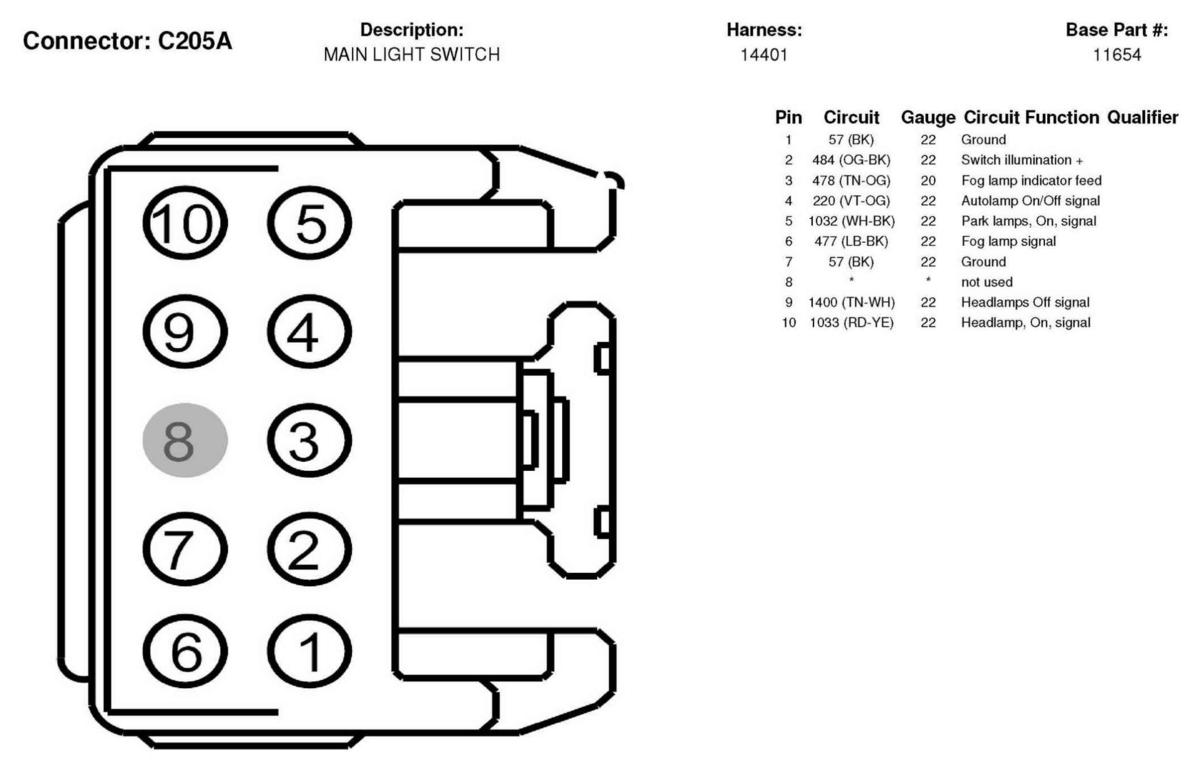

Fig 61: Main Light Switch Connector End View (C205A)
Courtesy of FORD MOTOR CO.

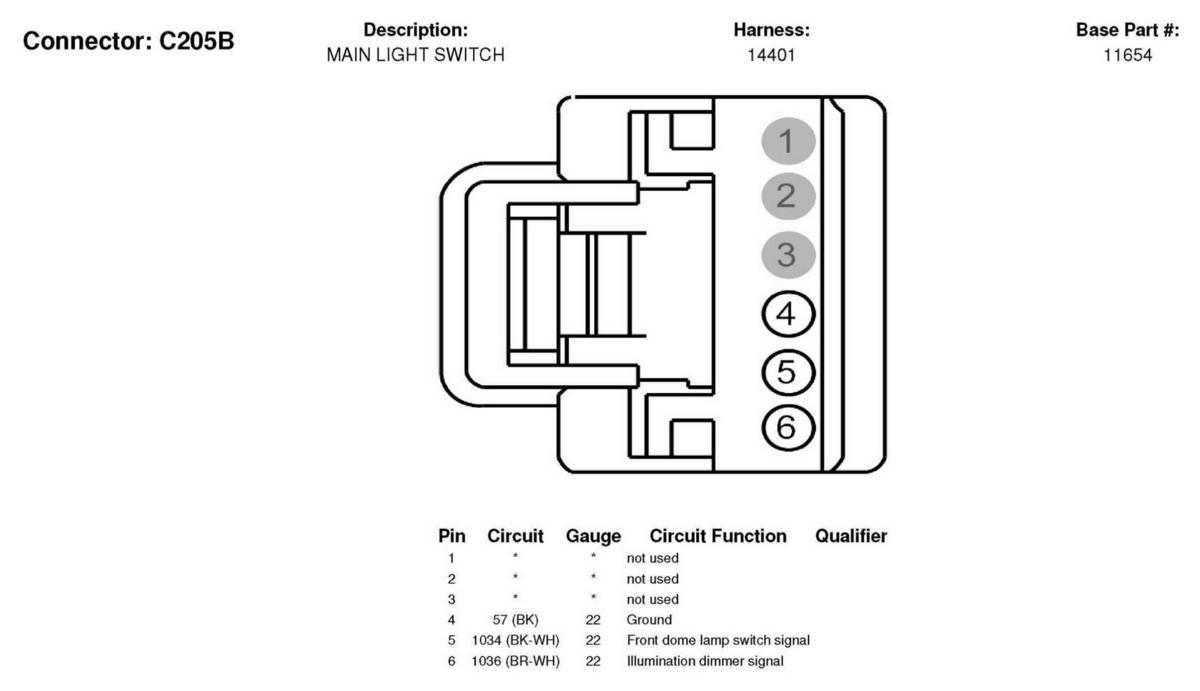

Fig 62: Main Light Switch Connector End View (C205B)
Courtesy of FORD MOTOR CO.

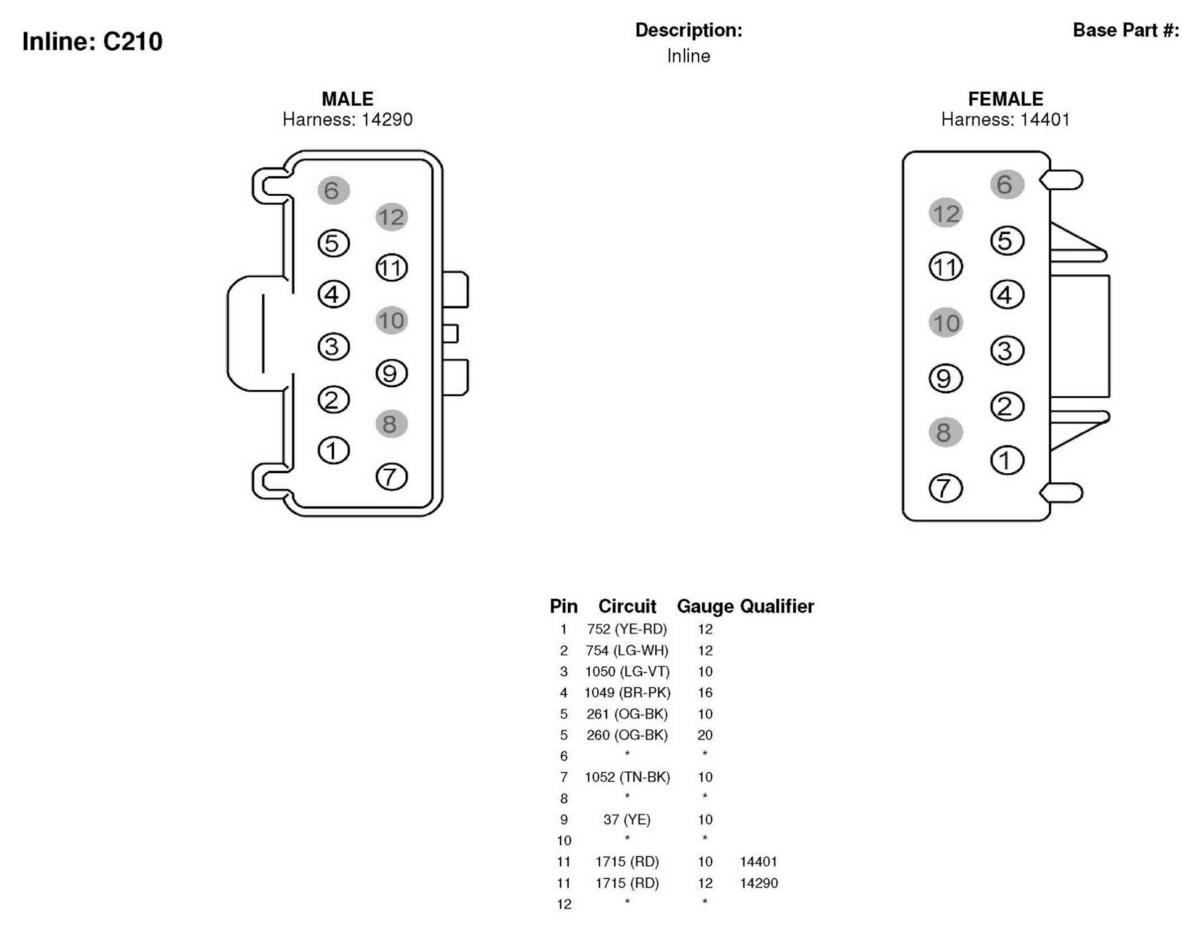

Fig 63: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

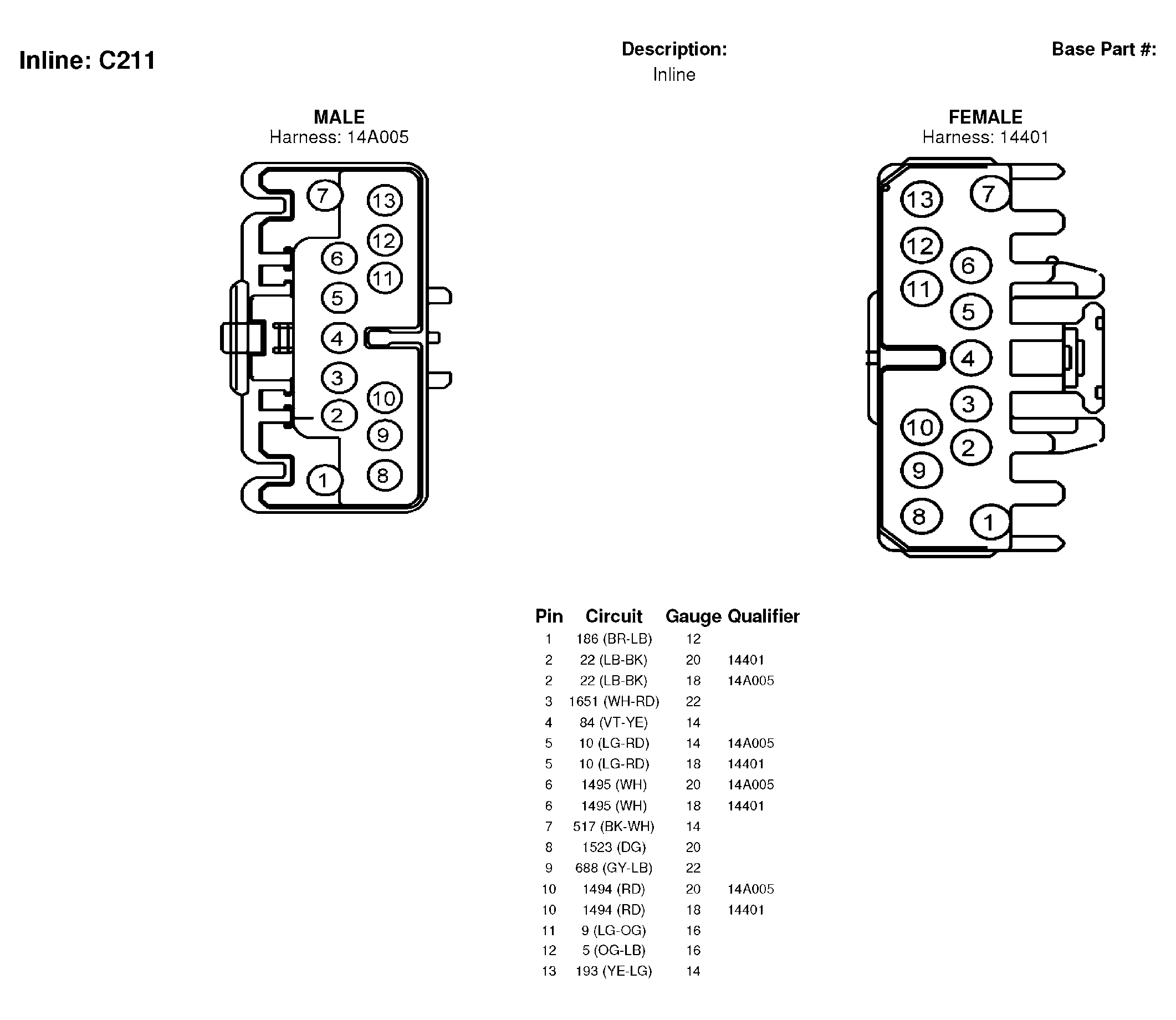

Fig 64: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

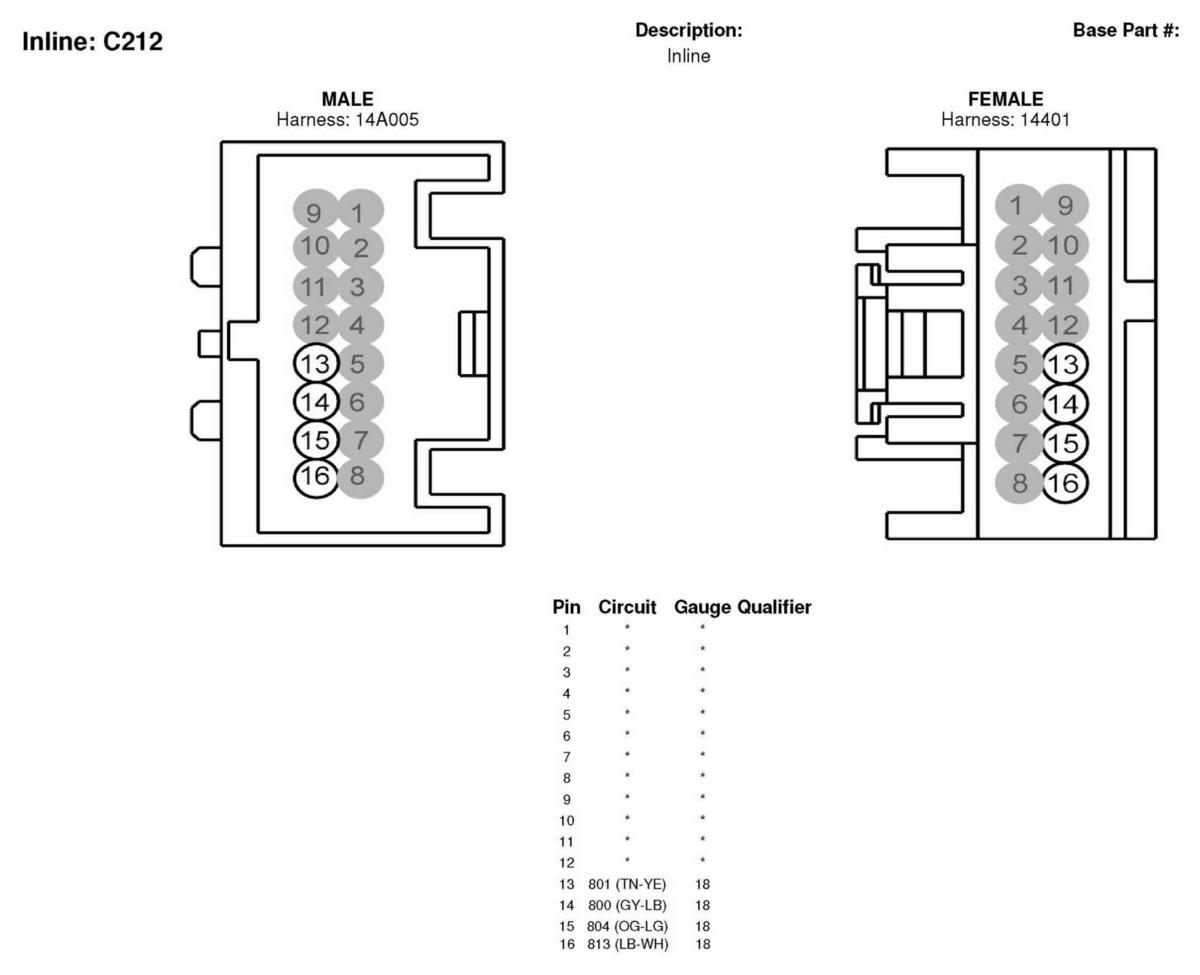

Fig 65: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

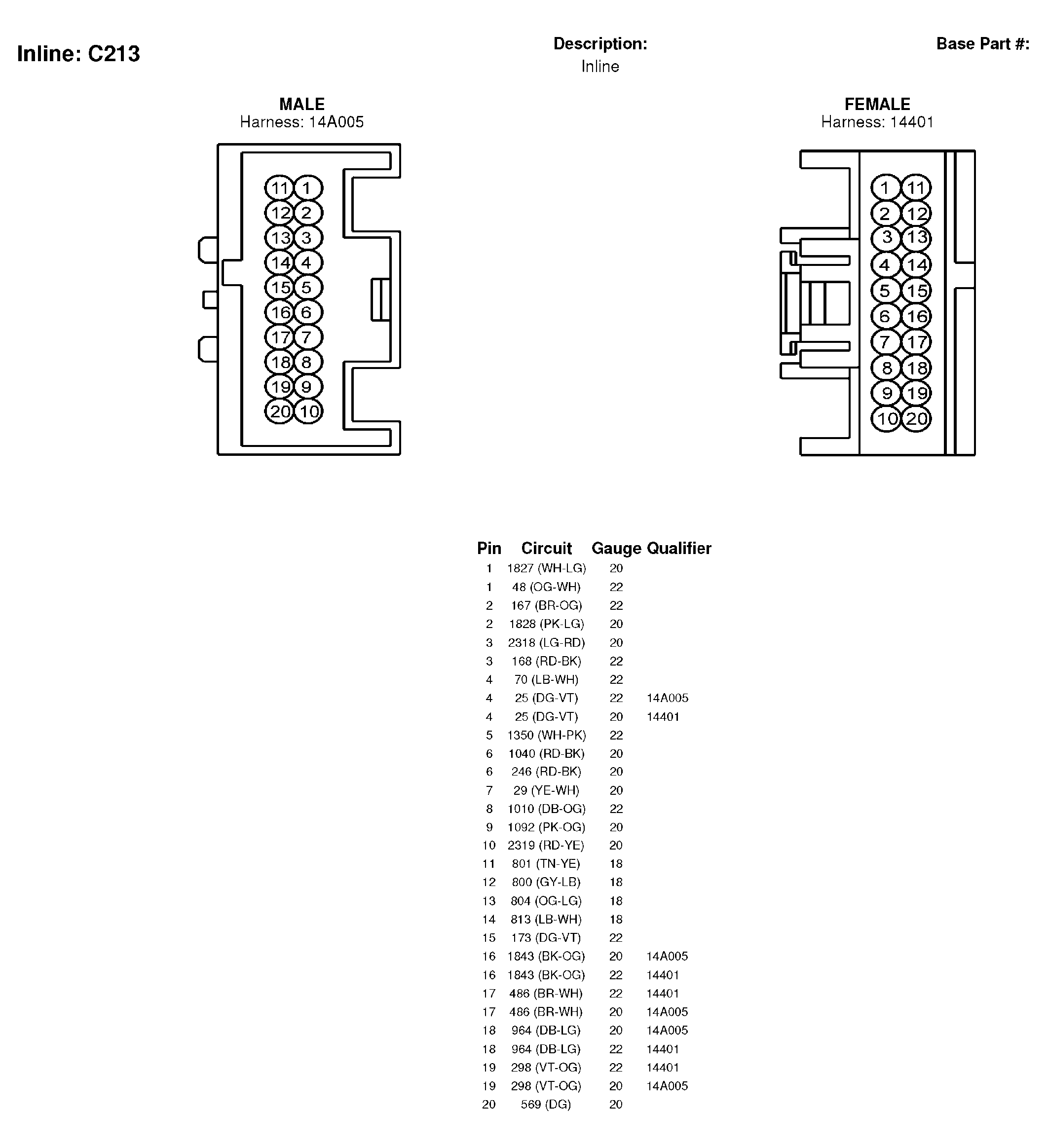

Fig 66: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

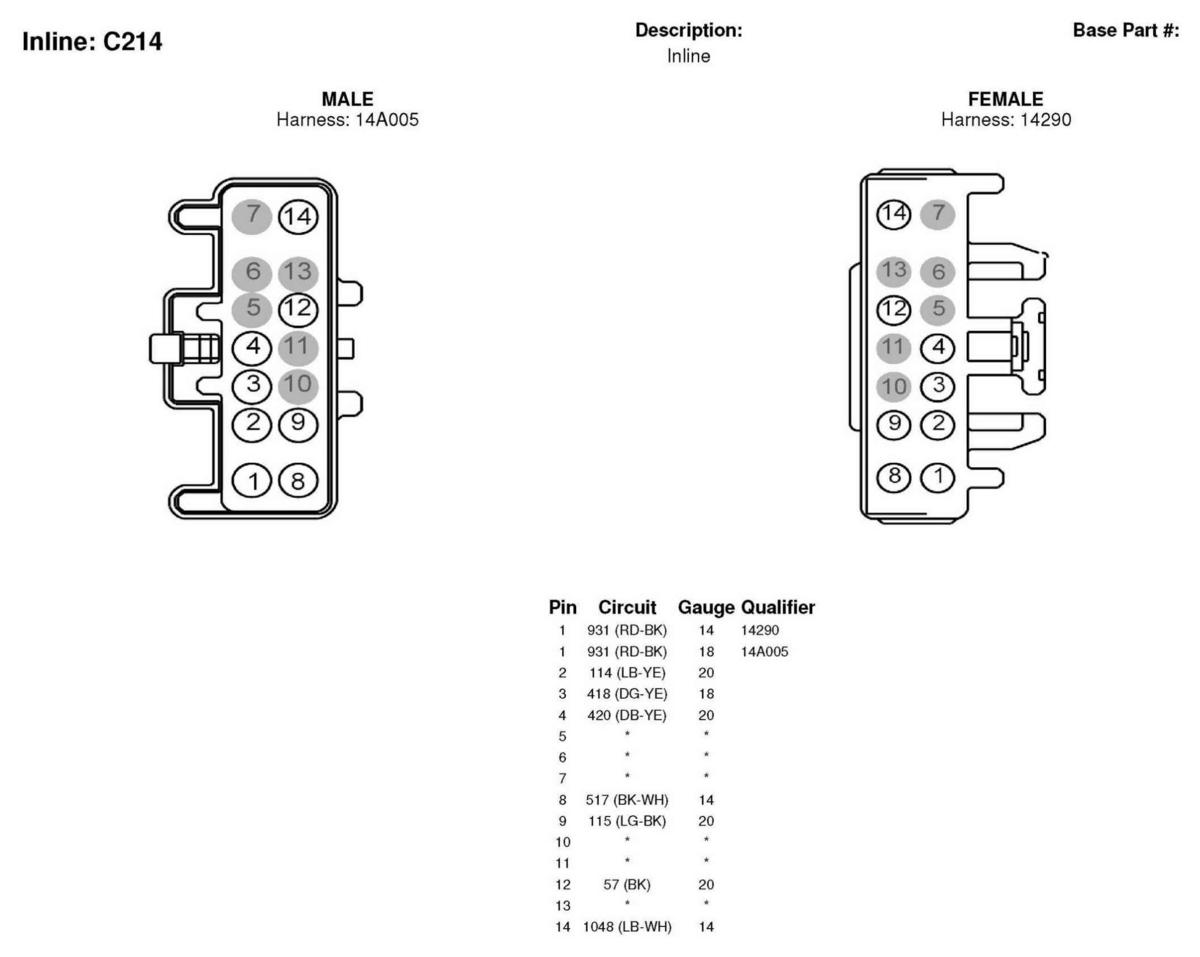

Fig 67: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.

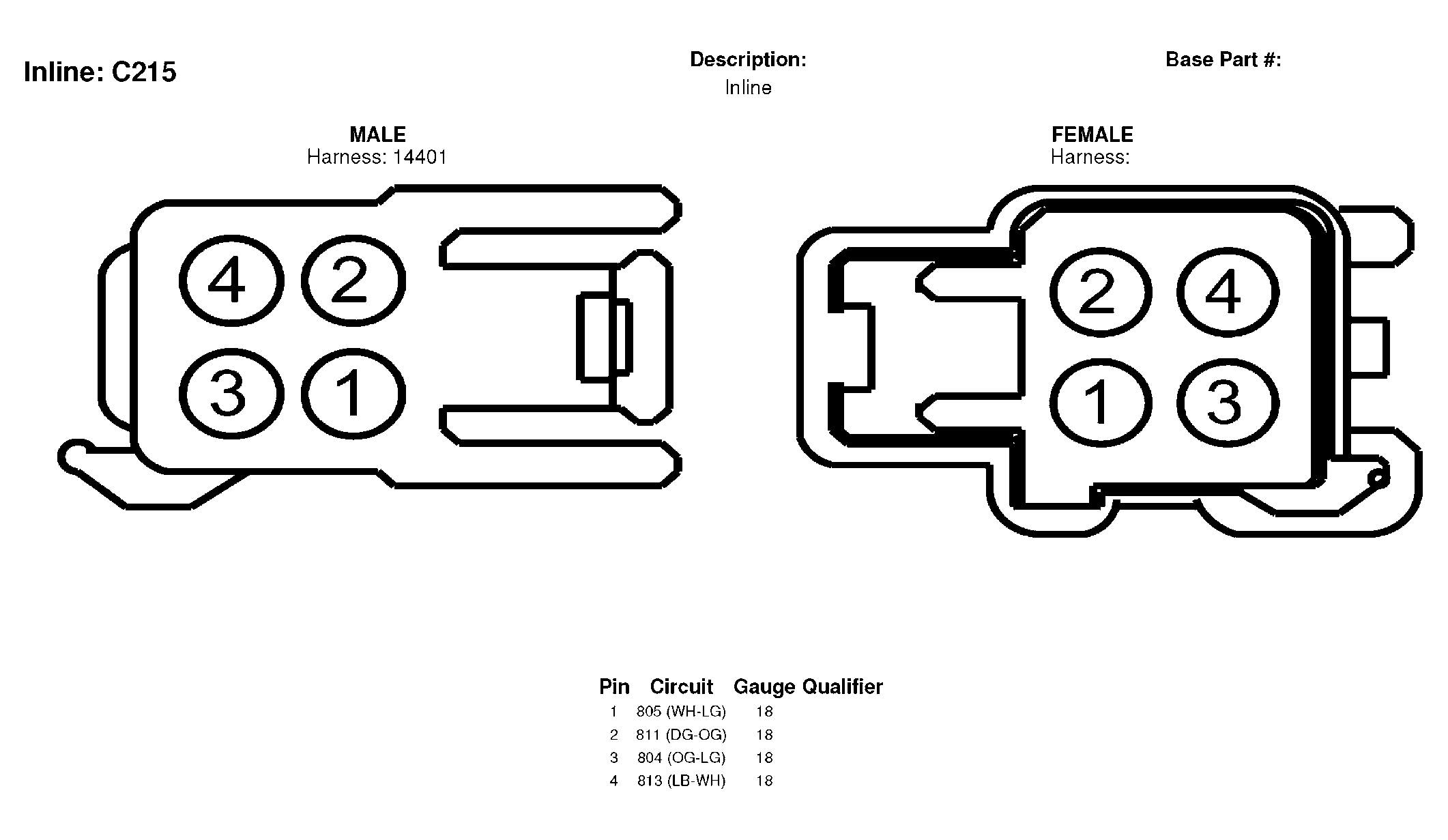

Fig 68: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

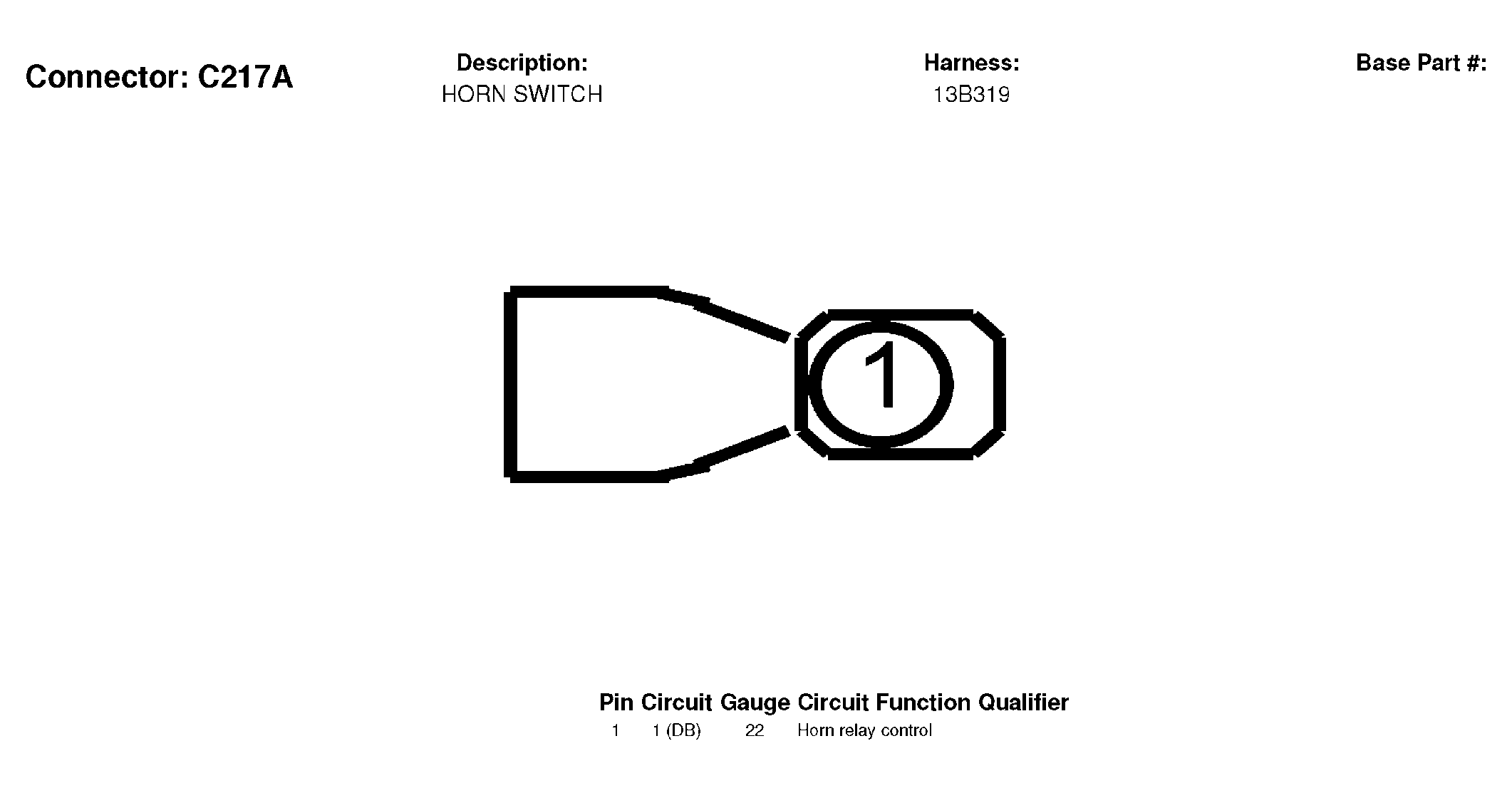

Fig 69: Horn Switch Connector End View (C217A)
Courtesy of FORD MOTOR CO.

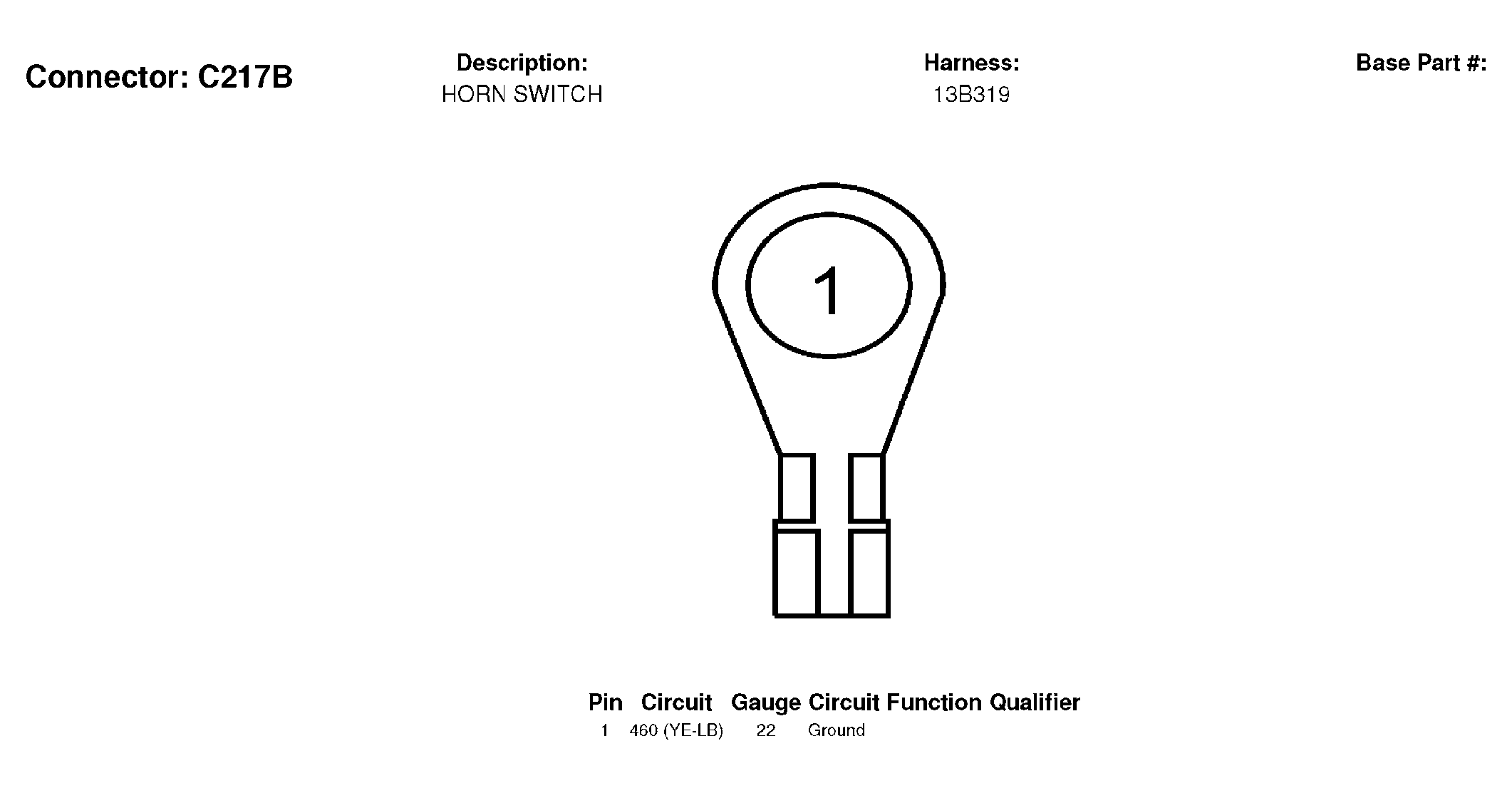

Fig 70: Horn Switch Connector End View (C217B)
Courtesy of FORD MOTOR CO.

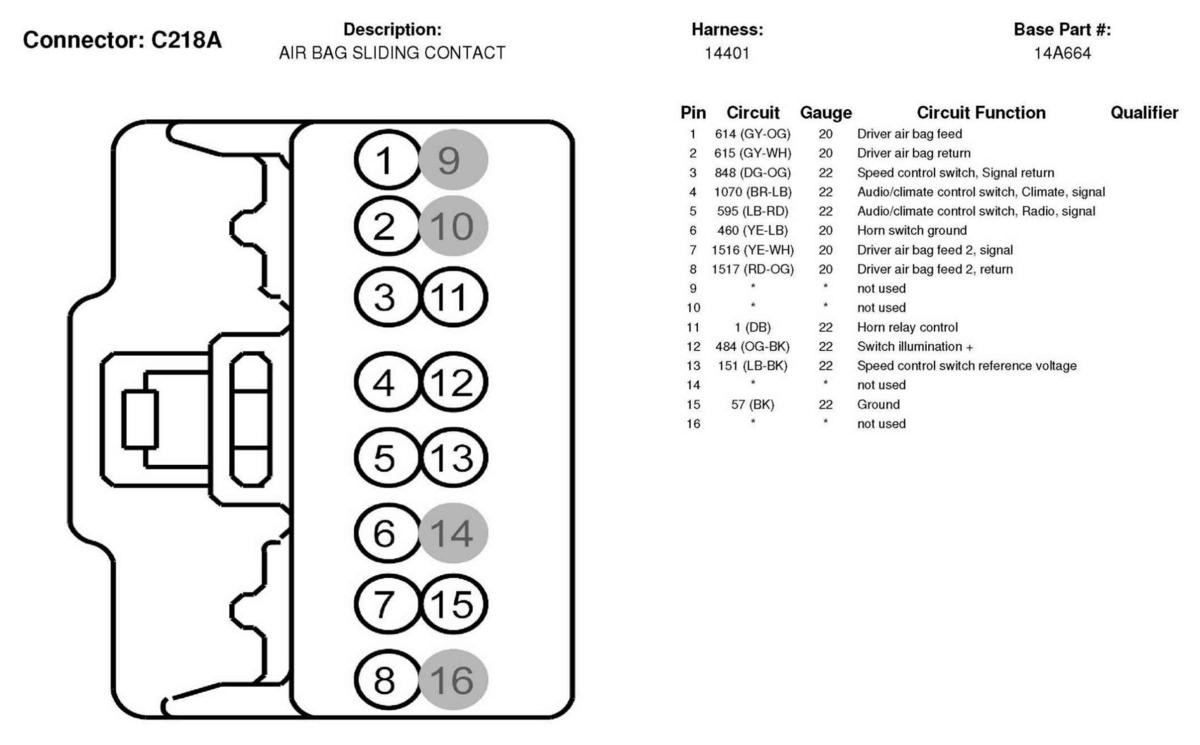

Fig 71: Air Bag Sliding Contact Connector End View (C218A)
Courtesy of FORD MOTOR CO.

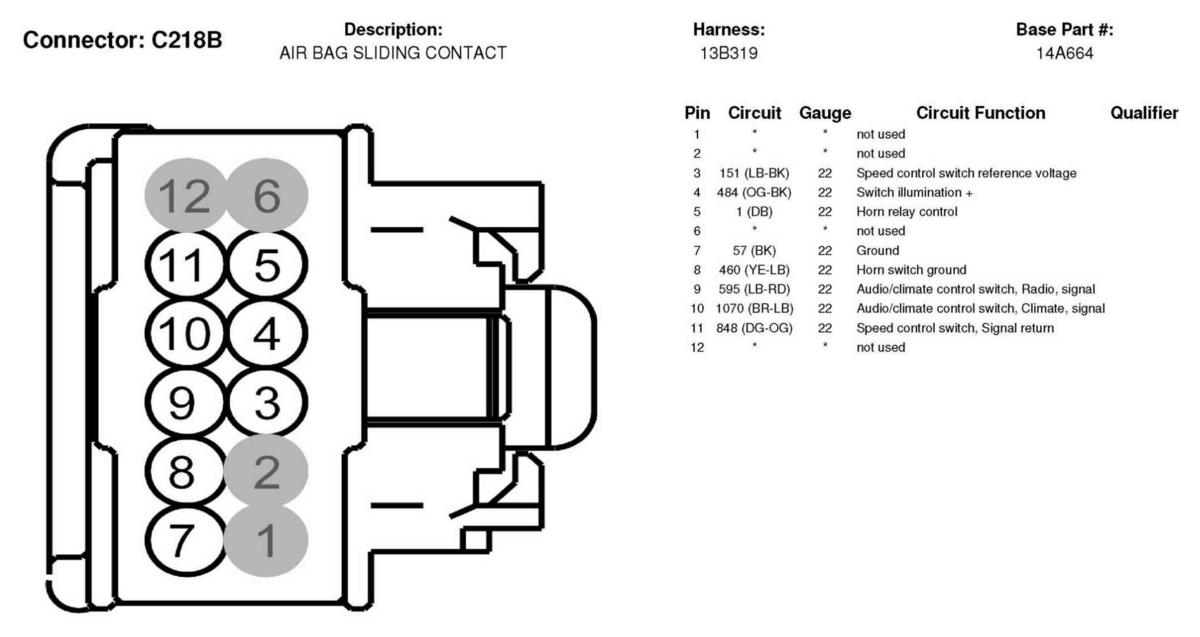

Fig 72: Air Bag Sliding Contact Connector End View (C218B)
Courtesy of FORD MOTOR CO.

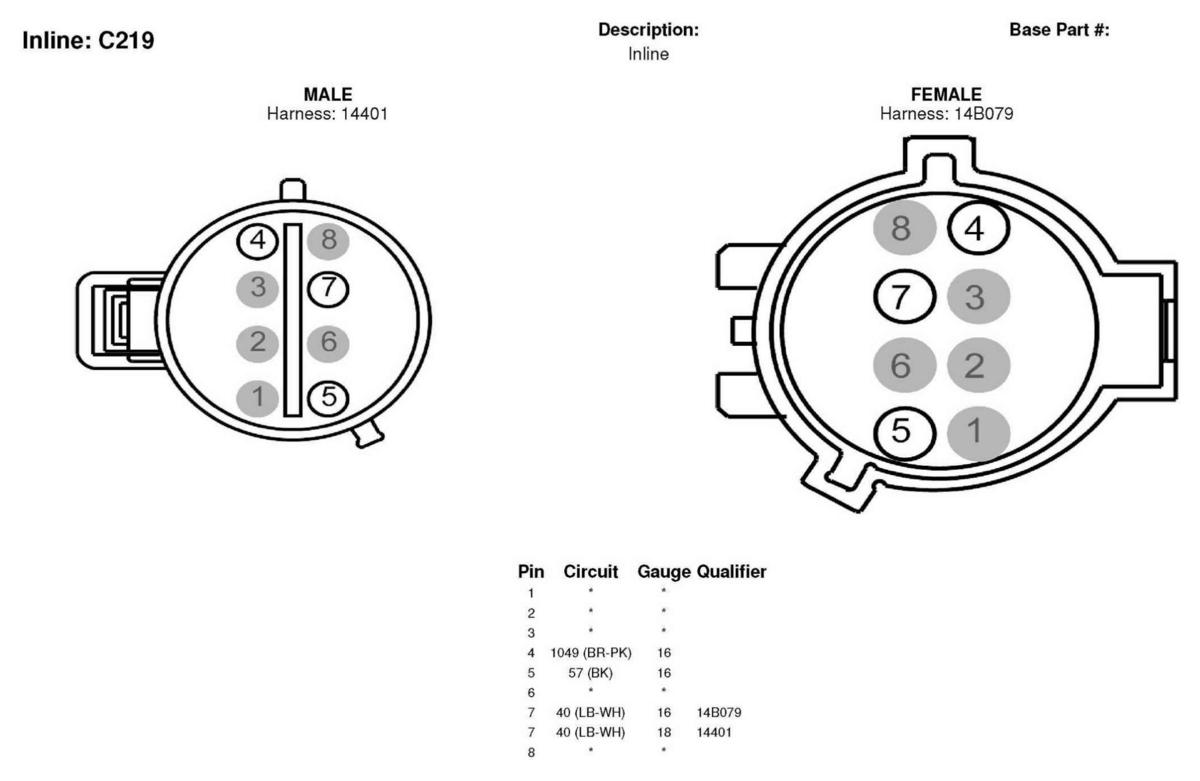

Fig 73: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

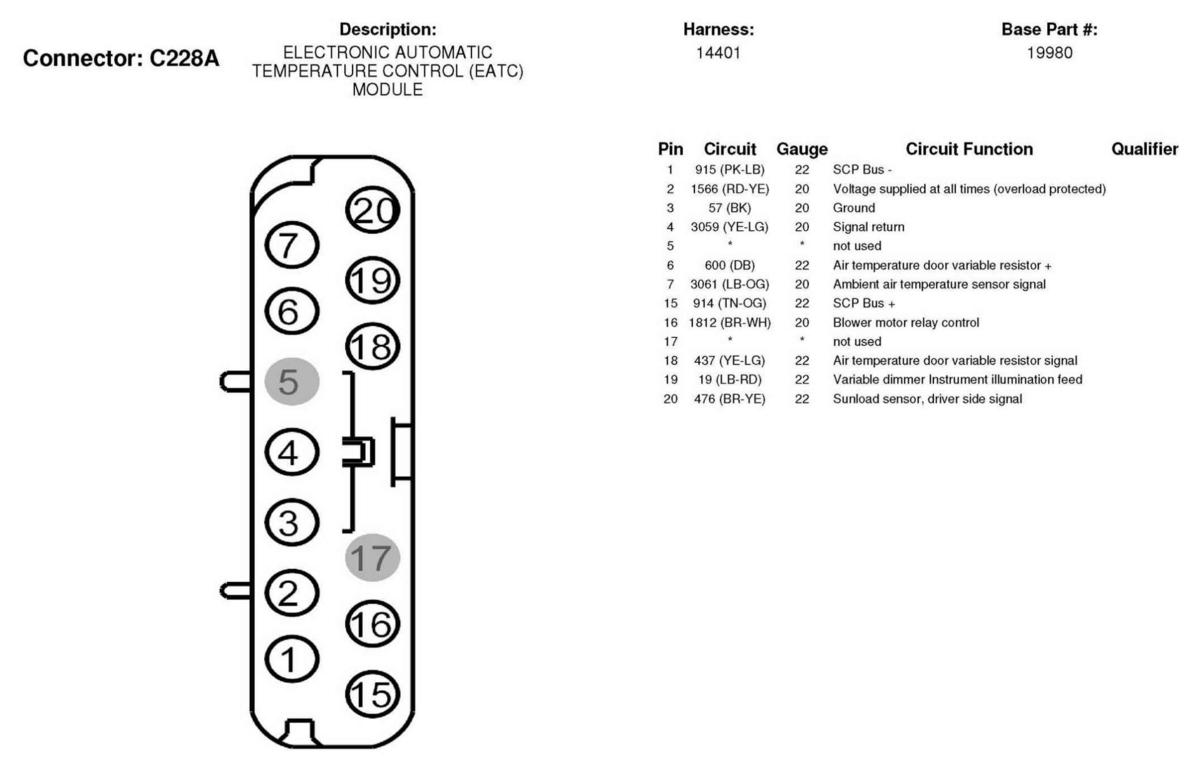

Fig 74: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228A)
Courtesy of FORD MOTOR CO.

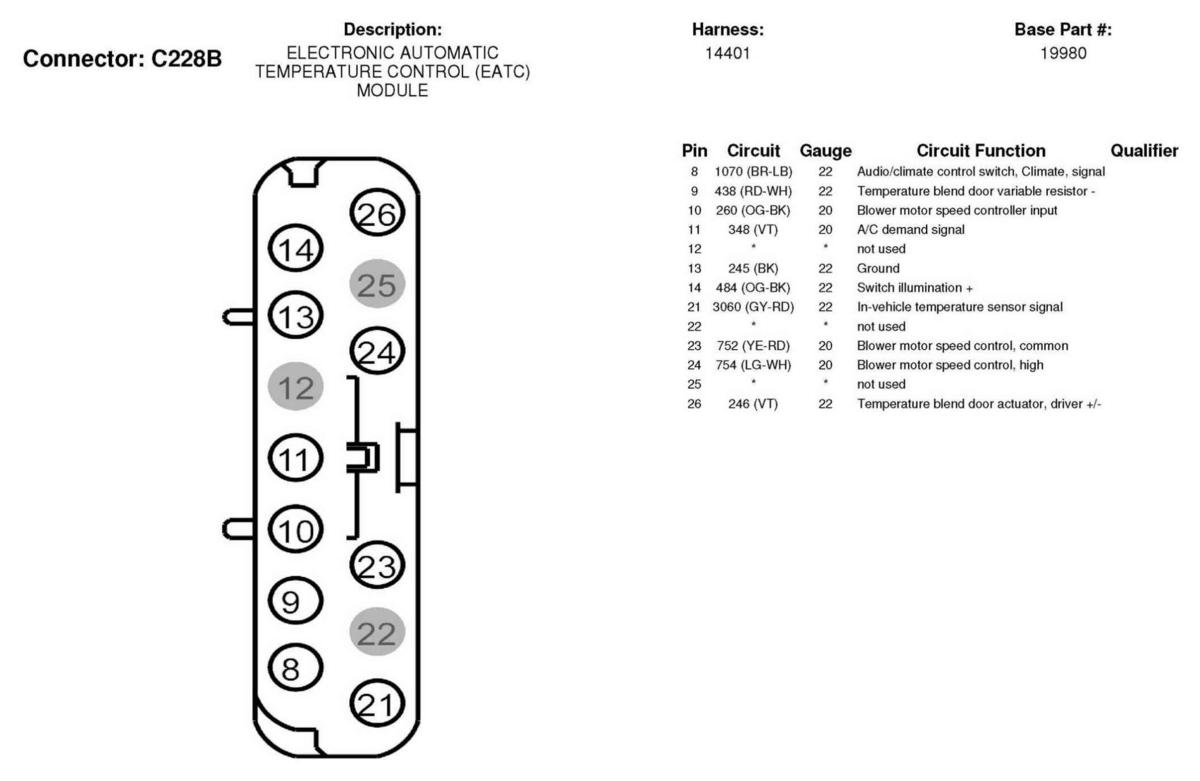

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228B)
Courtesy of FORD MOTOR CO.

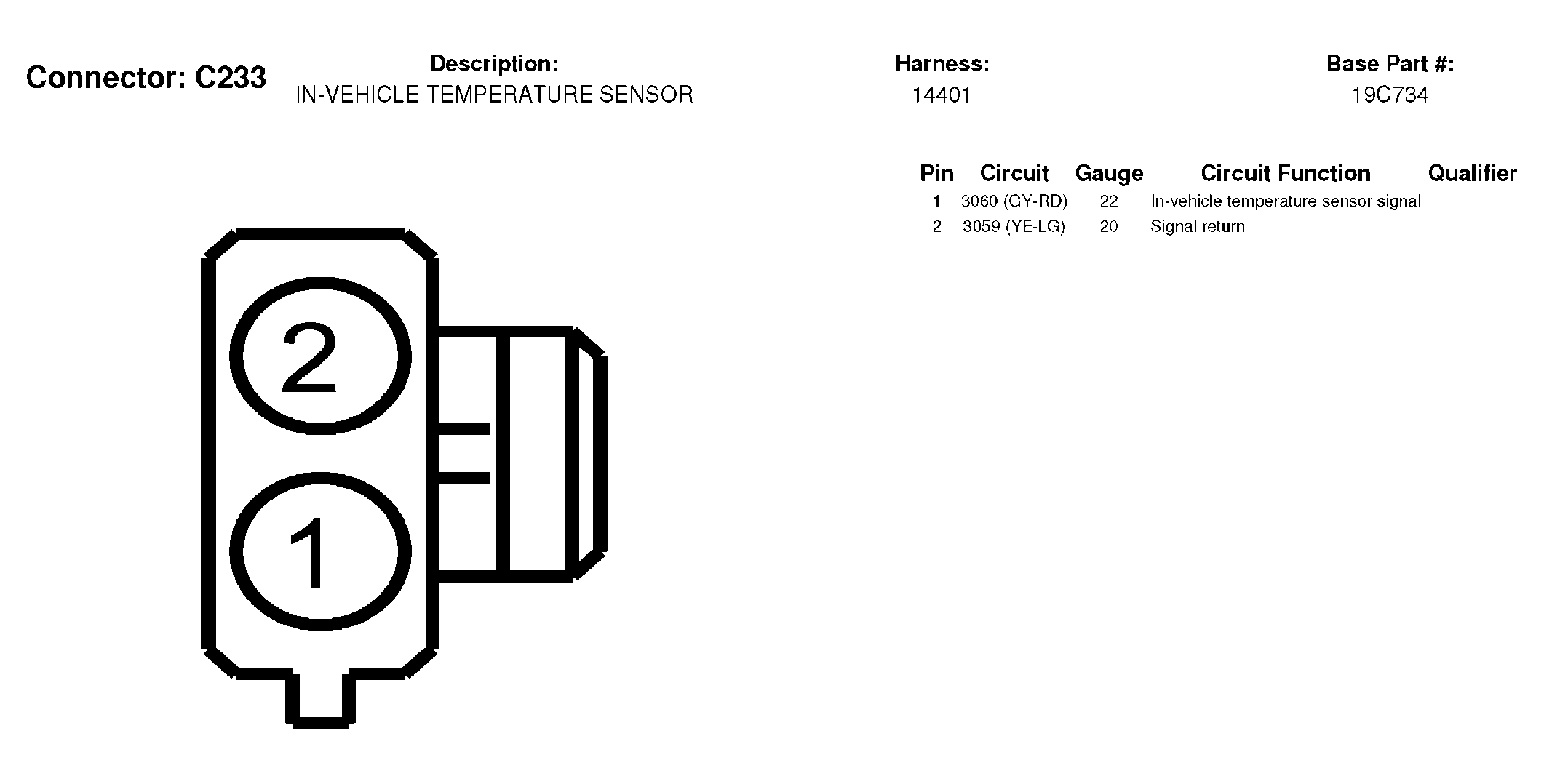

Fig 76: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.

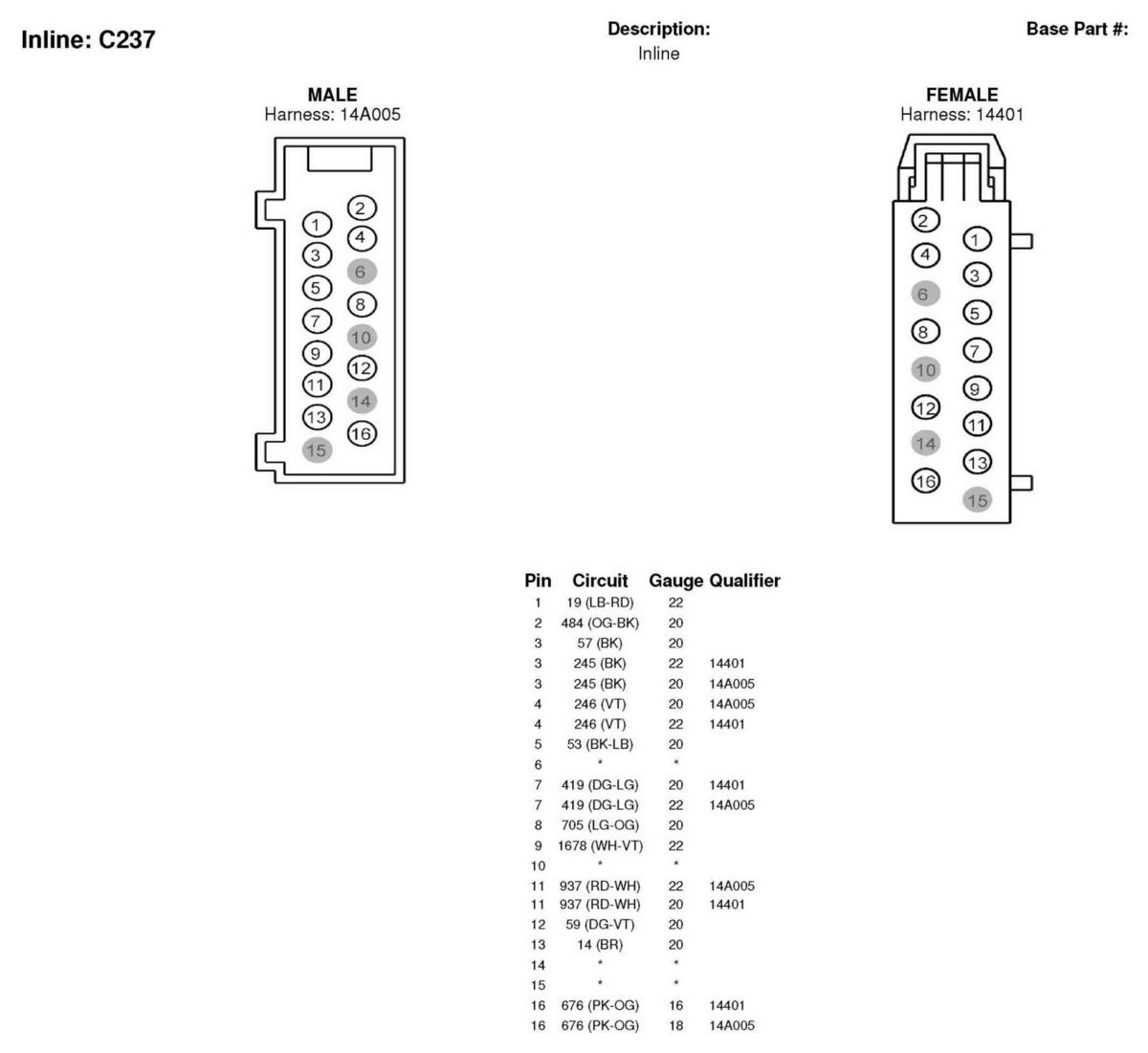

Fig 77: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.

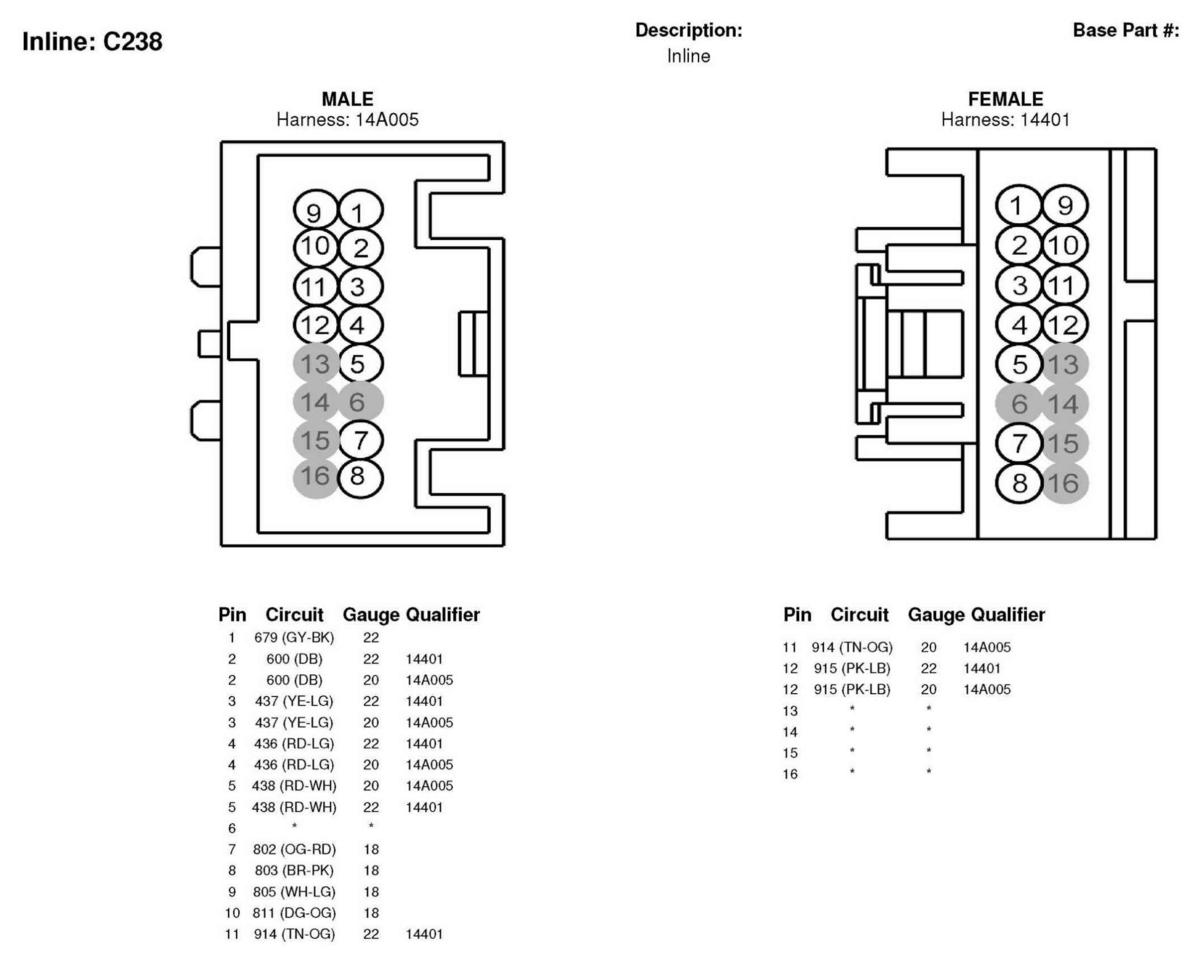

Fig 78: Inline Connector End View (C238)
Courtesy of FORD MOTOR CO.

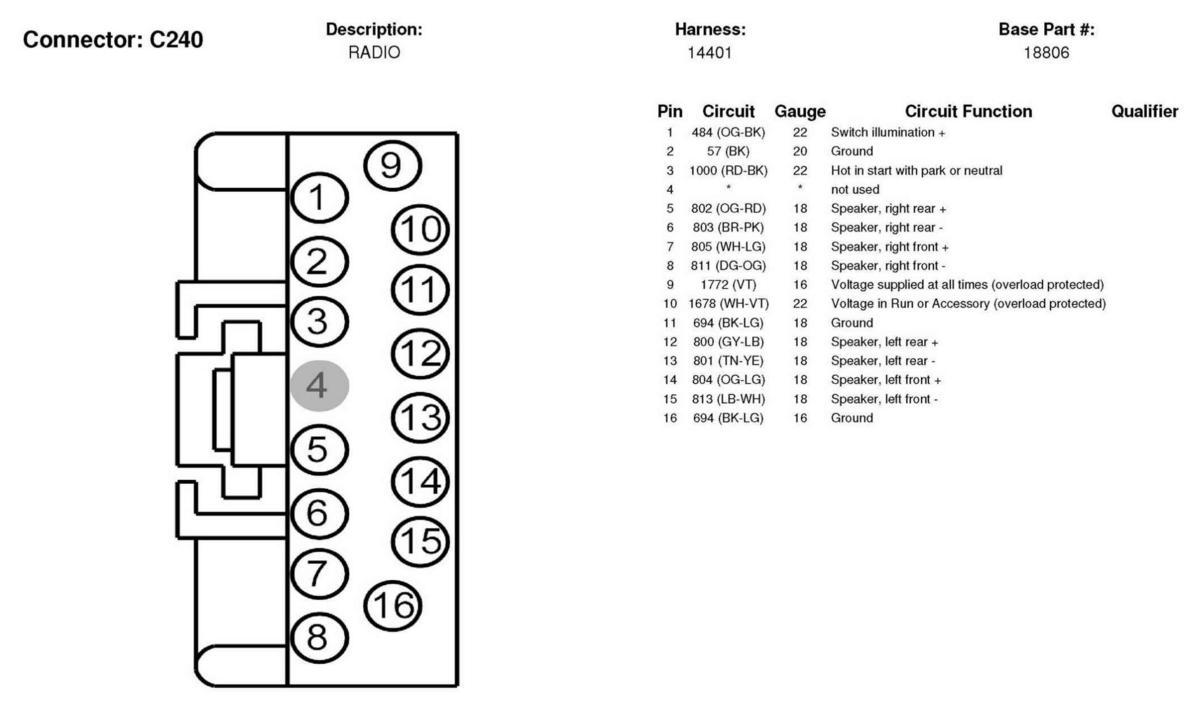

Fig 79: Radio Connector End View (C240)
Courtesy of FORD MOTOR CO.

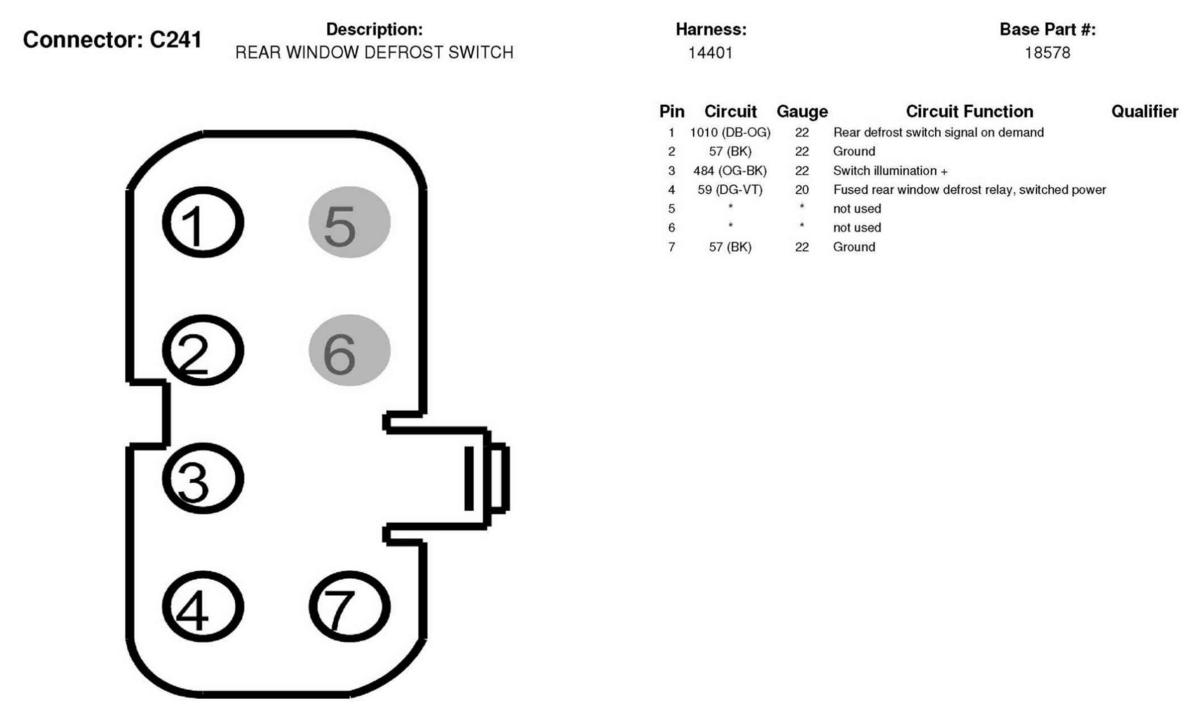

Fig 80: Rear Window Defrost Switch Connector End View (C241)
Courtesy of FORD MOTOR CO.

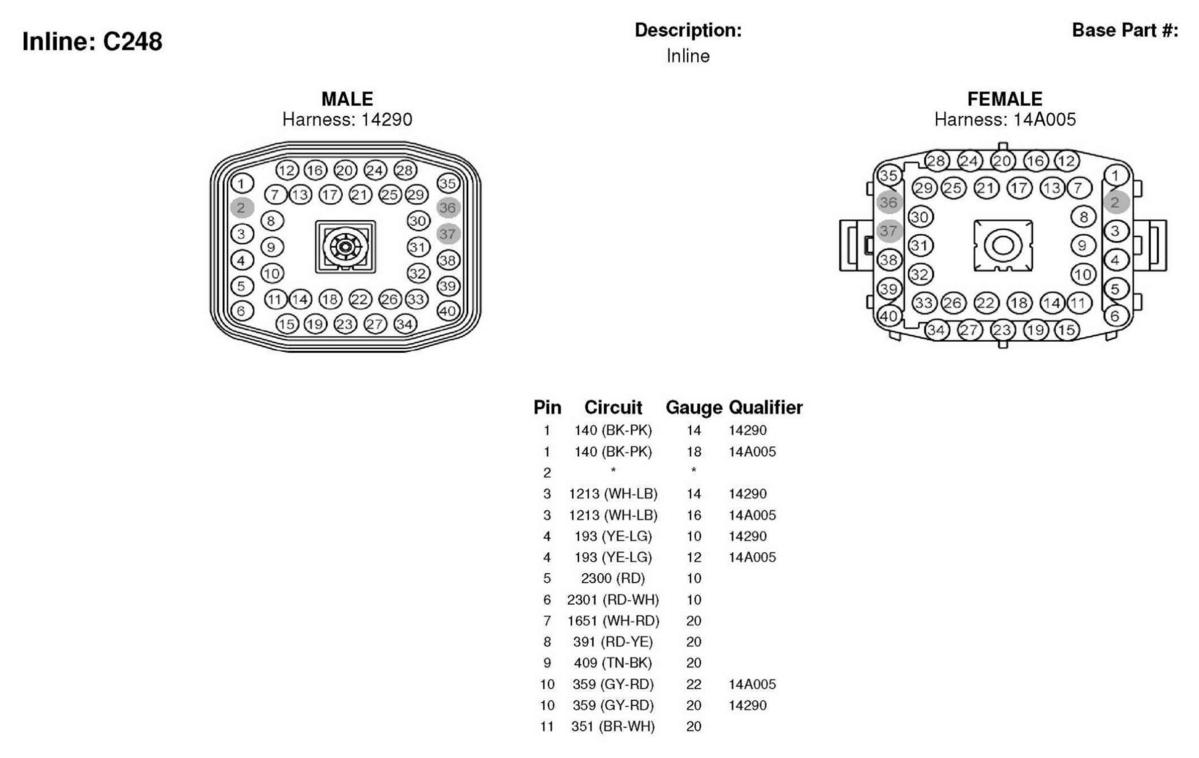

Fig 81: Inline Connector End View (C248) (1 Of 2)
Courtesy of FORD MOTOR CO.

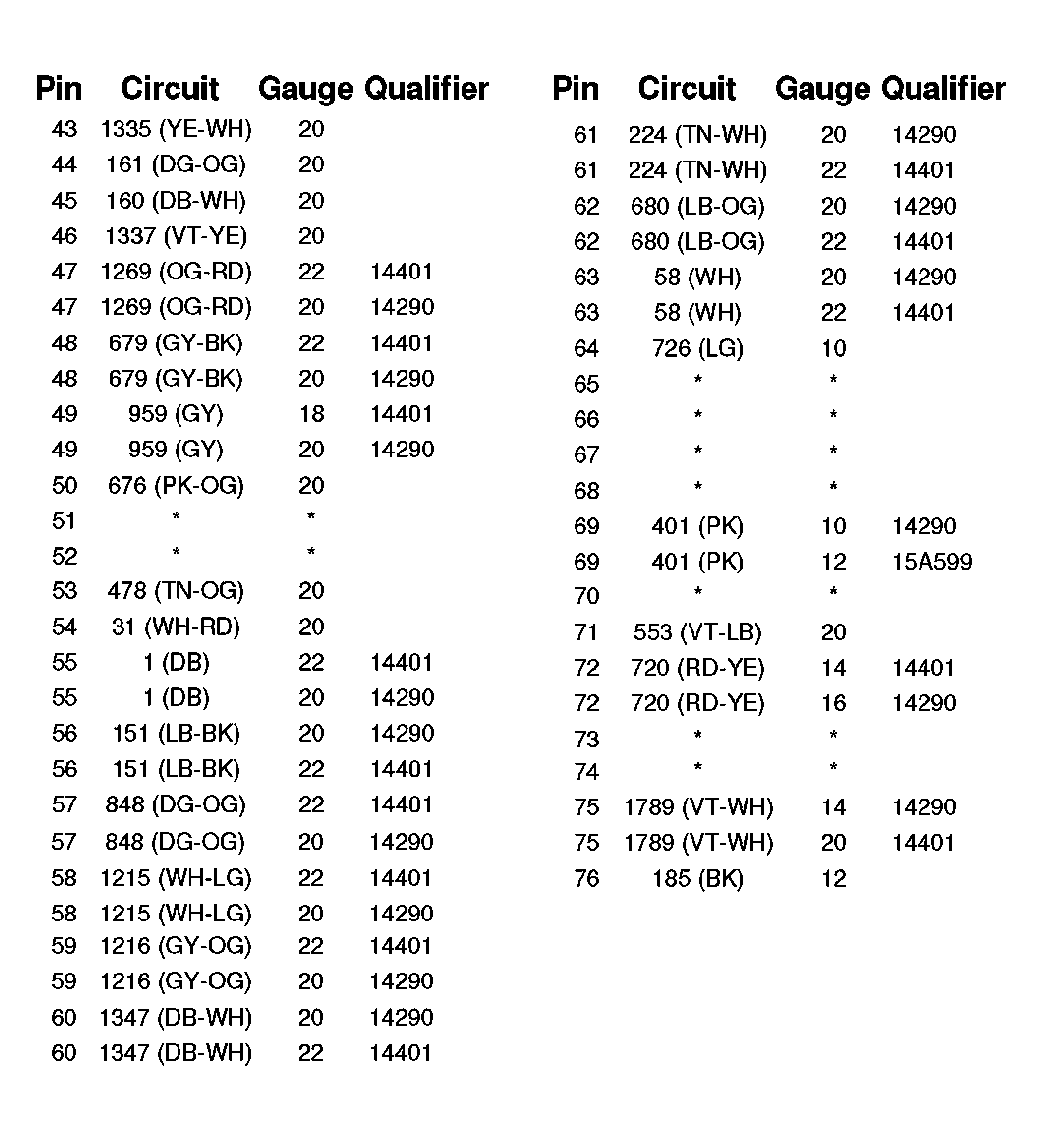

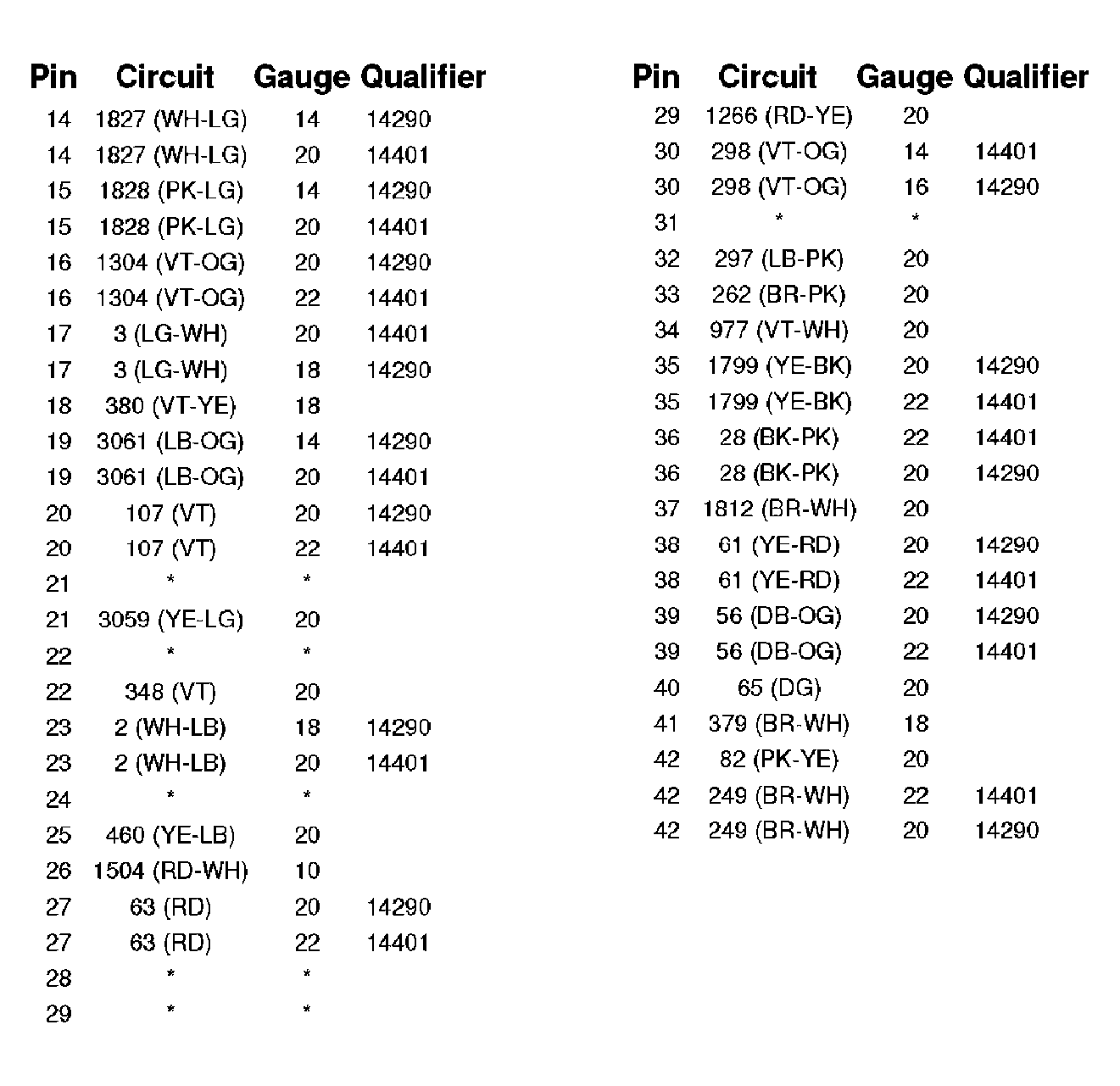

Fig 82: Inline Connector End View (C248) (2 Of 2)
Courtesy of FORD MOTOR CO.

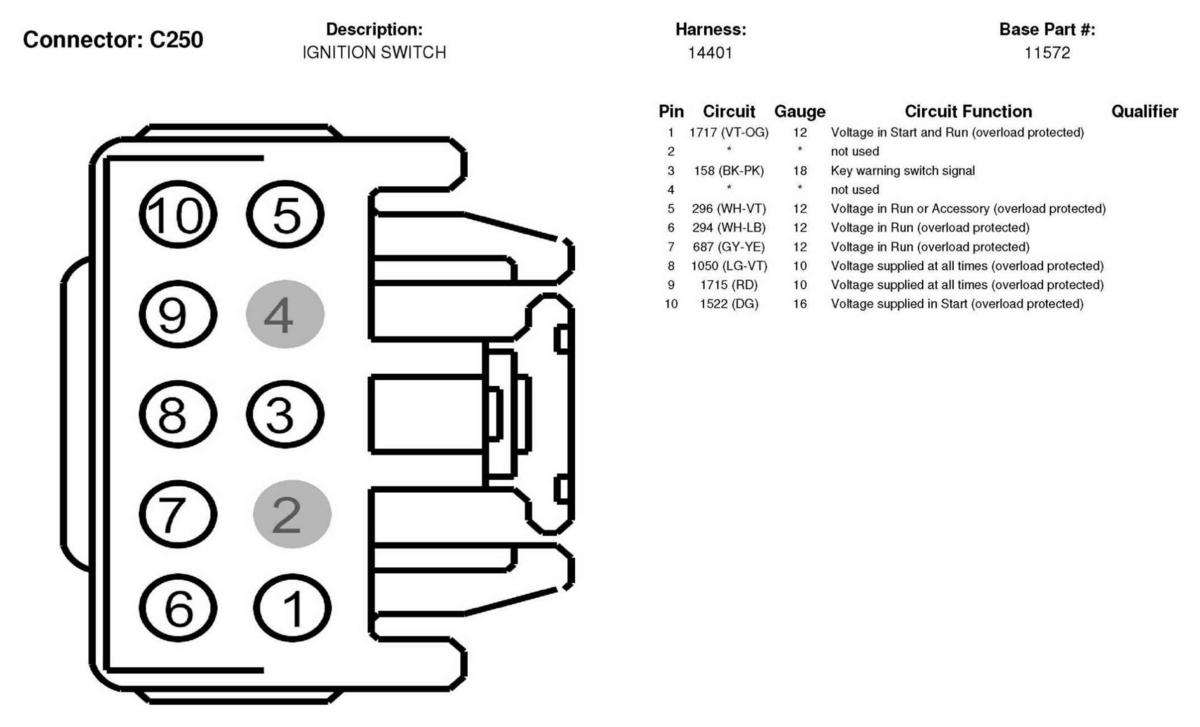

Fig 83: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.

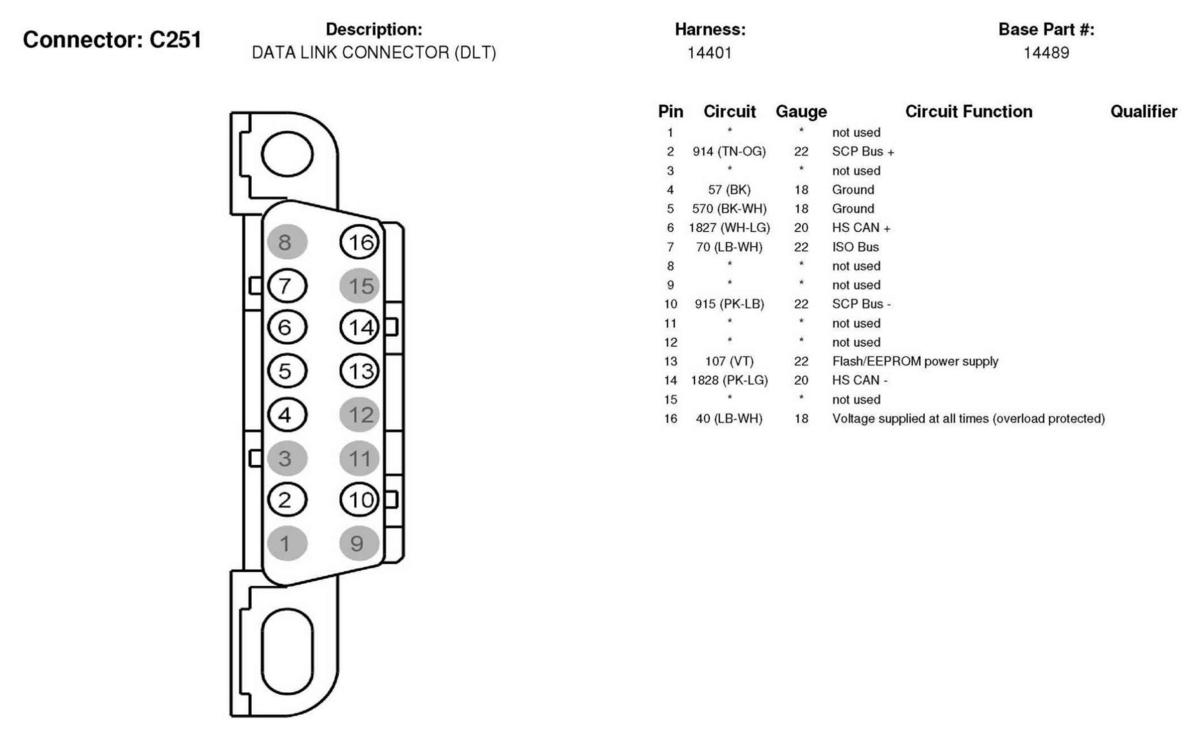

Fig 84: Data Link Connector (DLT) Connector End View (C251)
Courtesy of FORD MOTOR CO.

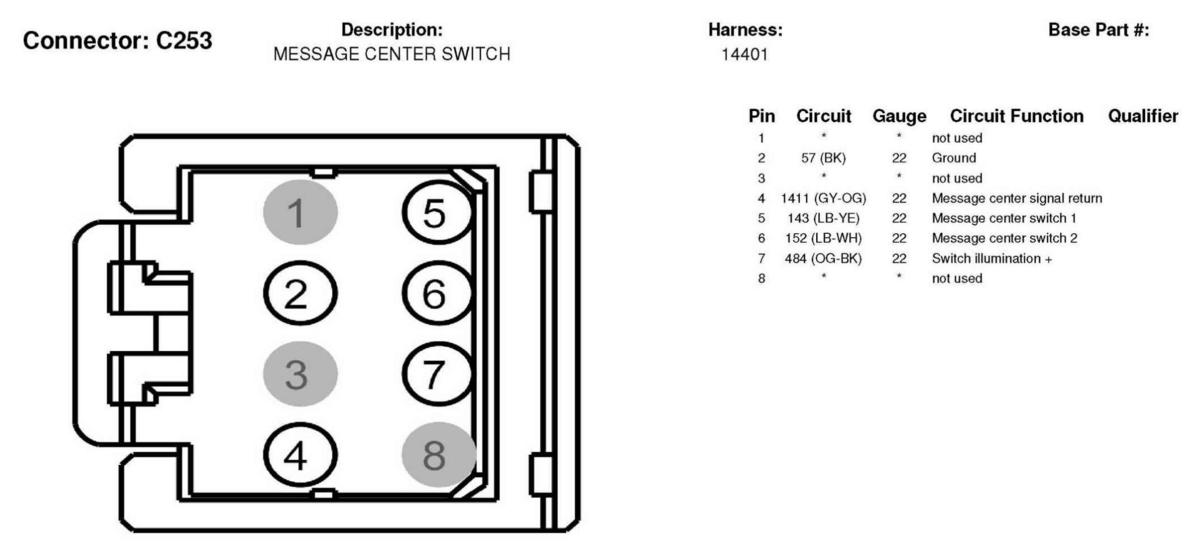

Fig 85: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.

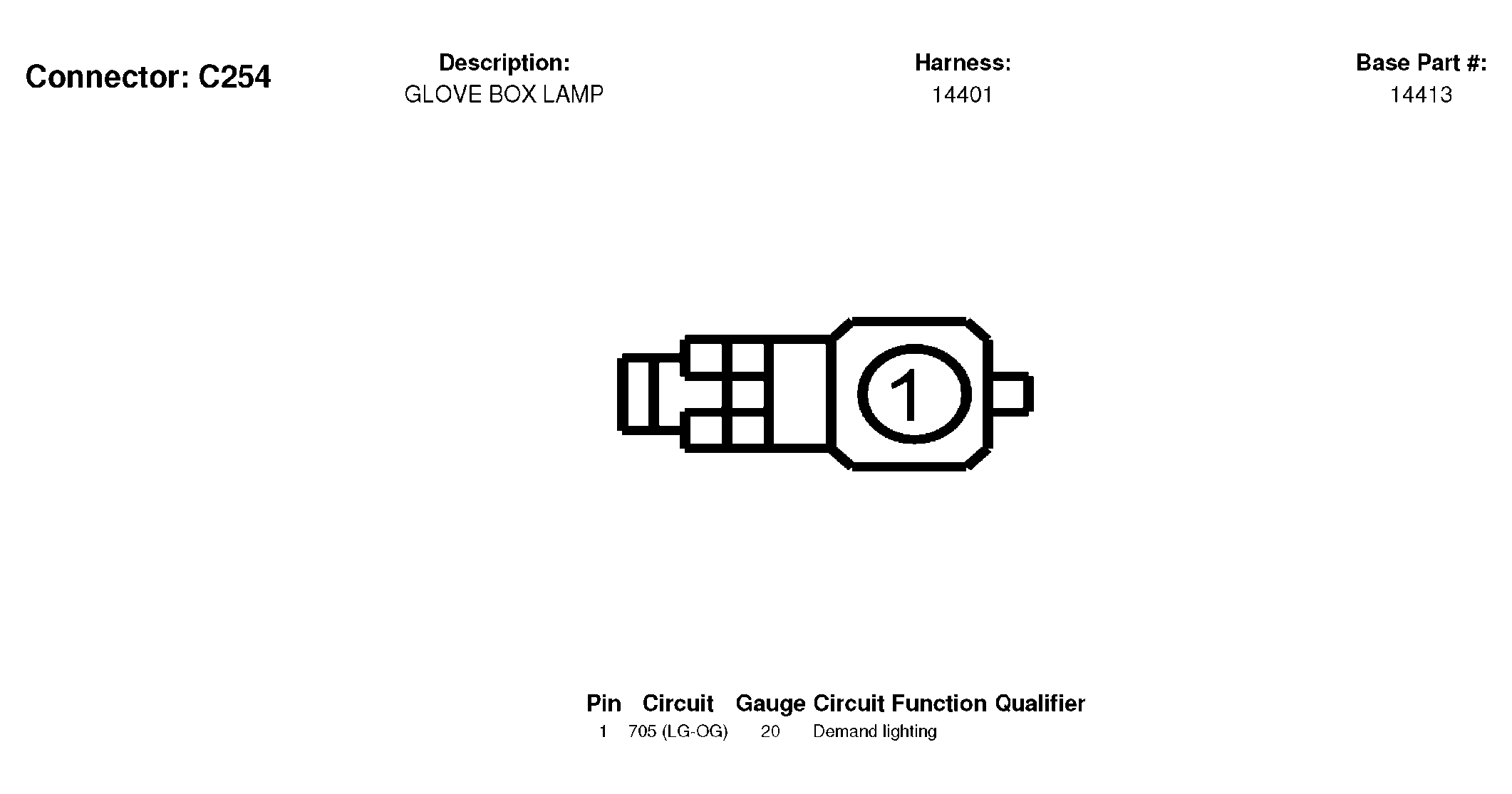

Fig 86: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.

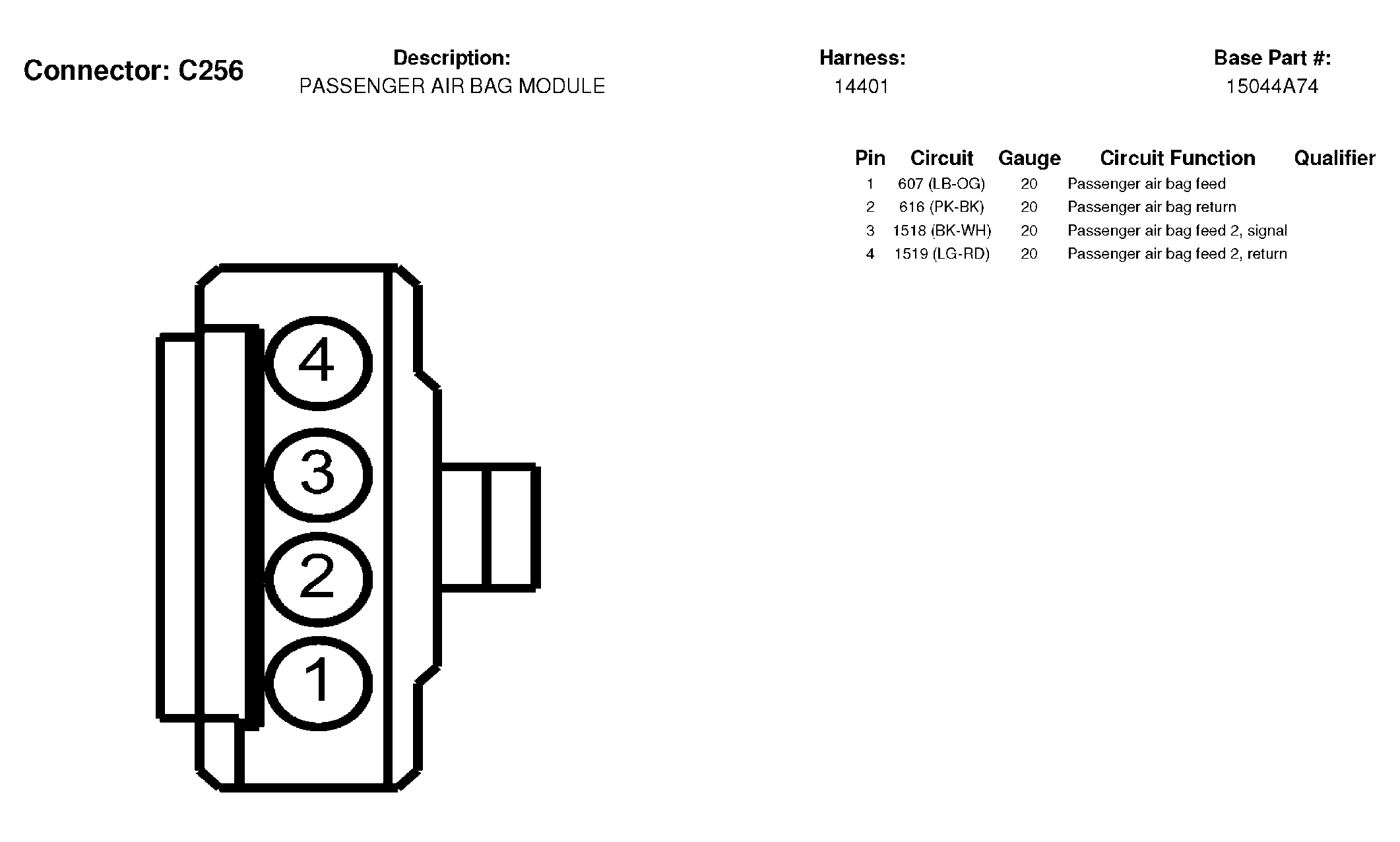

Fig 87: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.

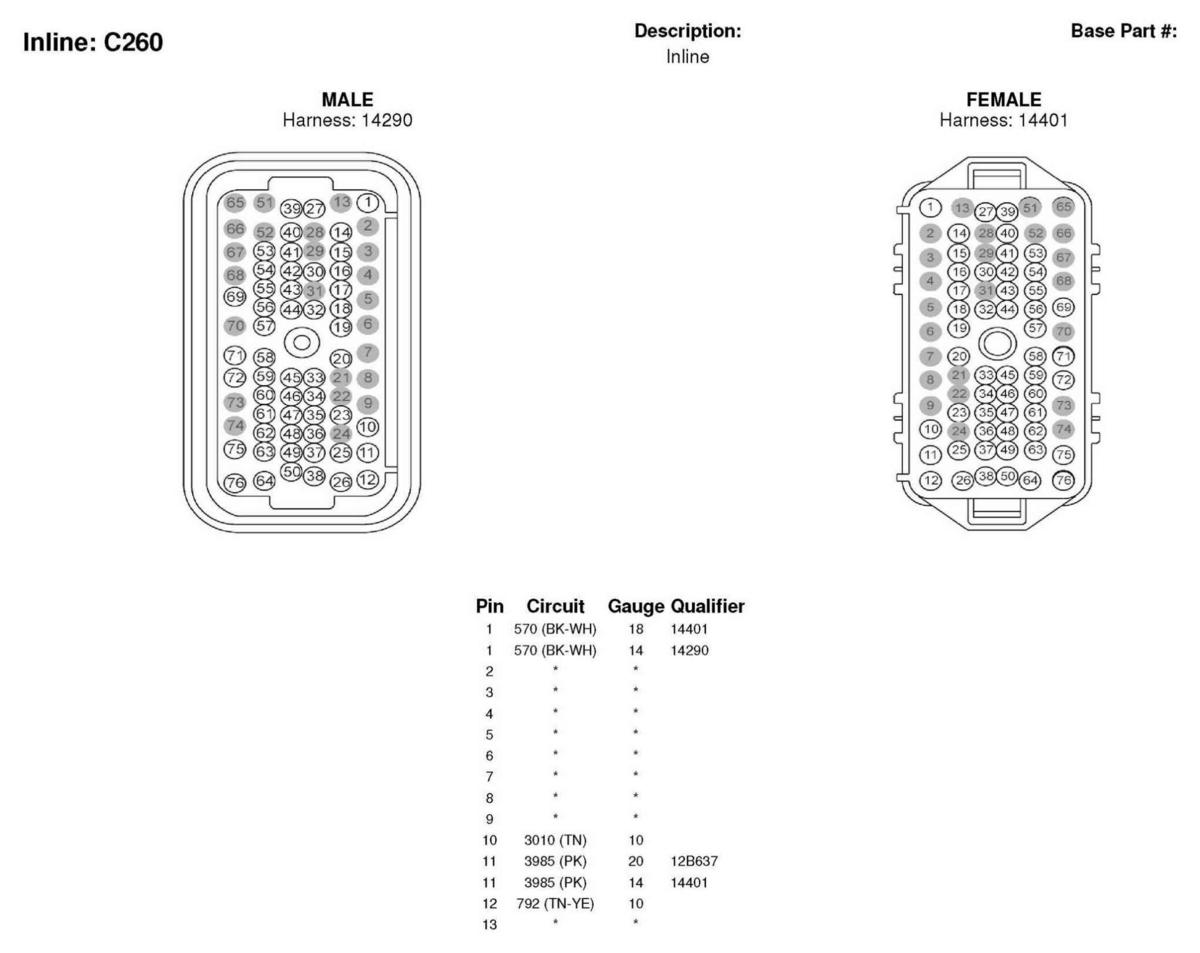

Fig 88: Inline Connector End View (C260) (1 Of 3)
Courtesy of FORD MOTOR CO.

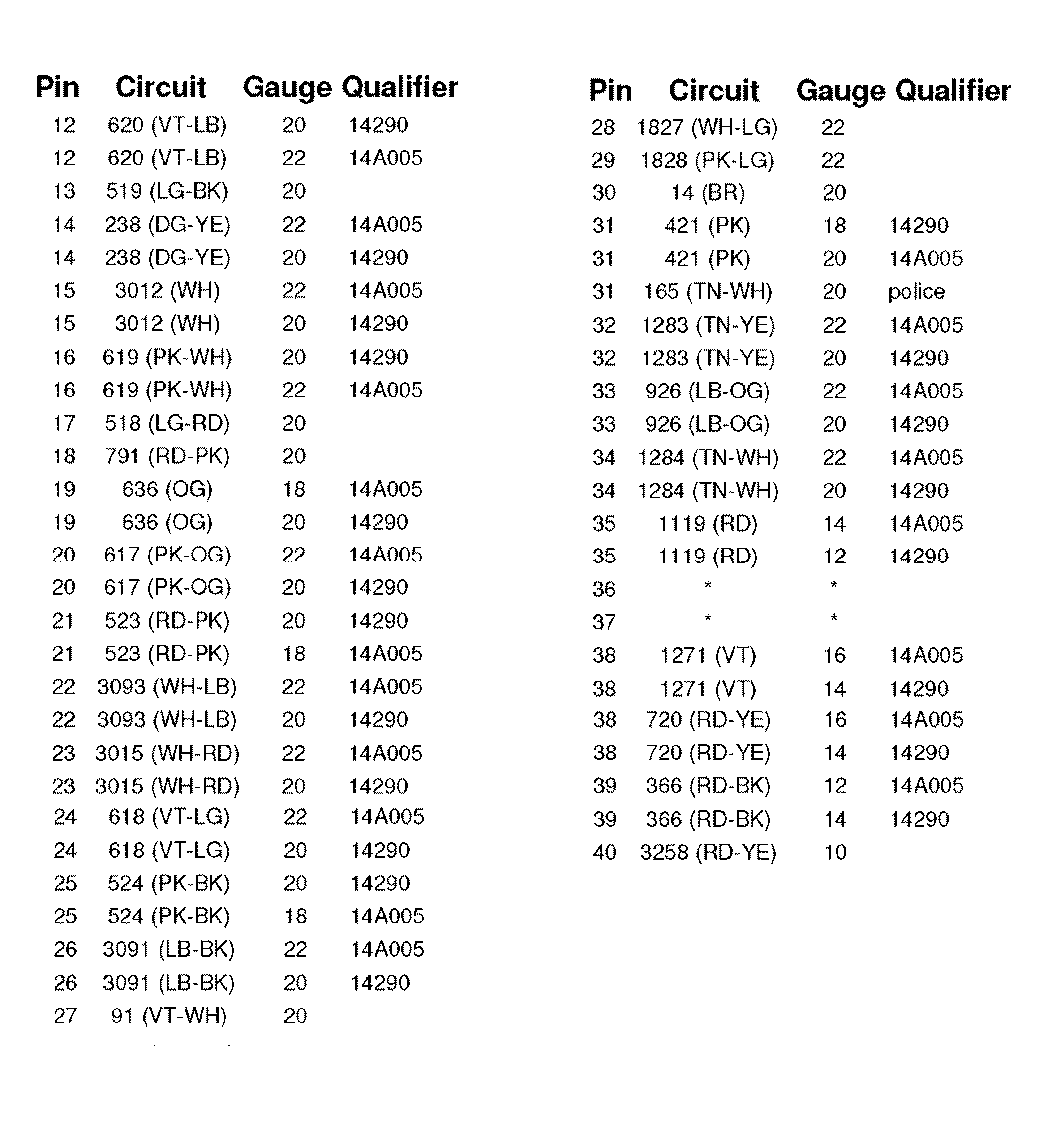

Fig 89: Inline Connector End View (C260) (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 90: Inline Connector End View (C260) (3 Of 3)
Courtesy of FORD MOTOR CO.

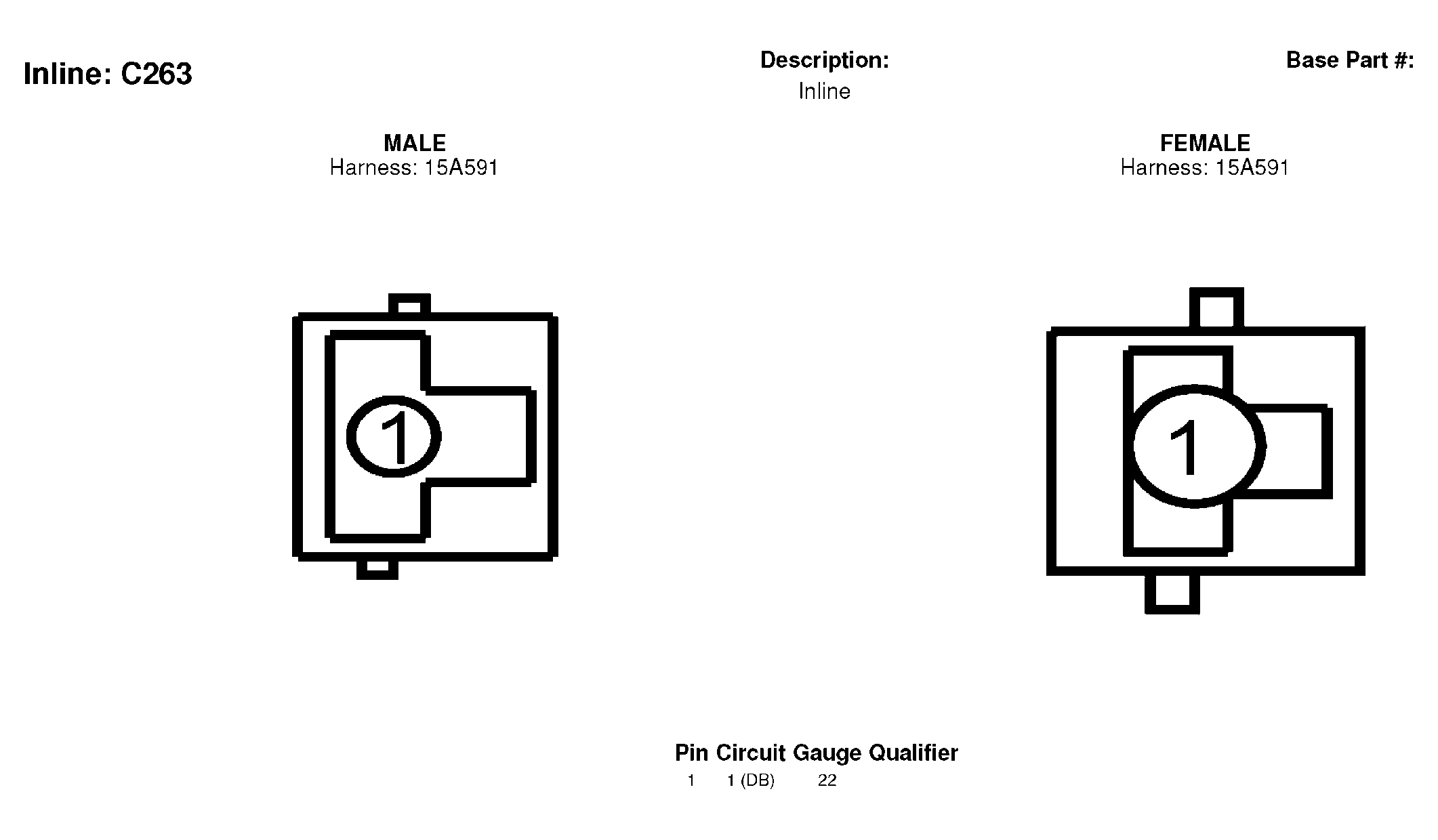

Fig 91: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.

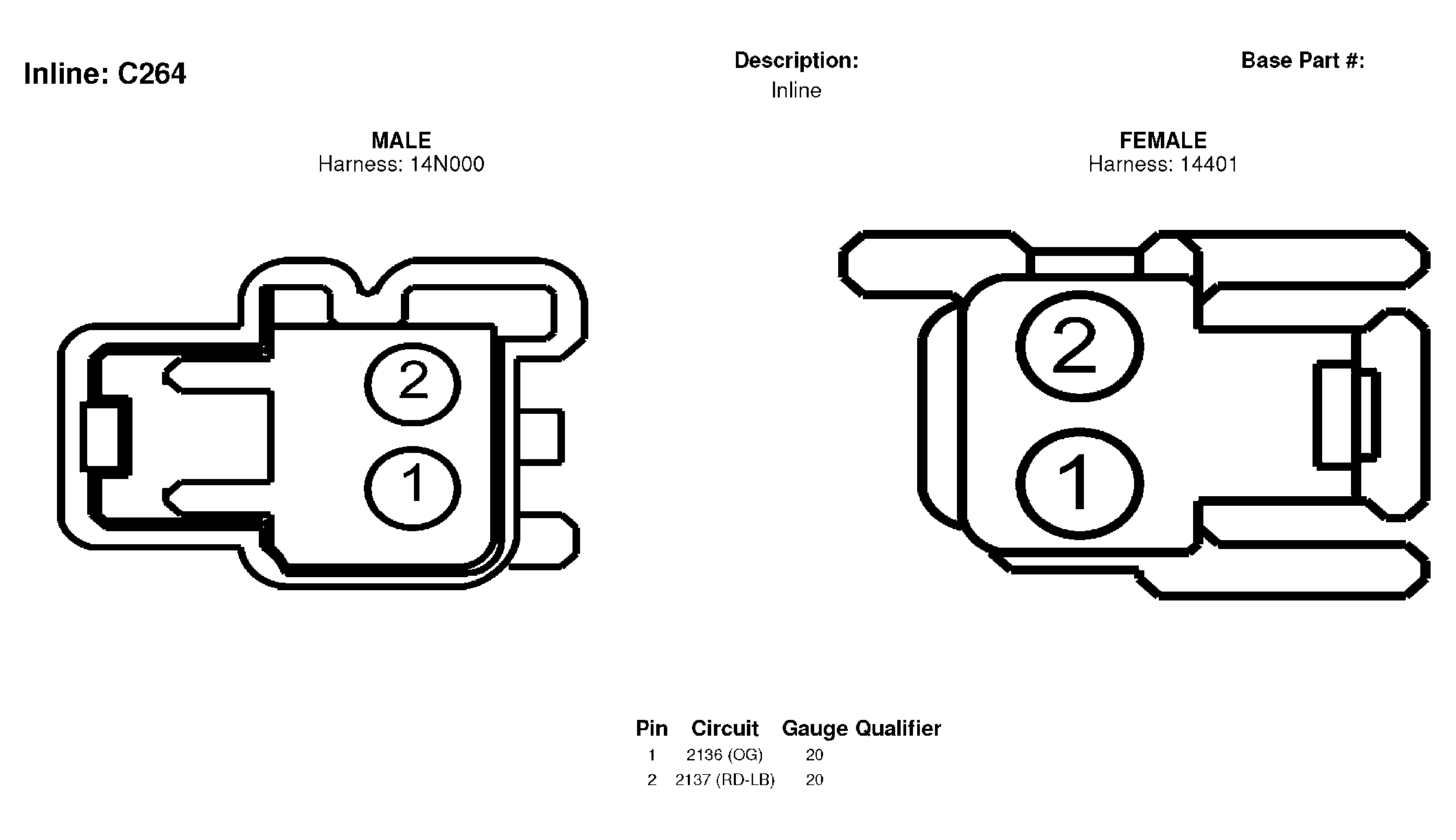

Fig 92: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.

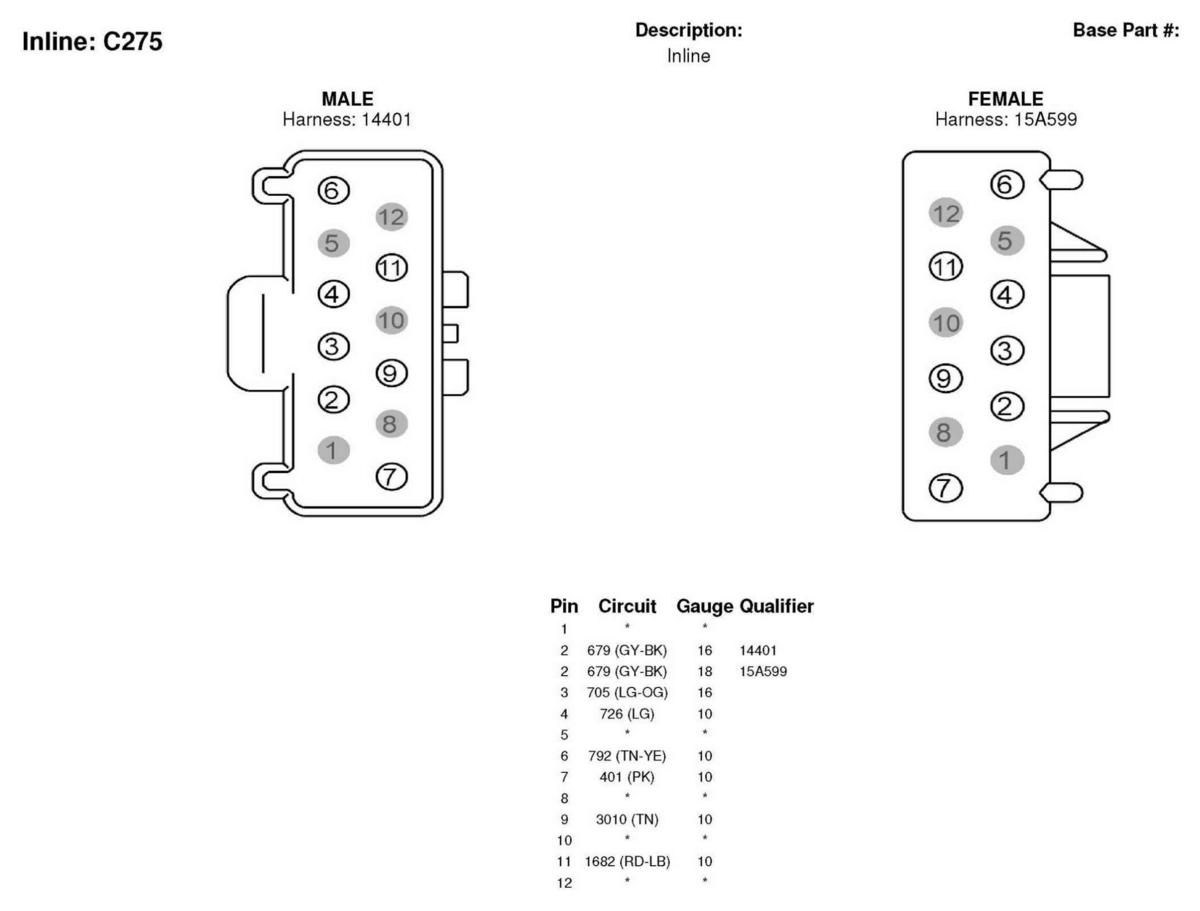

Fig 93: Inline Connector End View (C275)
Courtesy of FORD MOTOR CO.

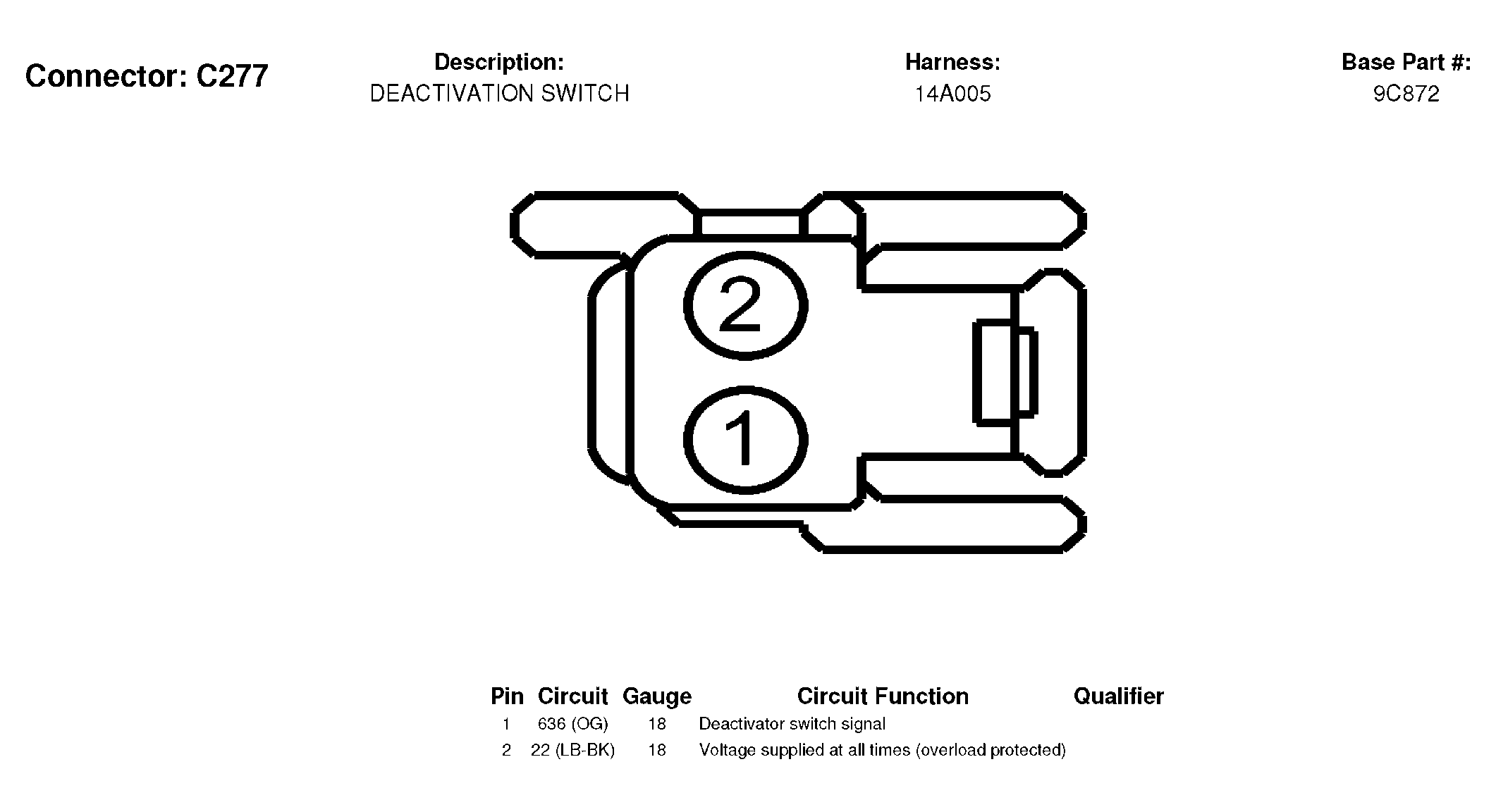

Fig 94: Deactivation Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.

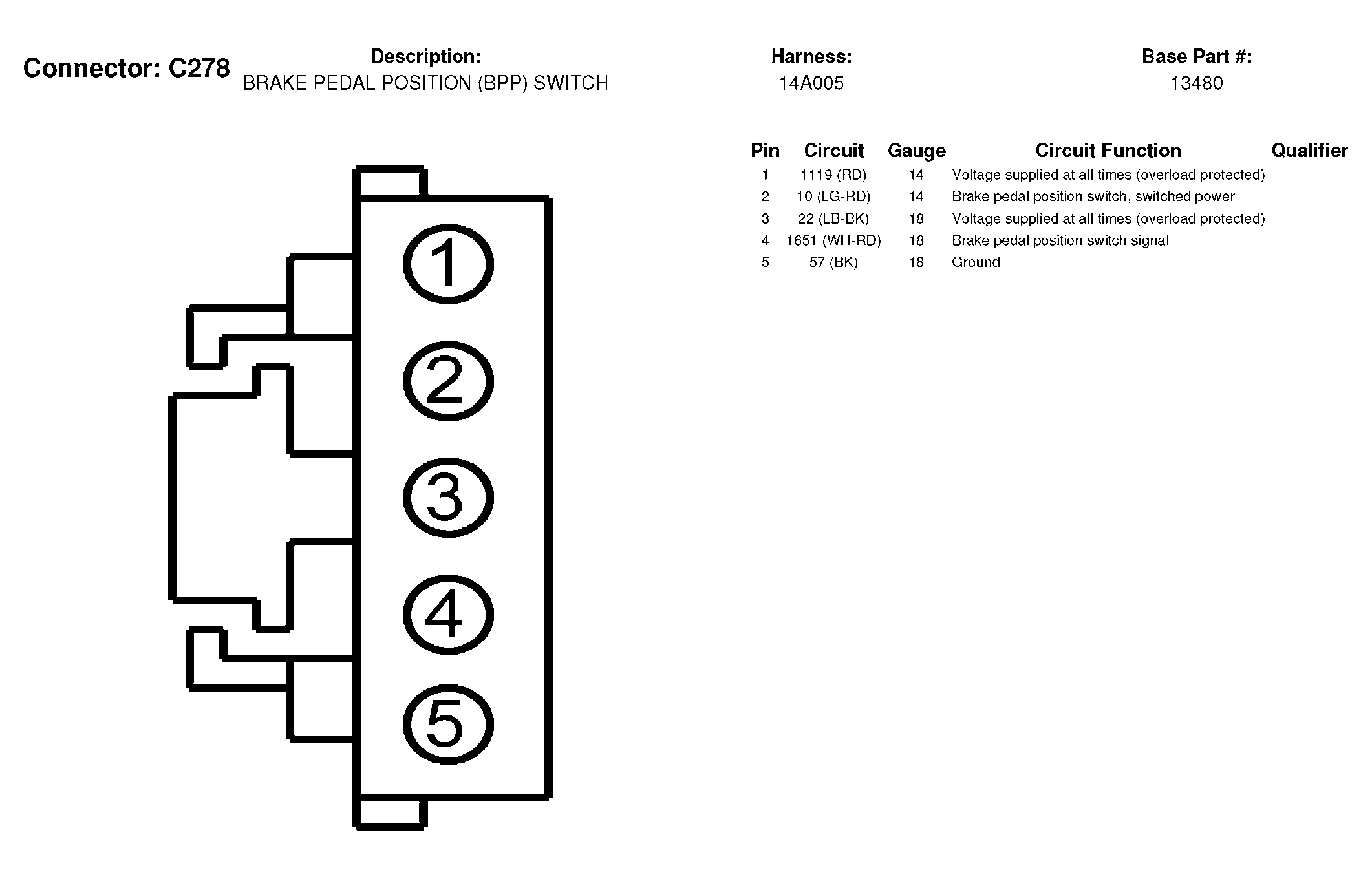

Fig 95: Brake Pedal Position (BPP) Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.

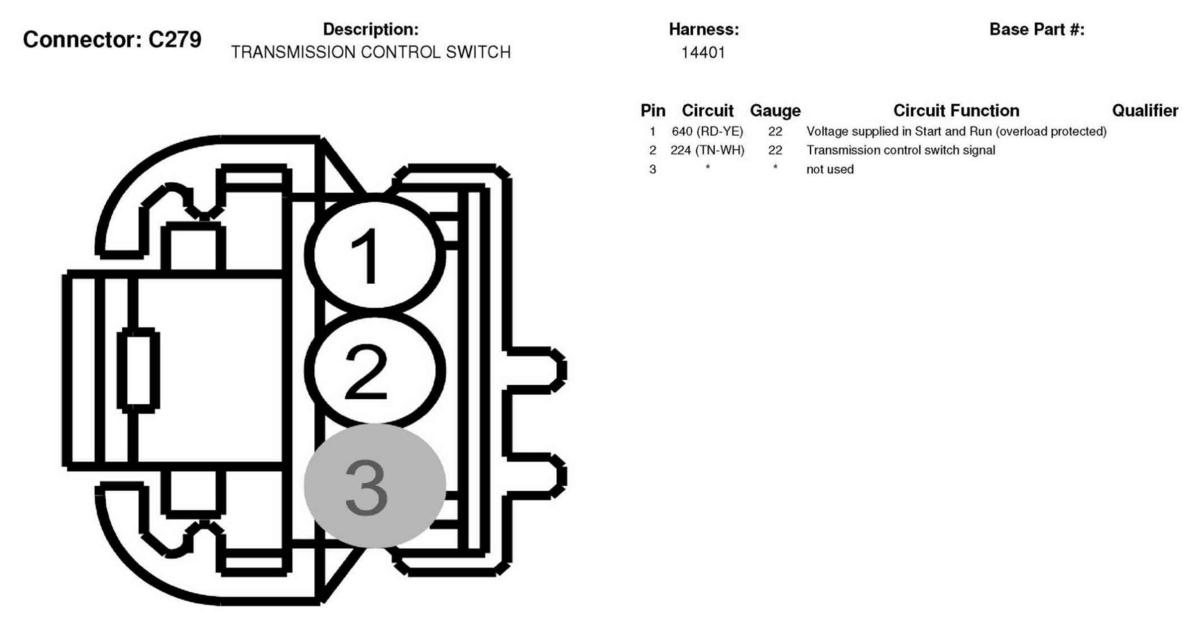

Fig 96: Transmission Control Switch Connector End View (C279)
Courtesy of FORD MOTOR CO.

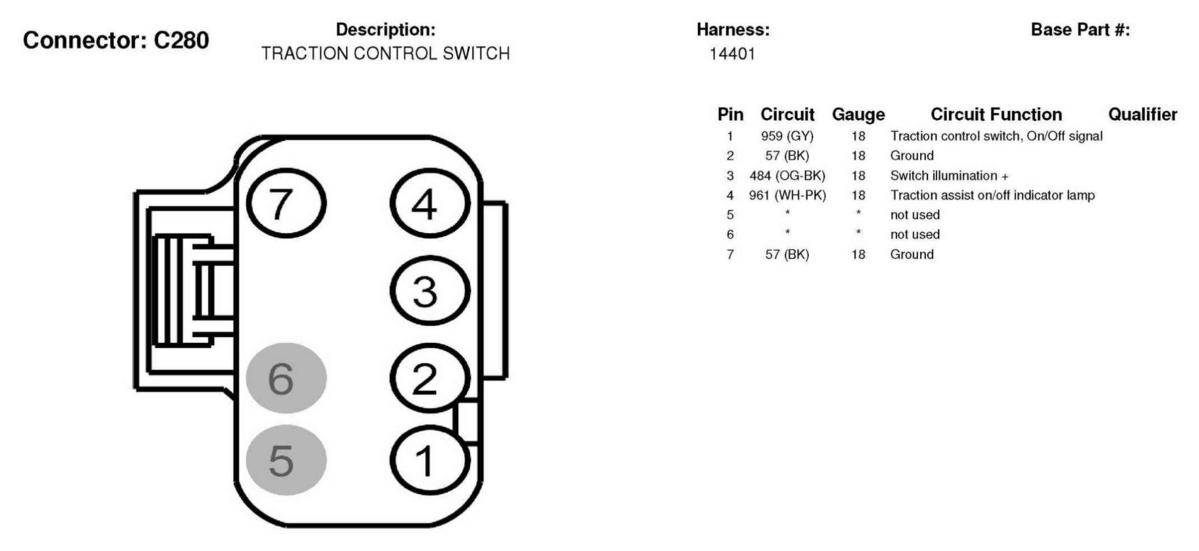

Fig 97: Traction Control Switch Connector End View (C280)
Courtesy of FORD MOTOR CO.

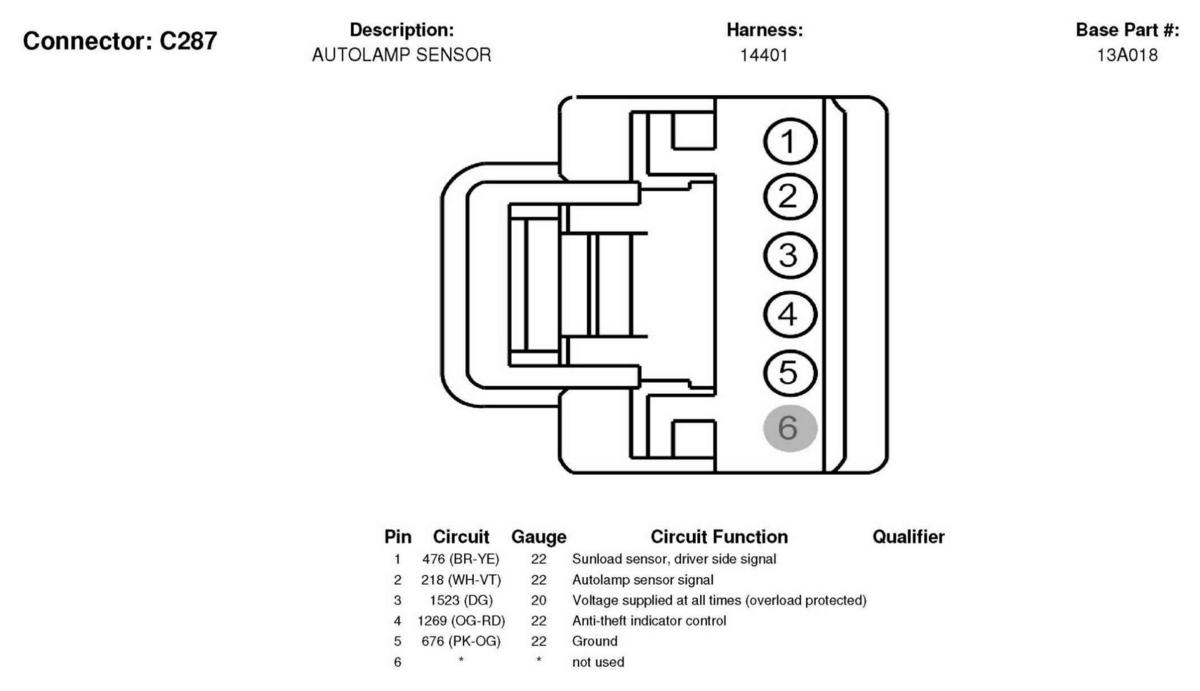

Fig 98: Autolamp Sensor Connector End View (C287)
Courtesy of FORD MOTOR CO.

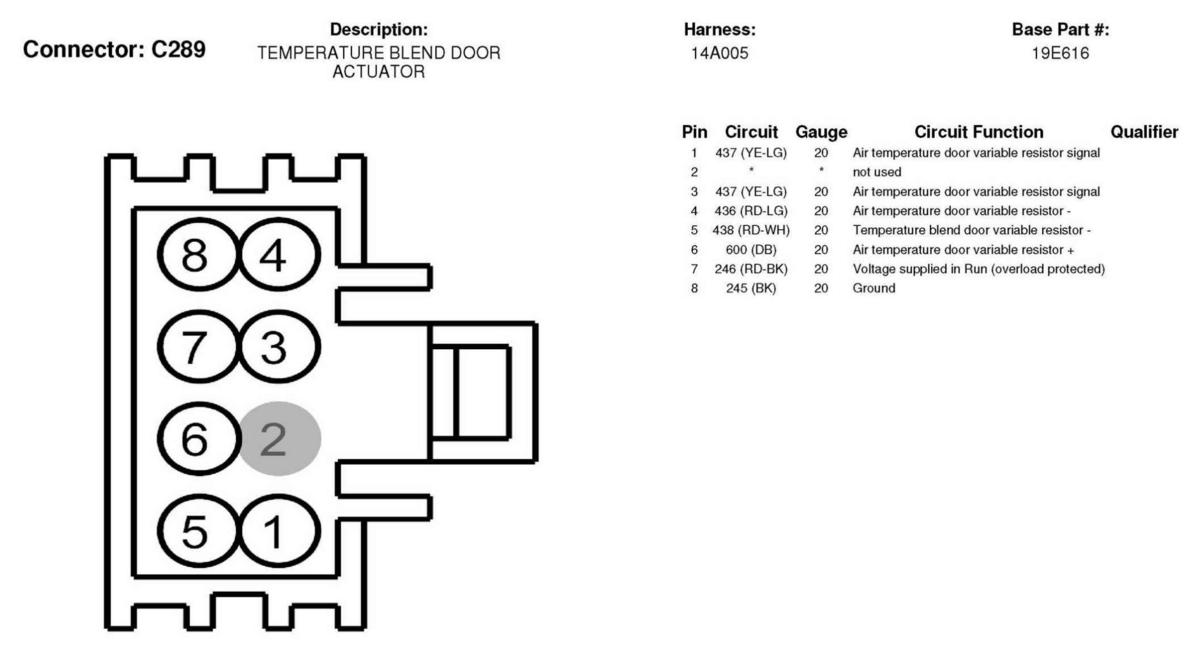

Fig 99: Temperature Blend Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.

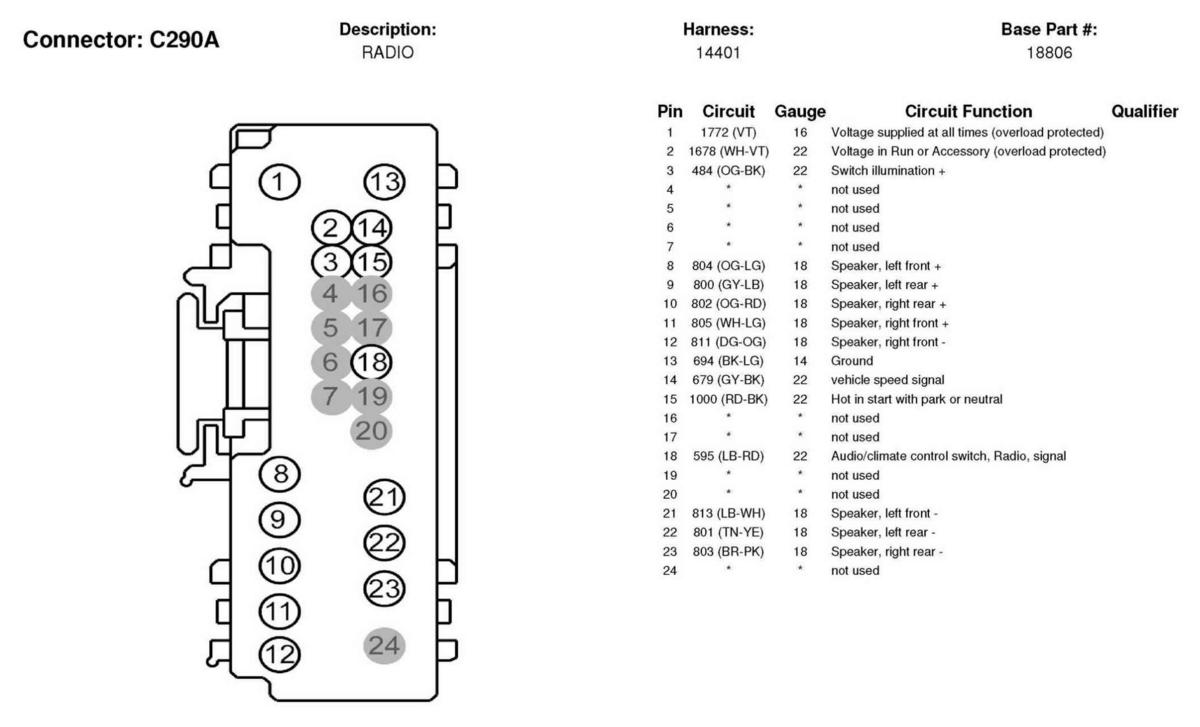

Fig 100: Radio Connector End View (C290A)
Courtesy of FORD MOTOR CO.

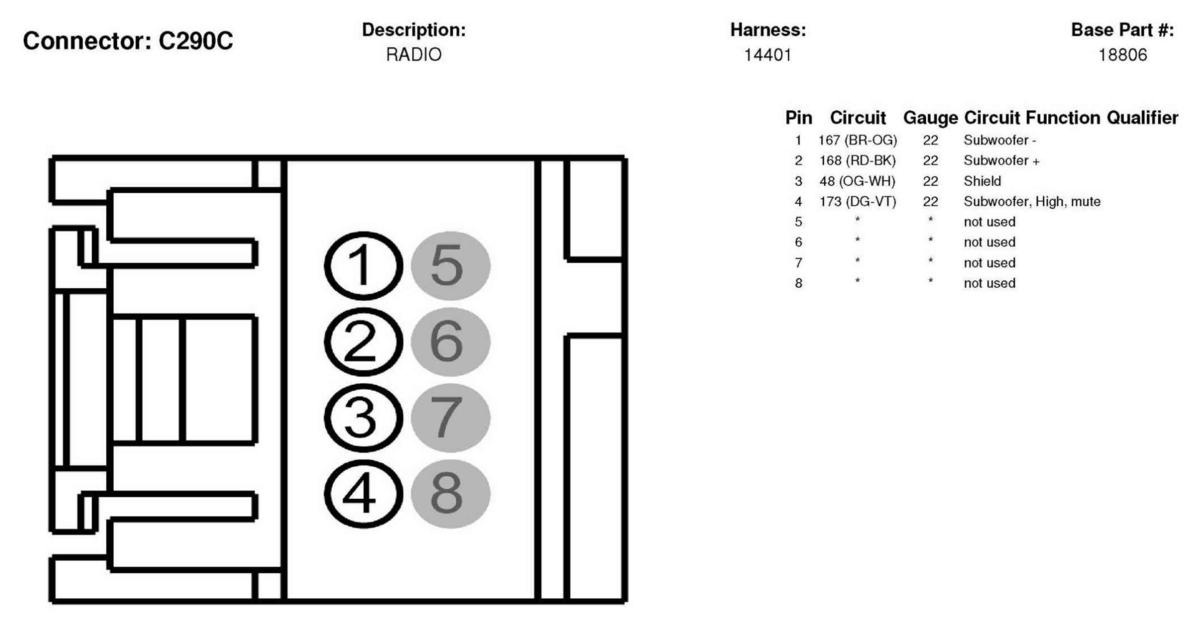

Fig 101: Radio Connector End View (C290C)
Courtesy of FORD MOTOR CO.

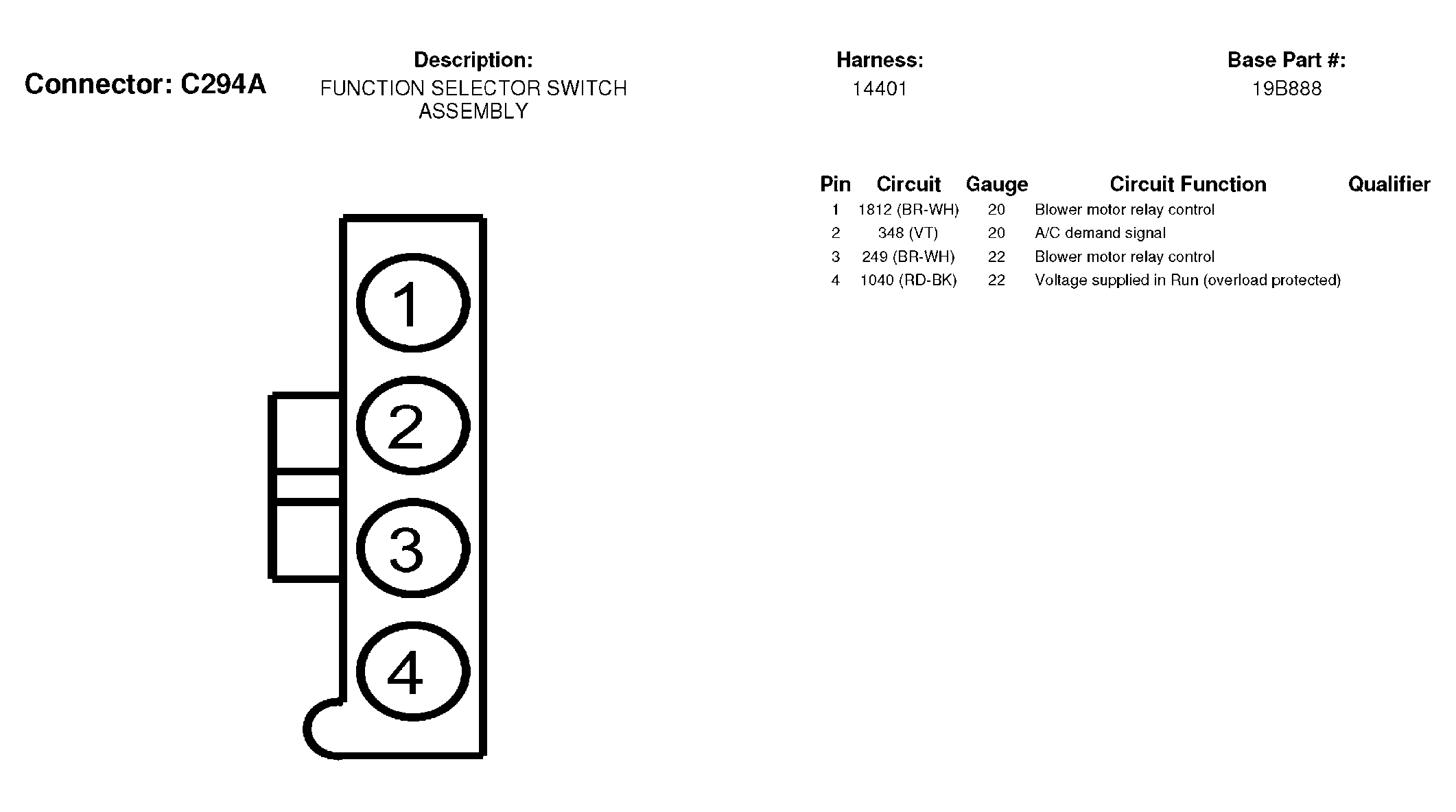

Fig 102: Function Selector Switch Assembly Connector End View (C294A)
Courtesy of FORD MOTOR CO.

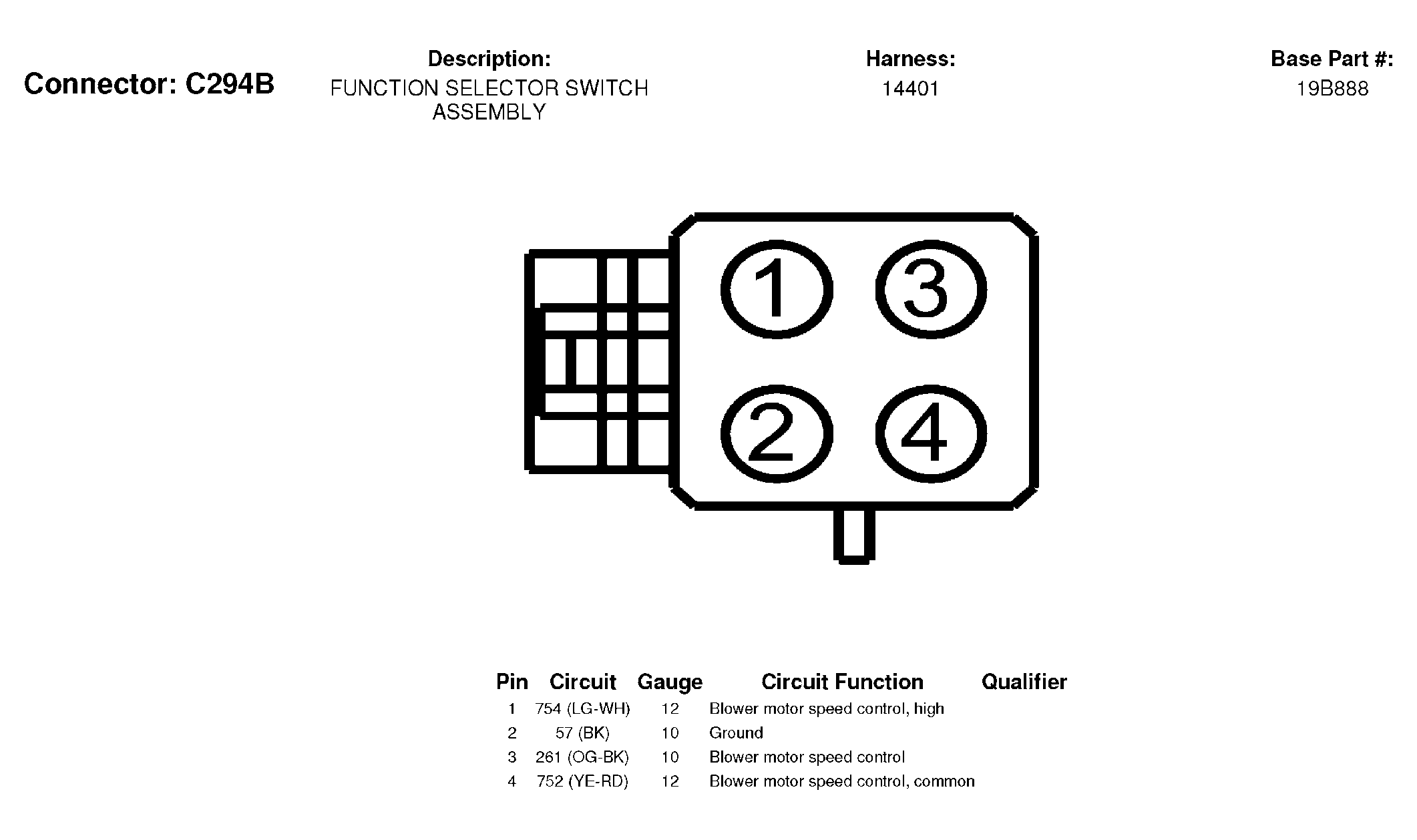

Fig 103: Function Selector Switch Assembly Connector End View (C294B)
Courtesy of FORD MOTOR CO.

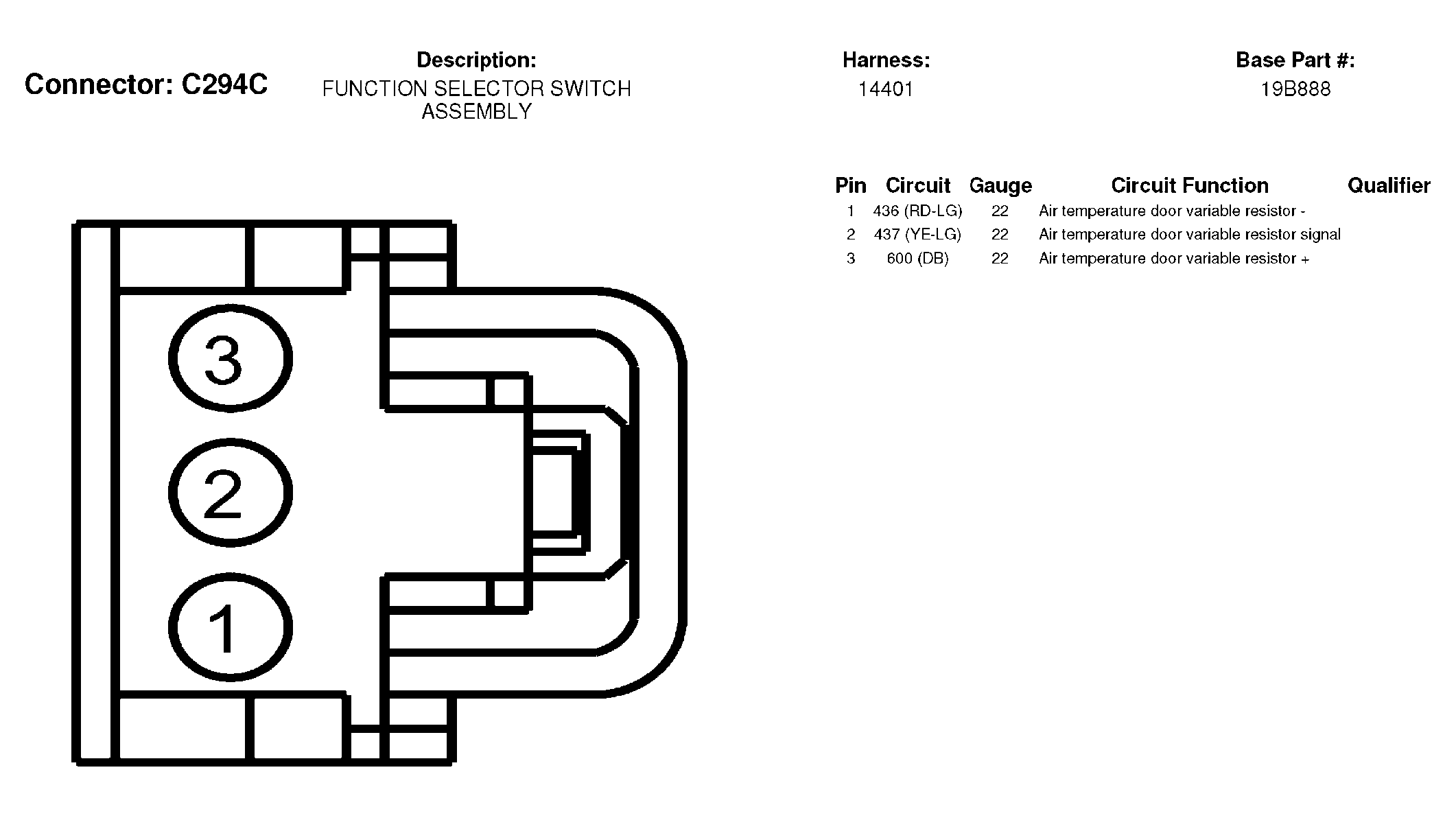

Fig 104: Function Selector Switch Assembly Connector End View (C294C)
Courtesy of FORD MOTOR CO.

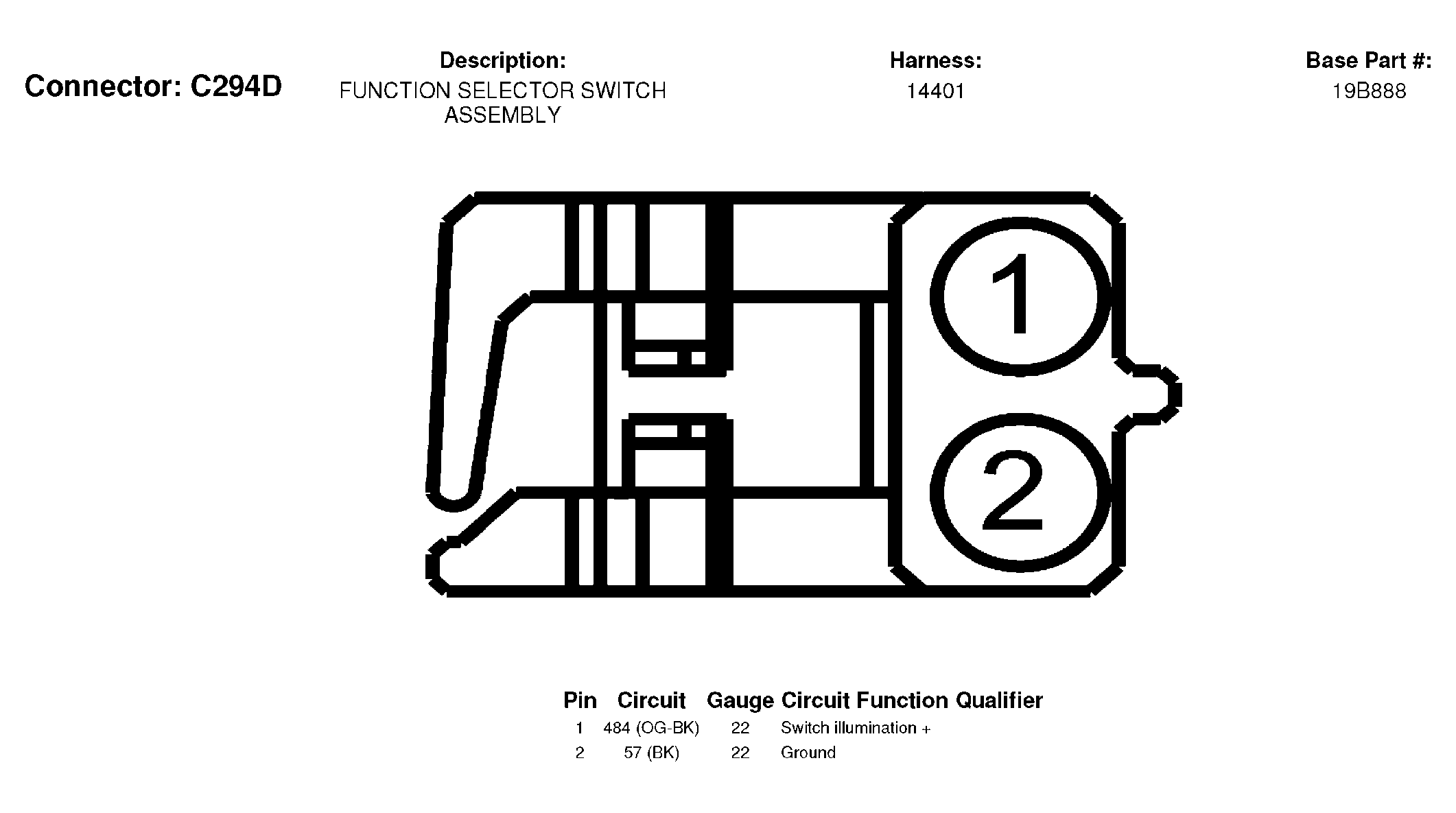

Fig 105: Function Selector Switch Assembly Connector End View (C294D)
Courtesy of FORD MOTOR CO.

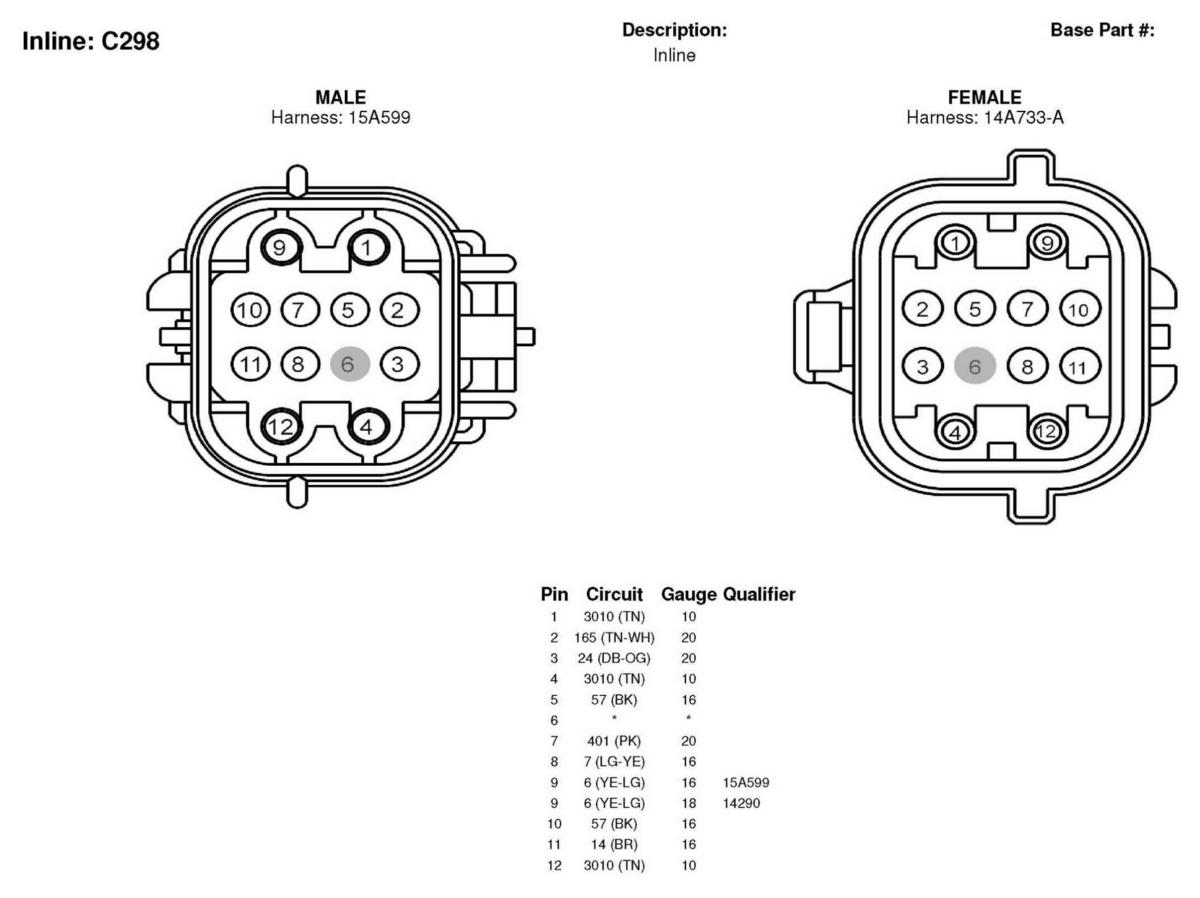

Fig 106: Inline Connector End View (C298)
Courtesy of FORD MOTOR CO.

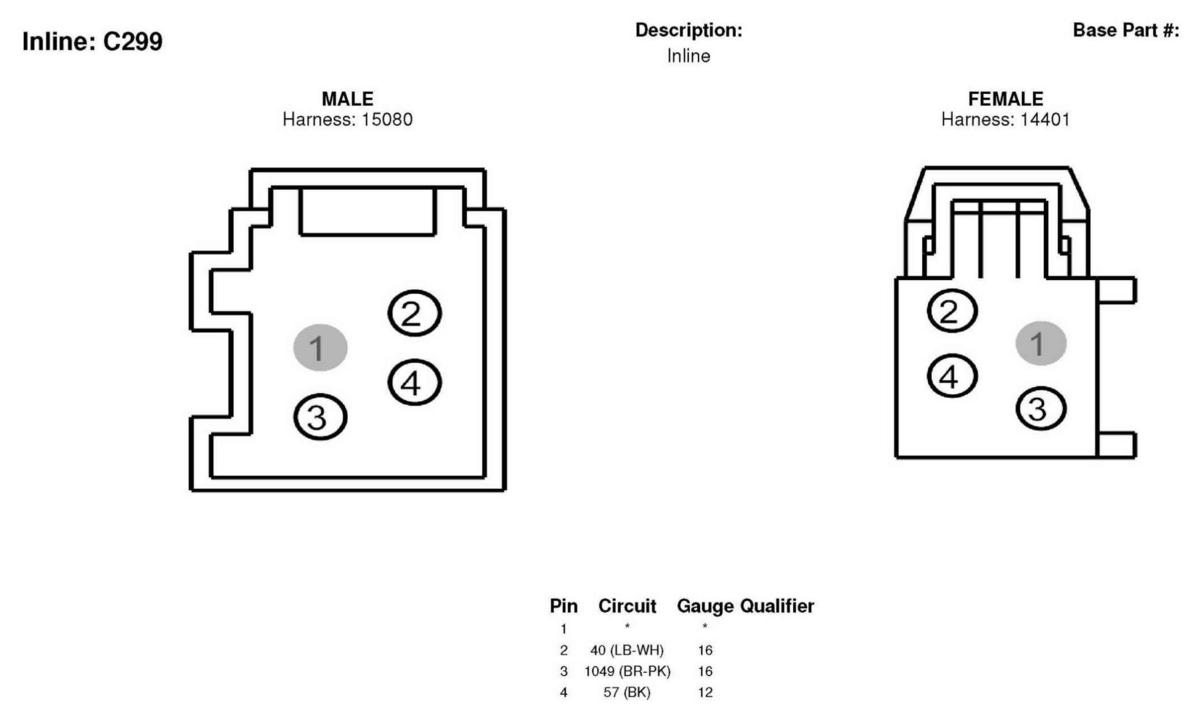

Fig 107: Inline Connector End View (C299)
Courtesy of FORD MOTOR CO.

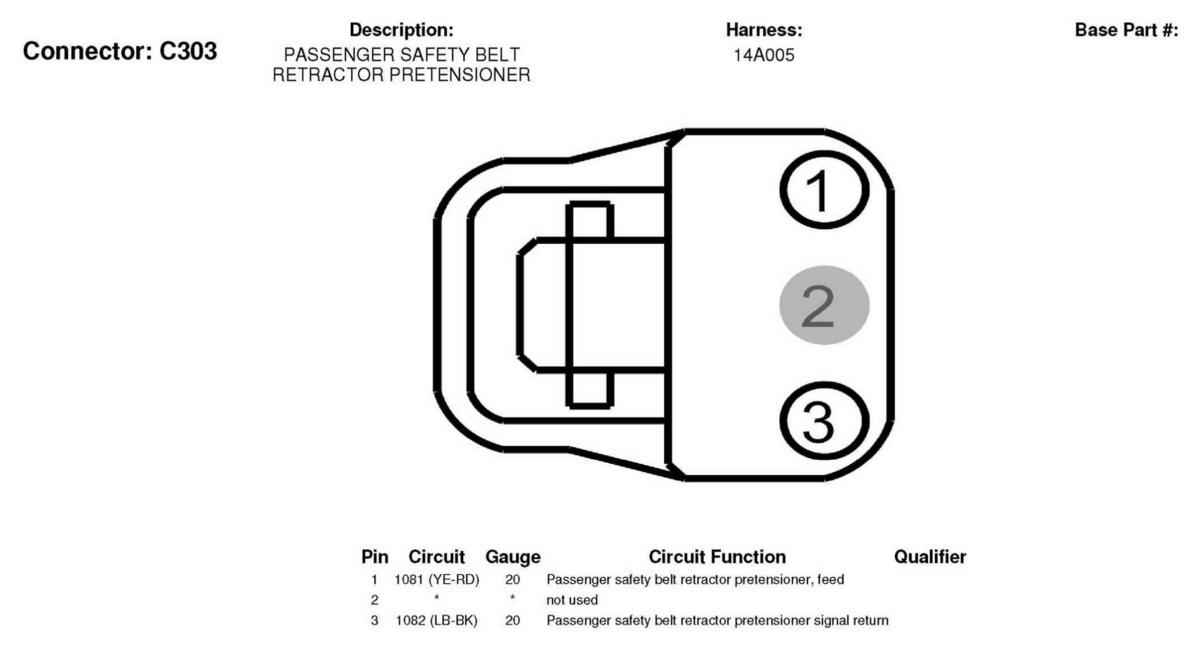

Fig 108: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.

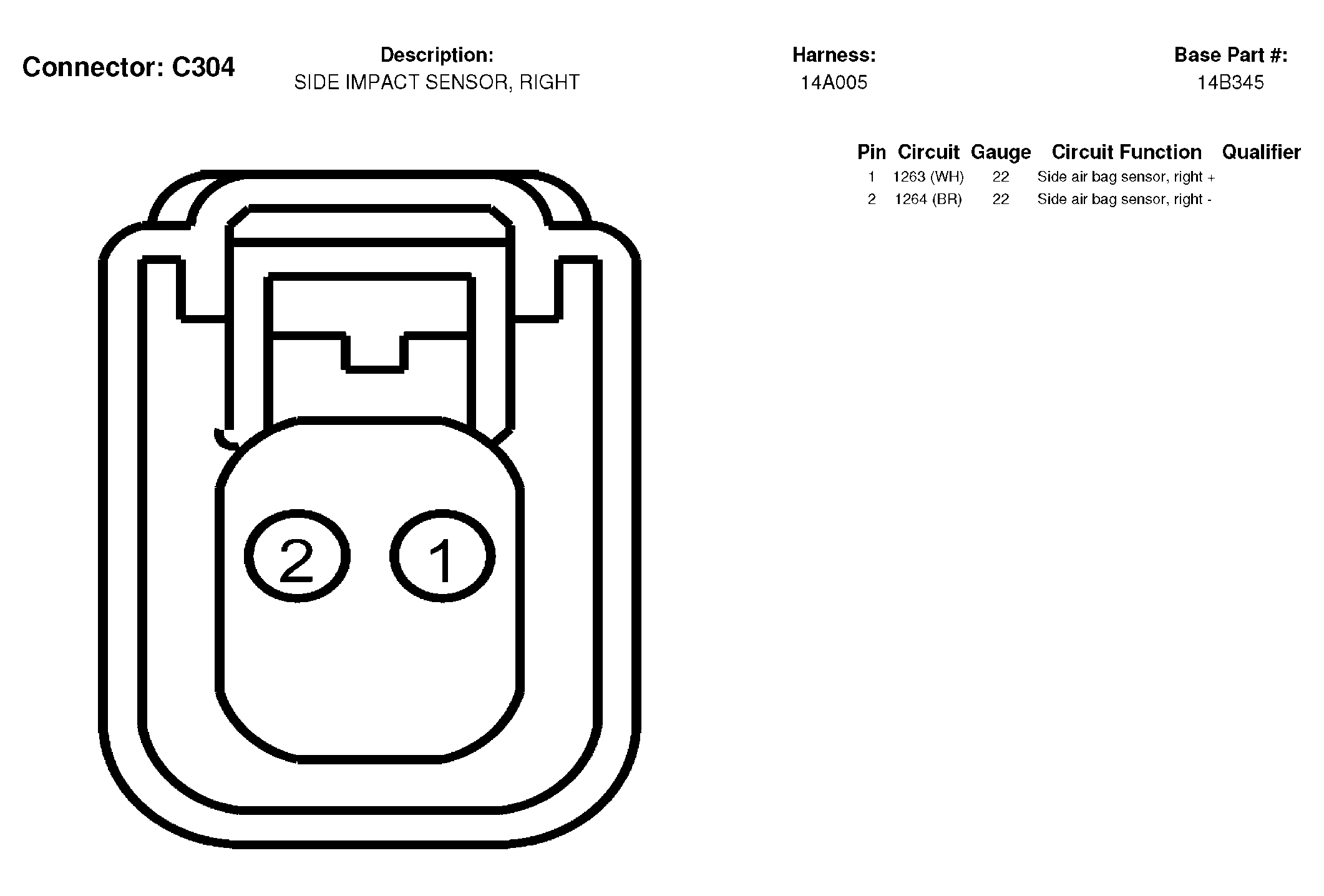

Fig 109: Side Impact Sensor, Right Connector End View (C304)
Courtesy of FORD MOTOR CO.
Fig 110: Side Impact Sensor, Left Connector End View (C305)
Courtesy of FORD MOTOR CO.

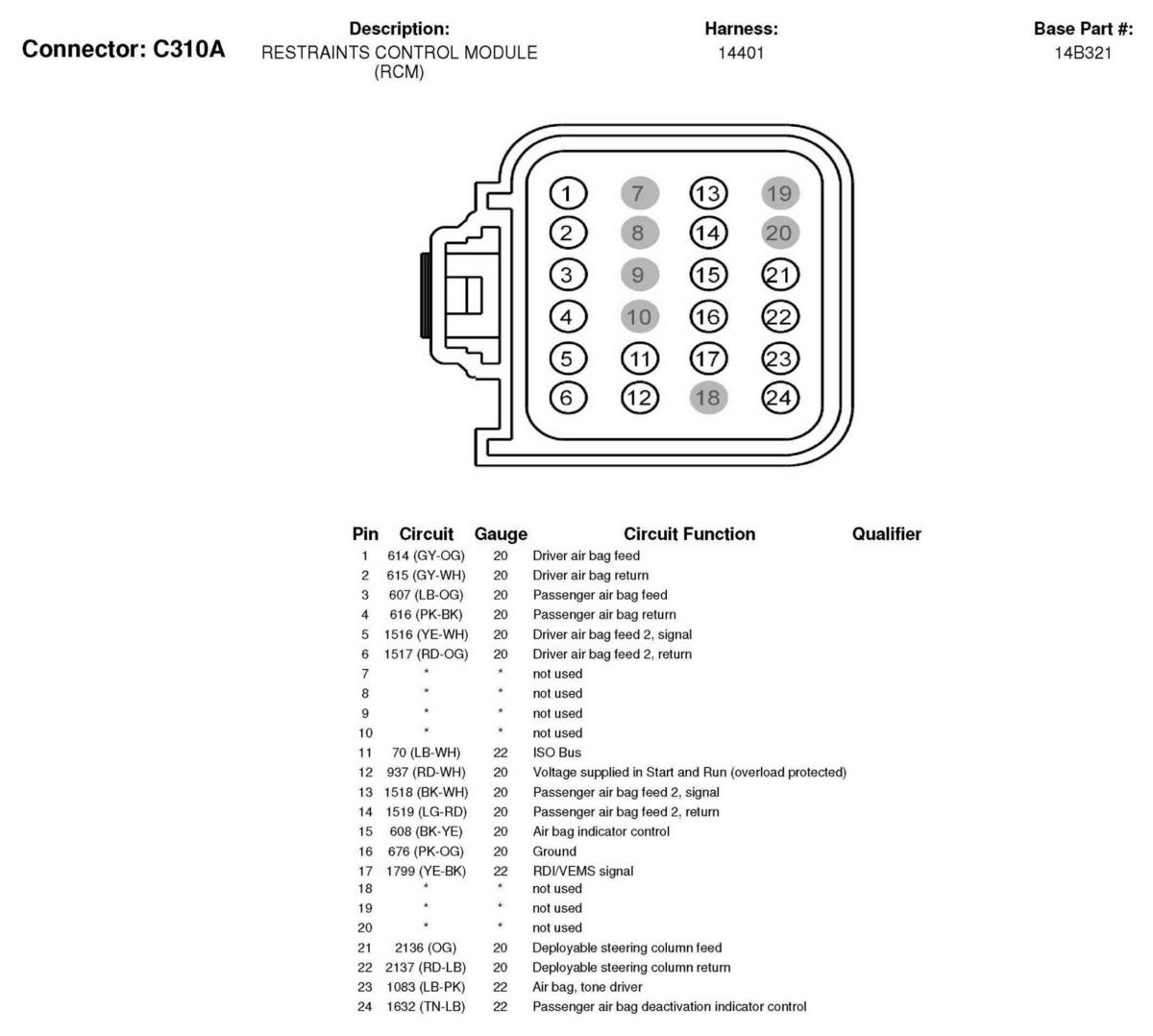

Fig 111: Restraints Control Module (RCM) Connector End View (C310A)
Courtesy of FORD MOTOR CO.

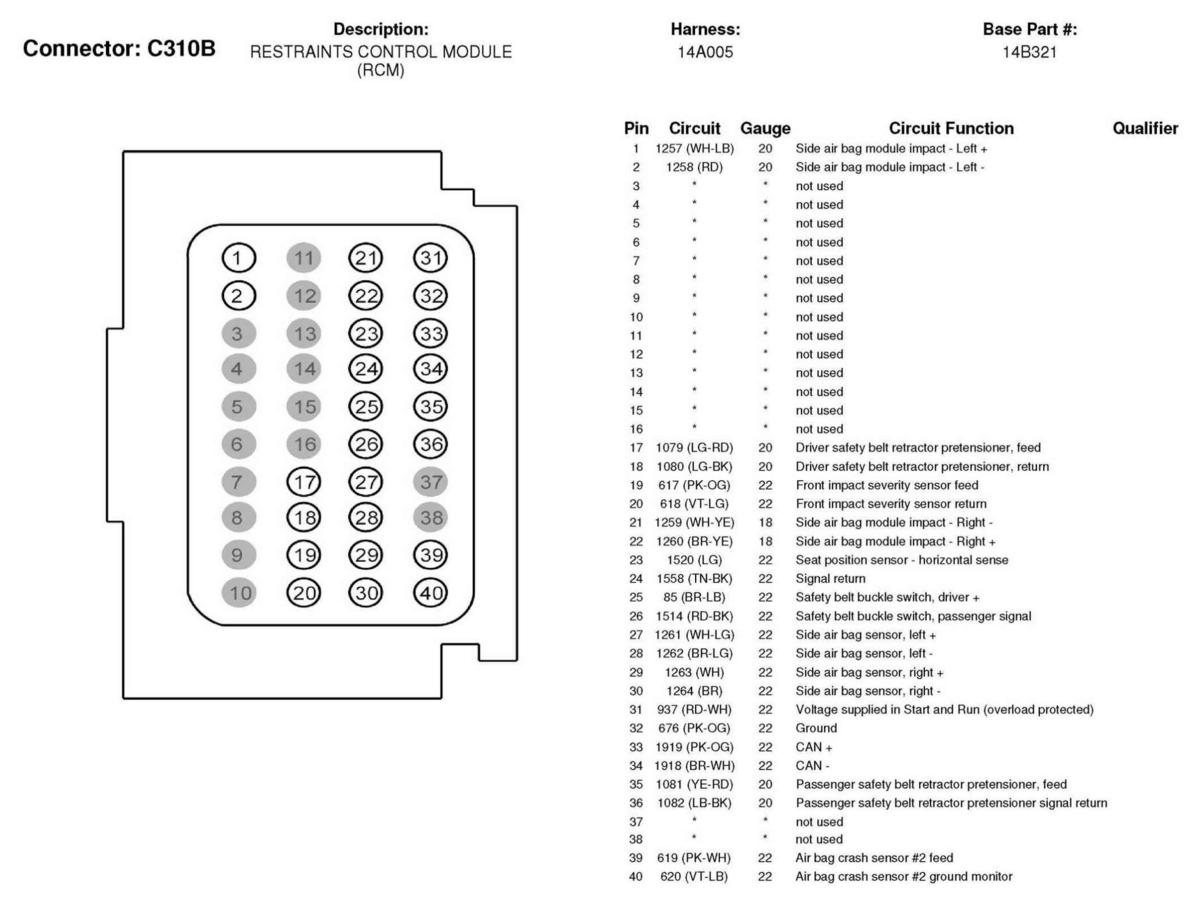

Fig 112: Restraints Control Module (RCM) Connector End View (C310B)
Courtesy of FORD MOTOR CO.

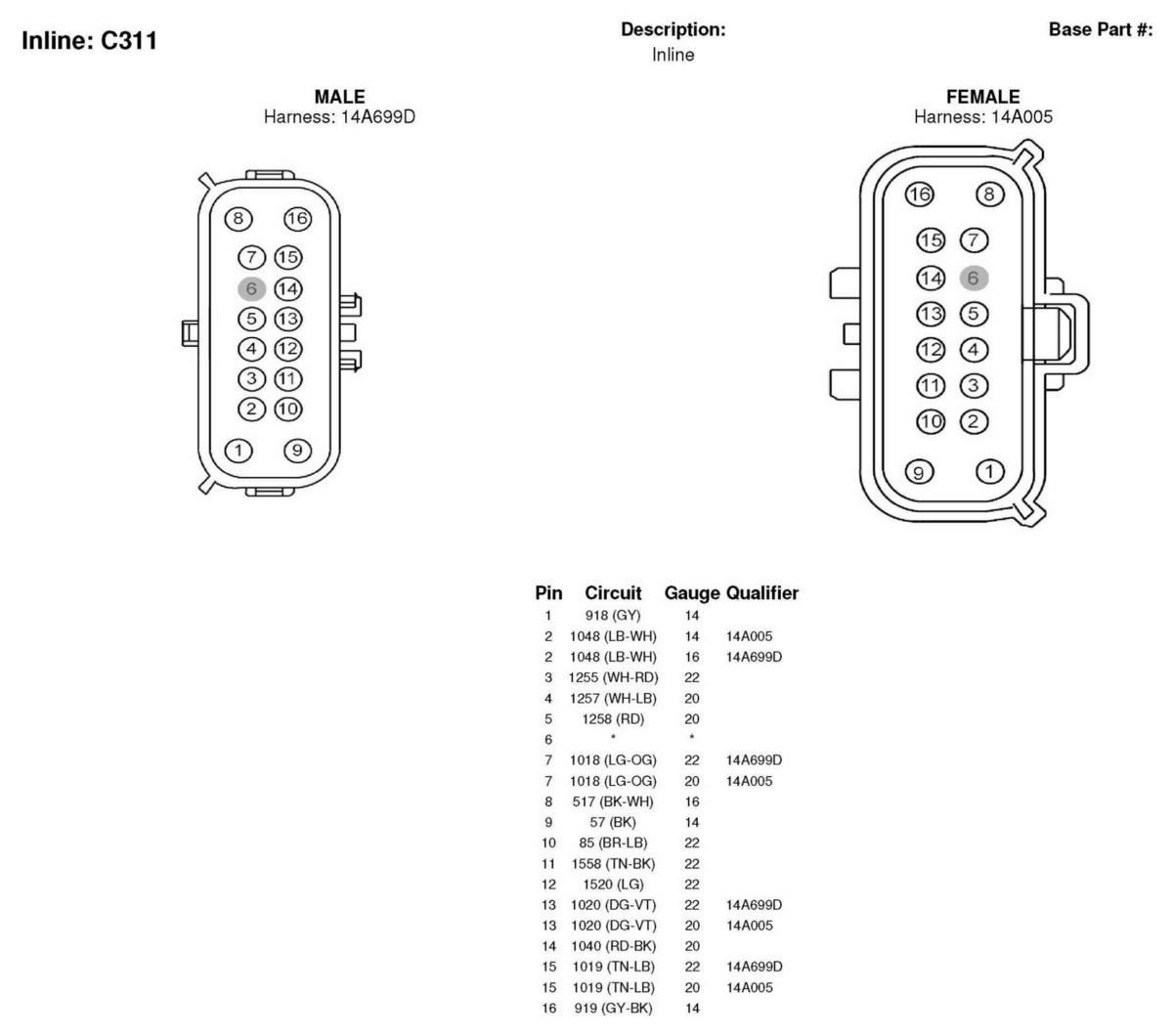

Fig 113: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

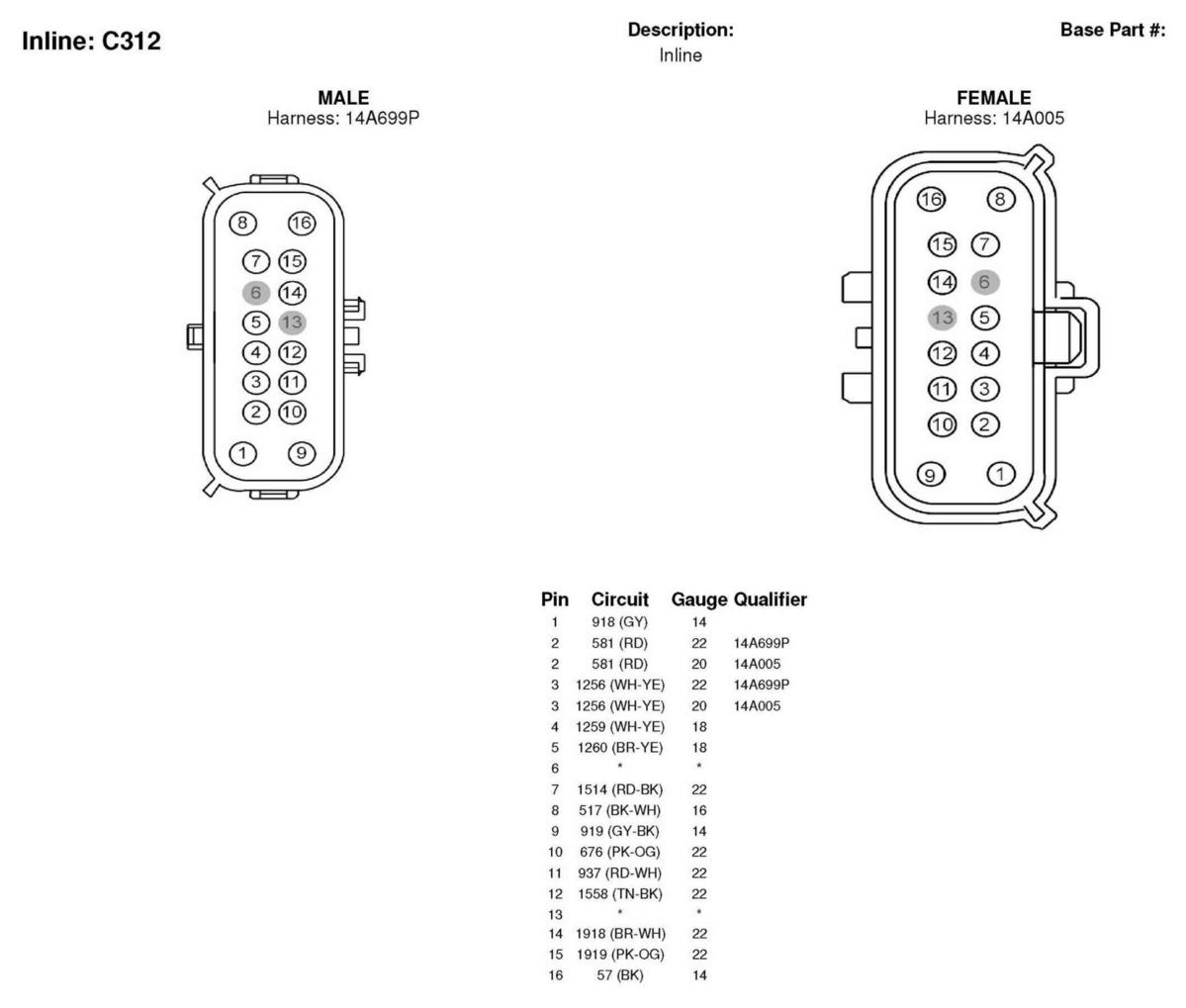

Fig 114: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.

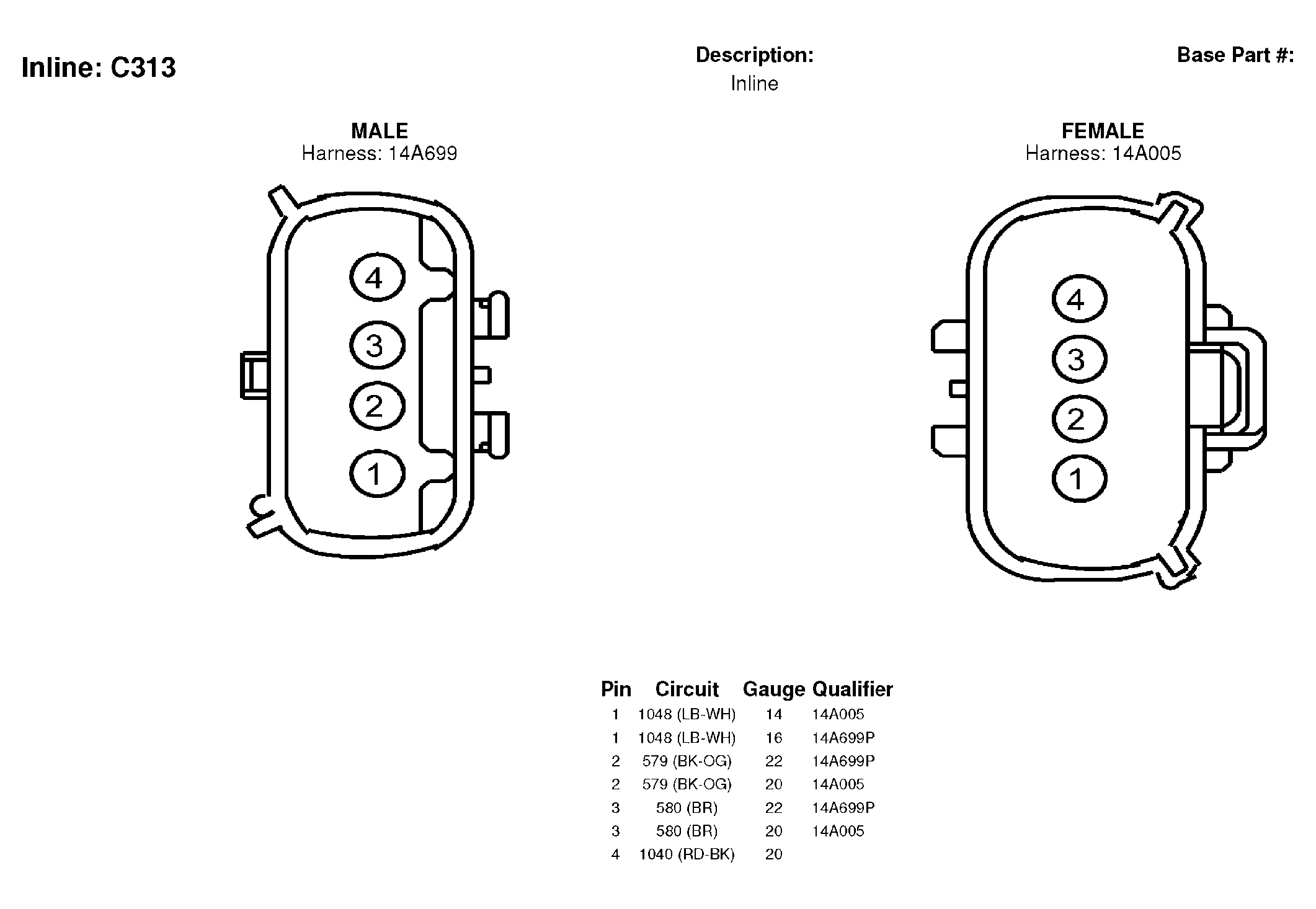

Fig 115: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.

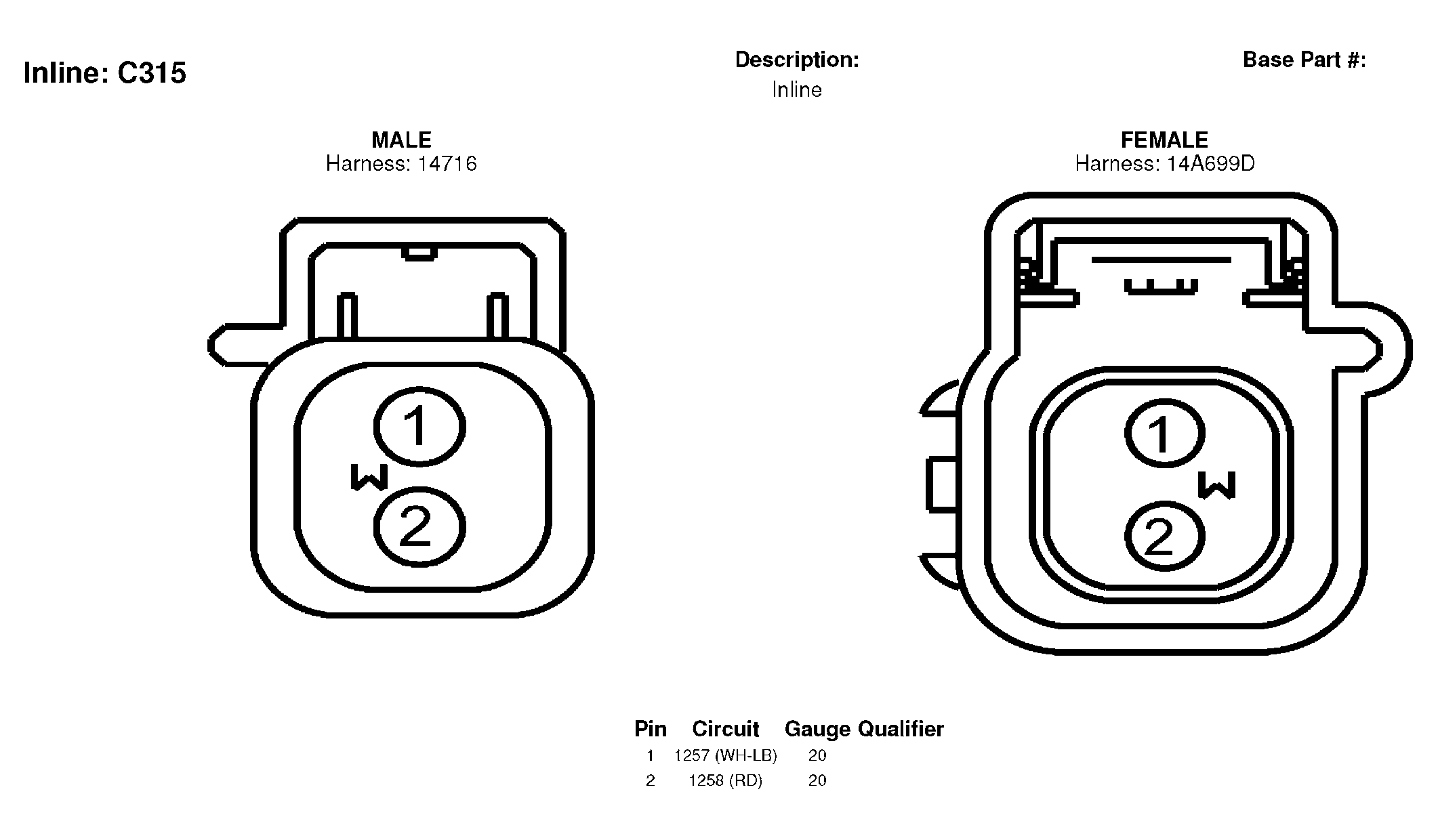

Fig 116: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

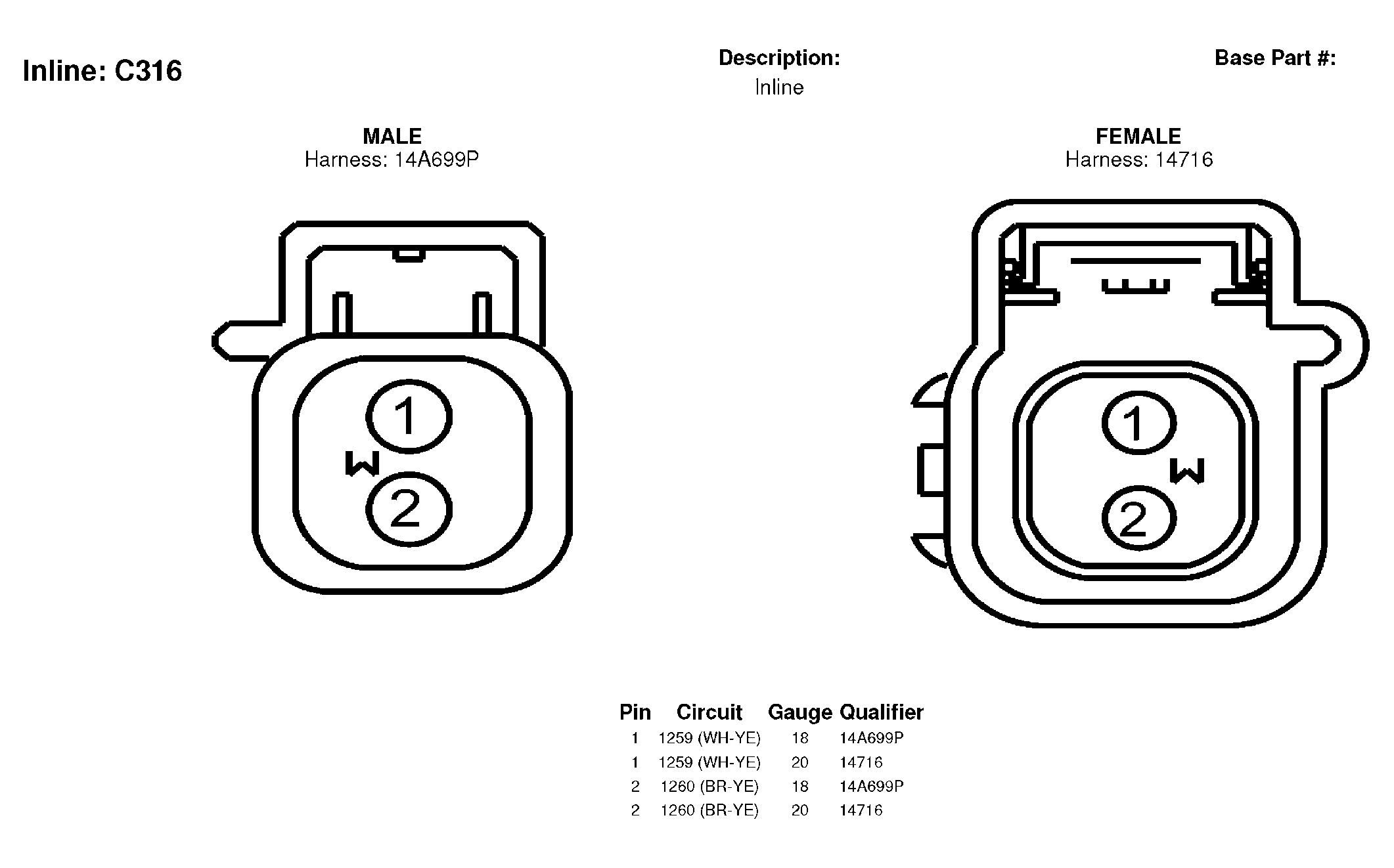

Fig 117: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.

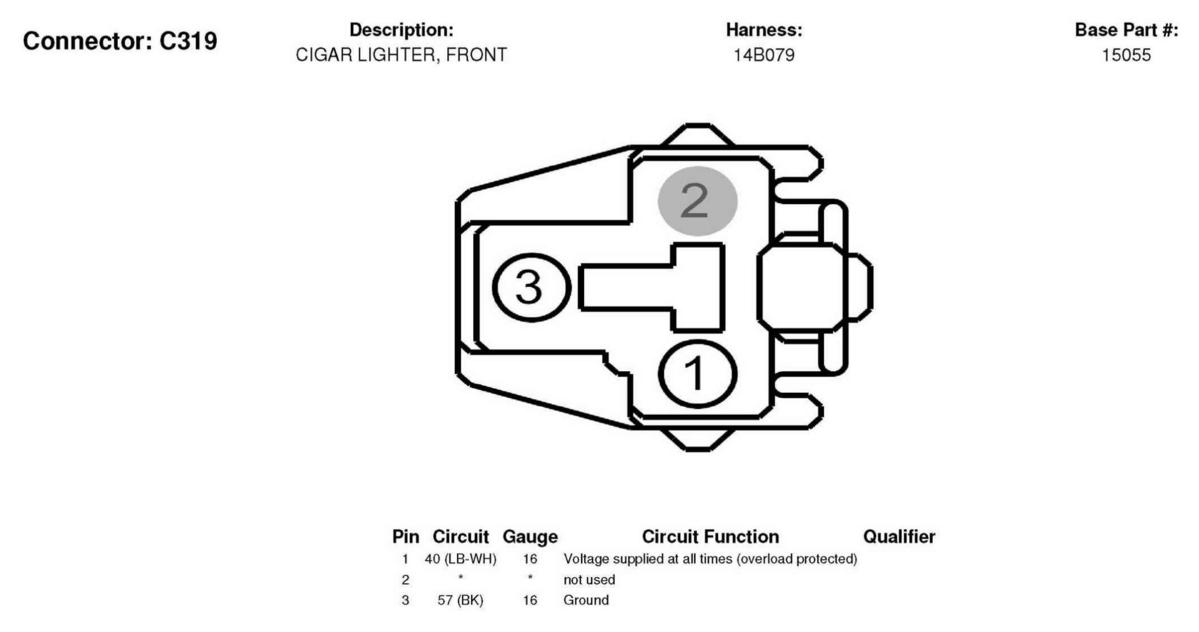

Fig 118: Cigar Lighter, Front Connector End View (C319)
Courtesy of FORD MOTOR CO.

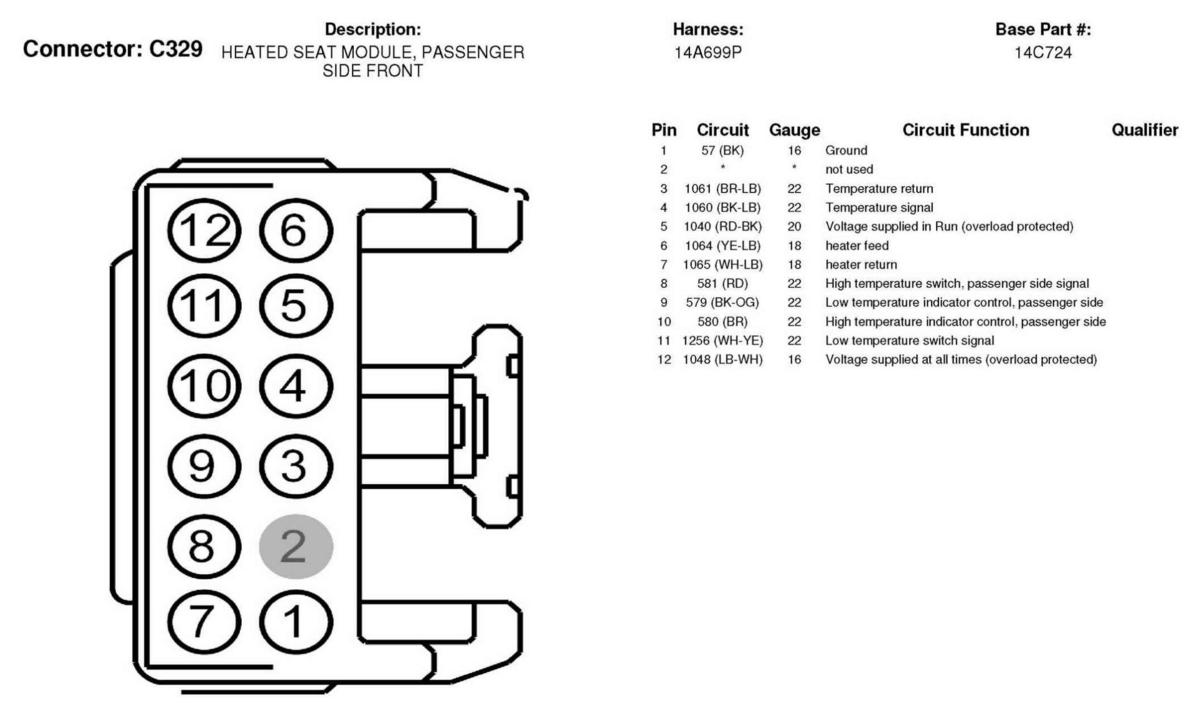

Fig 119: Heated Seat Module, Passenger Side Front Connector End View (C329)
Courtesy of FORD MOTOR CO.
Fig 120: Lumbar Adjust Switch, Passenger Side Connector End View (C331)
Courtesy of FORD MOTOR CO.

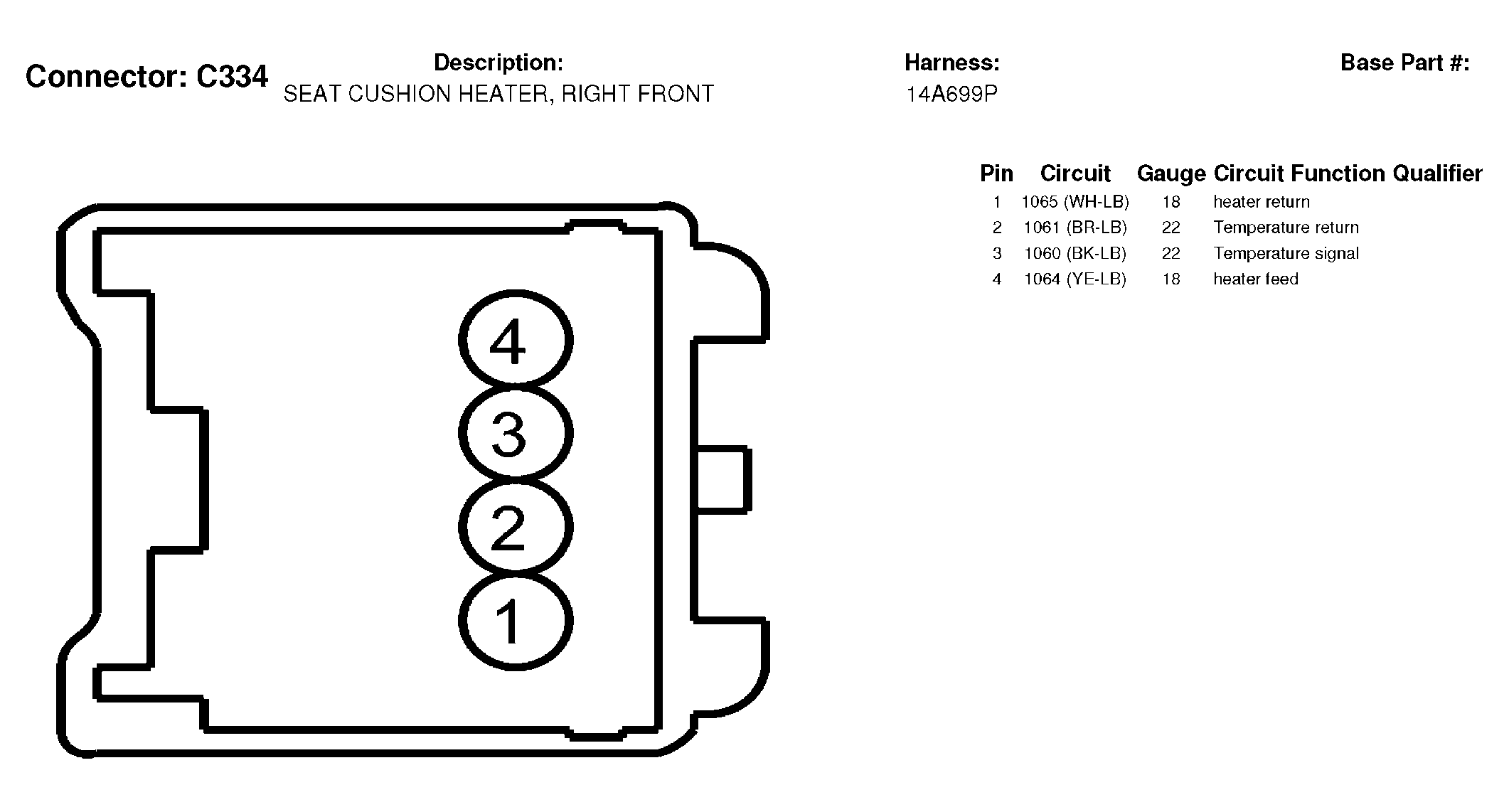

Fig 121: Seat Cushion Heater, Right Front Connector End View (C334)
Courtesy of FORD MOTOR CO.
Fig 122: Passenger Seat Lumbar Compressor Motor Connector End View (C336)
Courtesy of FORD MOTOR CO.

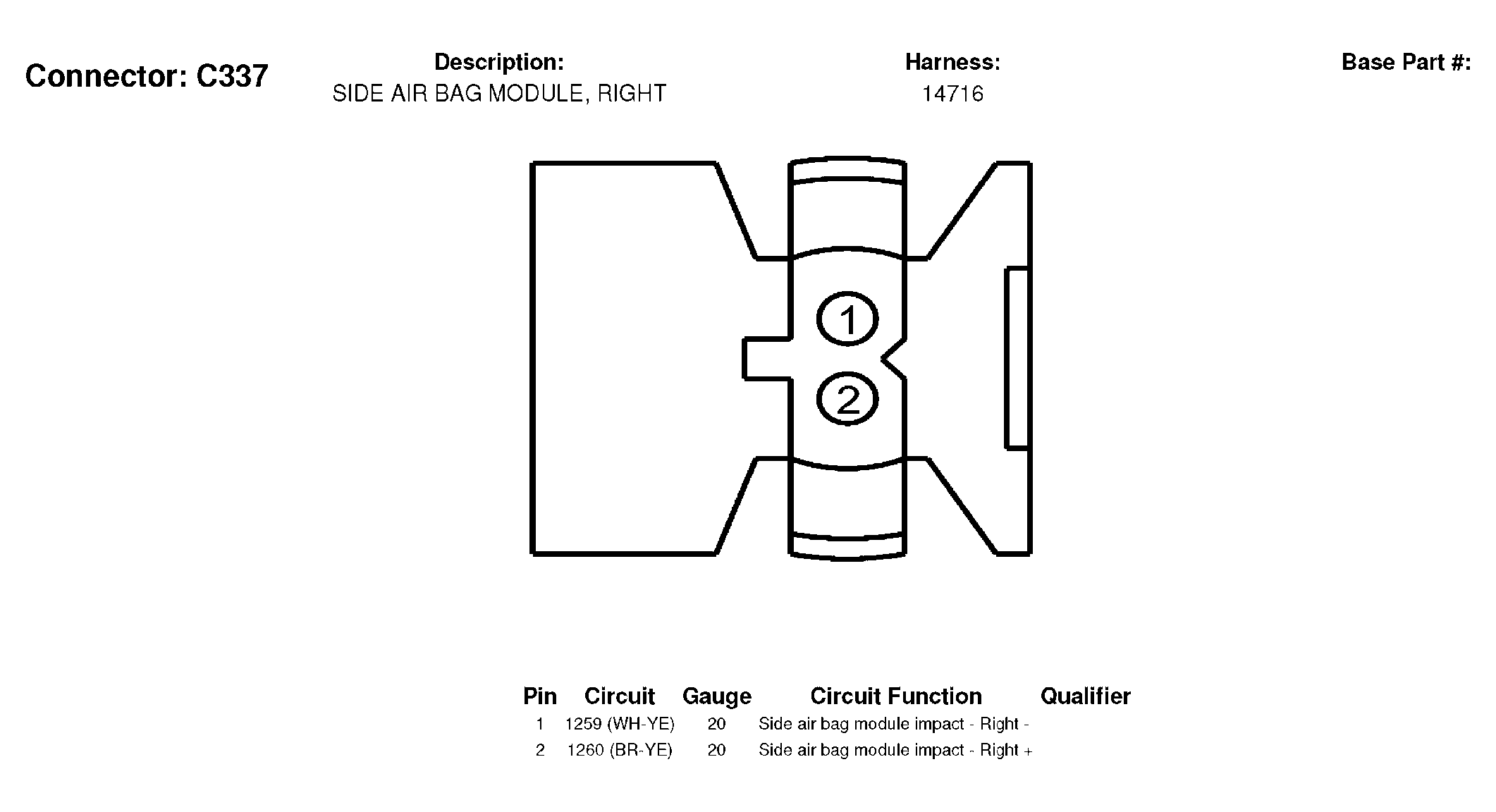

Fig 123: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.

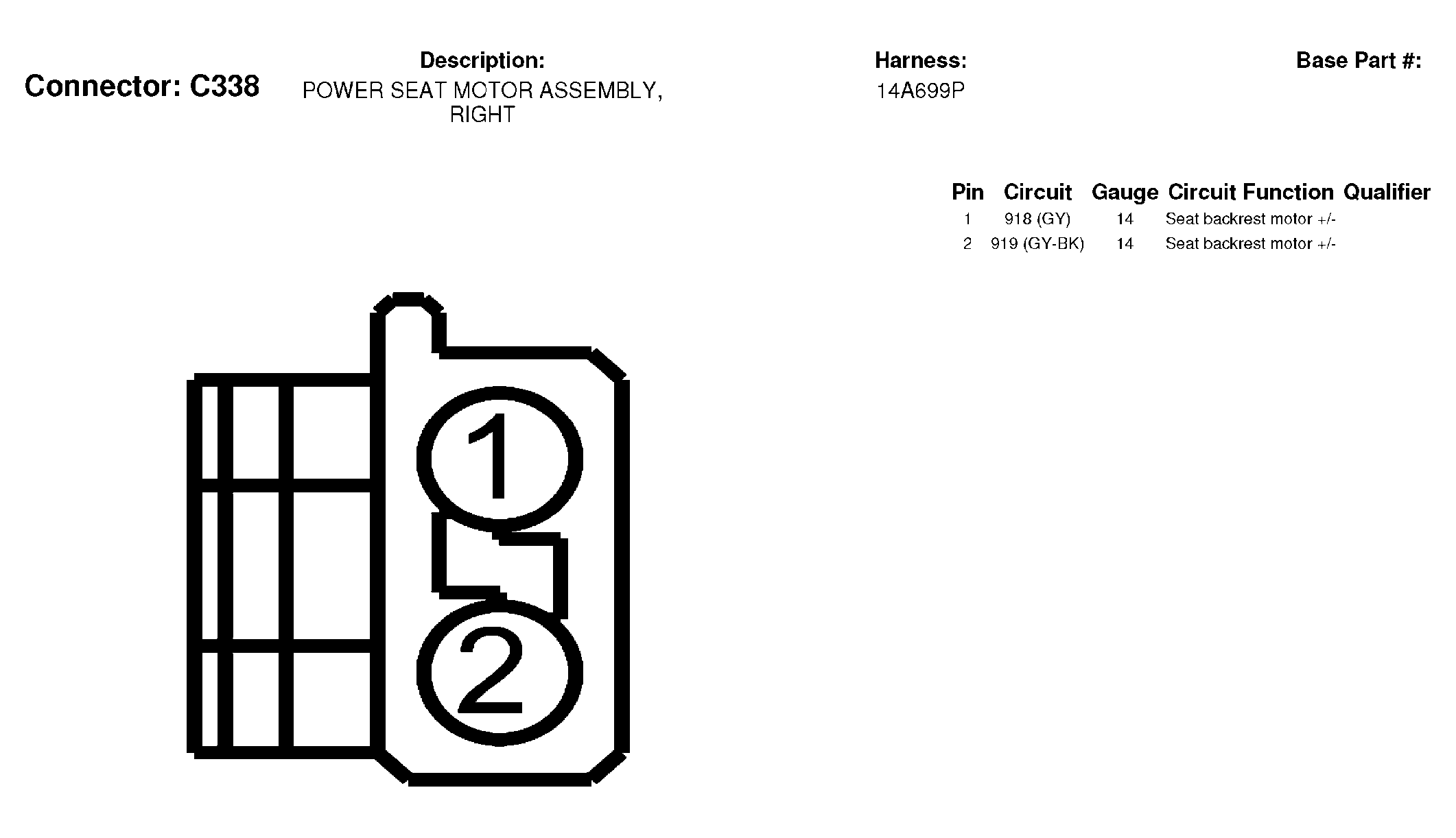

Fig 124: Power Seat Motor Assembly, Right Connector End View (C338)
Courtesy of FORD MOTOR CO.

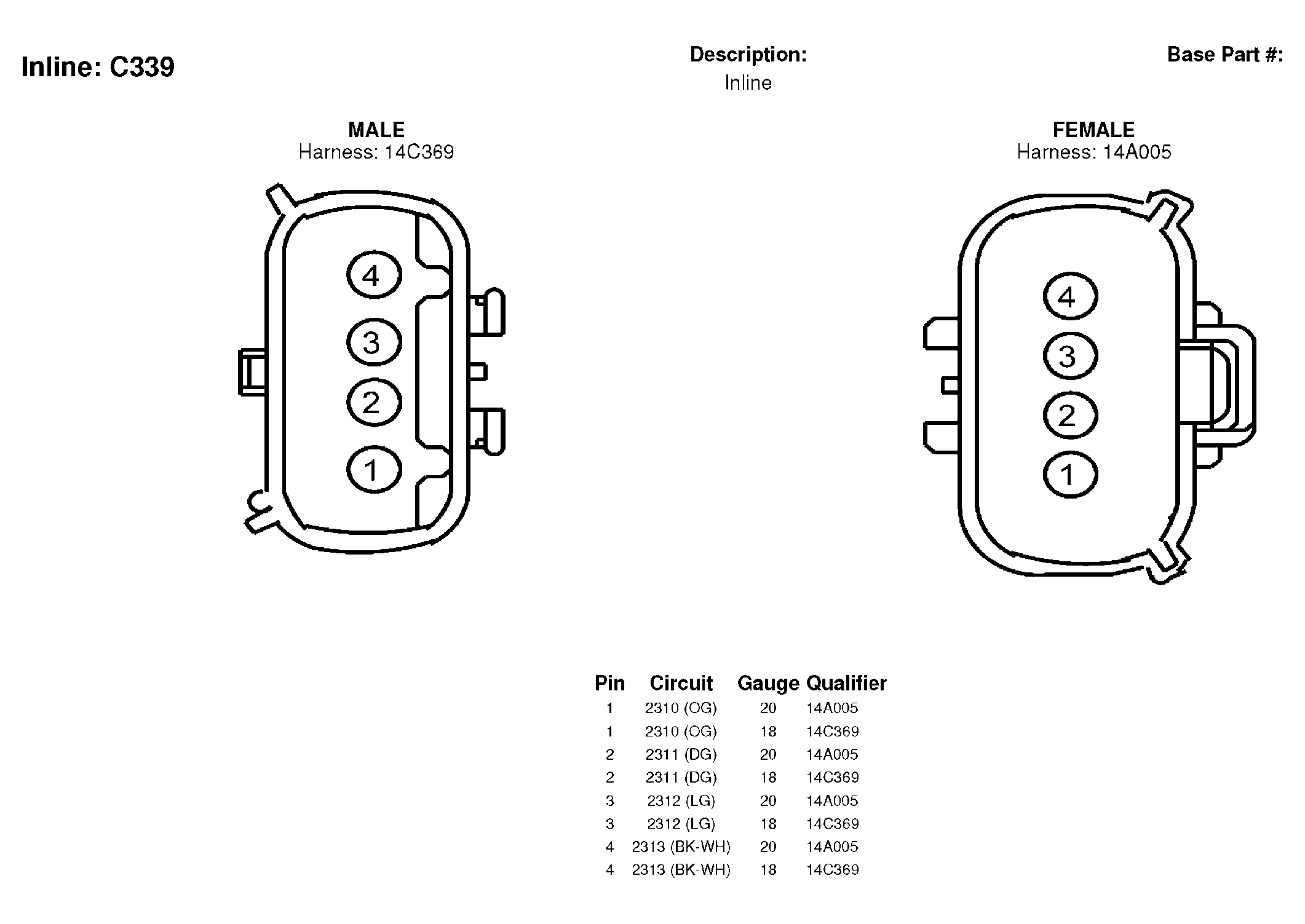

Fig 125: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.

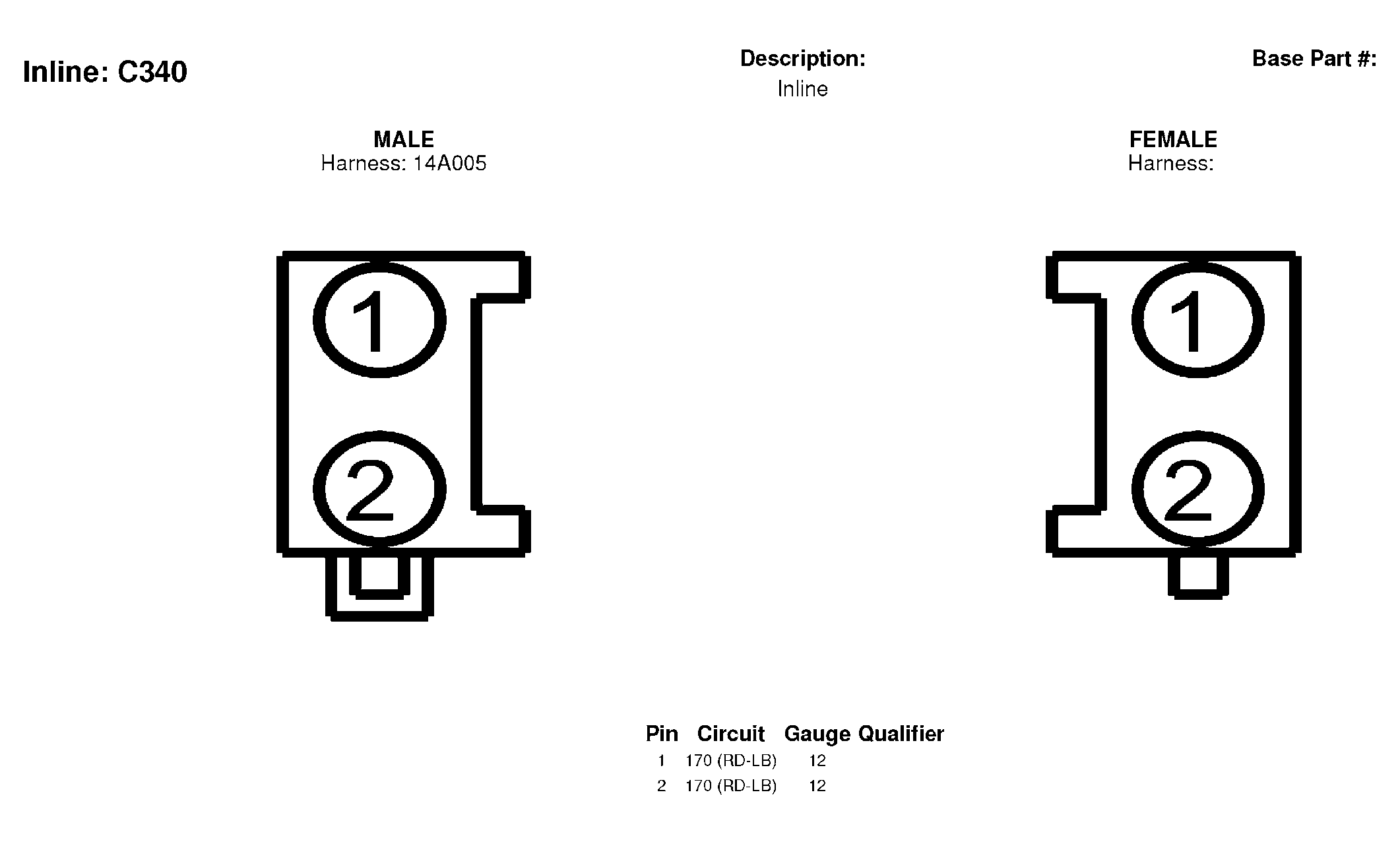

Fig 126: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

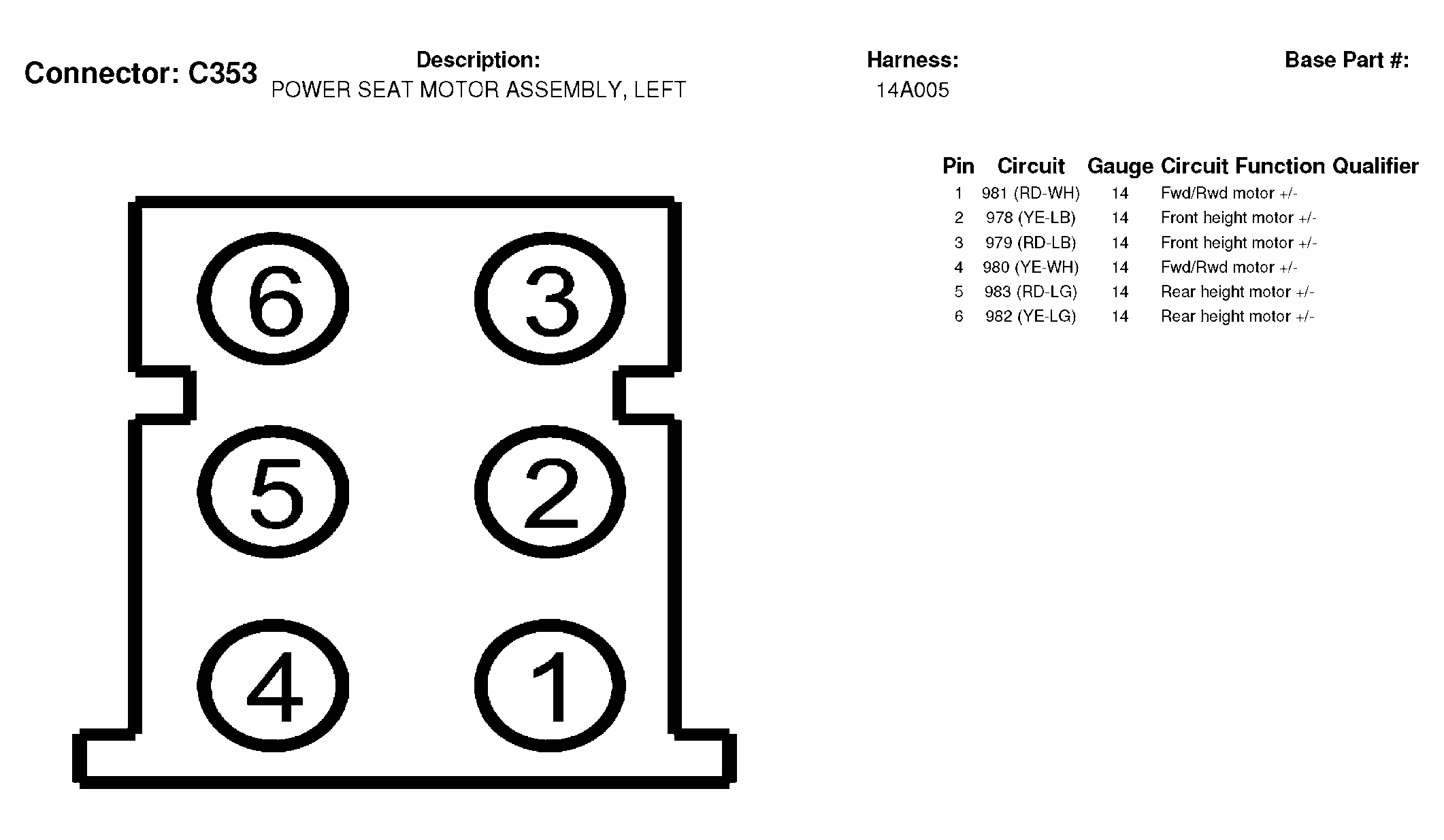

Fig 127: Power Seat Motor Assembly, Left Connector End View (C353)
Courtesy of FORD MOTOR CO.

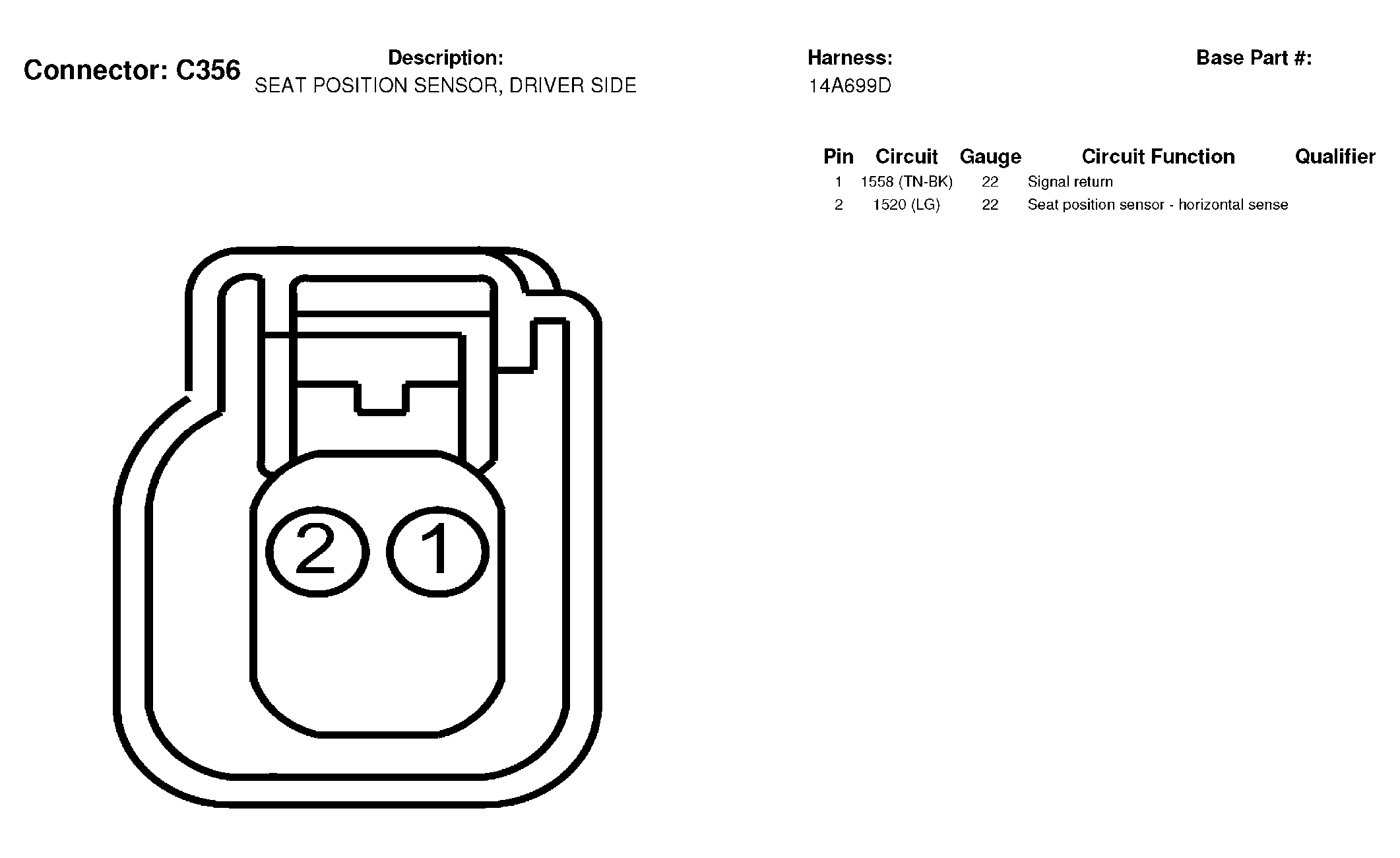

Fig 128: Seat Position Sensor, Driver Side Connector End View (C356)
Courtesy of FORD MOTOR CO.

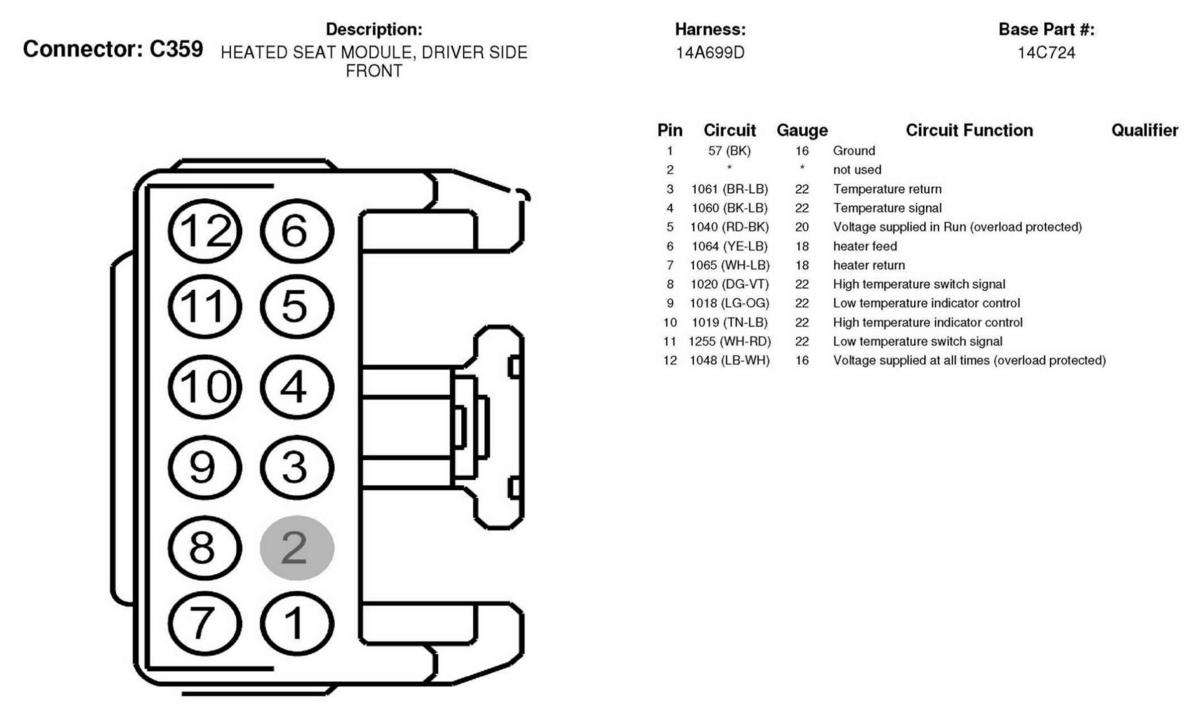

Fig 129: Heated Seat Module, Driver Side Front Connector End View (C359)
Courtesy of FORD MOTOR CO.

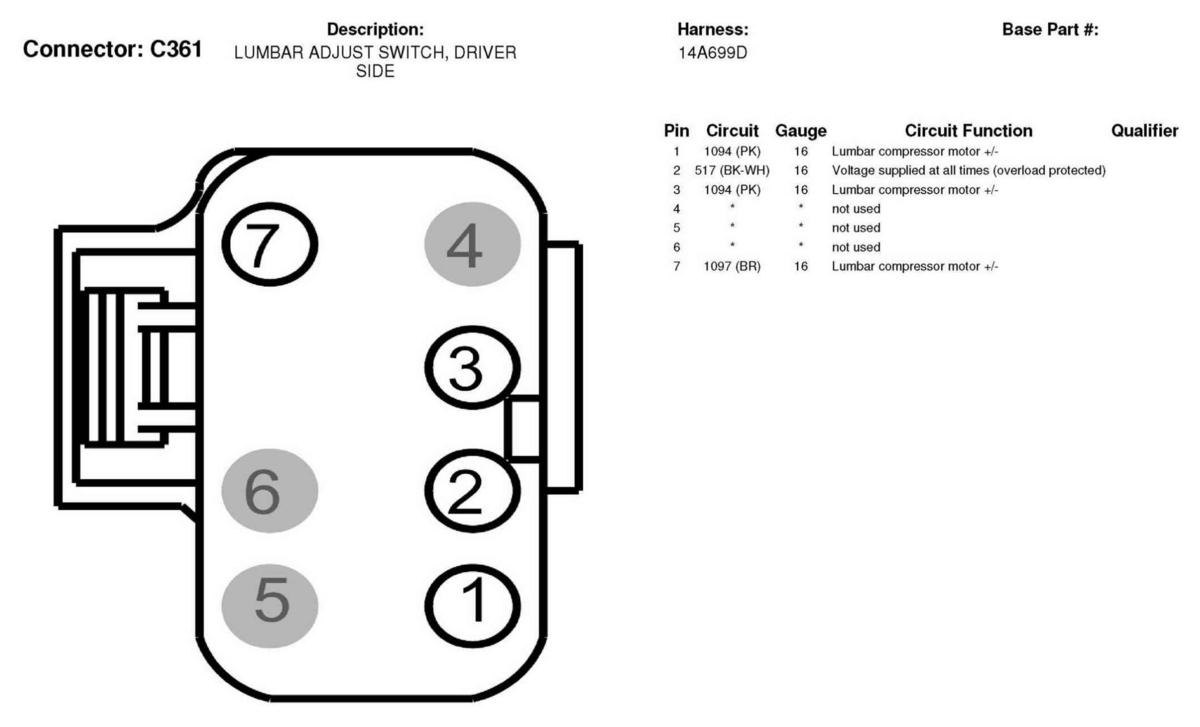

Fig 130: Lumbar Adjust Switch, Driver Side Connector End View (C361)
Courtesy of FORD MOTOR CO.

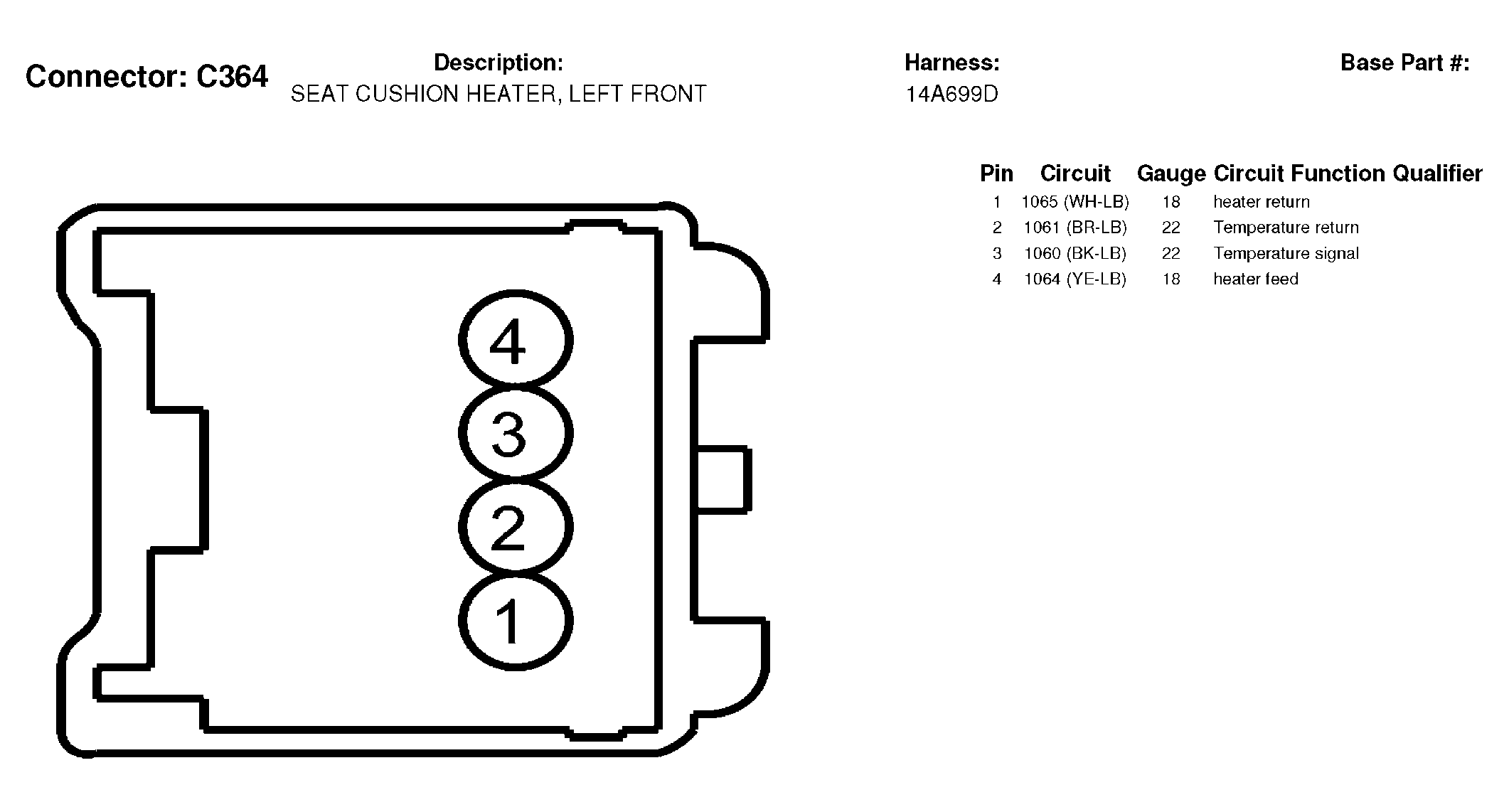

Fig 131: Seat Cushion Heater, Left Front Connector End View (C364)
Courtesy of FORD MOTOR CO.

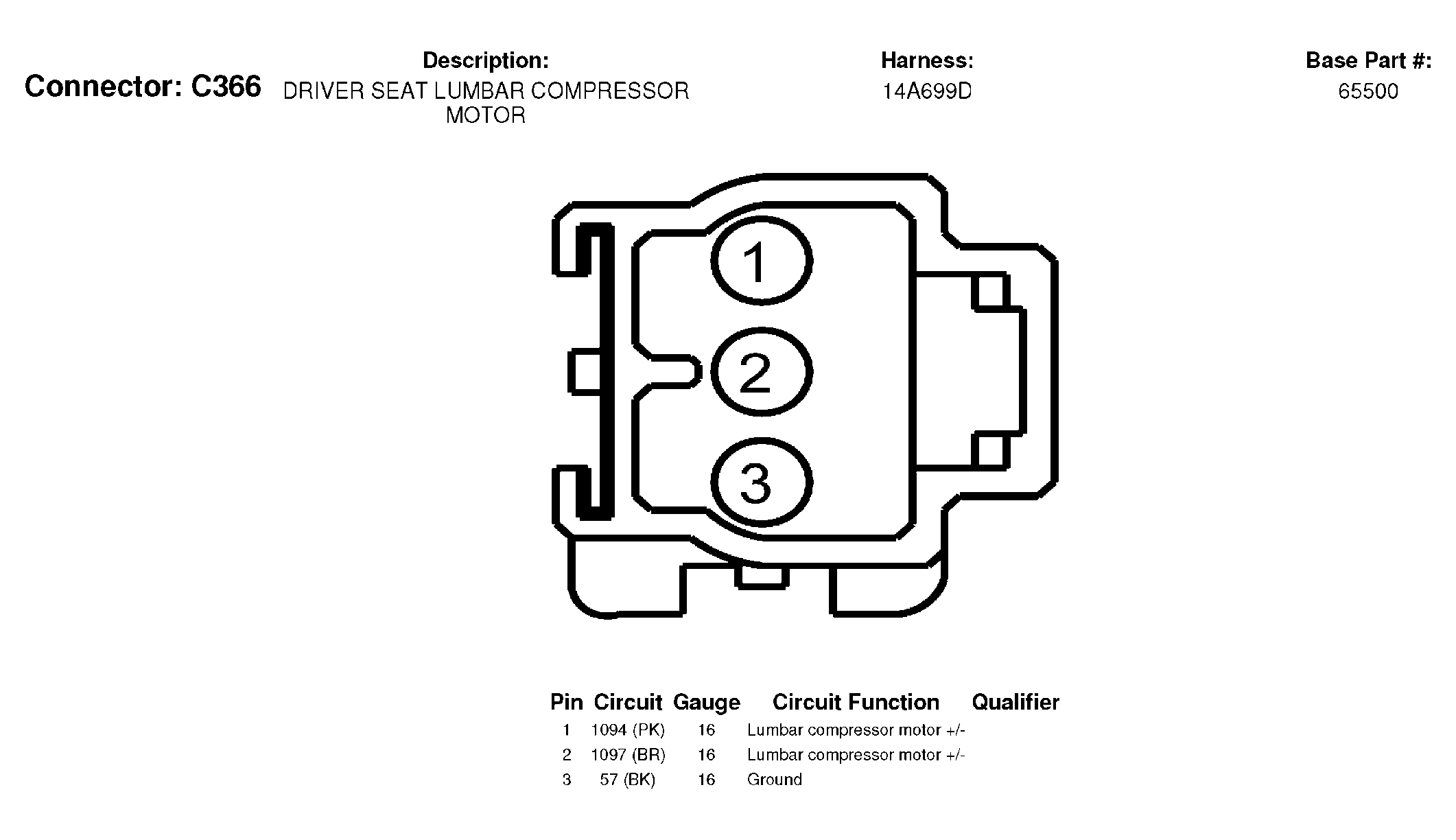

Fig 132: Driver Seat Lumbar Compressor Motor Connector End View (C366)
Courtesy of FORD MOTOR CO.

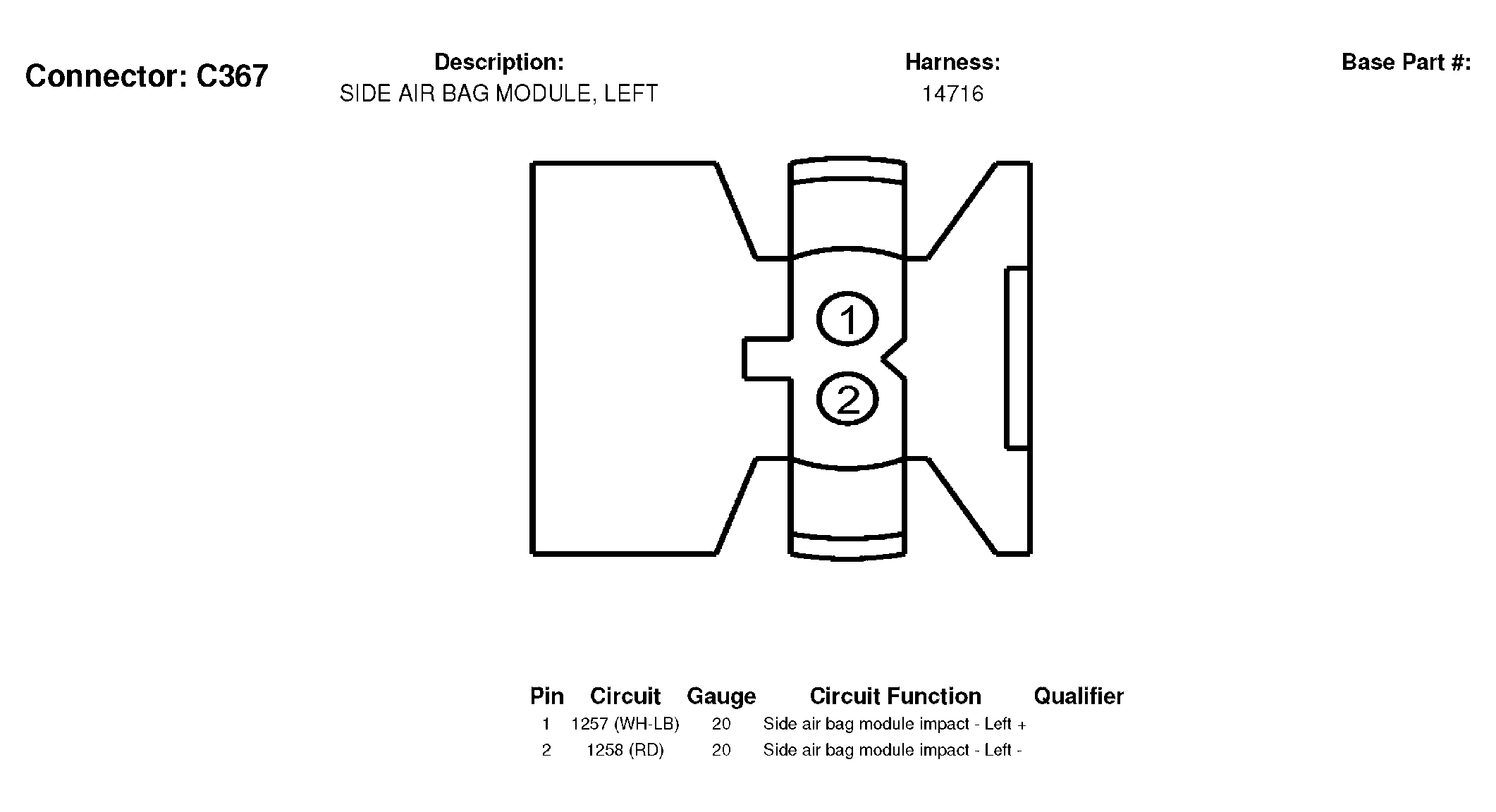

Fig 133: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.

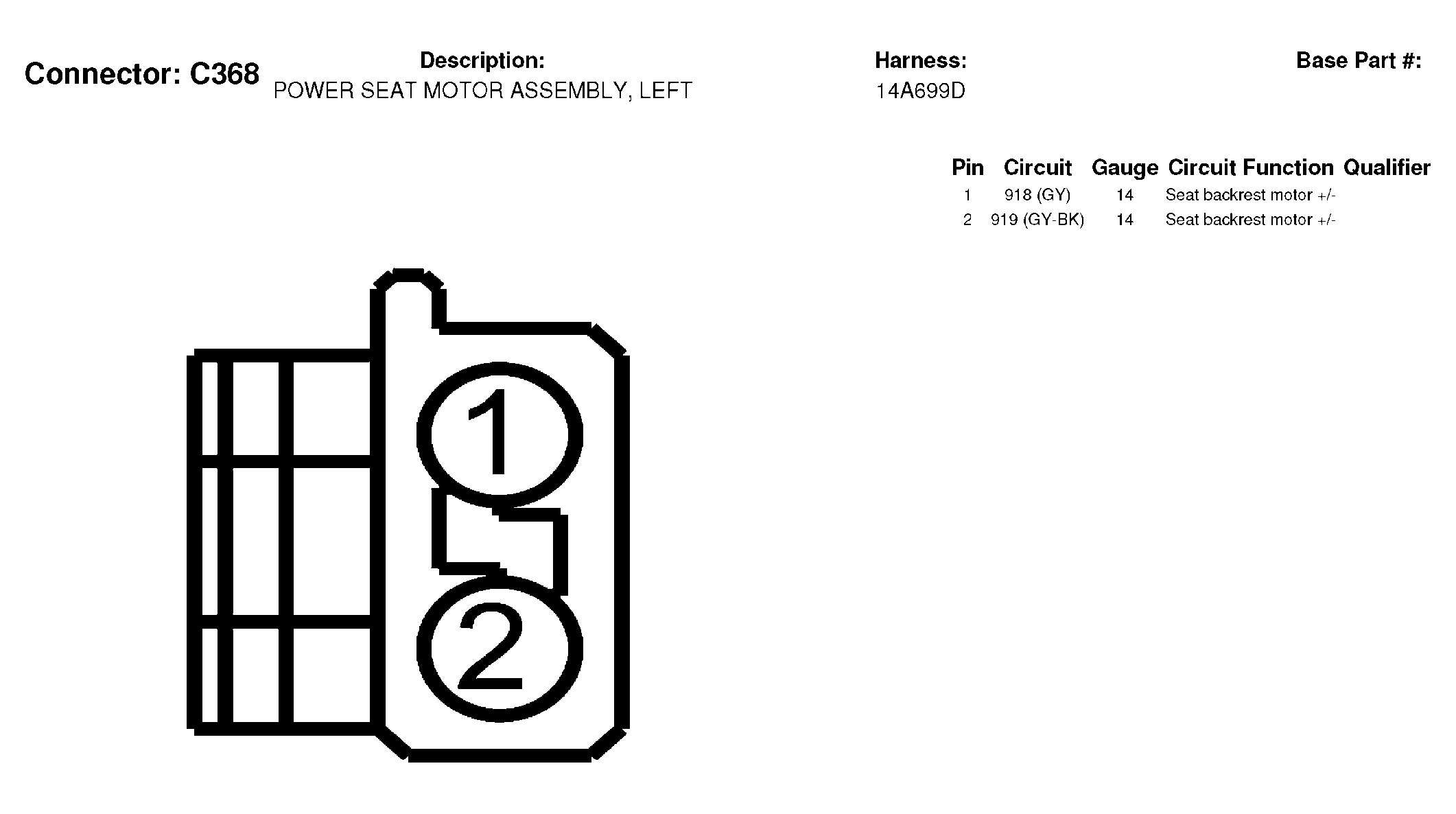

Fig 134: Power Seat Motor Assembly, Left Connector End View (C368)
Courtesy of FORD MOTOR CO.

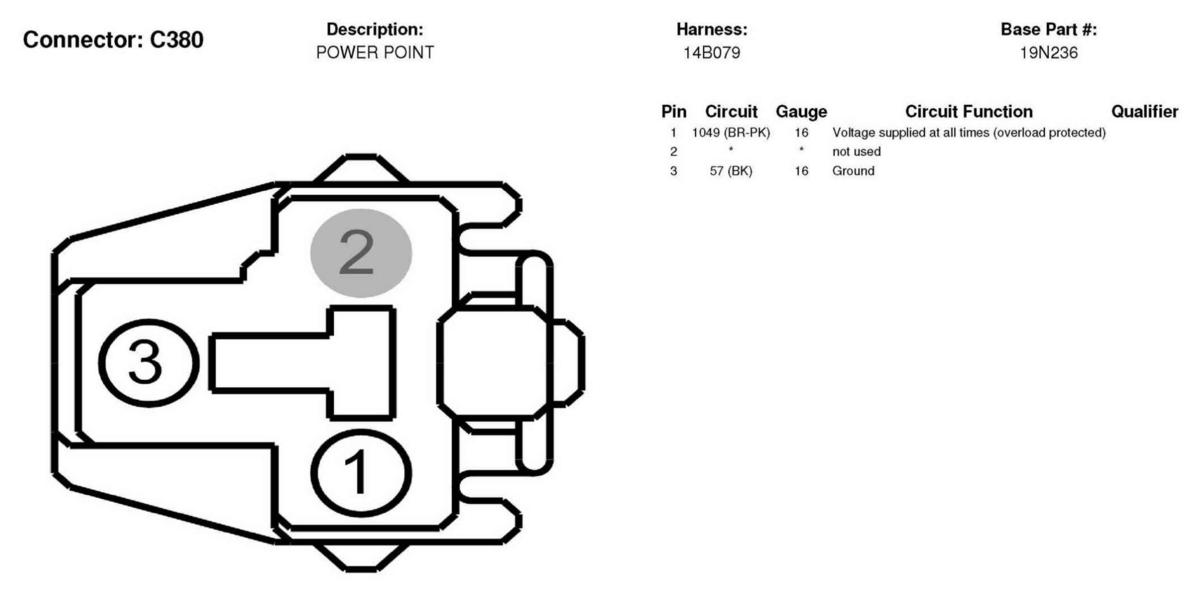

Fig 135: Power Point Connector End View (C380)
Courtesy of FORD MOTOR CO.

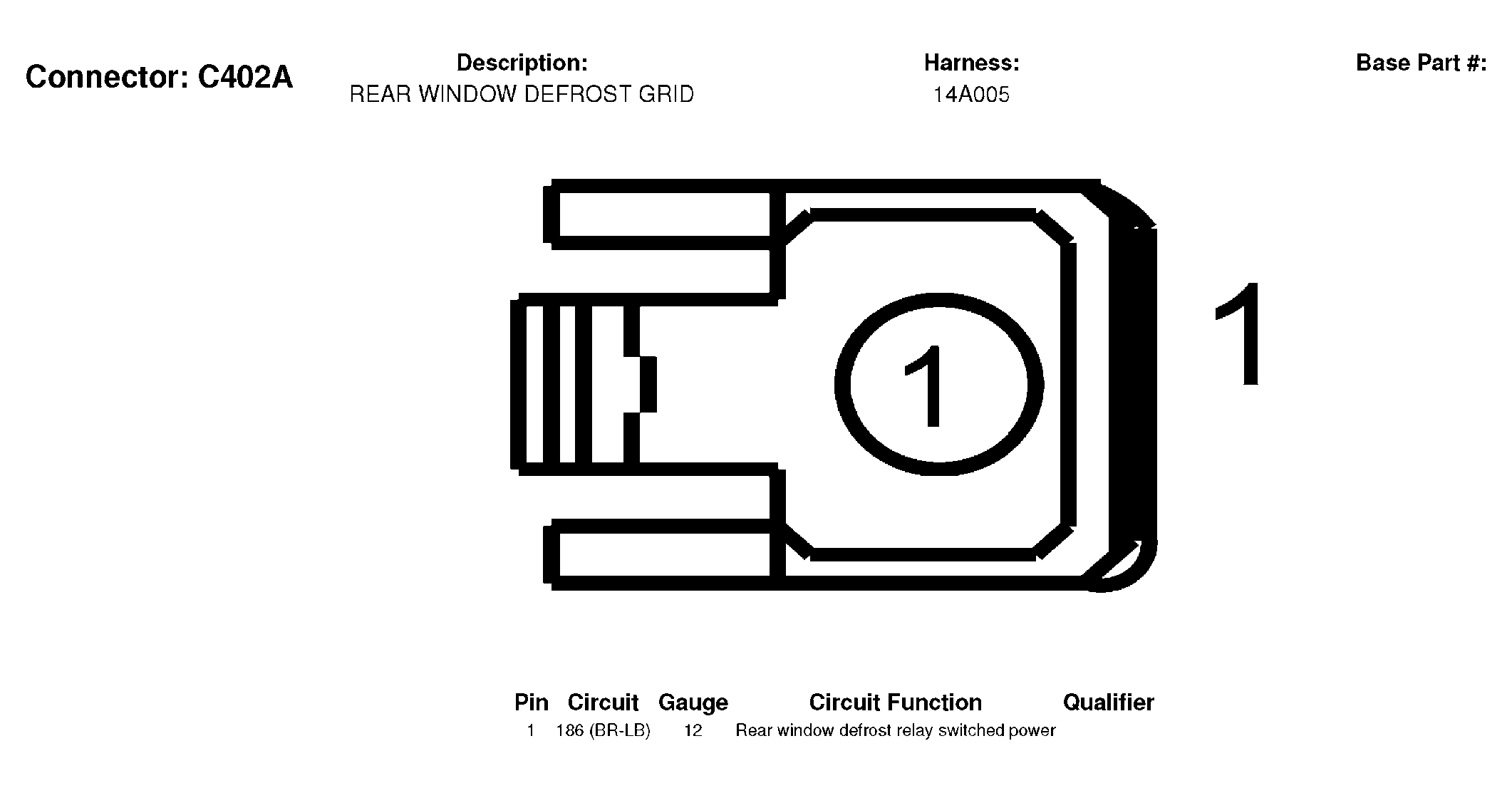

Fig 136: Rear Window Defrost Grid Connector End View (C402A)
Courtesy of FORD MOTOR CO.

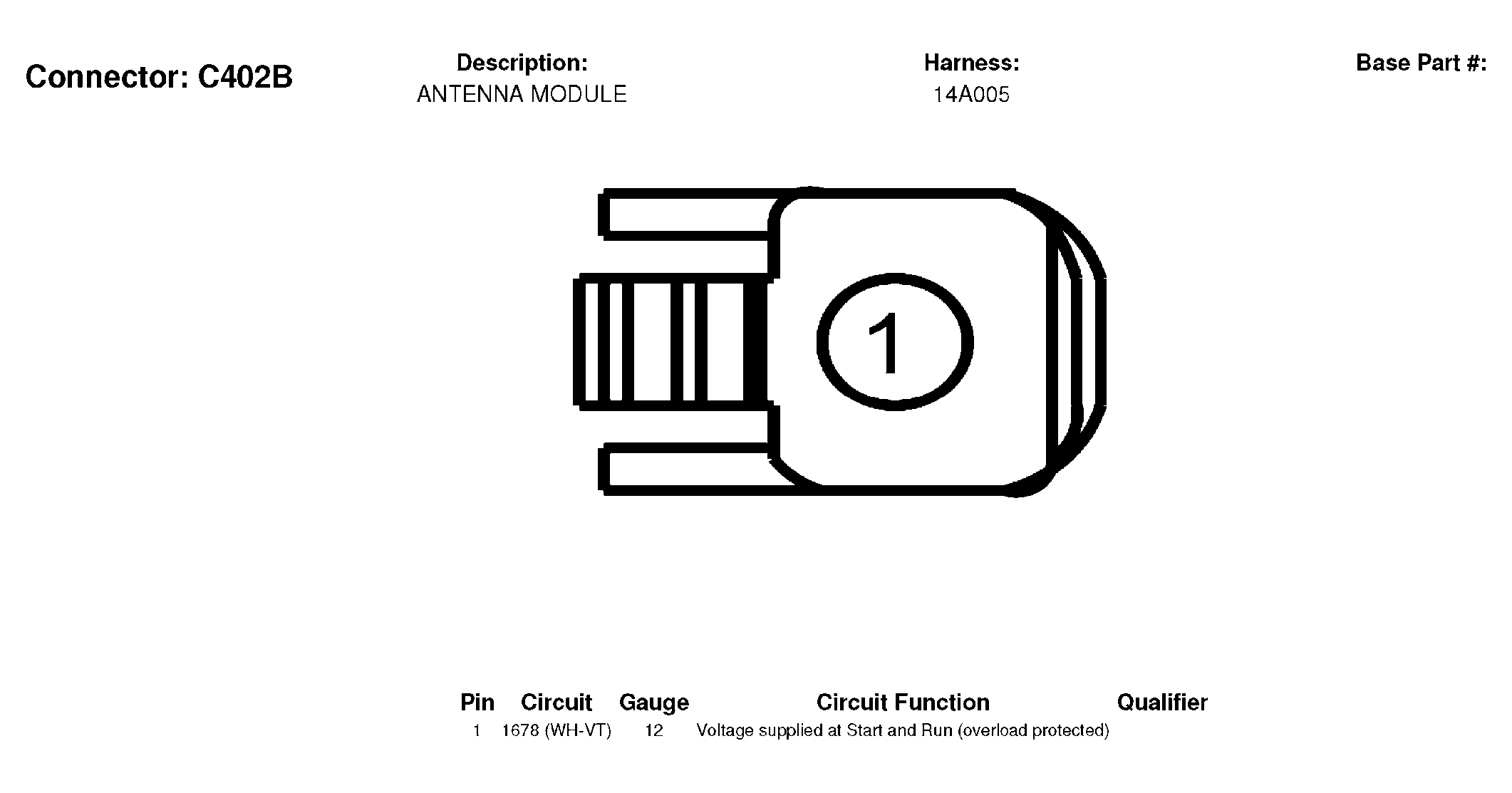

Fig 137: Antenna Module Connector End View (C402B)
Courtesy of FORD MOTOR CO.

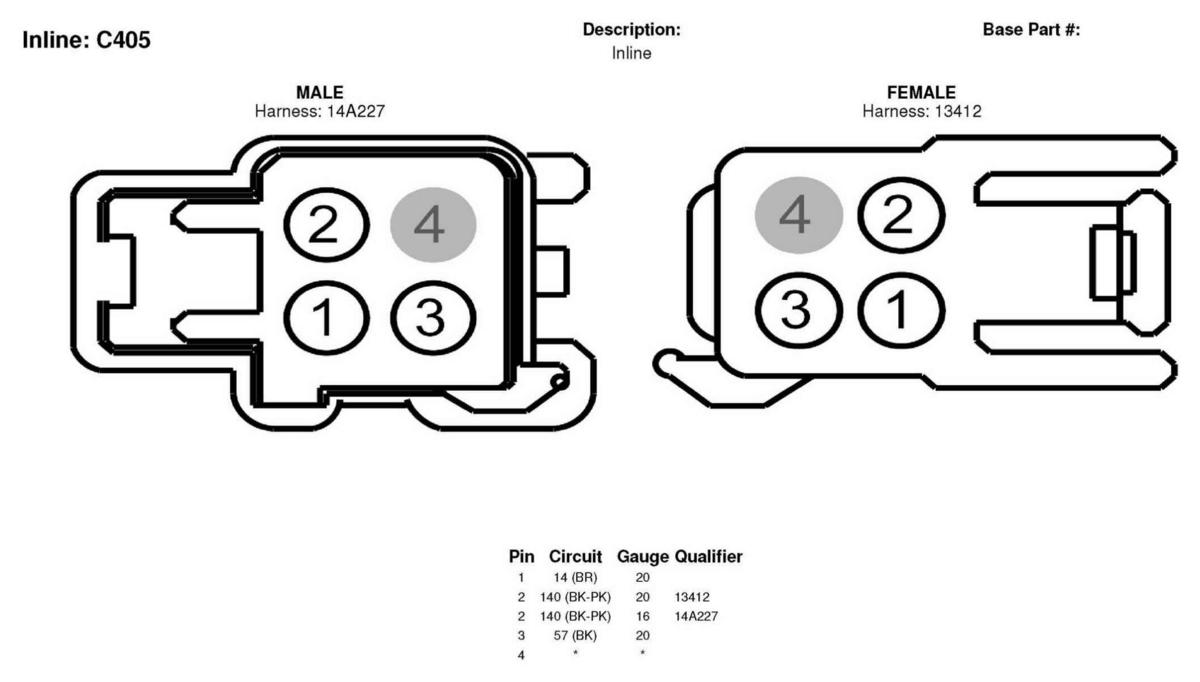

Fig 138: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.

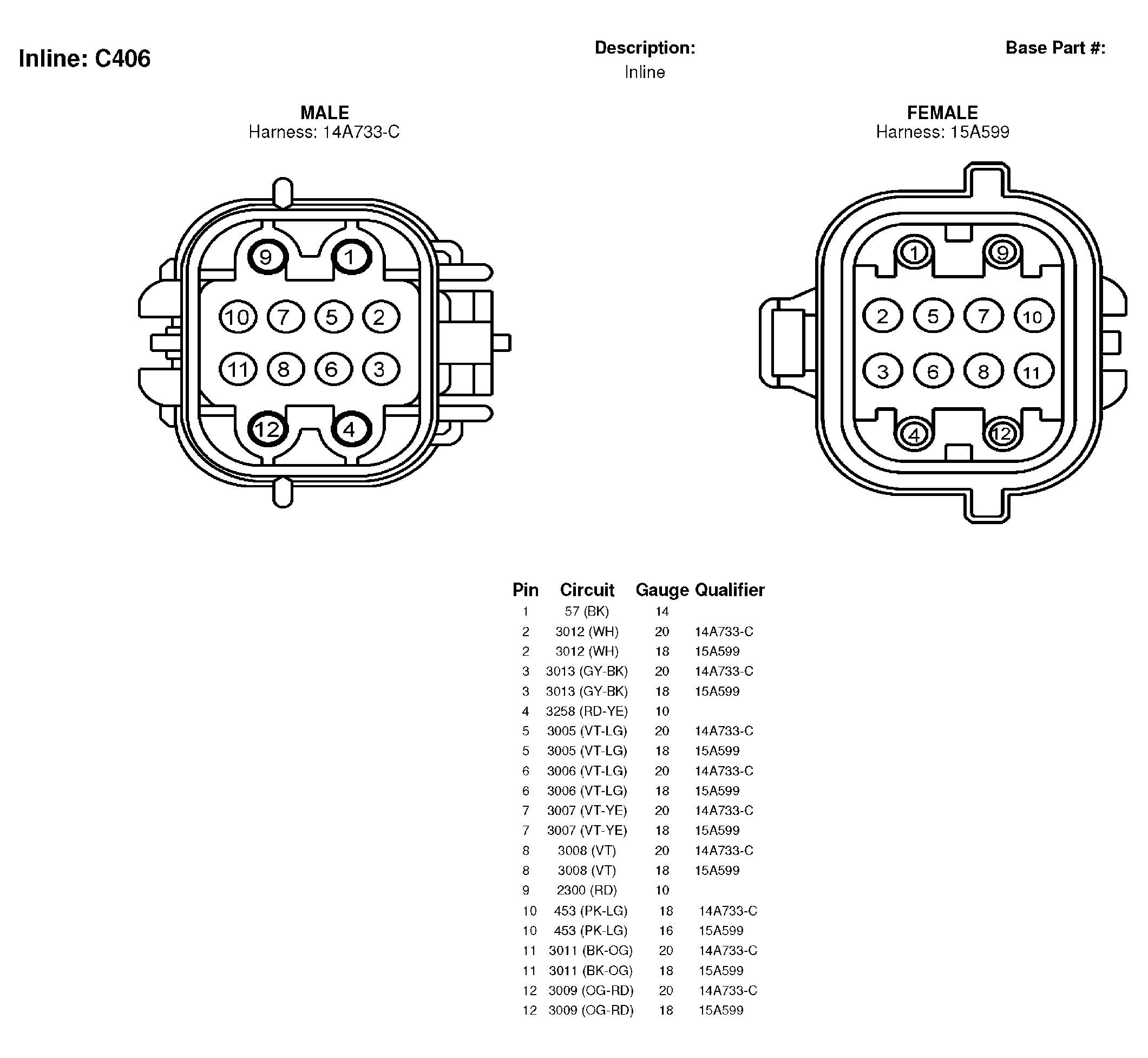

Fig 139: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.

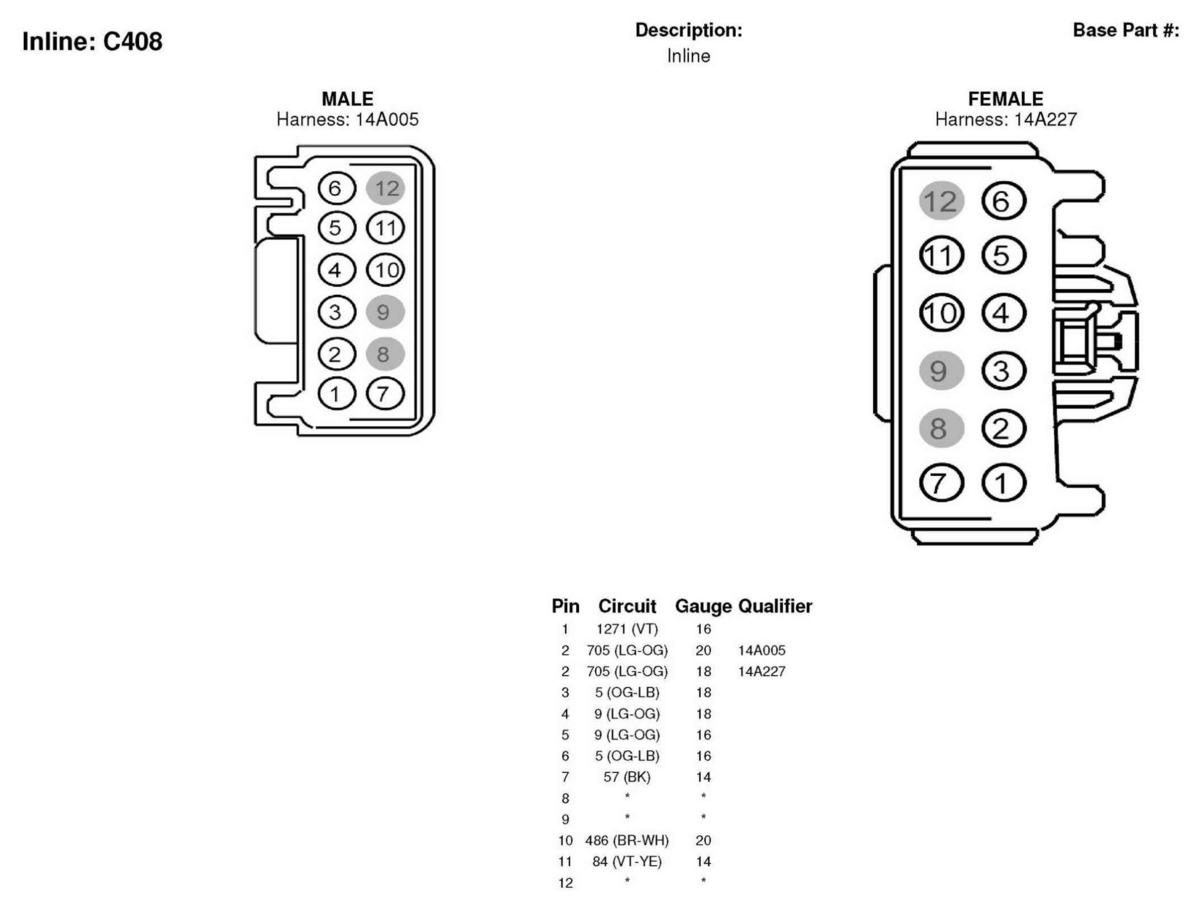

Fig 140: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.
Fig 141: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

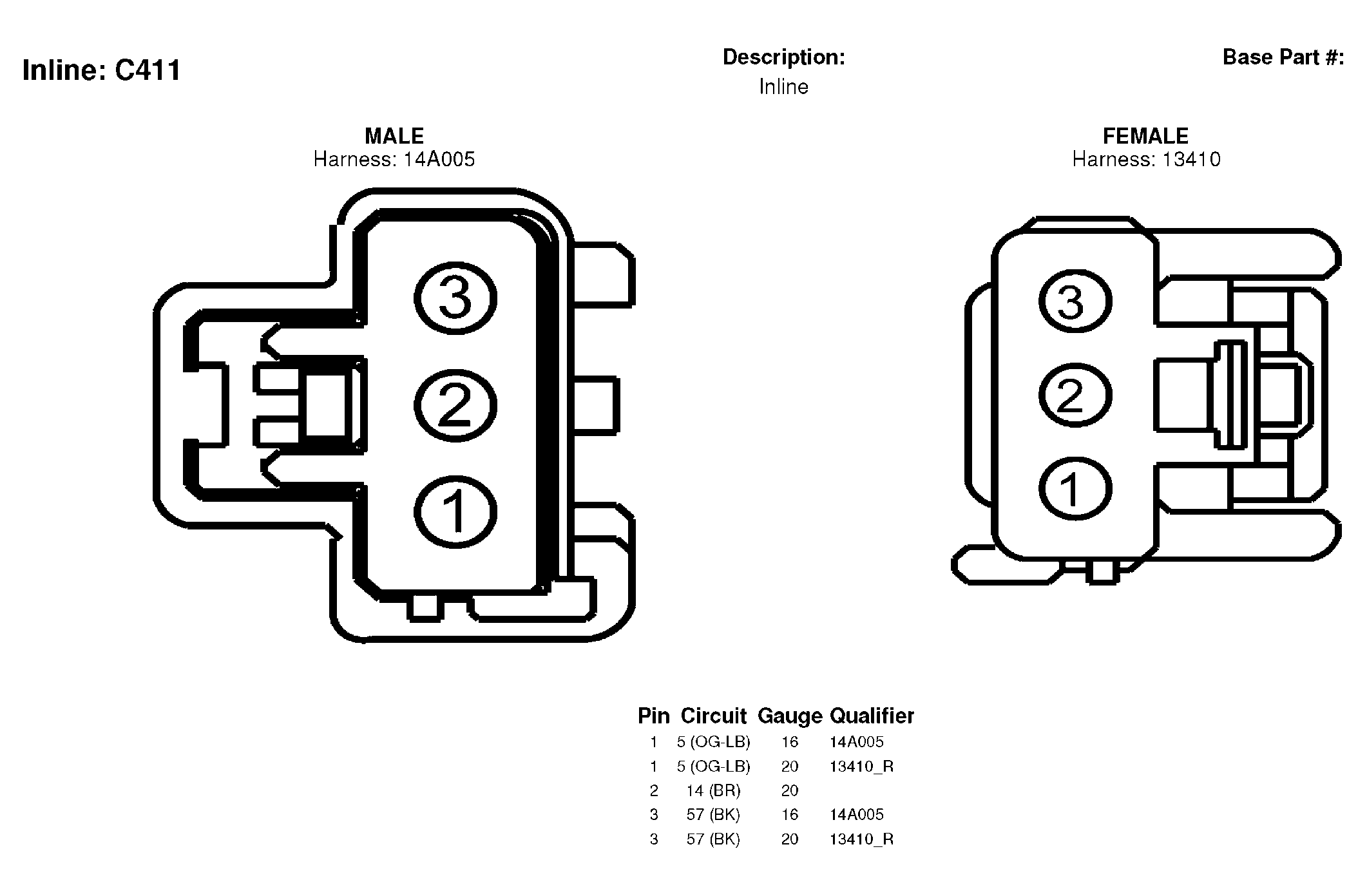

Fig 142: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

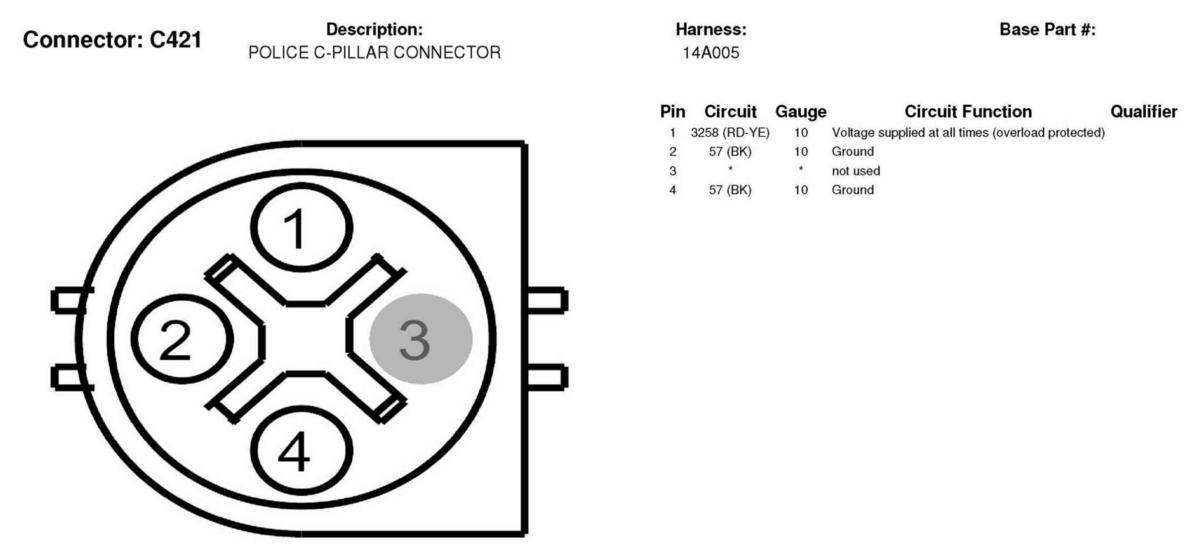

Fig 143: Police C-Pillar Connector, Connector End View (C421)
Courtesy of FORD MOTOR CO.

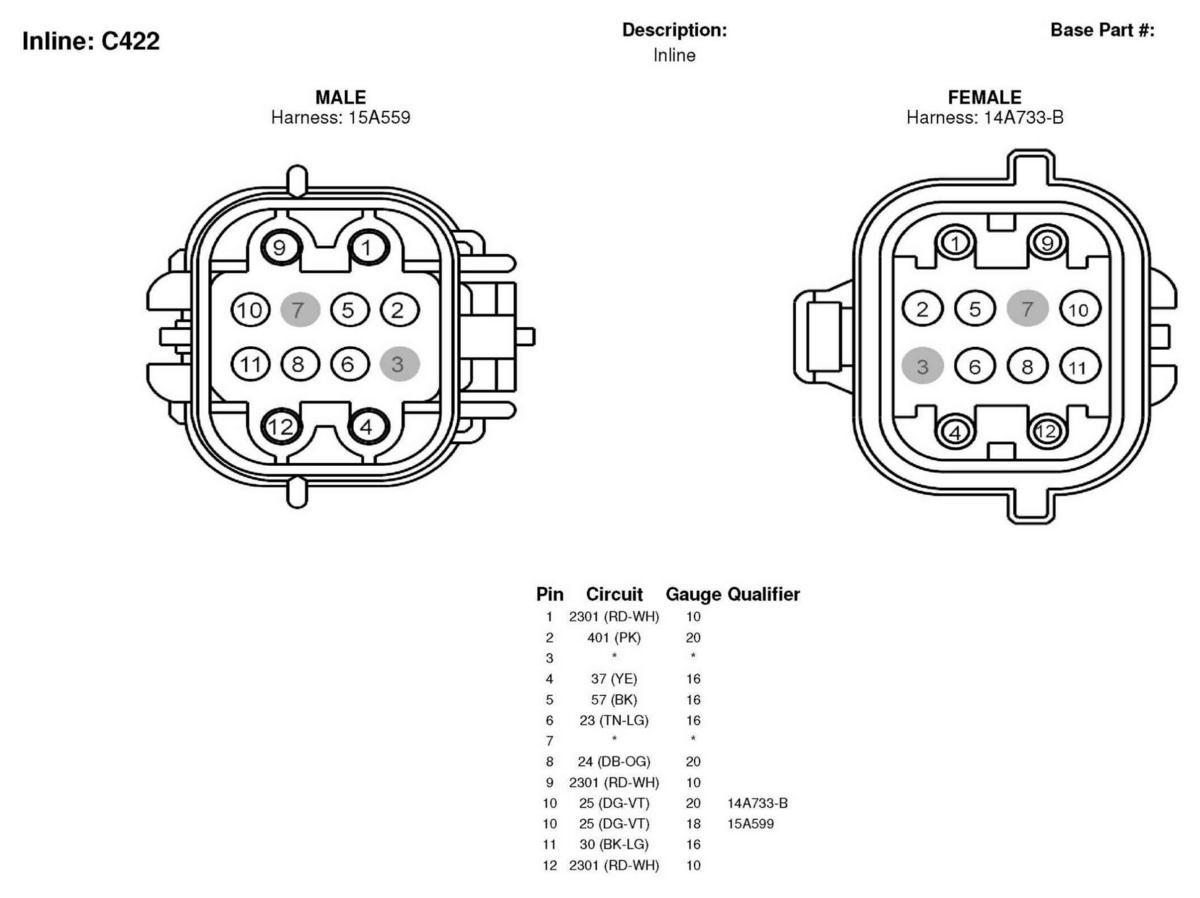

Fig 144: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.

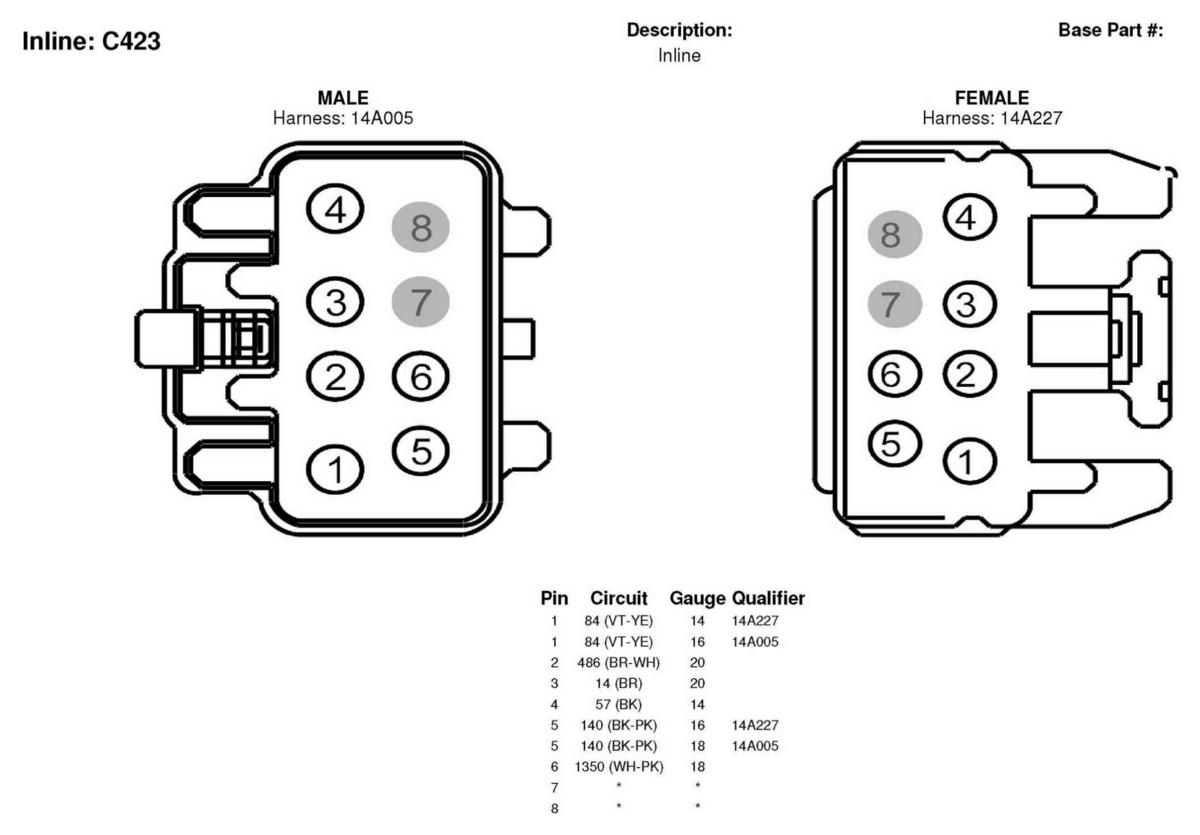

Fig 145: Inline Connector End View (C423)
Courtesy of FORD MOTOR CO.

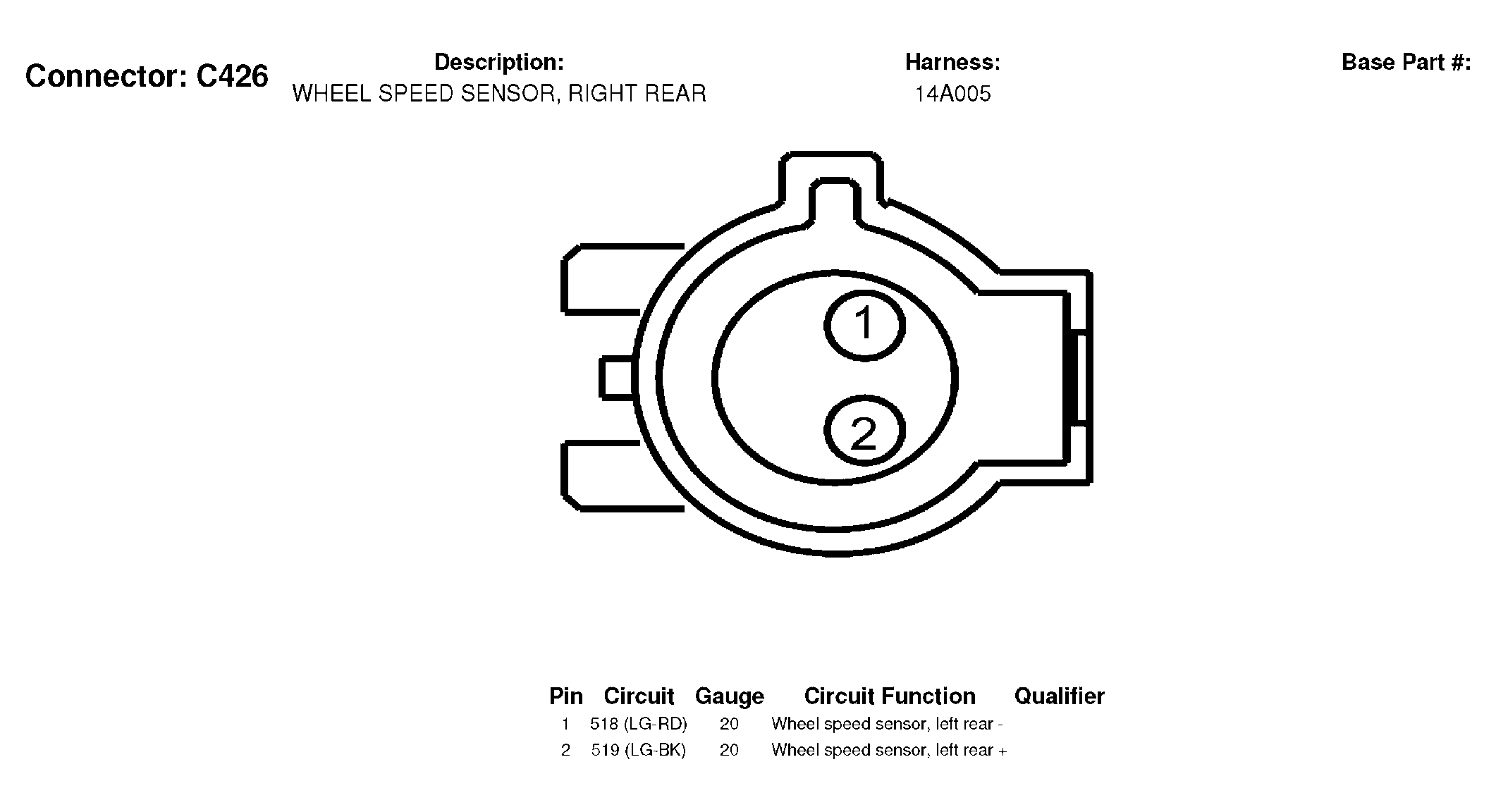

Fig 146: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.

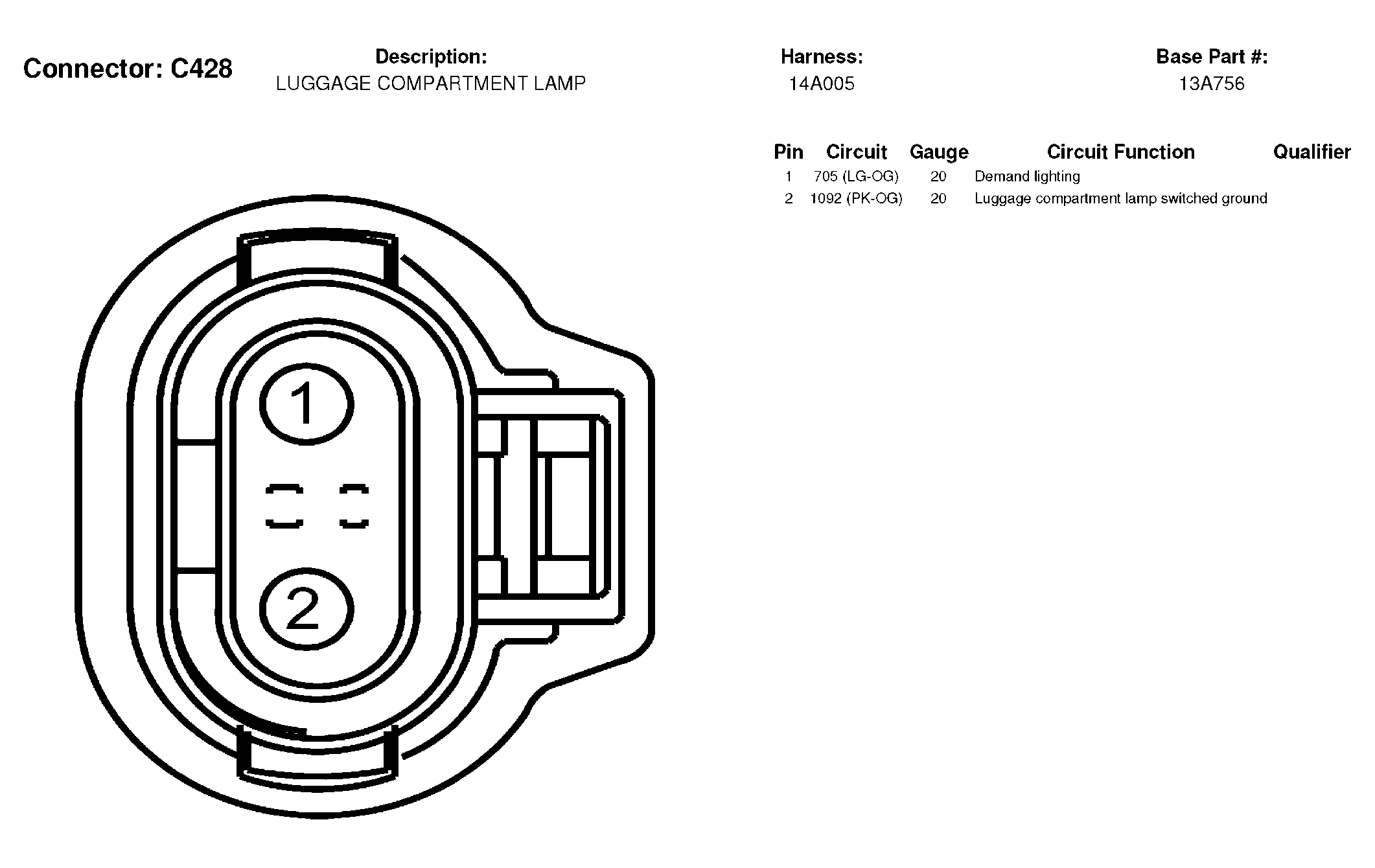

Fig 147: Luggage Compartment Lamp Connector End View (C428)
Courtesy of FORD MOTOR CO.

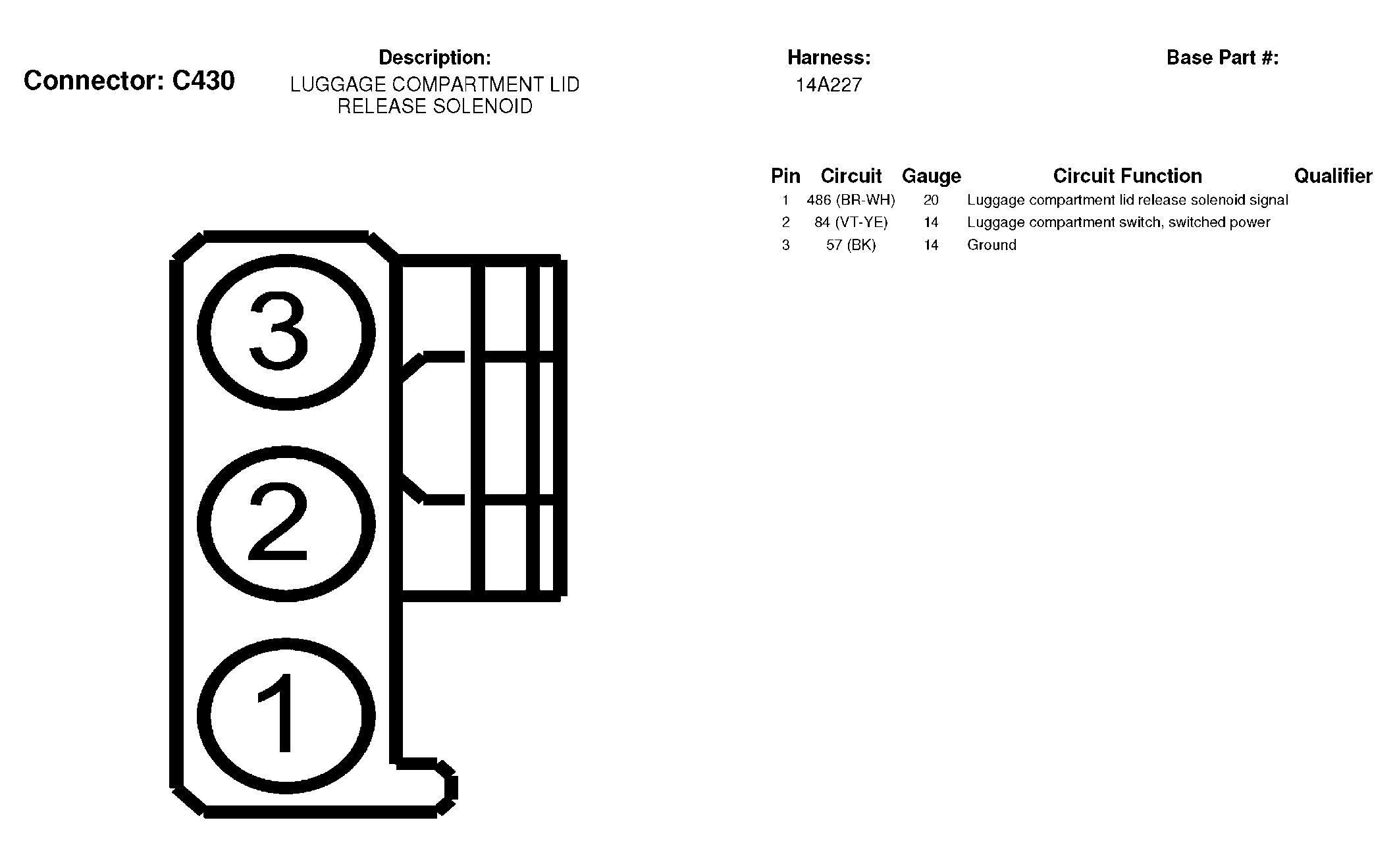

Fig 148: Luggage Compartment Lid Release Solenoid Connector End View (C430)
Courtesy of FORD MOTOR CO.

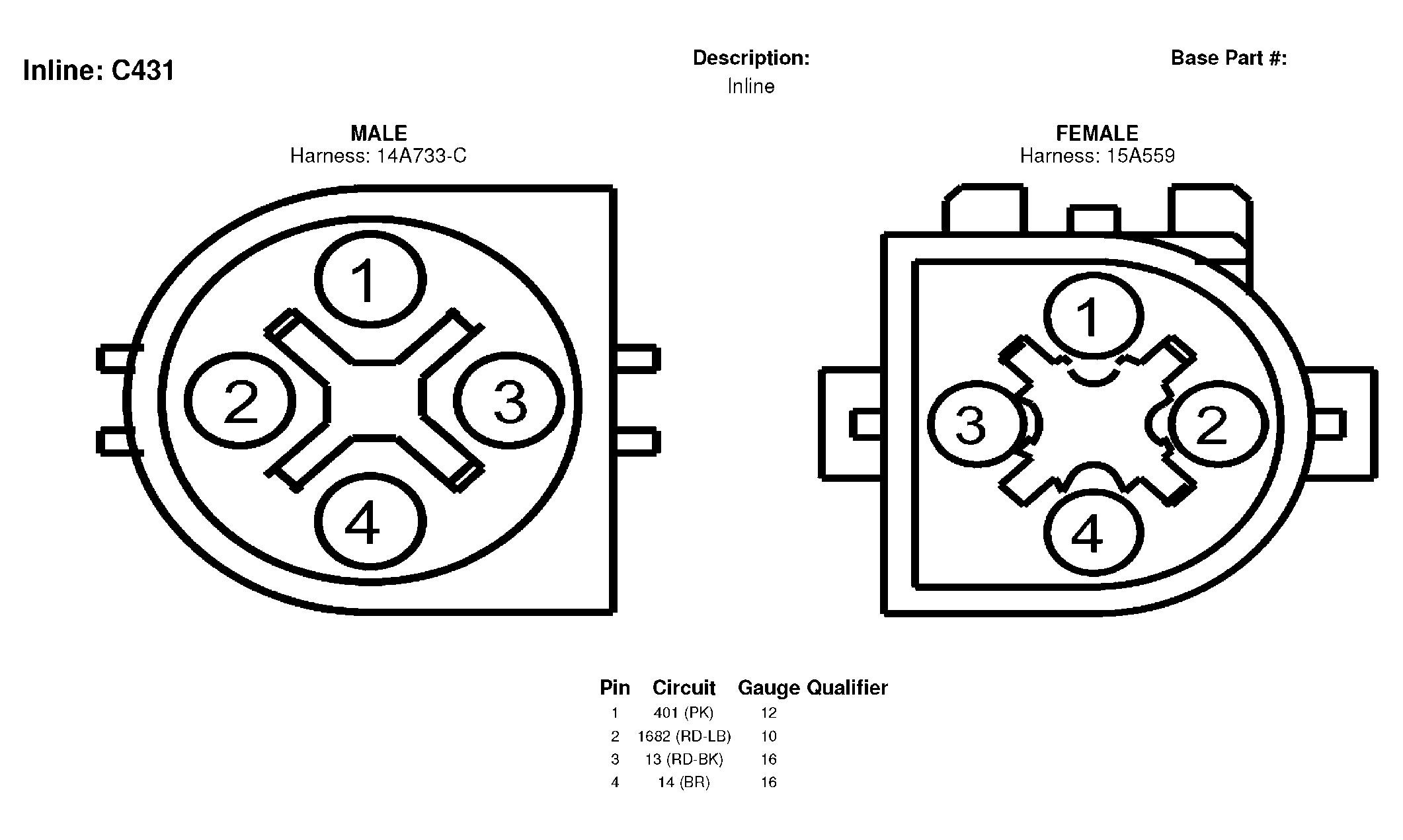

Fig 149: Inline Connector End View (C431)
Courtesy of FORD MOTOR CO.

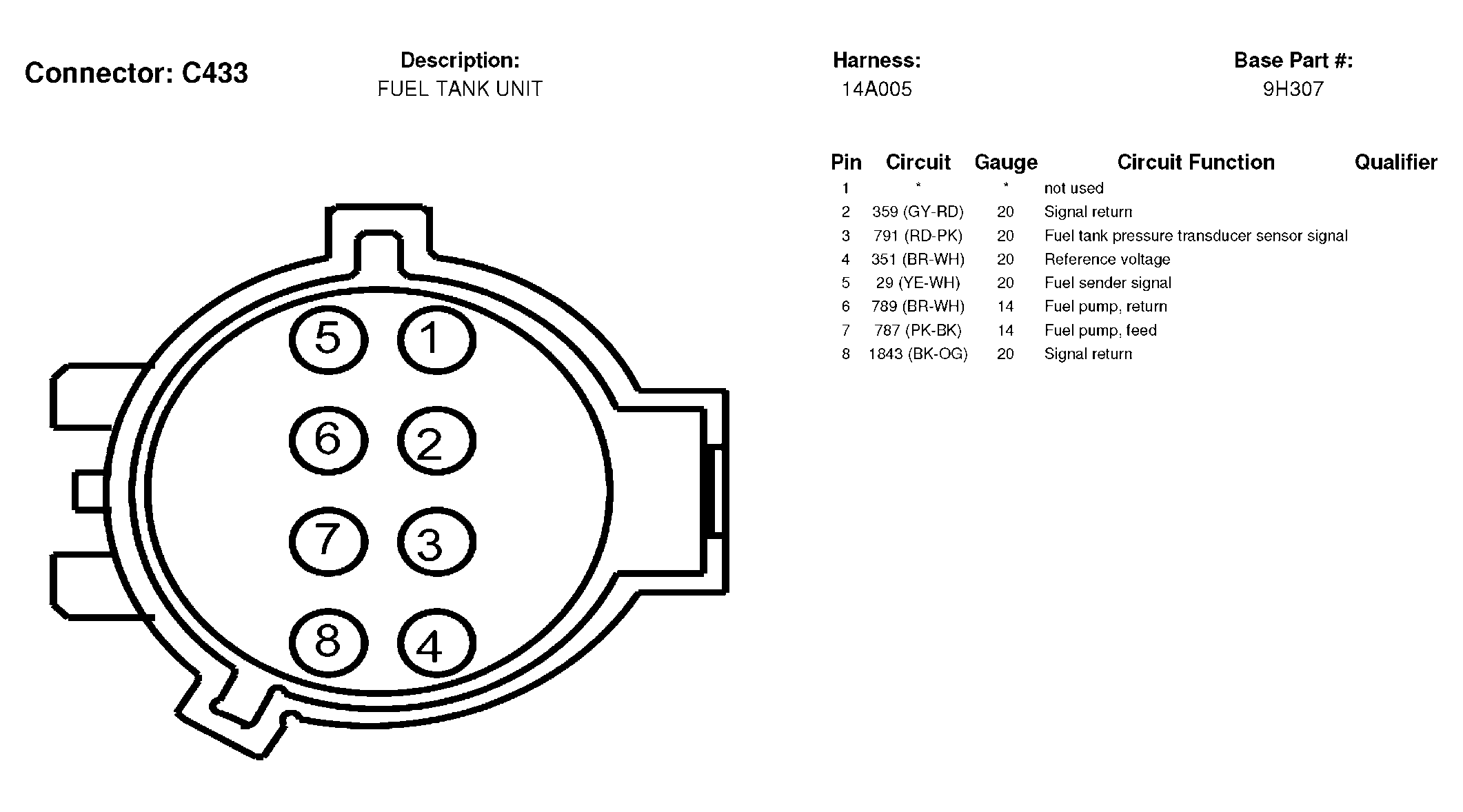

Fig 150: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.

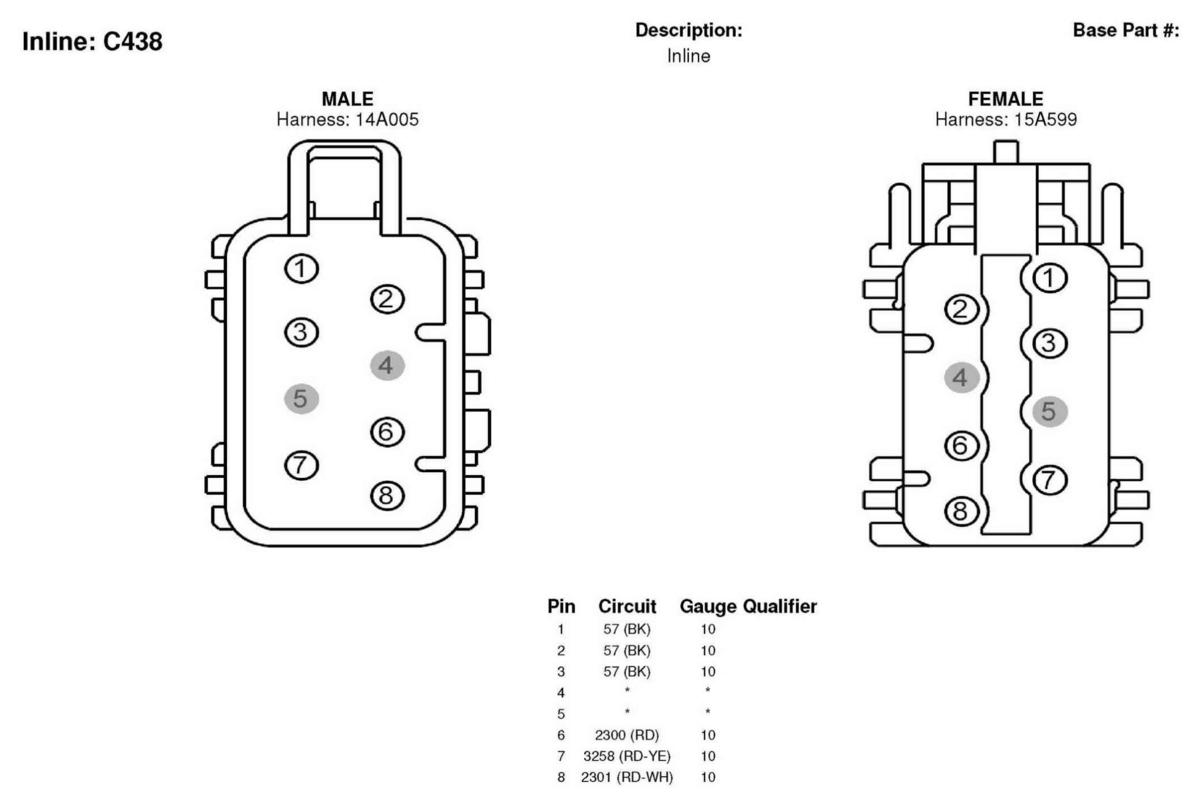

Fig 151: Inline Connector End View (C438)
Courtesy of FORD MOTOR CO.

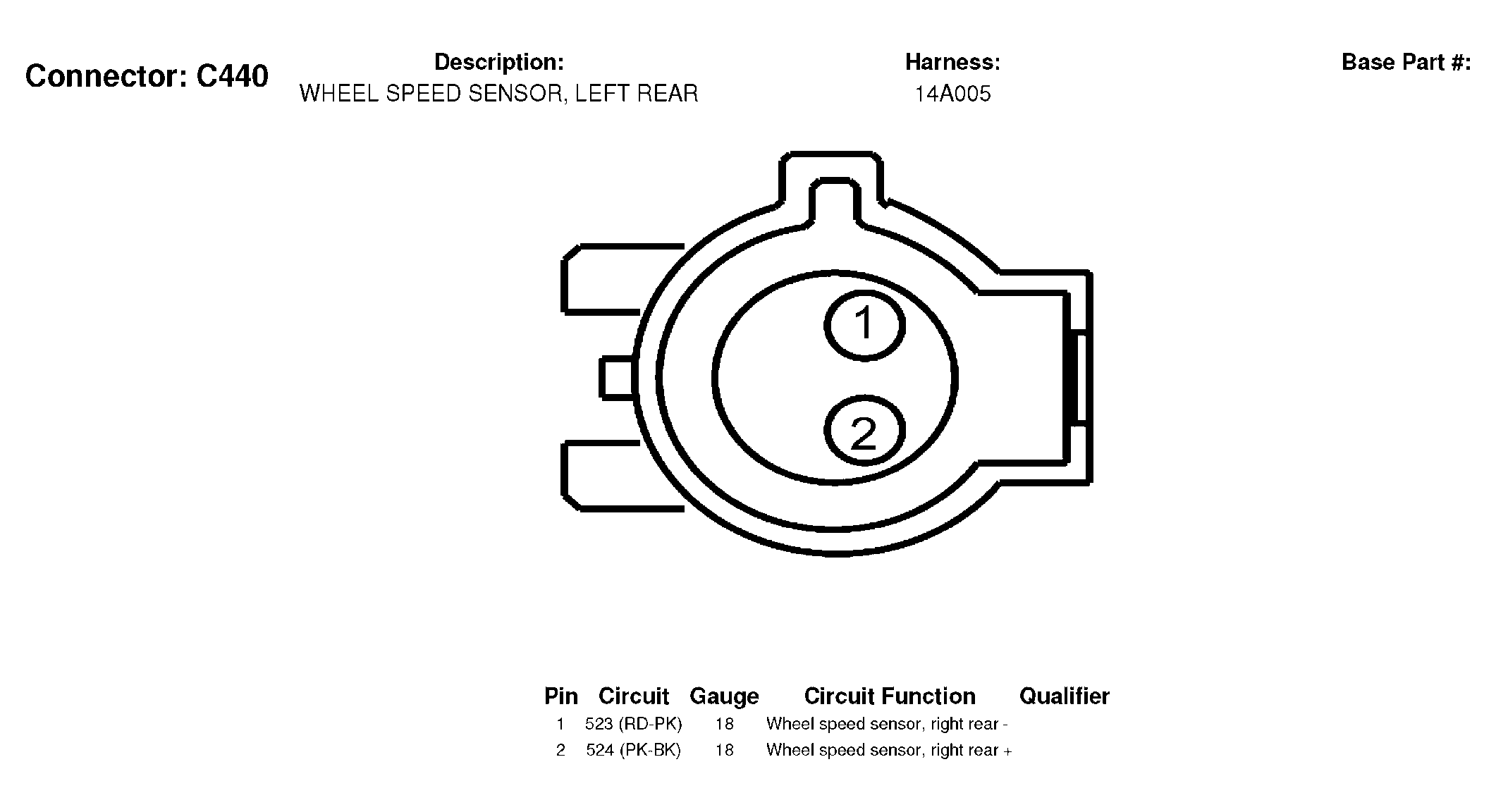

Fig 152: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.

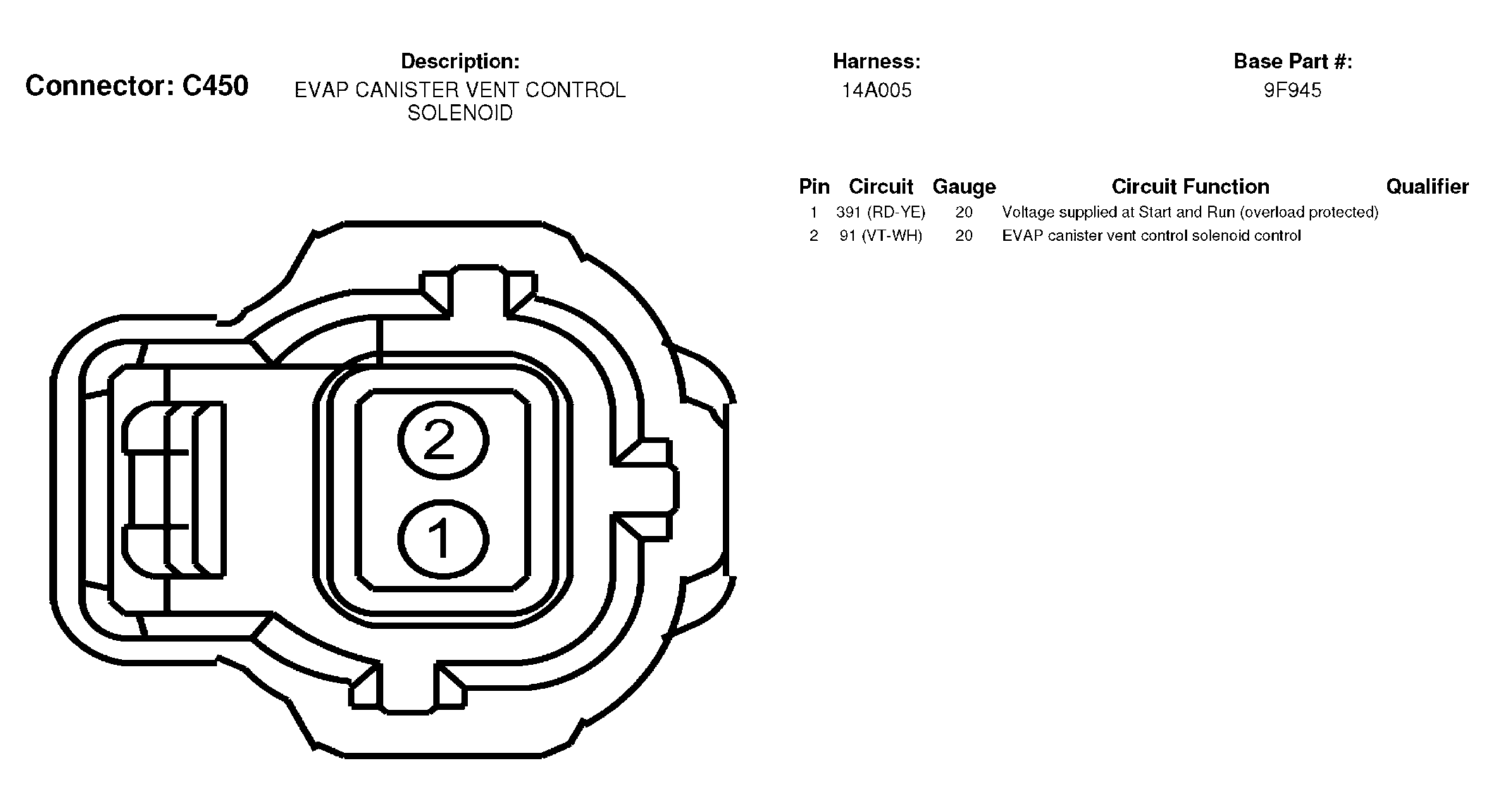

Fig 153: EVAP Canister Vent Control Solenoid Connector End View (C450)
Courtesy of FORD MOTOR CO.

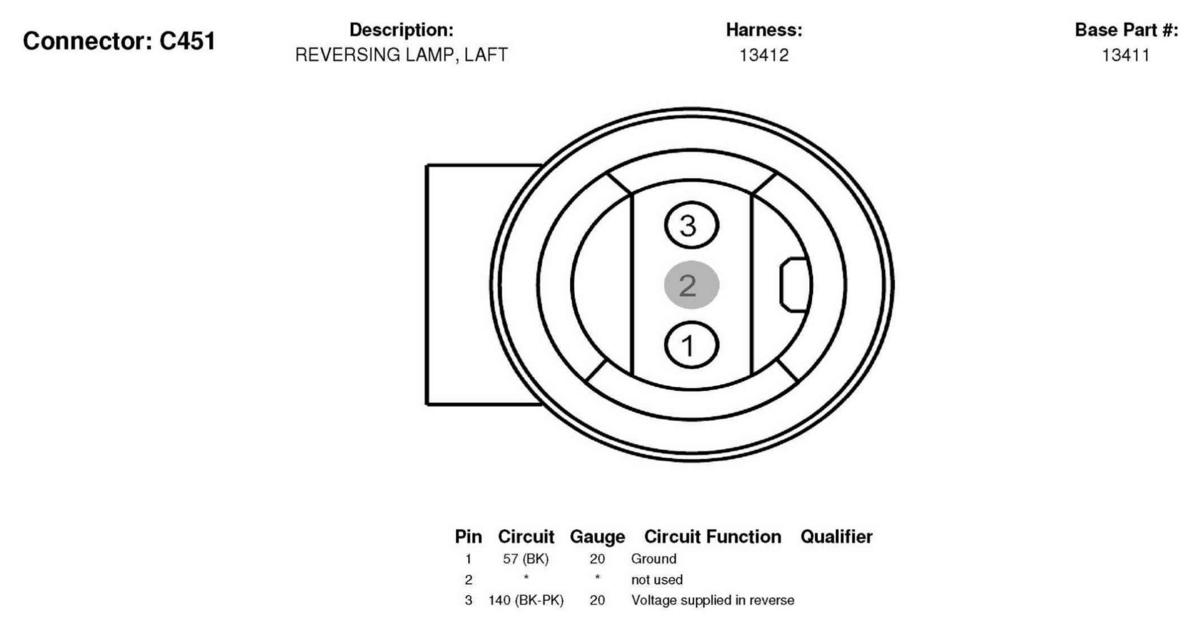

Fig 154: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.
Fig 155: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.

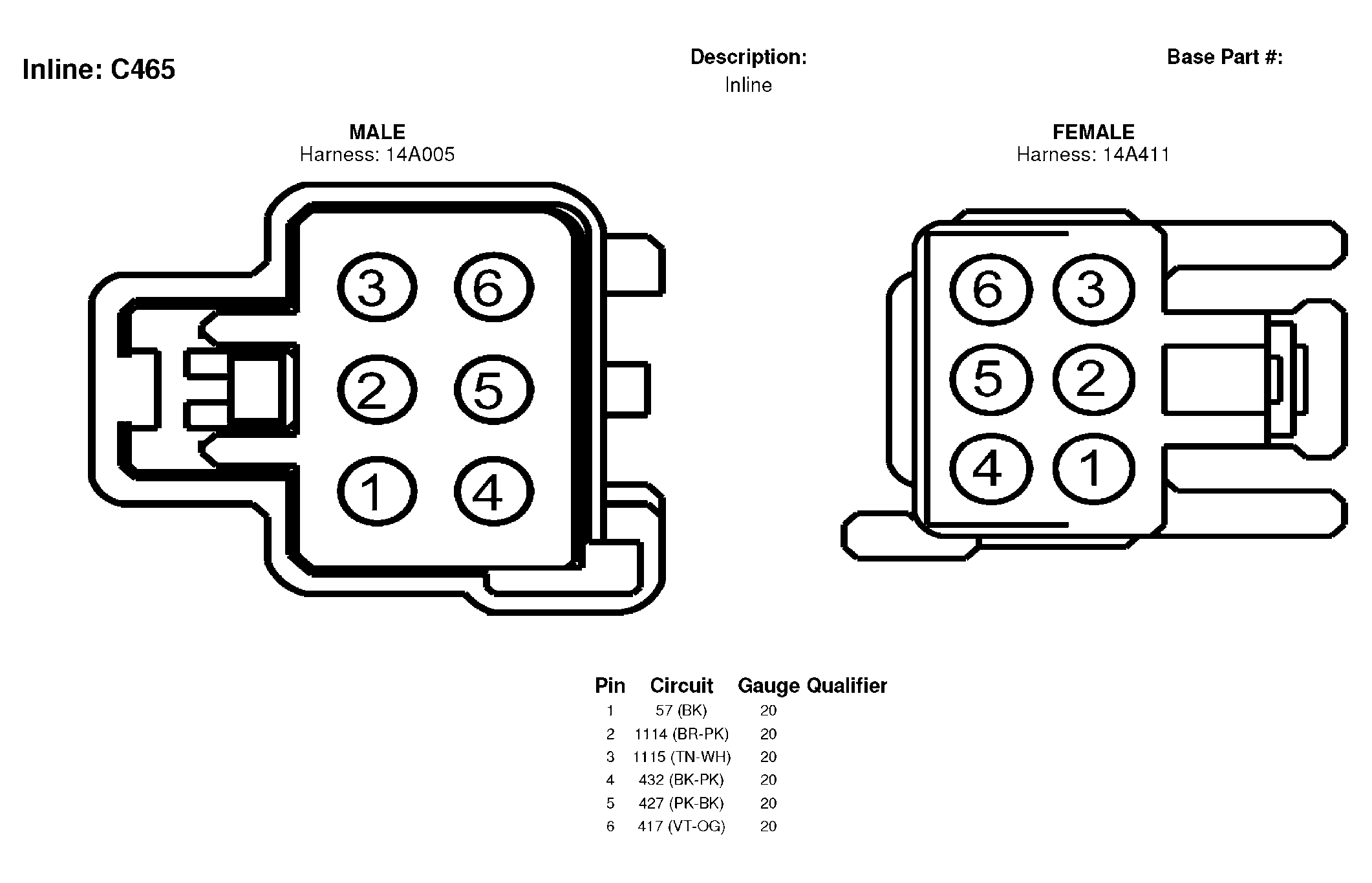

Fig 156: Inline Connector End View (C465)
Courtesy of FORD MOTOR CO.

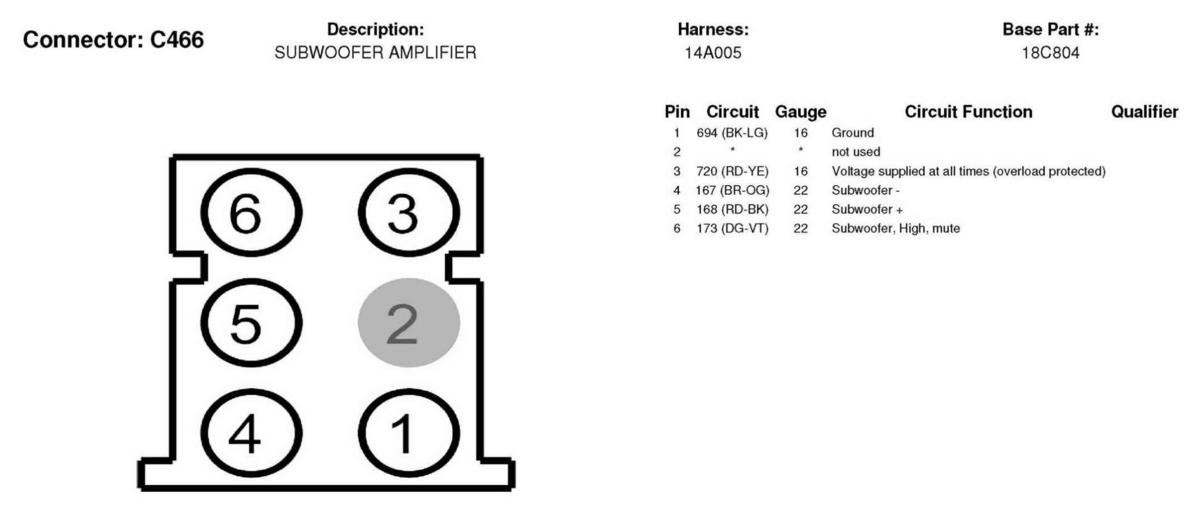

Fig 157: Subwoofer Amplifier Connector End View (C466)
Courtesy of FORD MOTOR CO.

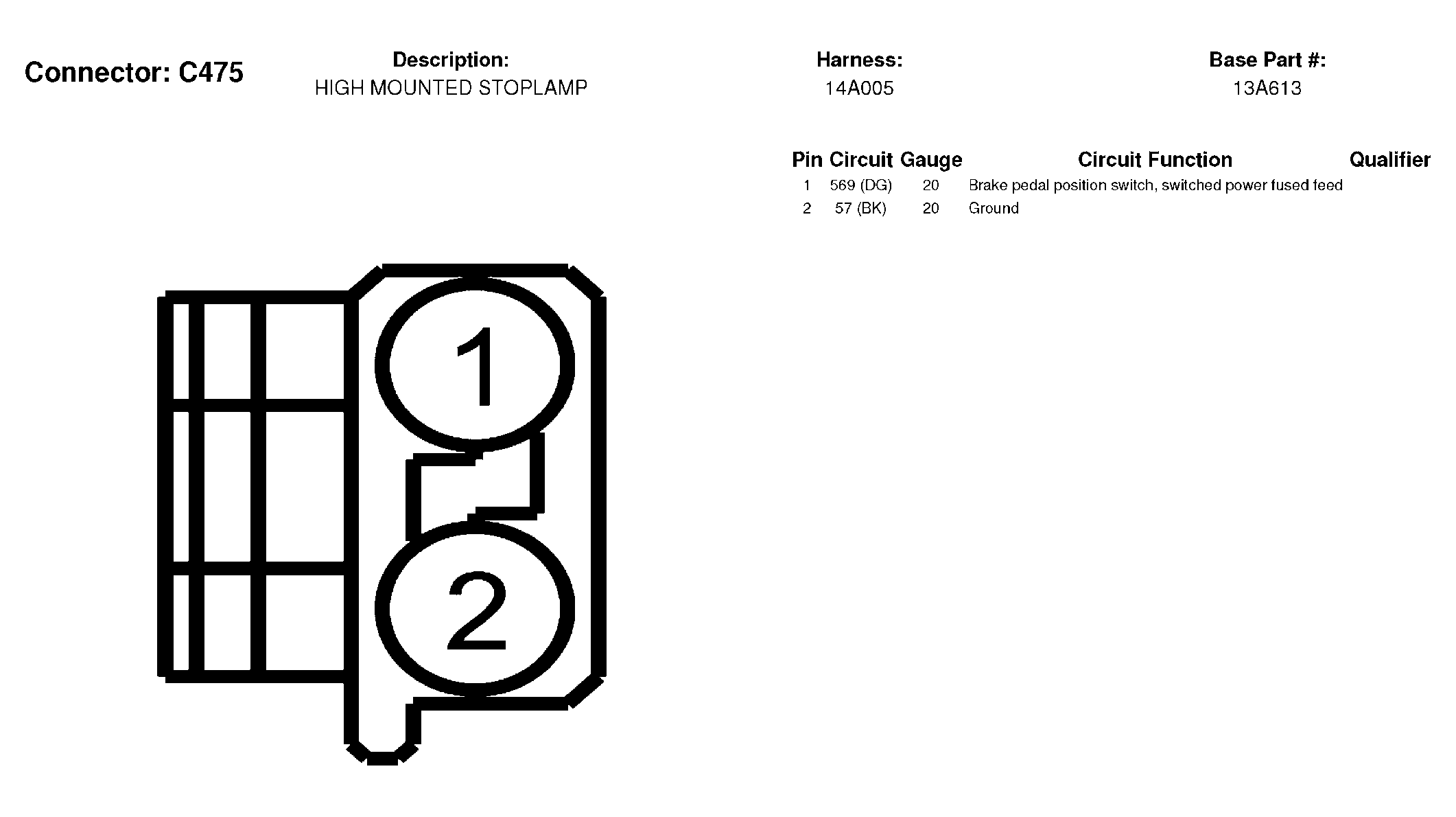

Fig 158: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.

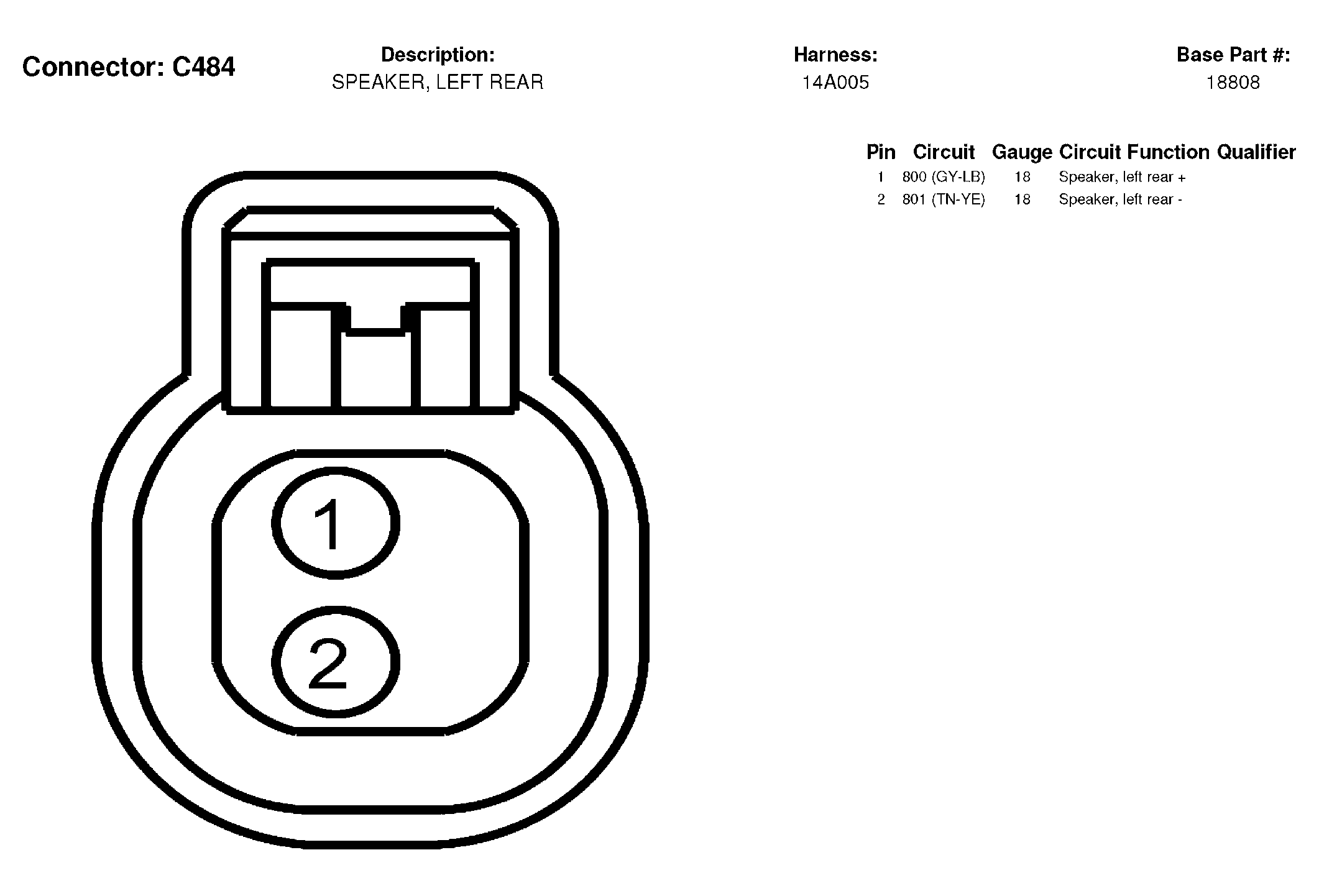

Fig 159: Speaker, Left Rear Connector End View (C484)
Courtesy of FORD MOTOR CO.
Fig 160: Speaker, Right Rear Connector End View (C485)
Courtesy of FORD MOTOR CO.

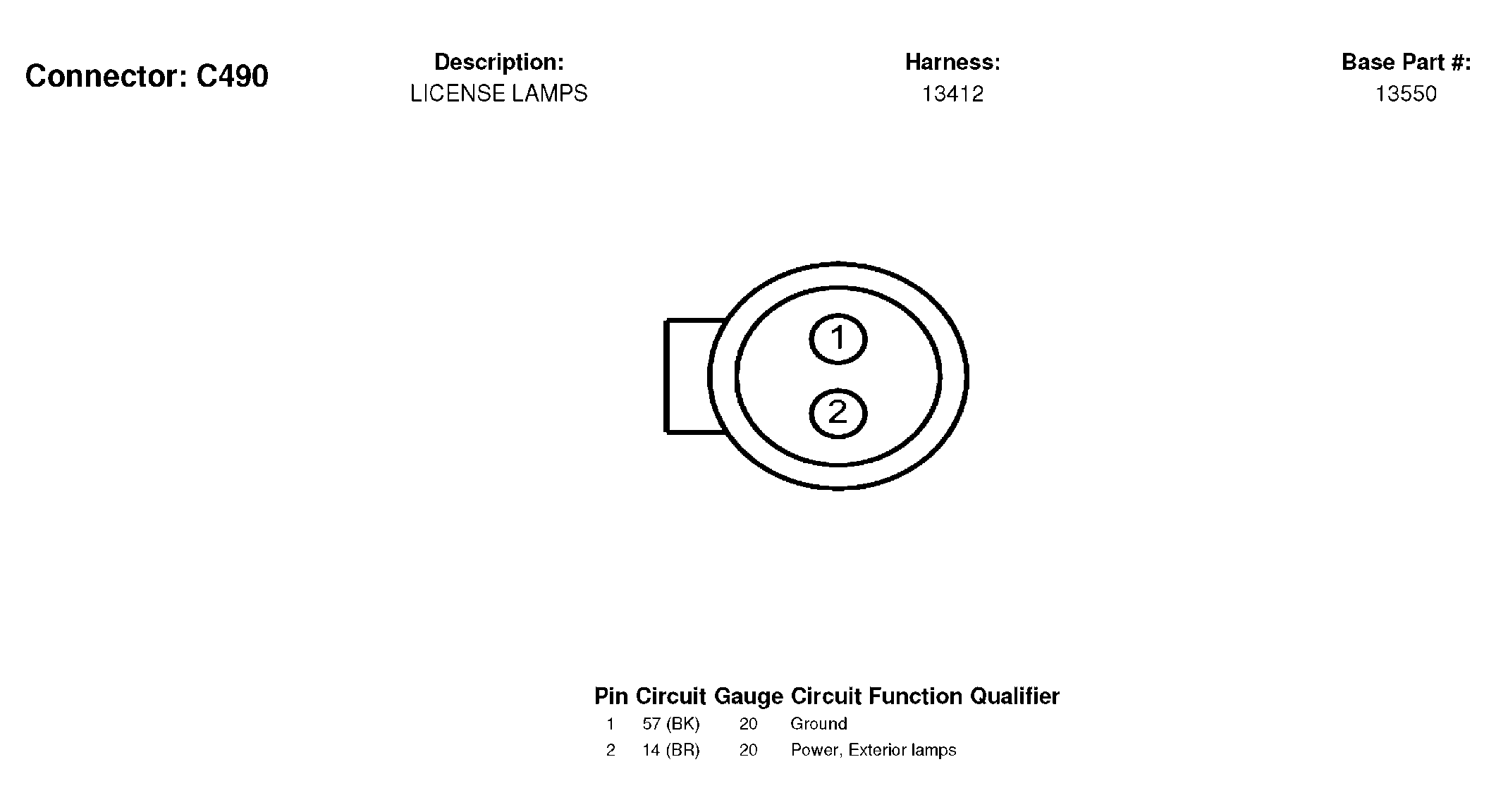

Fig 161: License Lamps Connector End View (C490)
Courtesy of FORD MOTOR CO.

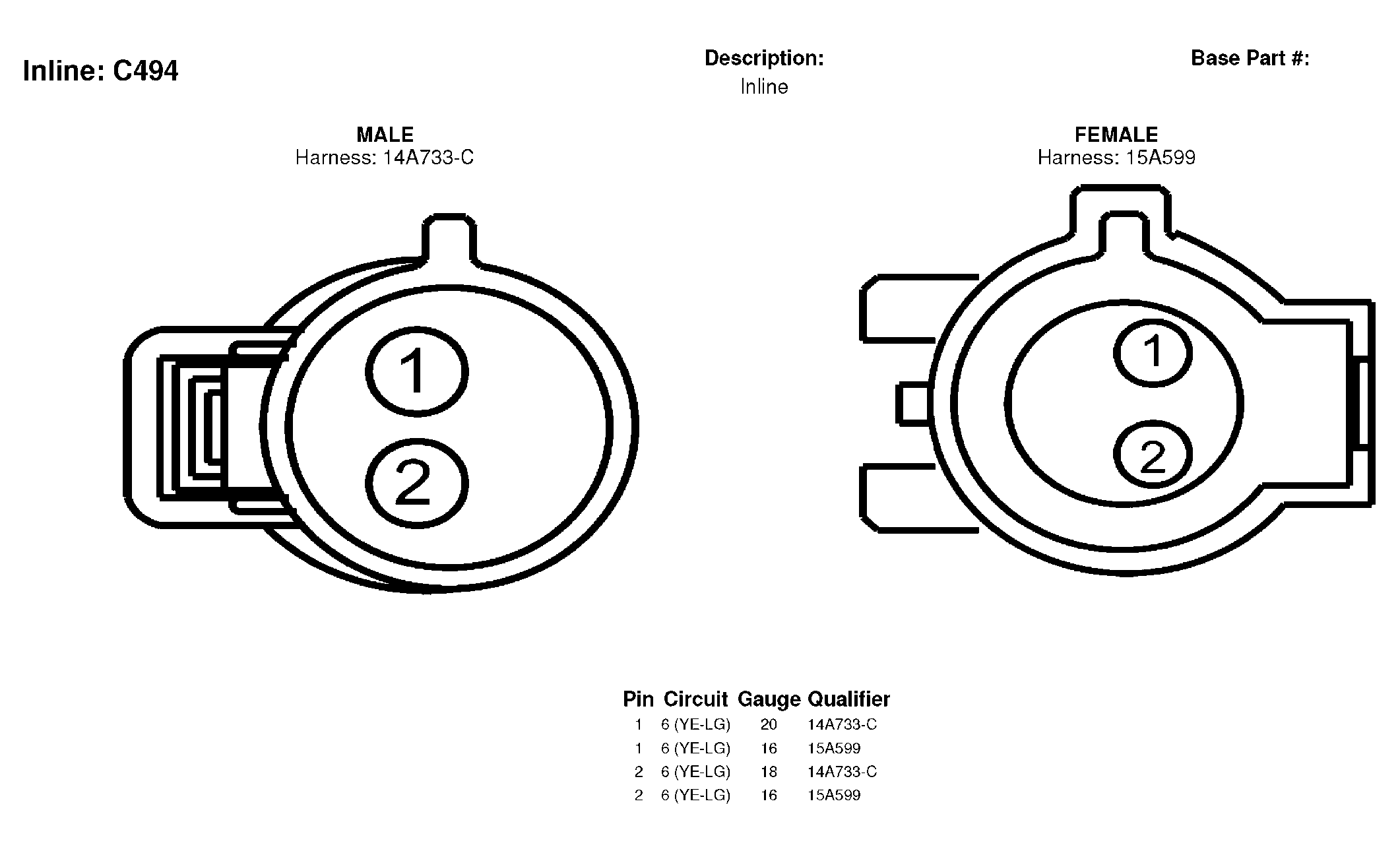

Fig 162: Inline Connector End View (C494)
Courtesy of FORD MOTOR CO.

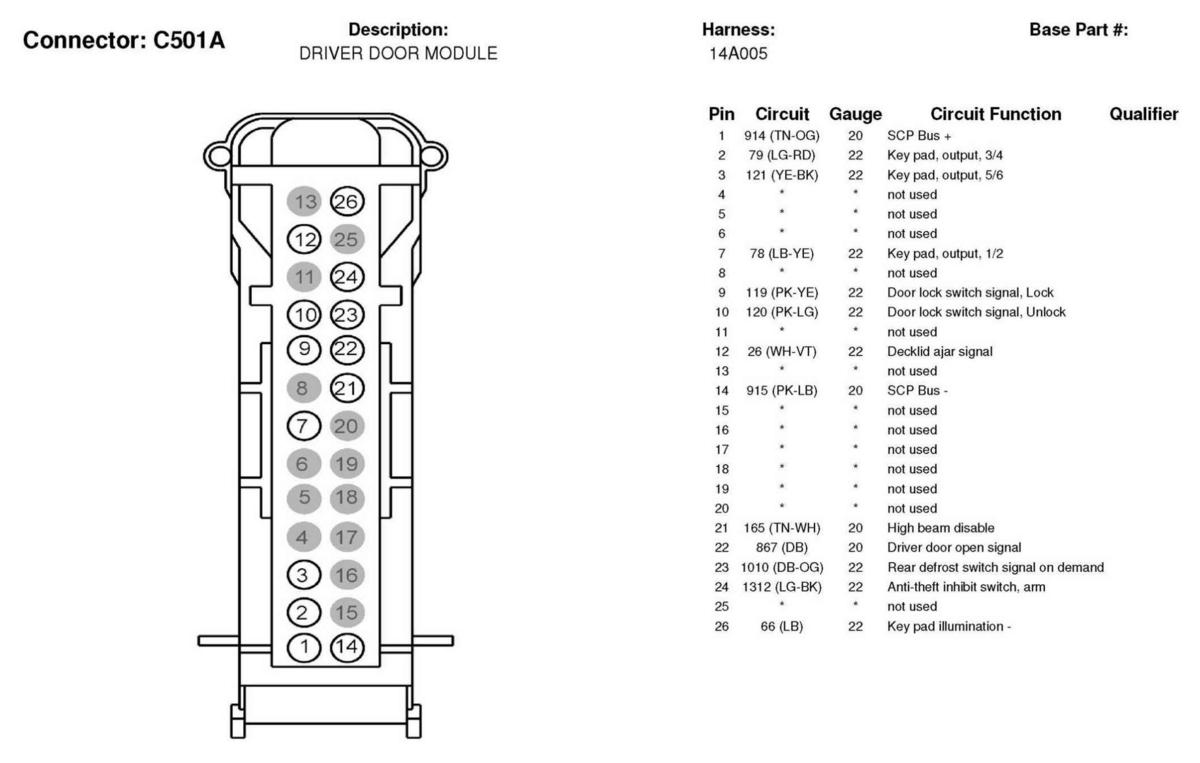

Fig 163: Driver Door Module Connector End View (C501A)
Courtesy of FORD MOTOR CO.

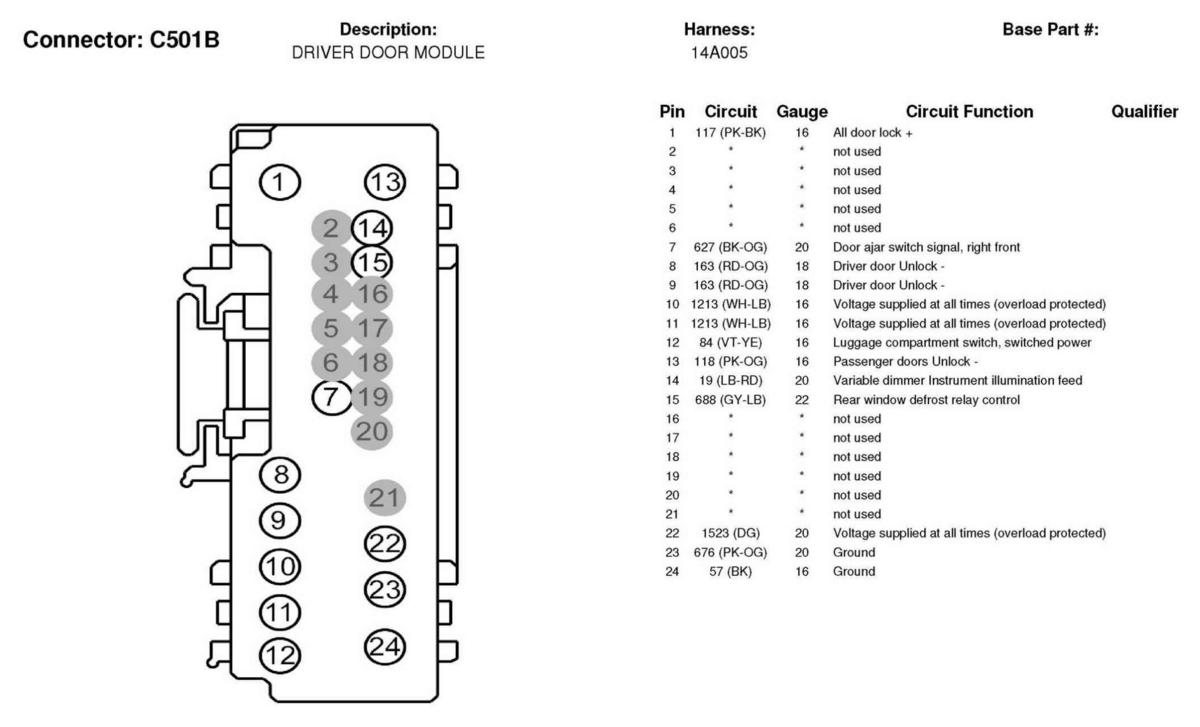

Fig 164: Driver Door Module Connector End View (C501B)
Courtesy of FORD MOTOR CO.

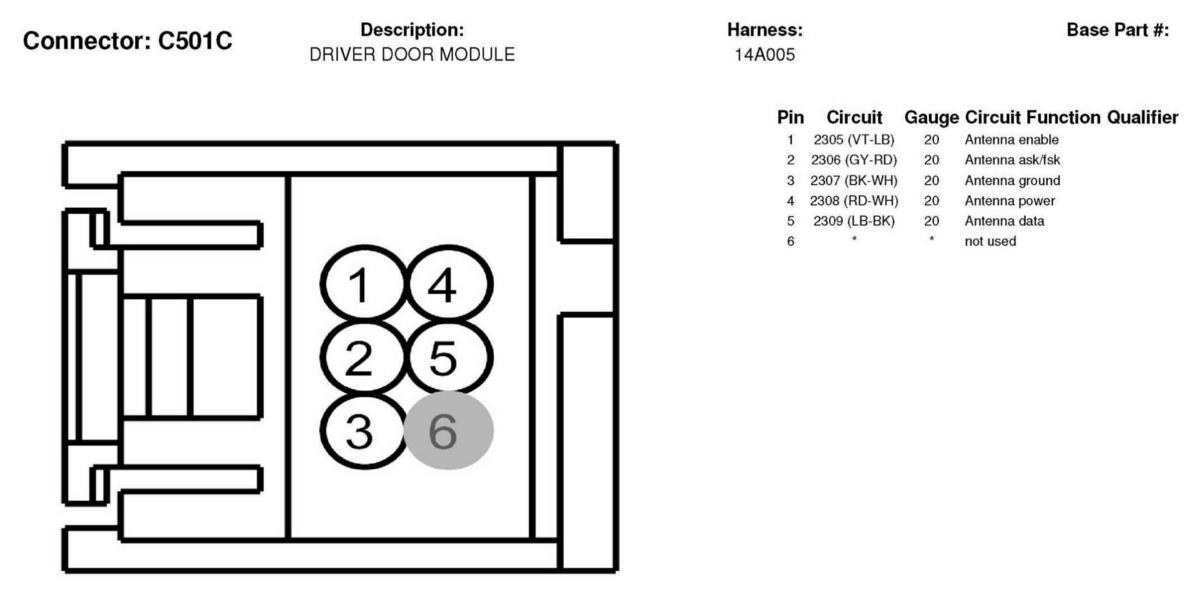

Fig 165: Driver Door Module Connector End View (C501C)
Courtesy of FORD MOTOR CO.

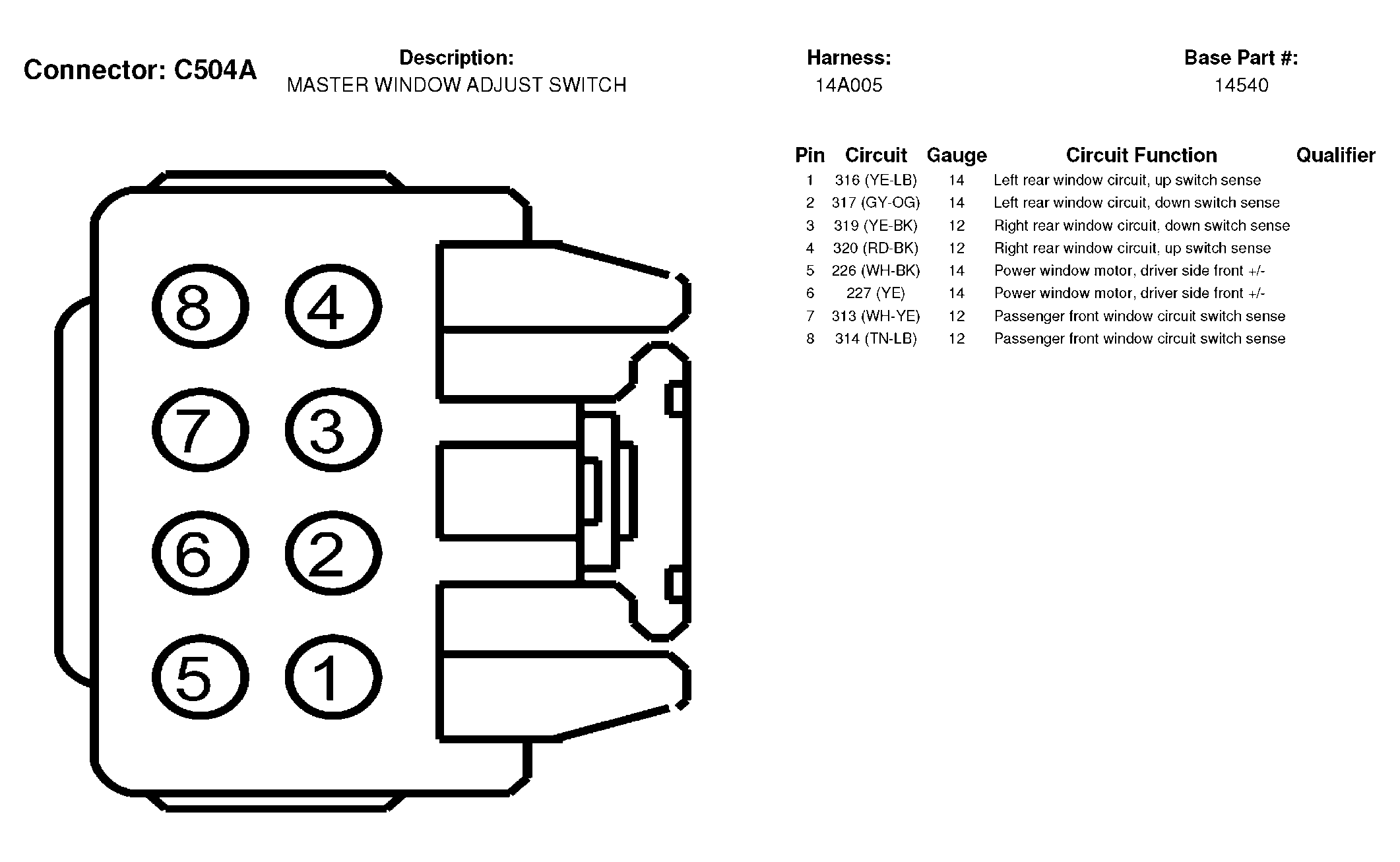

Fig 166: Master Window Adjust Switch Connector End View (C504A)
Courtesy of FORD MOTOR CO.

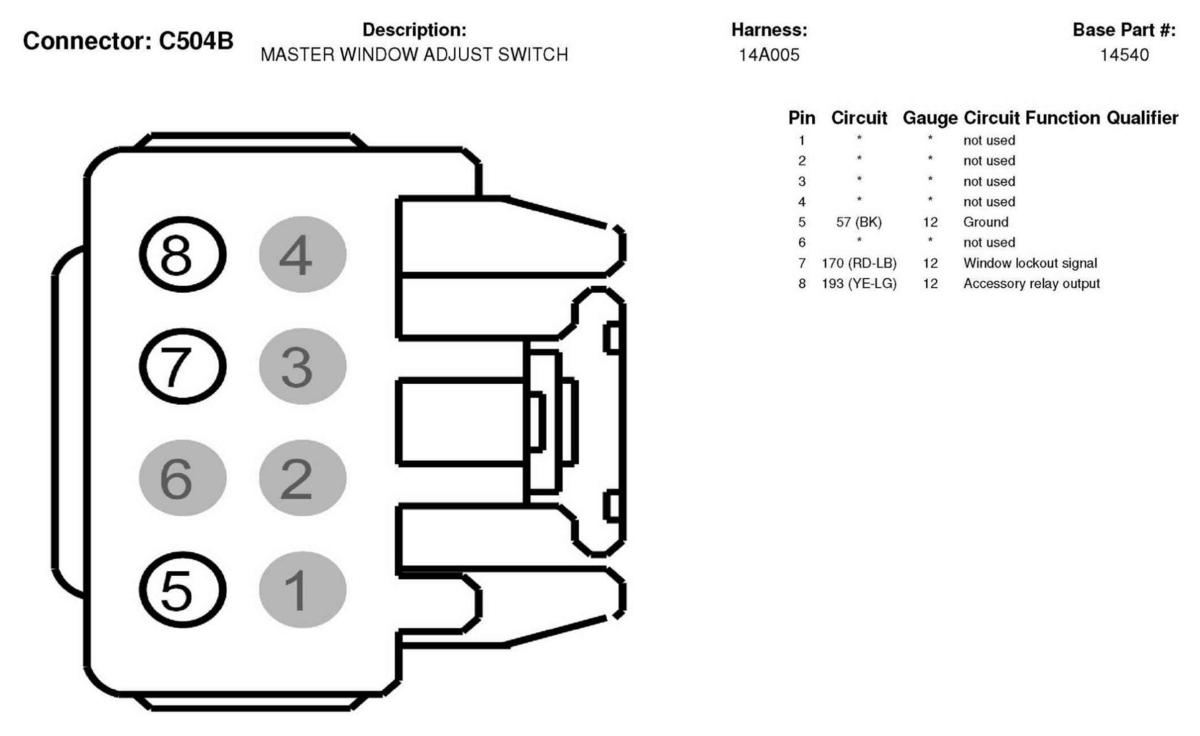

Fig 167: Master Window Adjust Switch Connector End View (C504B)
Courtesy of FORD MOTOR CO.

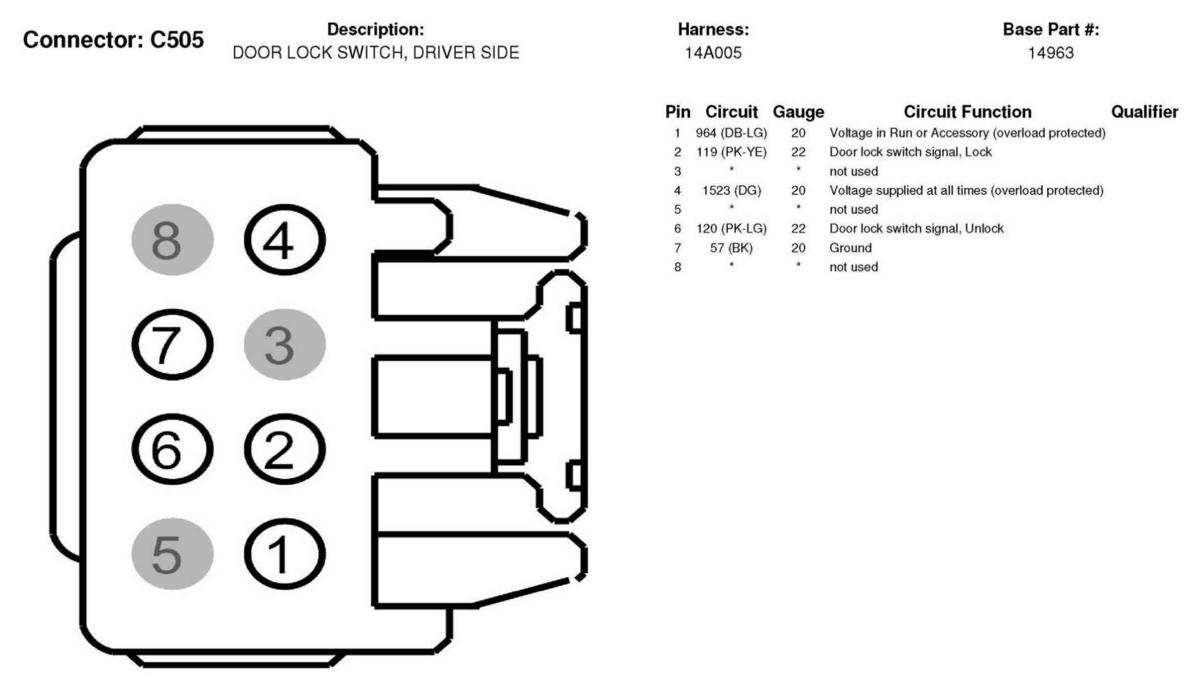

Fig 168: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

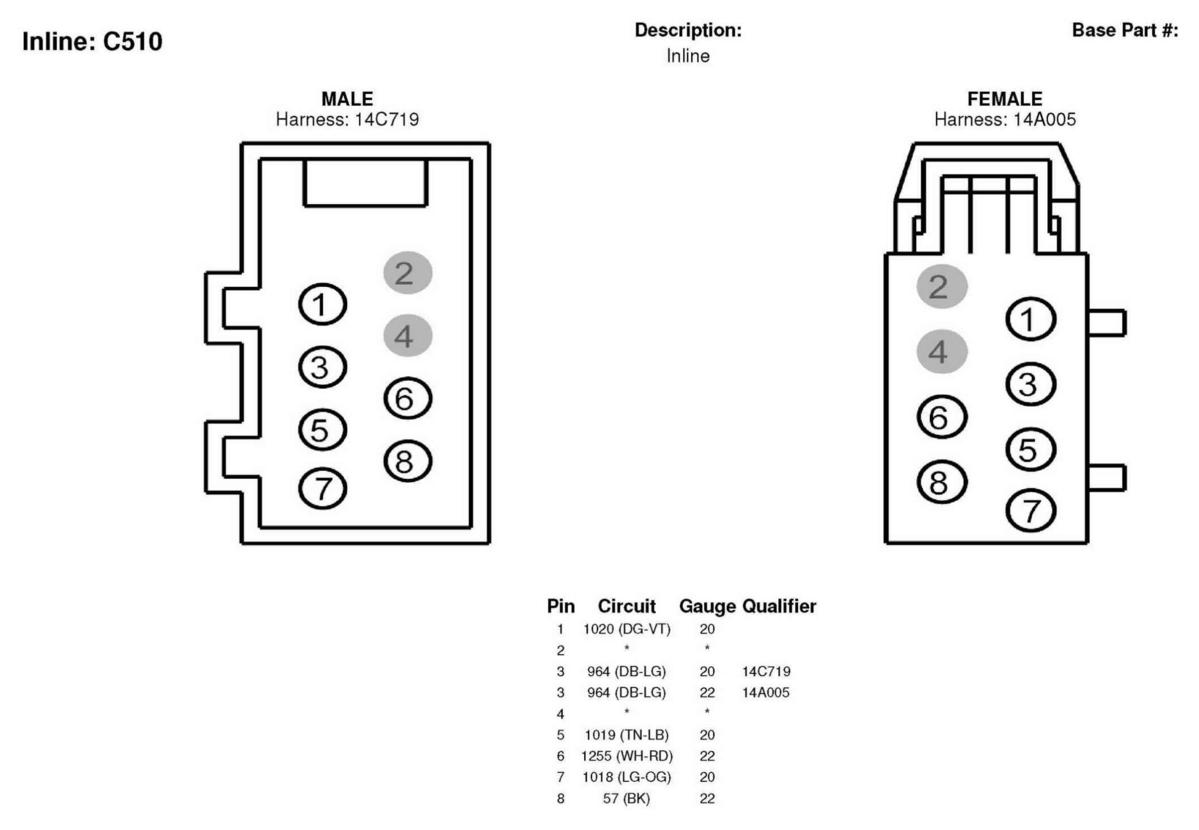

Fig 169: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.

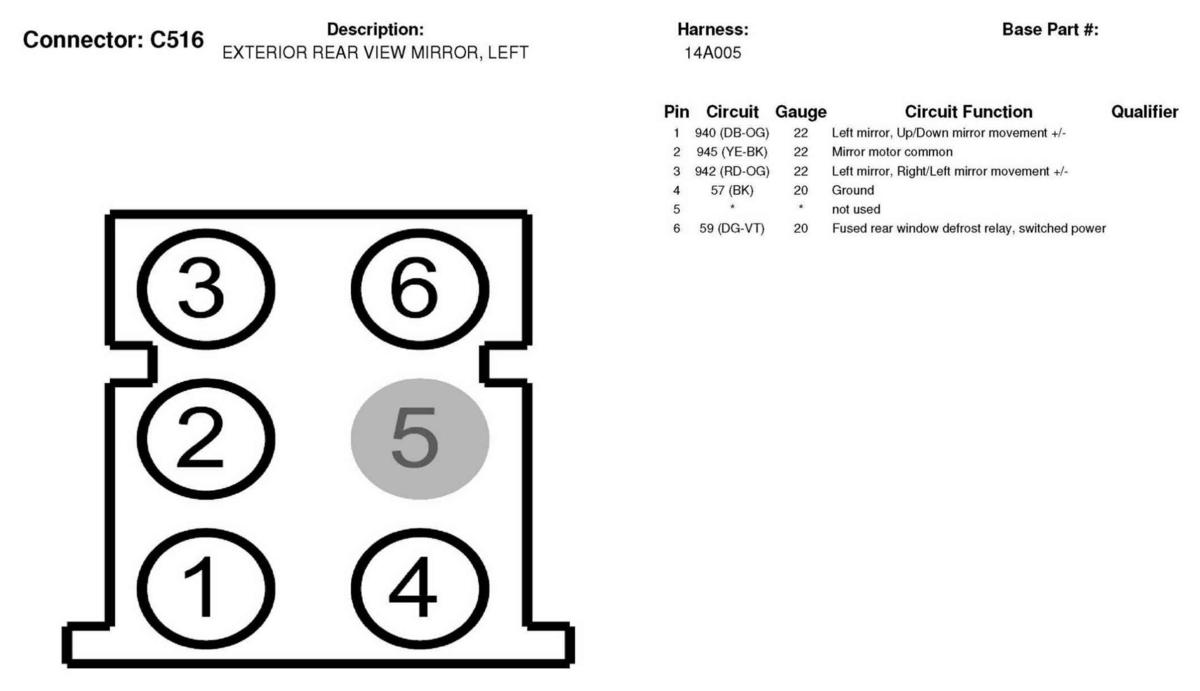

Fig 170: Exterior Rear View Mirror, Left Connector End View (C516)
Courtesy of FORD MOTOR CO.

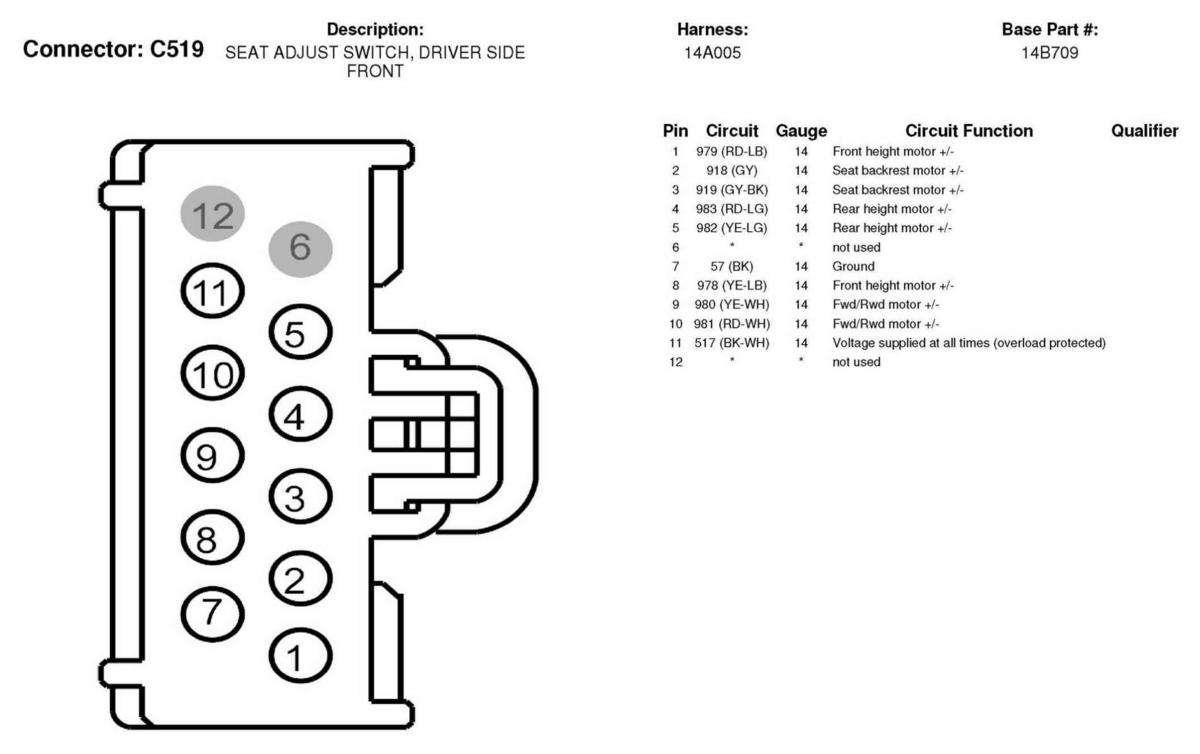

Fig 171: Seat Adjust Switch, Driver Side Front Connector End View (C519)
Courtesy of FORD MOTOR CO.

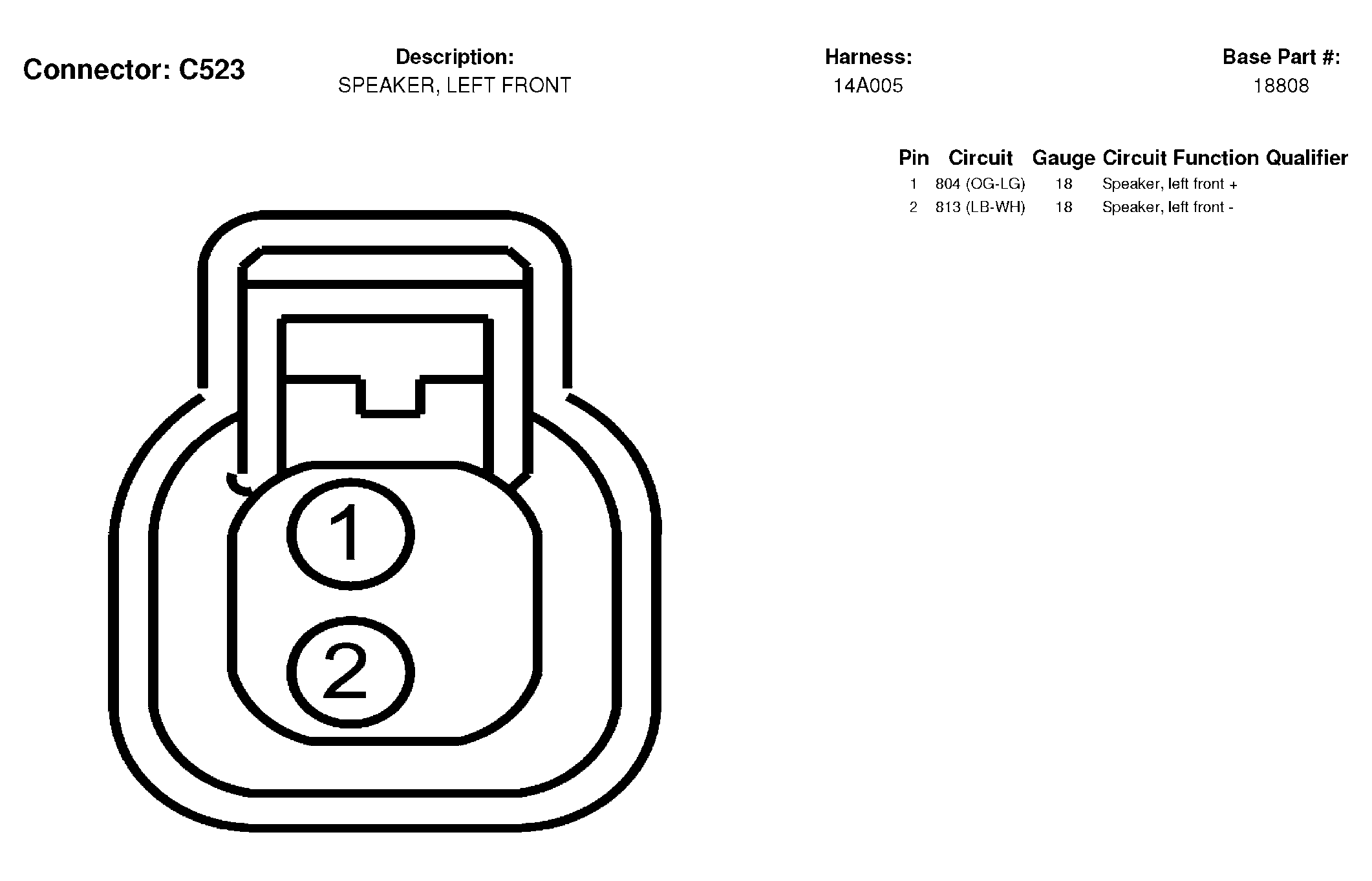

Fig 172: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.

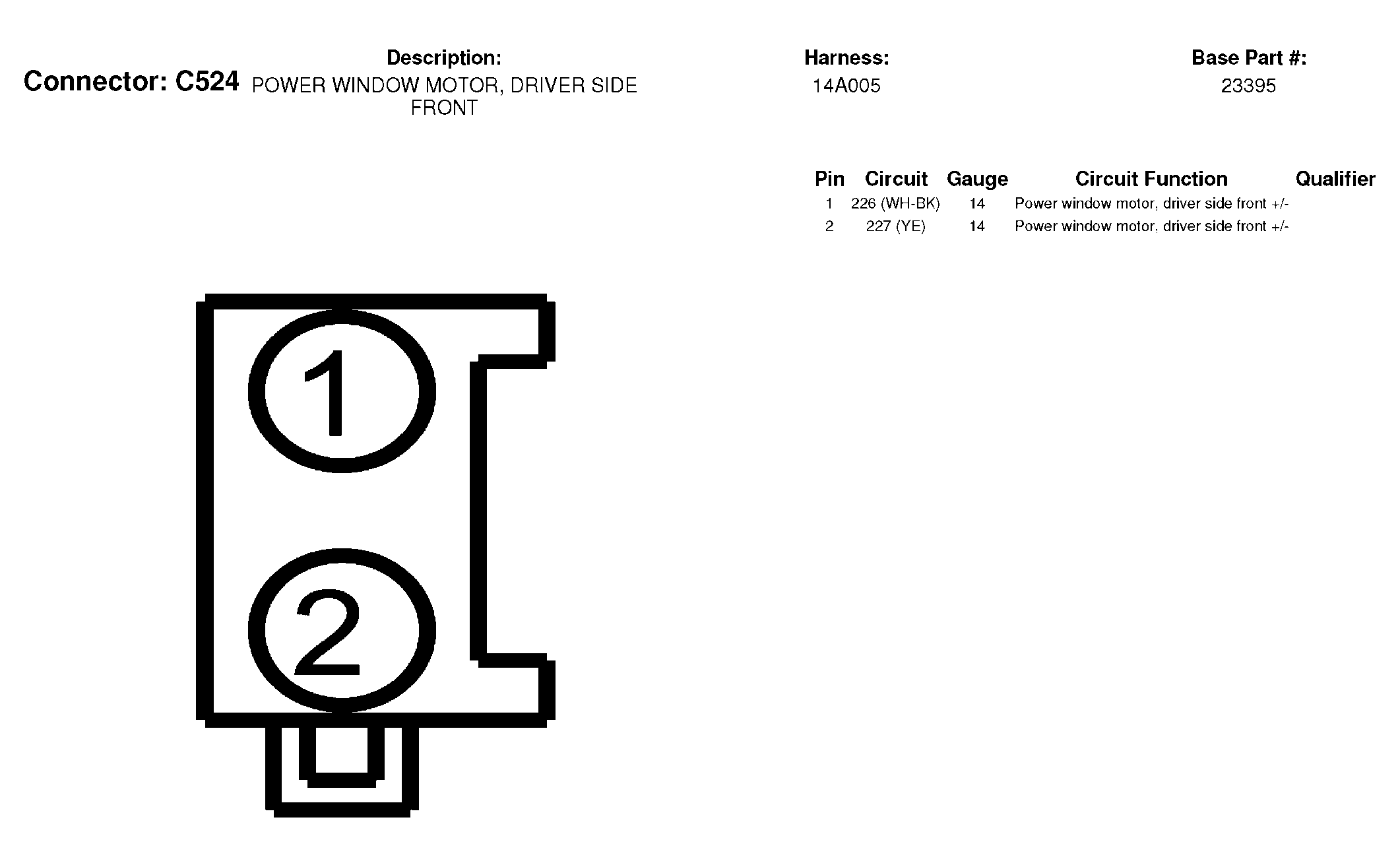

Fig 173: Power Window Motor, Driver Side Front Connector End View (C524)
Courtesy of FORD MOTOR CO.

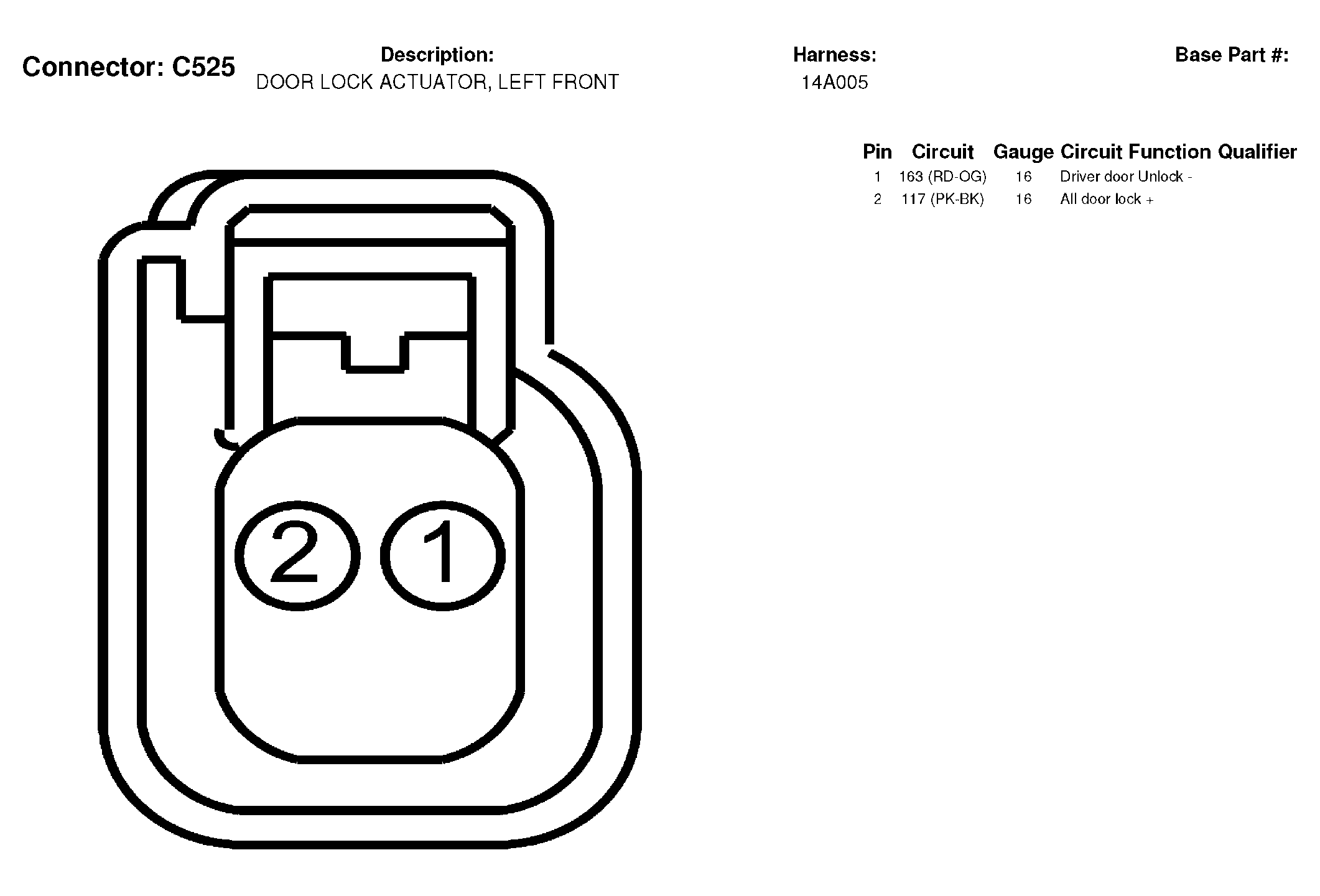

Fig 174: Door Lock Actuator, Left Front Connector End View (C525)
Courtesy of FORD MOTOR CO.

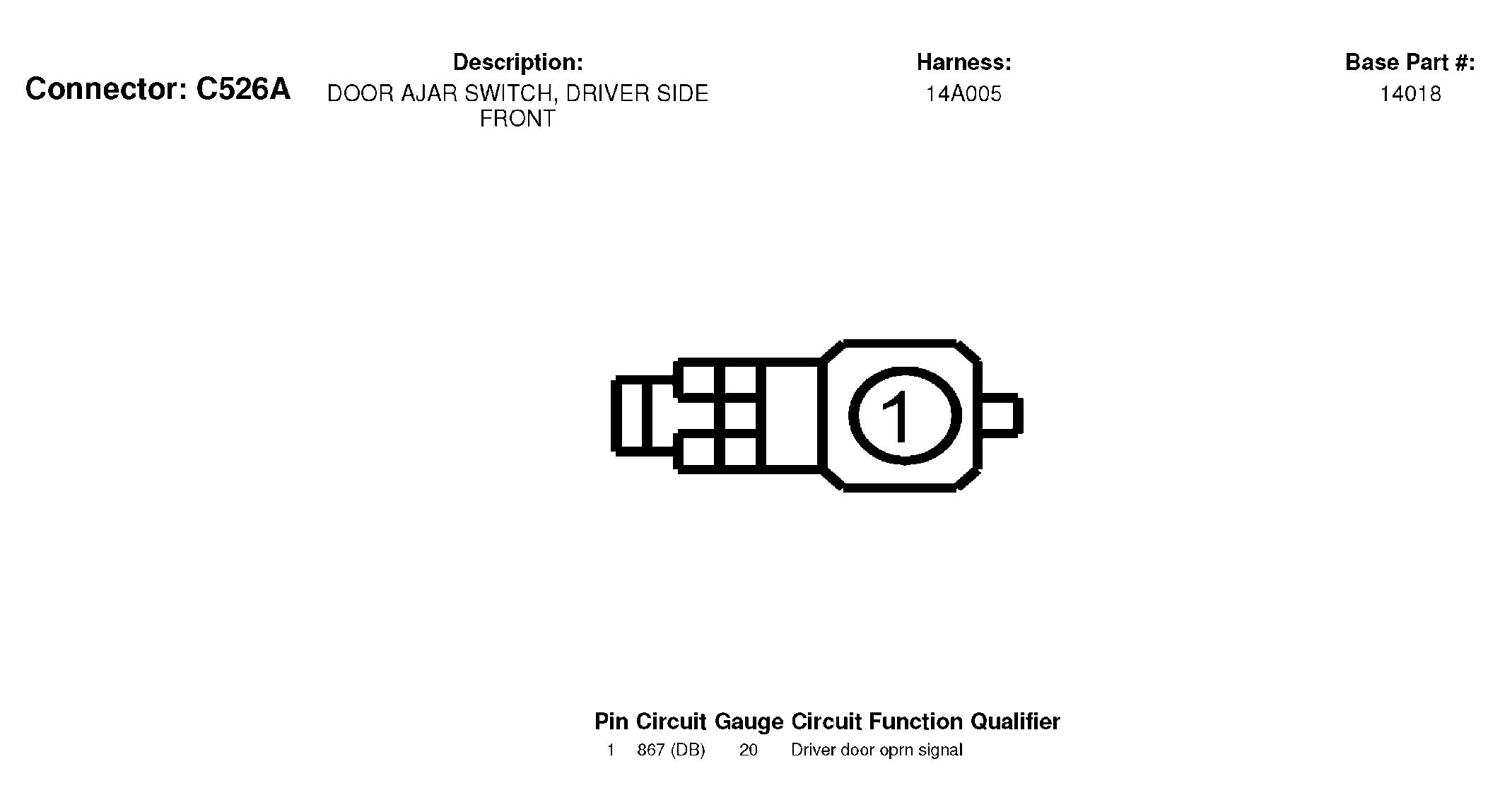

Fig 175: Door Ajar Switch, Driver Side Front Connector End View (C526A)
Courtesy of FORD MOTOR CO.

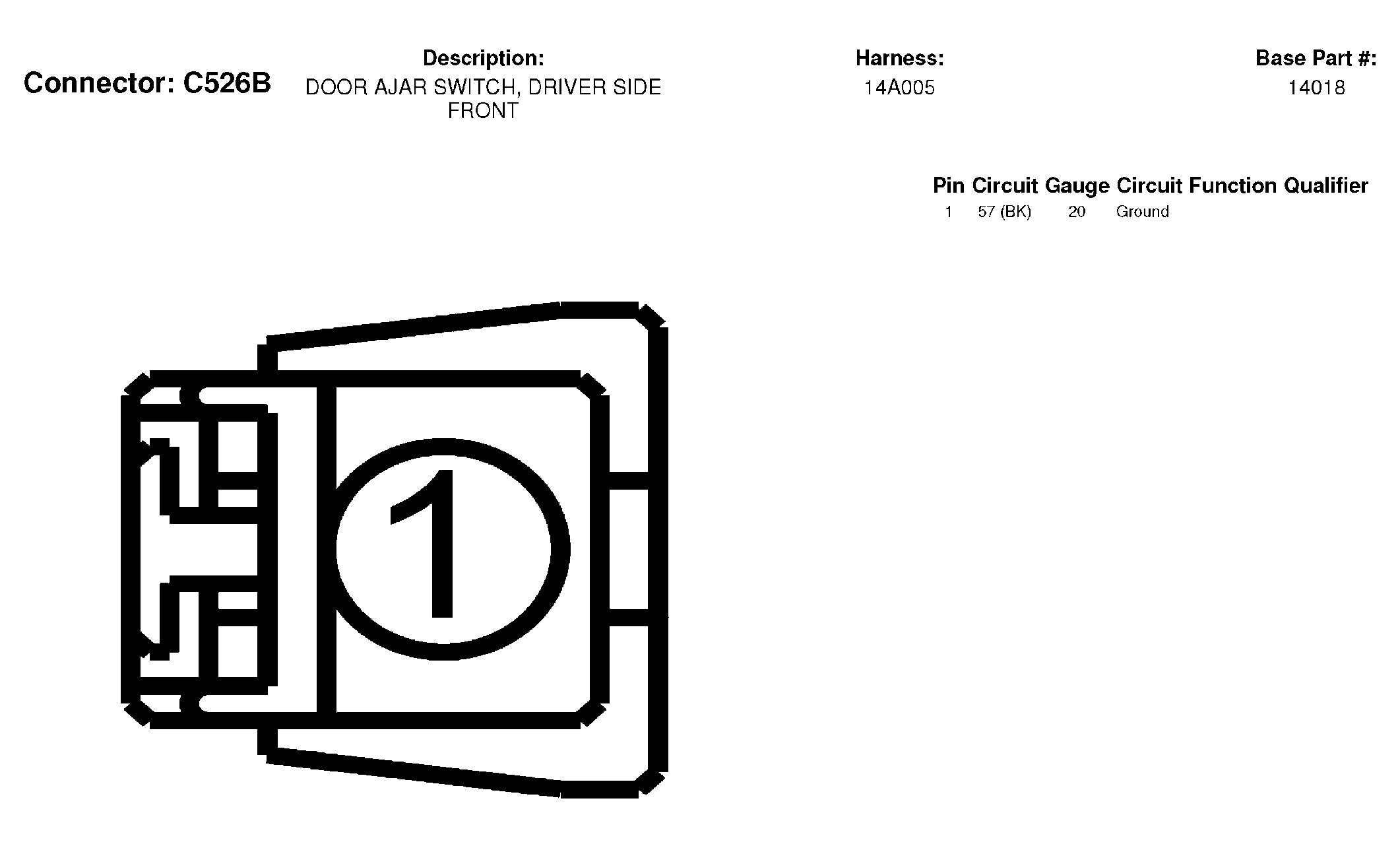

Fig 176: Door Ajar Switch, Driver Side Front Connector End View (C526B)
Courtesy of FORD MOTOR CO.

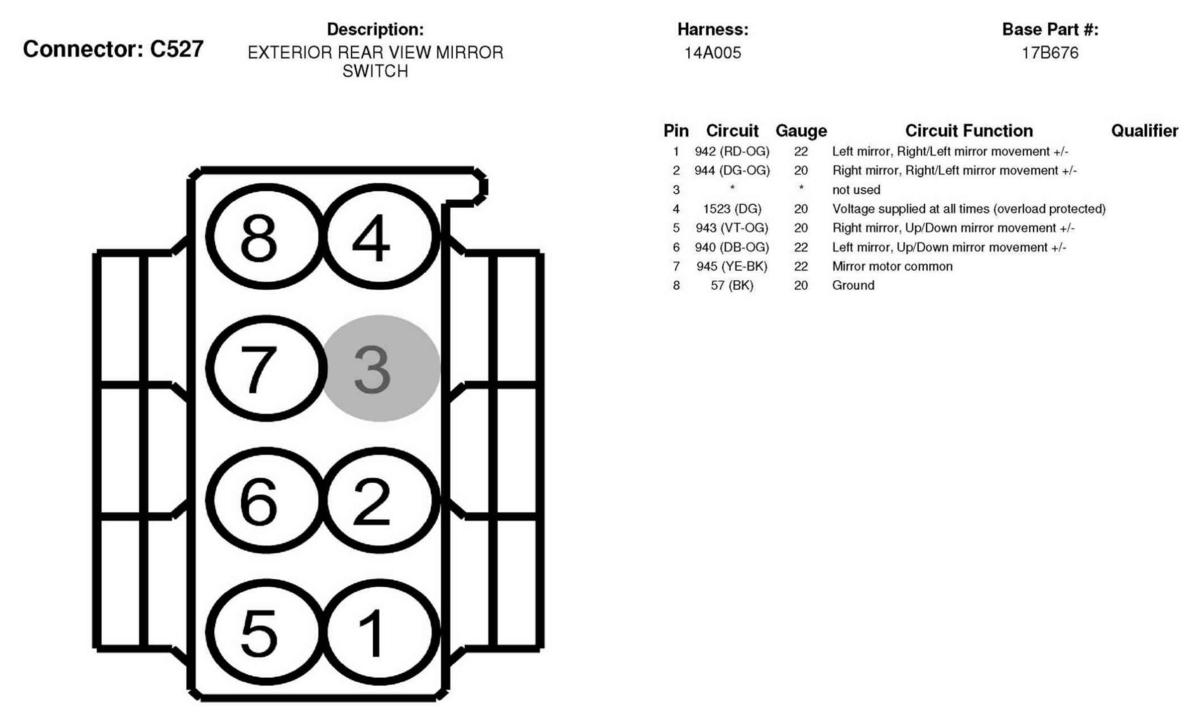

Fig 177: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.

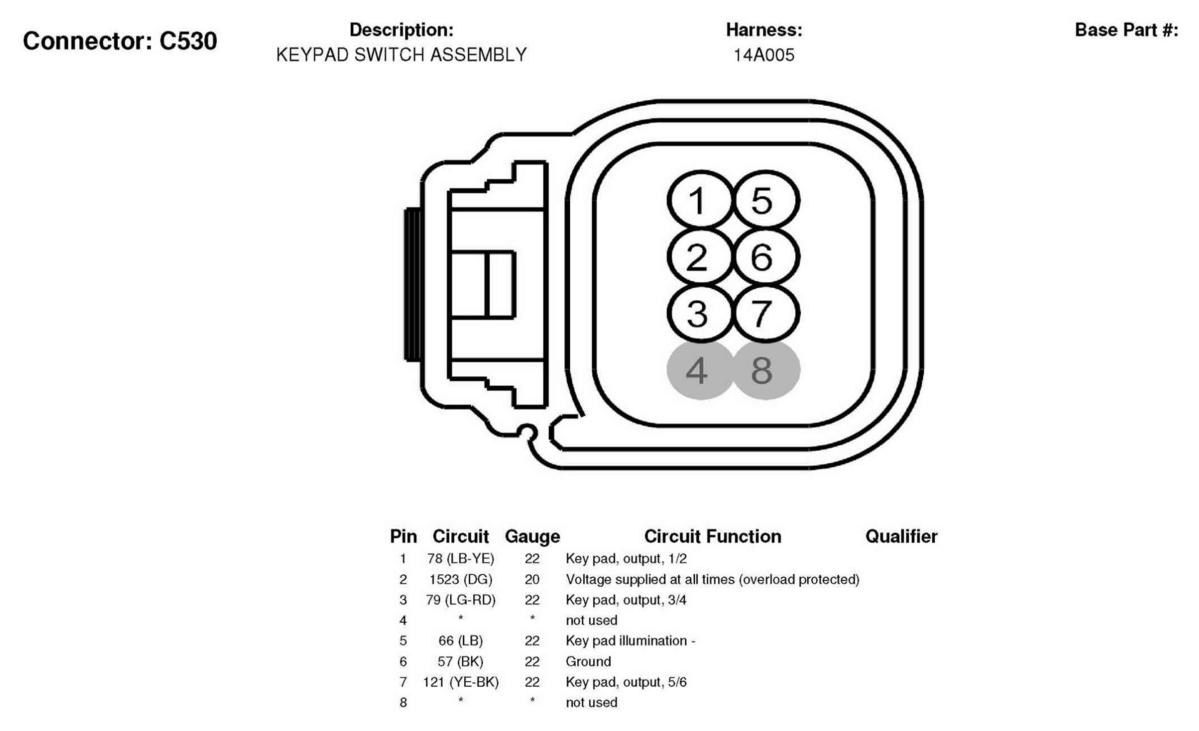

Fig 178: Keypad Switch Assembly Connector End View (C530)
Courtesy of FORD MOTOR CO.

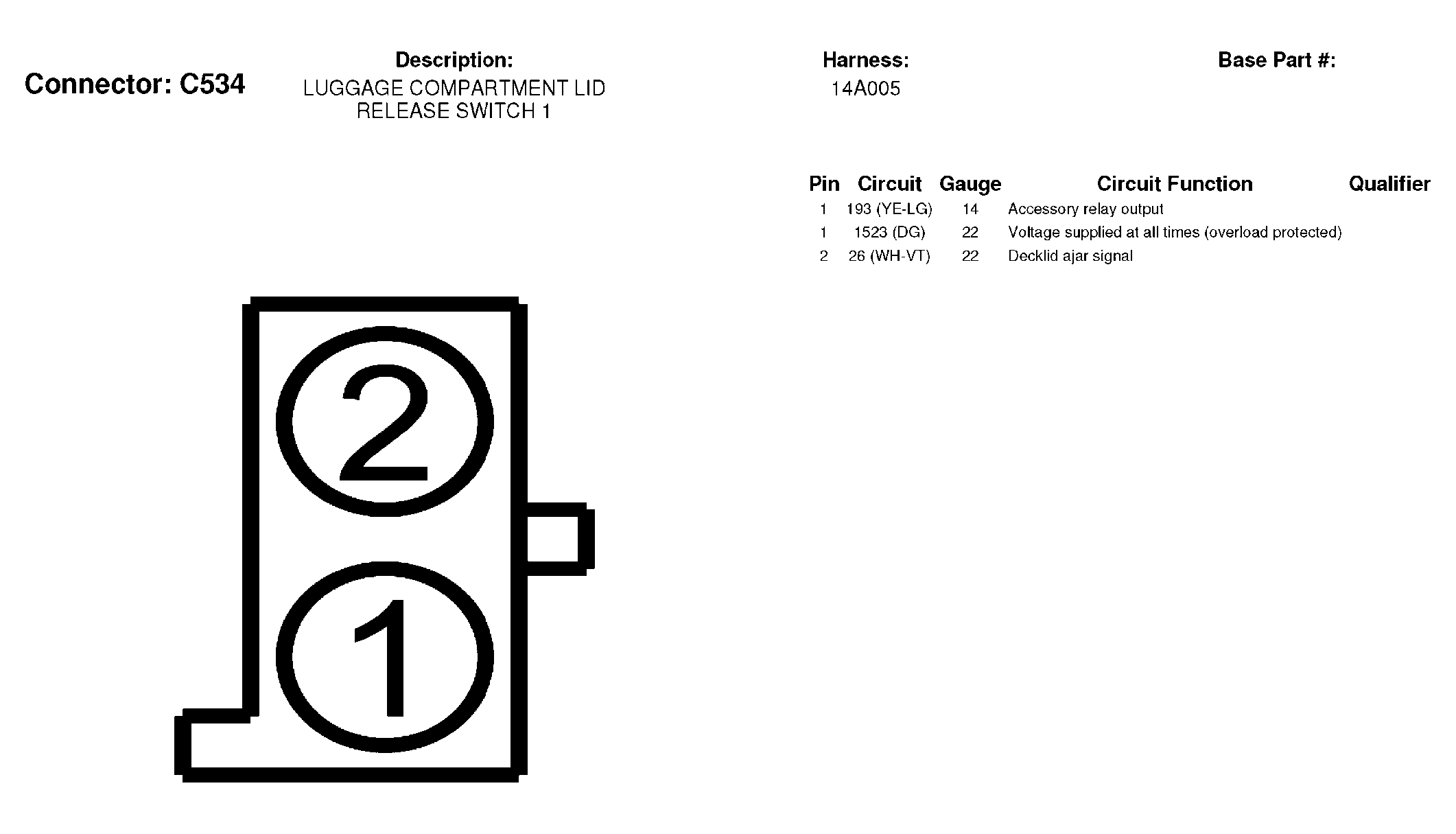

Fig 179: Luggage Compartment Lid Release Switch 1 Connector End View (C534)
Courtesy of FORD MOTOR CO.

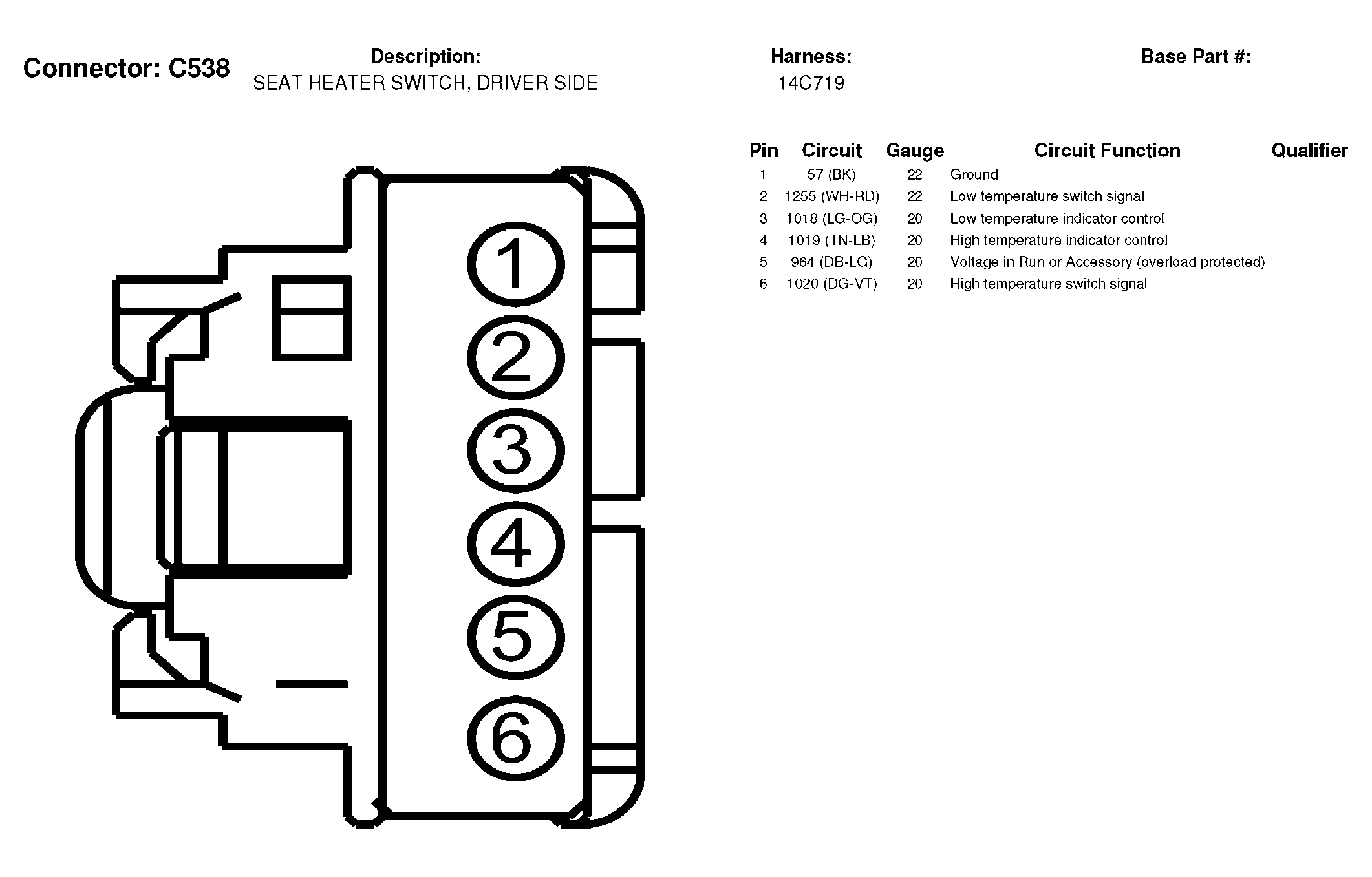

Fig 180: Seat Heater Switch, Driver Side Connector End View (C538)
Courtesy of FORD MOTOR CO.

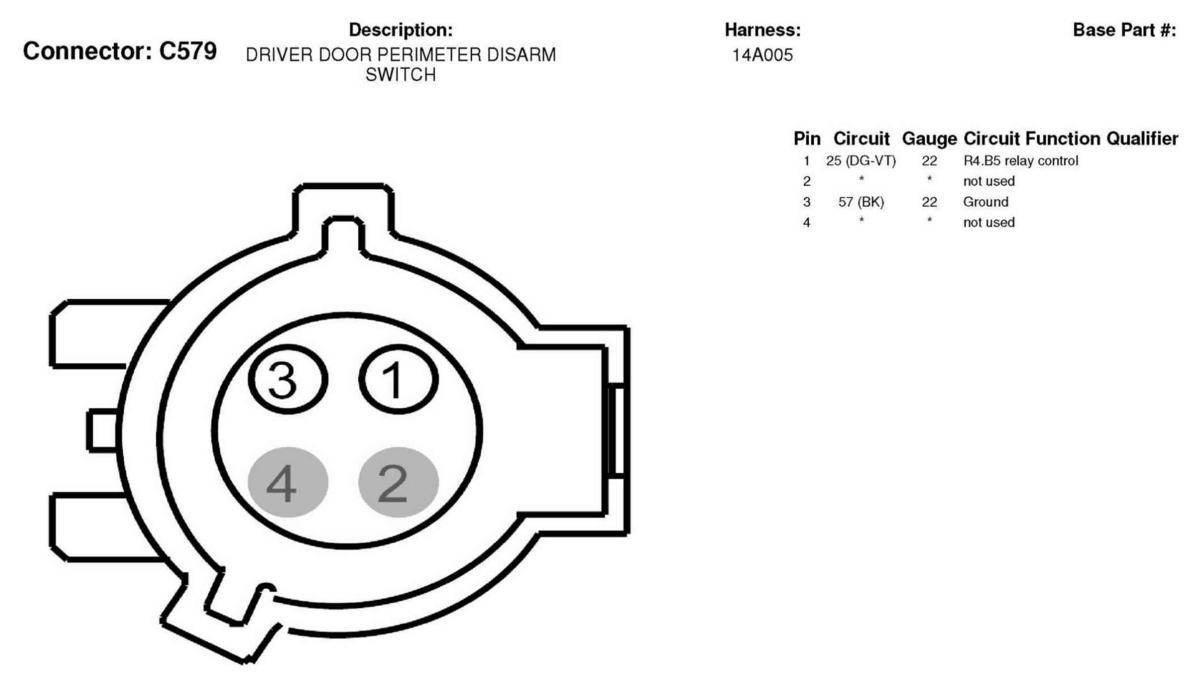

Fig 181: Driver Door Perimeter Disarm Switch Connector End View (C579)
Courtesy of FORD MOTOR CO.
Fig 182: Door Ajar Switch, Passenger Side Front Connector End View (C602A)
Courtesy of FORD MOTOR CO.
Fig 183: Door Ajar Switch, Passenger Side Front Connector End View (C602B)
Courtesy of FORD MOTOR CO.

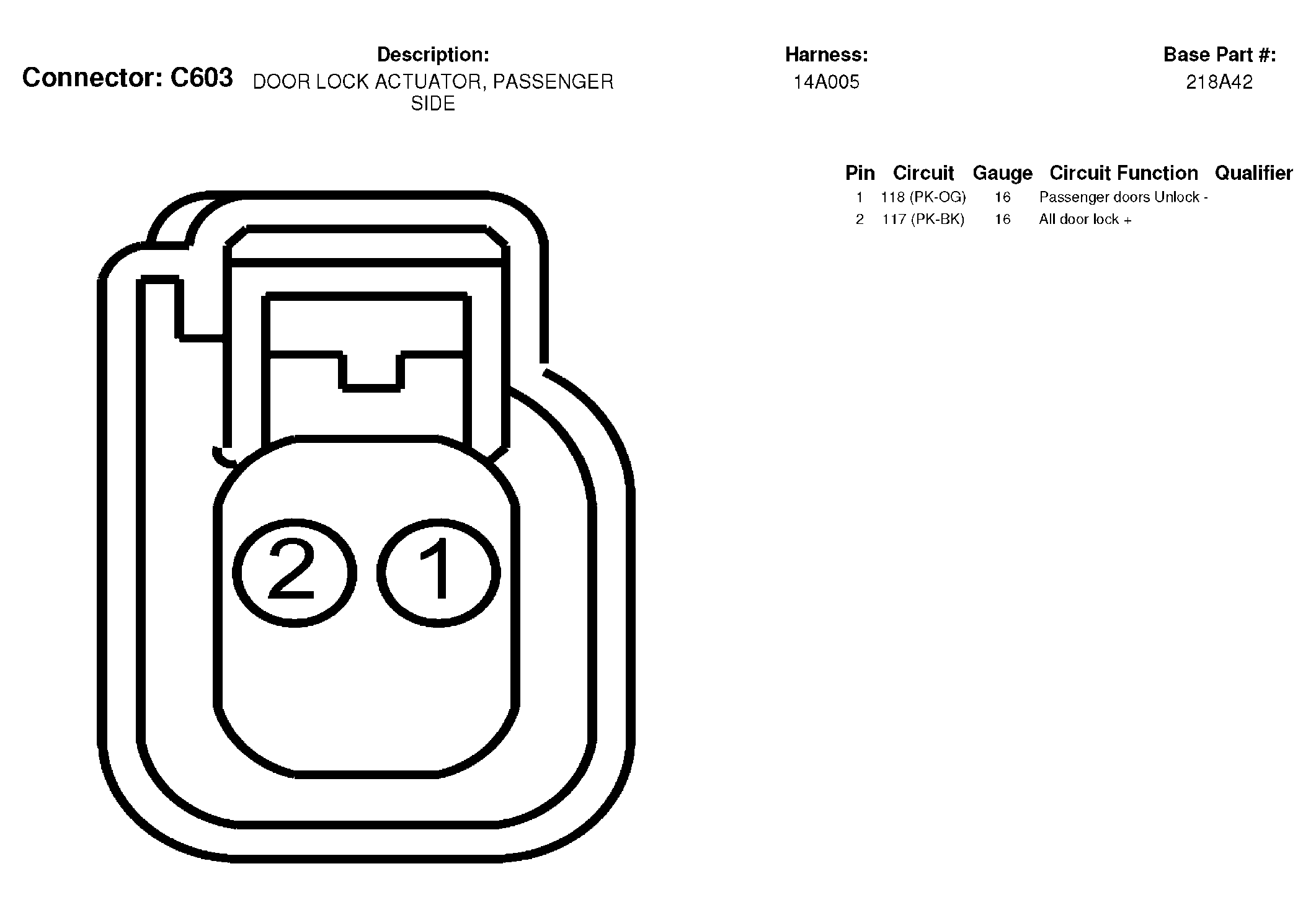

Fig 184: Door Lock Actuator, Passenger Side Connector End View (C603)
Courtesy of FORD MOTOR CO.

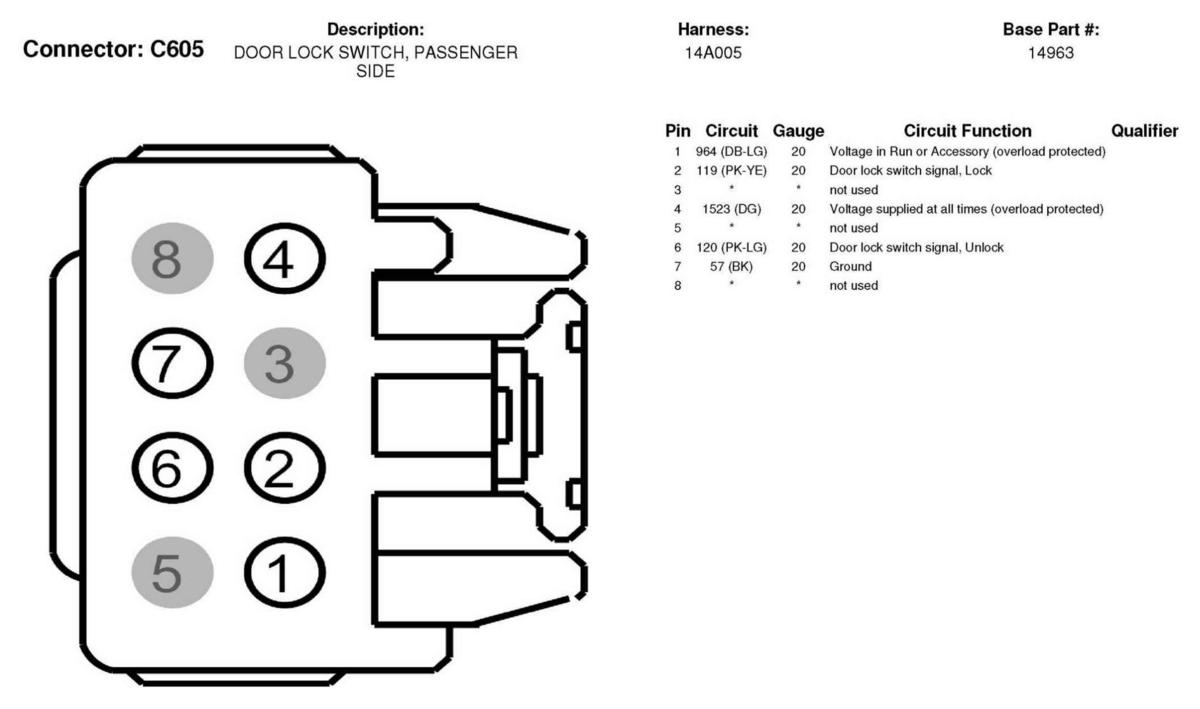

Fig 185: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.

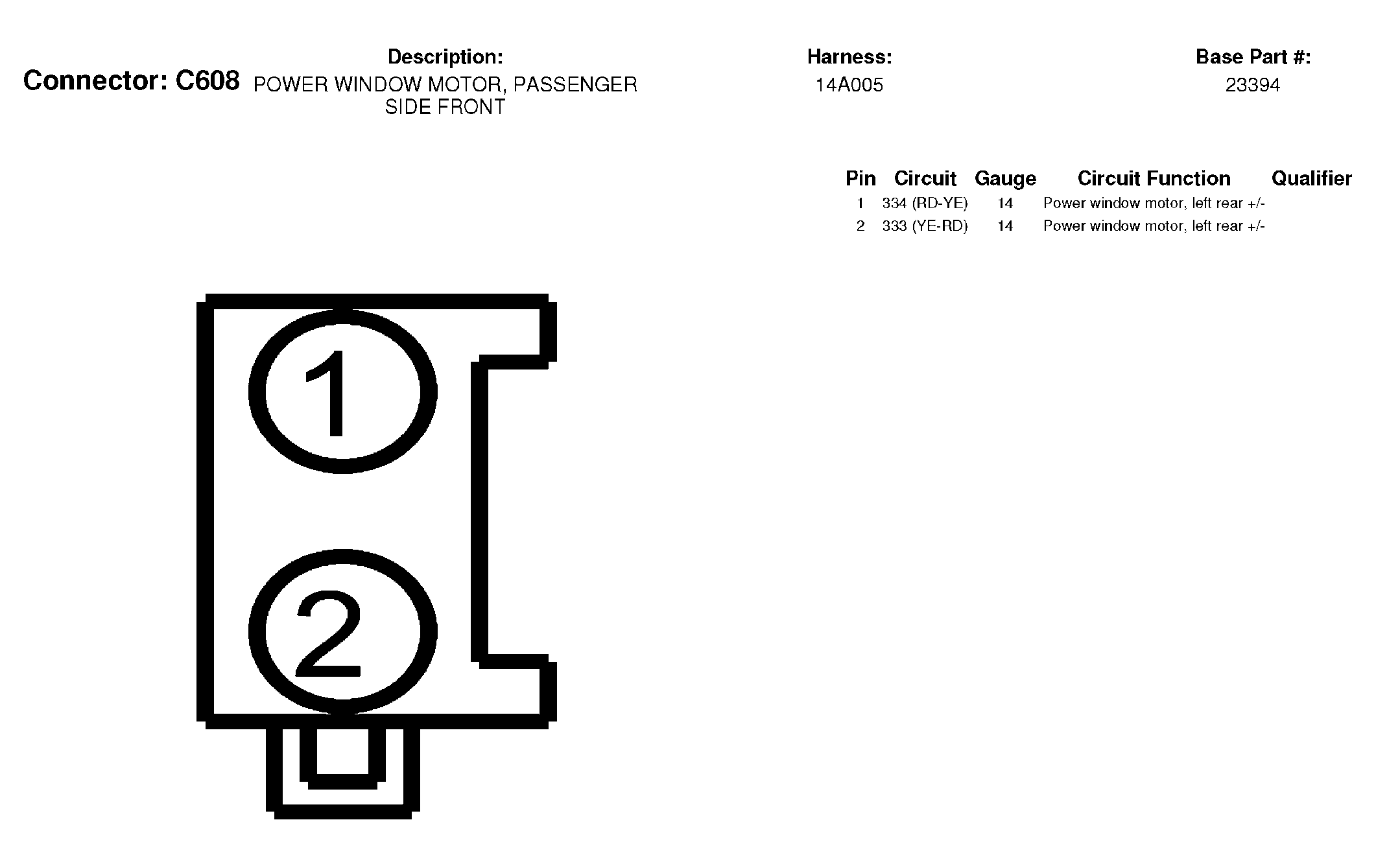

Fig 186: Power Window Motor, Passenger Side Front Connector End View (C608)
Courtesy of FORD MOTOR CO.

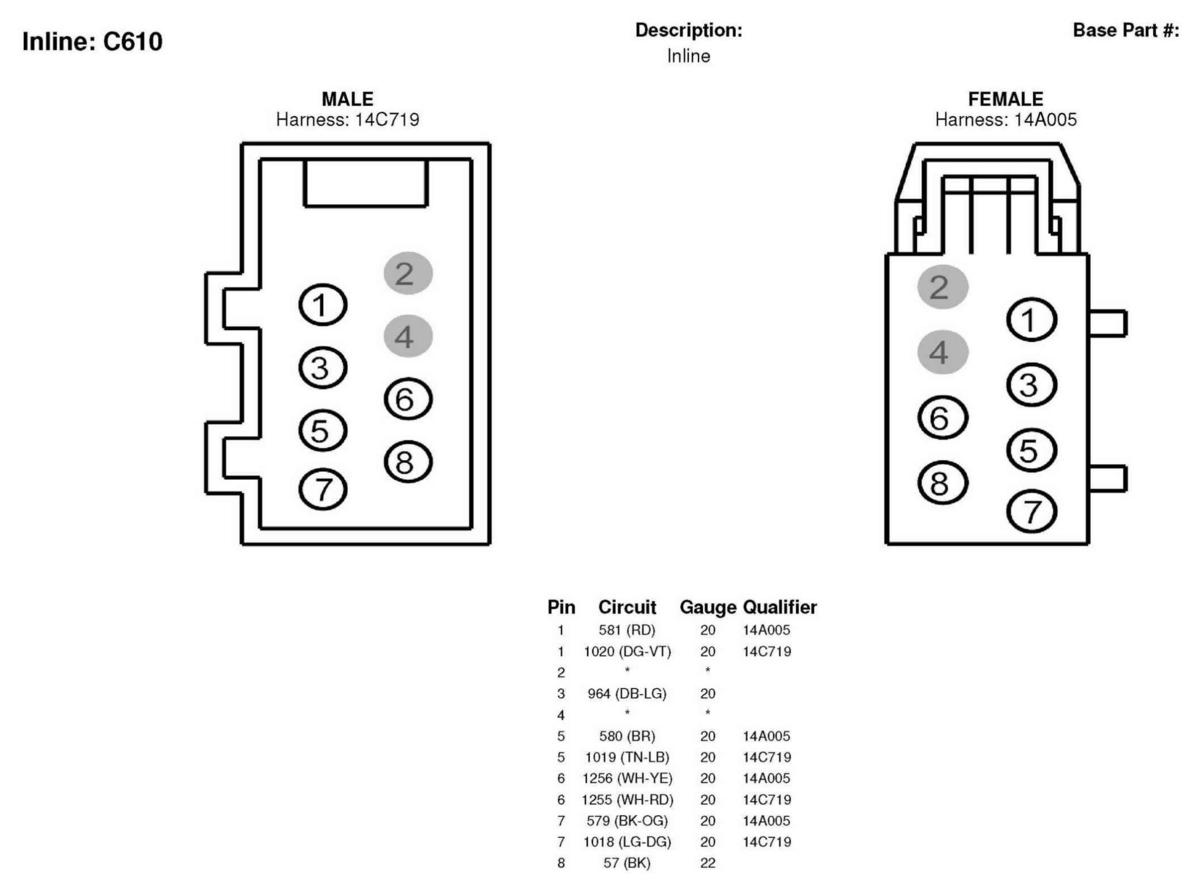

Fig 187: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.

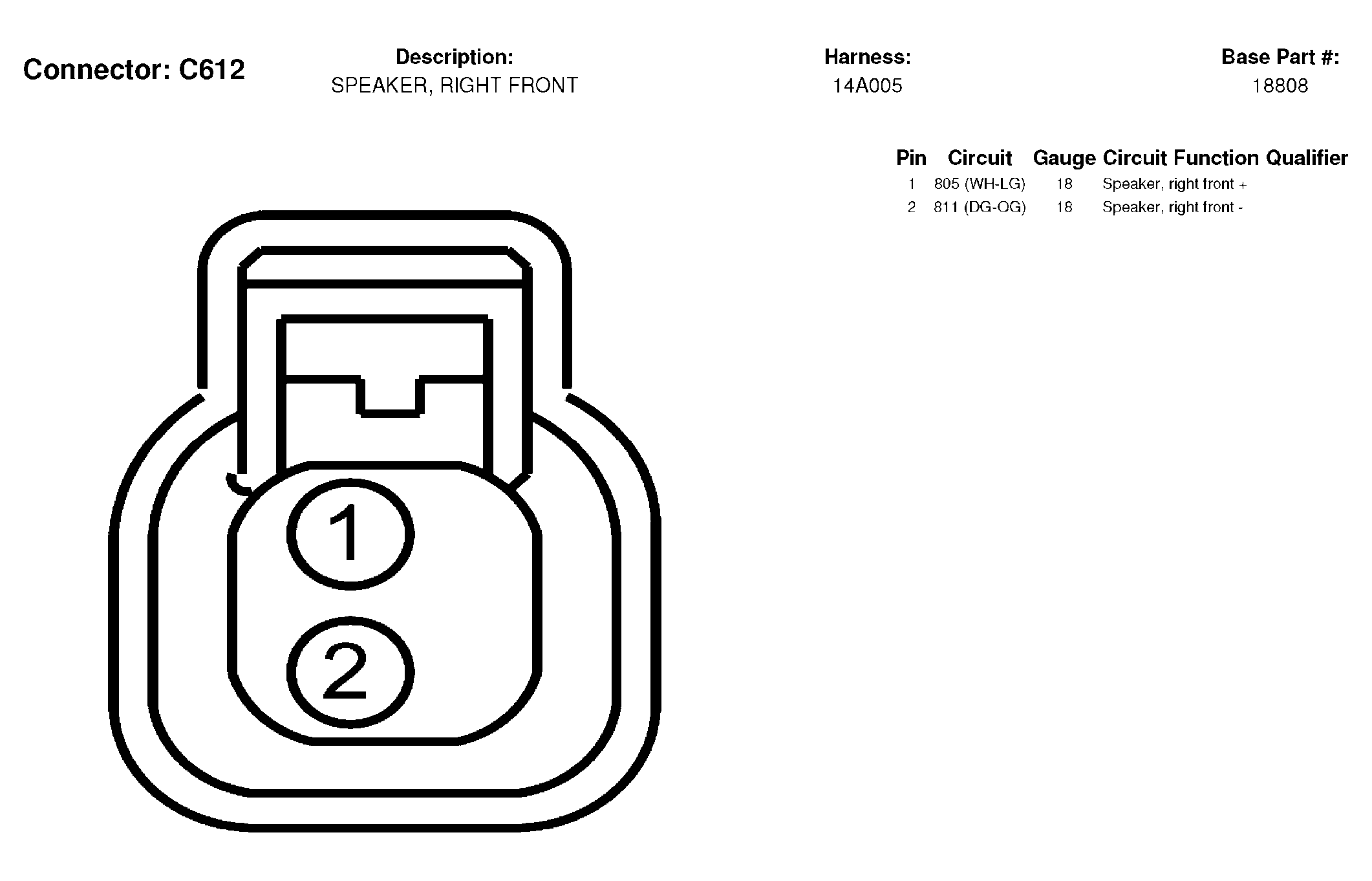

Fig 188: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.

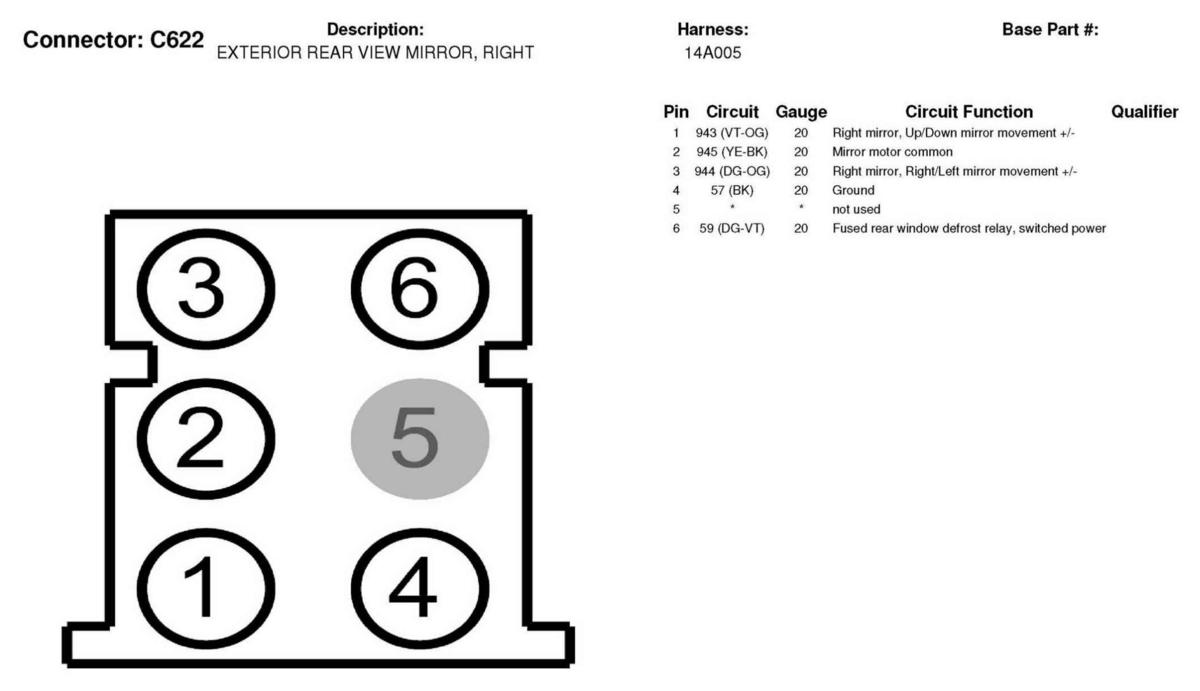

Fig 189: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.

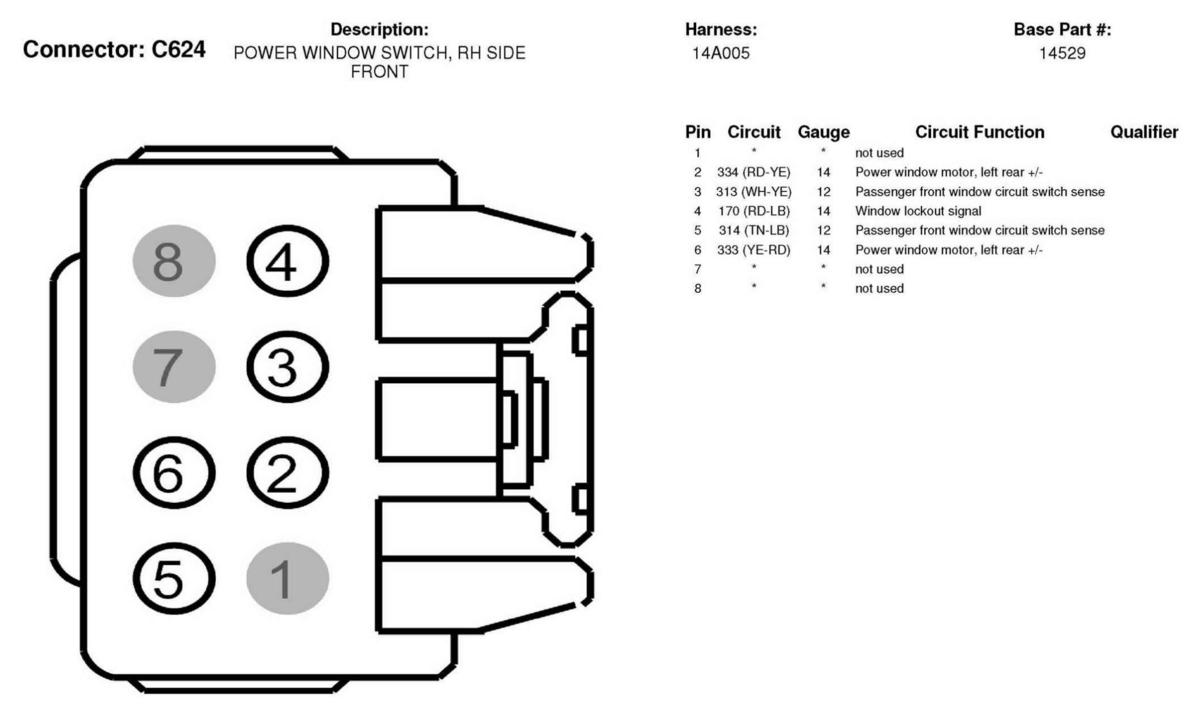

Fig 190: Power Window Switch, RH Side Front Connector End View (C624)
Courtesy of FORD MOTOR CO.

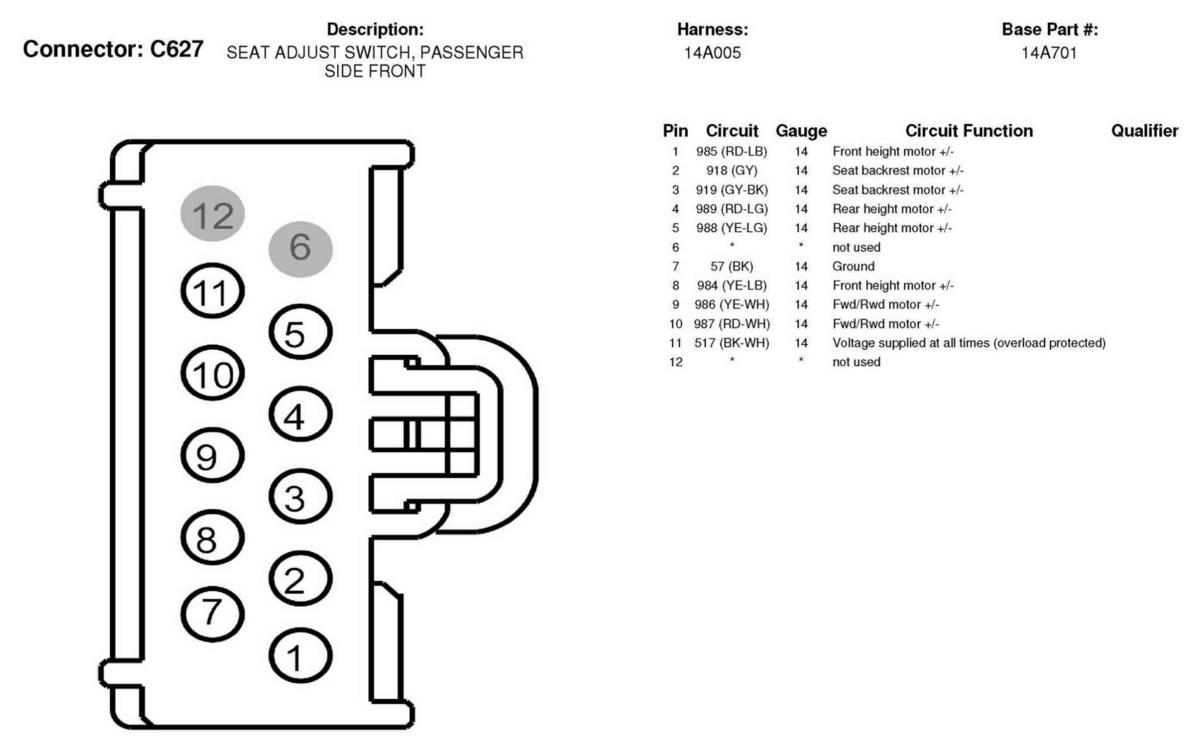

Fig 191: Seat Adjust Switch, Passenger Side Front Connector End View (C627)
Courtesy of FORD MOTOR CO.

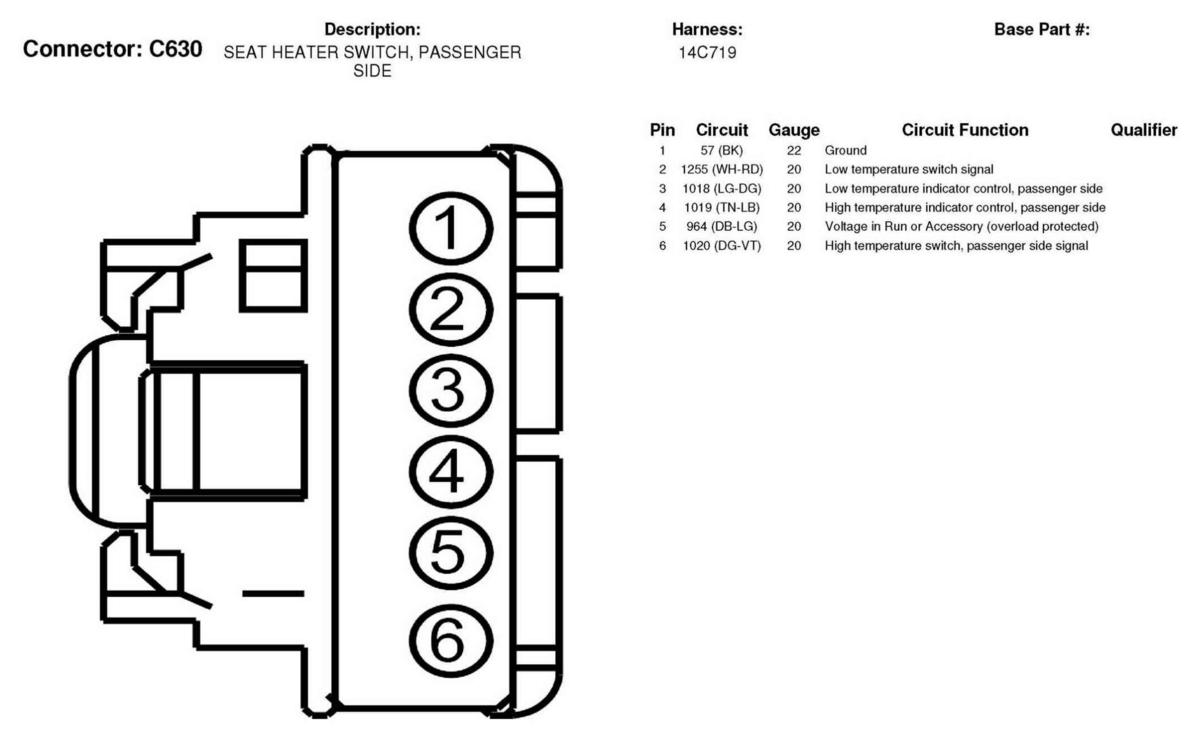

Fig 192: Seat Heater Switch, Passenger Side Connector End View (C630)
Courtesy of FORD MOTOR CO.

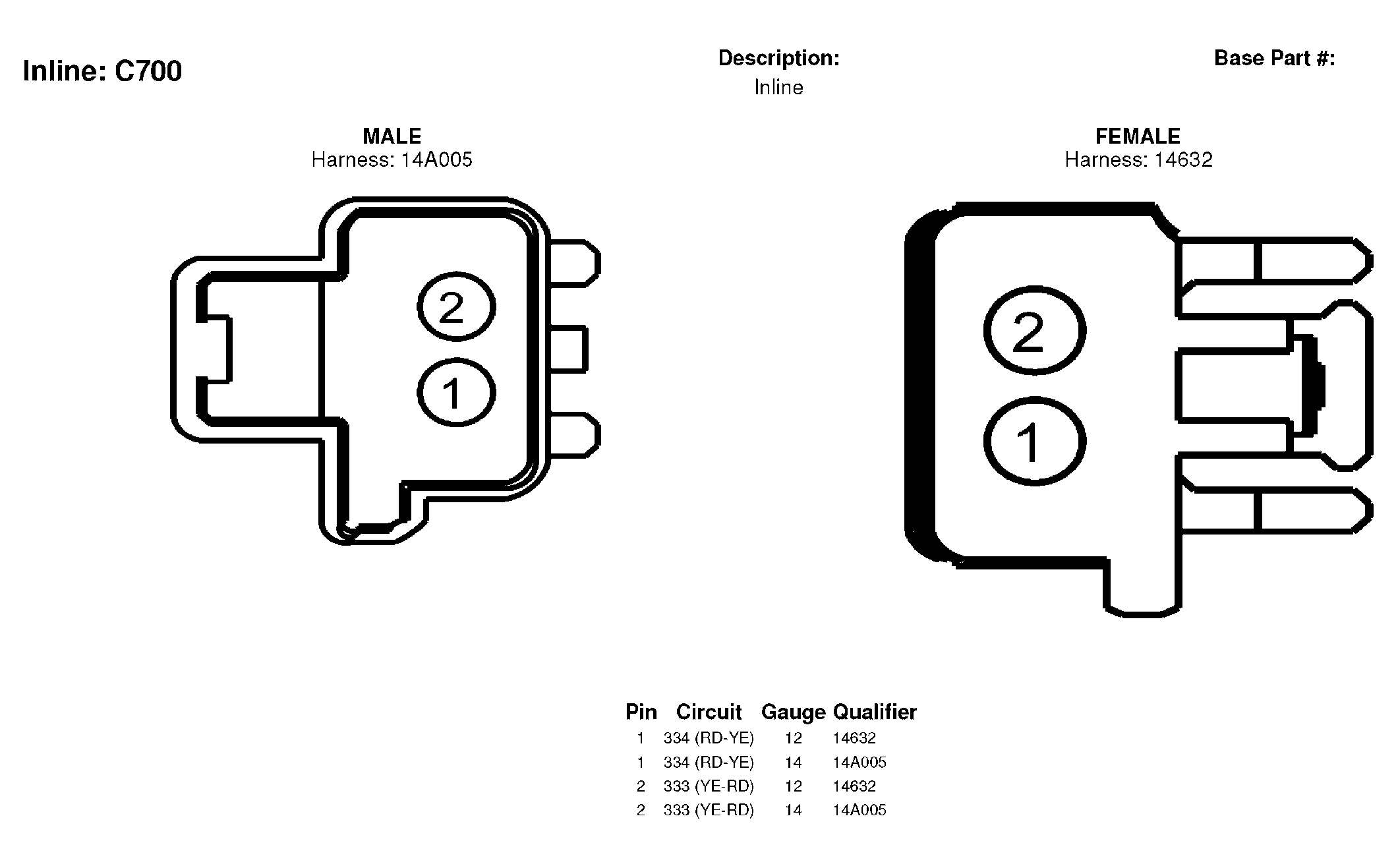

Fig 193: Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.

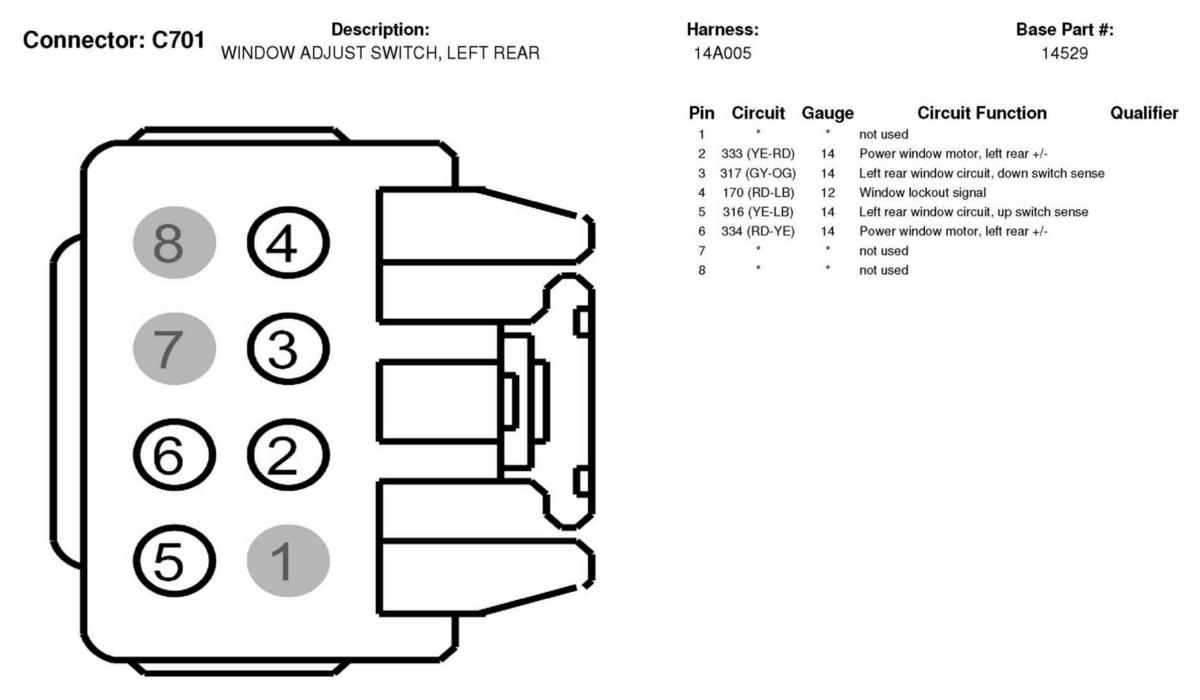

Fig 194: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.
Fig 195: Power Window Motor, Left Rear Connector End View (C703)
Courtesy of FORD MOTOR CO.
Fig 196: Door Lock Actuator, Left Rear Connector End View (C704)
Courtesy of FORD MOTOR CO.

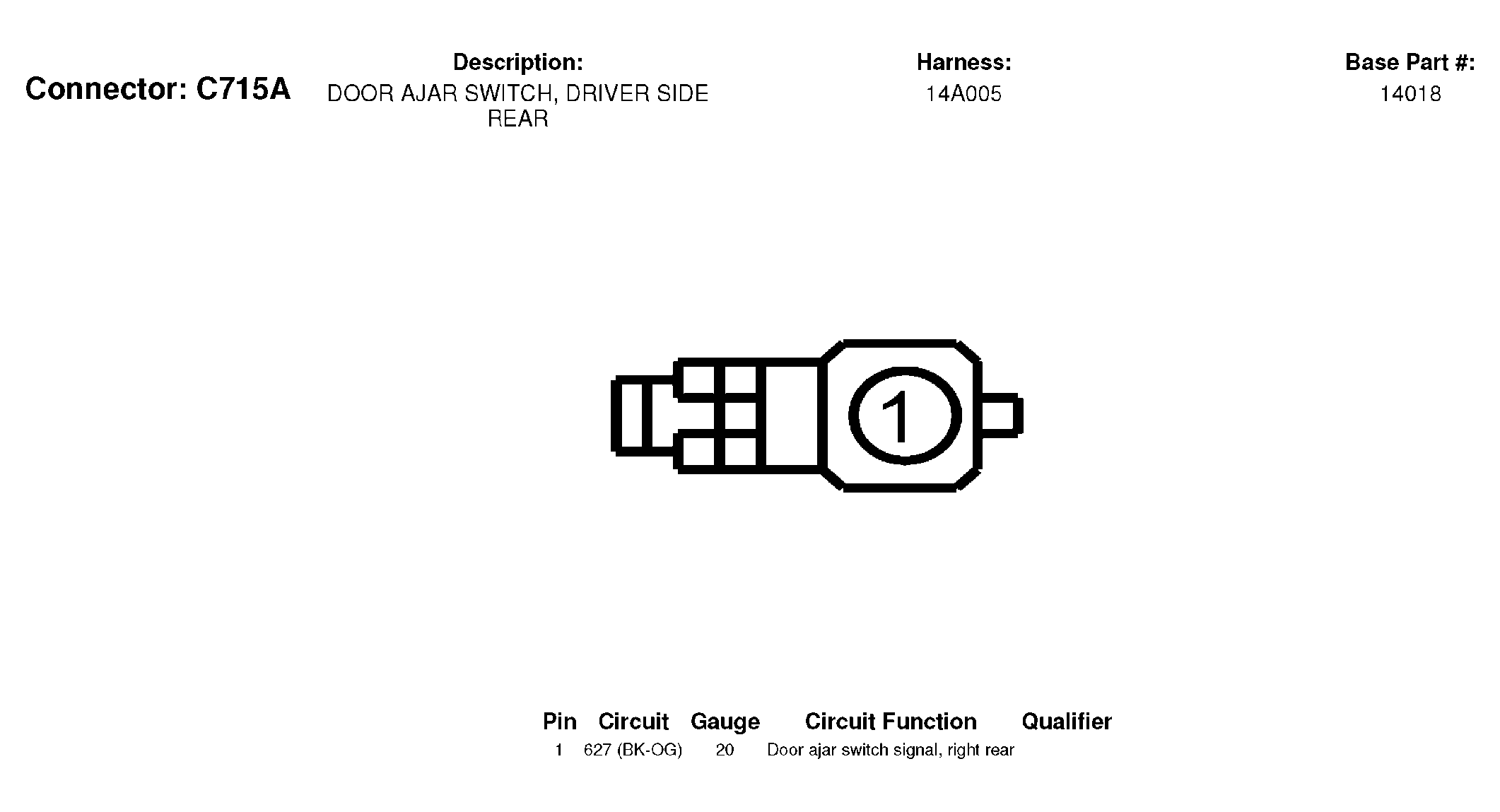

Fig 197: Door Ajar Switch, Driver Side Rear Connector End View (C715A)
Courtesy of FORD MOTOR CO.
Fig 198: Door Ajar Switch, Driver Side Rear Connector End View (C715B)
Courtesy of FORD MOTOR CO.

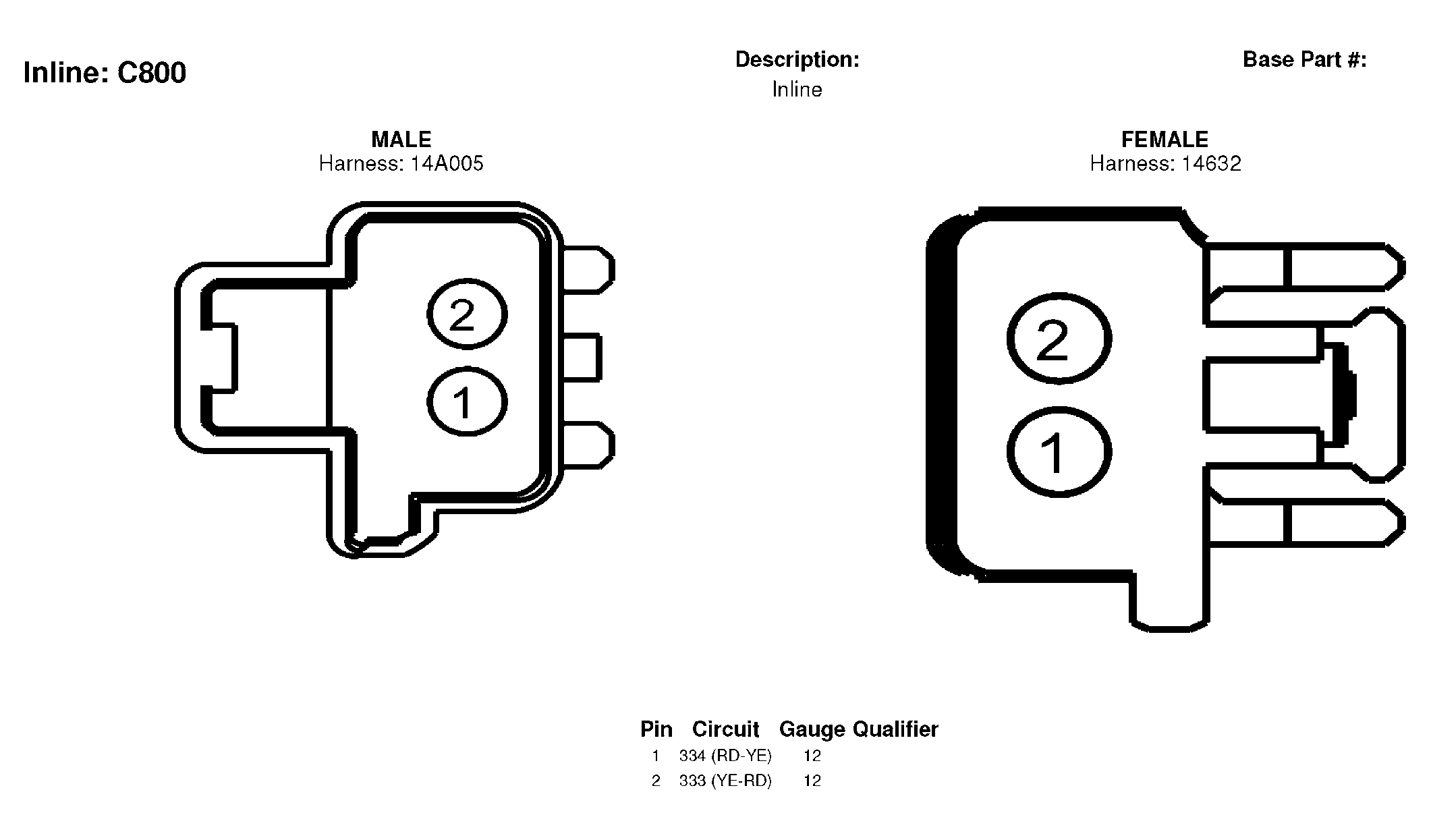

Fig 199: Inline Connector End View (C800)
Courtesy of FORD MOTOR CO.
Fig 200: Window Adjust Switch, Right Rear Connector End View (C801)
Courtesy of FORD MOTOR CO.

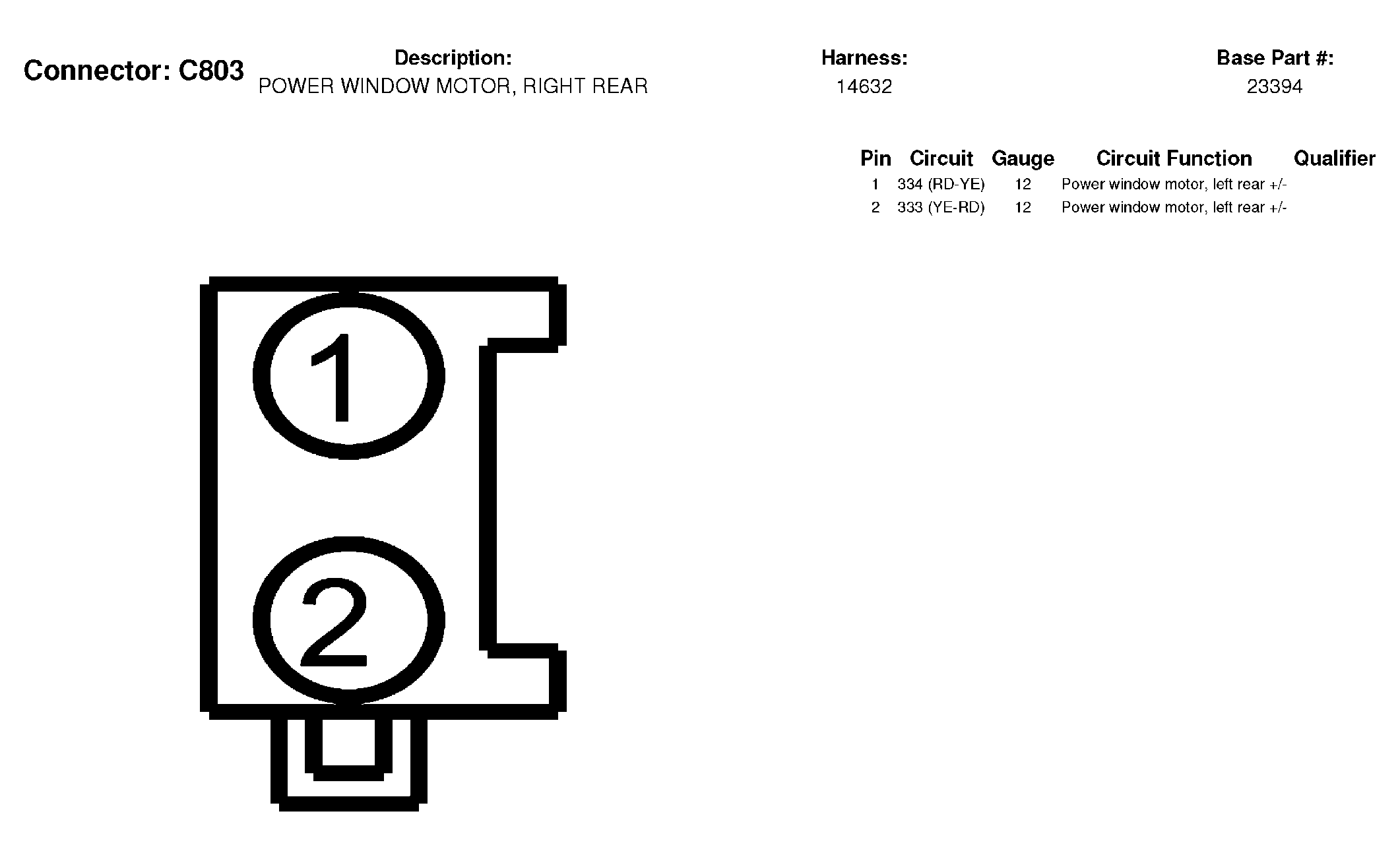

Fig 201: Power Window Motor, Right Rear Connector End View (C803)
Courtesy of FORD MOTOR CO.
Fig 202: Door Lock Actuator, Right Rear Connector End View (C804)
Courtesy of FORD MOTOR CO.

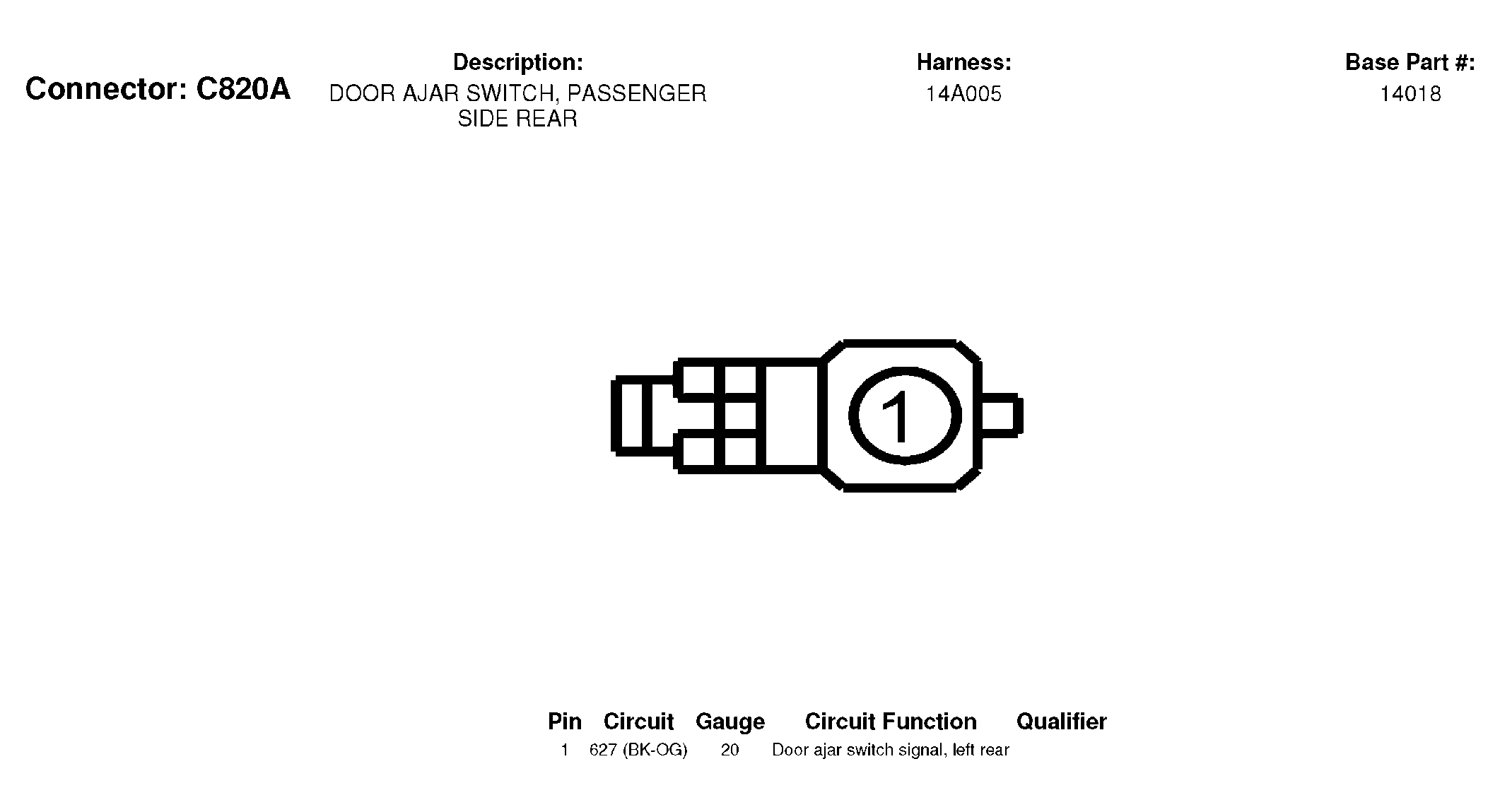

Fig 203: Door Ajar Switch, Passenger Side Rear Connector End View (C820A)
Courtesy of FORD MOTOR CO.
Fig 204: Door Ajar Switch, Passenger Side Rear Connector End View (C820B)
Courtesy of FORD MOTOR CO.

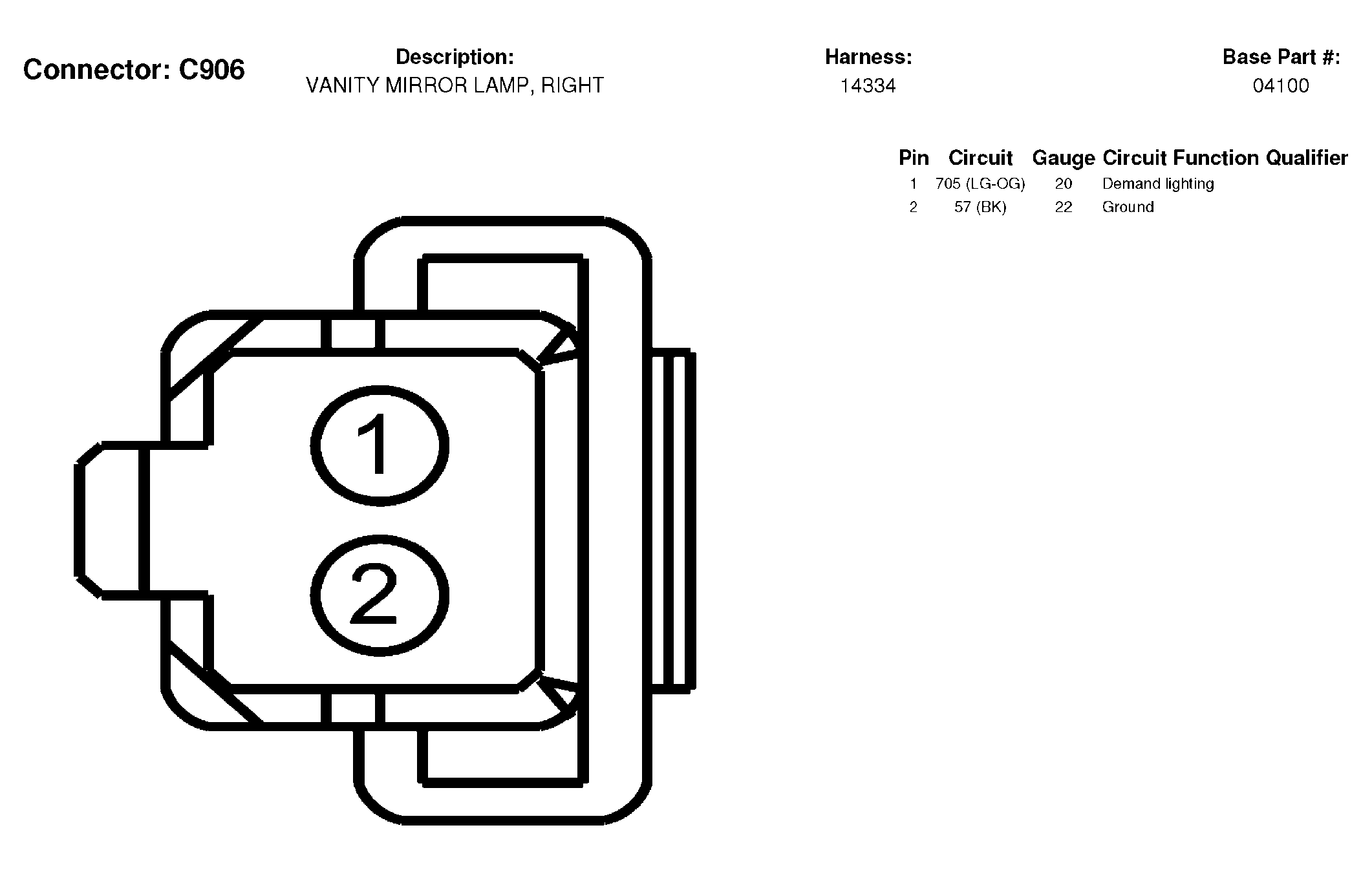

Fig 205: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.

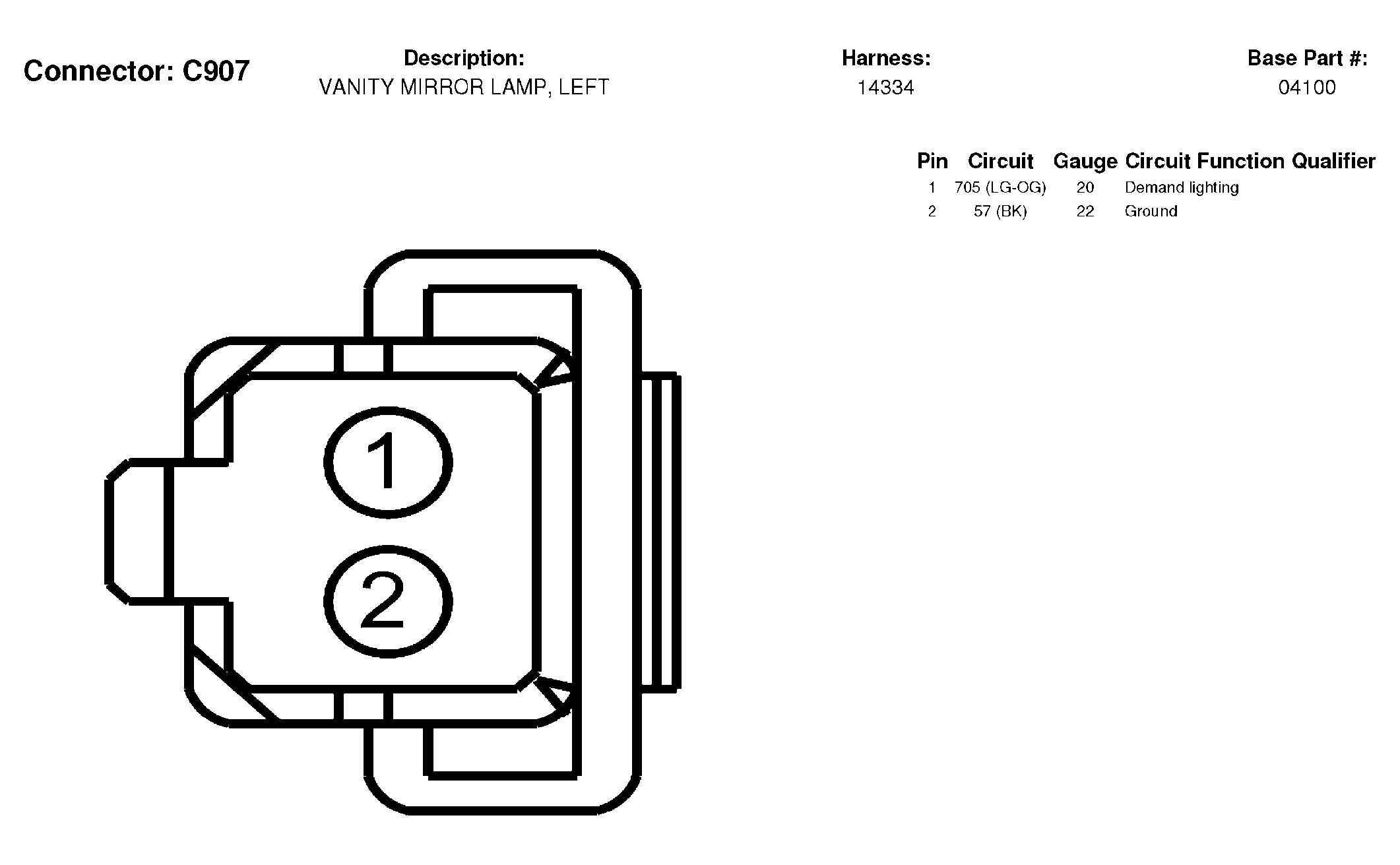

Fig 206: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.

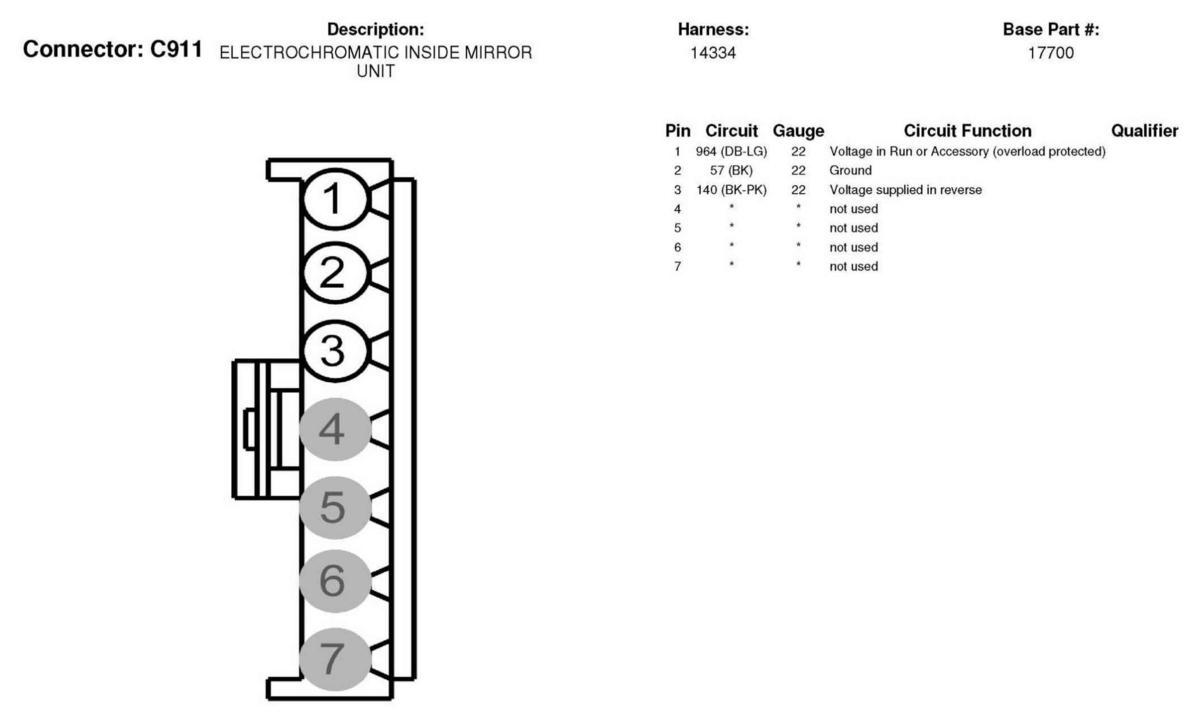

Fig 207: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.

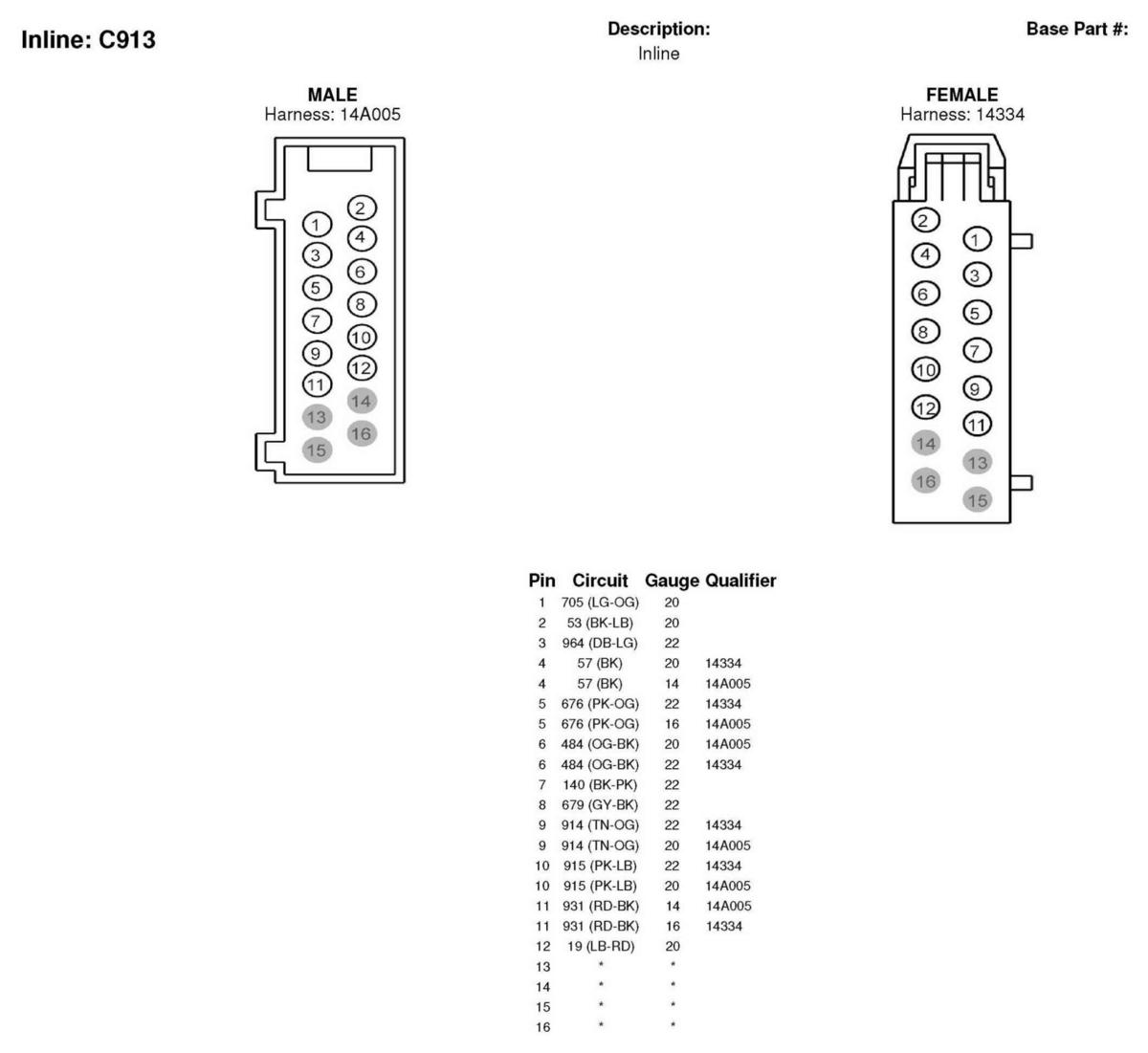

Fig 208: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.

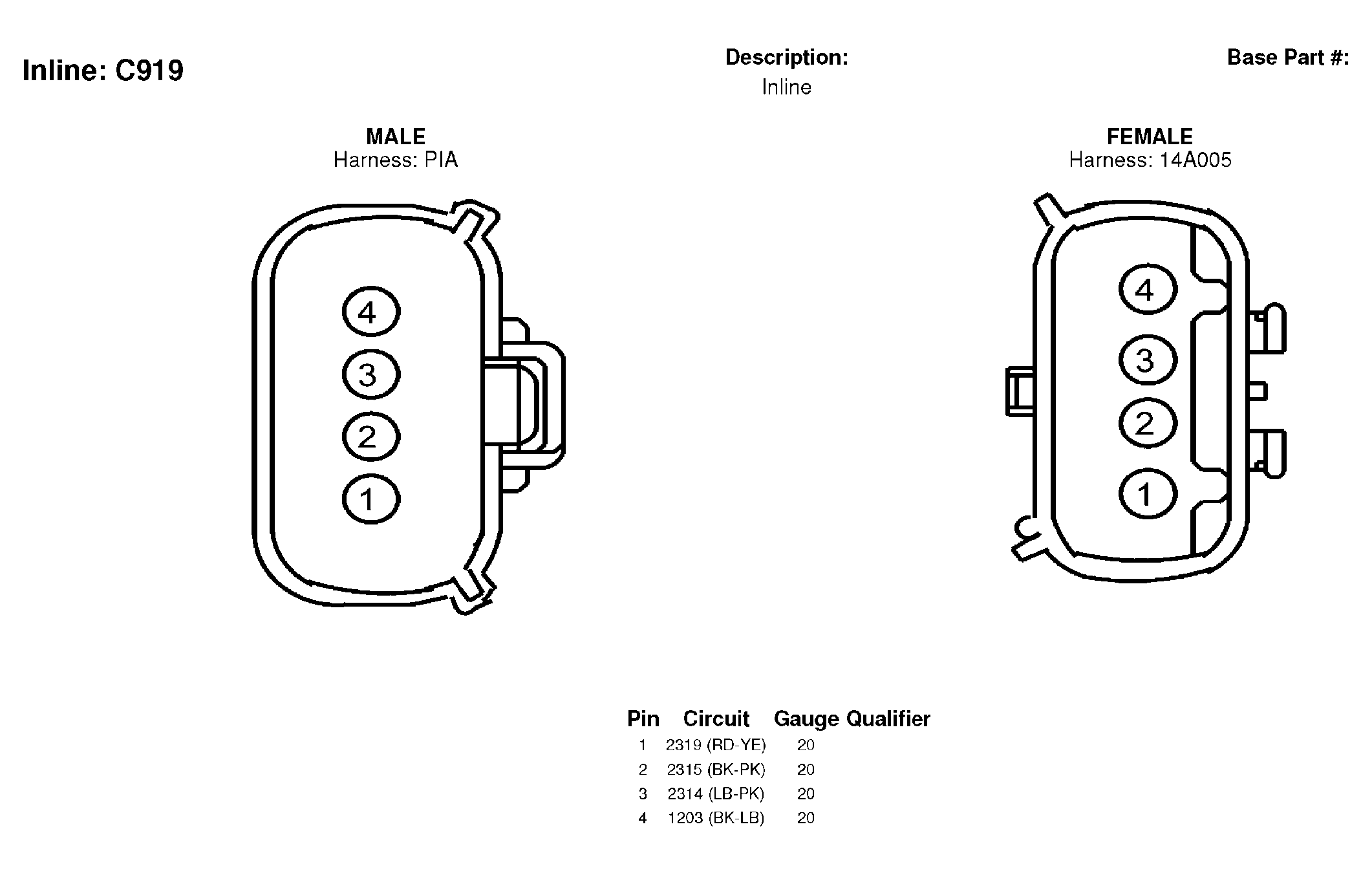

Fig 209: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.

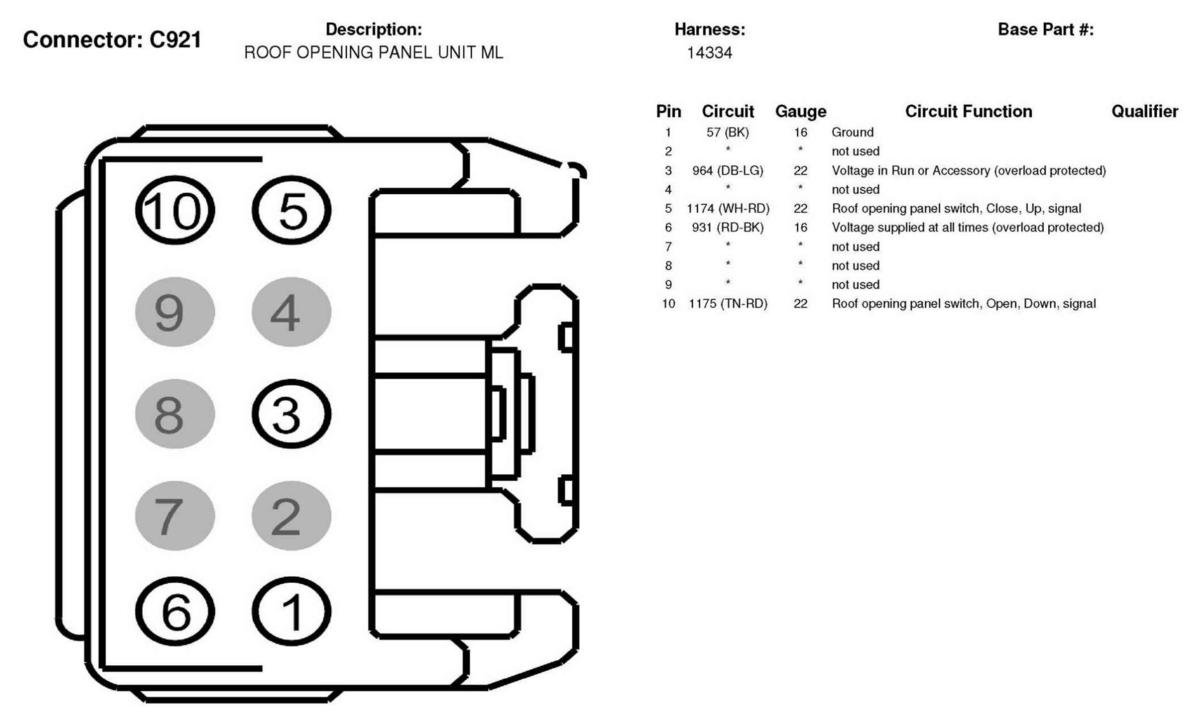

Fig 210: Roof Opening Panel Unit ML Connector End View (C921)
Courtesy of FORD MOTOR CO.

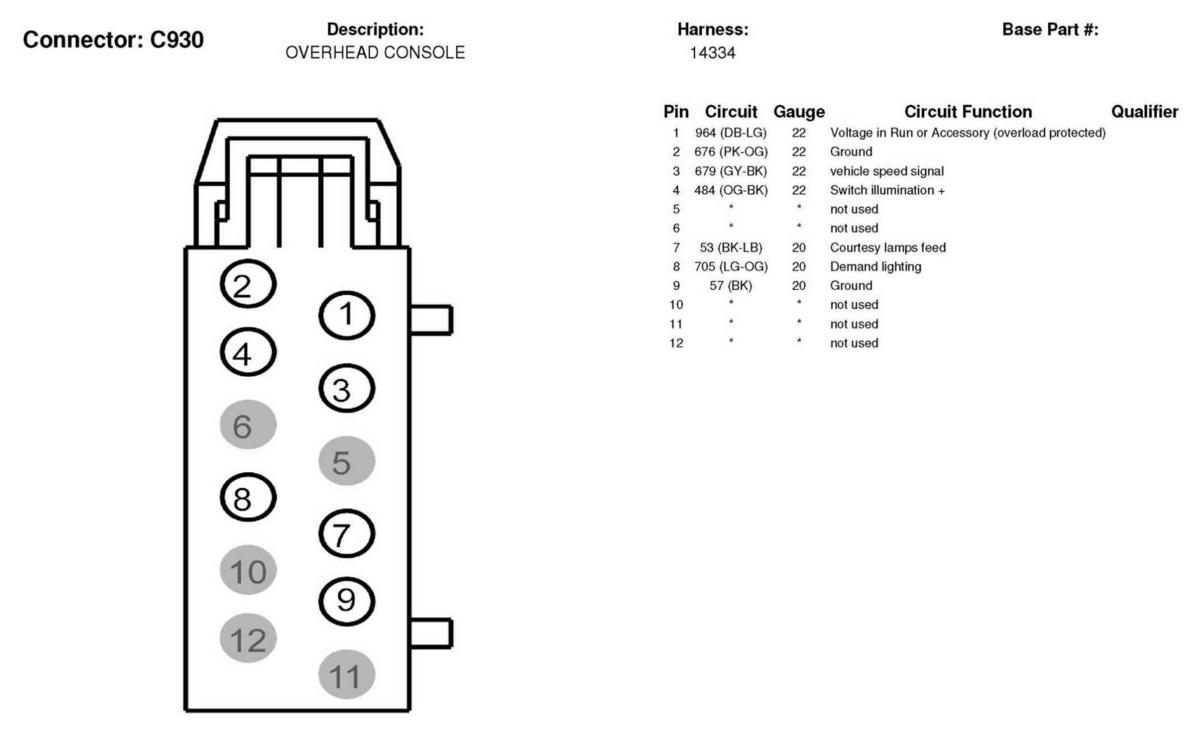

Fig 211: Overhead Console Connector End View (C930)
Courtesy of FORD MOTOR CO.

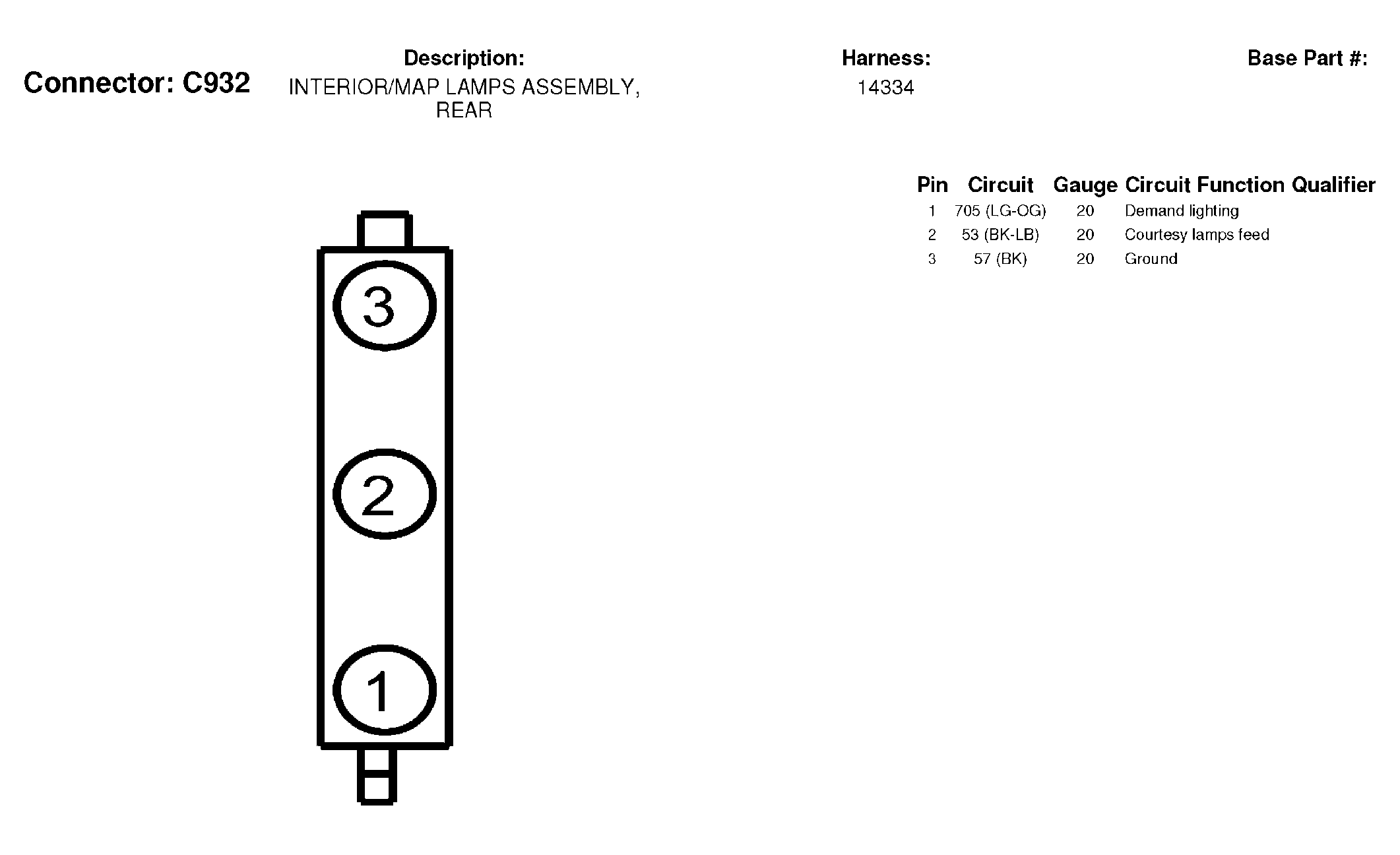

Fig 212: Interior/MAP Lamps Assembly, Rear Connector End View (C932)
Courtesy of FORD MOTOR CO.

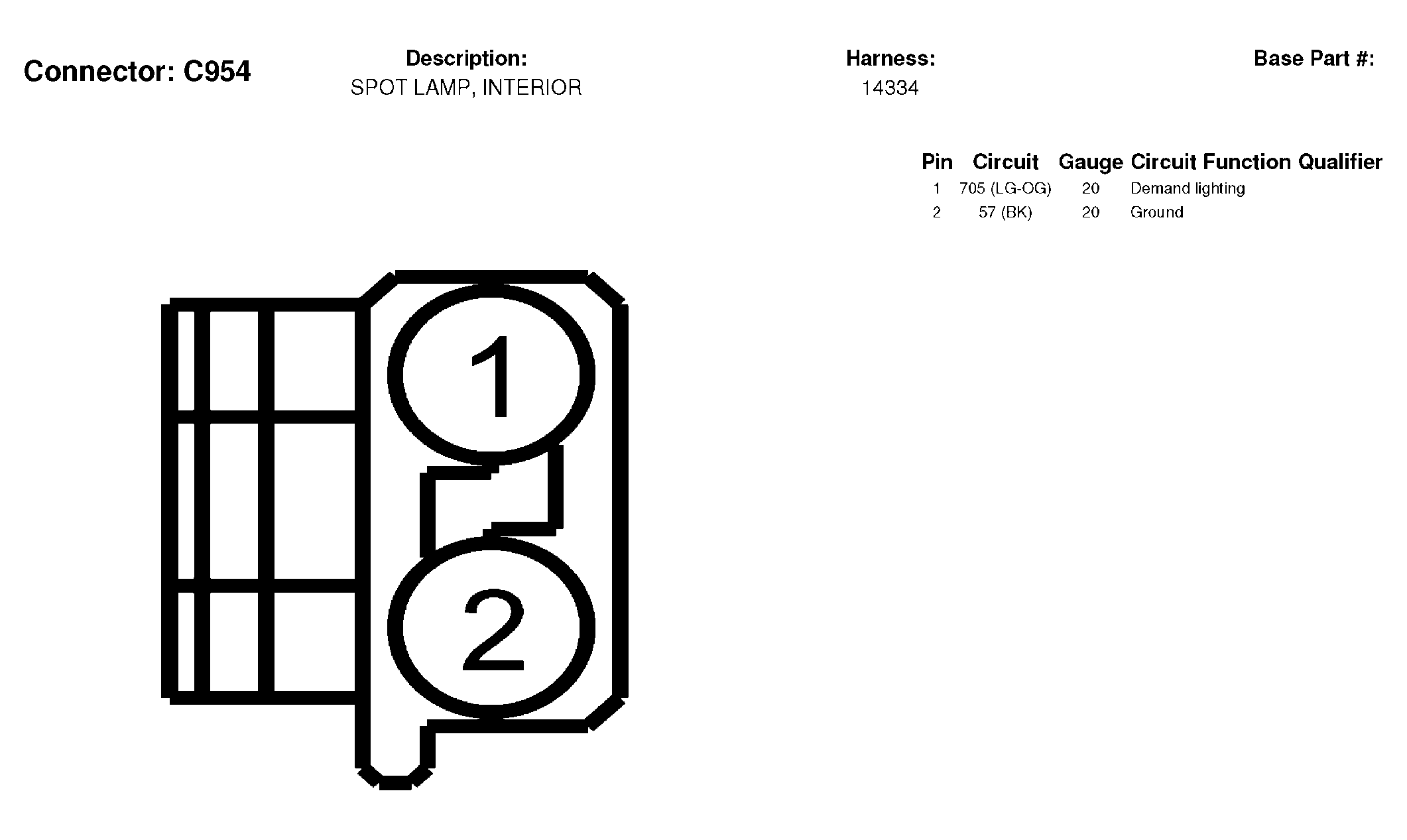

Fig 213: Spot Lamp, Interior Connector End View (C954)
Courtesy of FORD MOTOR CO.

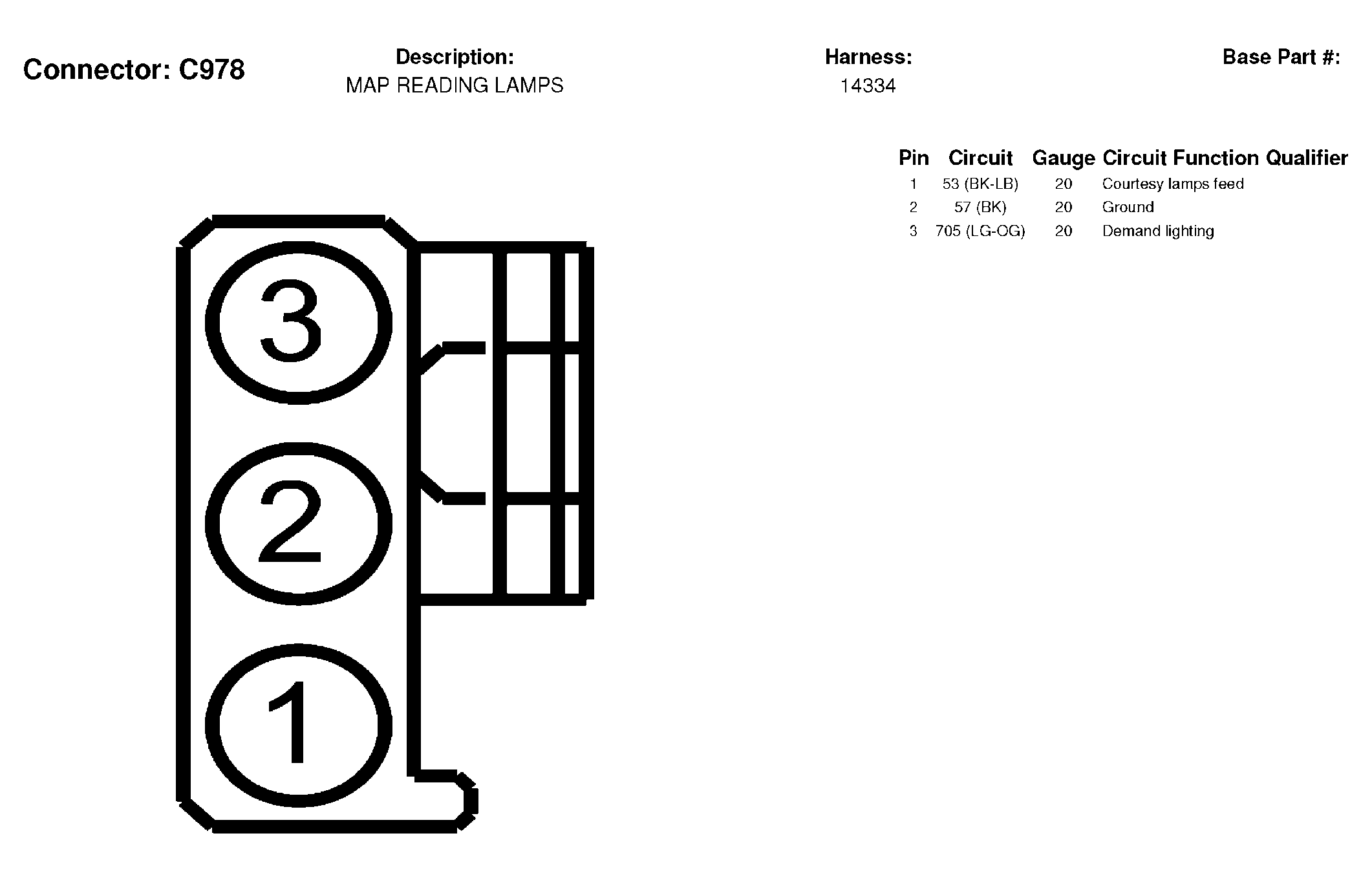

Fig 214: MAP Reading Lamps Connector End View (C978)
Courtesy of FORD MOTOR CO.

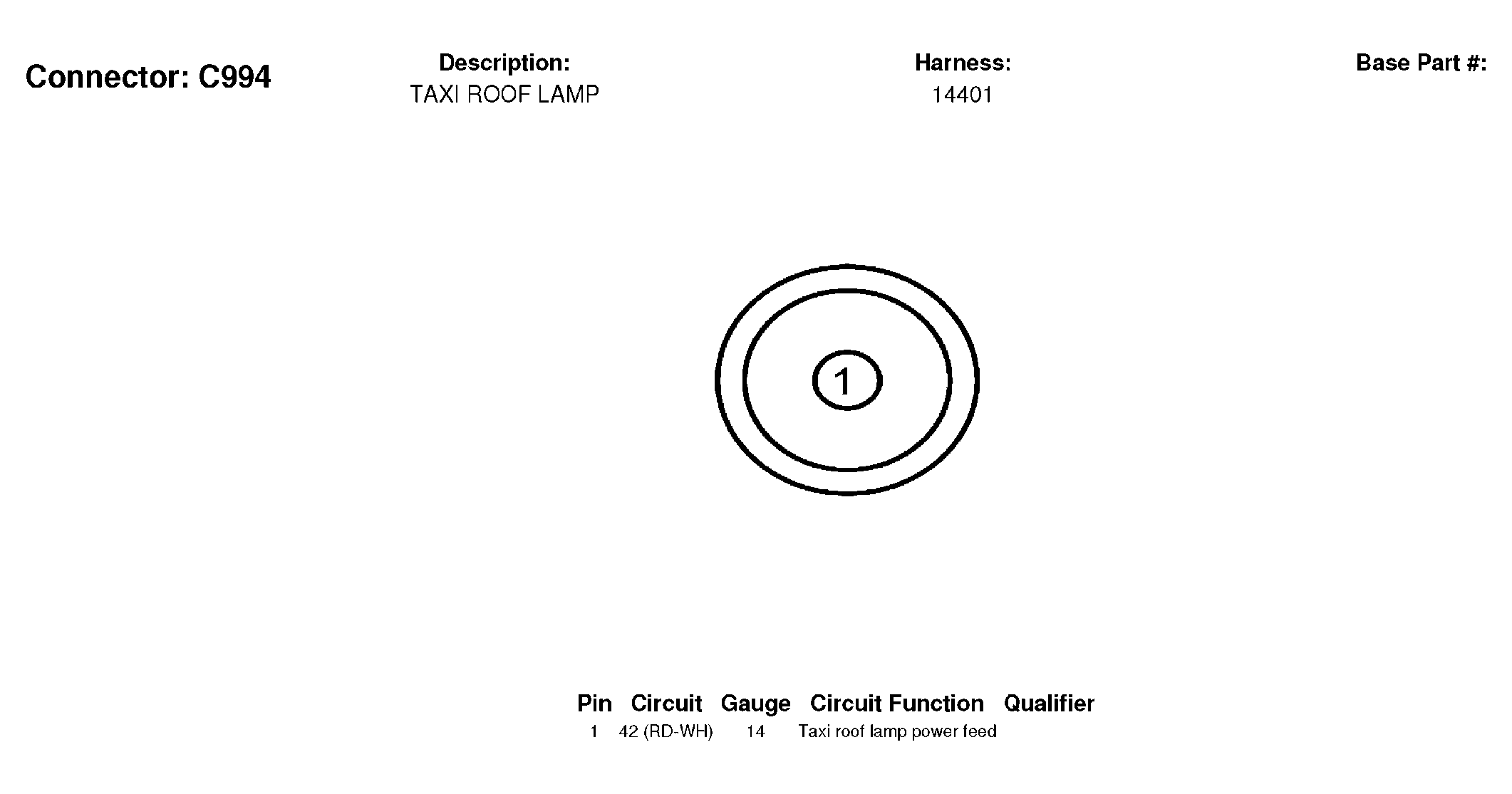

Fig 215: Taxi Roof Lamp Connector End View (C994)
Courtesy of FORD MOTOR CO.

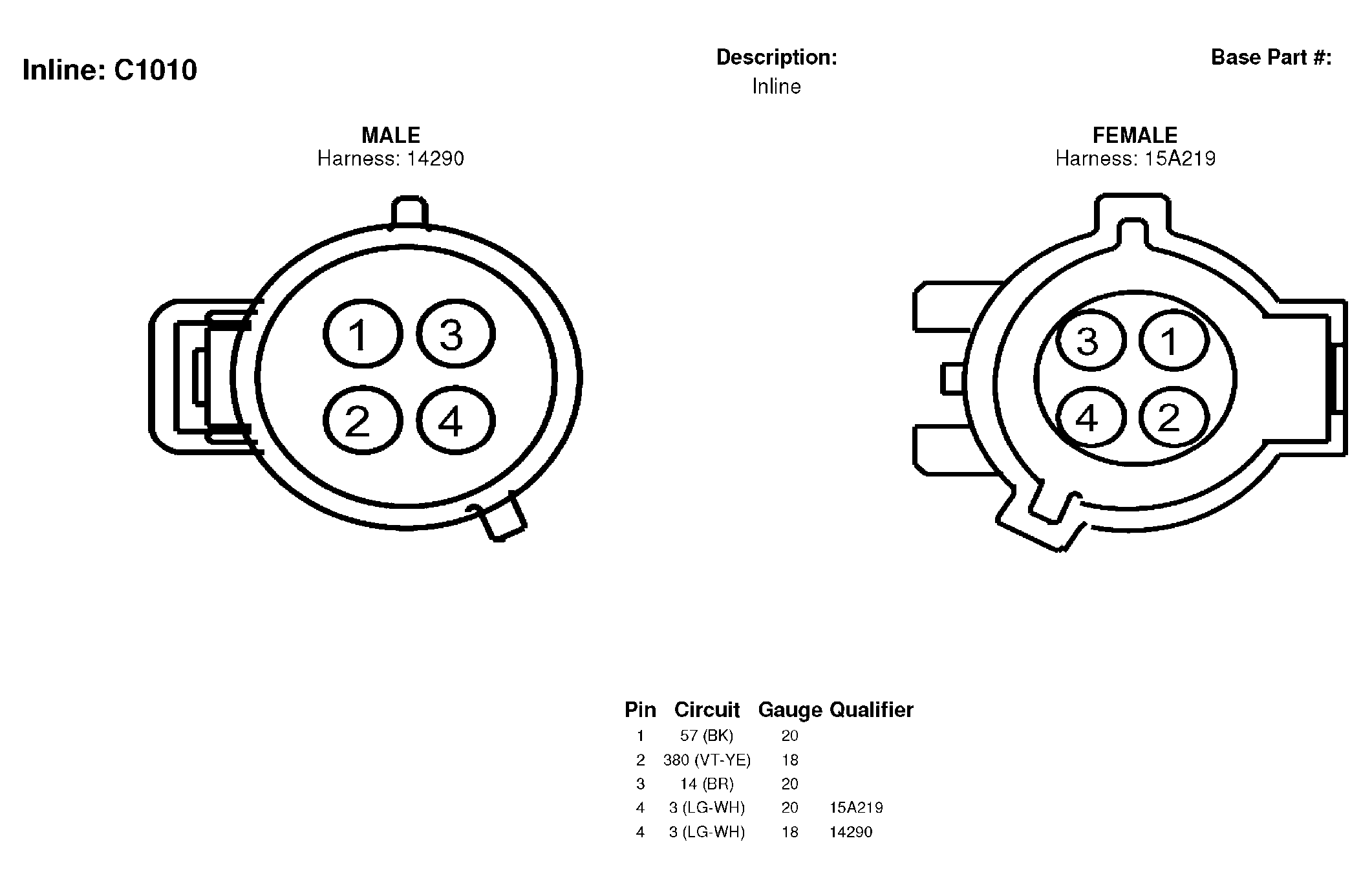

Fig 216: Inline Connector End View (C1010)
Courtesy of FORD MOTOR CO.

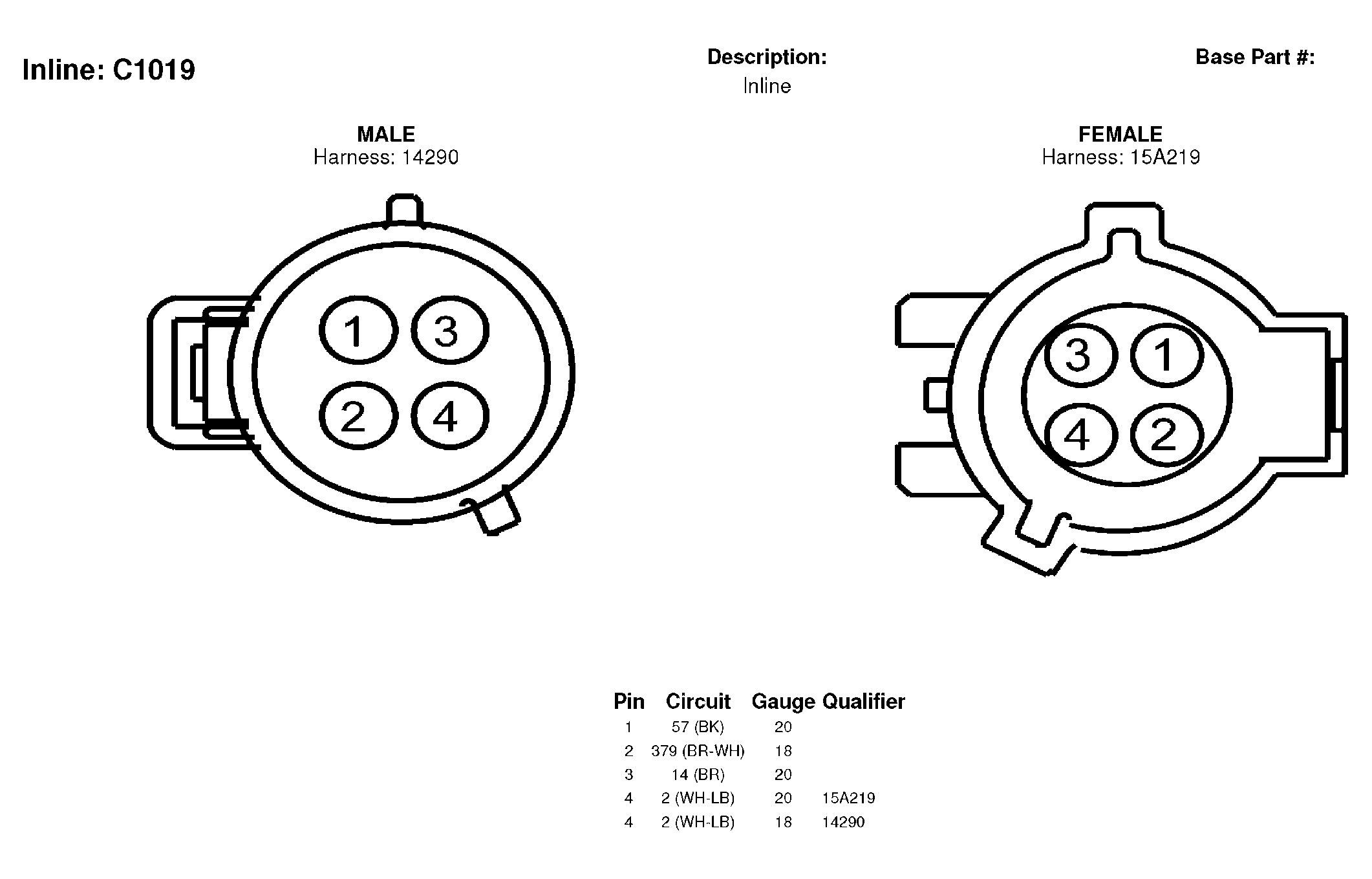

Fig 217: Inline Connector End View (C1019)
Courtesy of FORD MOTOR CO.

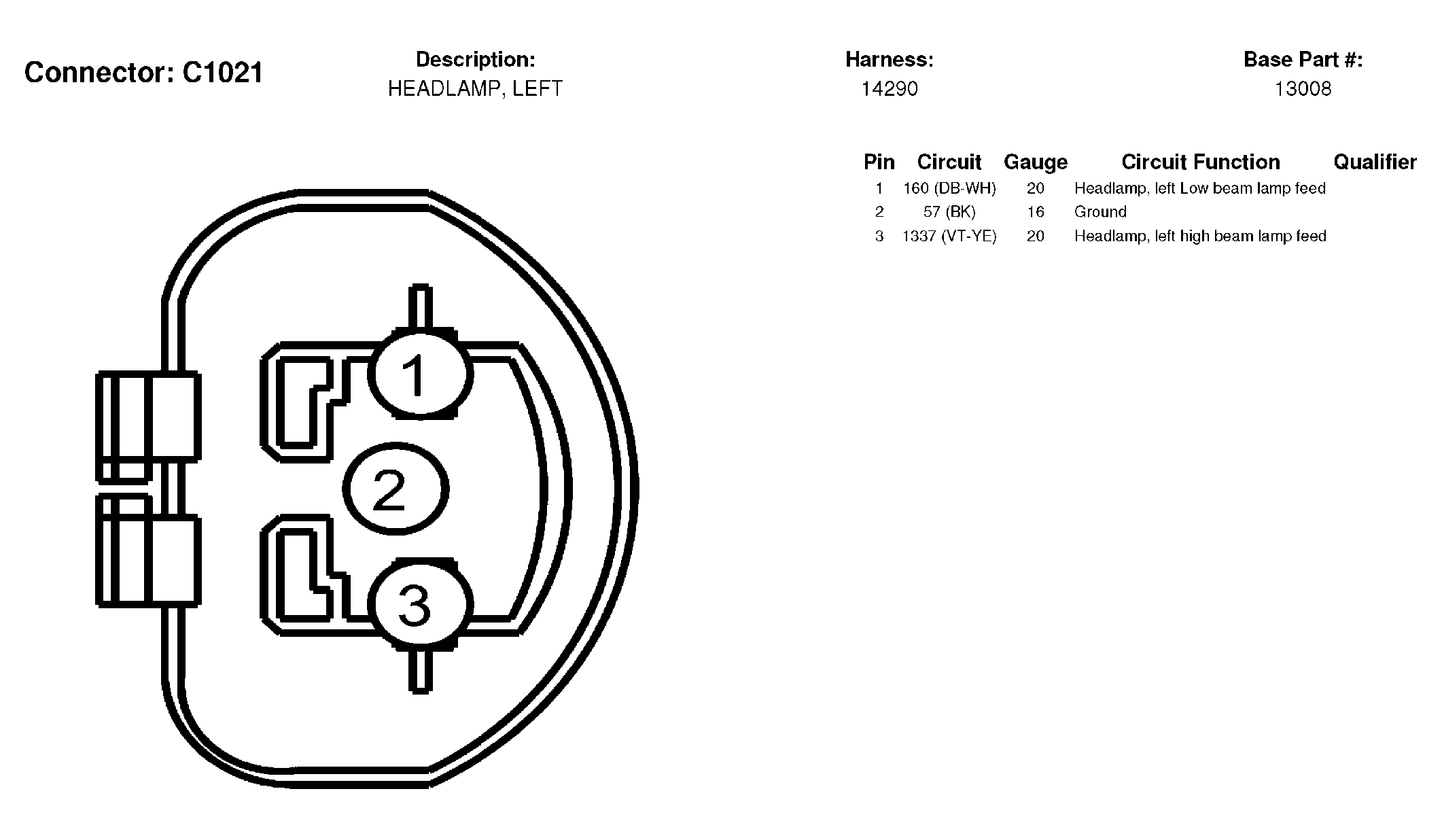

Fig 218: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.

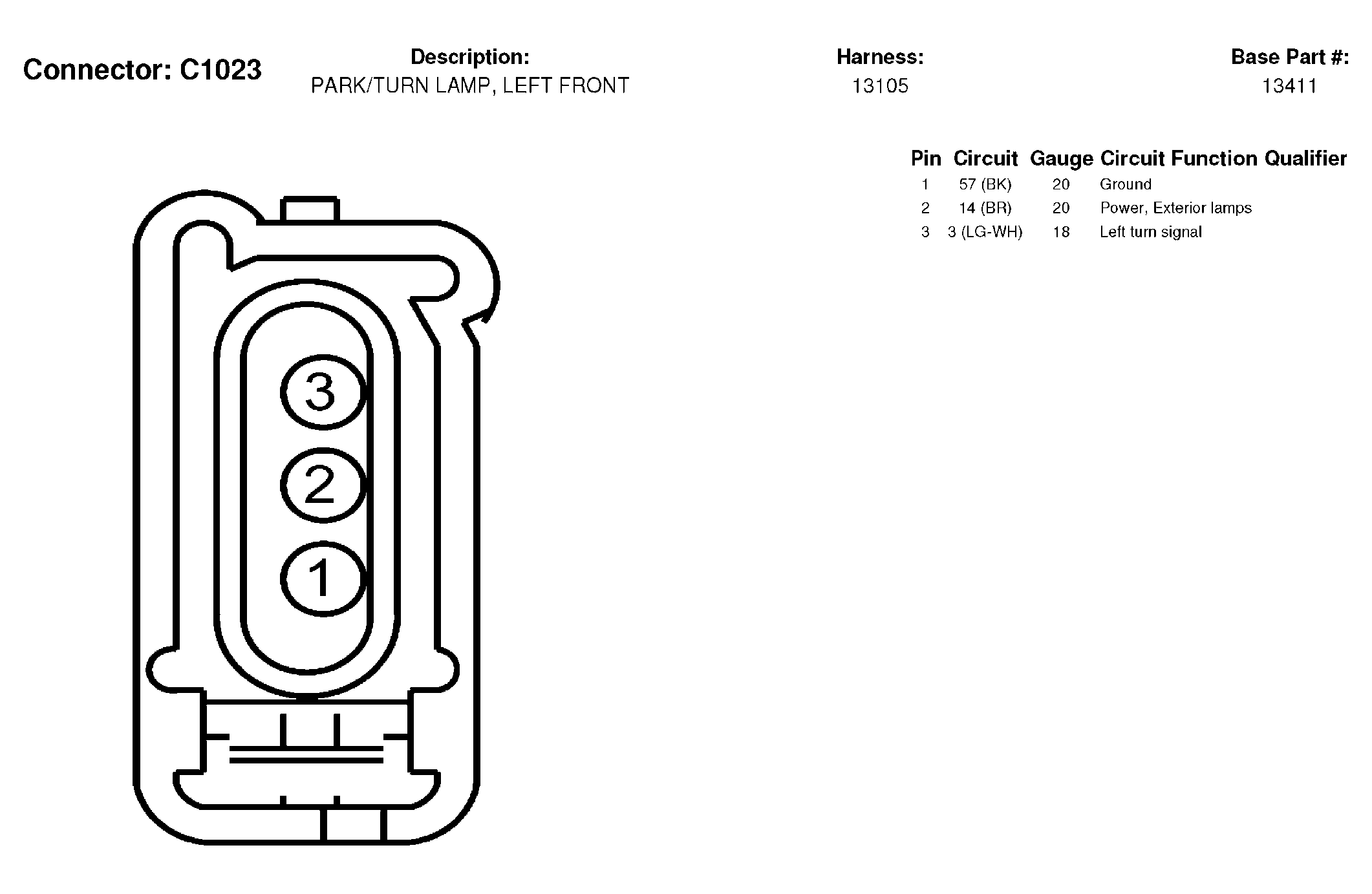

Fig 219: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.

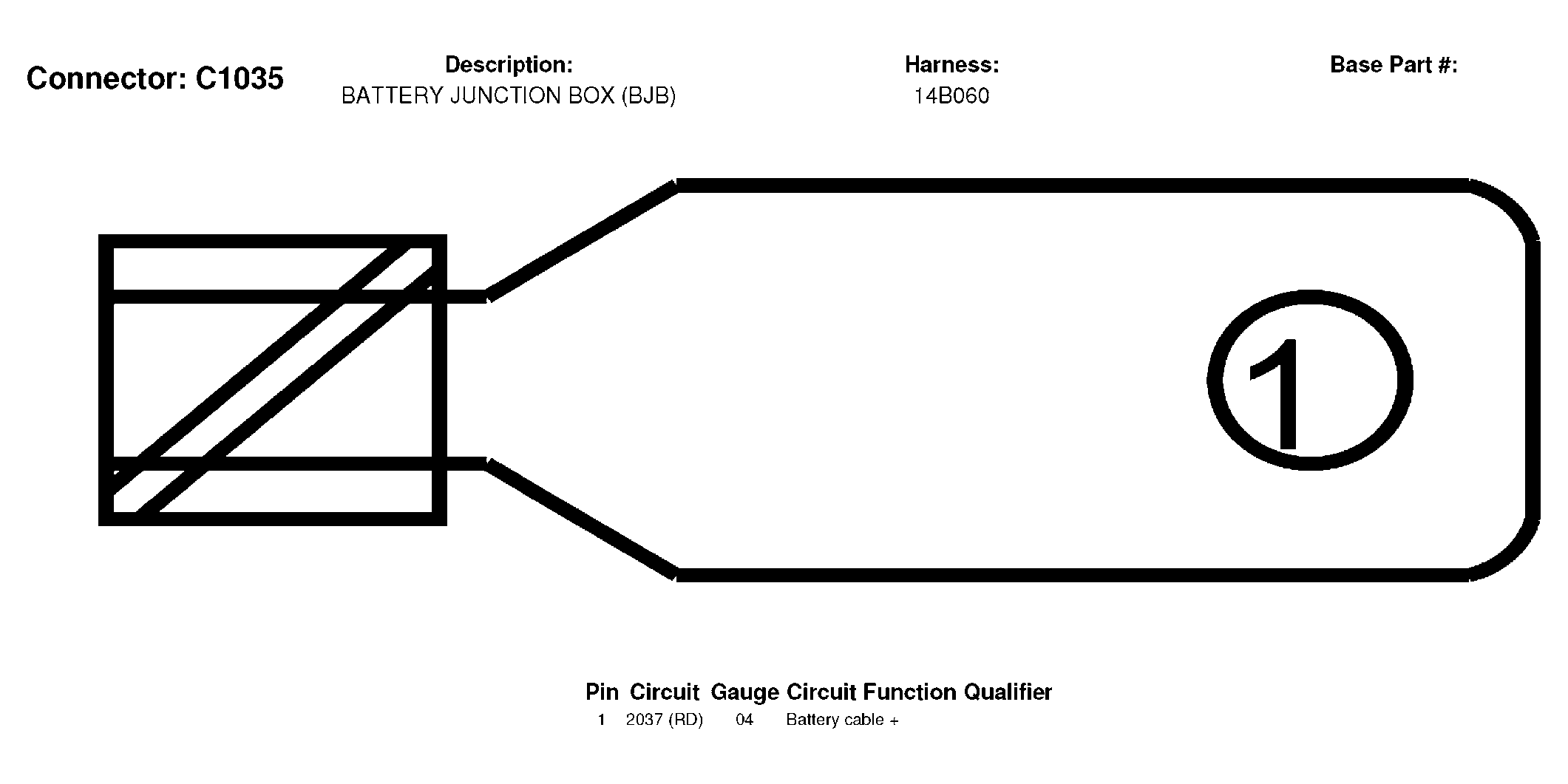

Fig 220: Battery Junction Box (BJB) Connector End View (C1035)
Courtesy of FORD MOTOR CO.

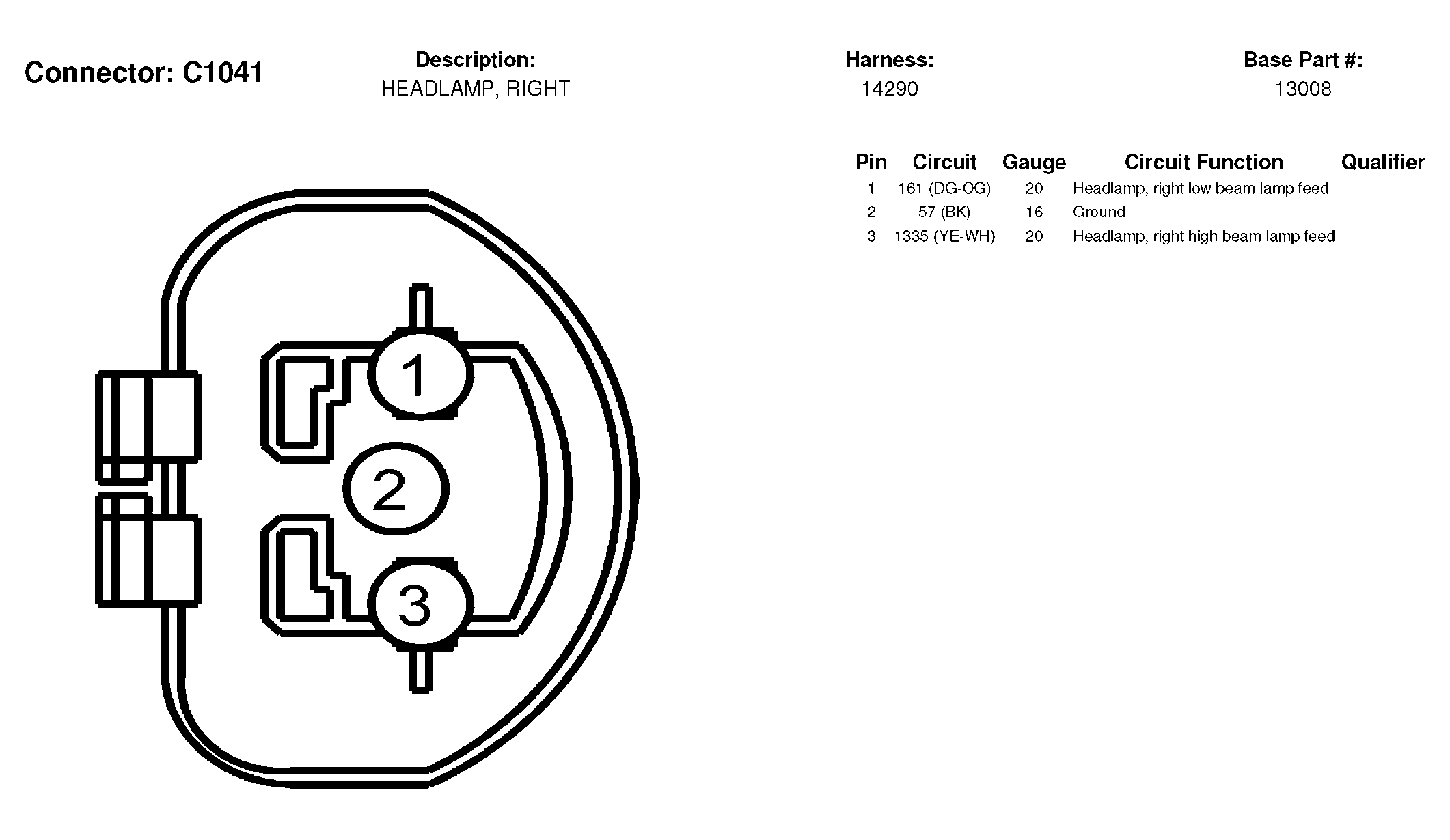

Fig 221: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.

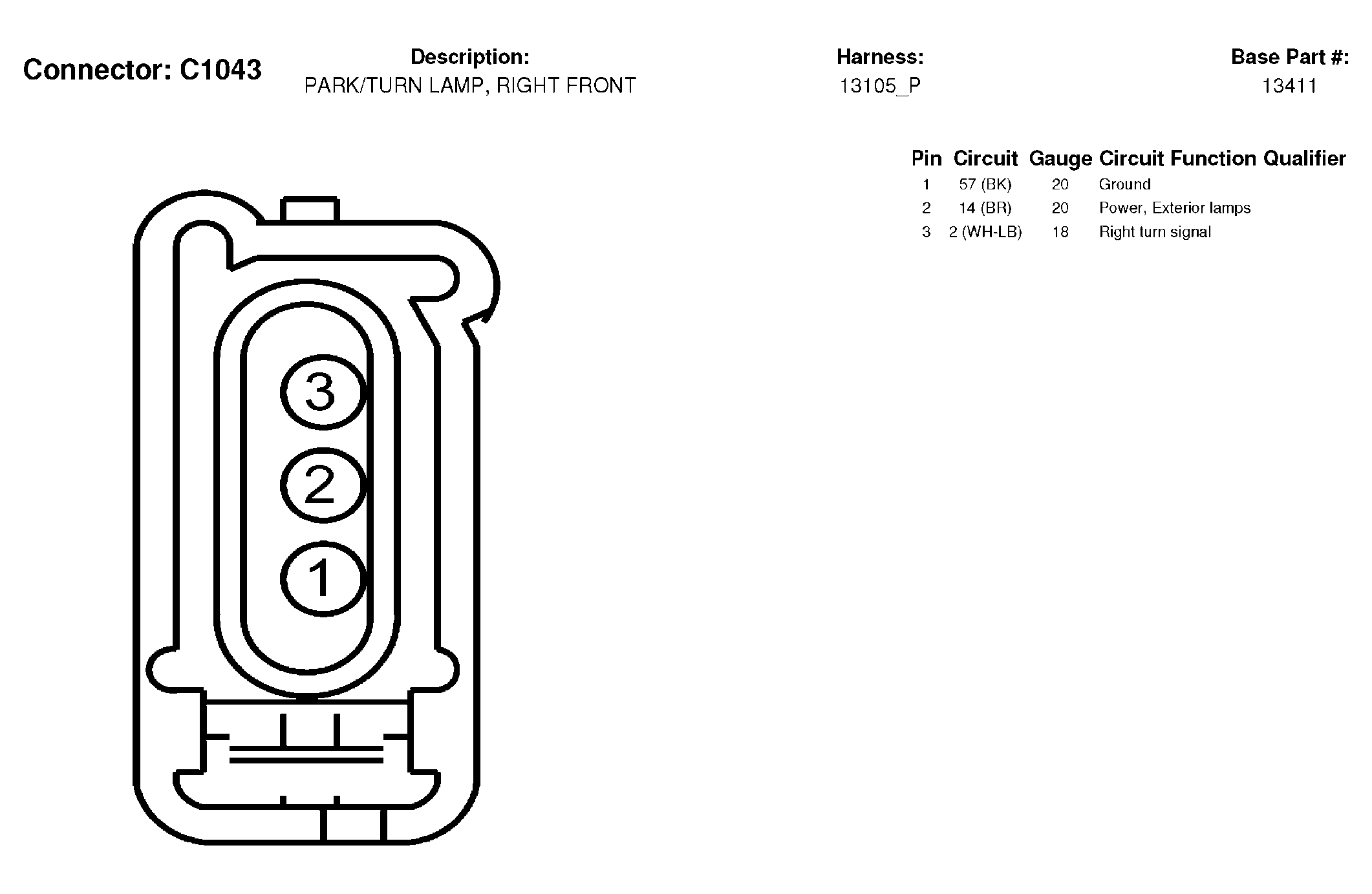

Fig 222: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.

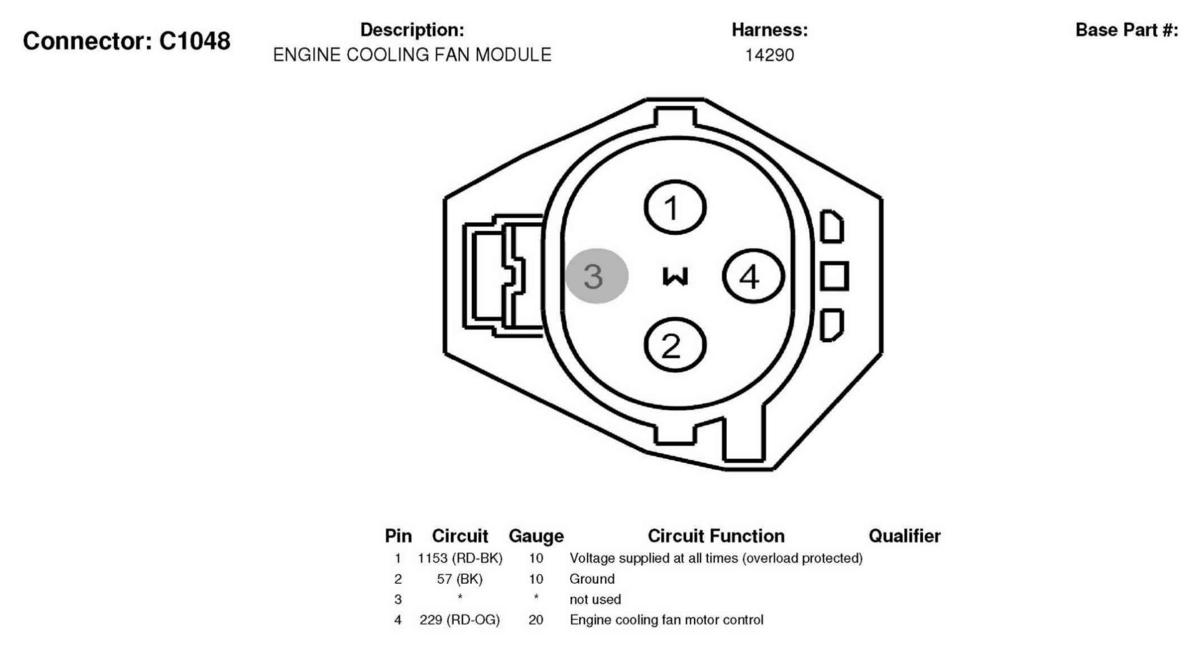

Fig 223: Engine Cooling Fan Module Connector End View (C1048)
Courtesy of FORD MOTOR CO.

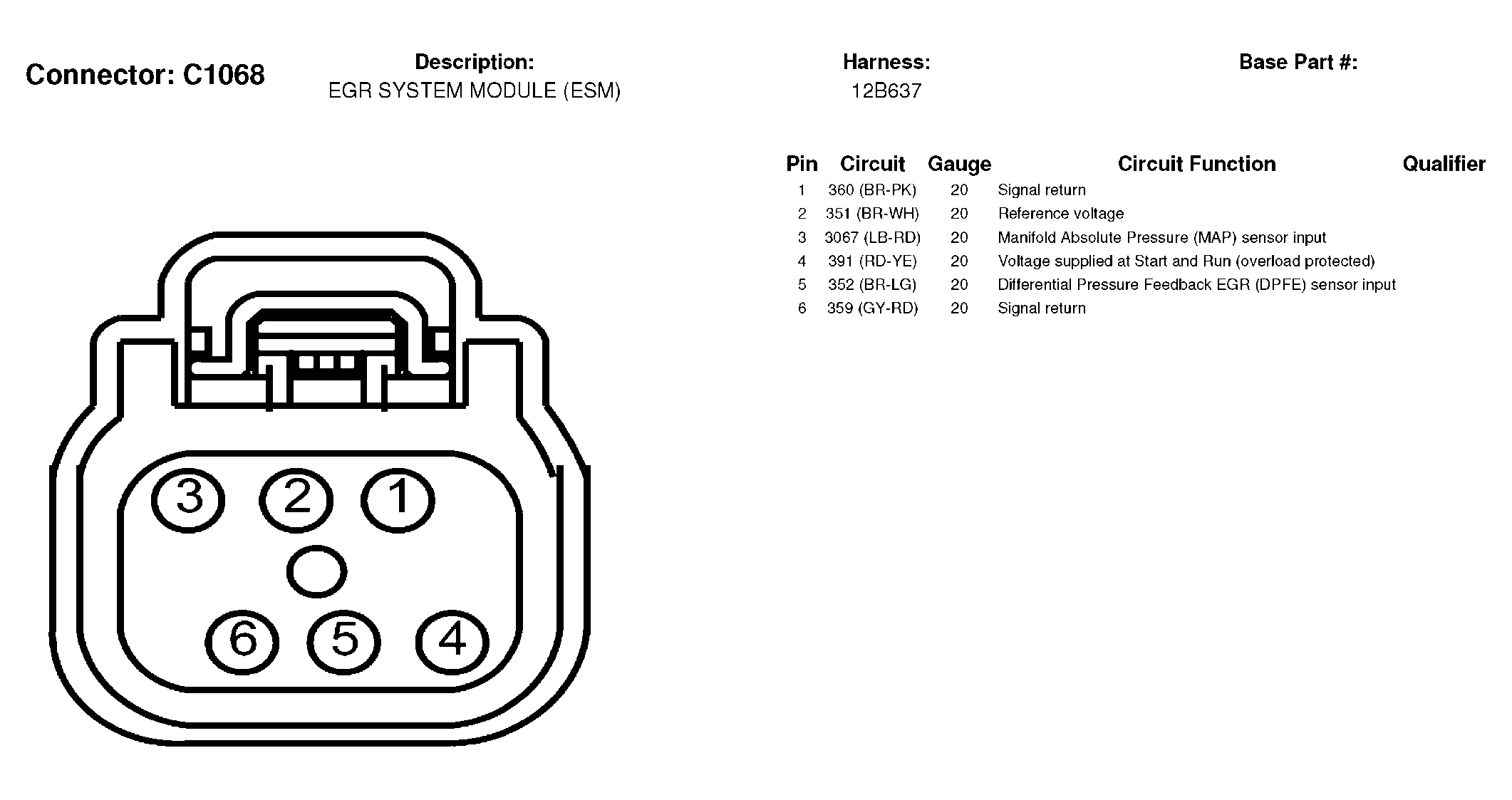

Fig 224: EGR System Module (ESM) Connector End View (C1068)
Courtesy of FORD MOTOR CO.

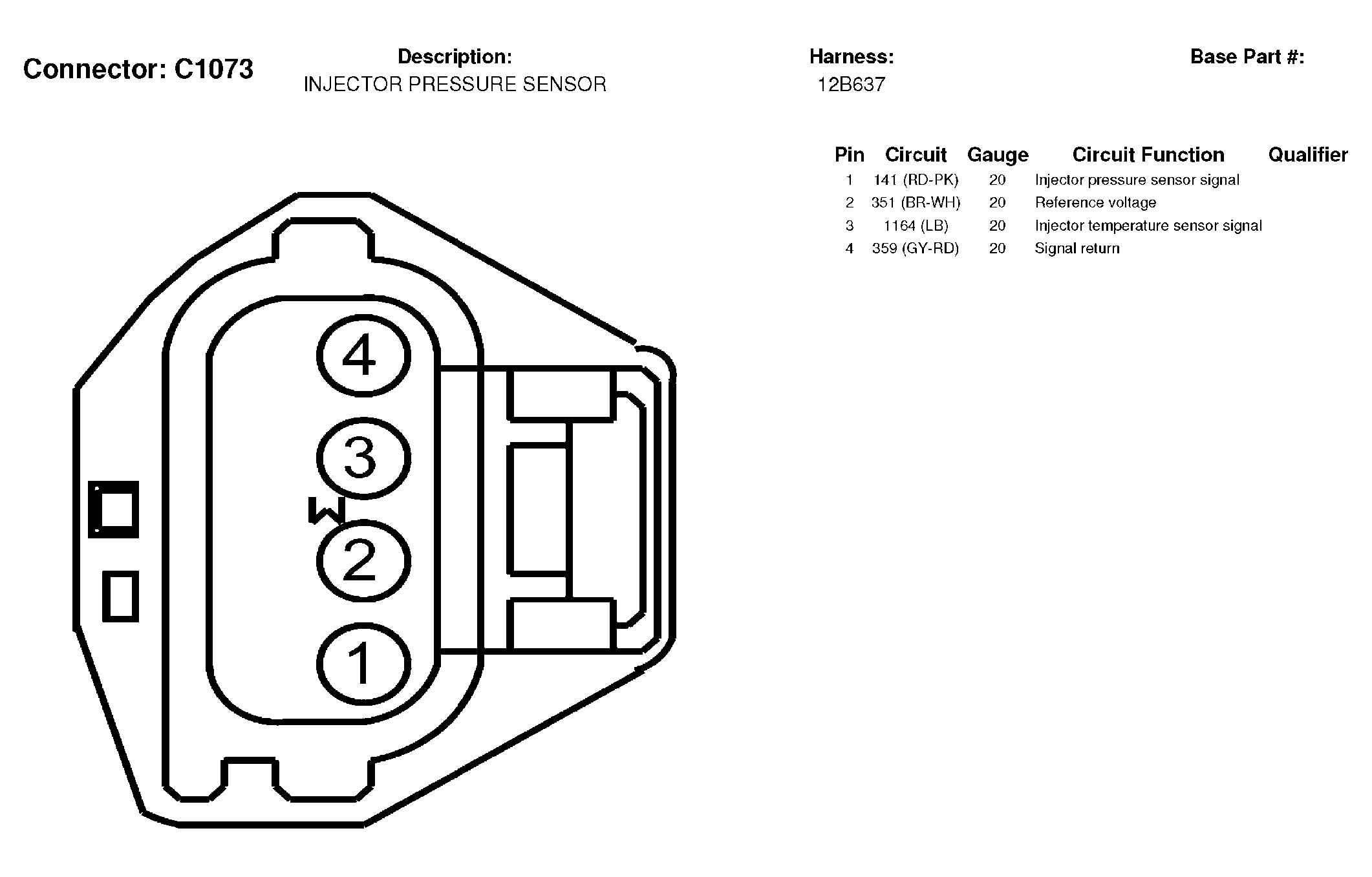

Fig 225: Injector Pressure Sensor Connector End View (C1073)
Courtesy of FORD MOTOR CO.

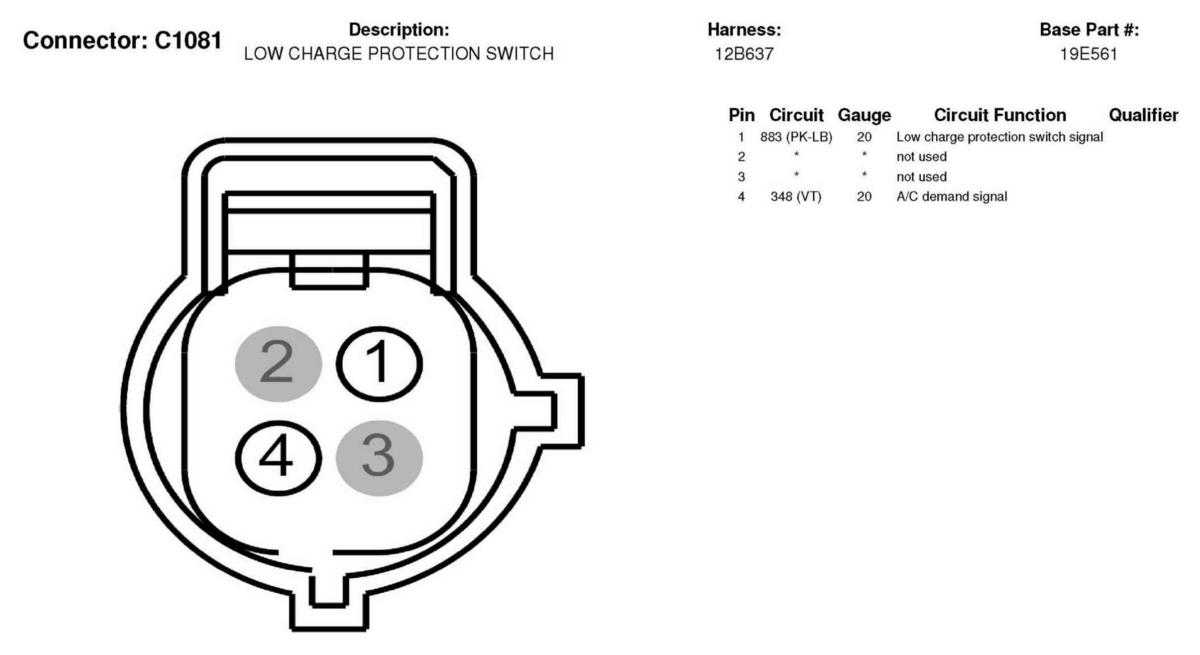

Fig 226: Low Charge Protection Switch Connector End View (C1081)
Courtesy of FORD MOTOR CO.

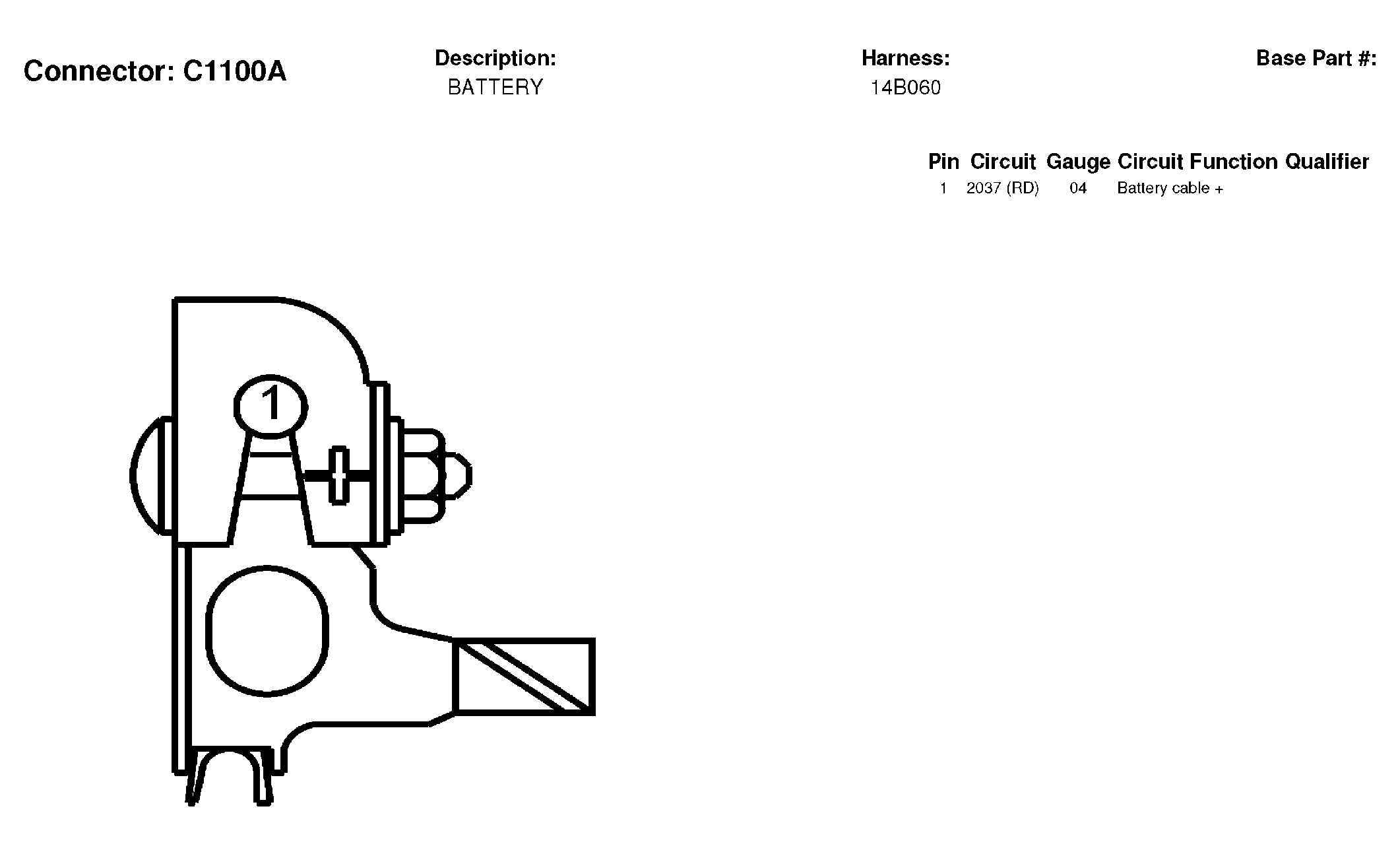

Fig 227: Battery Connector End View (C1100A)
Courtesy of FORD MOTOR CO.

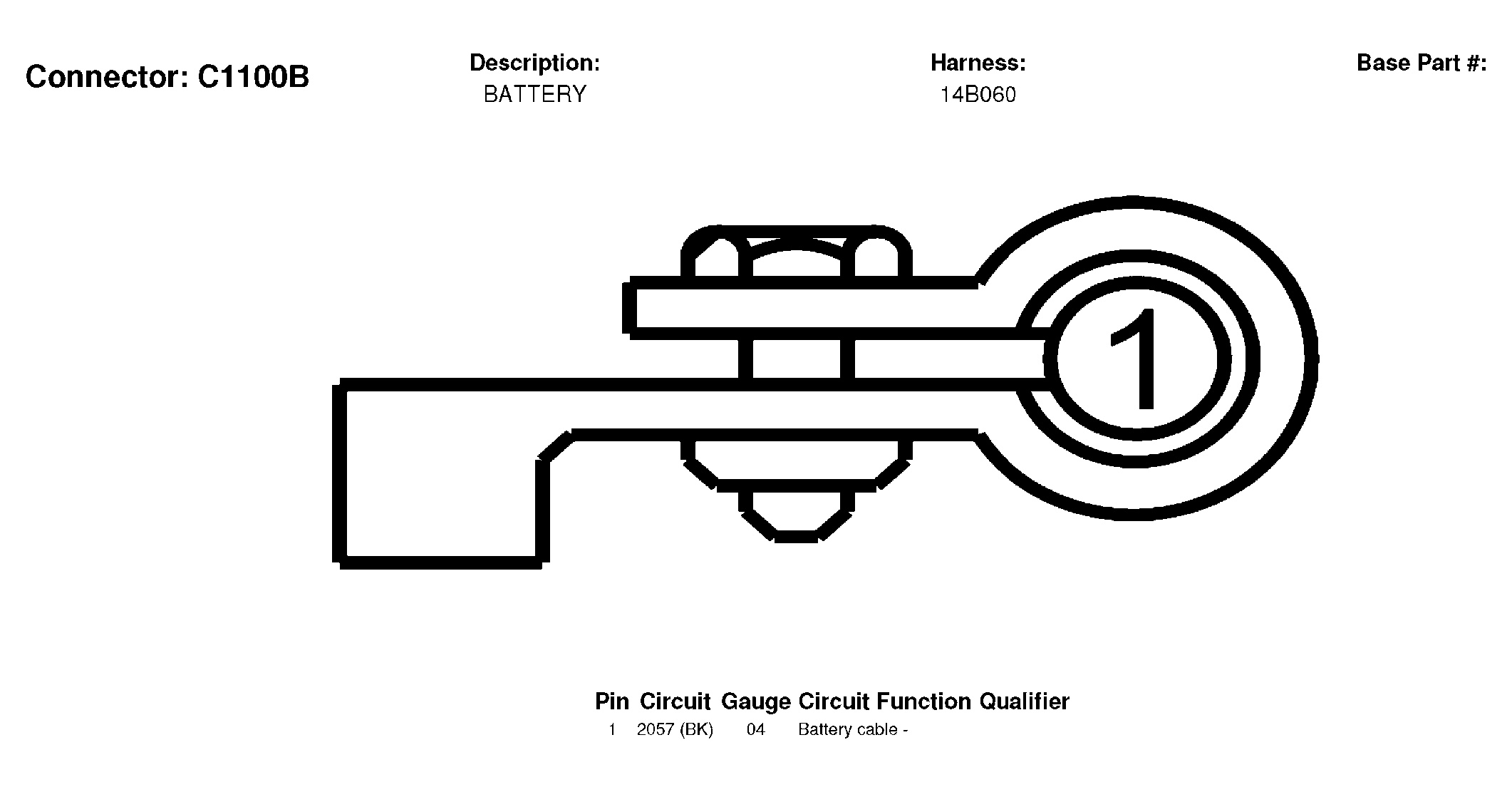

Fig 228: Battery Connector End View (C1100B)
Courtesy of FORD MOTOR CO.

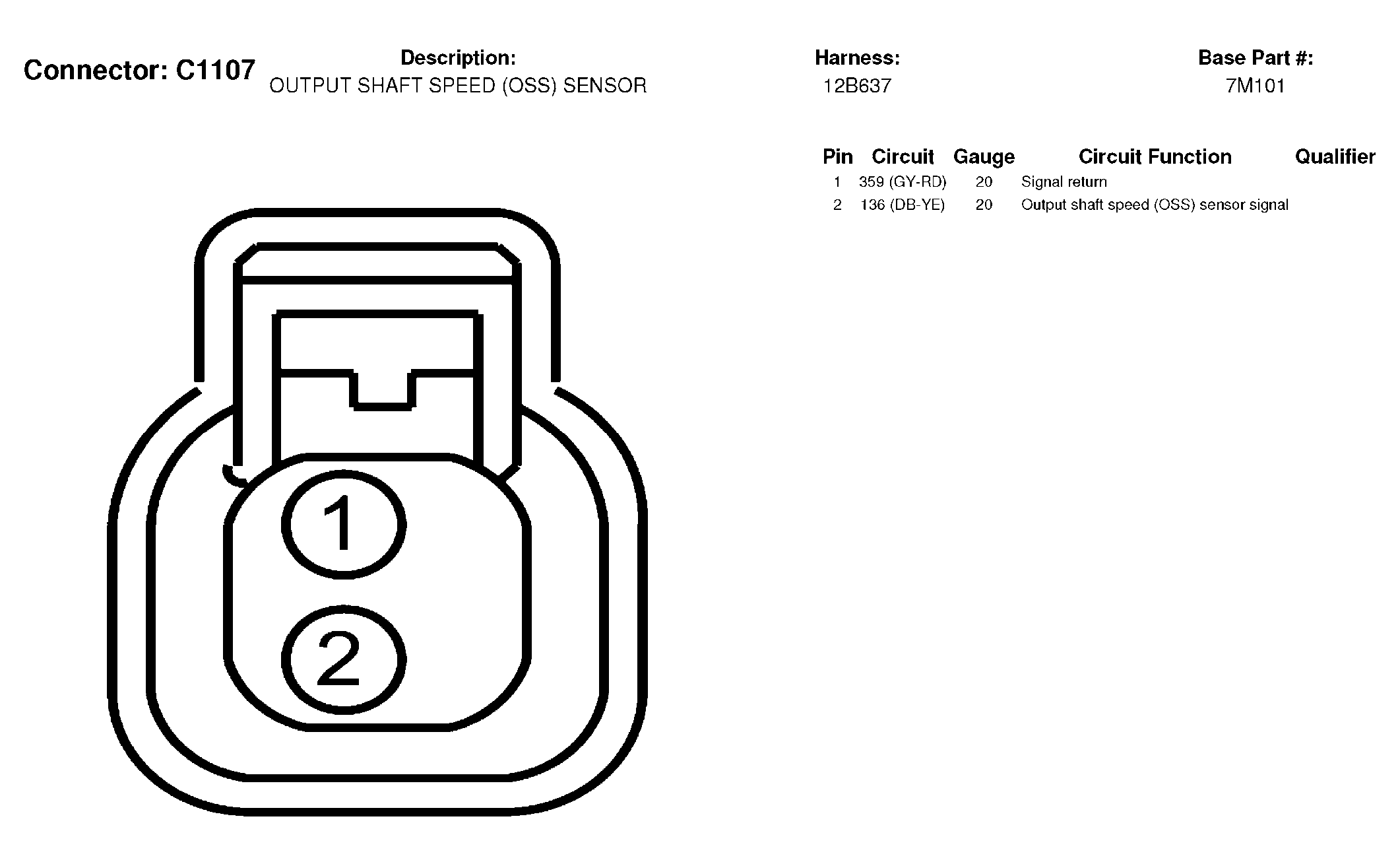

Fig 229: Output Shaft Speed (OSS) Sensor Connector End View (C1107)
Courtesy of FORD MOTOR CO.

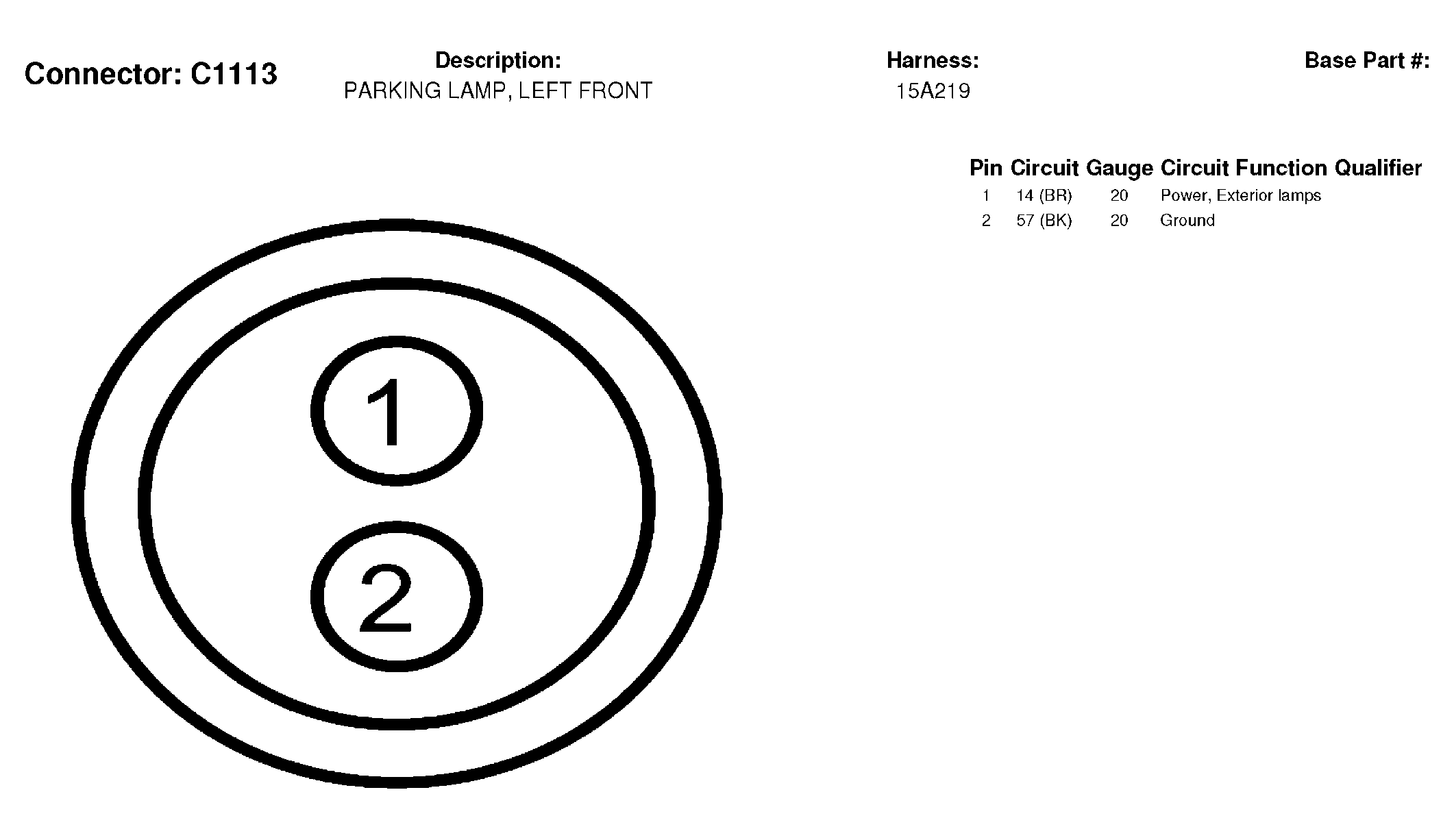

Fig 230: Parking Lamp, Left Front Connector End View (C1113)
Courtesy of FORD MOTOR CO.

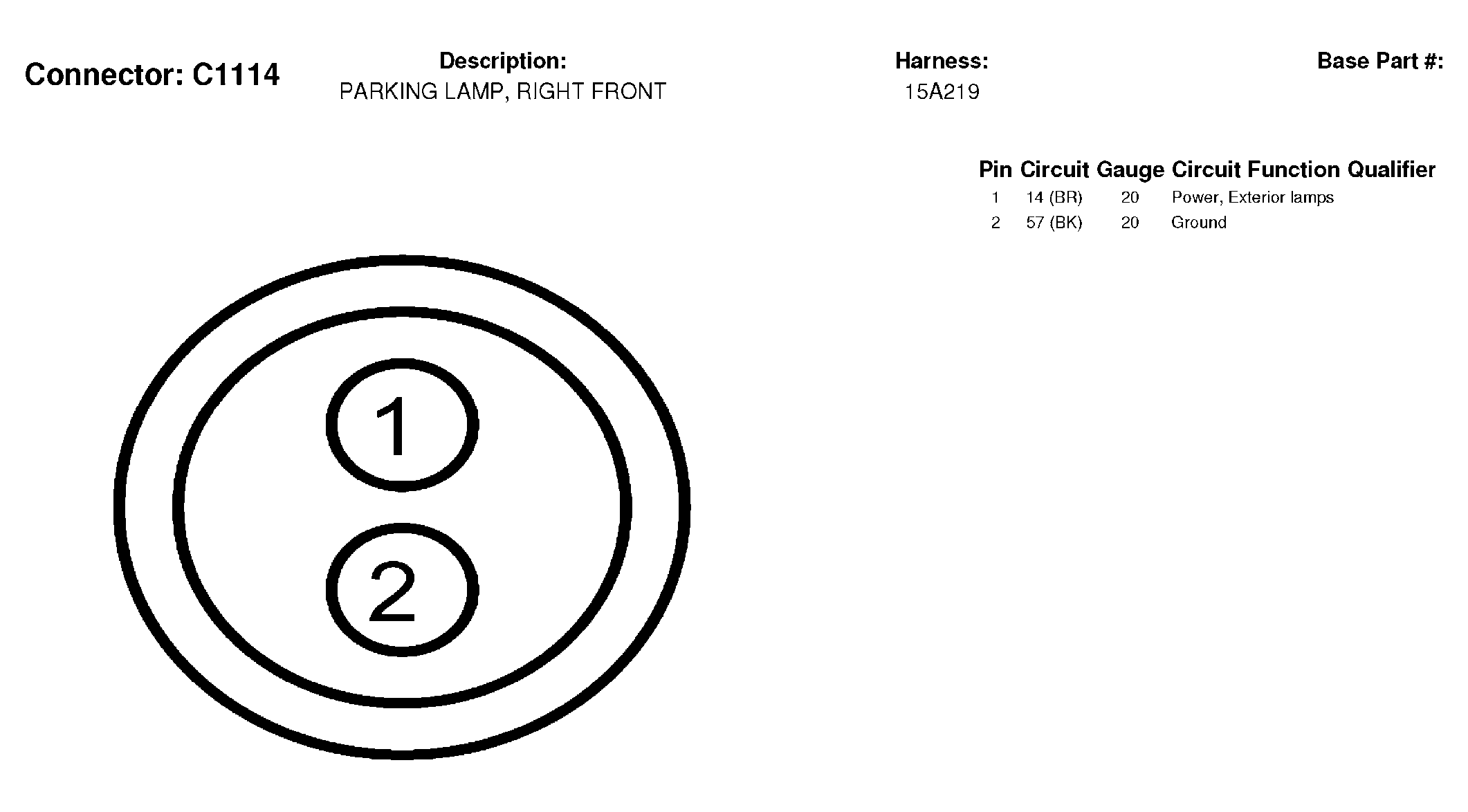

Fig 231: Parking Lamp, Right Front Connector End View (C1114)
Courtesy of FORD MOTOR CO.

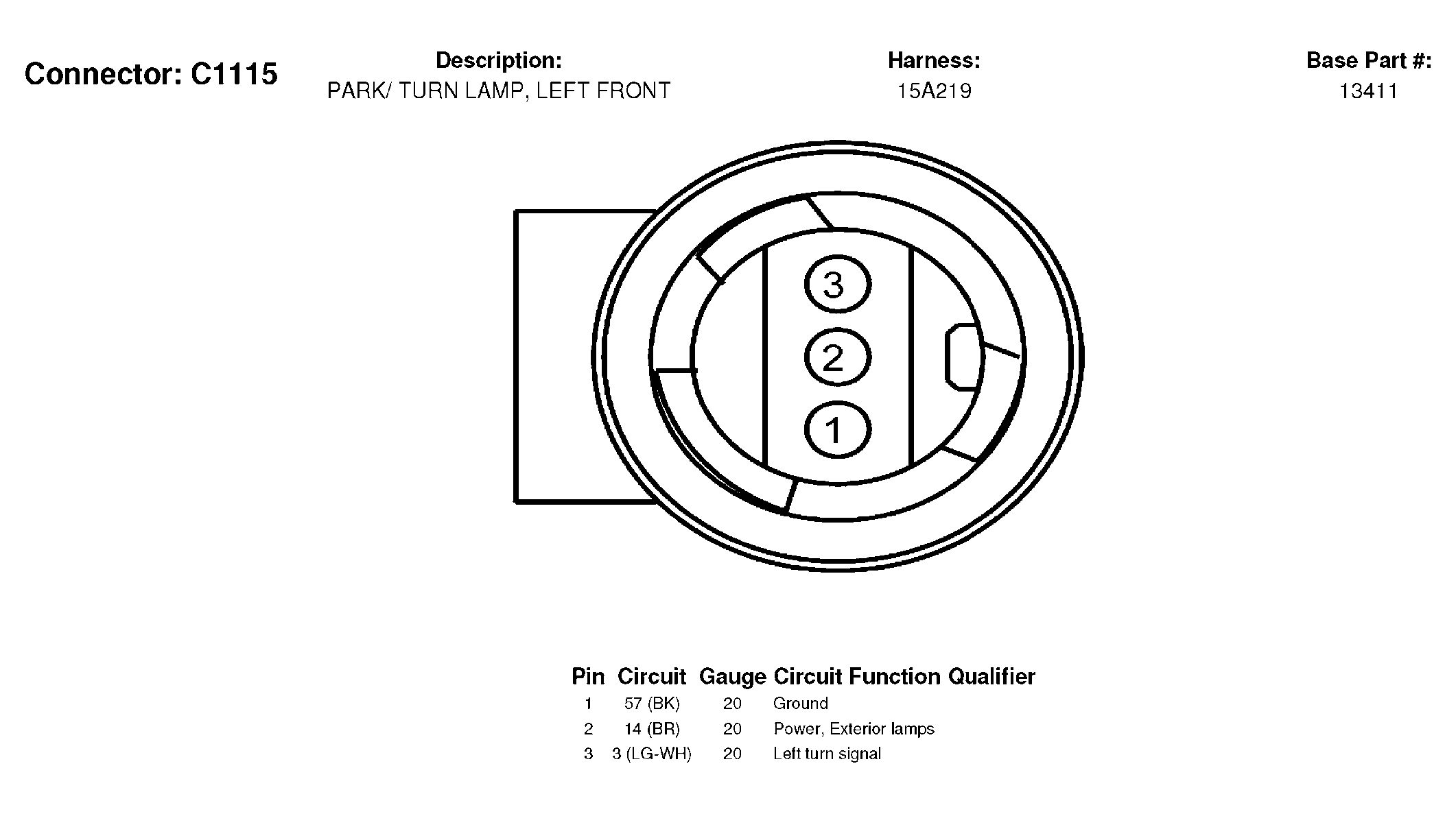

Fig 232: Park/Turn Lamp, Left Front Connector End View (C1115)
Courtesy of FORD MOTOR CO.

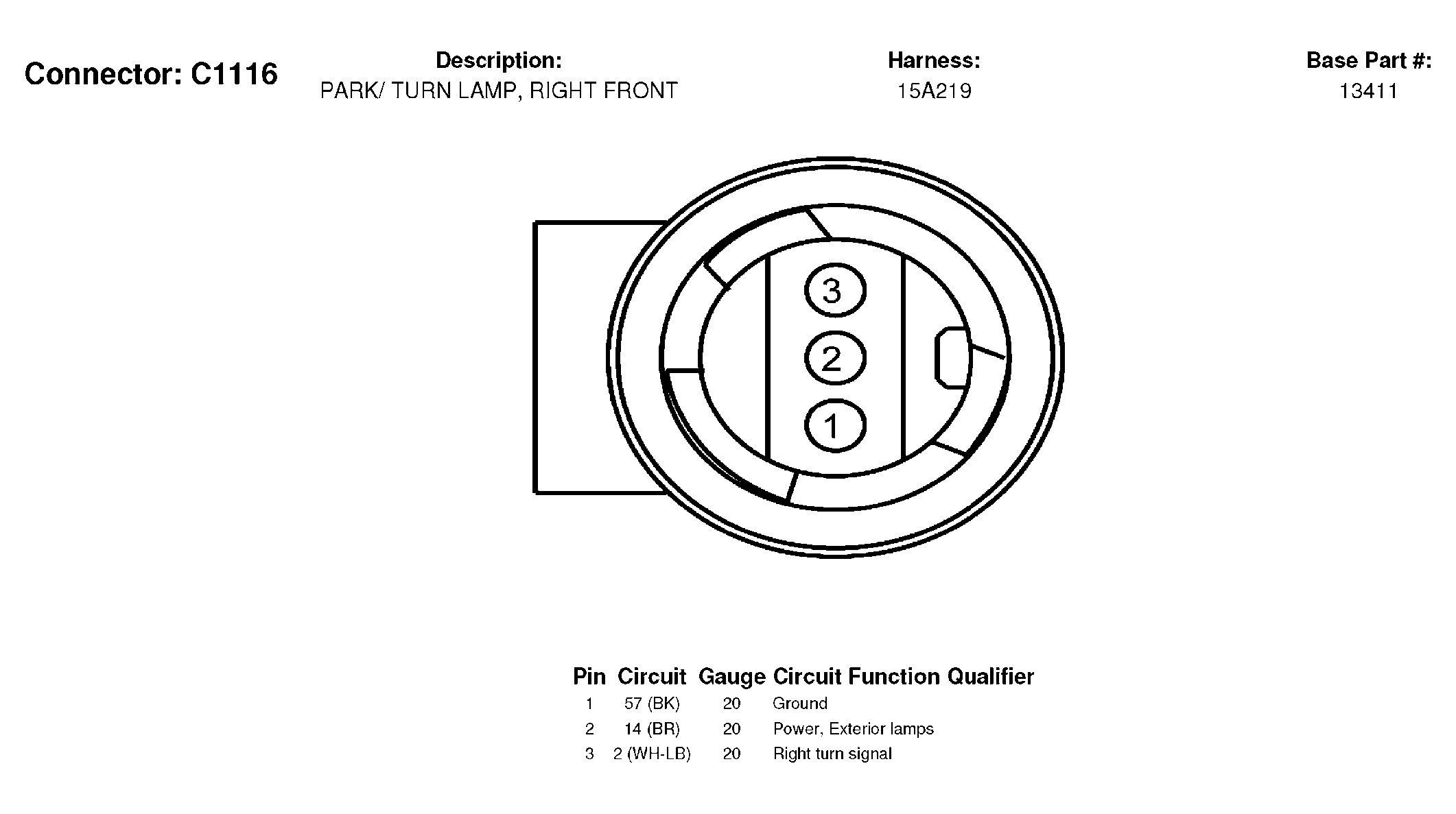

Fig 233: Park/Turn Lamp, Right Front Connector End View (C1116)
Courtesy of FORD MOTOR CO.

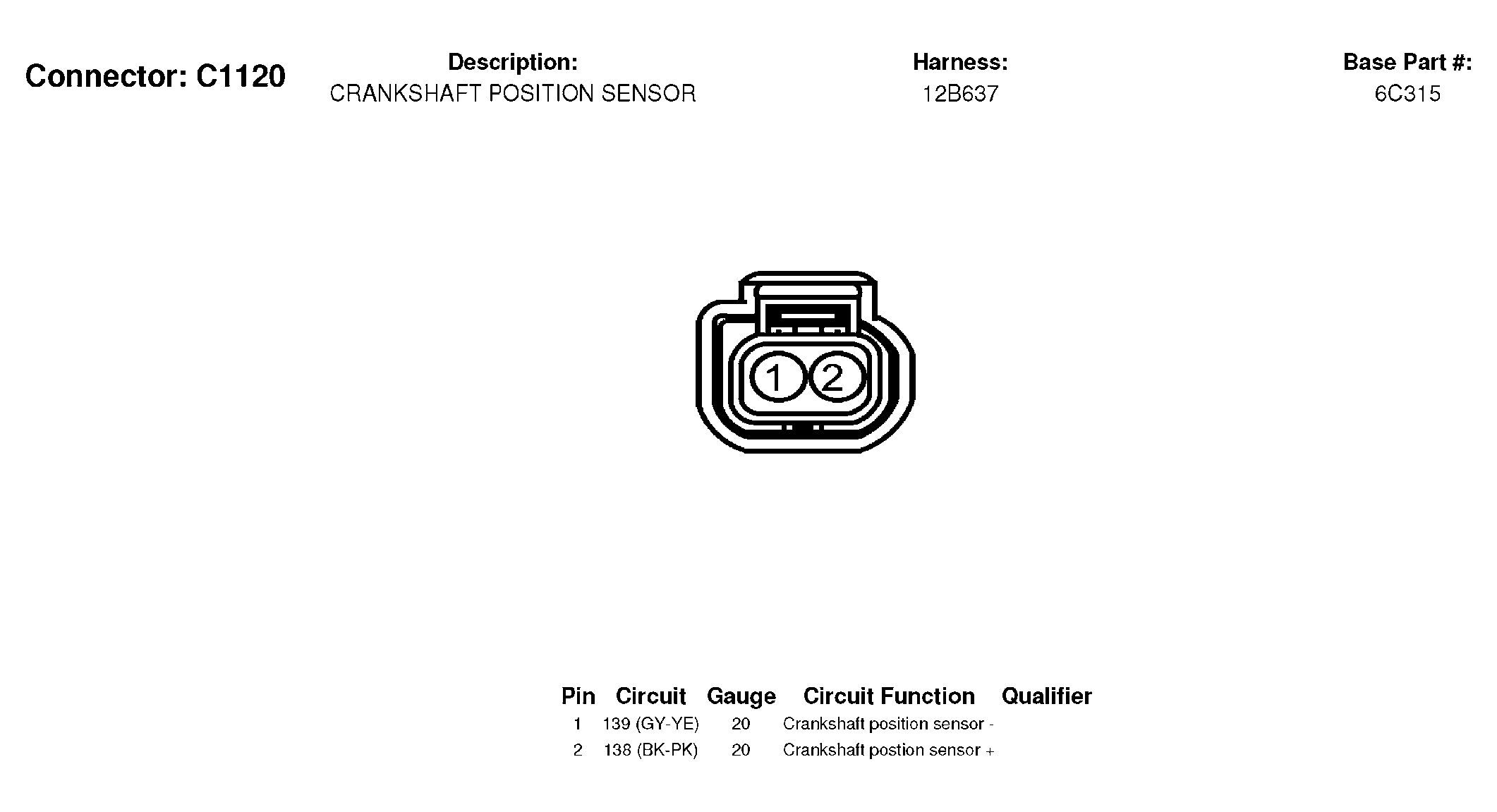

Fig 234: Crankshaft Position Sensor Connector End View (C1120)
Courtesy of FORD MOTOR CO.

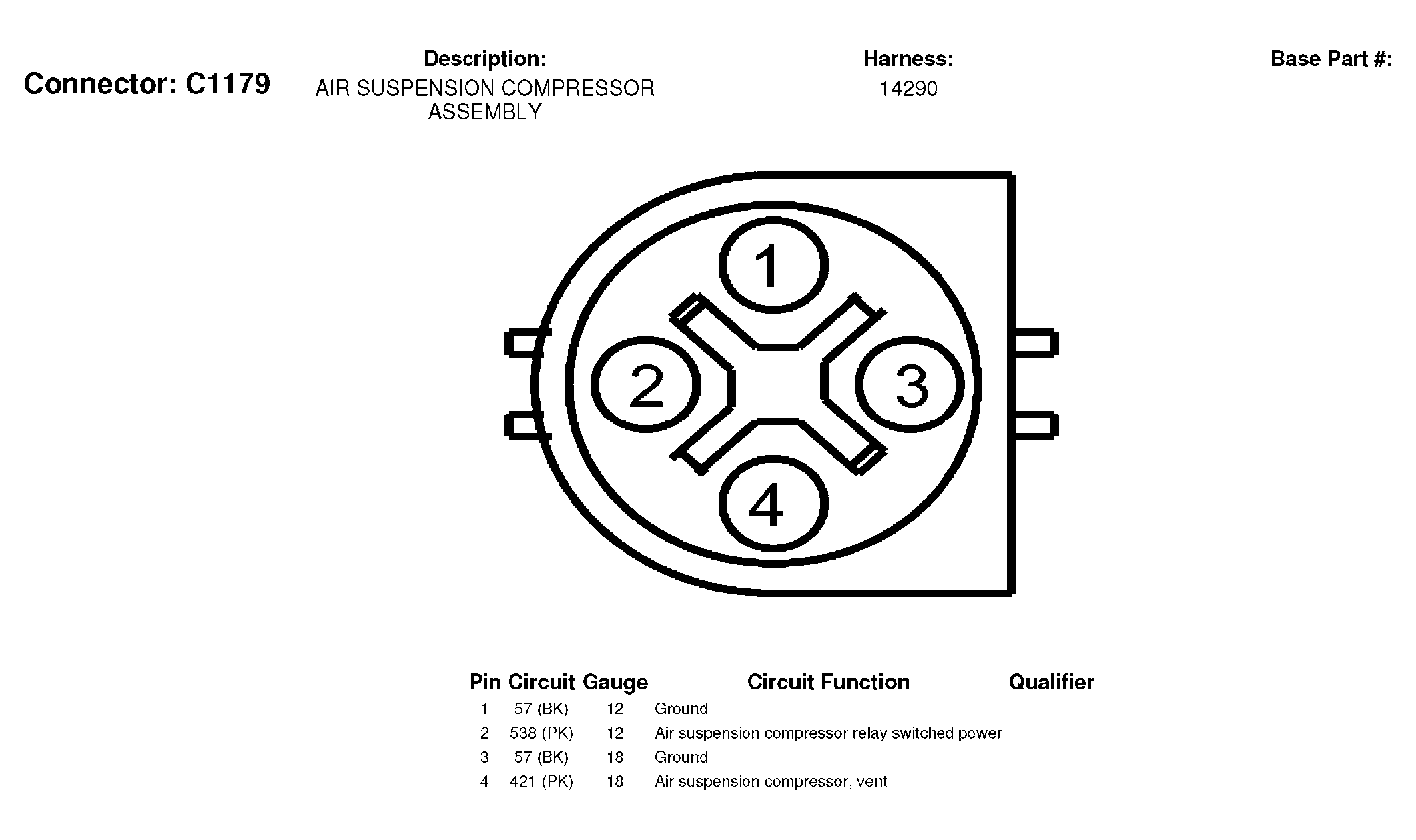

Fig 235: Air Suspension Compressor Assembly Connector End View (C1179)
Courtesy of FORD MOTOR CO.

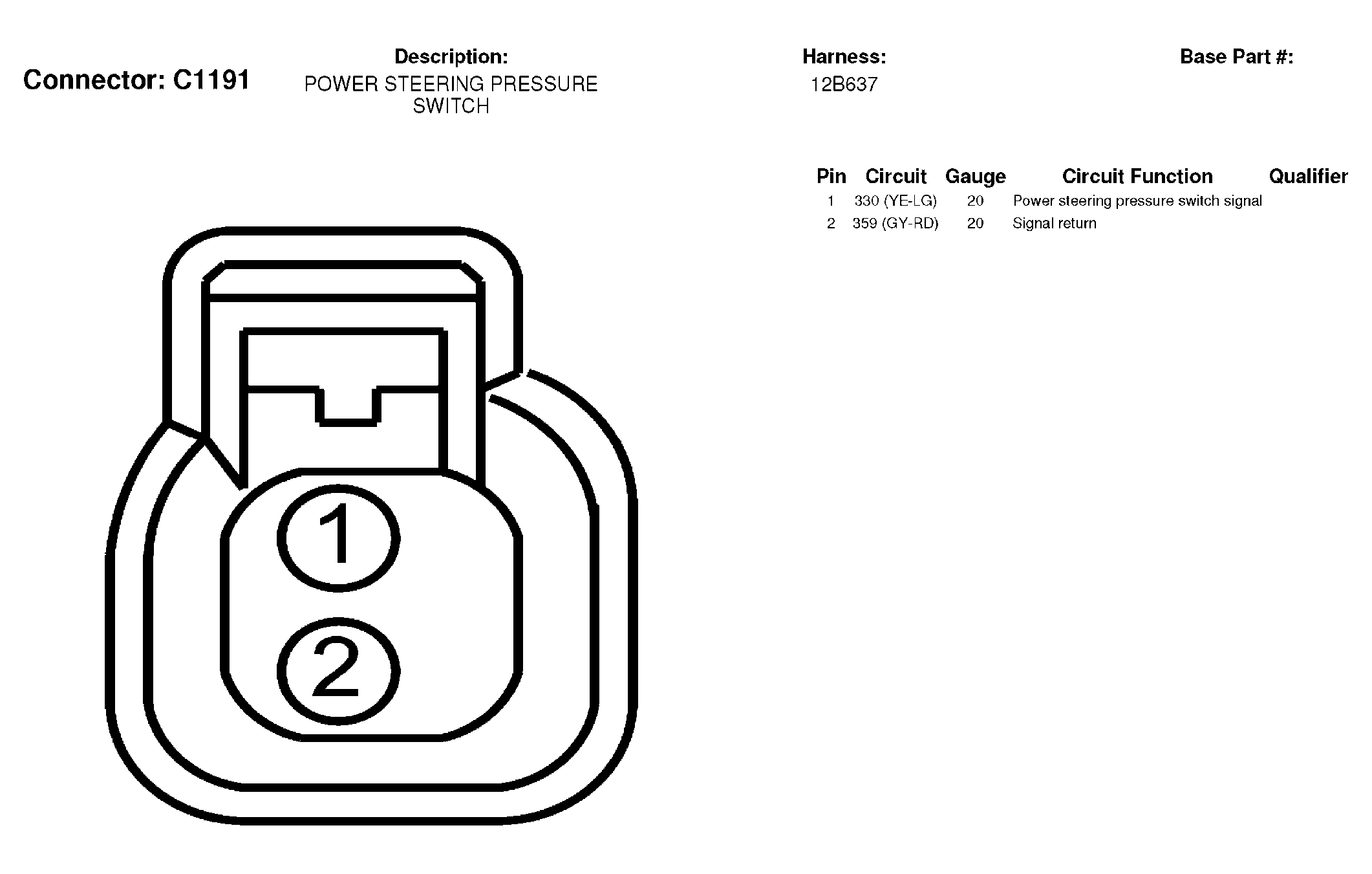

Fig 236: Power Steering Pressure Switch Connector End View (C1191)
Courtesy of FORD MOTOR CO.

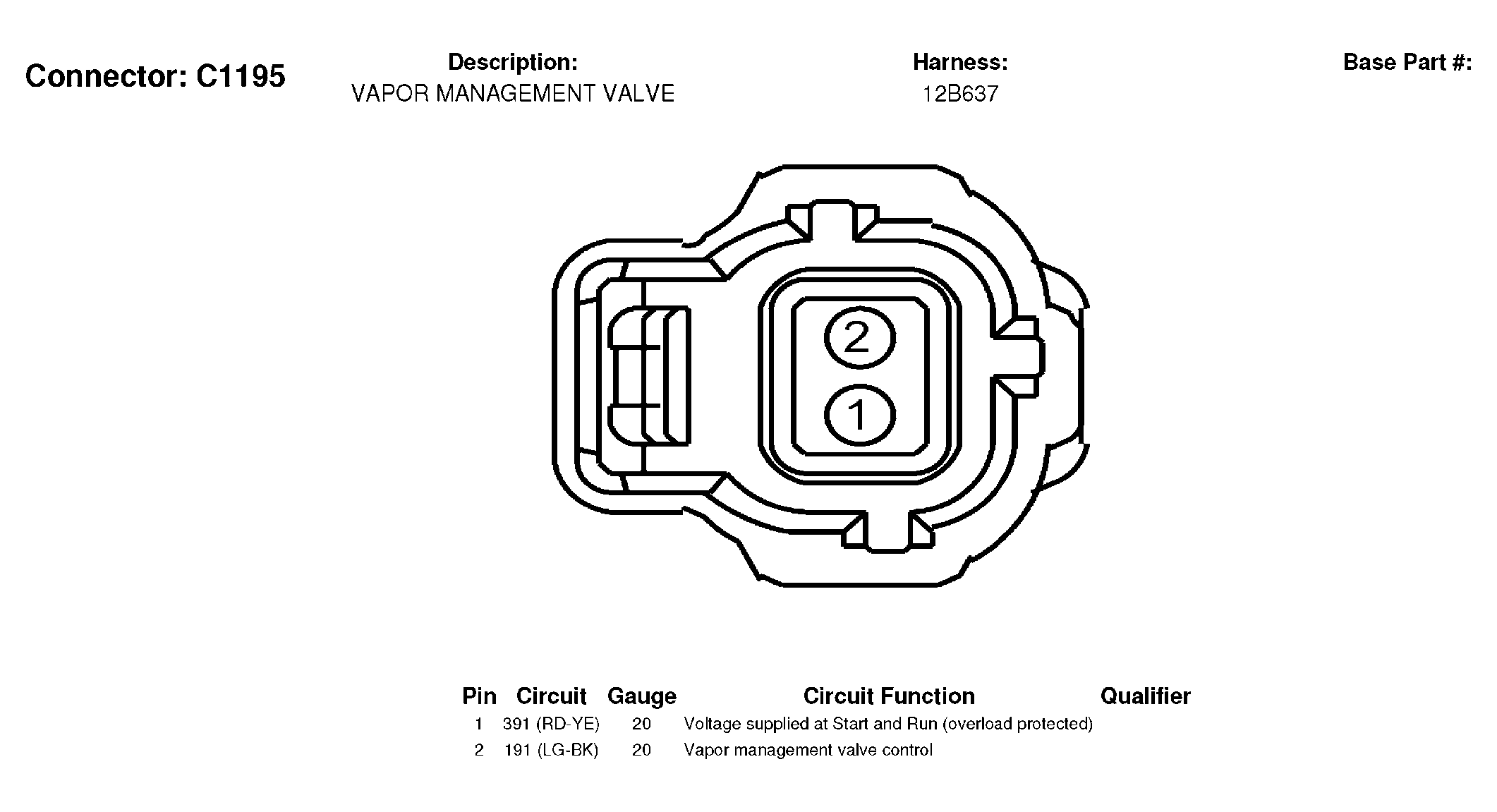

Fig 237: Vapor Management Valve Connector End View (C1195)
Courtesy of FORD MOTOR CO.

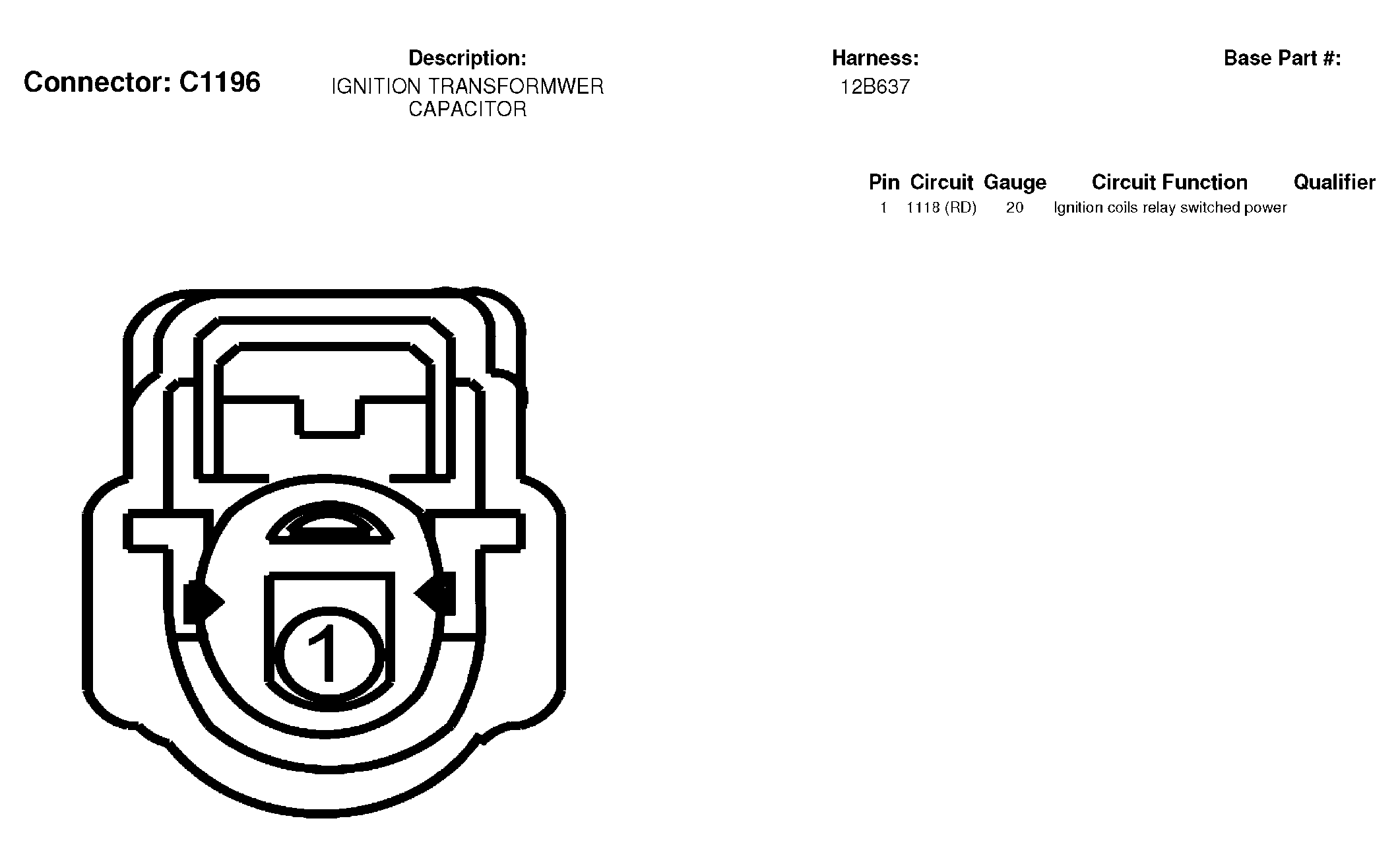

Fig 238: Ignition Transformer Capacitor Connector End View (C1196)
Courtesy of FORD MOTOR CO.

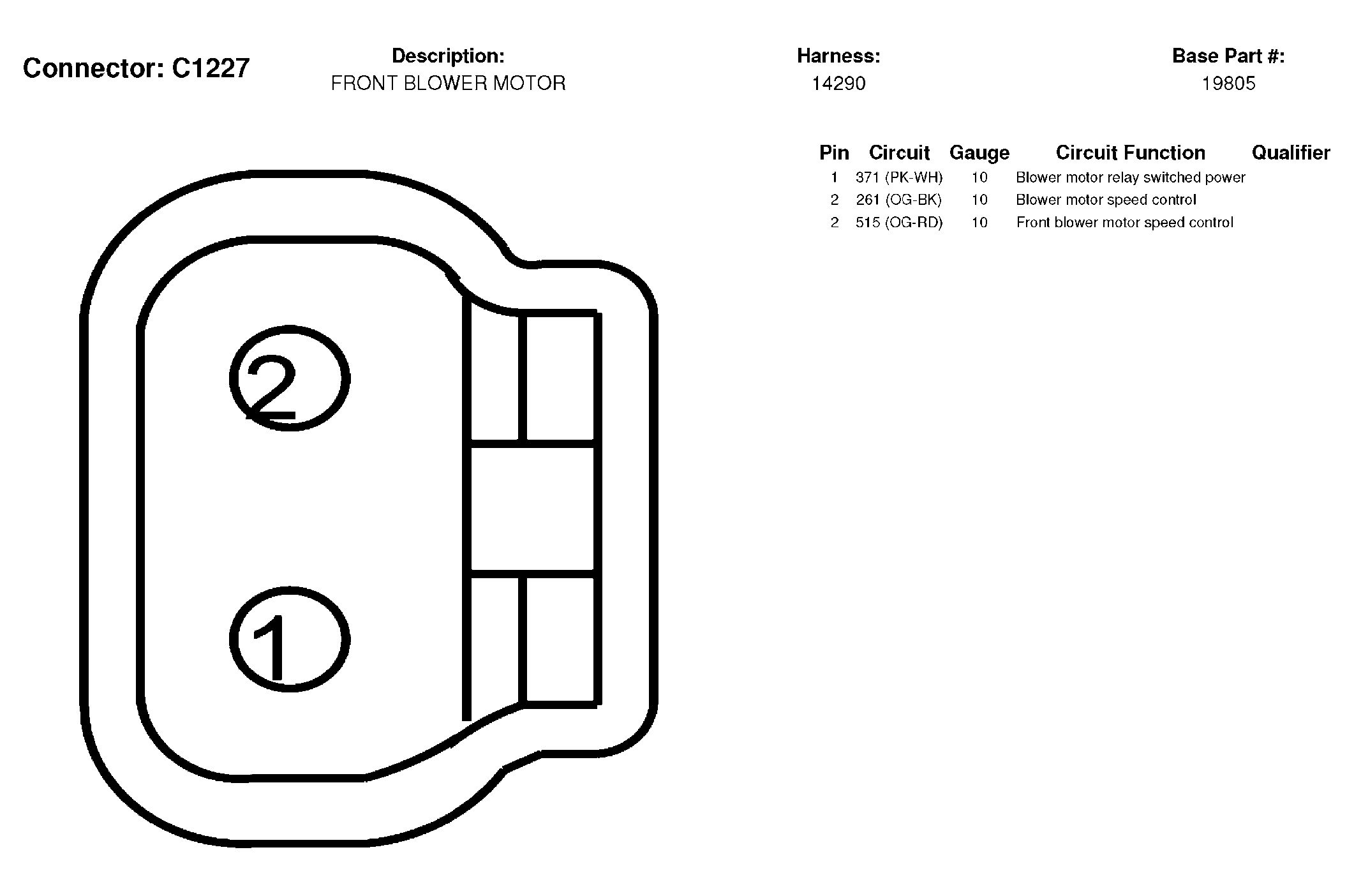

Fig 239: Front Blower Motor Connector End View (C1227)
Courtesy of FORD MOTOR CO.

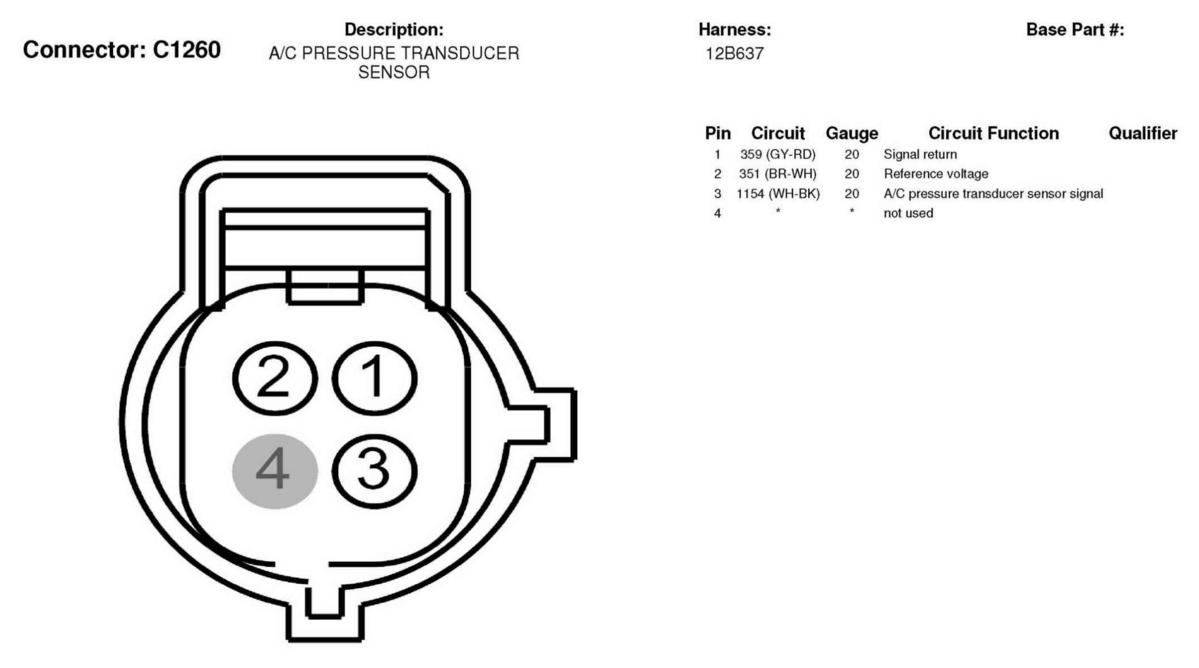

Fig 240: A/C Pressure Transducer Sensor Connector End View (C1260)
Courtesy of FORD MOTOR CO.

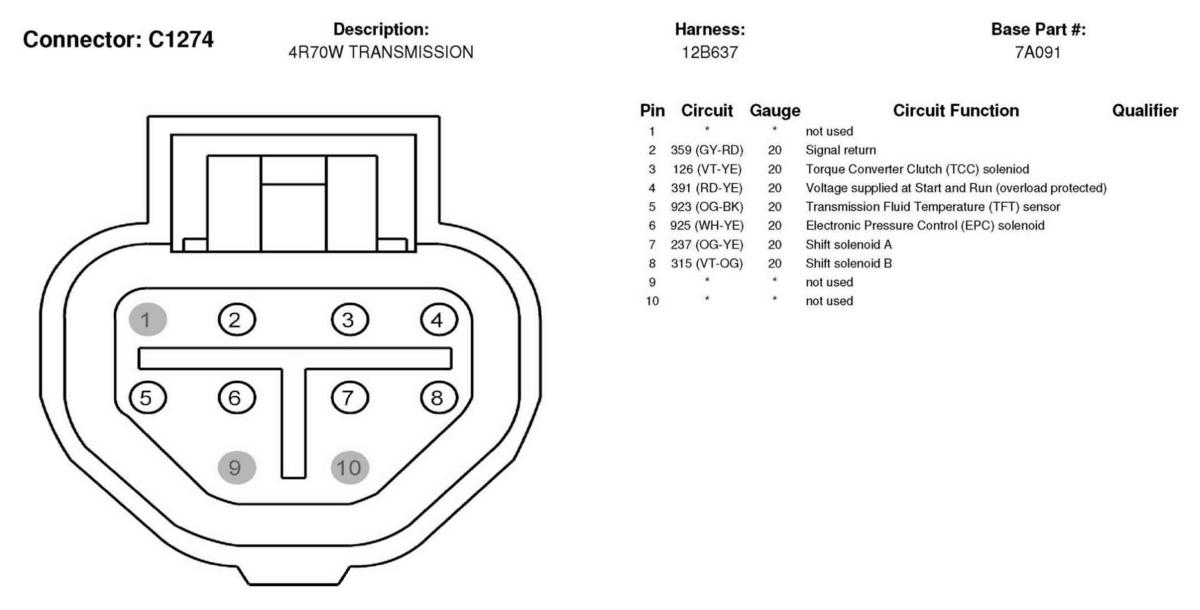

Fig 241: 4R70W Transmission Connector End View (C1274)
Courtesy of FORD MOTOR CO.

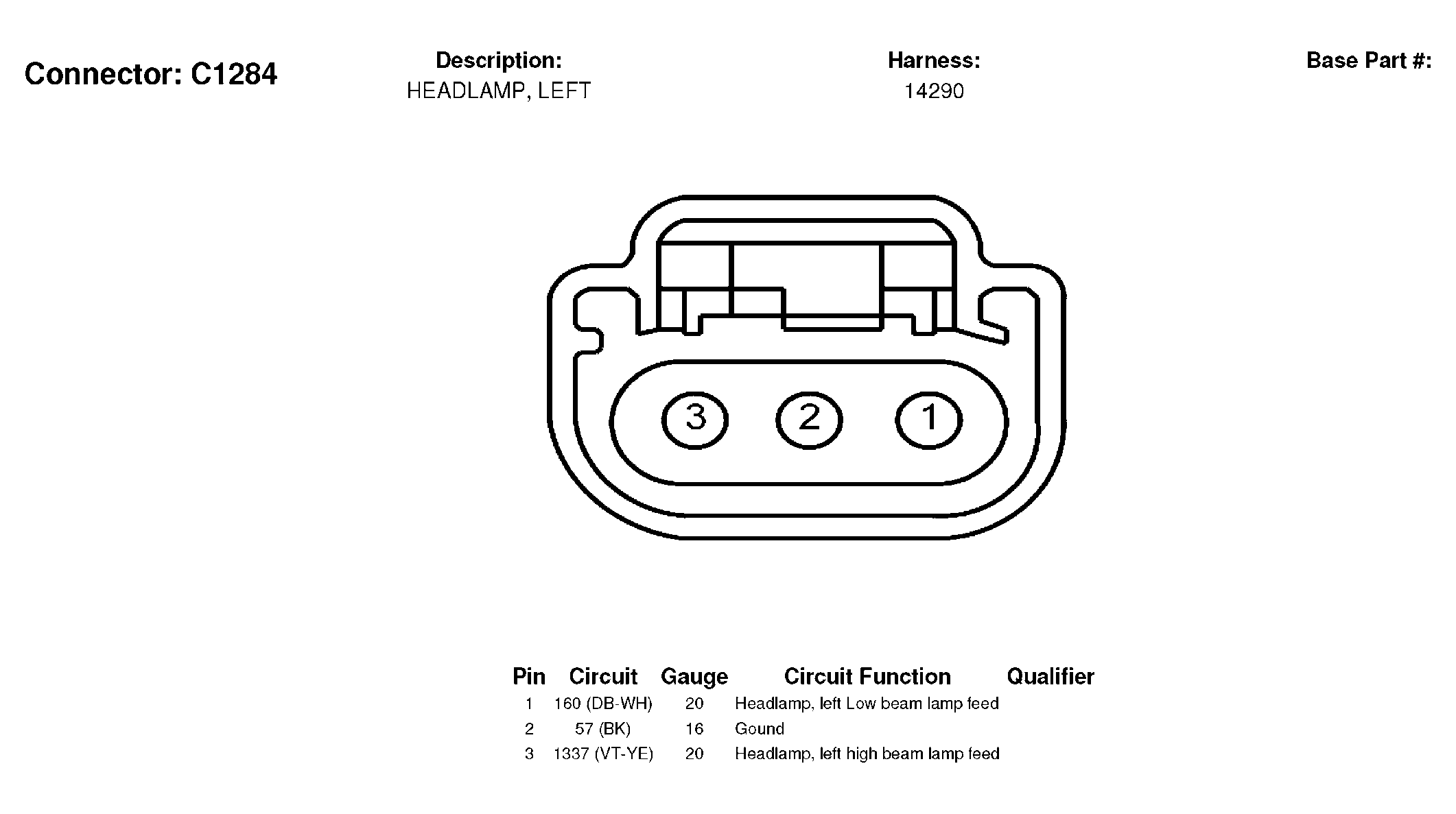

Fig 242: Headlamp, Left Connector End View (C1284)
Courtesy of FORD MOTOR CO.

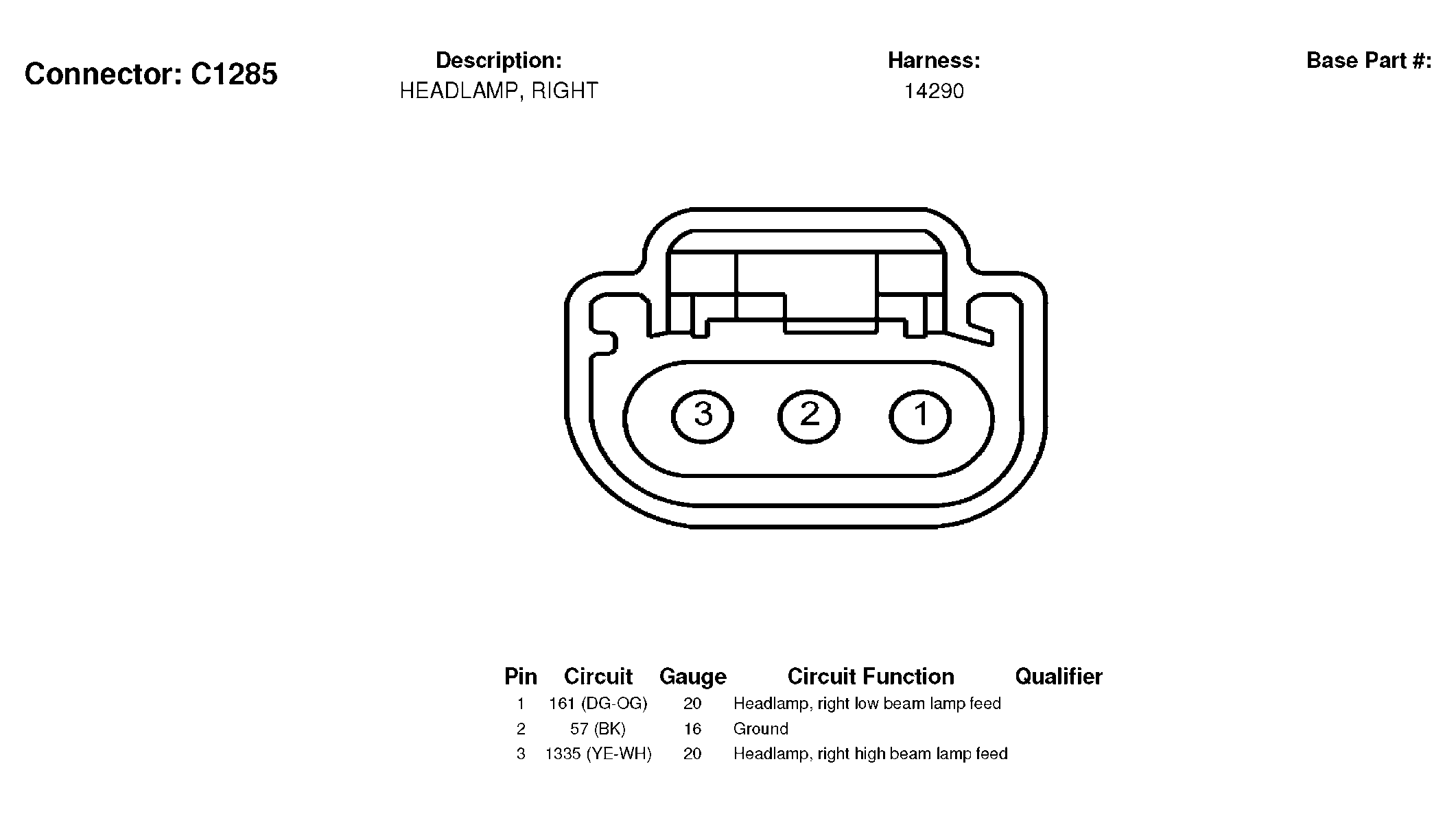

Fig 243: Headlamp, Right Connector End View (C1285)
Courtesy of FORD MOTOR CO.

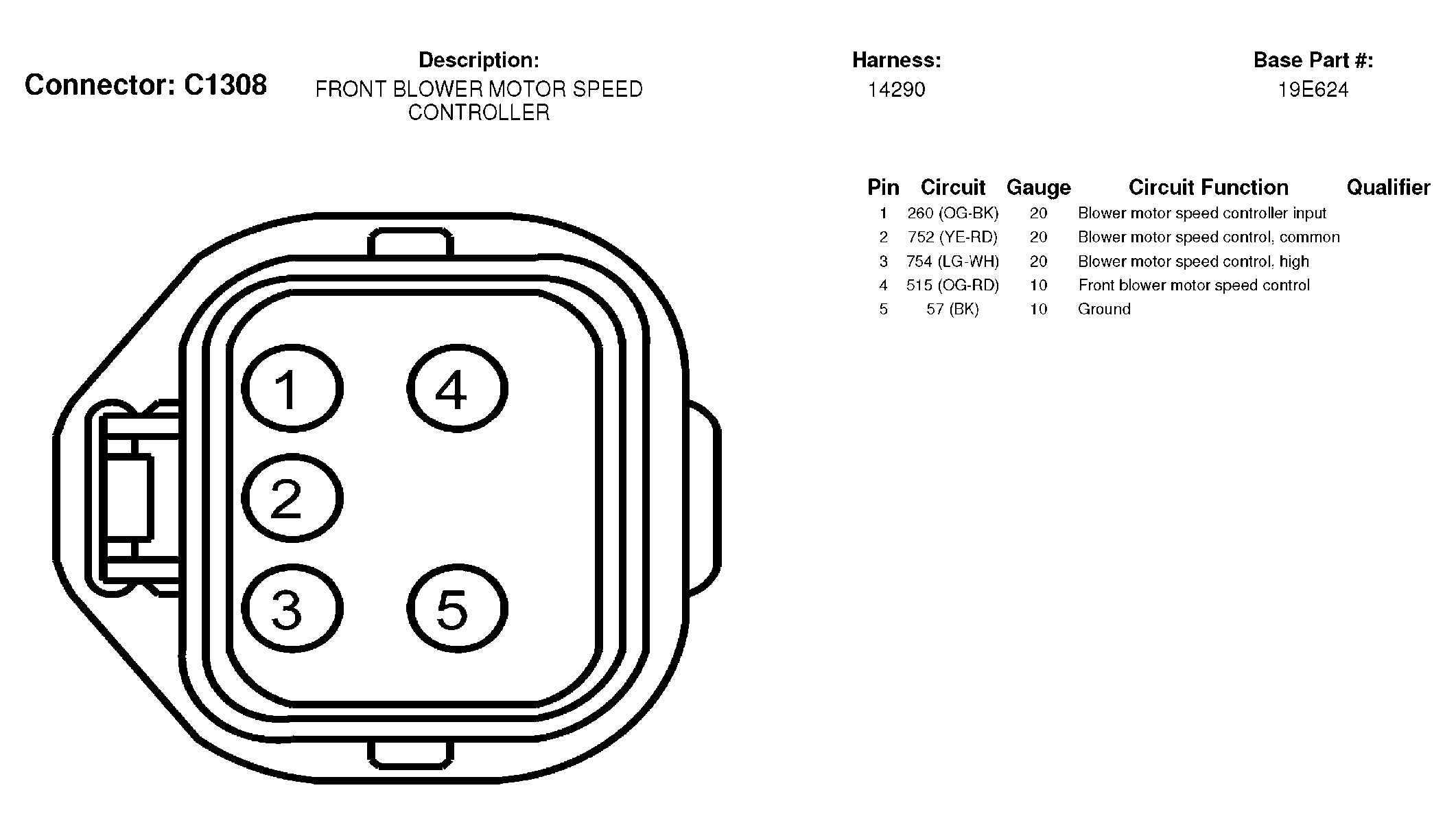

Fig 244: Front Blower Motor Speed Controller Connector End View (C1308)
Courtesy of FORD MOTOR CO.

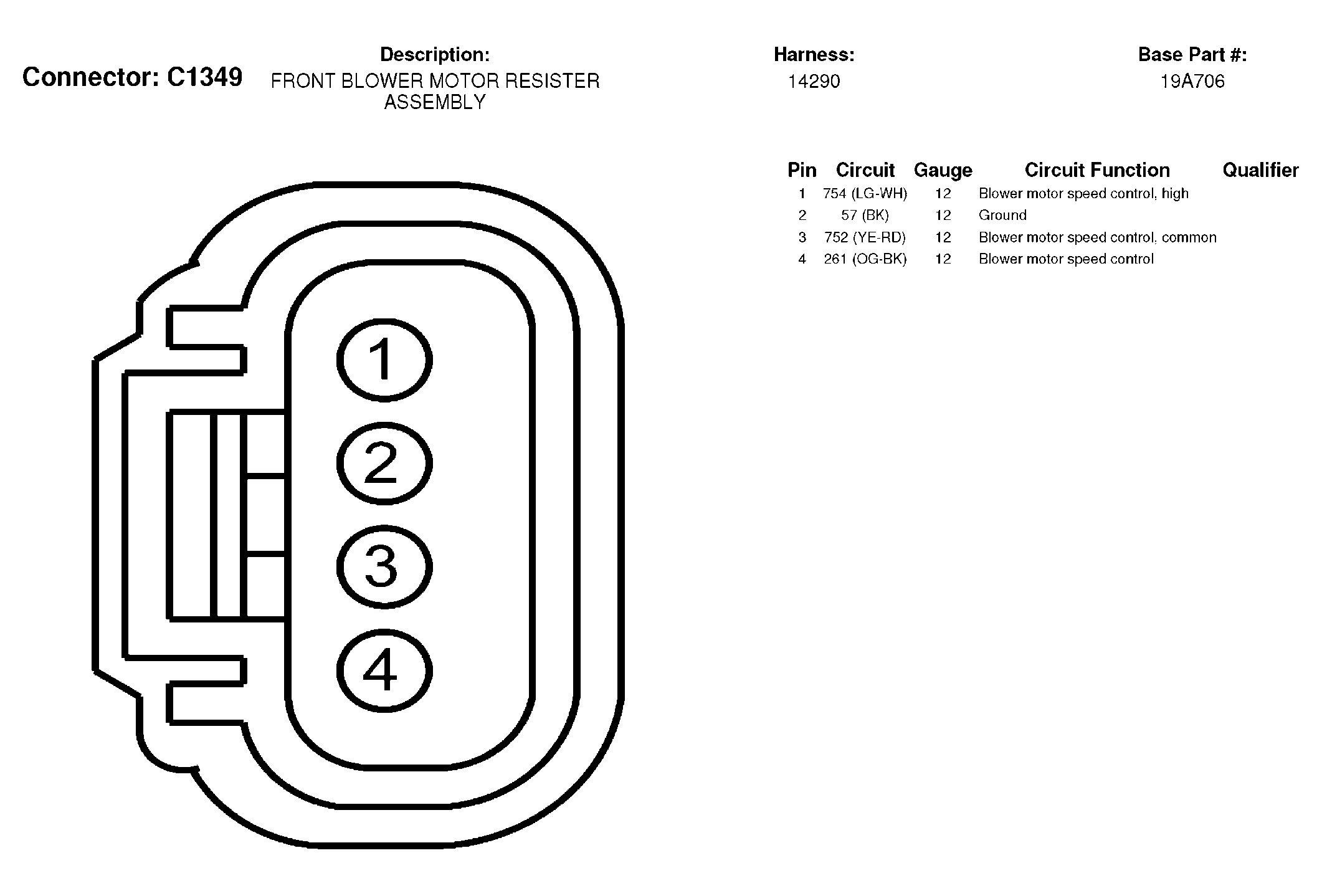

Fig 245: Front Blower Motor Resister Assembly Connector End View (C1349)
Courtesy of FORD MOTOR CO.

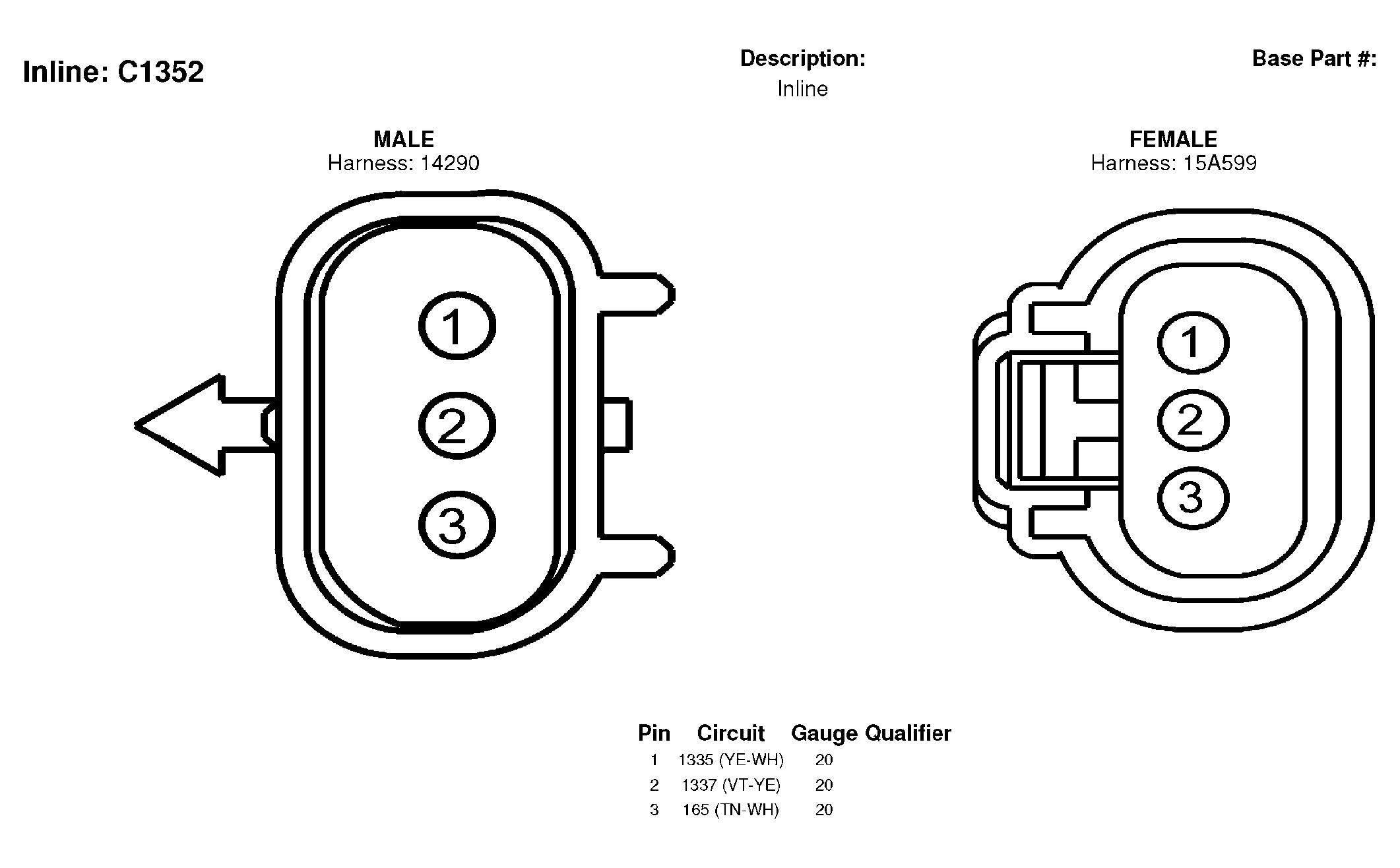

Fig 246: Inline Connector End View (C1352)
Courtesy of FORD MOTOR CO.

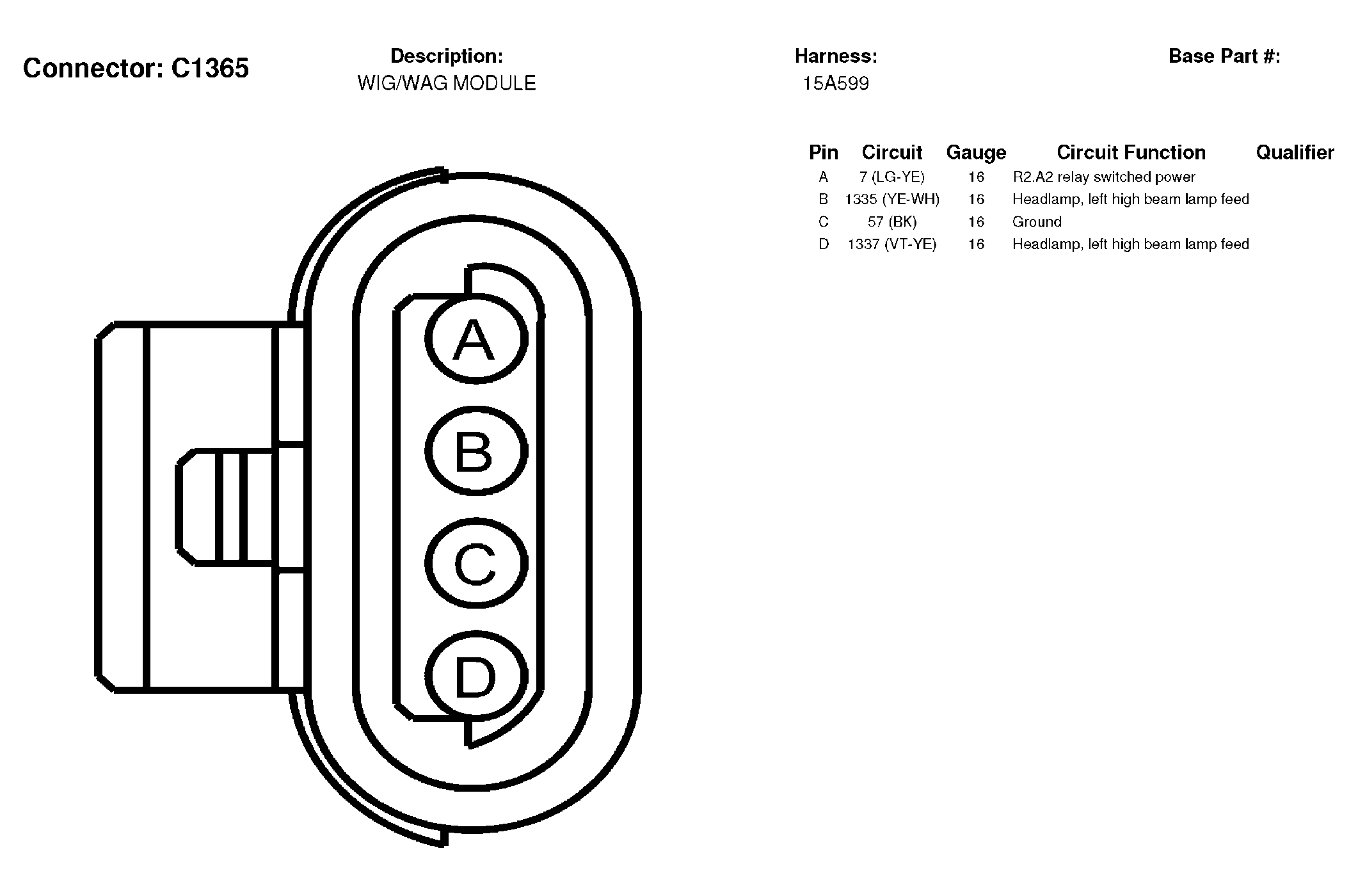

Fig 247: WIG/WAG Module Connector End View (C1365)
Courtesy of FORD MOTOR CO.

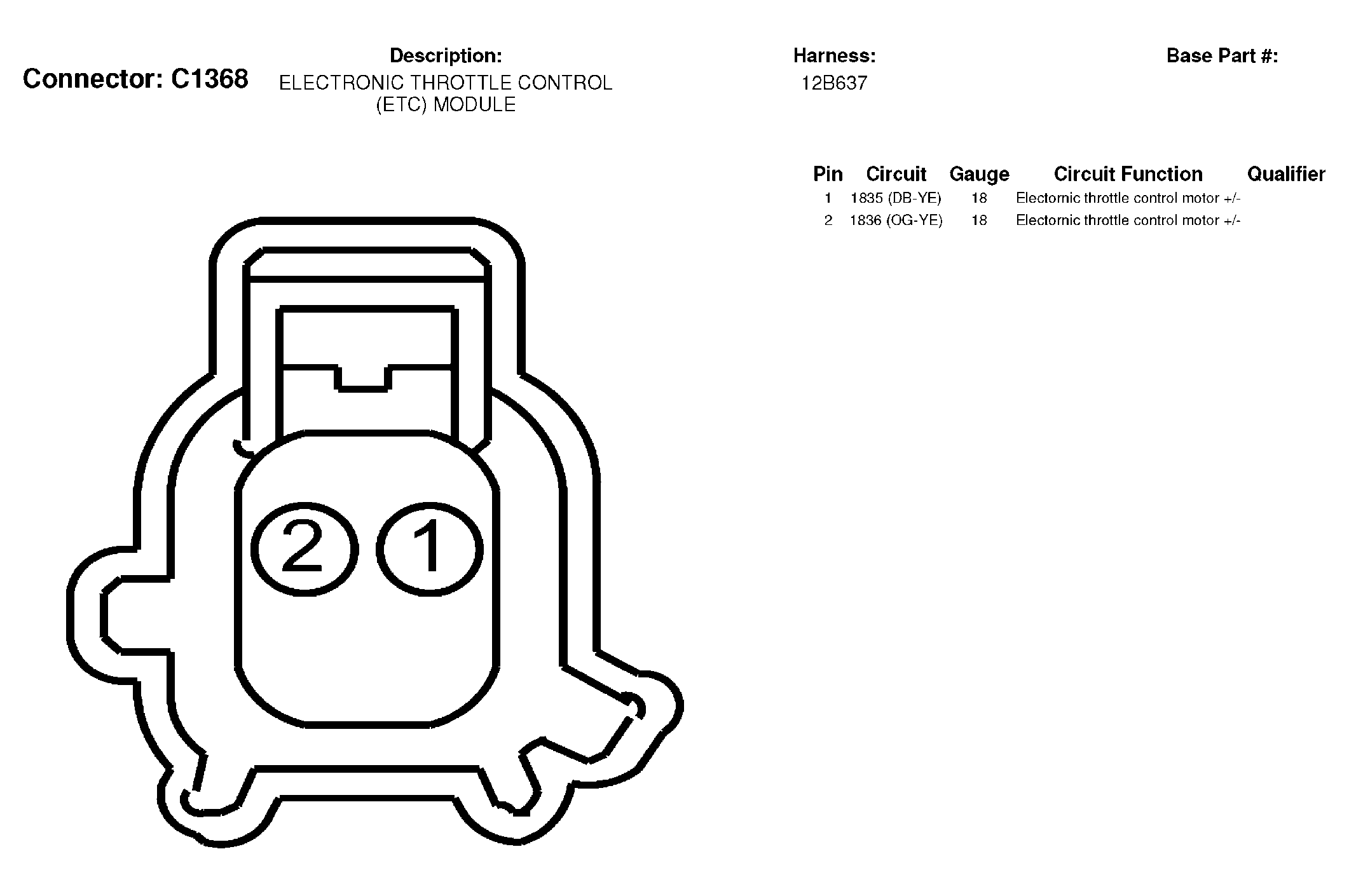

Fig 248: Electronic Throttle Control (ETC) Module Connector End View (C1368)
Courtesy of FORD MOTOR CO.

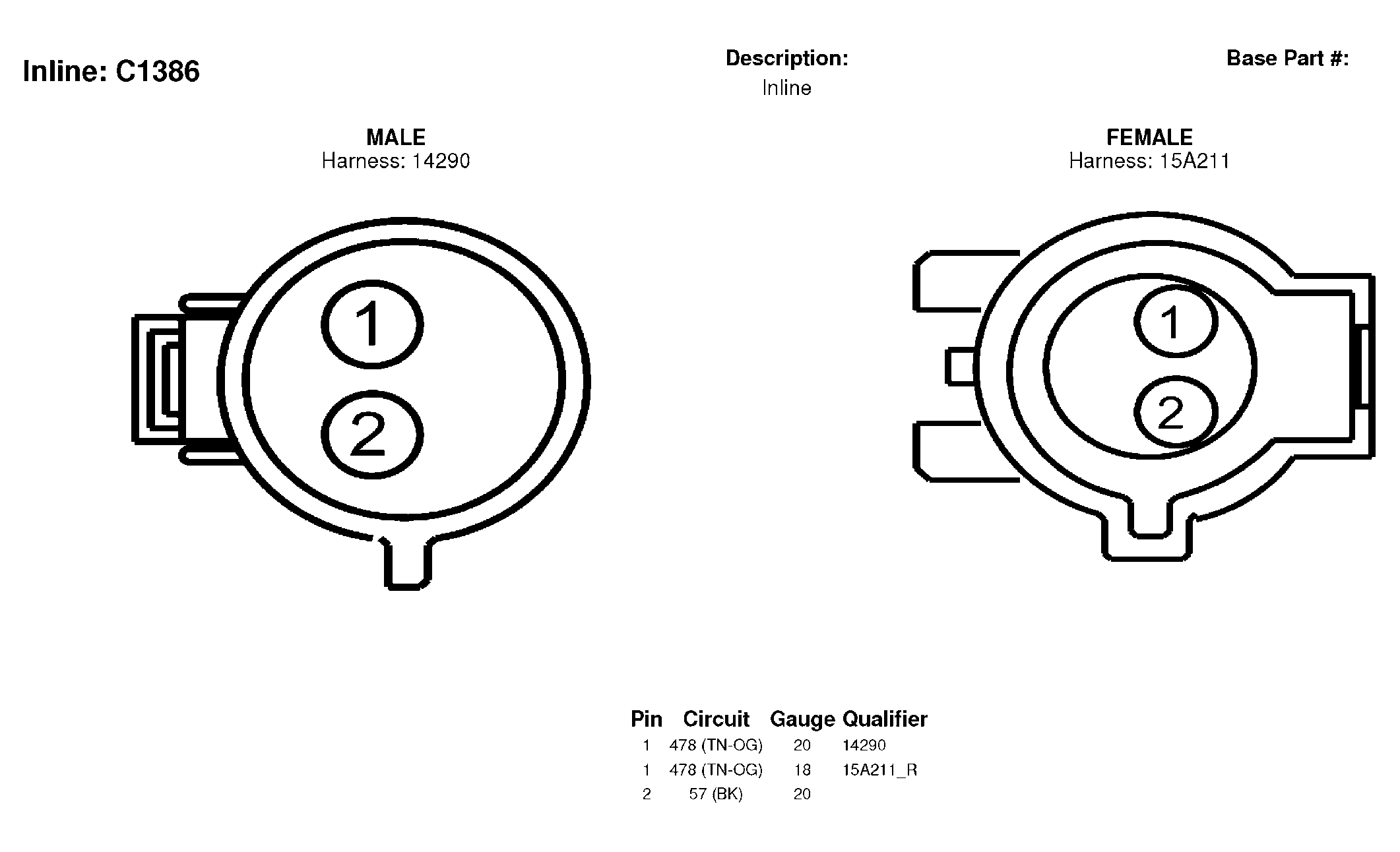

Fig 249: Inline Connector End View (C1386)
Courtesy of FORD MOTOR CO.

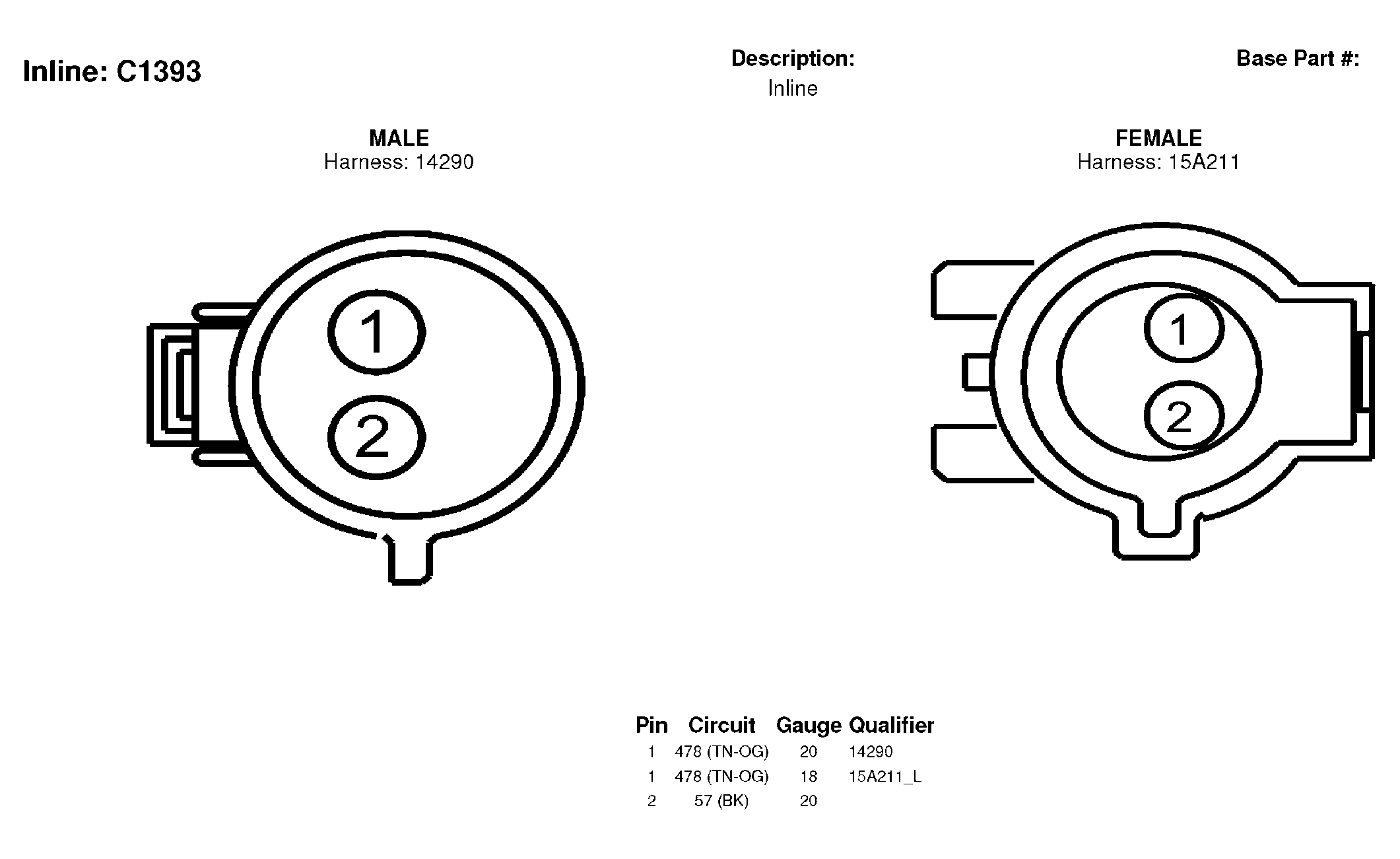

Fig 250: Inline Connector End View (C1393)
Courtesy of FORD MOTOR CO.

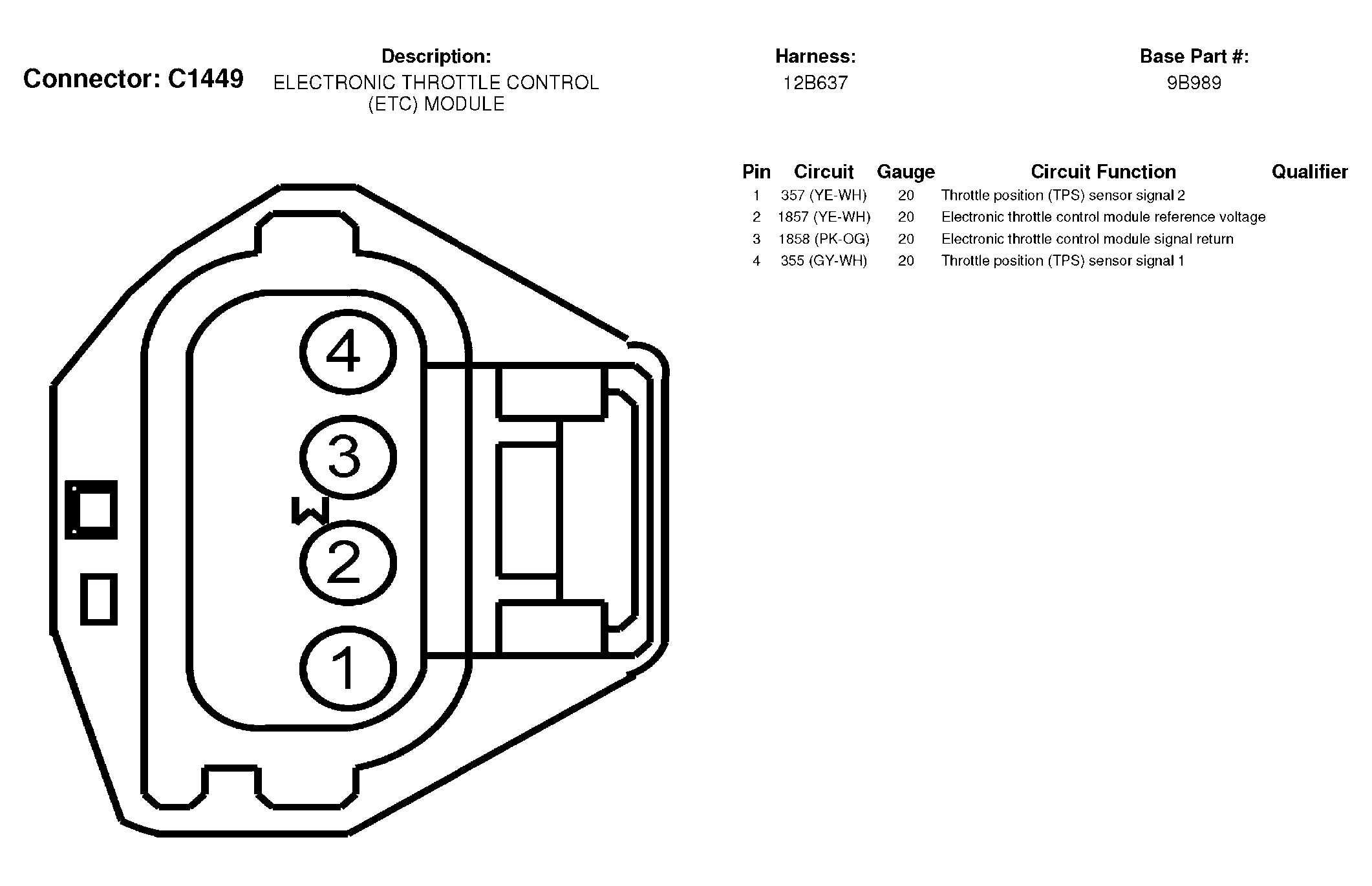

Fig 251: Electronic Throttle Control (ETC) Module Connector End View (C1449)
Courtesy of FORD MOTOR CO.

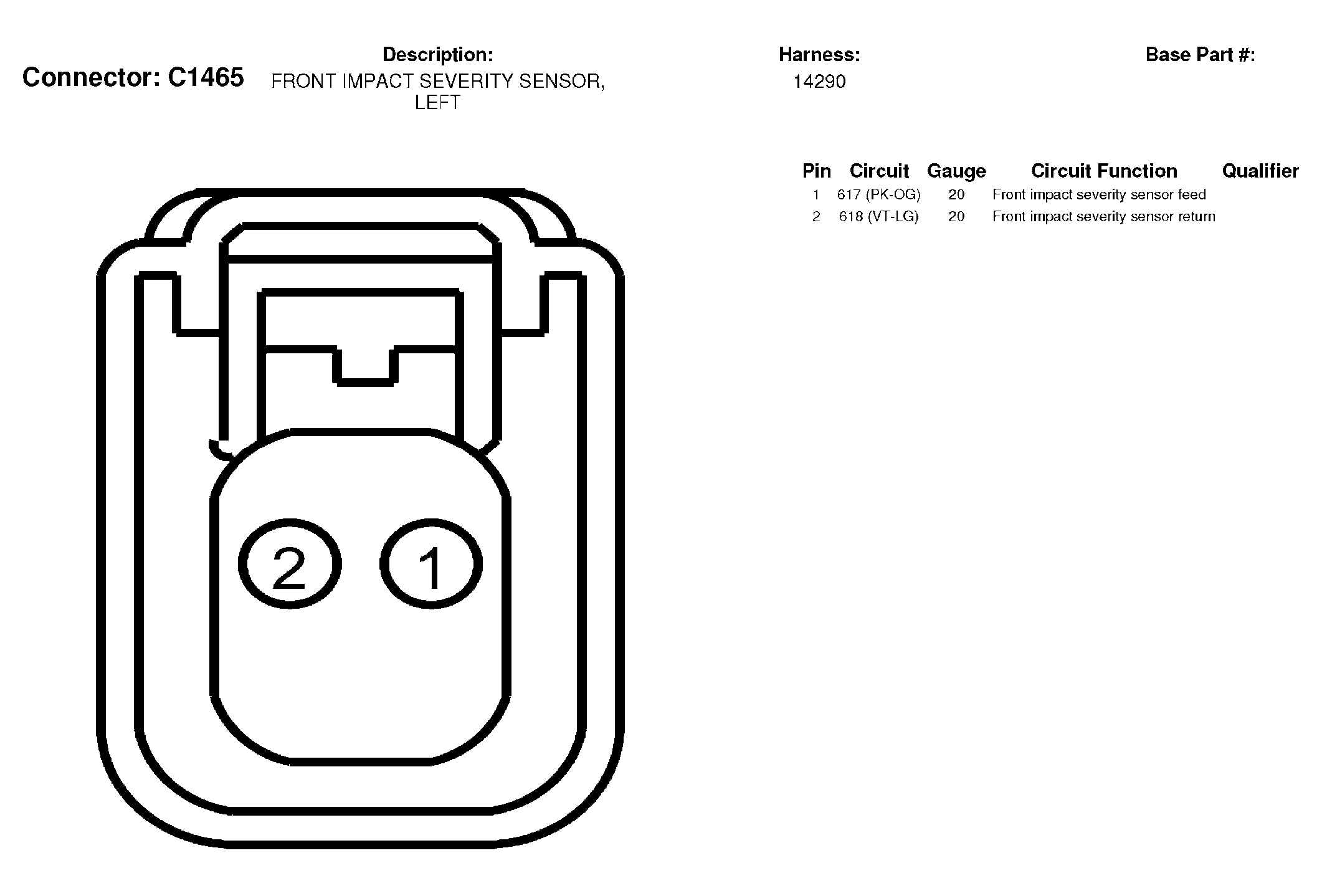

Fig 252: Front Impact Severity Sensor, Left Connector End View (C1465)
Courtesy of FORD MOTOR CO.

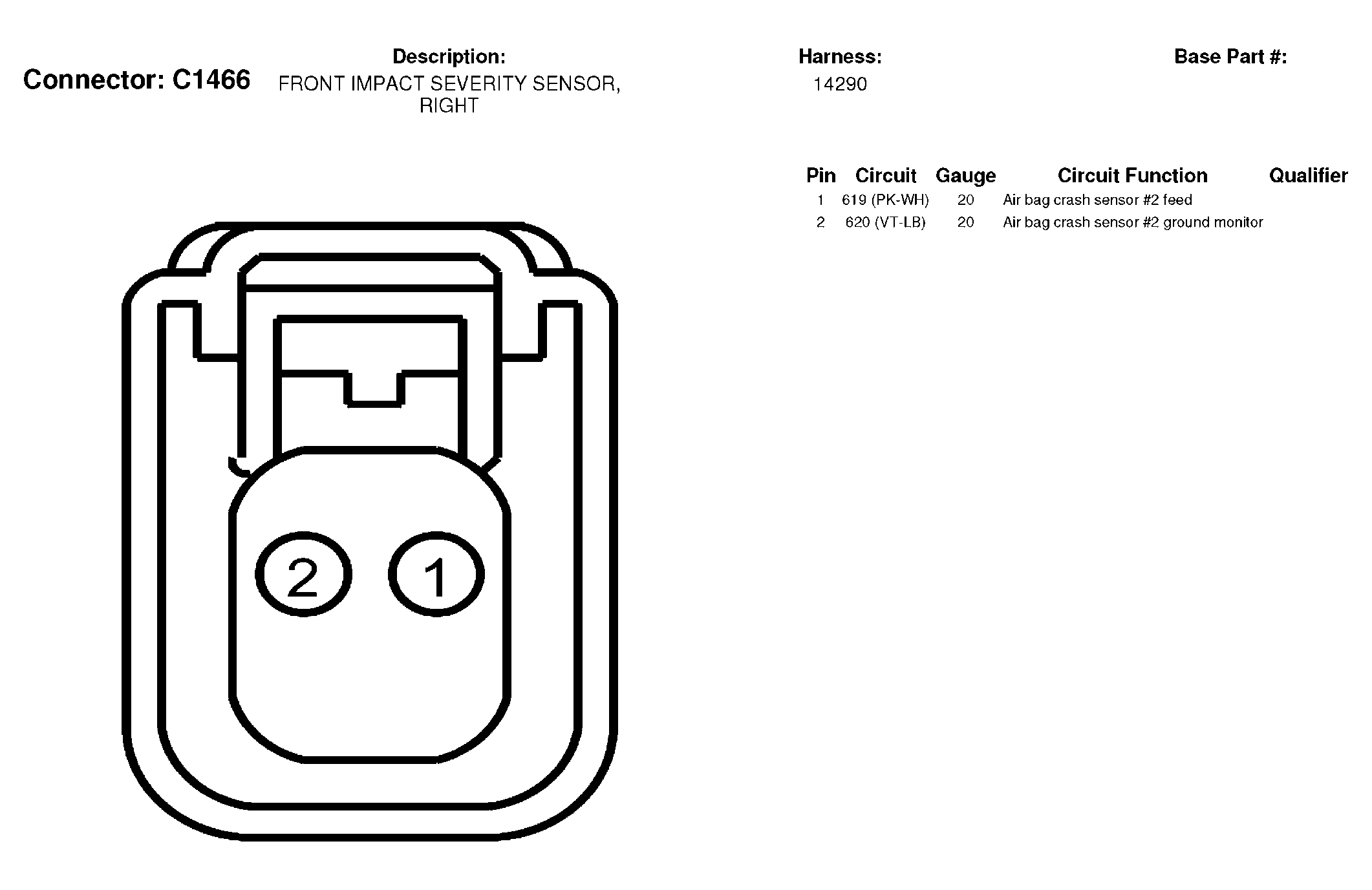

Fig 253: Front Impact Severity Sensor, Right Connector End View (C1466)
Courtesy of FORD MOTOR CO.

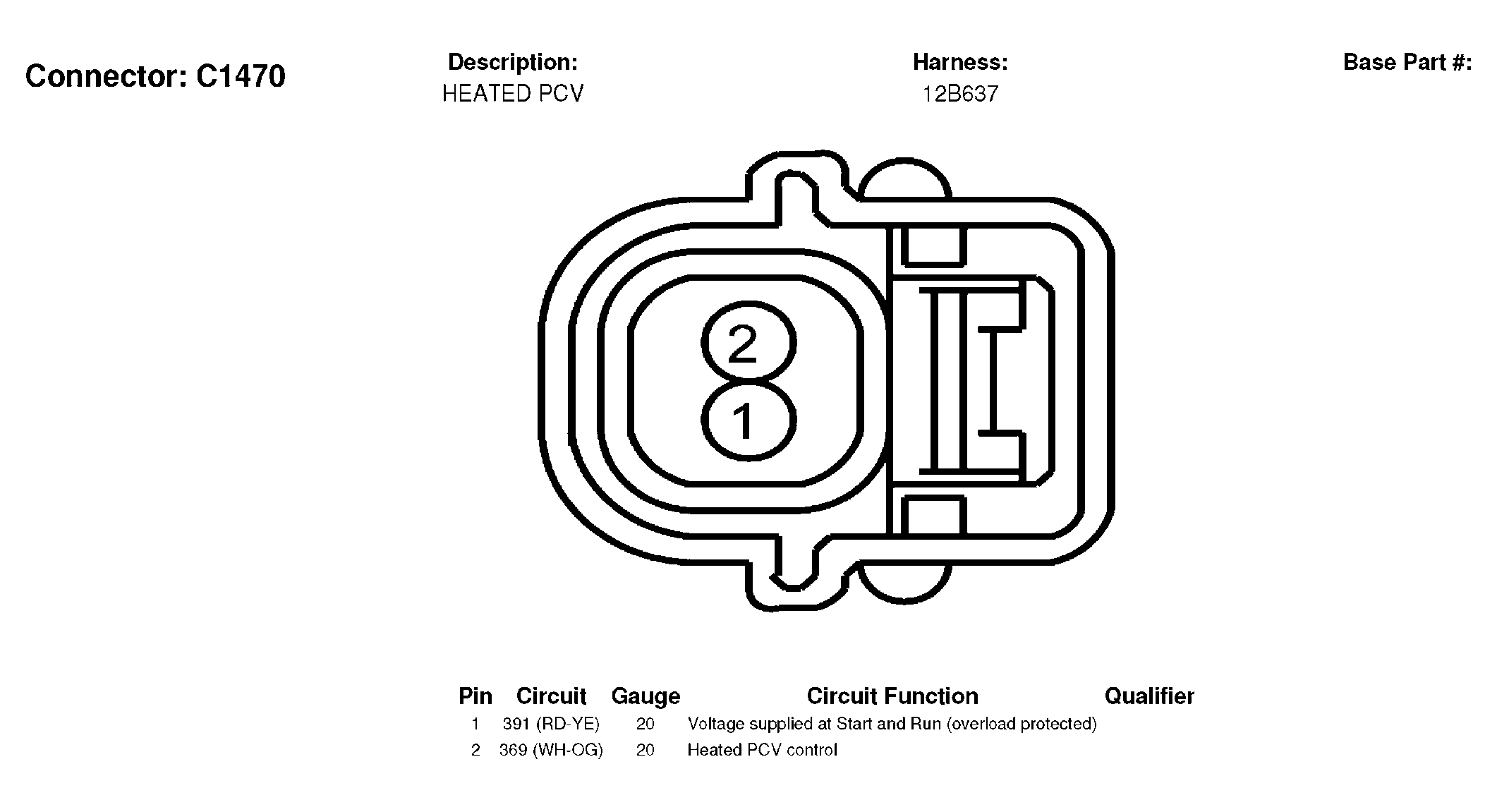

Fig 254: Heated PCV Connector End View (C1470)
Courtesy of FORD MOTOR CO.

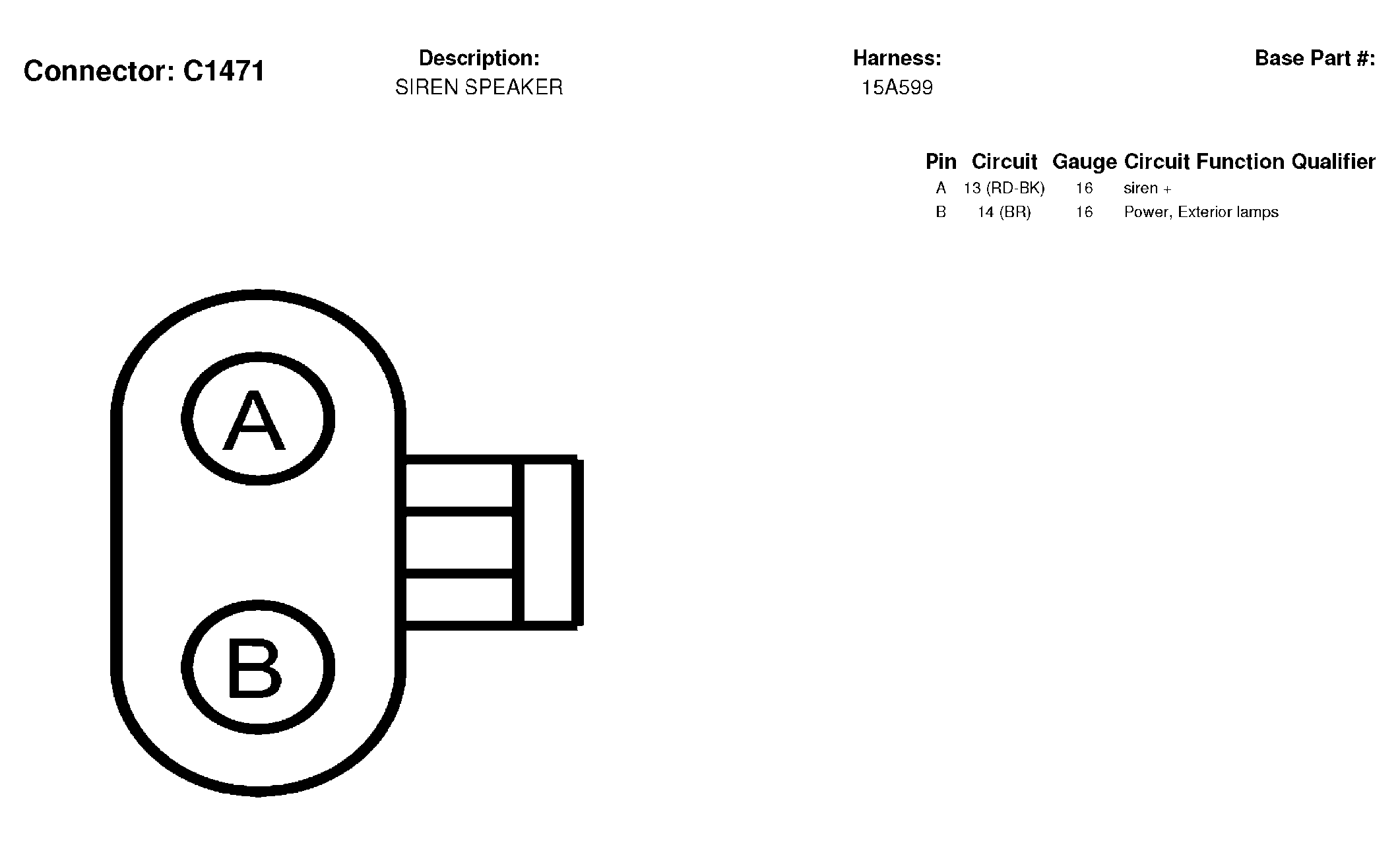

Fig 255: Siren Speaker Connector End View (C1471)
Courtesy of FORD MOTOR CO.
Fig 256: Left Front Strobe Assembly Connector End View (C1478)
Courtesy of FORD MOTOR CO.

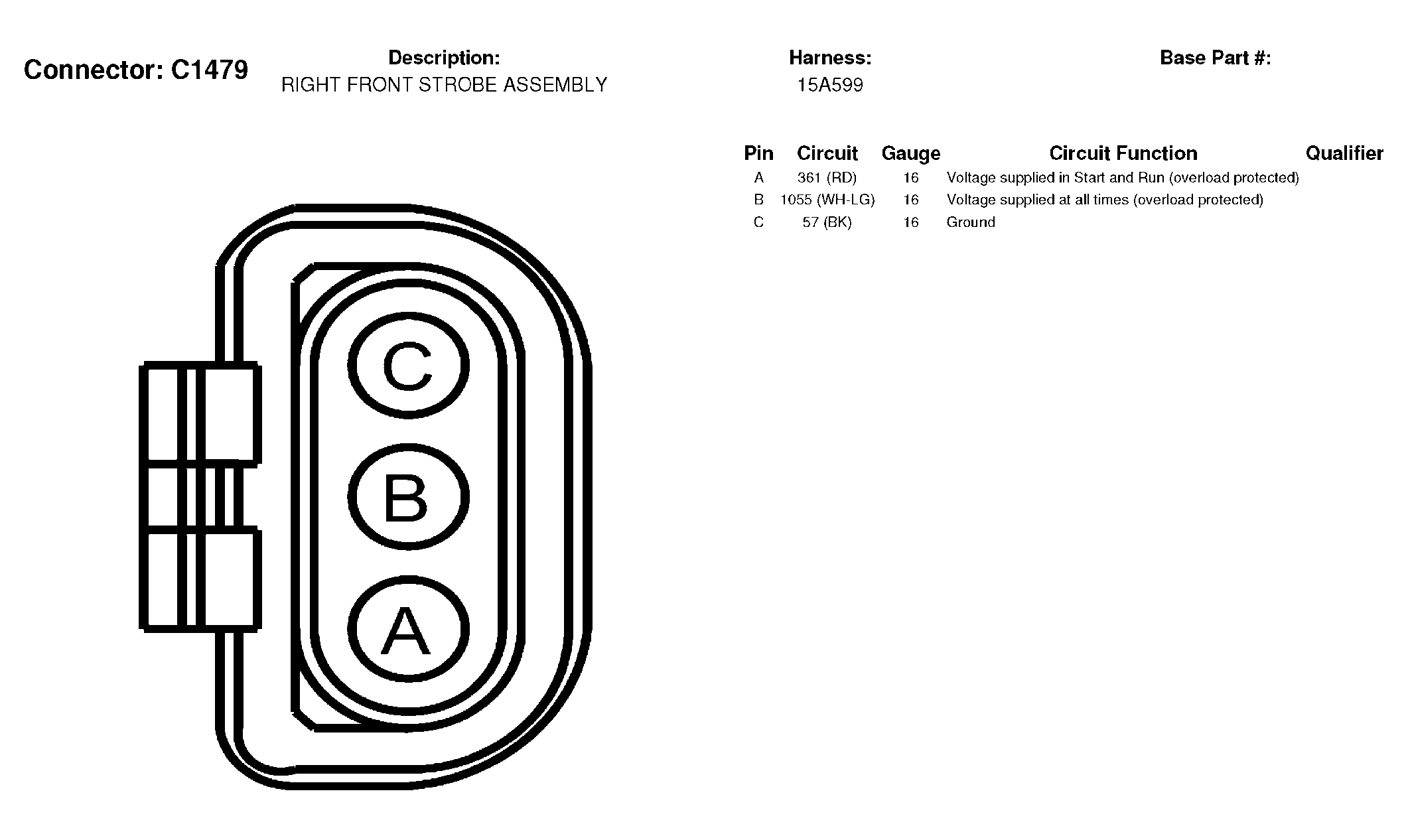

Fig 257: Right Front Strobe Assembly Connector End View (C1479)
Courtesy of FORD MOTOR CO.

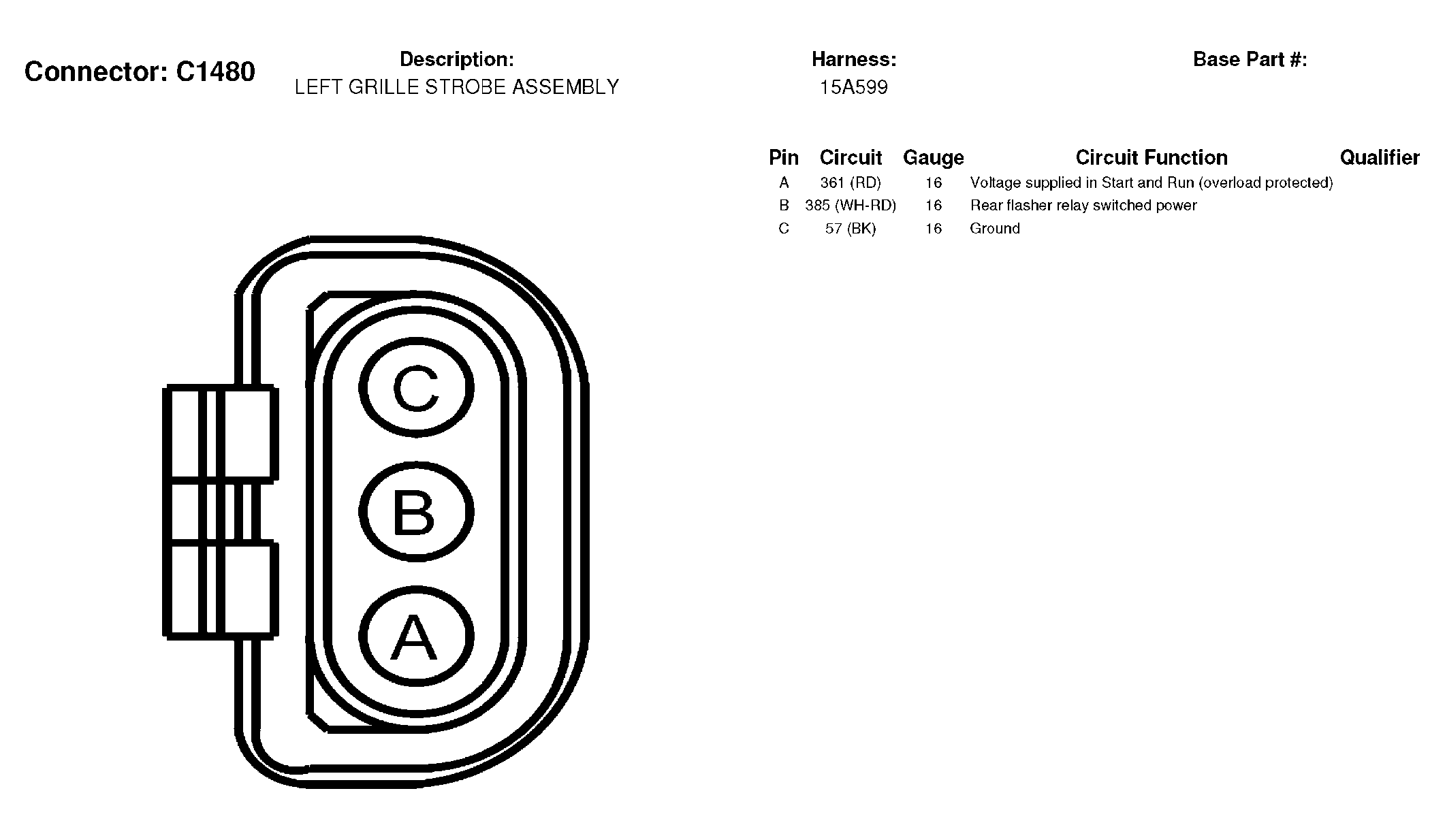

Fig 258: Left Grille Strobe Assembly Connector End View (C1480)
Courtesy of FORD MOTOR CO.
Fig 259: Right Grille Strobe Assembly Connector End View (C1481)
Courtesy of FORD MOTOR CO.

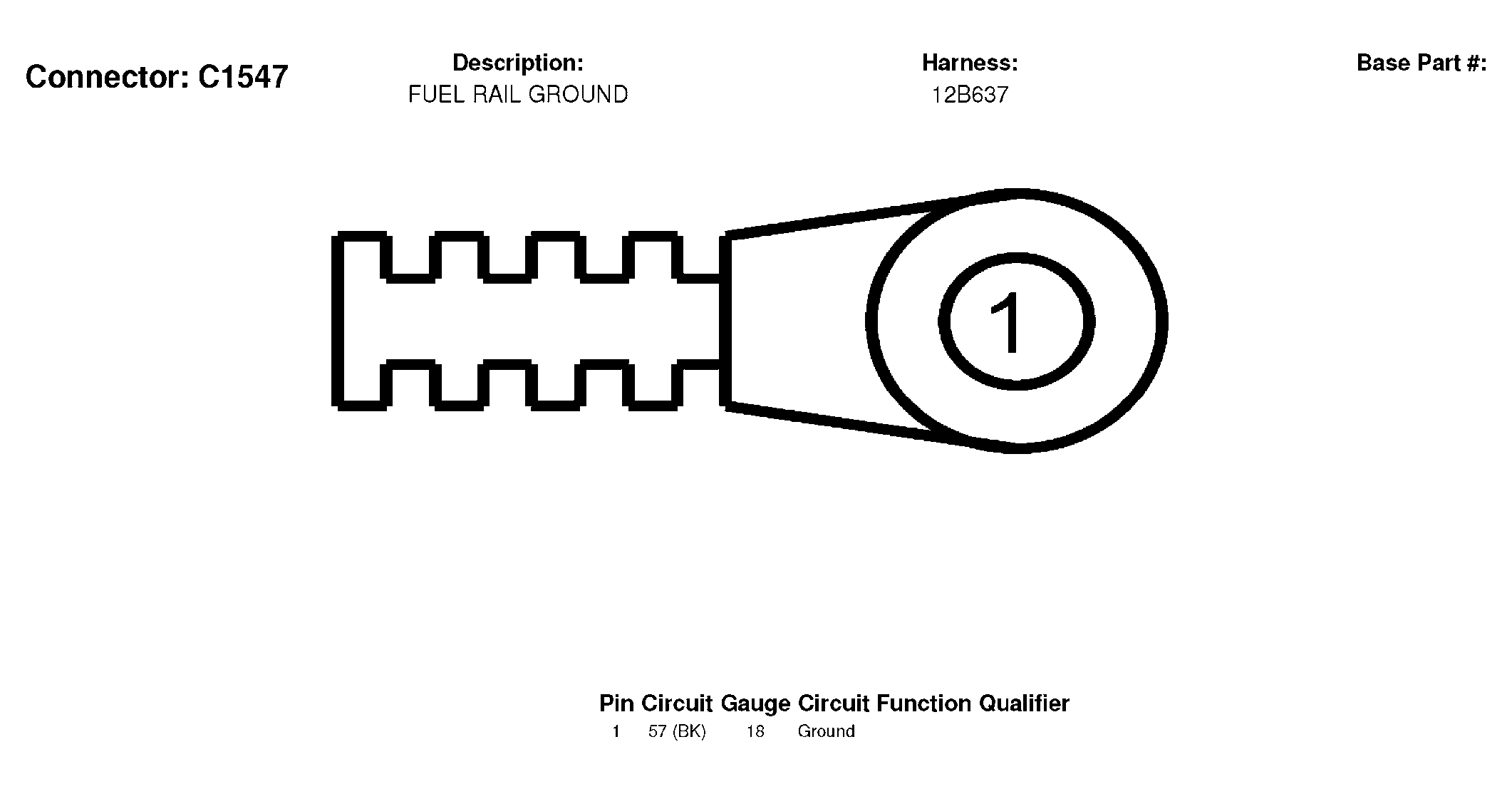

Fig 260: Fuel Rail Ground Connector End View (C1547)
Courtesy of FORD MOTOR CO.
Fig 261: Fuel Rail Ground Connector End View (C1549)
Courtesy of FORD MOTOR CO.

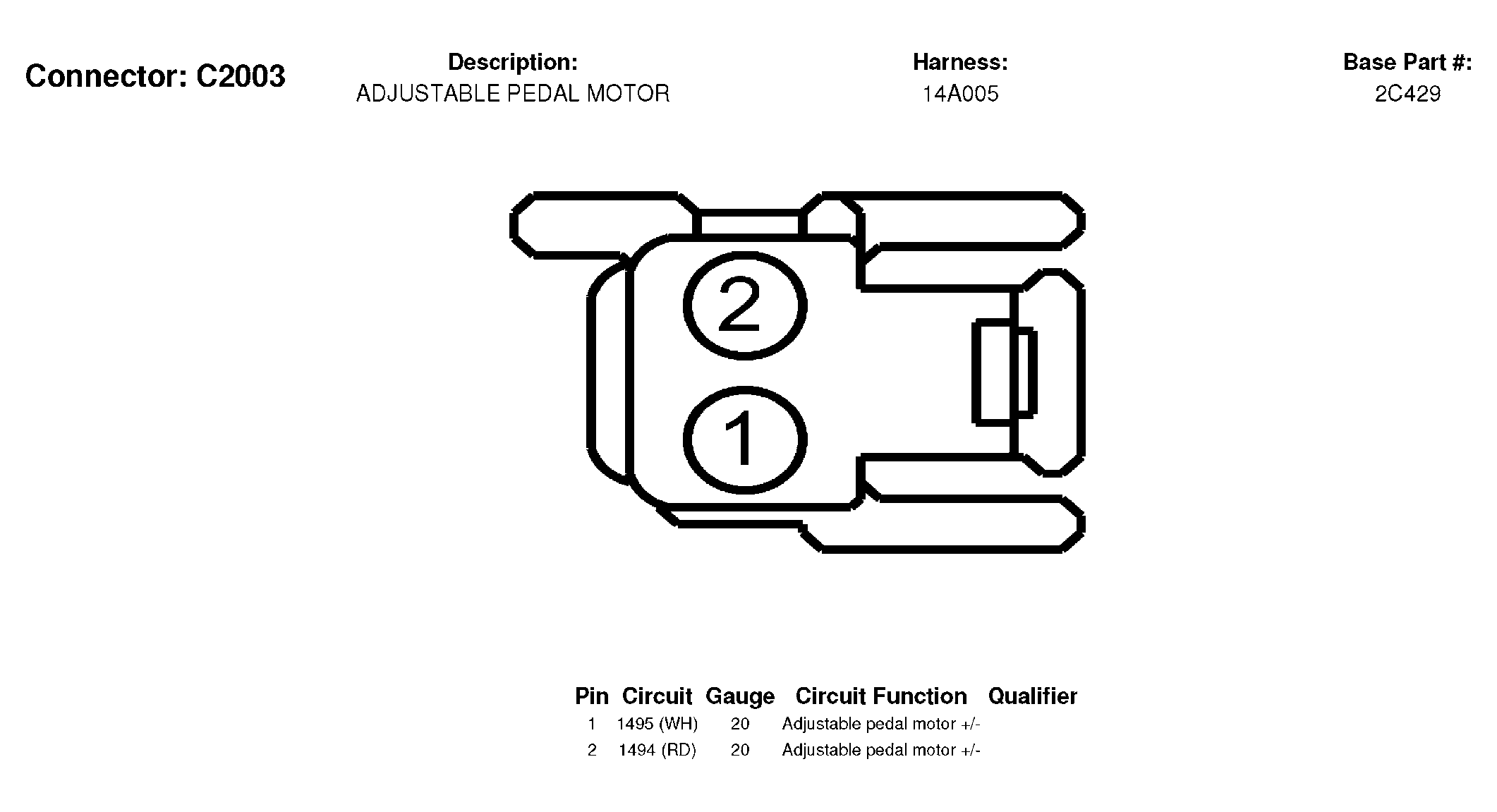

Fig 262: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.

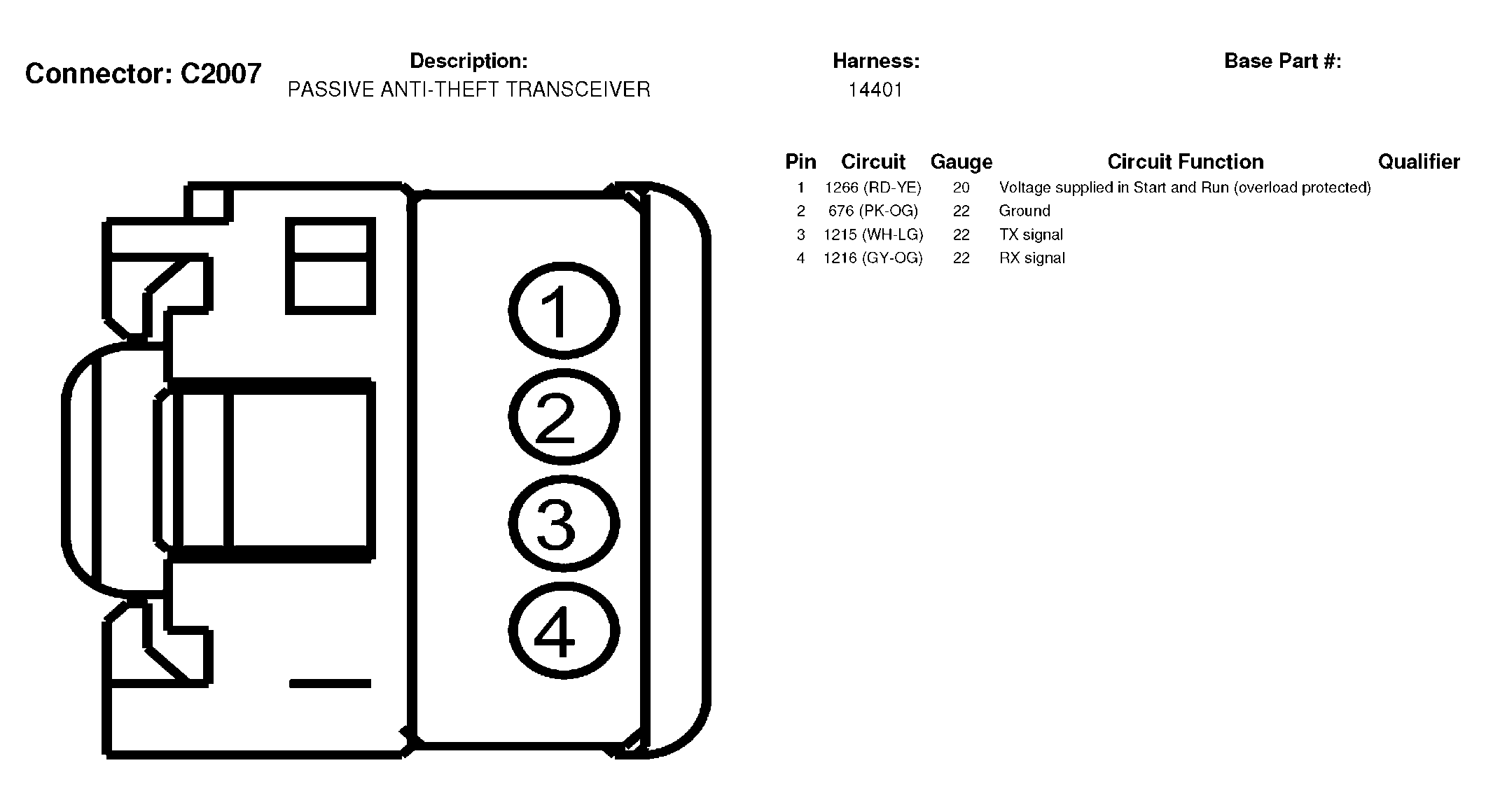

Fig 263: Passive Anti-Theft Transceiver Connector End View (C2007)
Courtesy of FORD MOTOR CO.

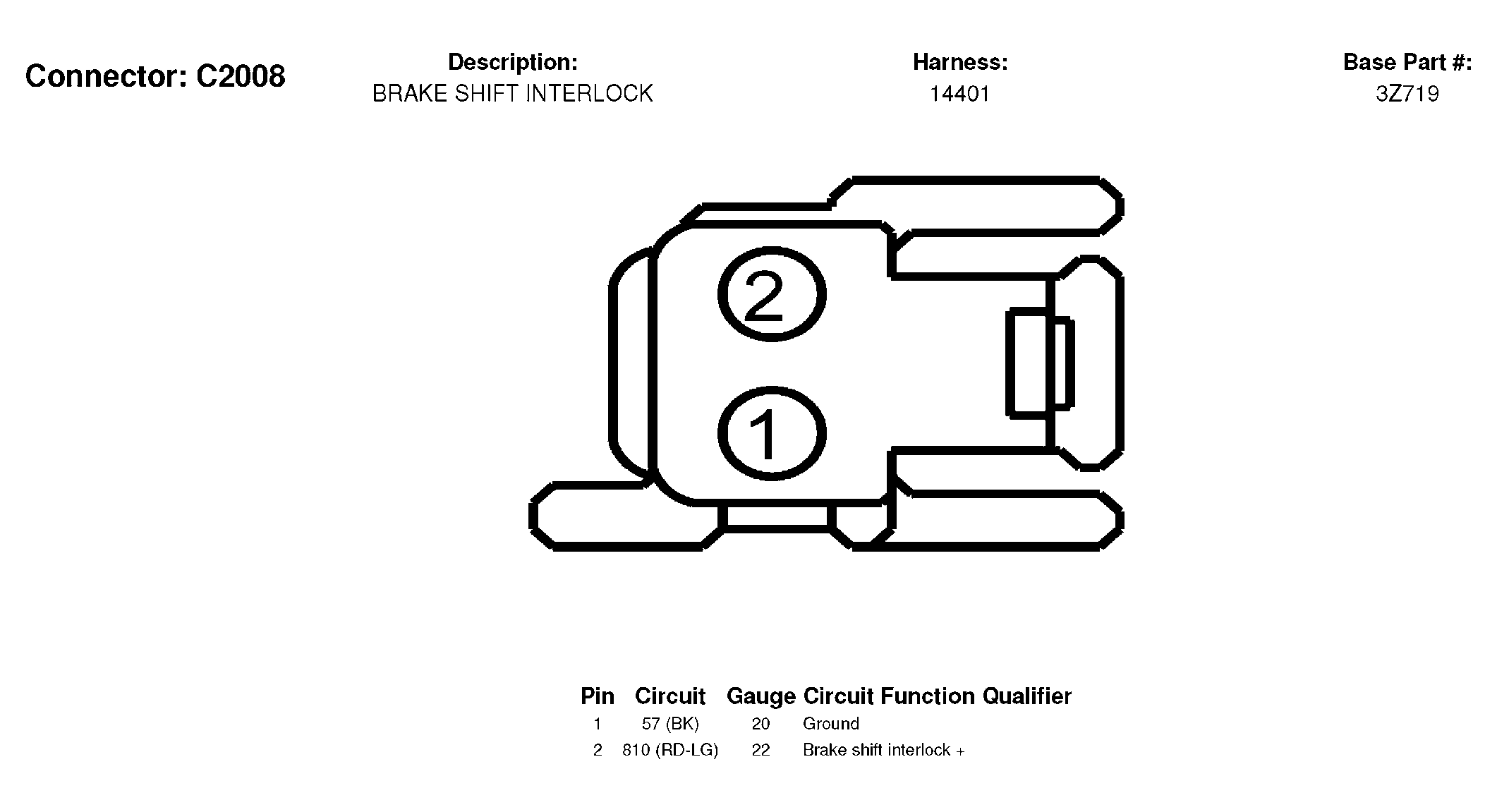

Fig 264: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.

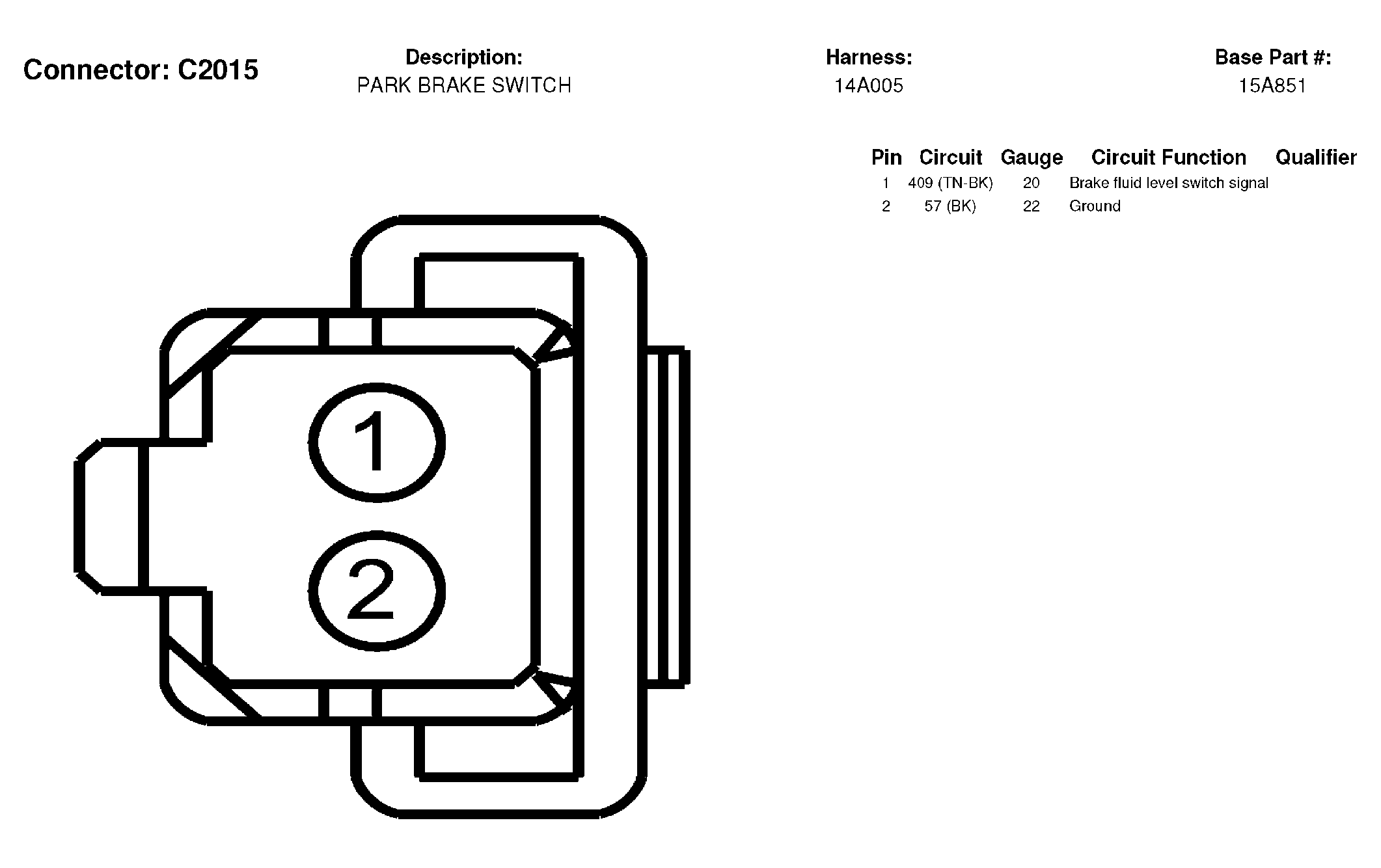

Fig 265: Park Brake Switch Connector End View (C2015)
Courtesy of FORD MOTOR CO.

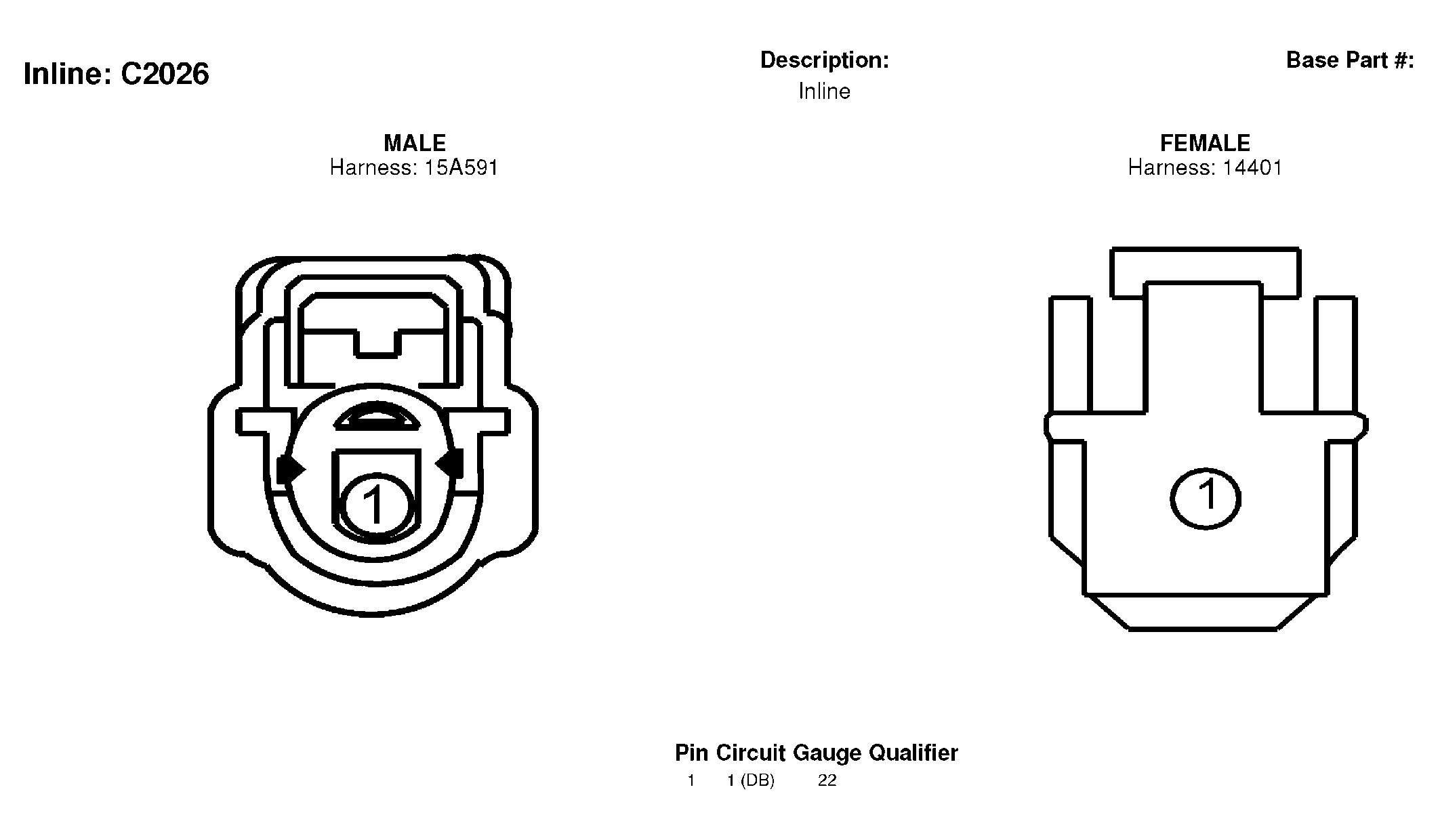

Fig 266: Inline Connector End View (C2026)
Courtesy of FORD MOTOR CO.
Fig 267: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.

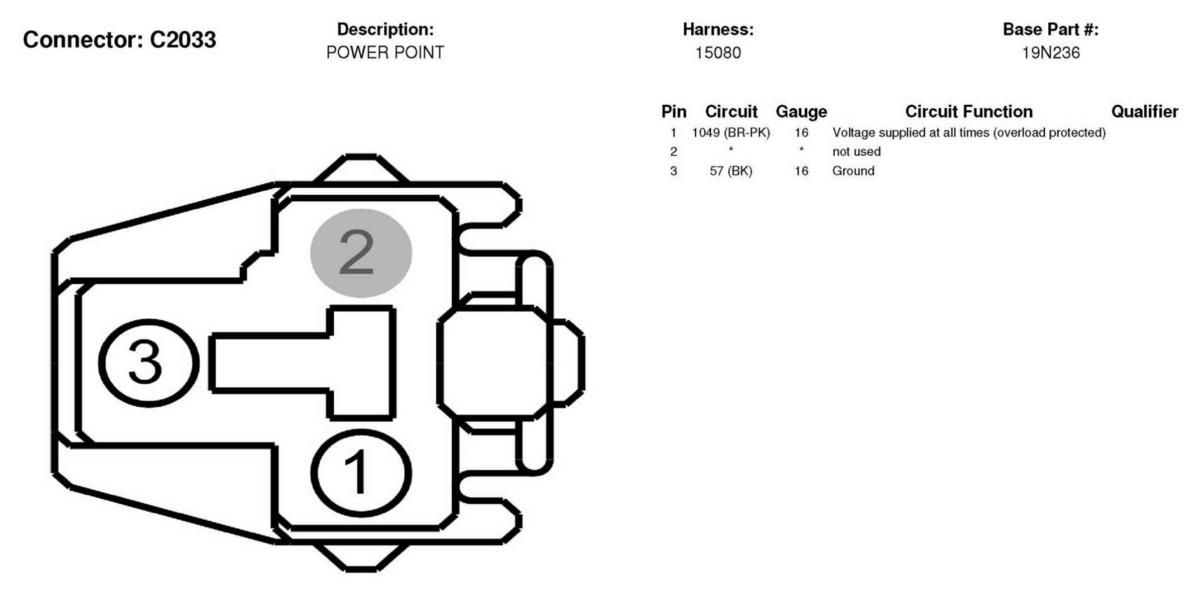

Fig 268: Power Point Connector End View (C2033)
Courtesy of FORD MOTOR CO.

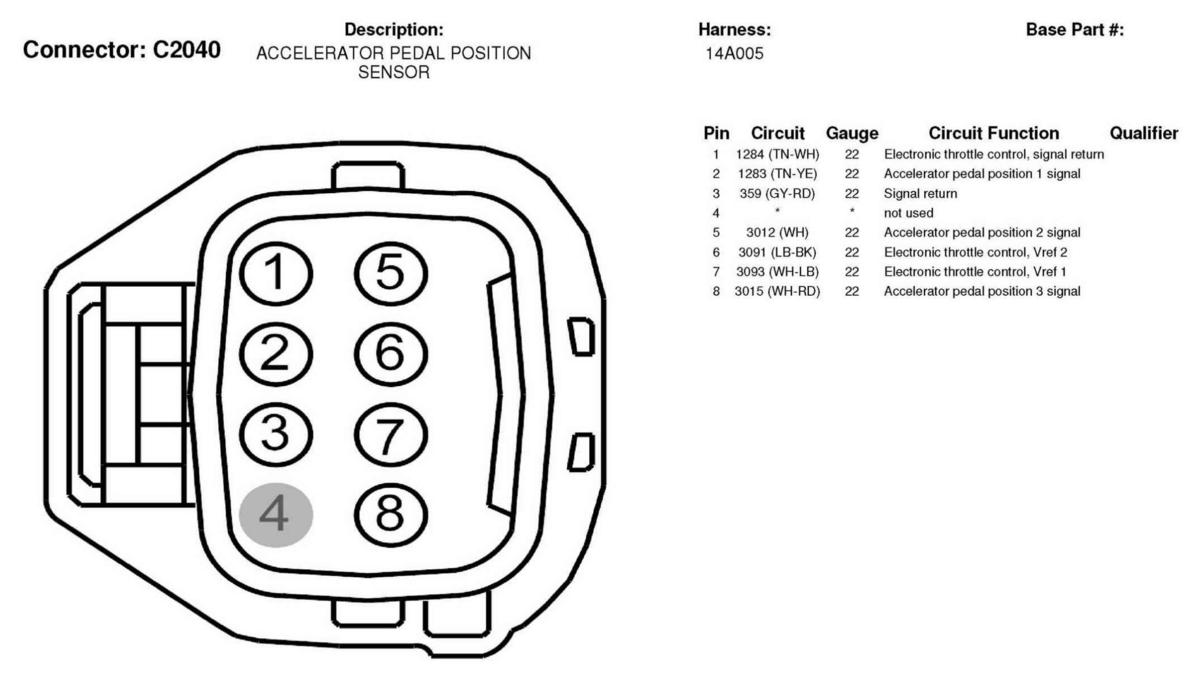

Fig 269: Accelerator Pedal Position Sensor Connector End View (C2040)
Courtesy of FORD MOTOR CO.

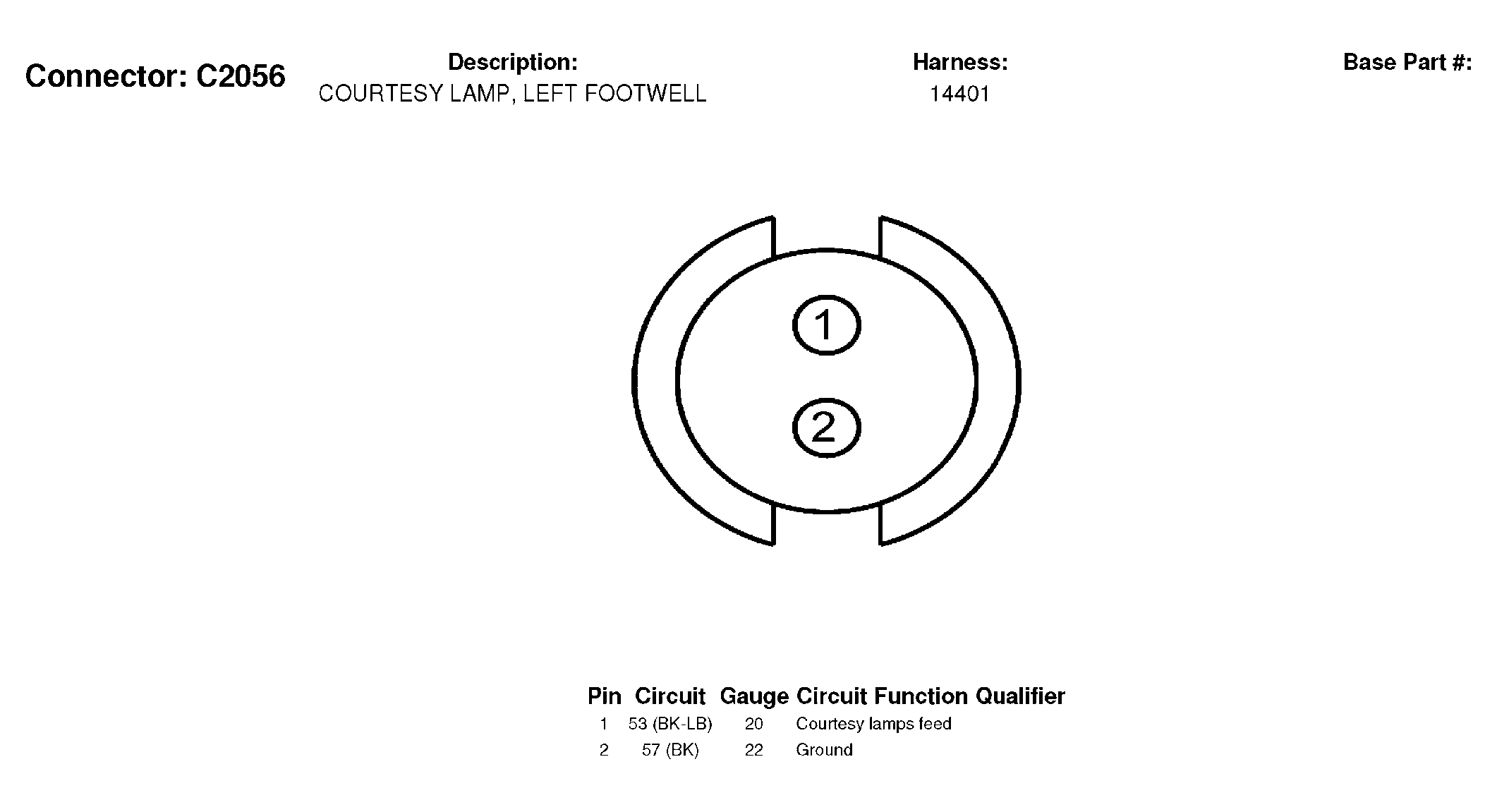

Fig 270: Courtesy Lamp, Left Footwell Connector End View (C2056)
Courtesy of FORD MOTOR CO.

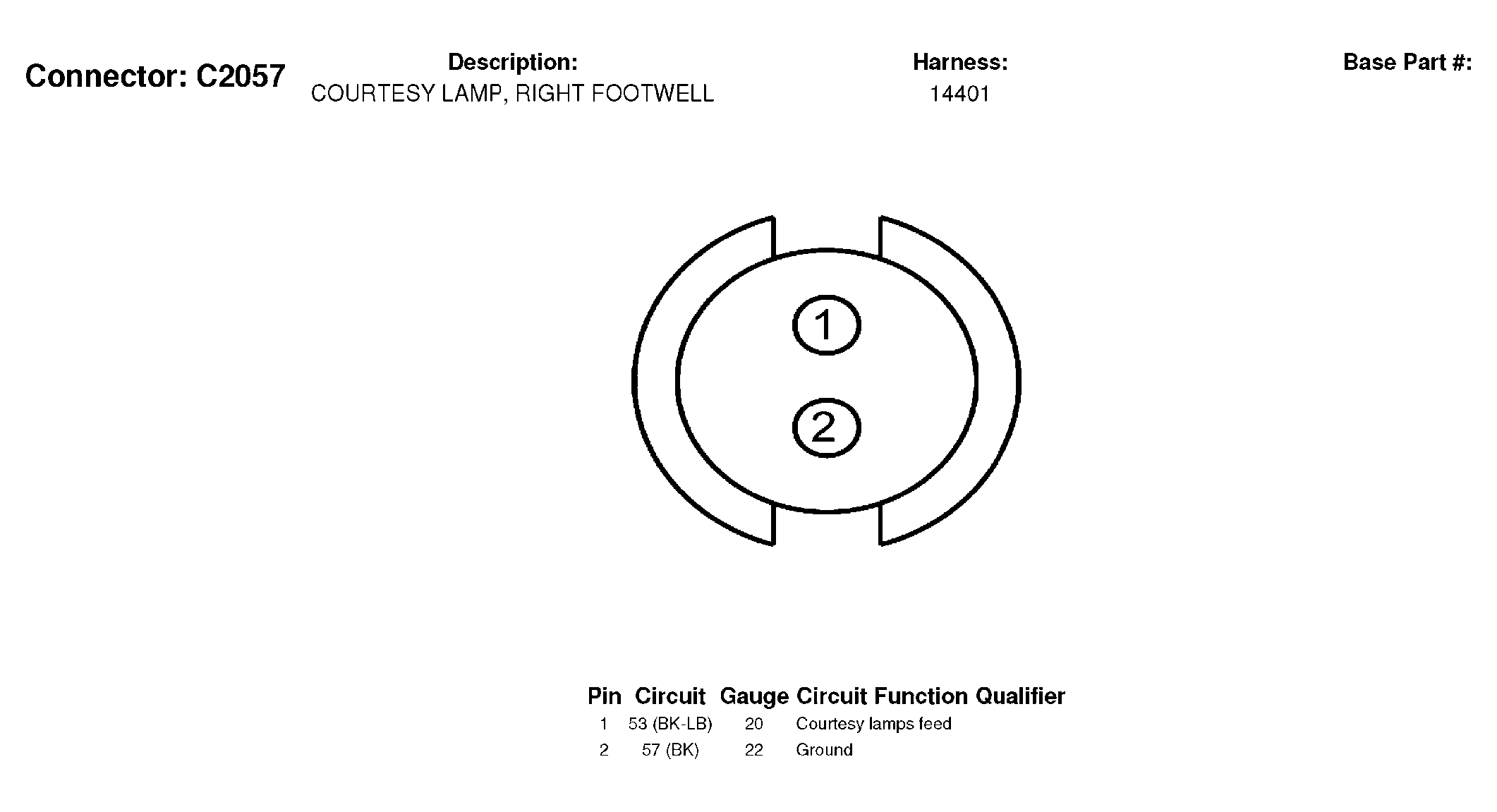

Fig 271: Courtesy Lamp, Right Footwell Connector End View (C2057)
Courtesy of FORD MOTOR CO.

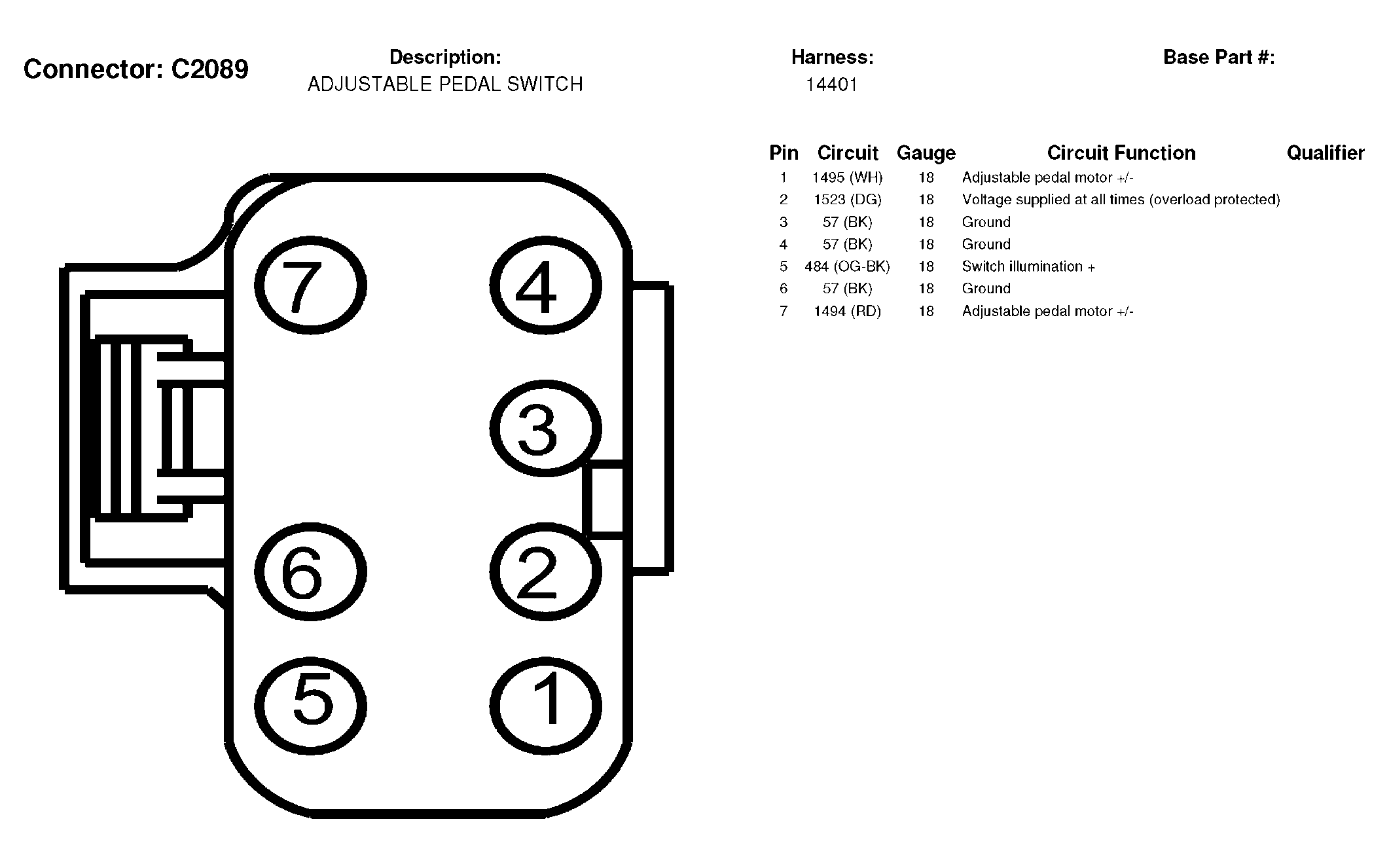

Fig 272: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.

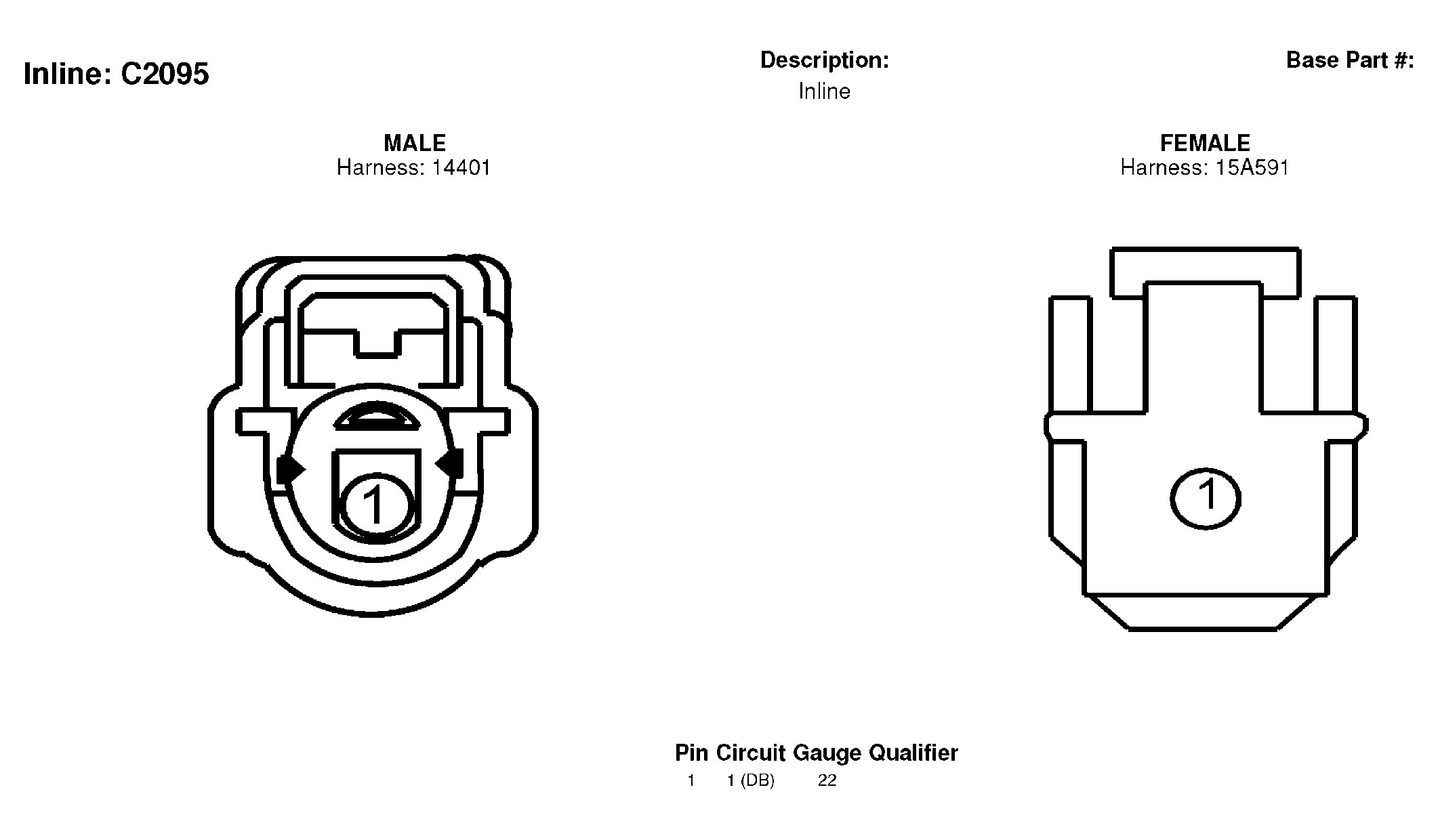

Fig 273: Inline Connector End View (C2095)
Courtesy of FORD MOTOR CO.

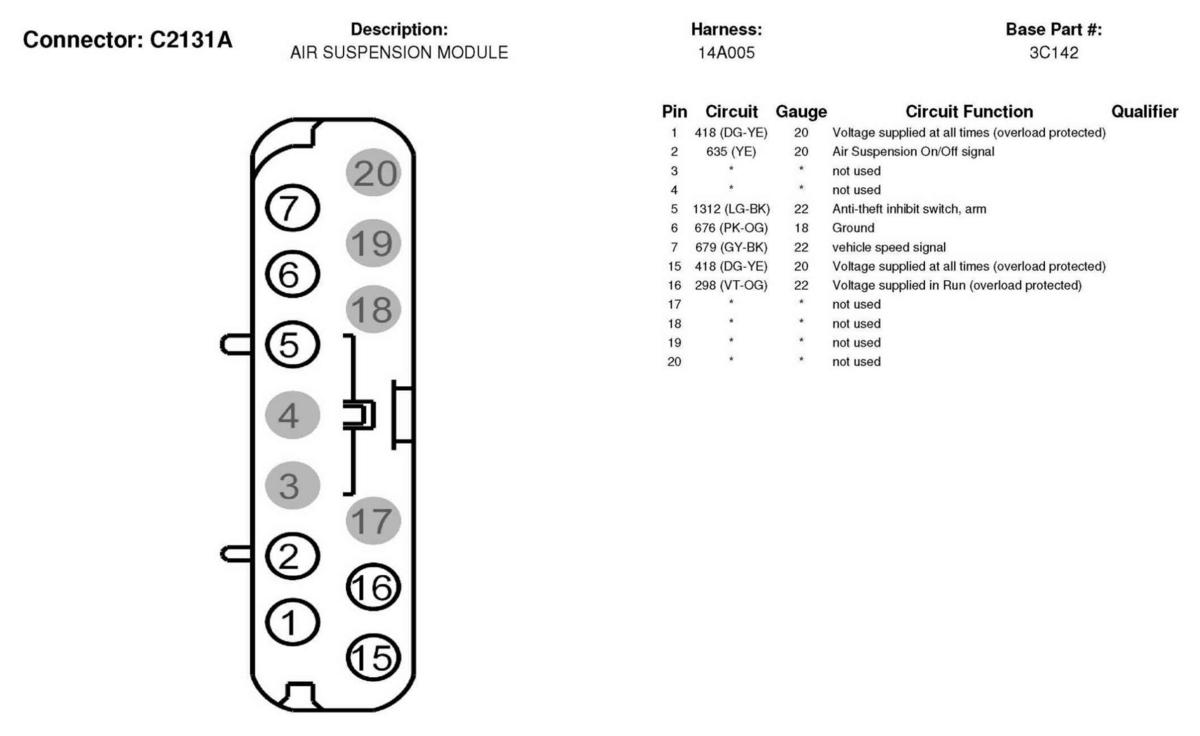

Fig 274: Air Suspension Module Connector End View (C2131A)
Courtesy of FORD MOTOR CO.

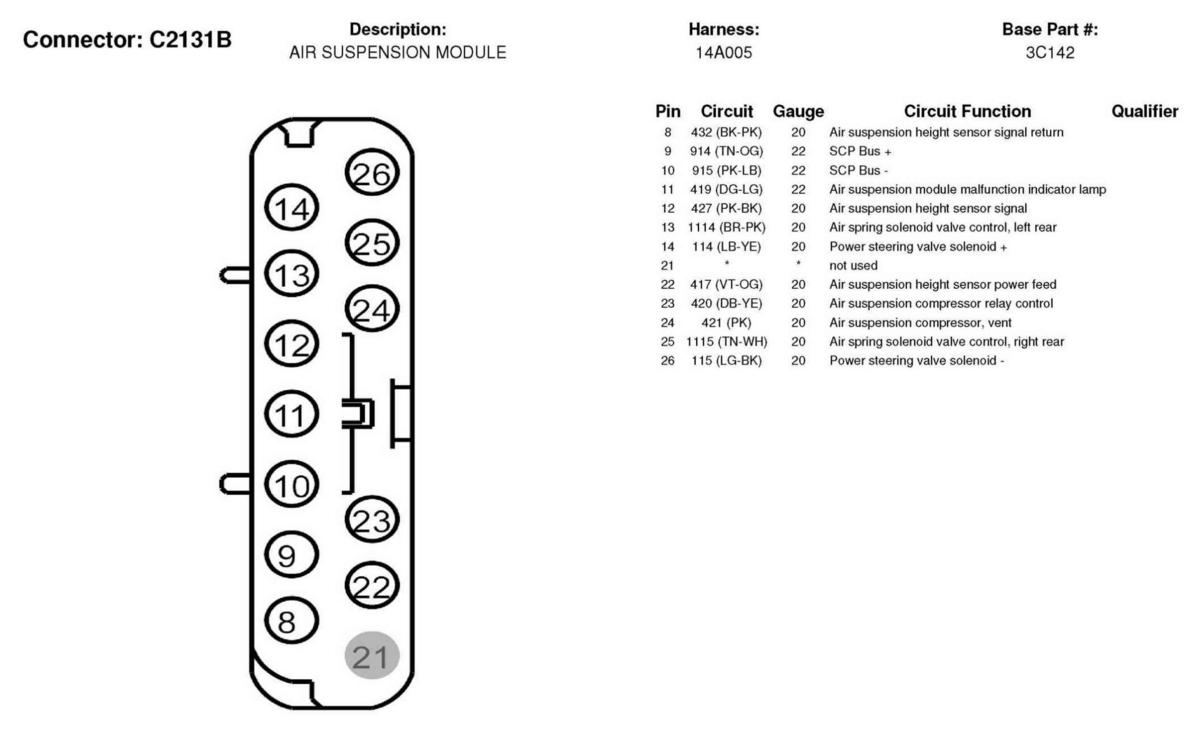

Fig 275: Air Suspension Module Connector End View (C2131B)
Courtesy of FORD MOTOR CO.

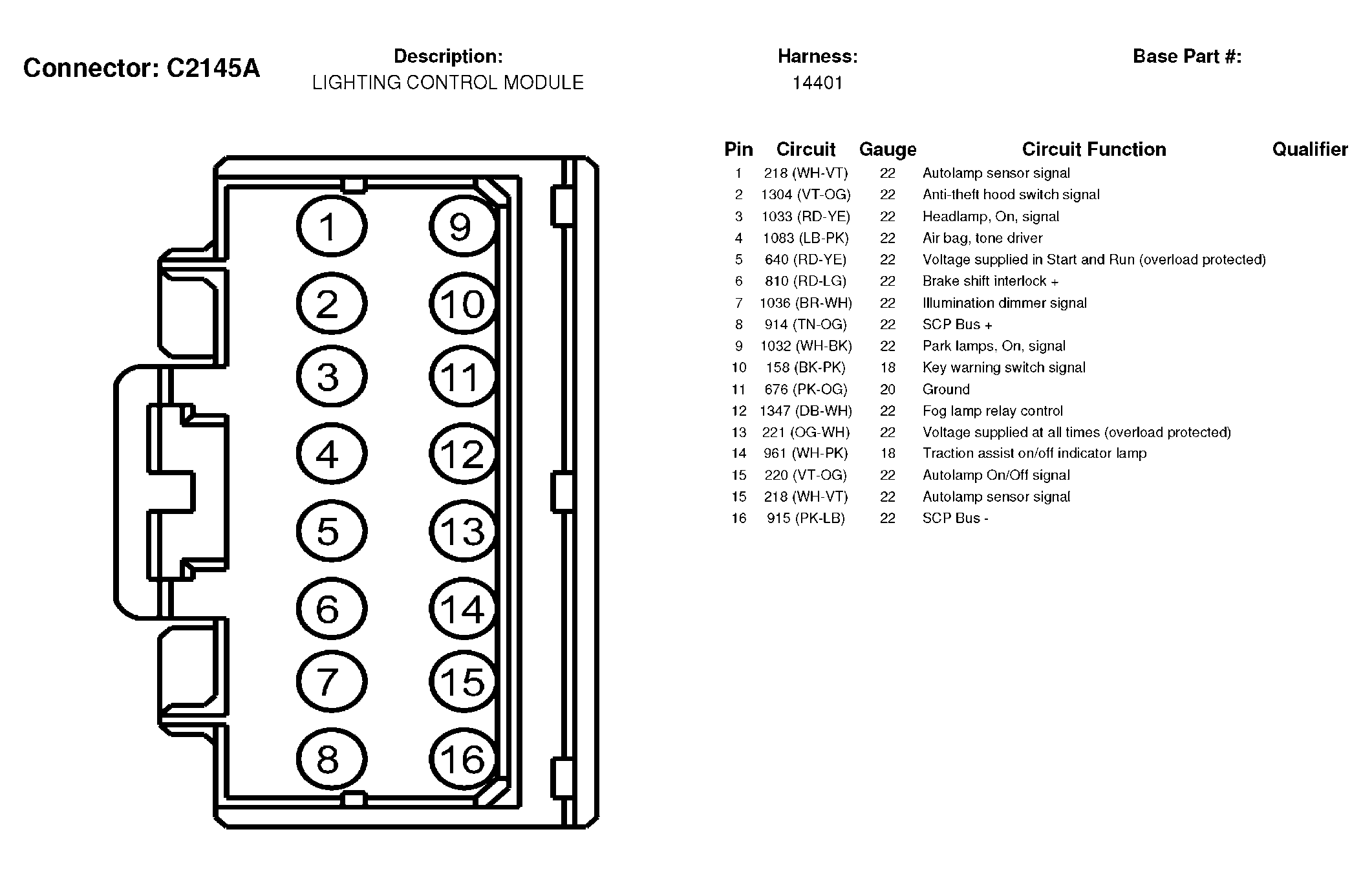

Fig 276: Lighting Control Module Connector End View (C2145A)
Courtesy of FORD MOTOR CO.

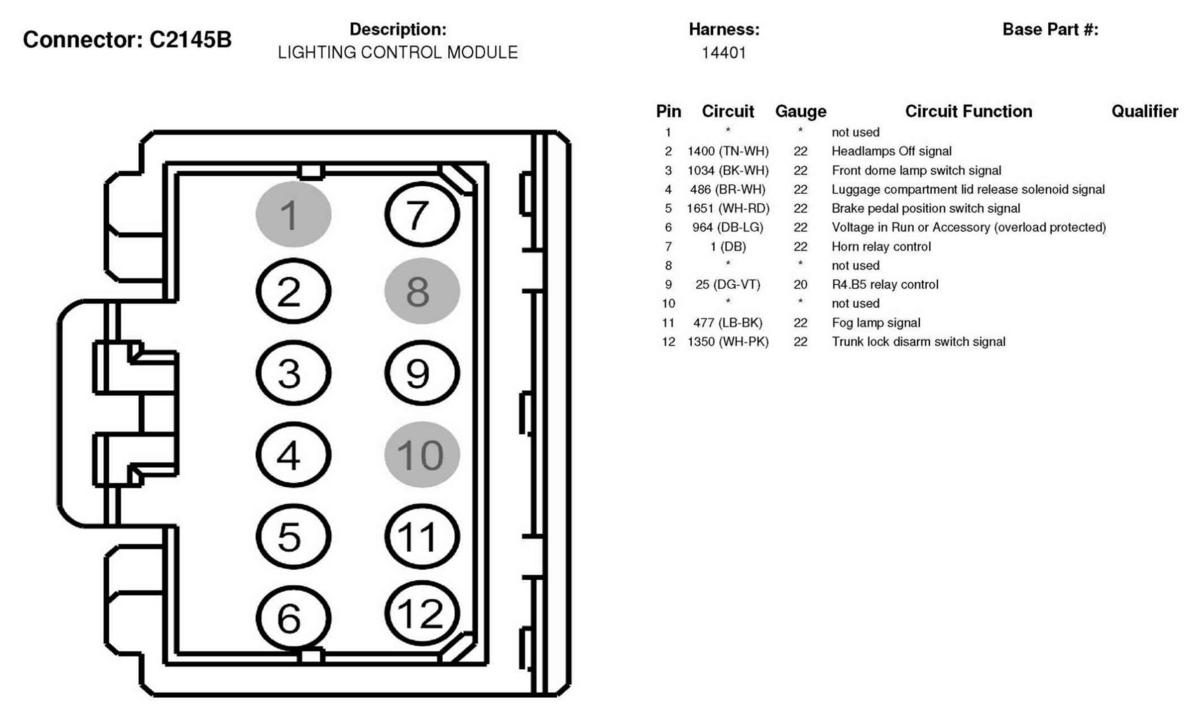

Fig 277: Lighting Control Module Connector End View (C2145B)
Courtesy of FORD MOTOR CO.

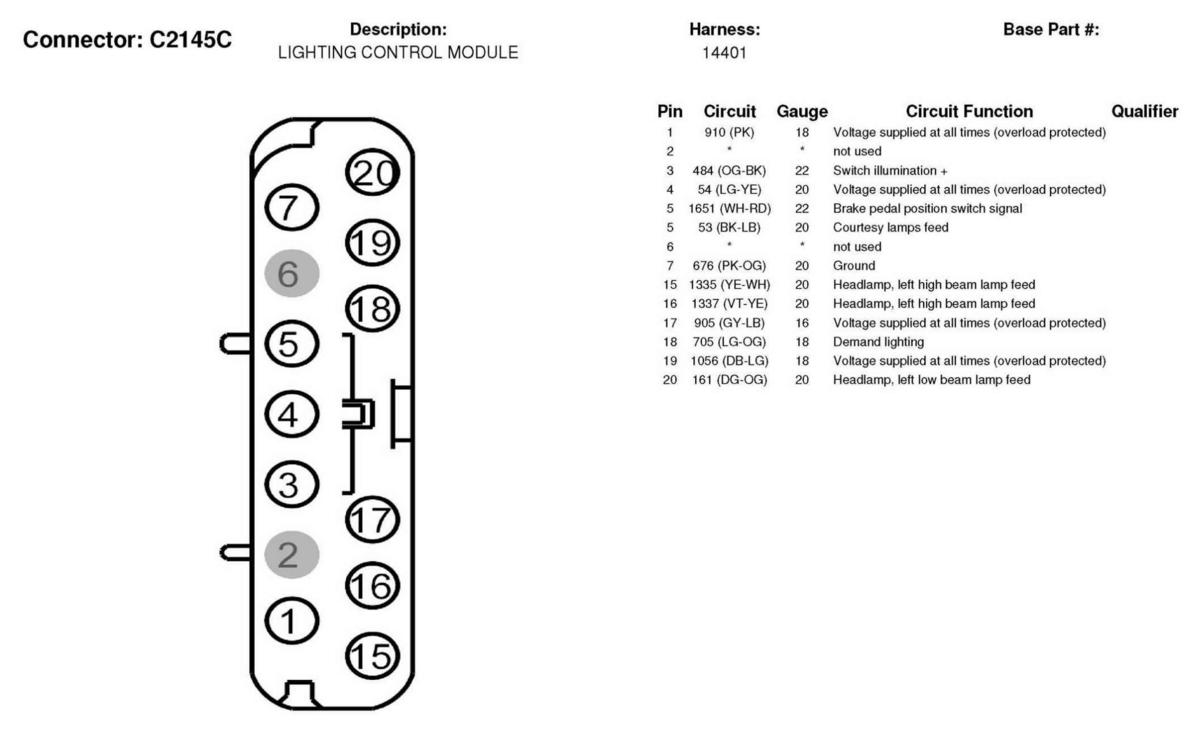

Fig 278: Lighting Control Module Connector End View (C2145C)
Courtesy of FORD MOTOR CO.

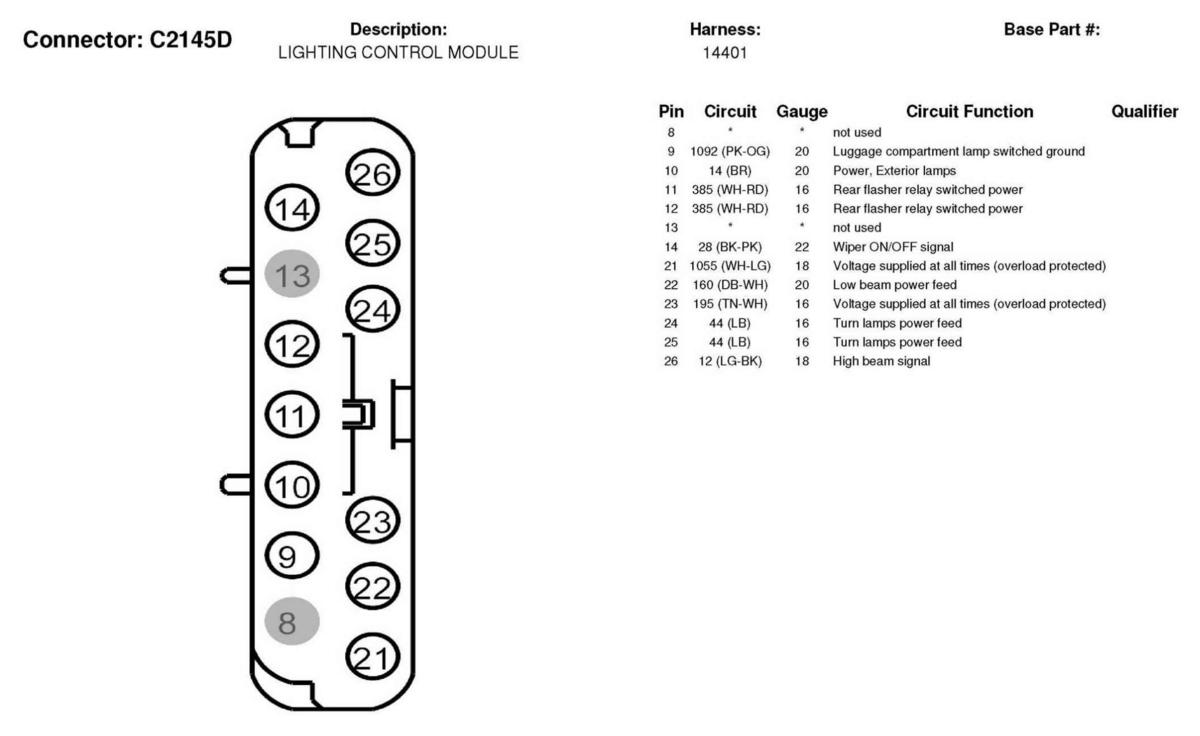

Fig 279: Lighting Control Module Connector End View (C2145D)
Courtesy of FORD MOTOR CO.

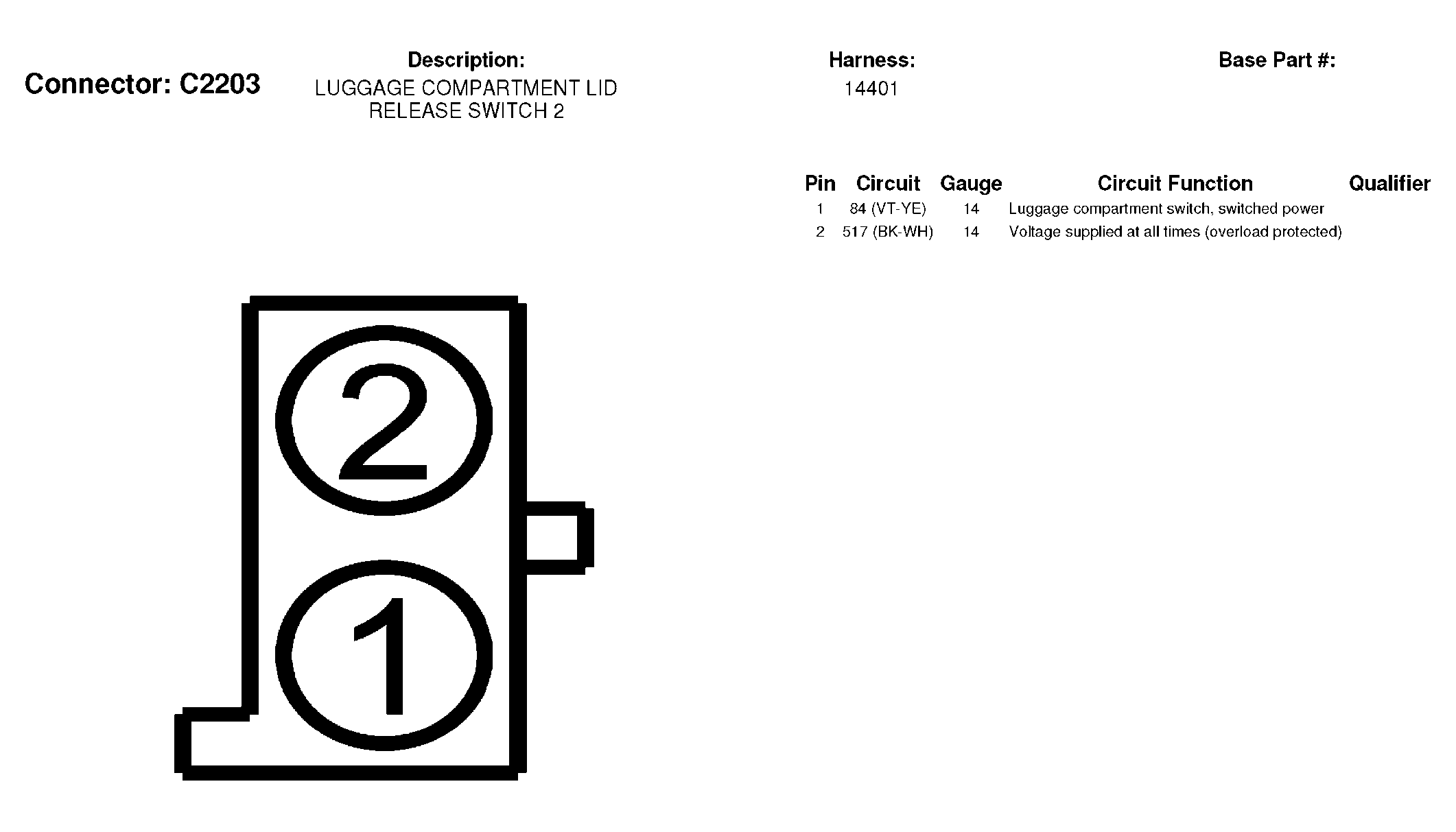

Fig 280: Luggage Compartment Lid Release Switch 2 Connector End View (C2203)
Courtesy of FORD MOTOR CO.

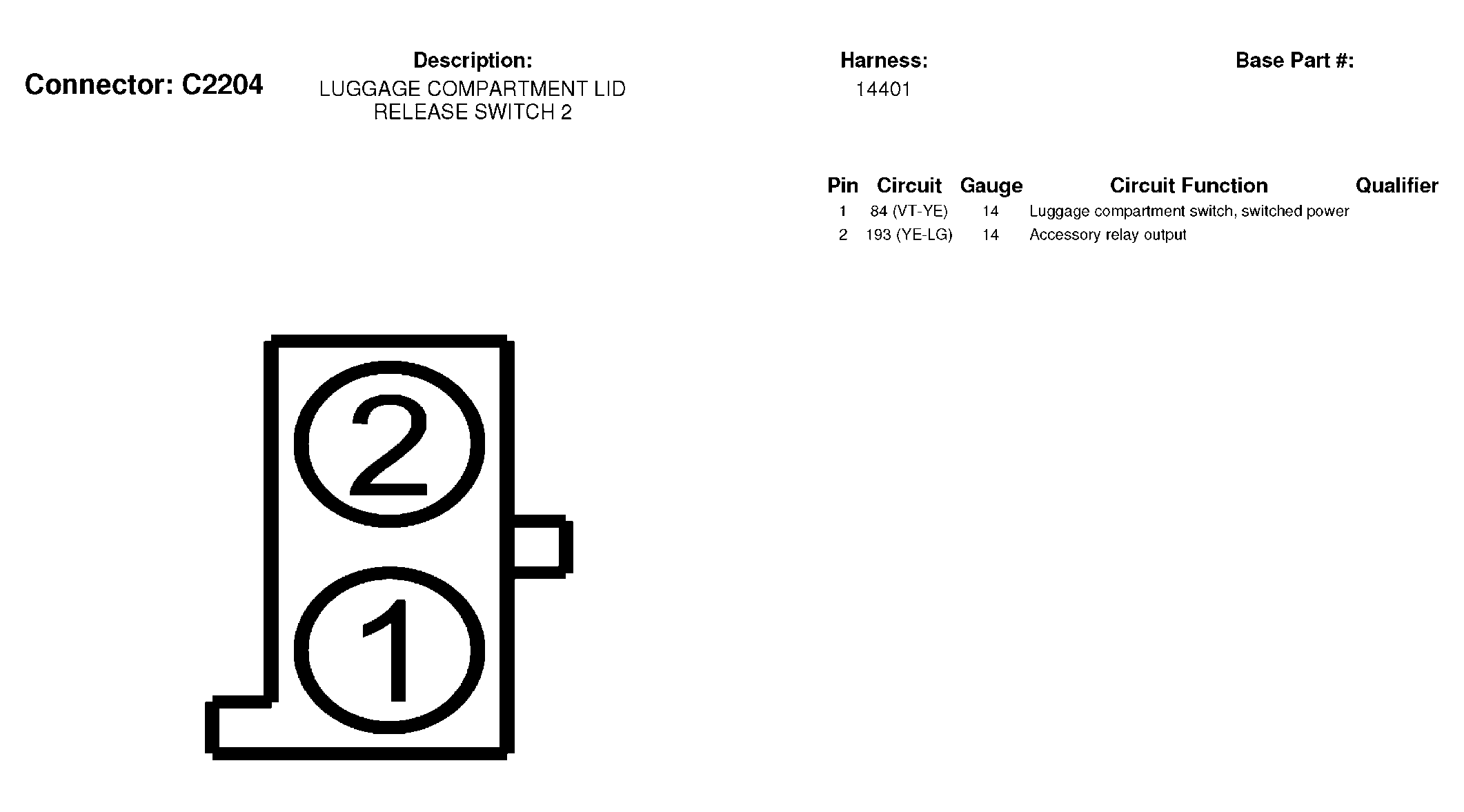

Fig 281: Luggage Compartment Lid Release Switch 2 Connector End View (C2204)
Courtesy of FORD MOTOR CO.
Fig 282: Spot Lamp, LH Side Connector End View (C2205)
Courtesy of FORD MOTOR CO.

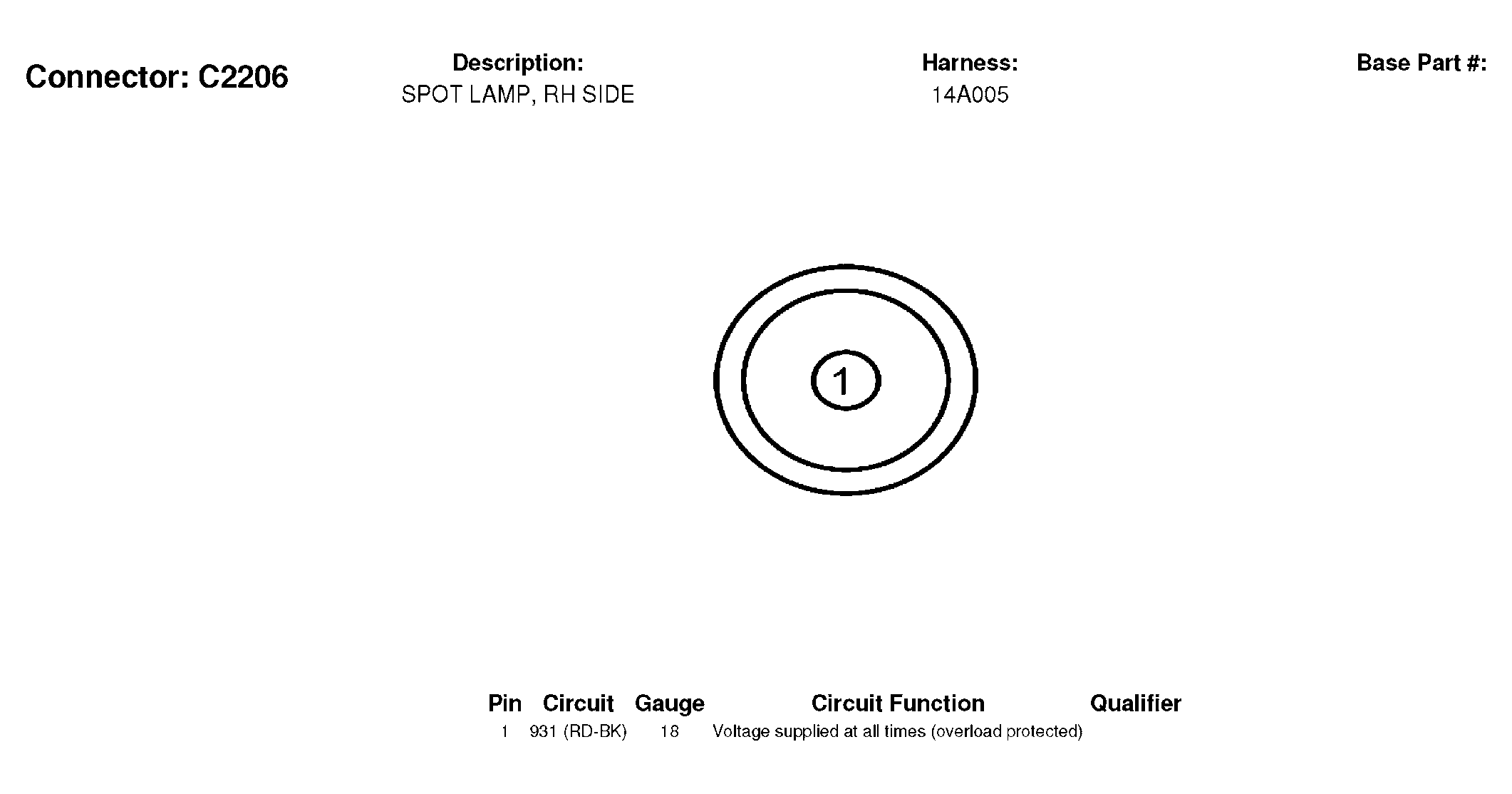

Fig 283: Spot Lamp, RH Side Connector End View (C2206)
Courtesy of FORD MOTOR CO.

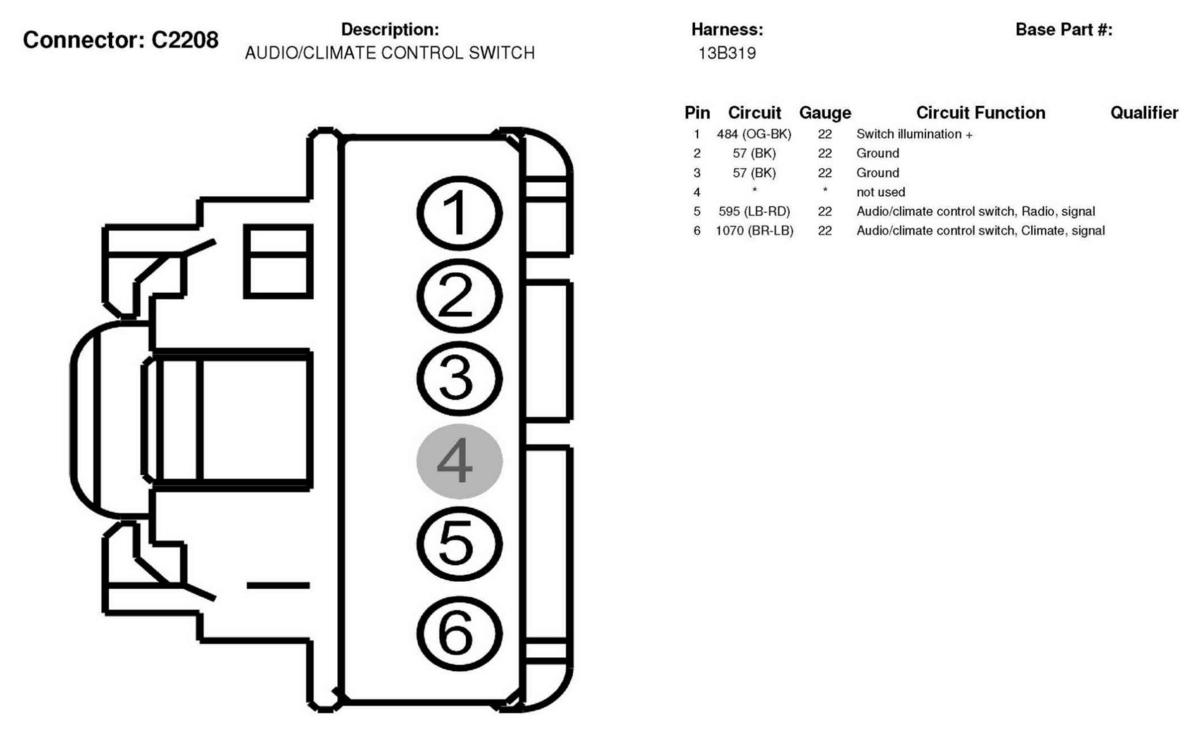

Fig 284: Audio/Climate Control Switch Connector End View (C2208)
Courtesy of FORD MOTOR CO.

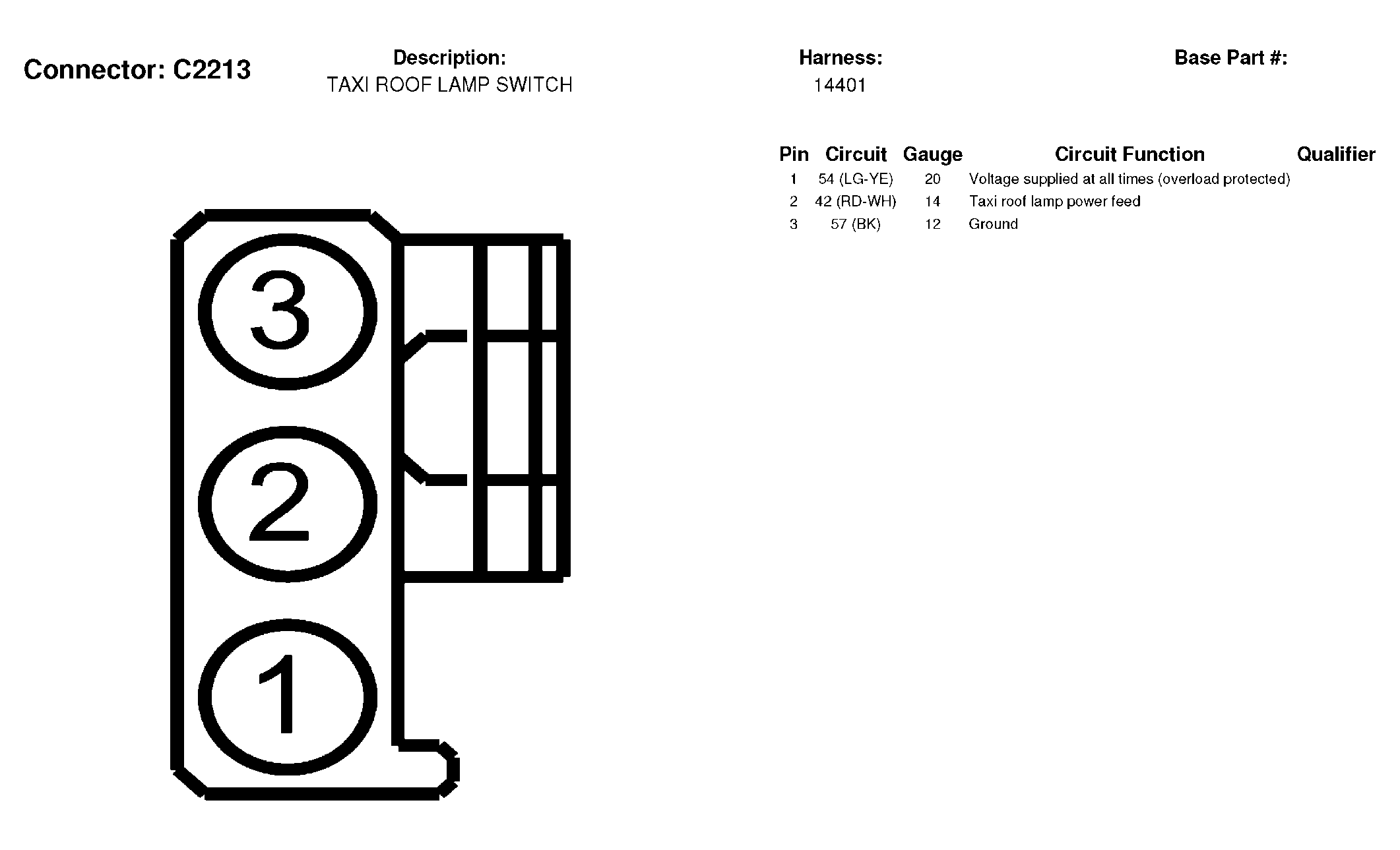

Fig 285: Taxi Roof Lamp Switch Connector End View (C2213)
Courtesy of FORD MOTOR CO.

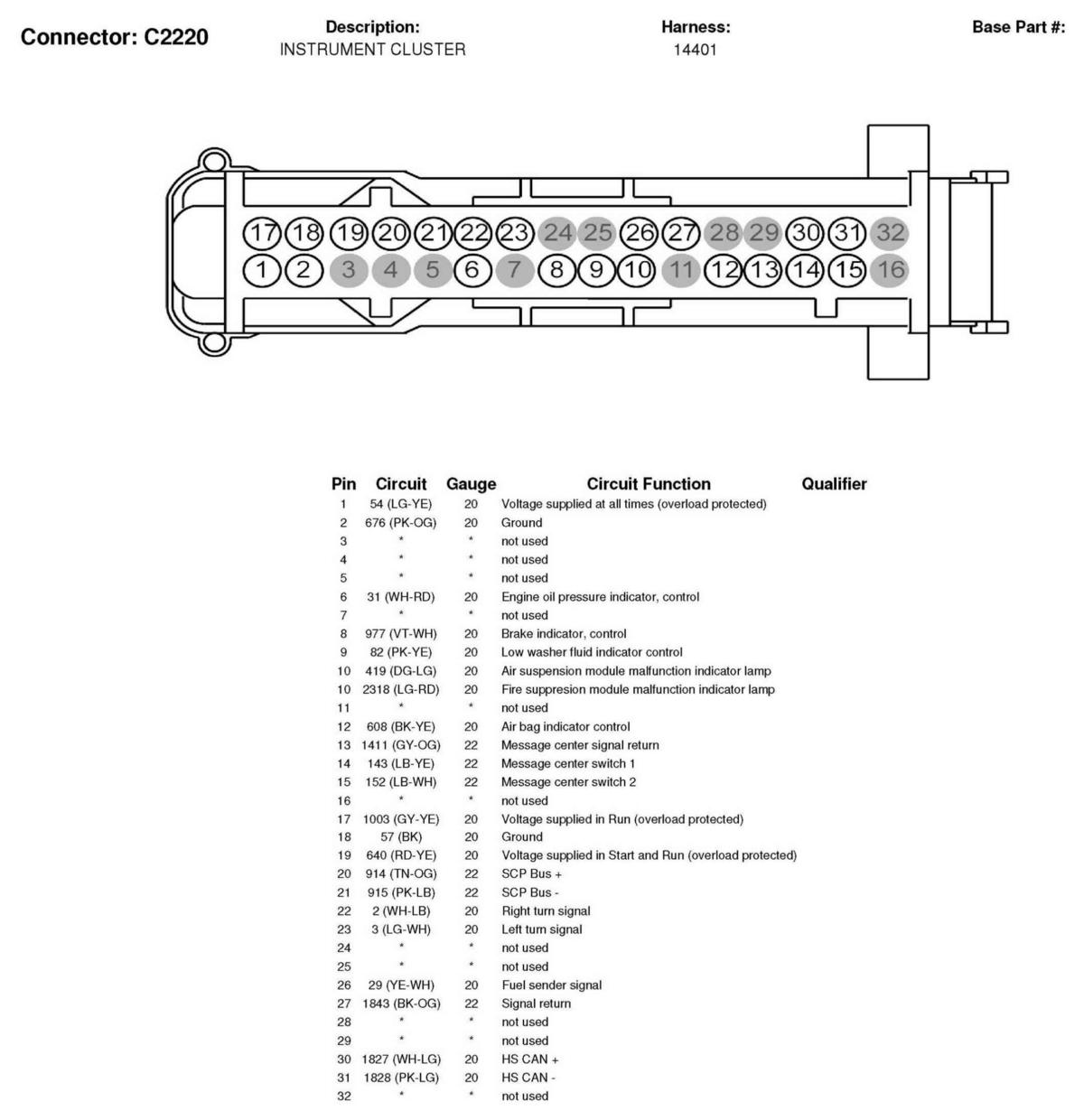

Fig 286: Instrument Cluster Connector End View (C2220)
Courtesy of FORD MOTOR CO.

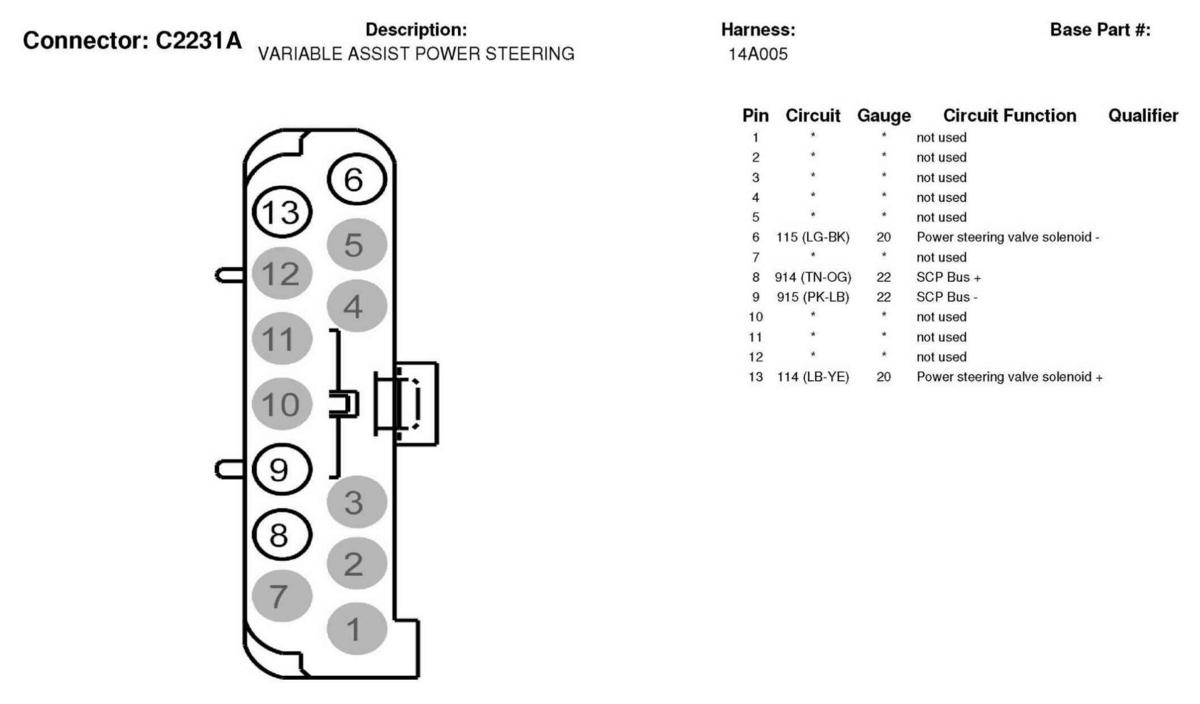

Fig 287: Variable Assist Power Steering Connector End View (C2231A)
Courtesy of FORD MOTOR CO.

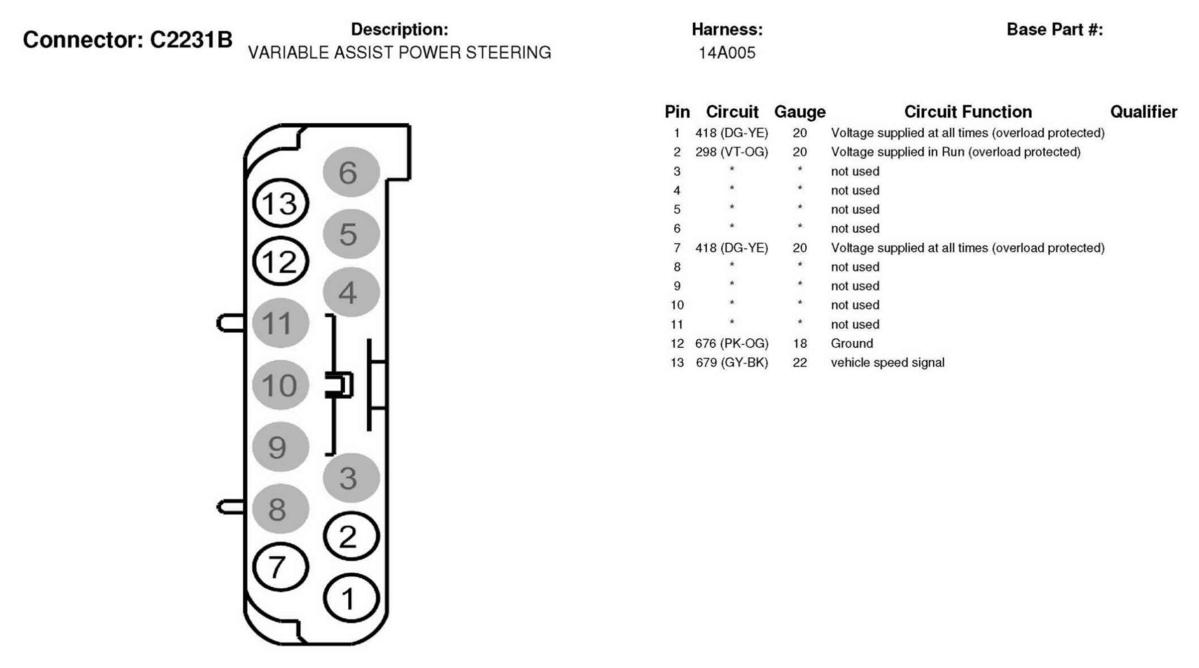

Fig 288: Variable Assist Power Steering Connector End View (C2231B)
Courtesy of FORD MOTOR CO.

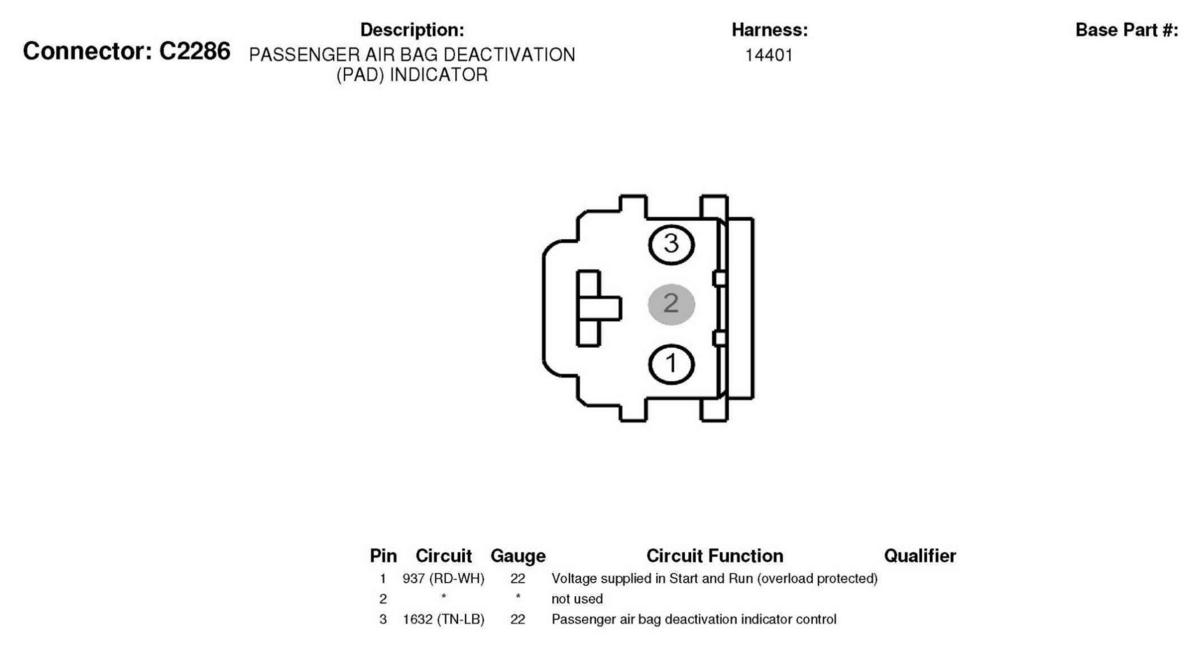

Fig 289: Passenger Air Bag Deactivation (PAD) Indicator Connector End View (C2286)
Courtesy of FORD MOTOR CO.

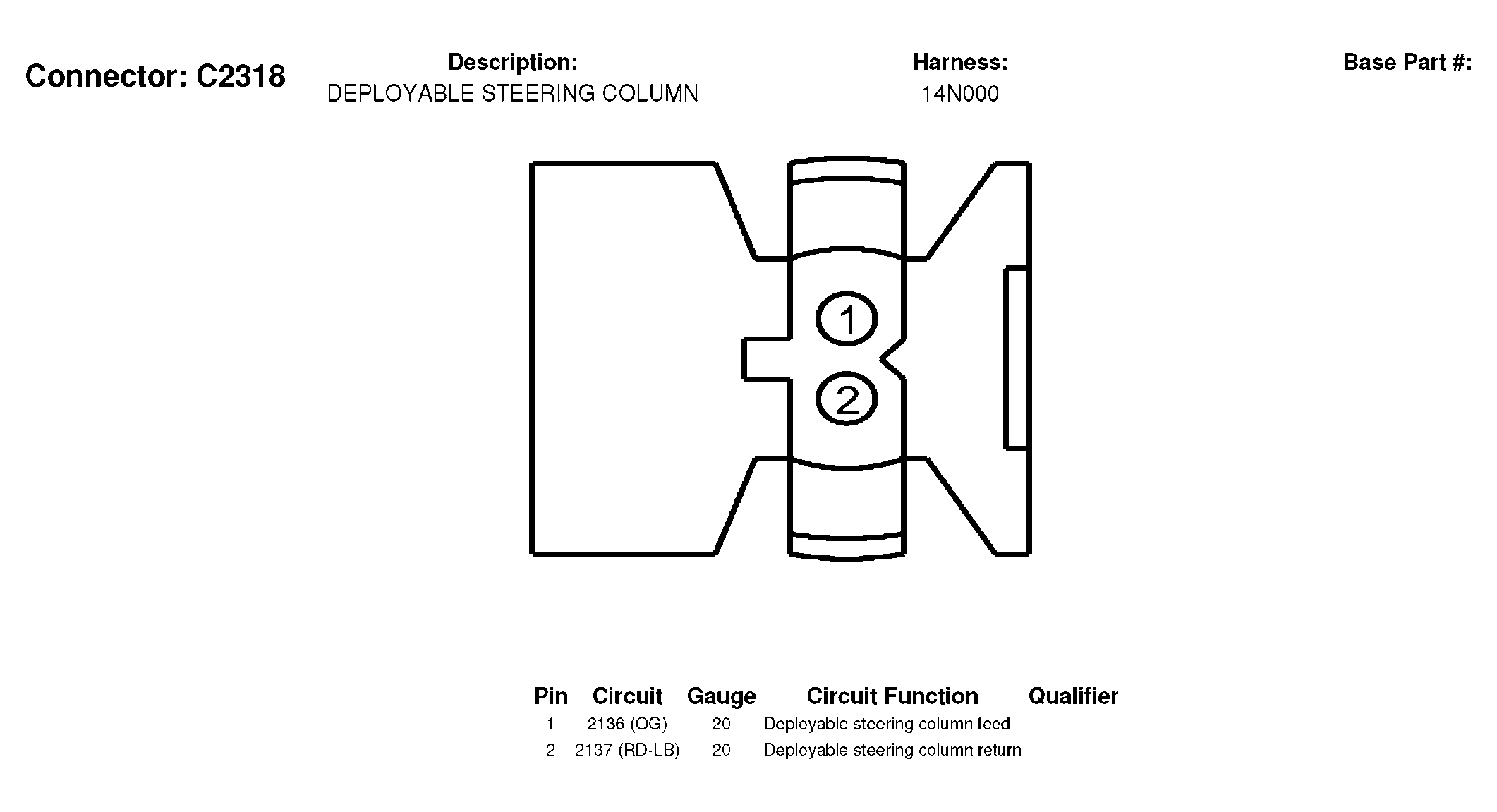

Fig 290: Deployable Steering Column Connector End View (C2318)
Courtesy of FORD MOTOR CO.

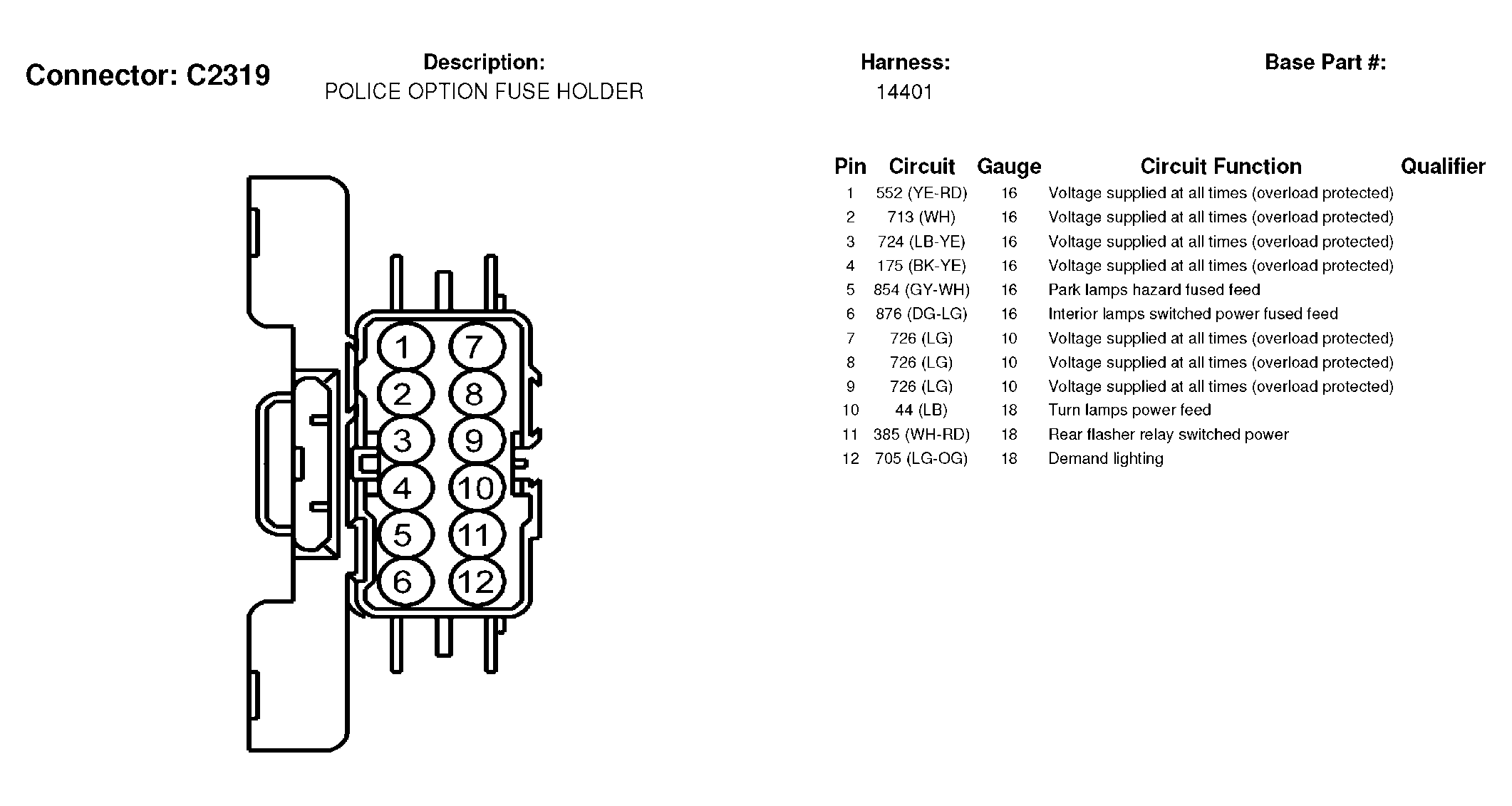

Fig 291: Police Option Fuse Holder Connector End View (C2319)
Courtesy of FORD MOTOR CO.

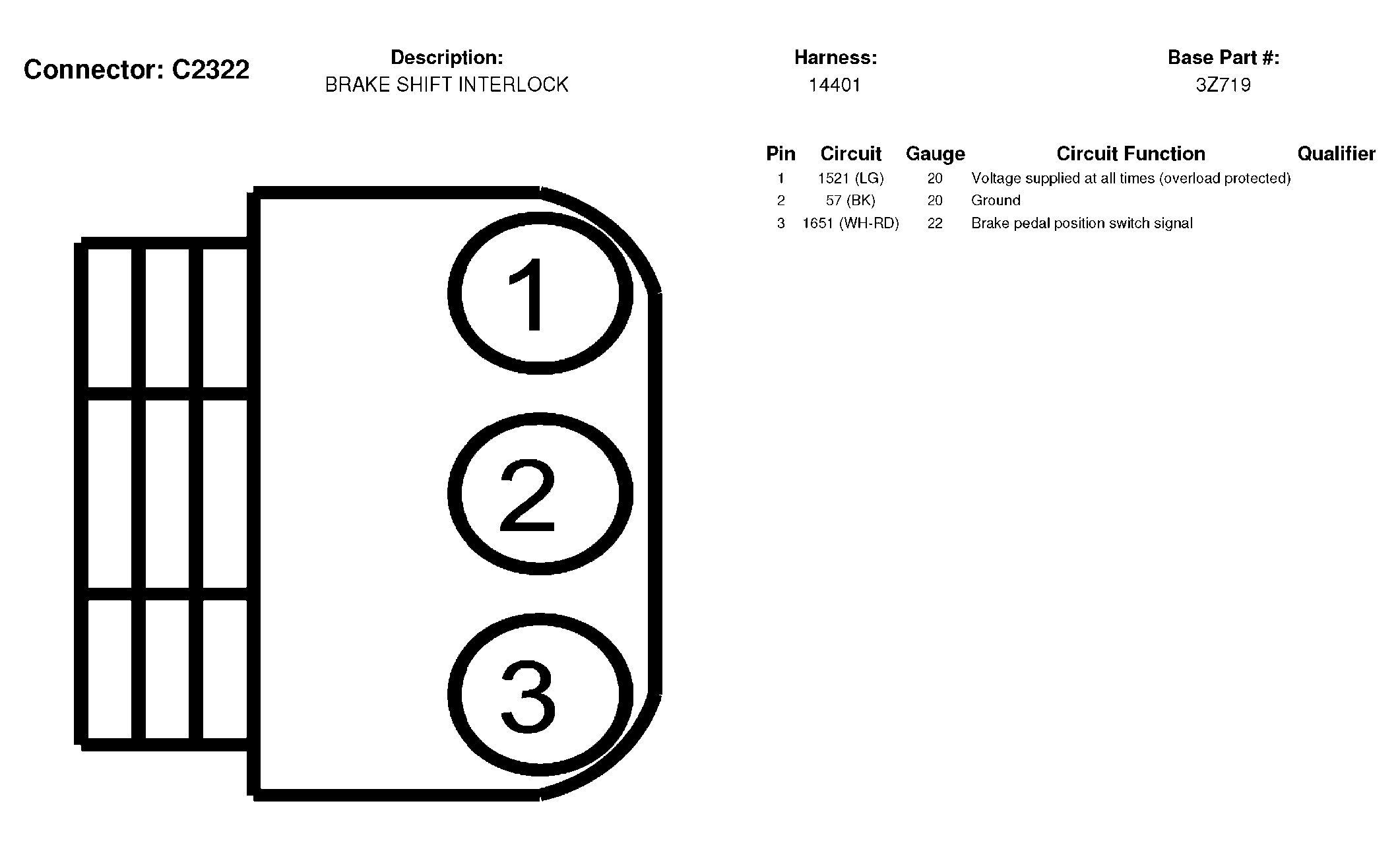

Fig 292: Brake Shift Interlock Connector End View (C2322)
Courtesy of FORD MOTOR CO.

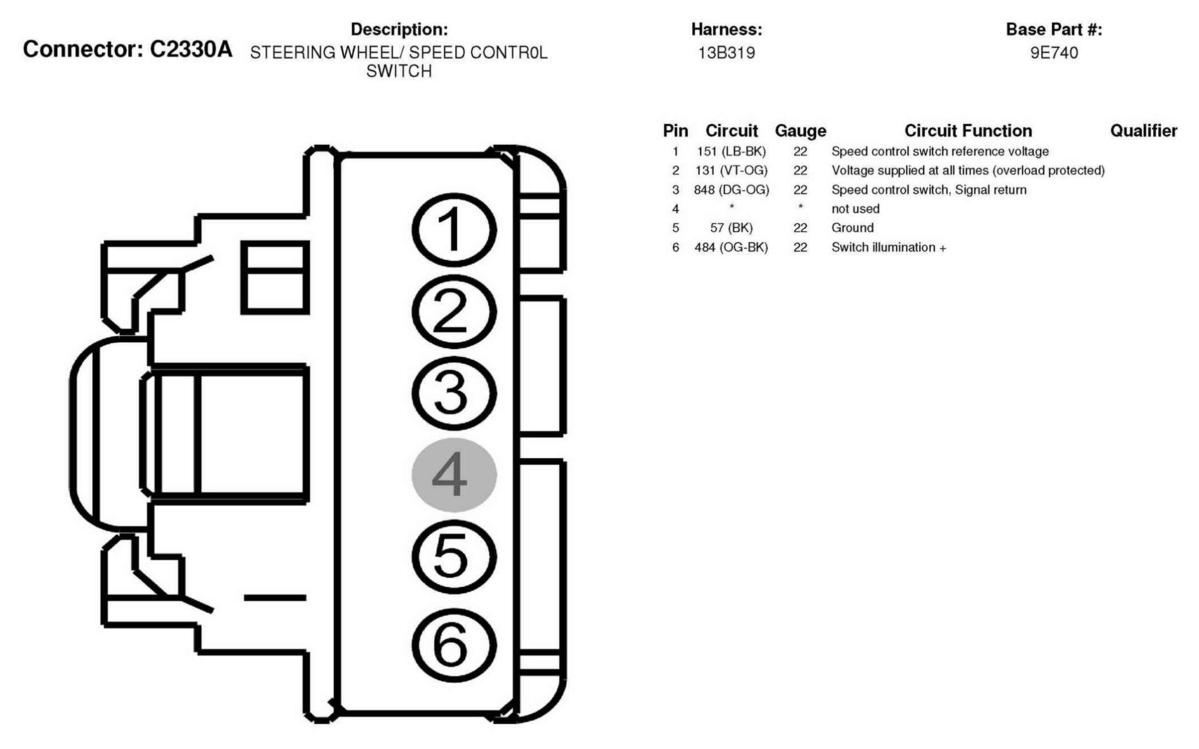

Fig 293: Steering Wheel/Speed Control Switch Connector End View (C2330A)
Courtesy of FORD MOTOR CO.

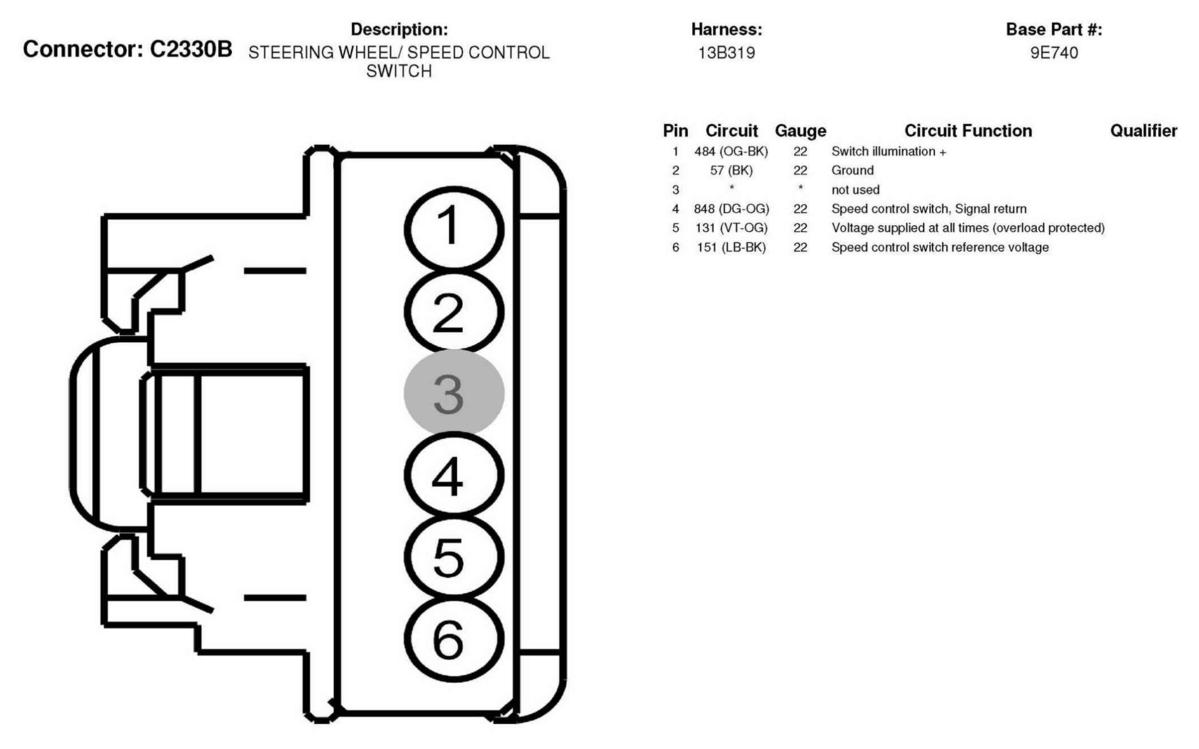

Fig 294: Steering Wheel/Speed Control Switch Connector End View (C2330B)
Courtesy of FORD MOTOR CO.

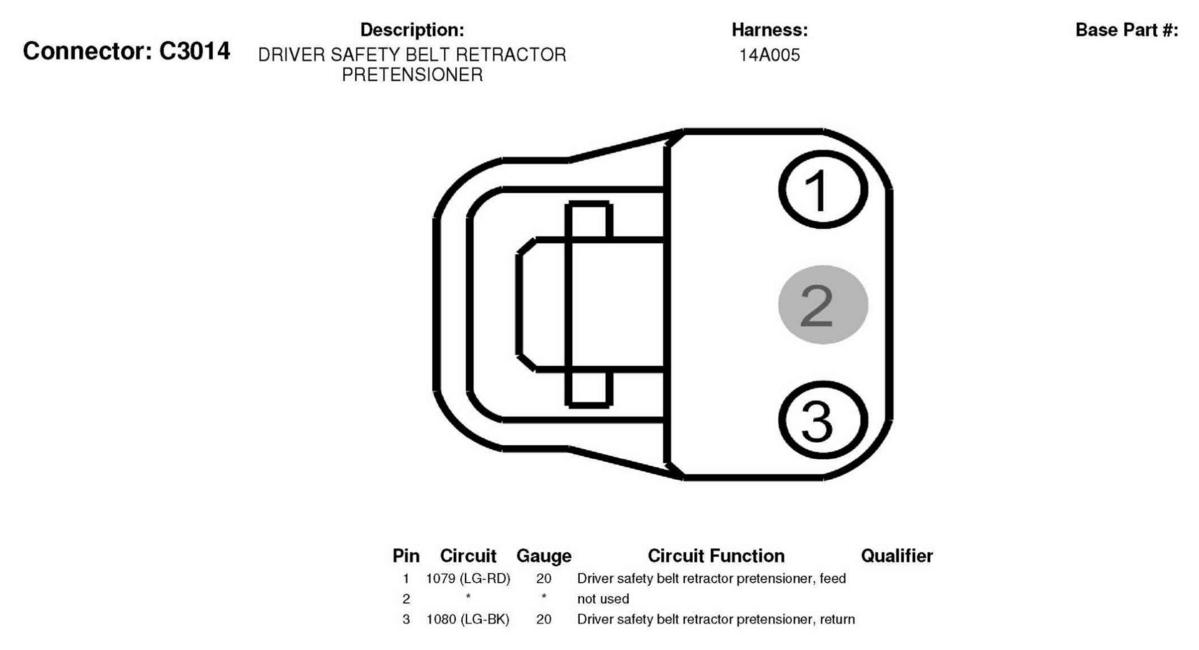

Fig 295: Driver Safety Belt Retractor Pretensioner Connector End View (C3014)
Courtesy of FORD MOTOR CO.

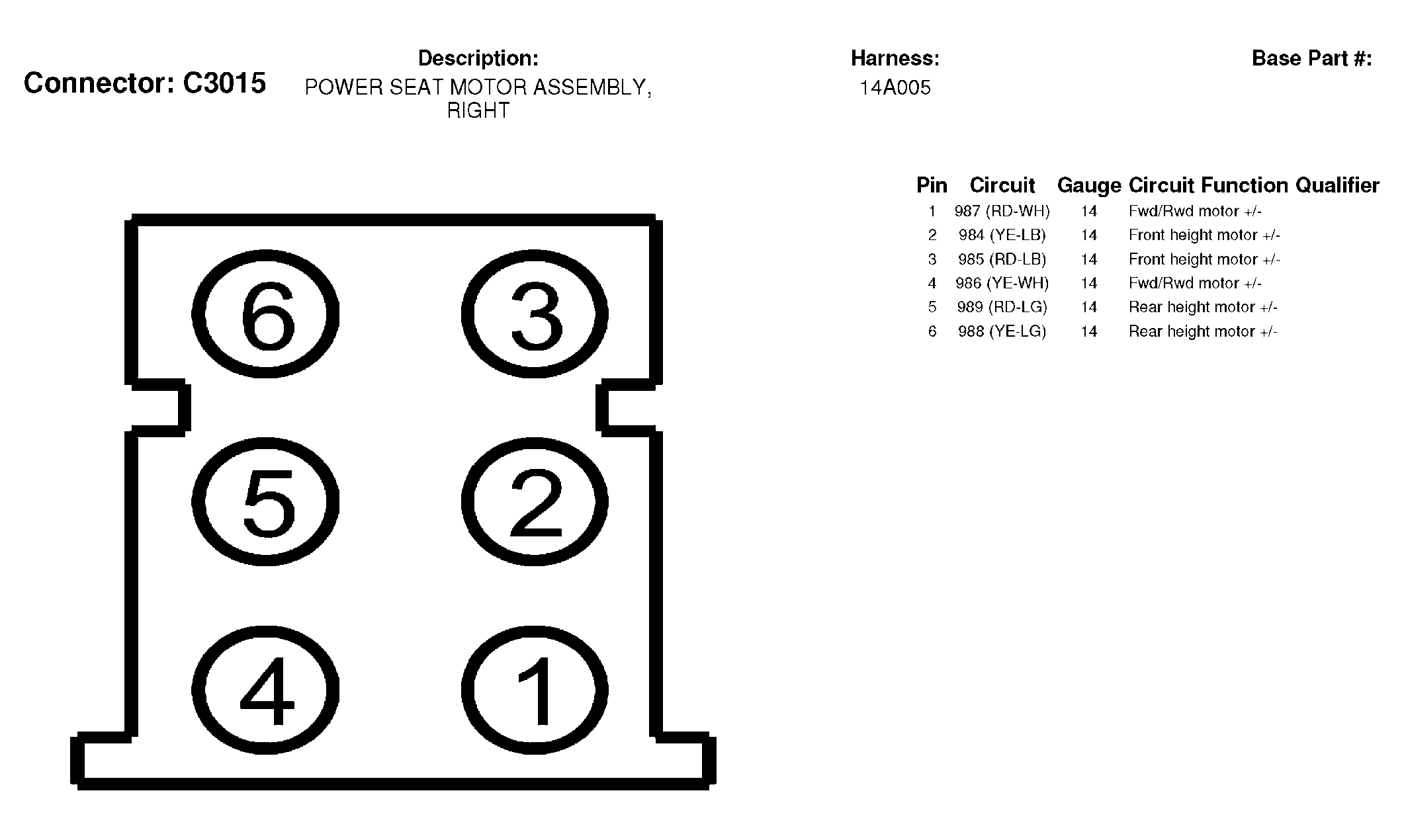

Fig 296: Power Seat Motor Assembly, Right Connector End View (C3015)
Courtesy of FORD MOTOR CO.

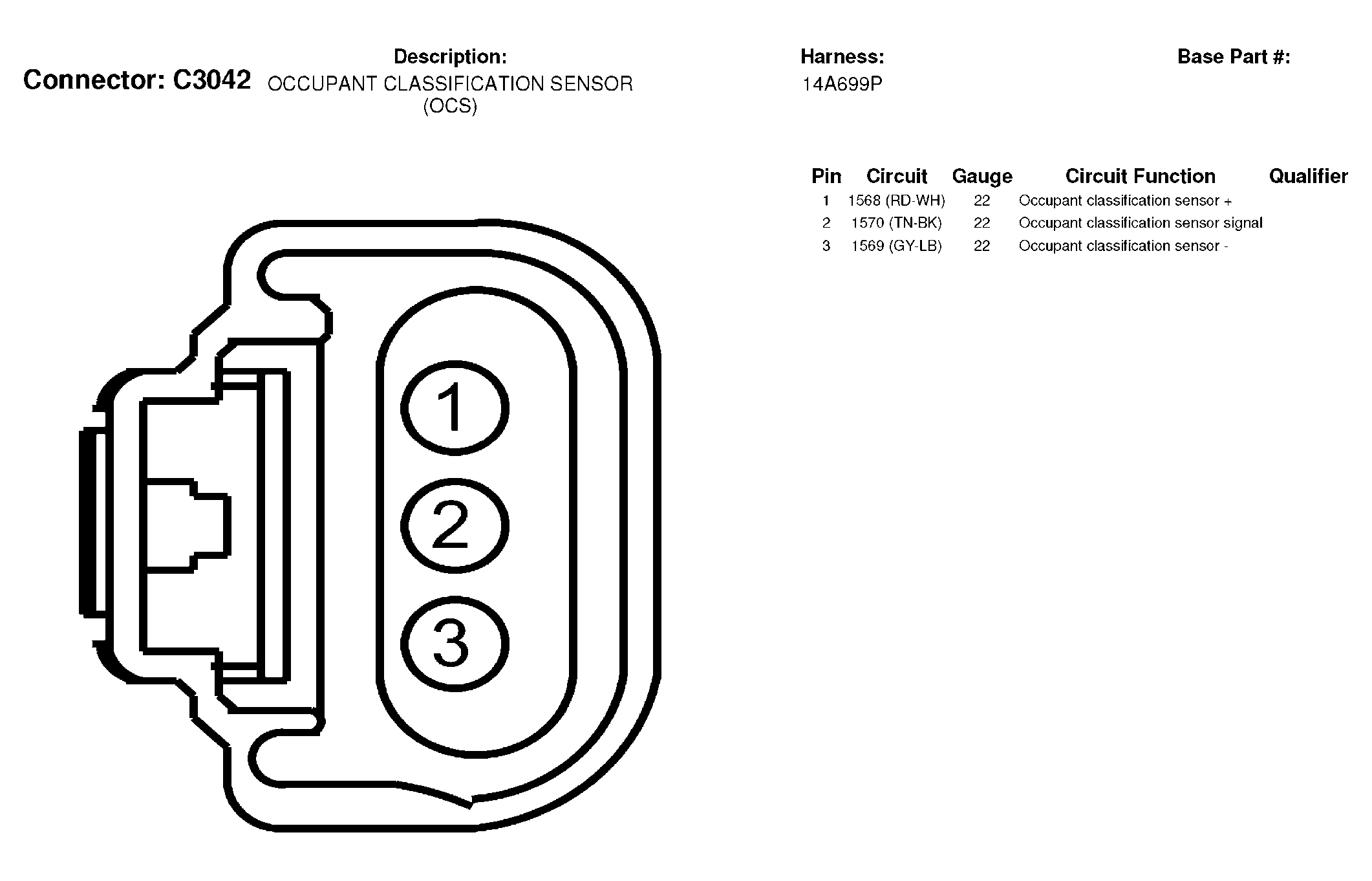

Fig 297: Occupant Classification Sensor (OCS) Connector End View (C3042)
Courtesy of FORD MOTOR CO.

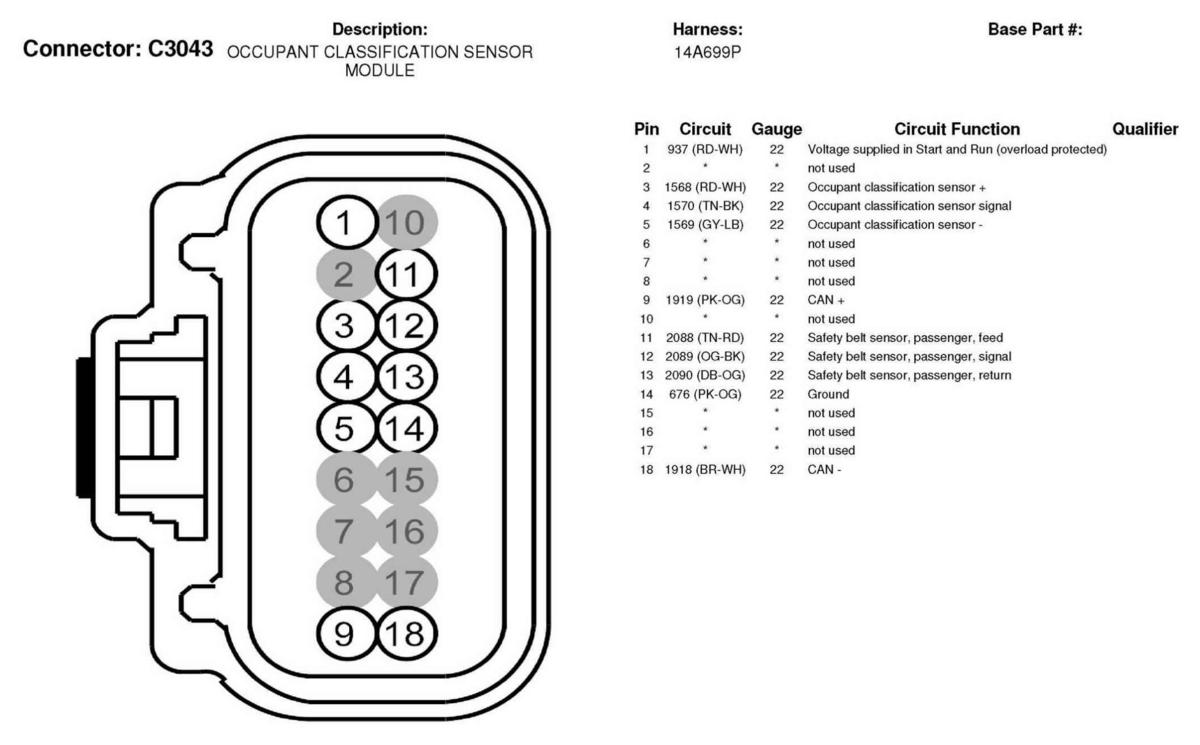

Fig 298: Occupant Classification Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.

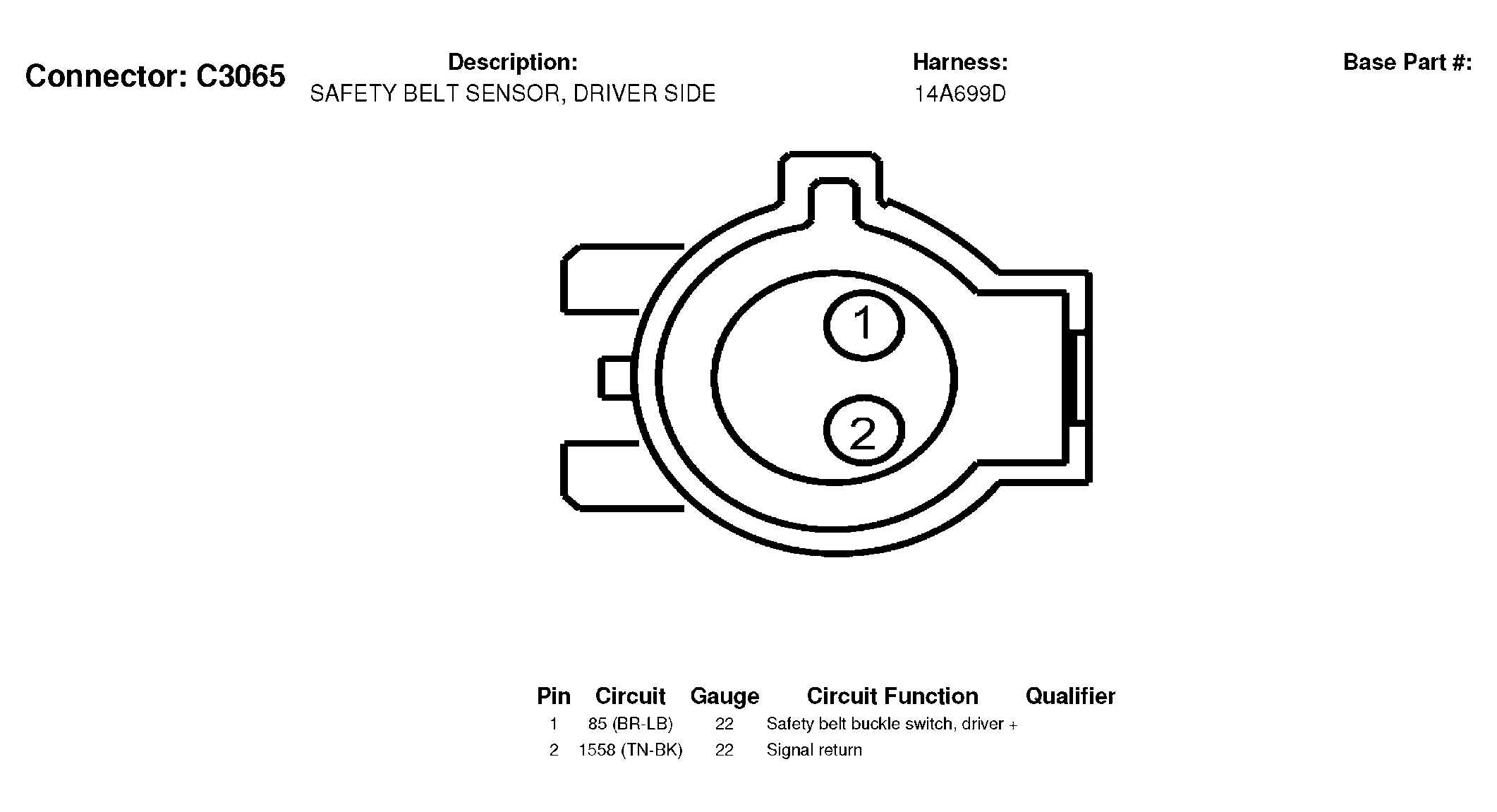

Fig 299: Safety Belt Sensor, Driver Side Connector End View (C3065)
Courtesy of FORD MOTOR CO.
Fig 300: Safety Belt Sensor, Passenger Side Connector End View (C3066)
Courtesy of FORD MOTOR CO.

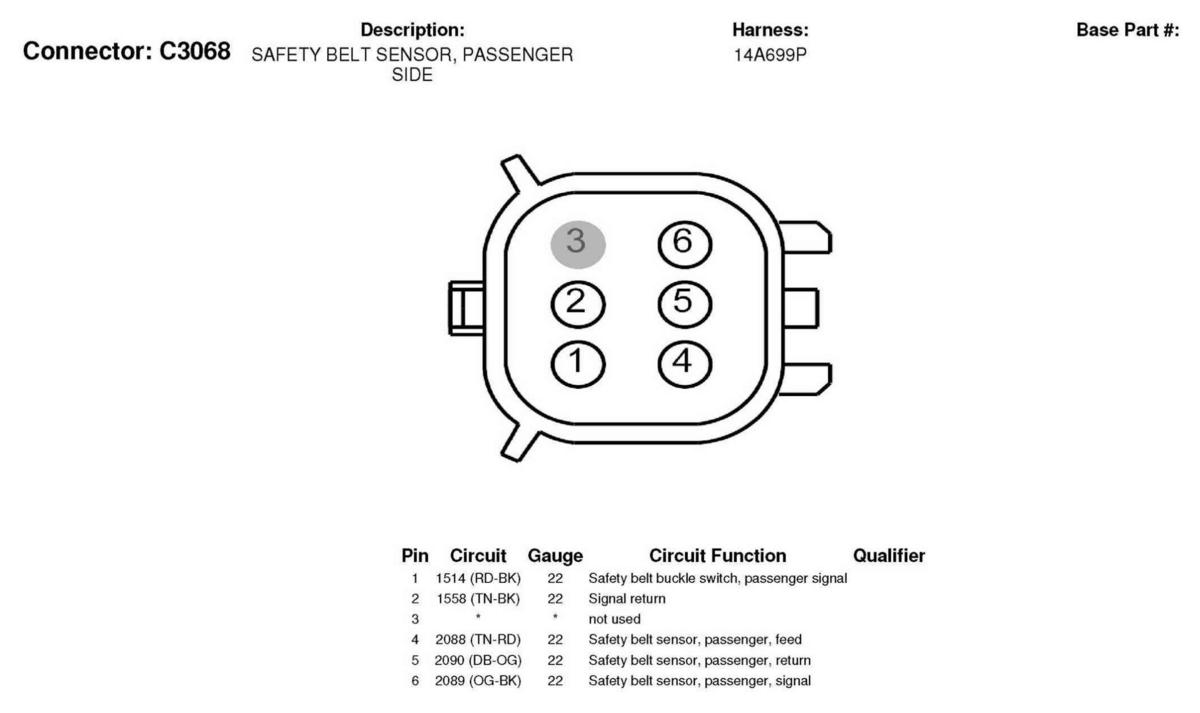

Fig 301: Safety Belt Sensor, Passenger Side Connector End View (C3068)
Courtesy of FORD MOTOR CO.

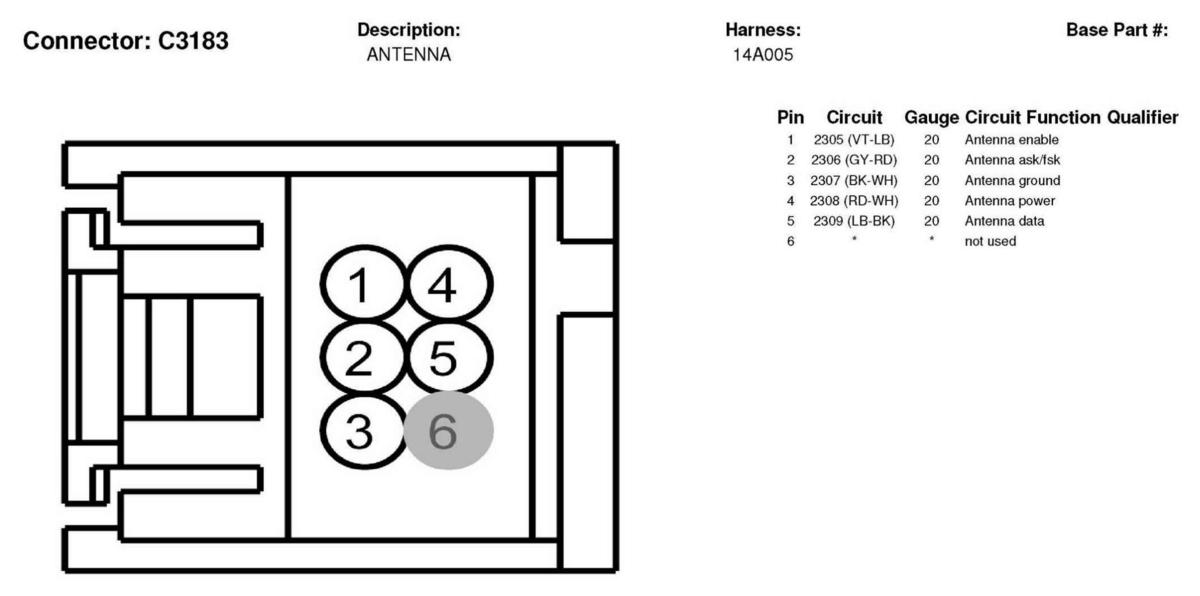

Fig 302: Antenna Connector End View (C3183)
Courtesy of FORD MOTOR CO.

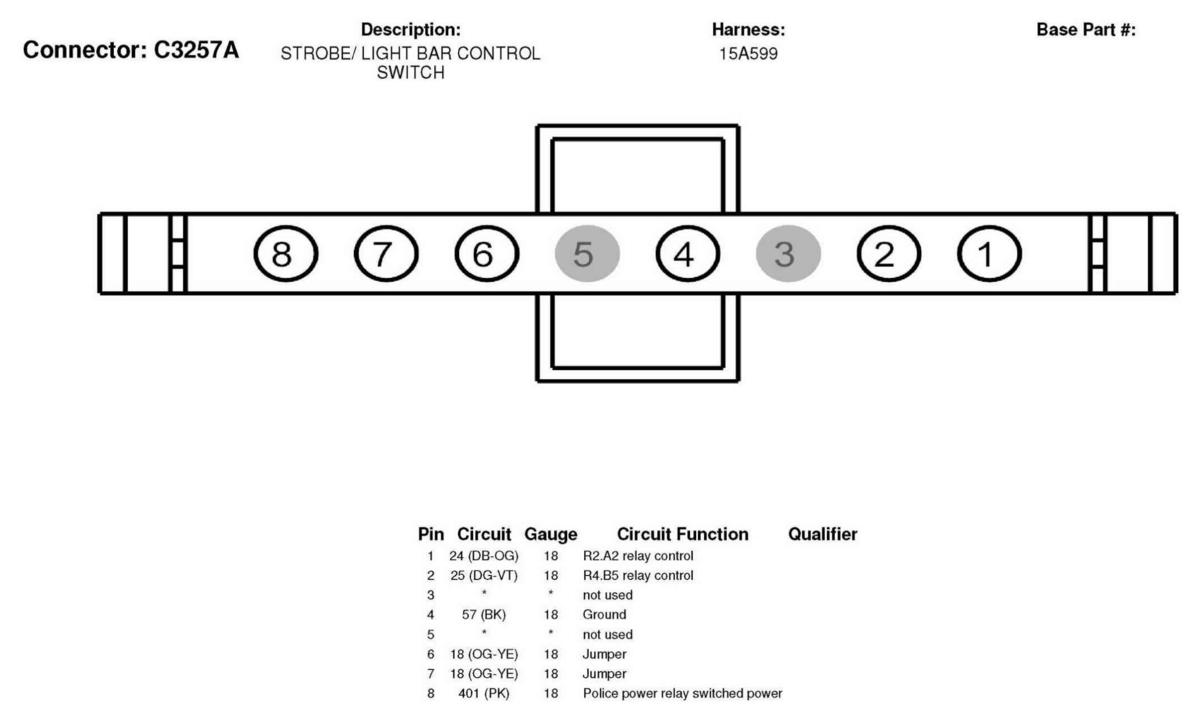

Fig 303: Strobe/Light Bar Control Switch Connector End View (C3257A)
Courtesy of FORD MOTOR CO.

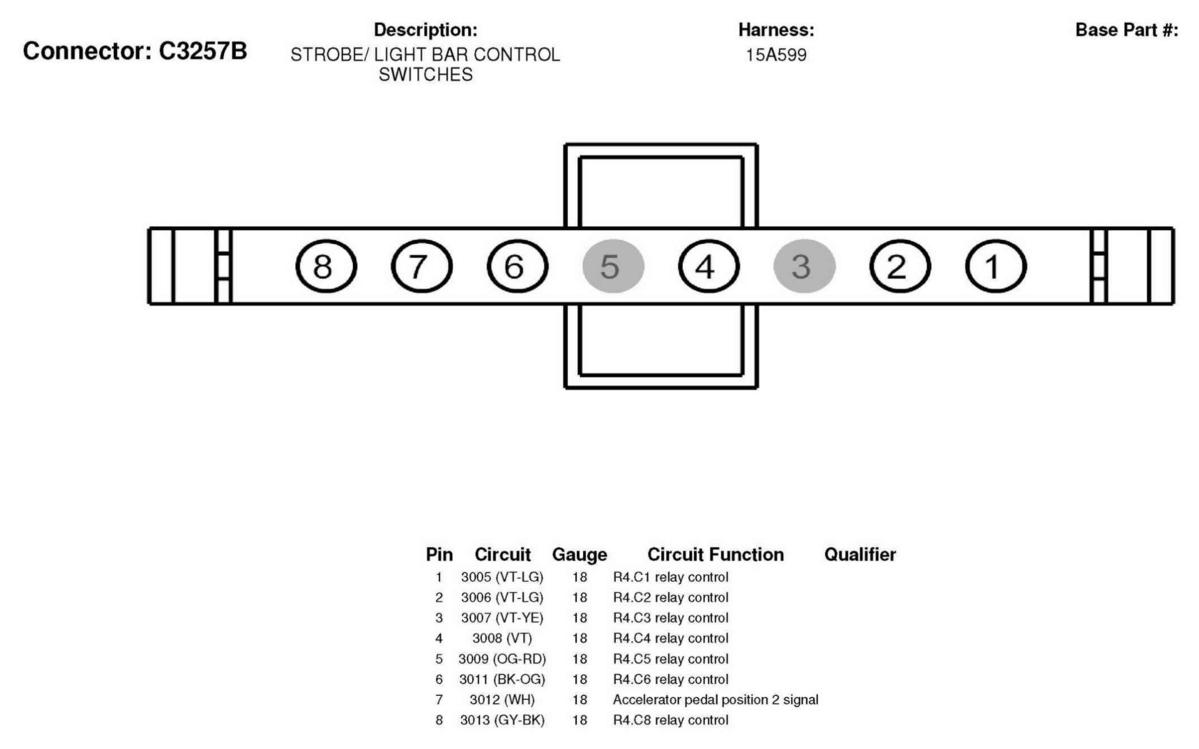

Fig 304: Strobe/Light Bar Control Switches Connector End View (C3257B)
Courtesy of FORD MOTOR CO.

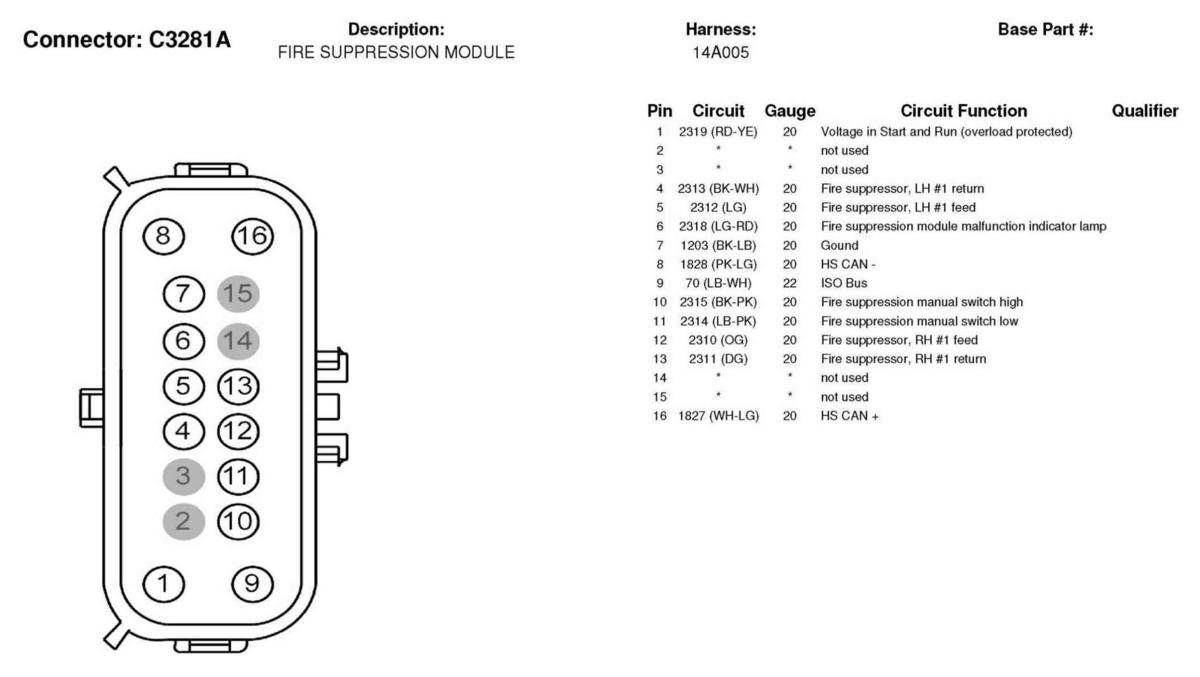

Fig 305: Fire Suppression Module Connector End View (C3281A)
Courtesy of FORD MOTOR CO.

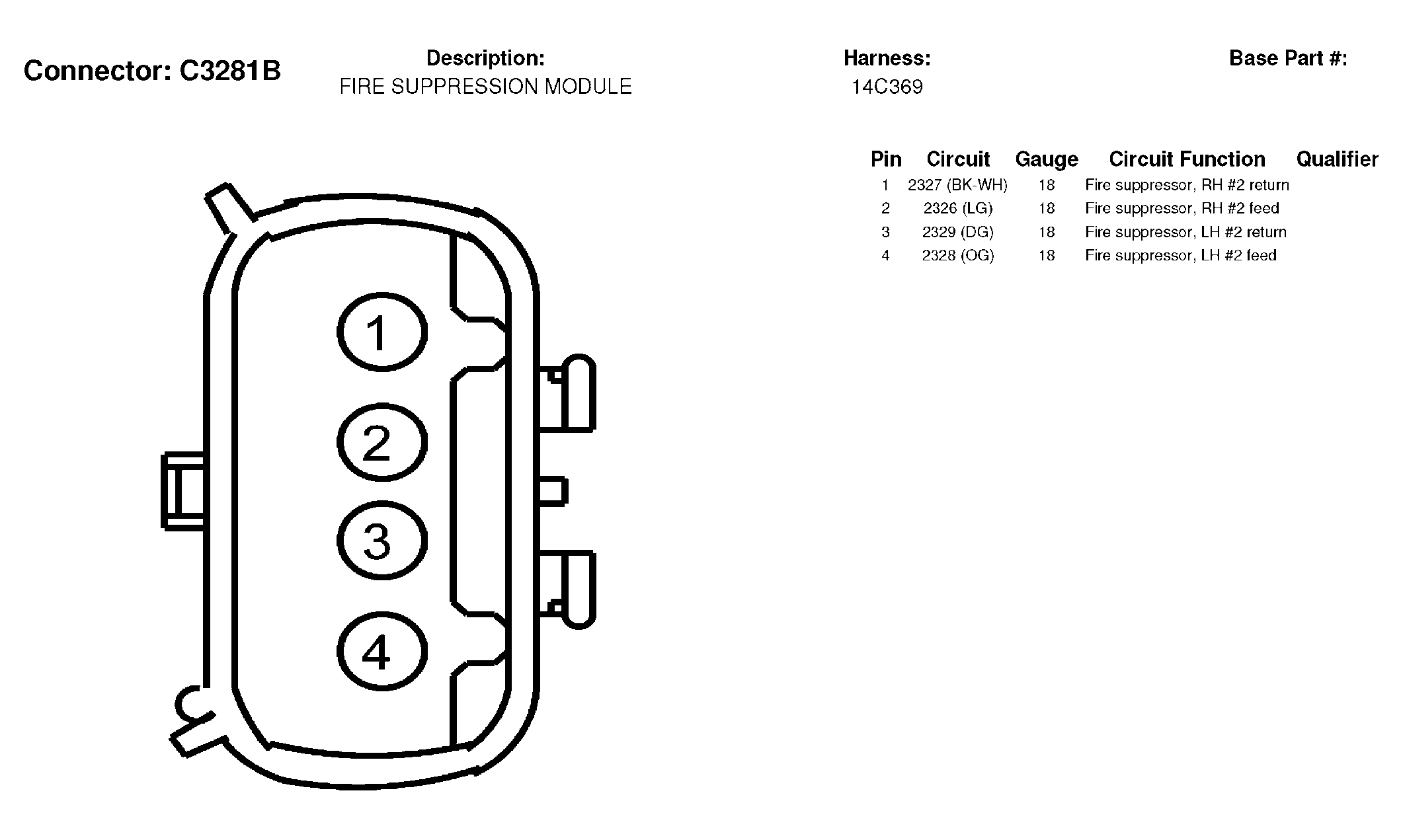

Fig 306: Fire Suppression Module Connector End View (C3281B)
Courtesy of FORD MOTOR CO.

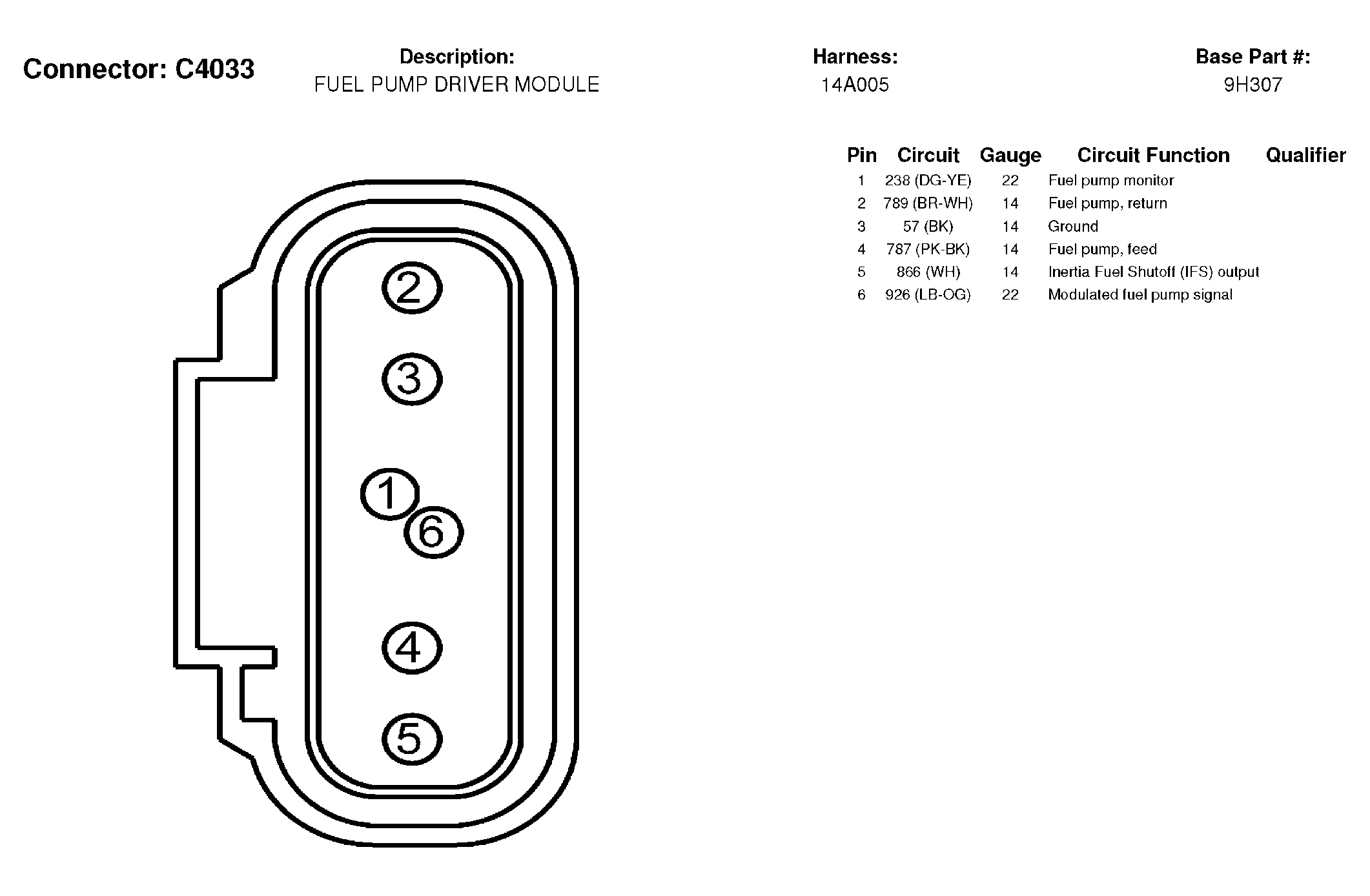

Fig 307: Fuel Pump Driver Module Connector End View (C4033)
Courtesy of FORD MOTOR CO.

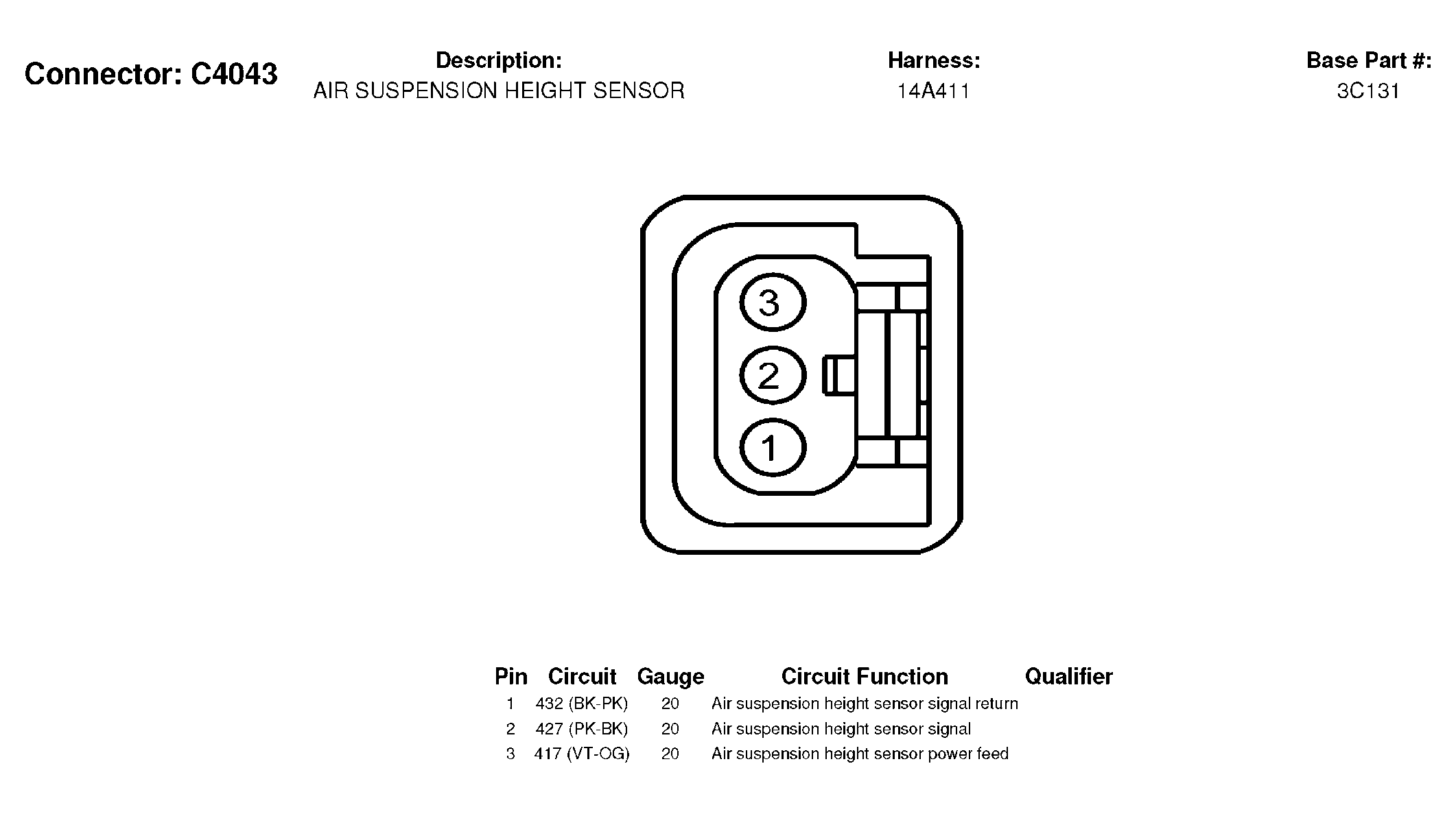

Fig 308: Air Suspension Height Sensor Connector End View (C4043)
Courtesy of FORD MOTOR CO.

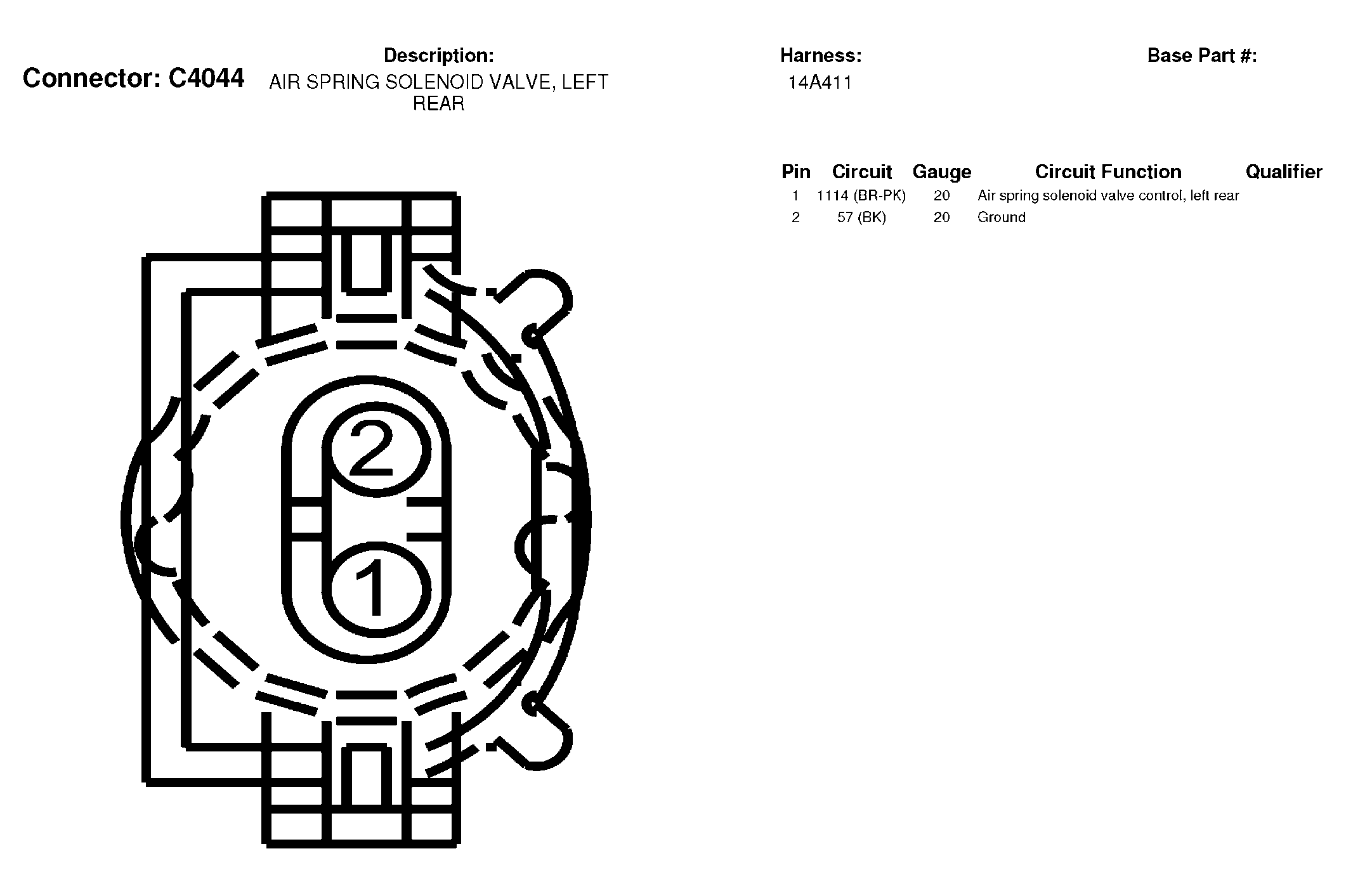

Fig 309: Air Spring Solenoid Valve, Left Rear Connector End View (C4044)
Courtesy of FORD MOTOR CO.

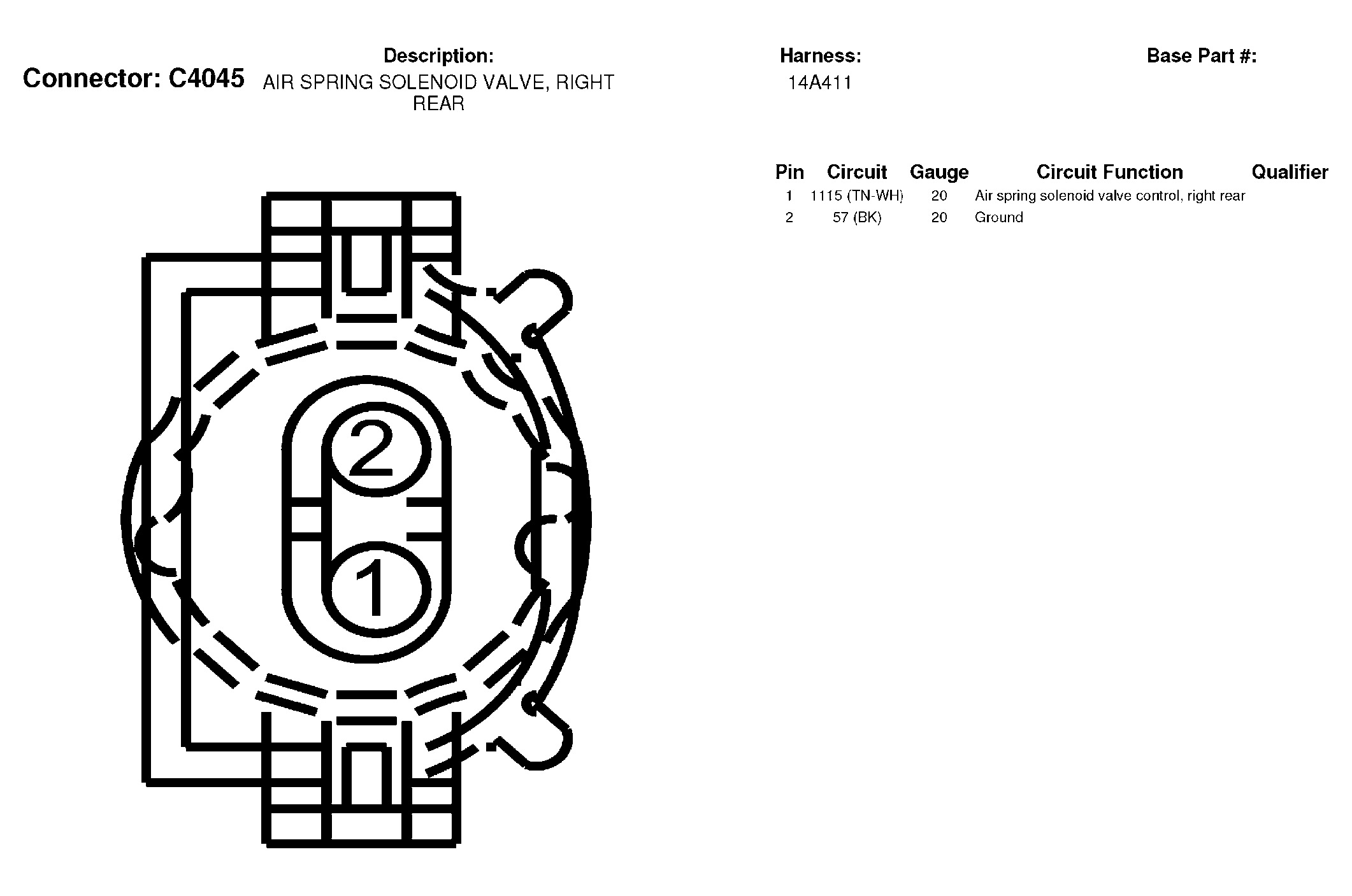

Fig 310: Air Spring Solenoid Valve, Right Rear Connector End View (C4045)
Courtesy of FORD MOTOR CO.

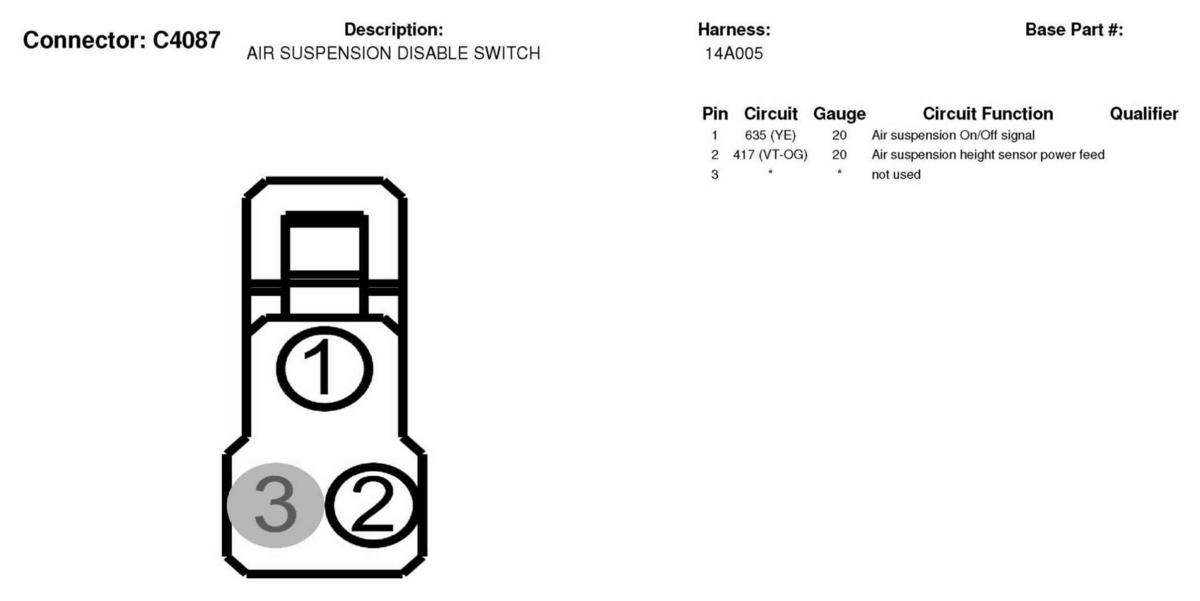

Fig 311: Air Suspension Disable Switch Connector End View (C4087)
Courtesy of FORD MOTOR CO.

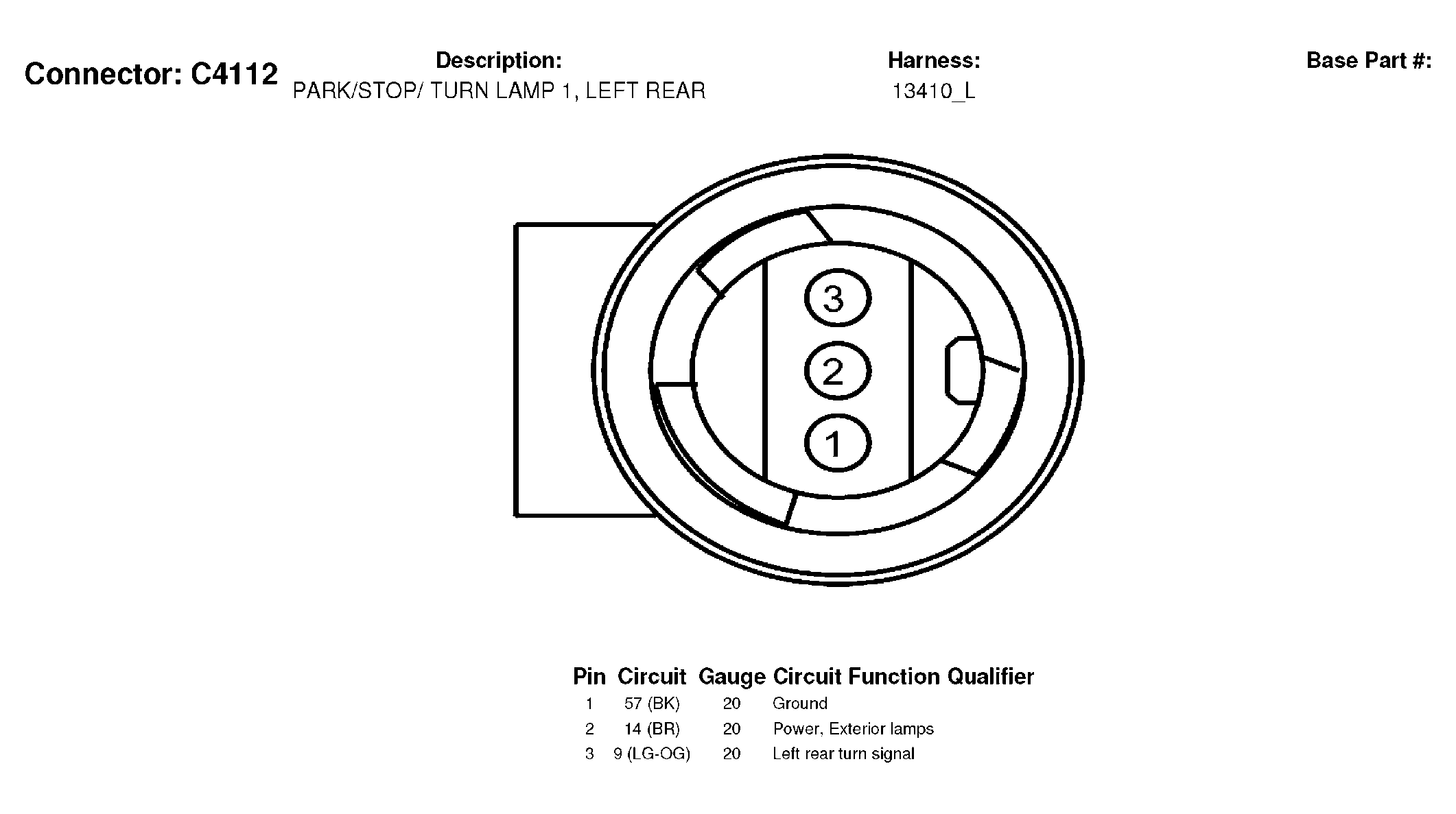

Fig 312: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)
Courtesy of FORD MOTOR CO.

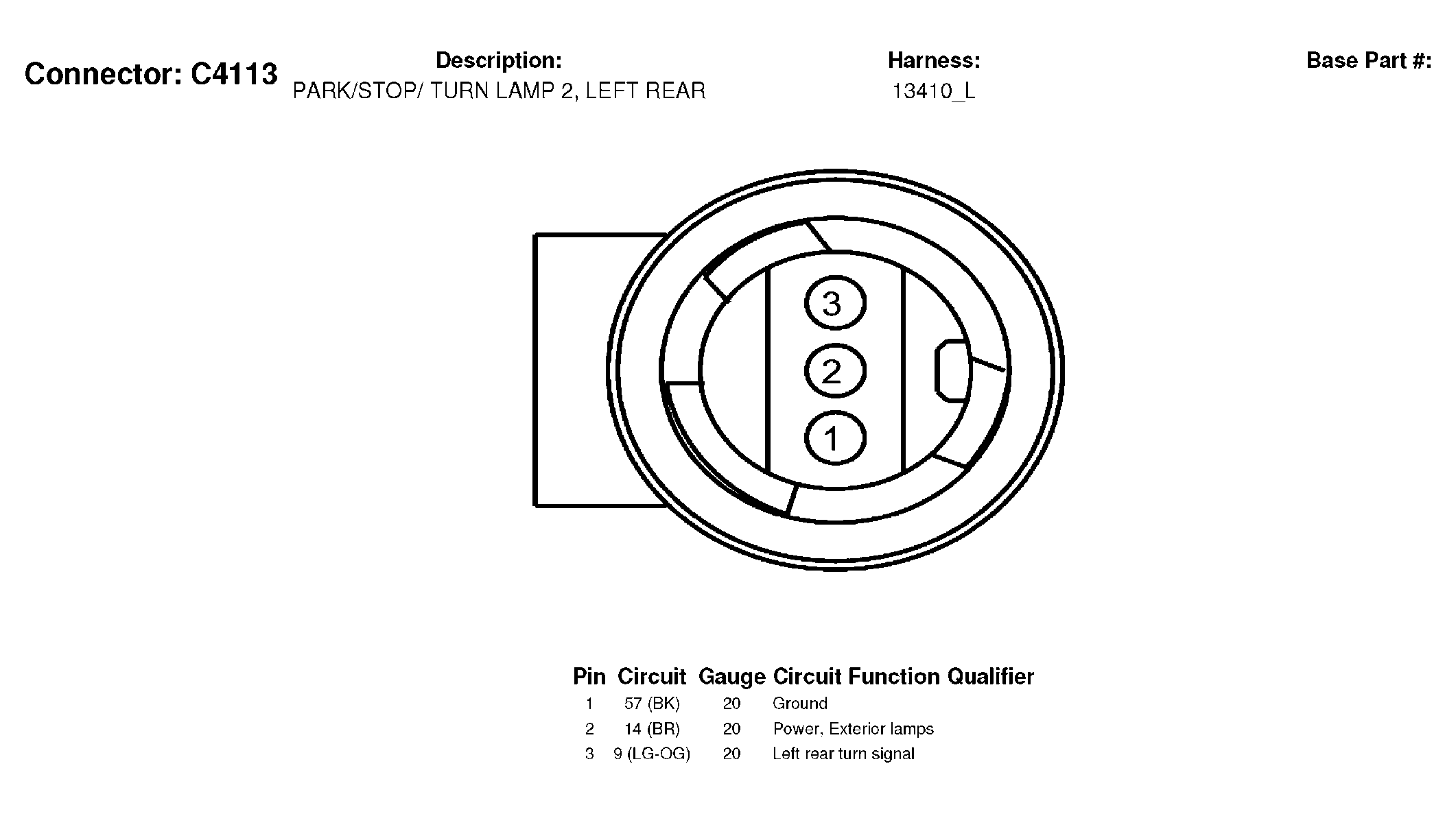

Fig 313: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)
Courtesy of FORD MOTOR CO.

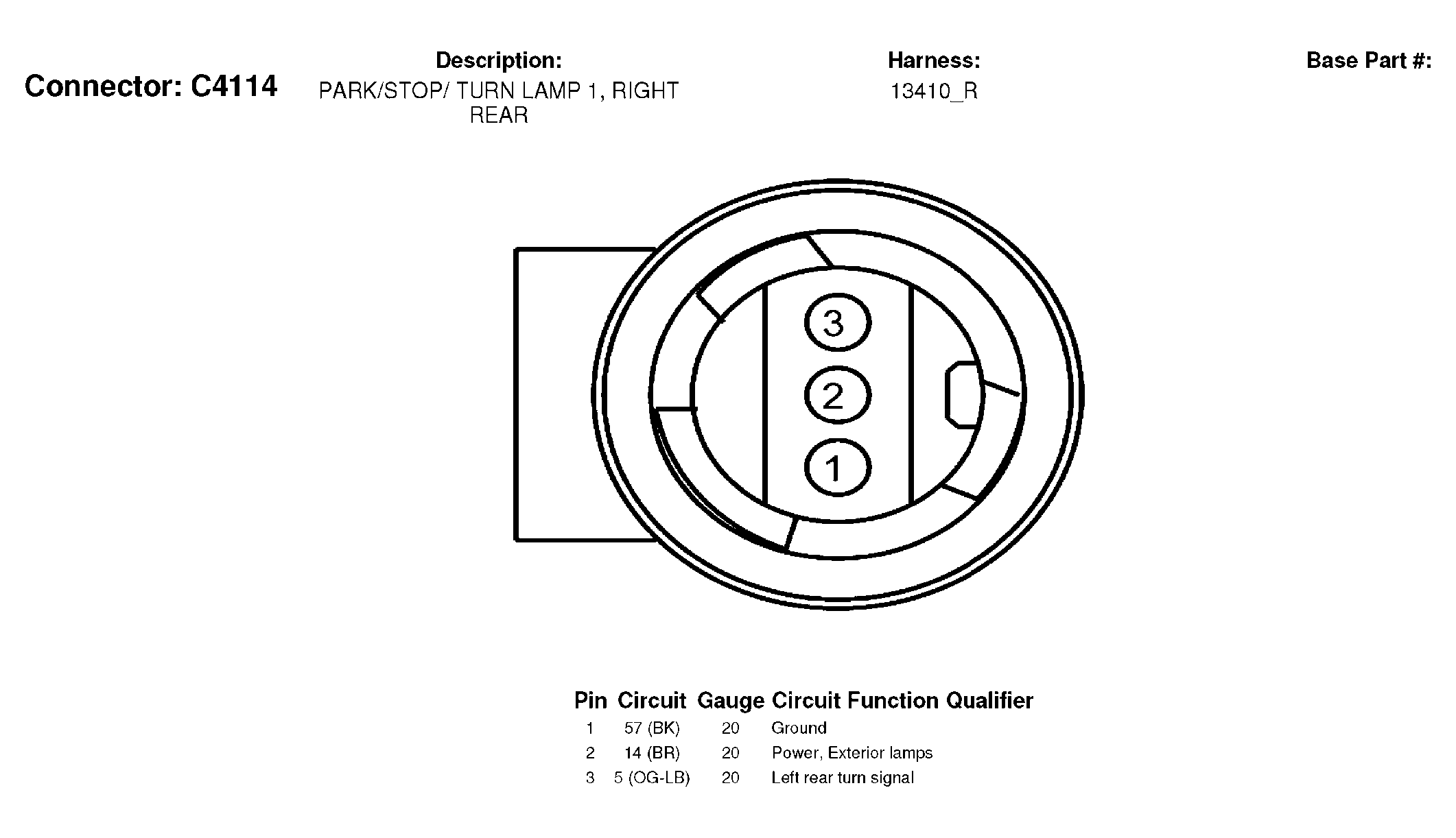

Fig 314: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)
Courtesy of FORD MOTOR CO.

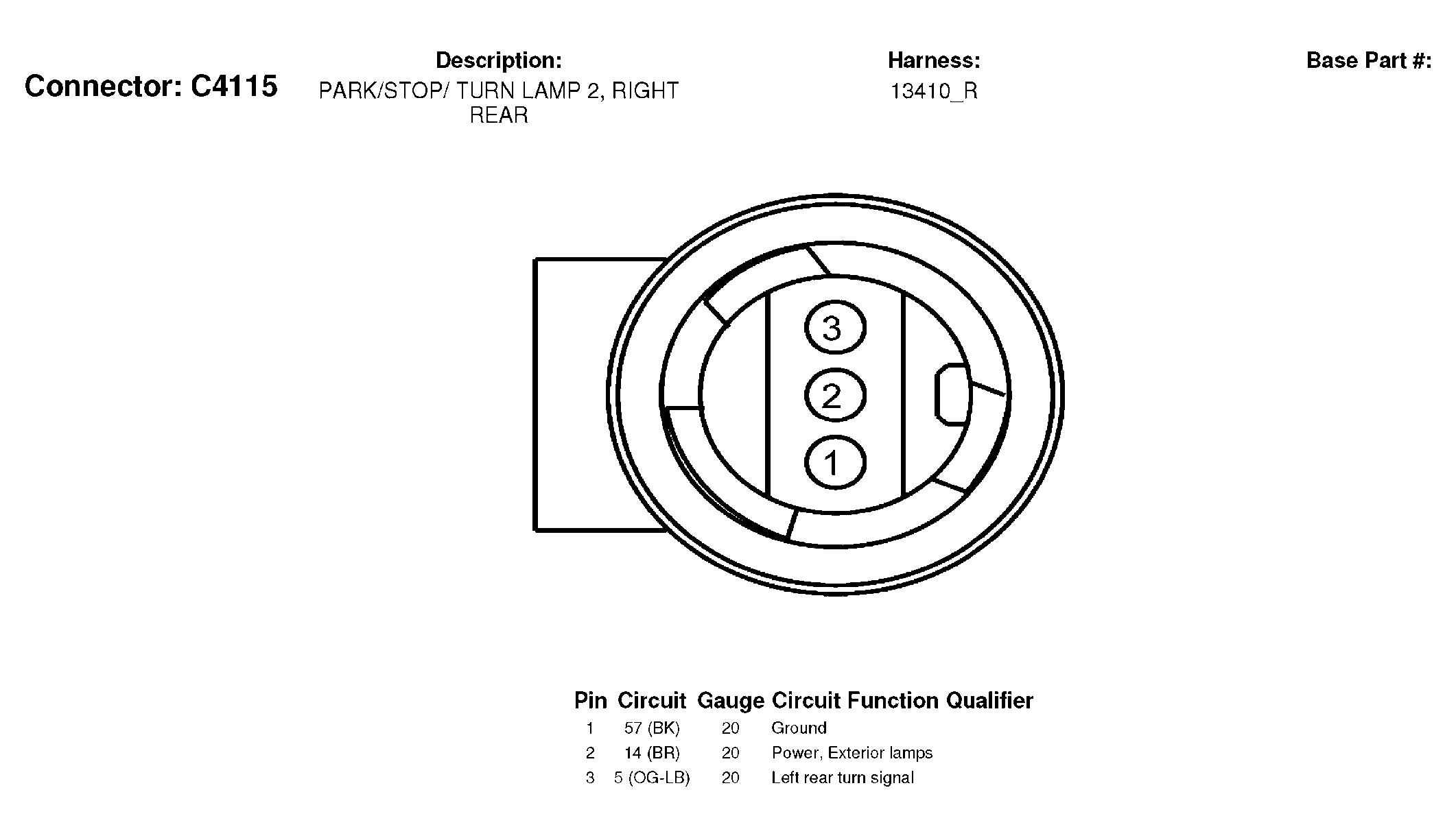

Fig 315: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)
Courtesy of FORD MOTOR CO.

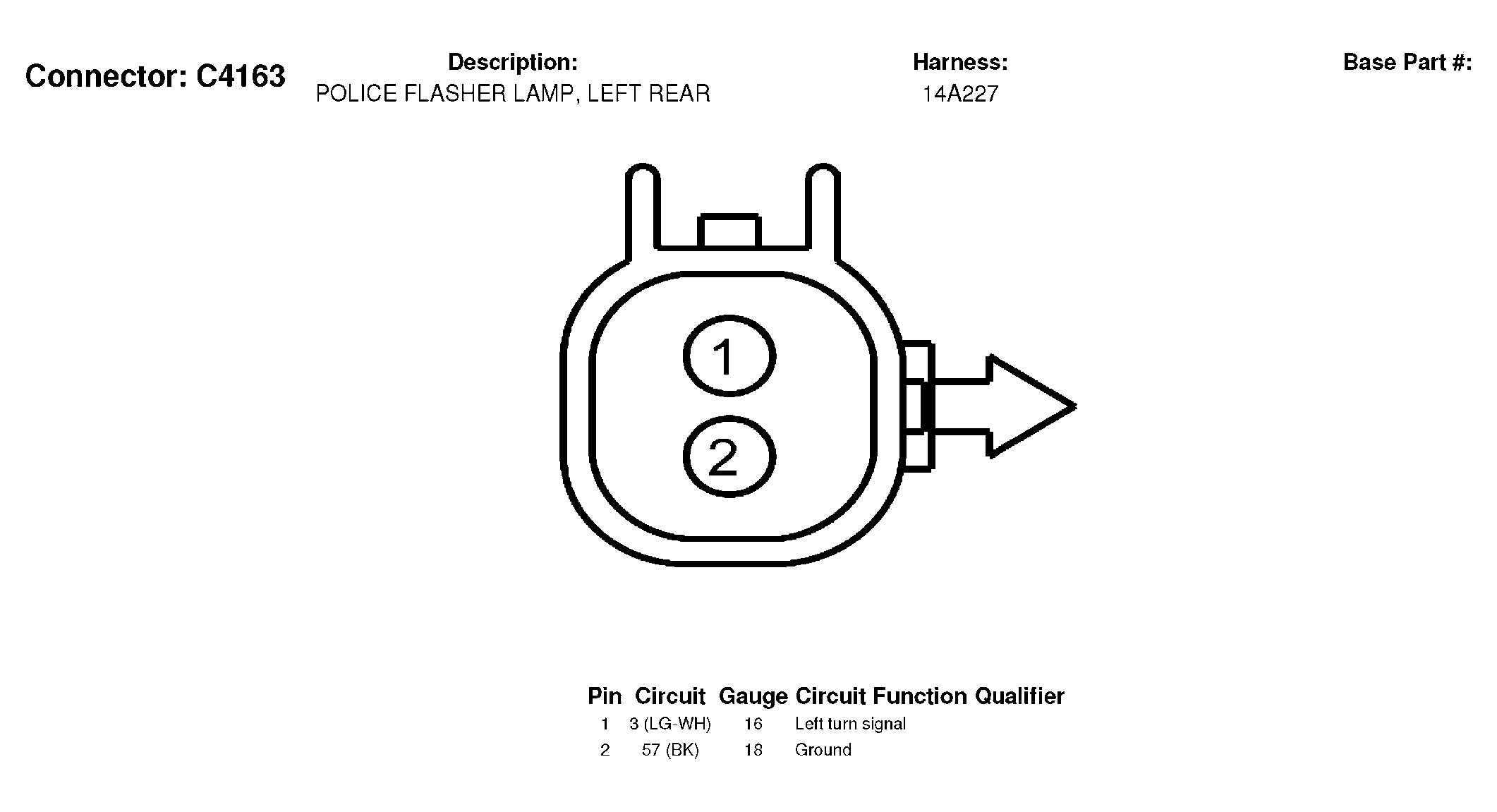

Fig 316: Police Flasher Lamp, Left Rear Connector End View (C4163)
Courtesy of FORD MOTOR CO.

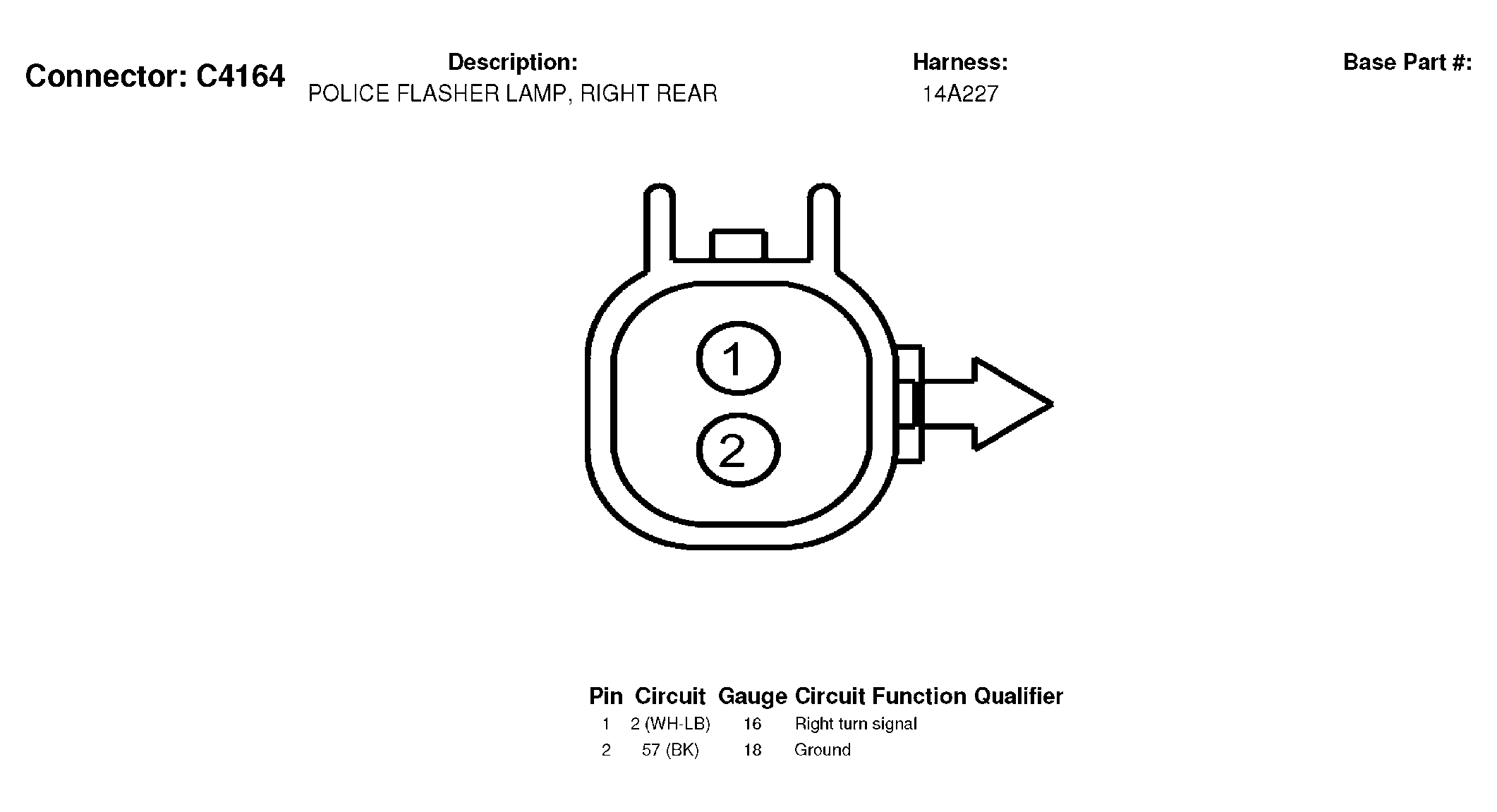

Fig 317: Police Flasher Lamp, Right Rear Connector End View (C4164)
Courtesy of FORD MOTOR CO.

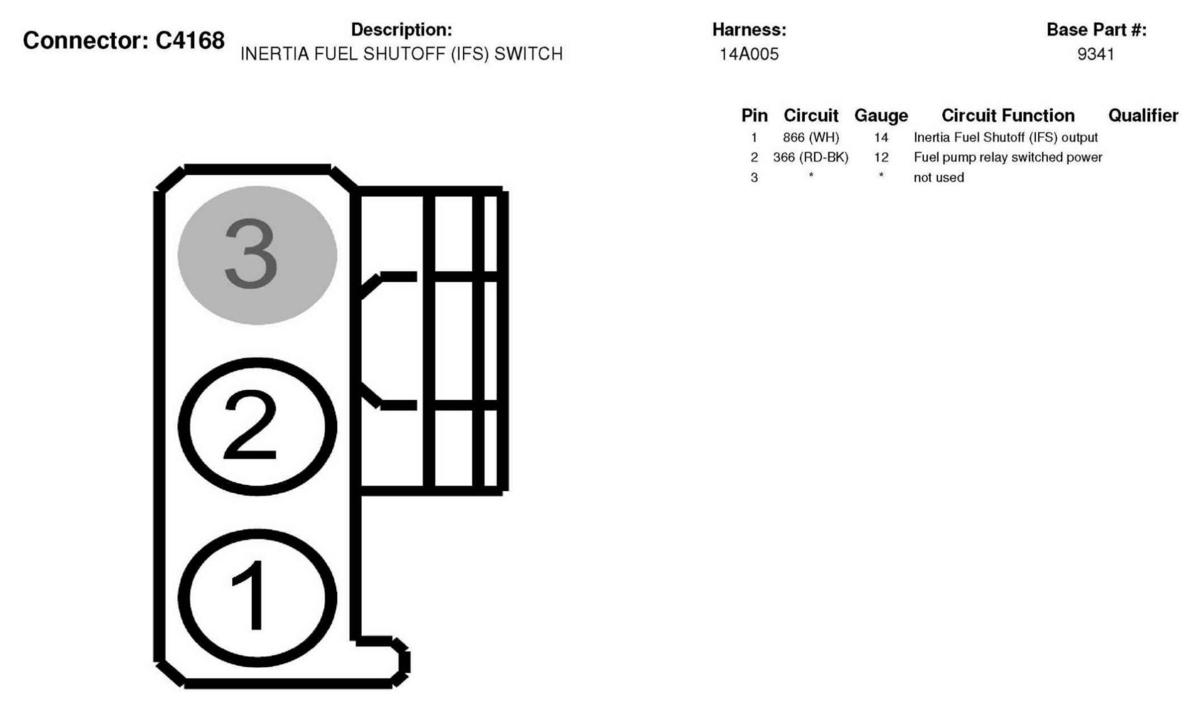

Fig 318: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)
Courtesy of FORD MOTOR CO.

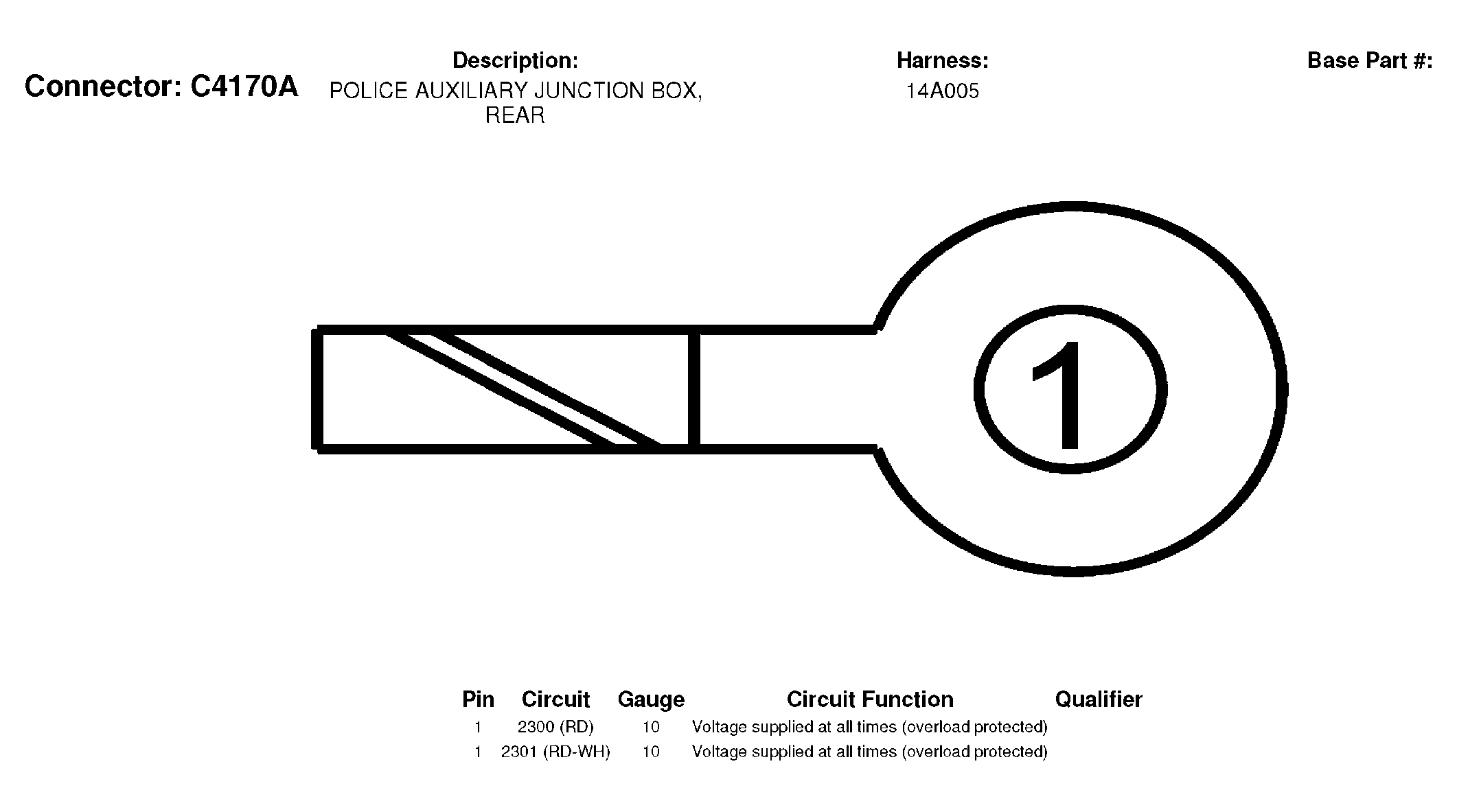

Fig 319: Police Auxiliary Junction Box, Rear Connector End View (C4170A)
Courtesy of FORD MOTOR CO.

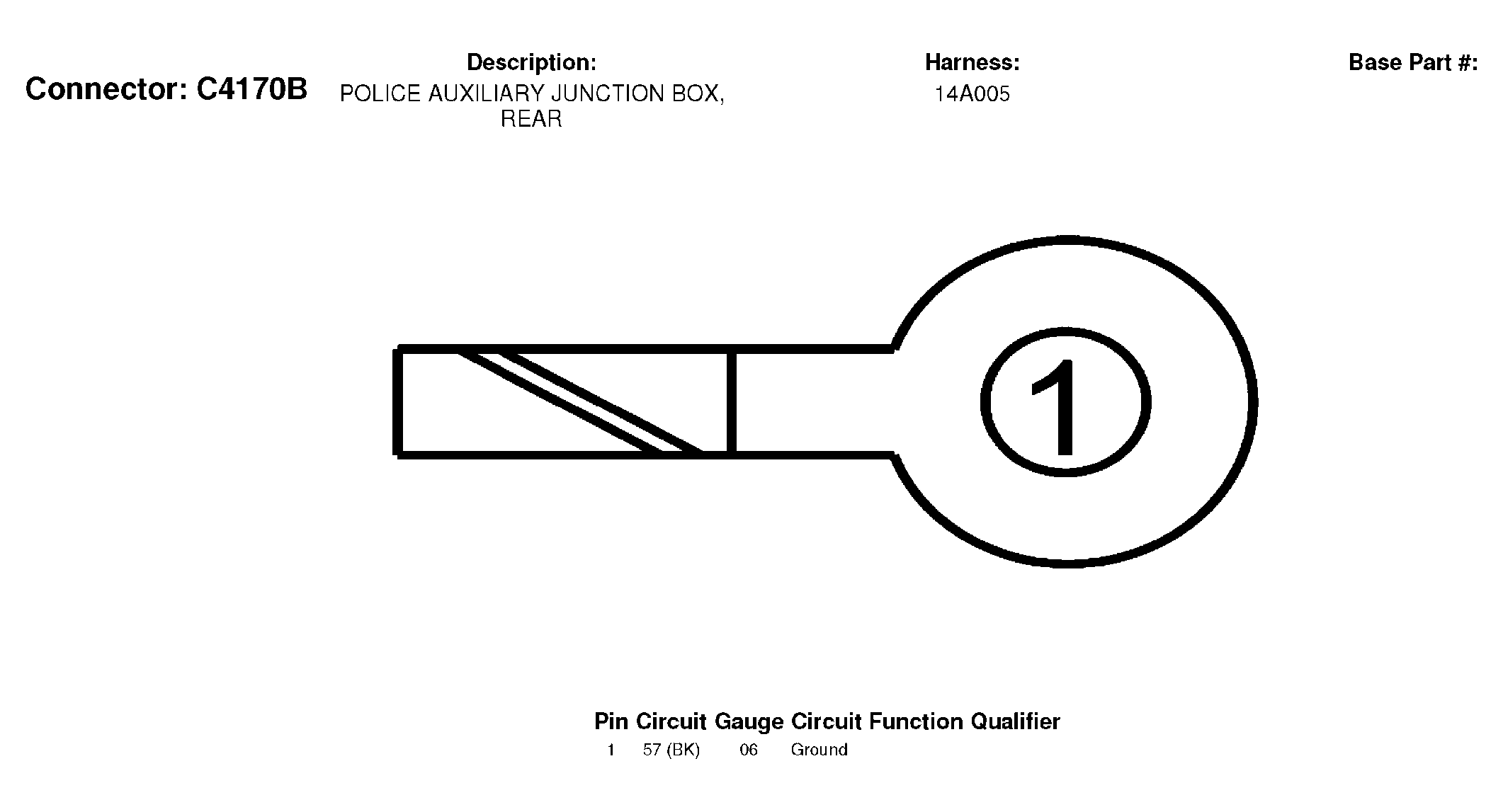

Fig 320: Police Auxiliary Junction Box, Rear Connector End View (C4170B)
Courtesy of FORD MOTOR CO.

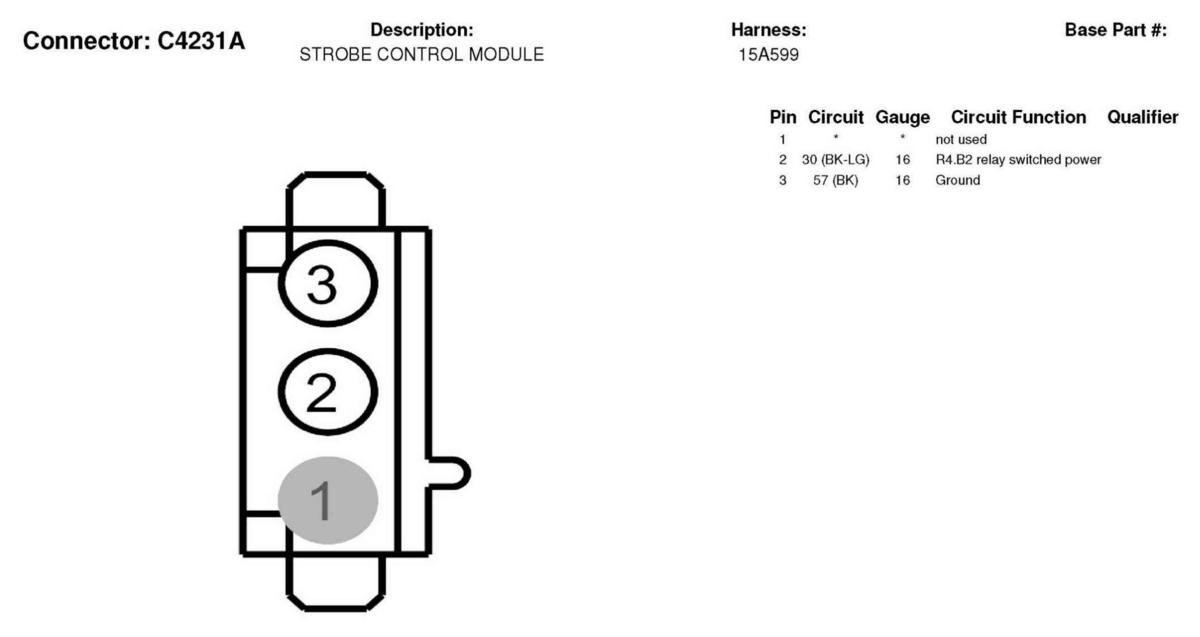

Fig 321: Strobe Control Module Connector End View (C4231A)
Courtesy of FORD MOTOR CO.

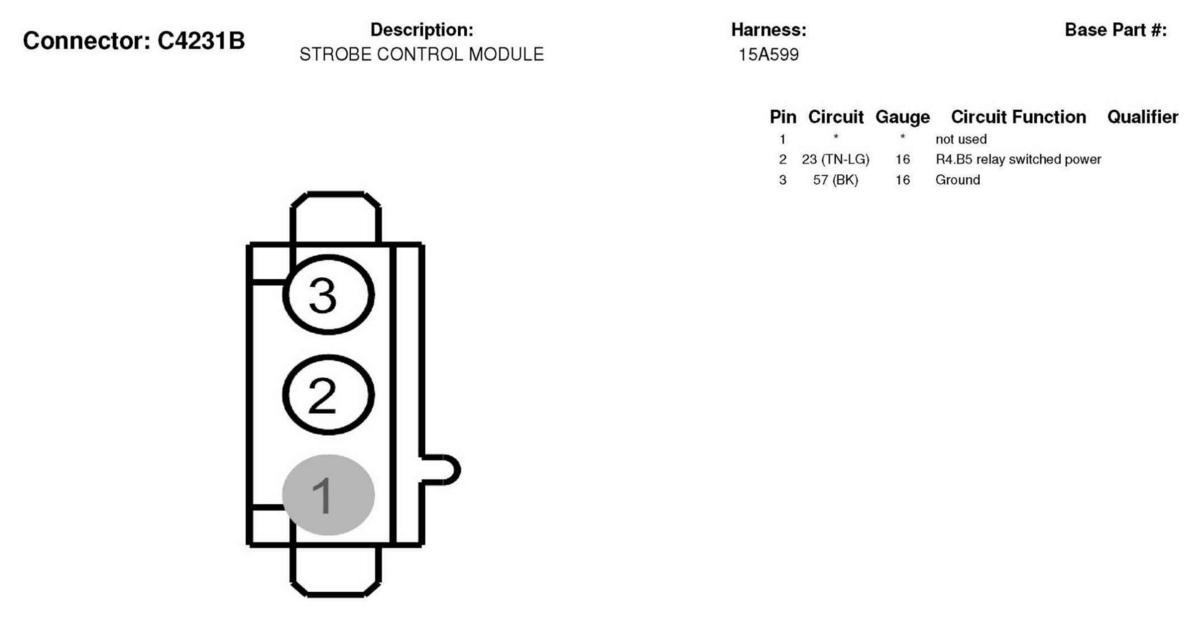

Fig 322: Strobe Control Module Connector End View (C4231B)
Courtesy of FORD MOTOR CO.

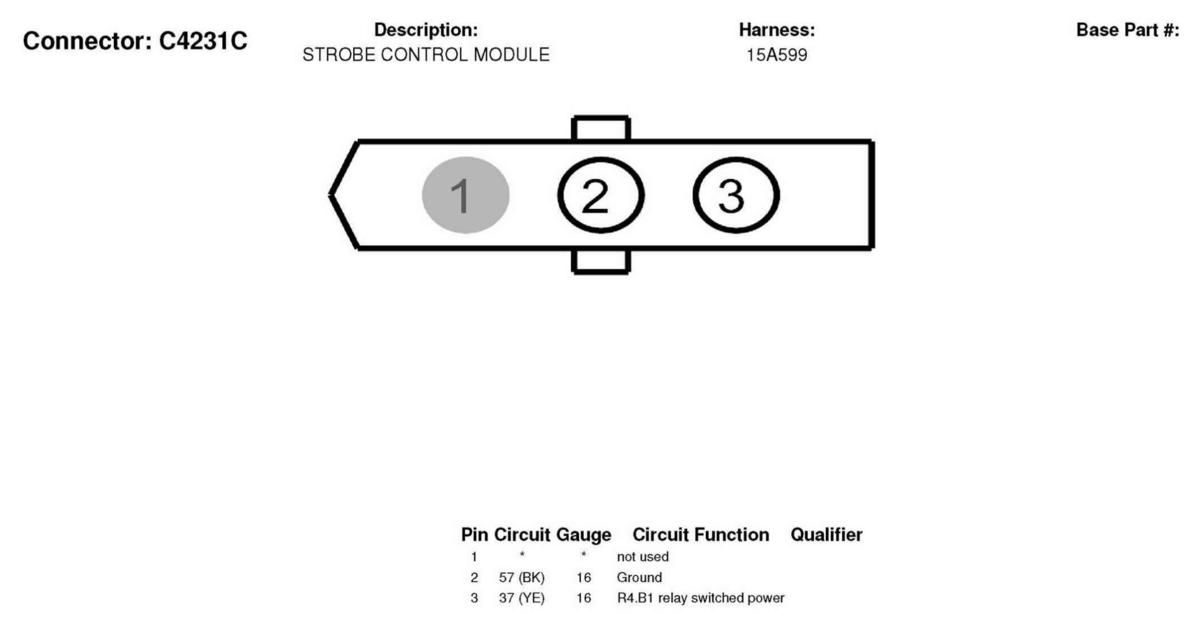

Fig 323: Strobe Control Module Connector End View (C4231C)
Courtesy of FORD MOTOR CO.

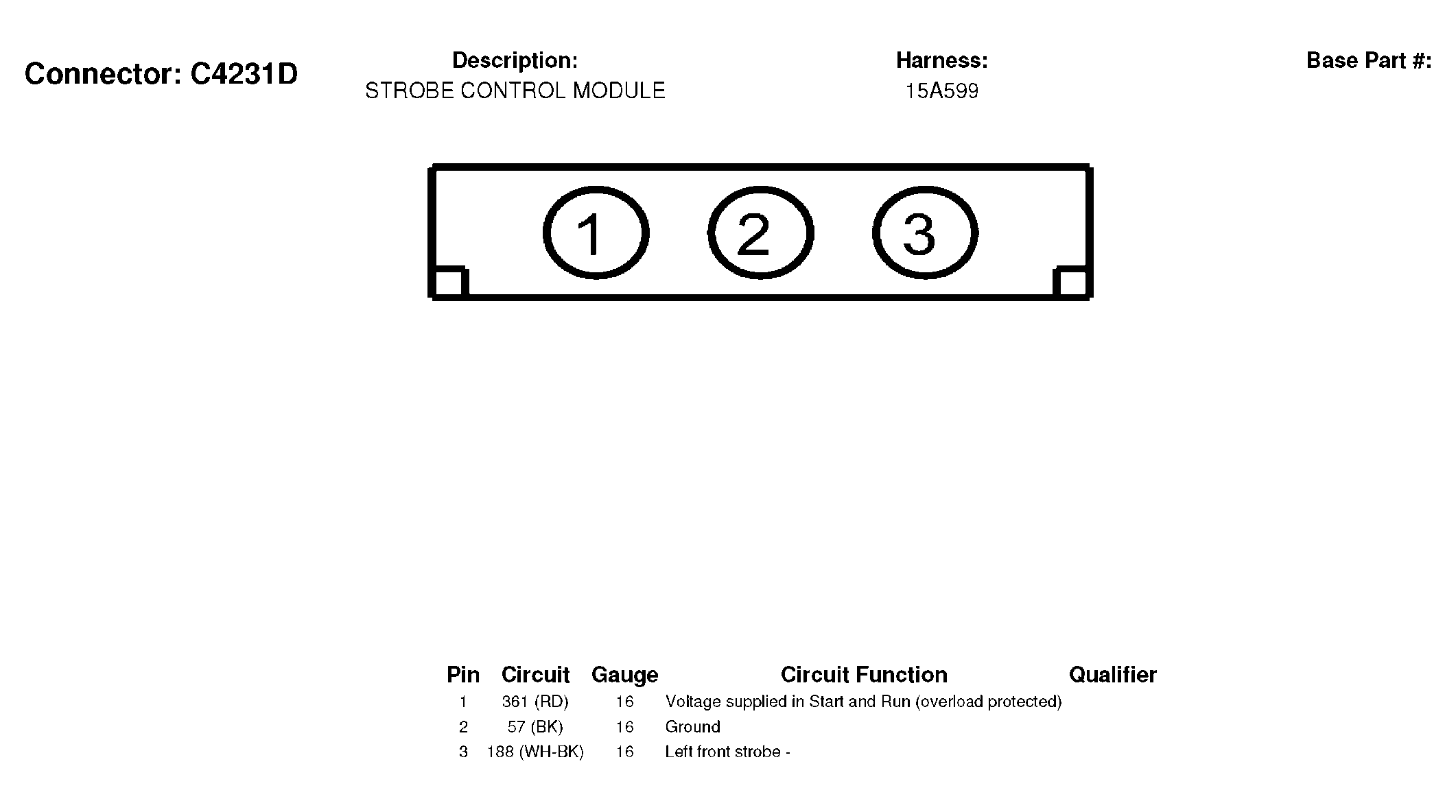

Fig 324: Strobe Control Module Connector End View (C4231D)
Courtesy of FORD MOTOR CO.

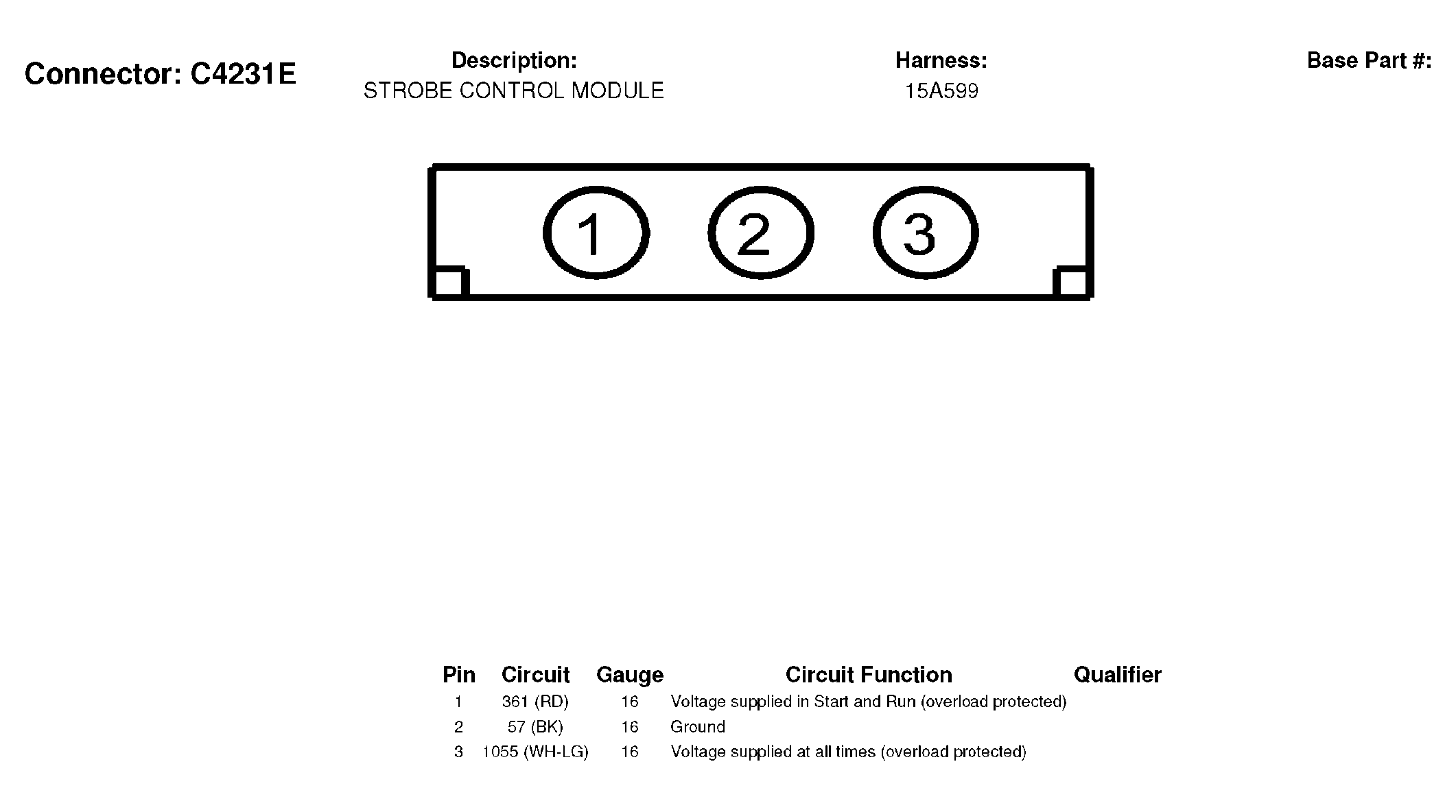

Fig 325: Strobe Control Module Connector End View (C4231E)
Courtesy of FORD MOTOR CO.

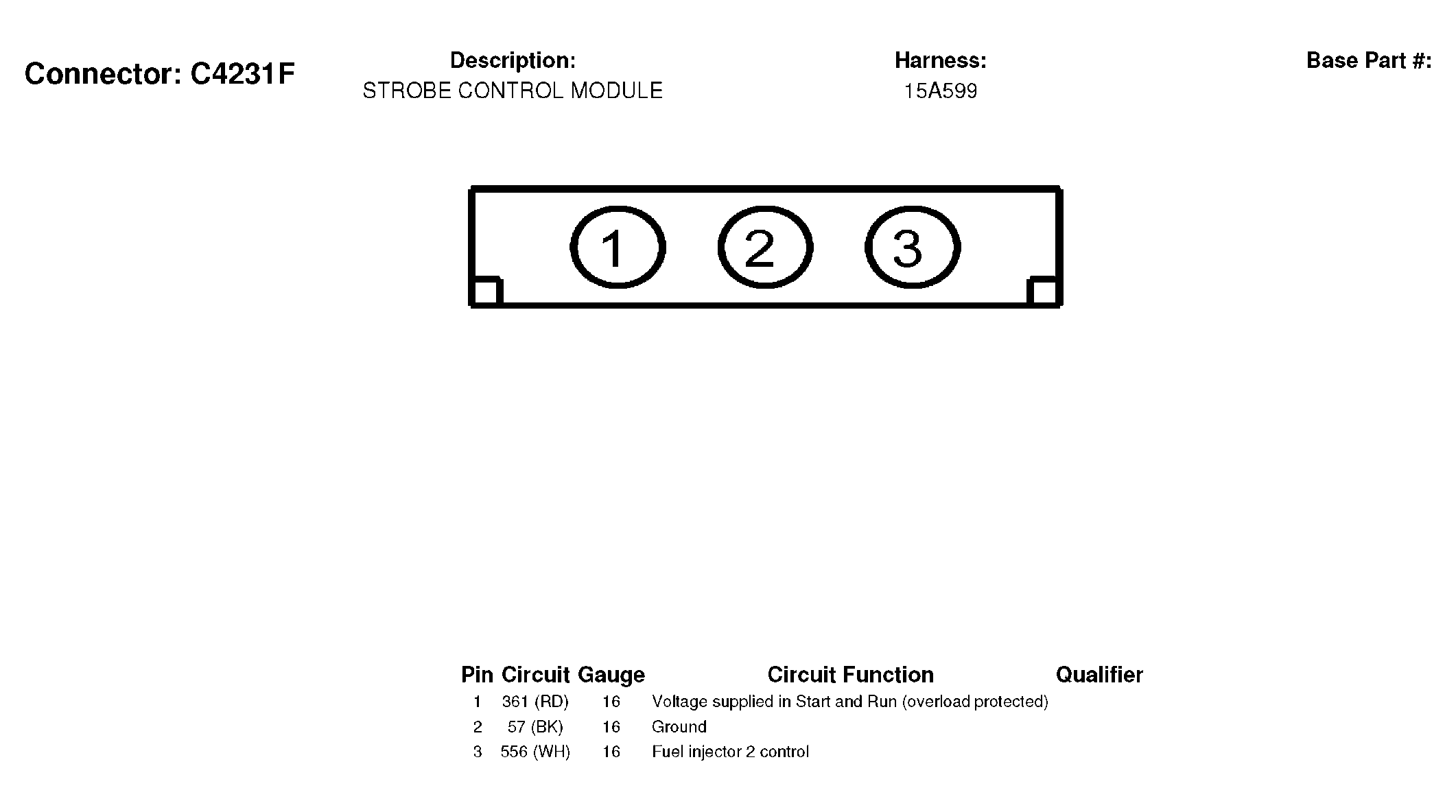

Fig 326: Strobe Control Module Connector End View (C4231F)
Courtesy of FORD MOTOR CO.

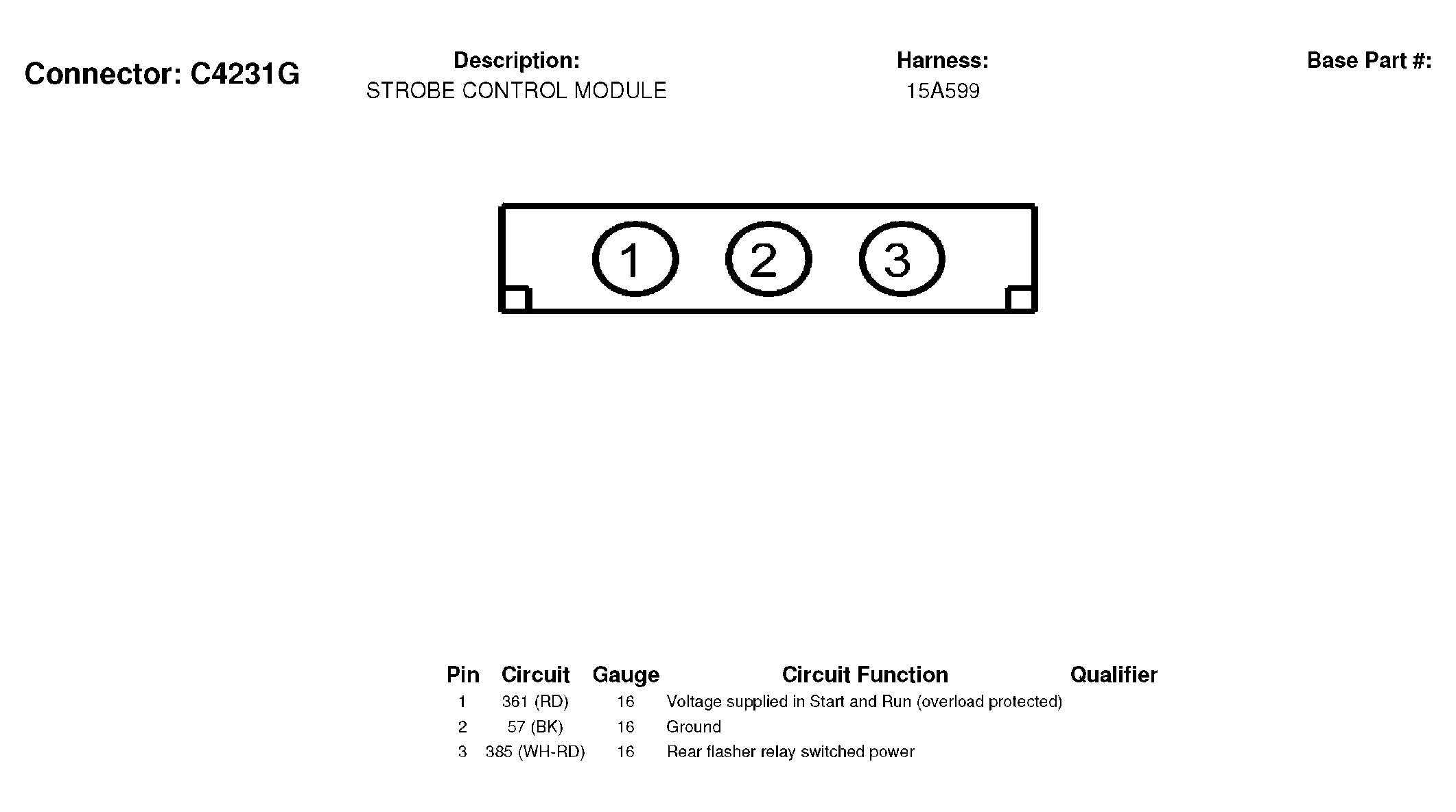

Fig 327: Strobe Control Module Connector End View (C4231G)
Courtesy of FORD MOTOR CO.

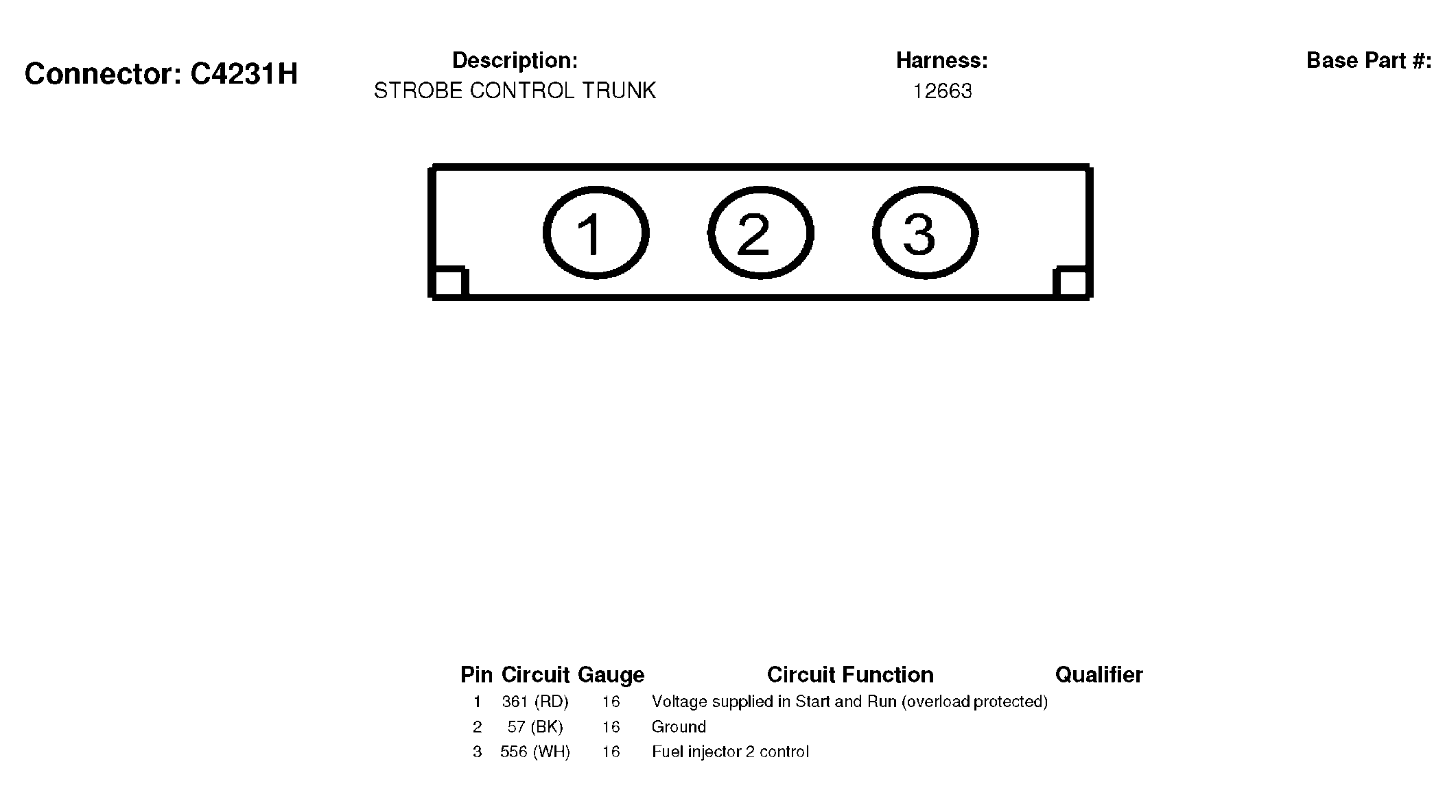

Fig 328: Strobe Control Module Connector End View (C4231H)
Courtesy of FORD MOTOR CO.

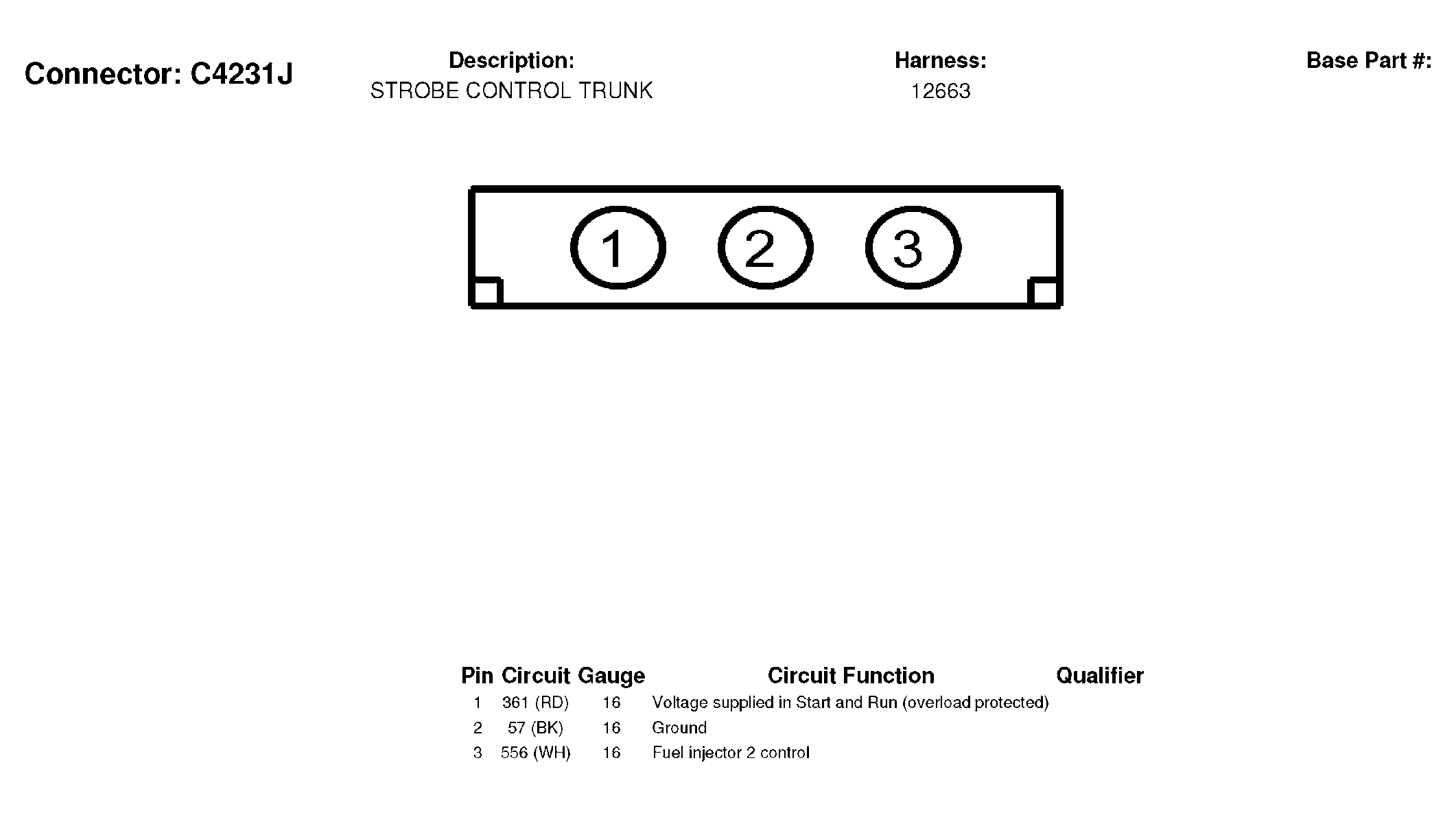

Fig 329: Strobe Control Module Connector End View (C4231J)
Courtesy of FORD MOTOR CO.

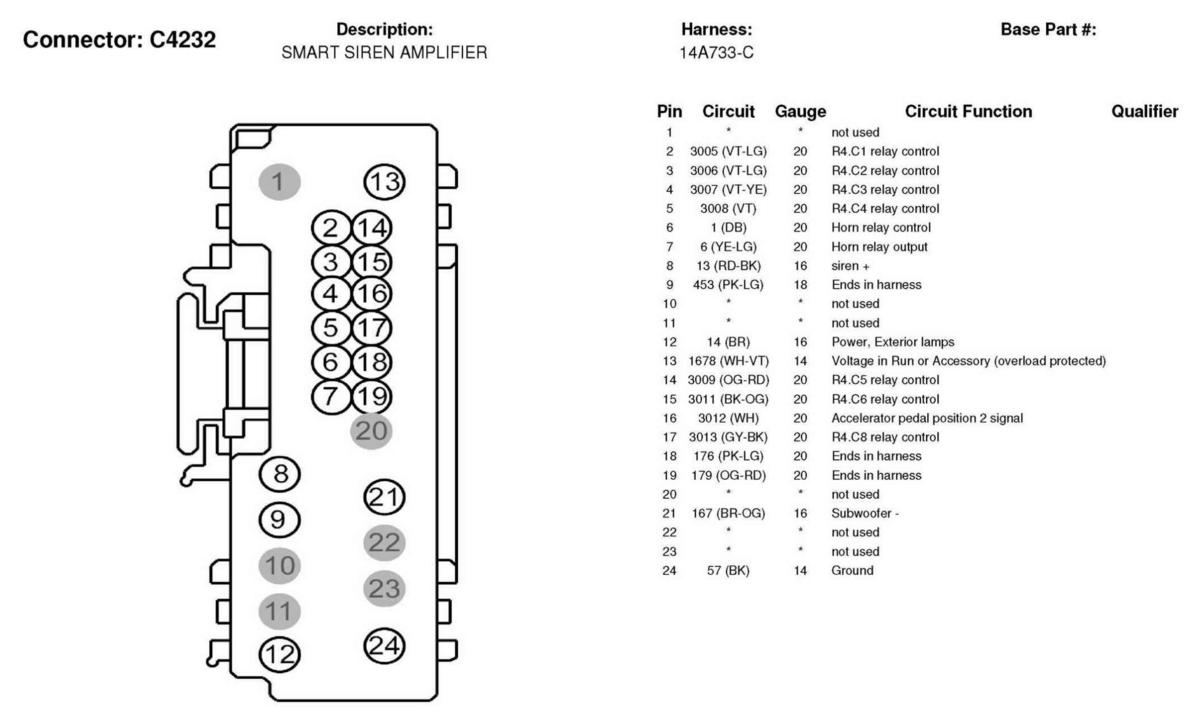

Fig 330: Smart Siren Amplifier Connector End View (C4232)
Courtesy of FORD MOTOR CO.

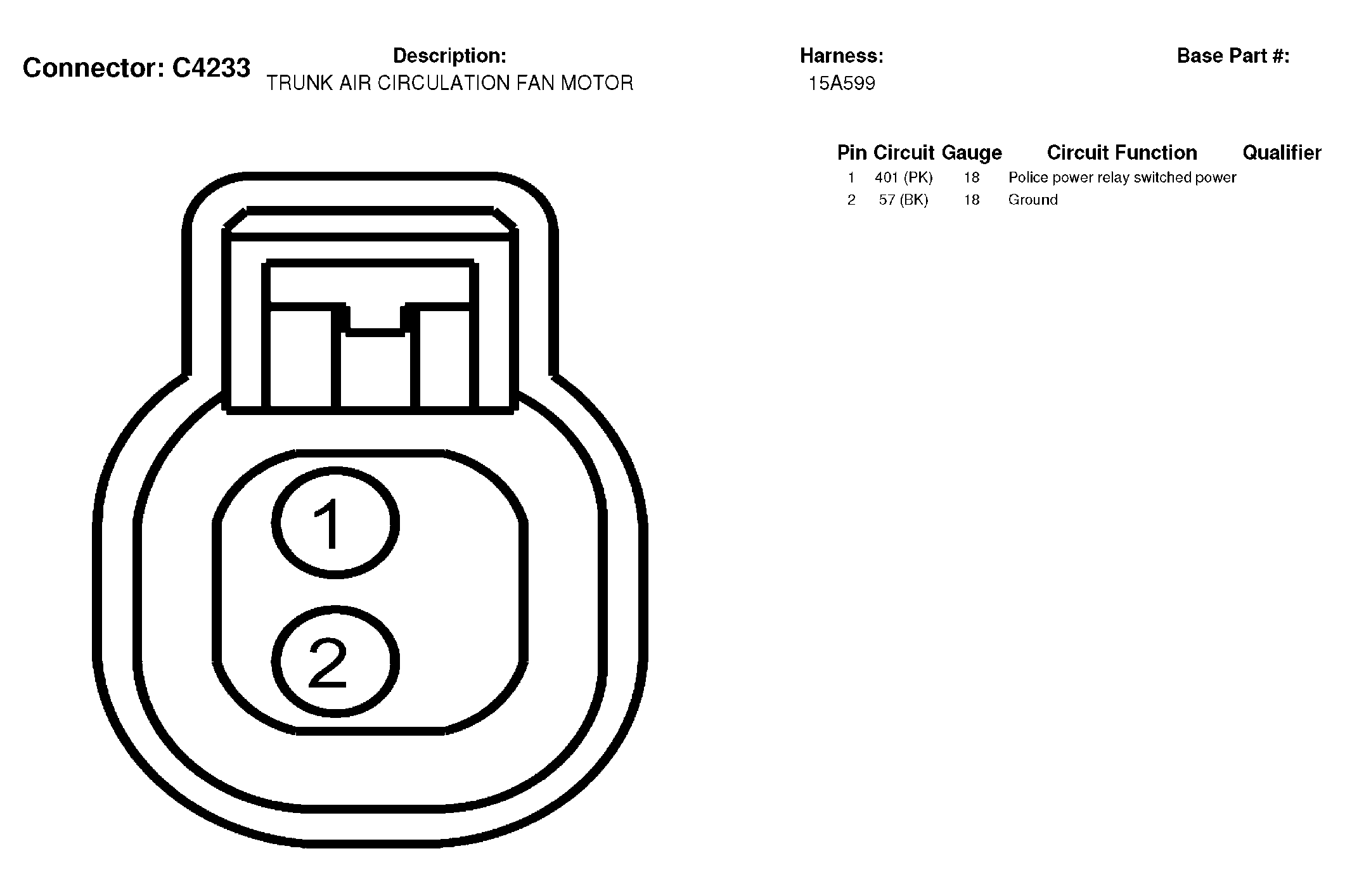

Fig 331: Trunk Air Circulation Fan Motor Connector End View (C4233)
Courtesy of FORD MOTOR CO.

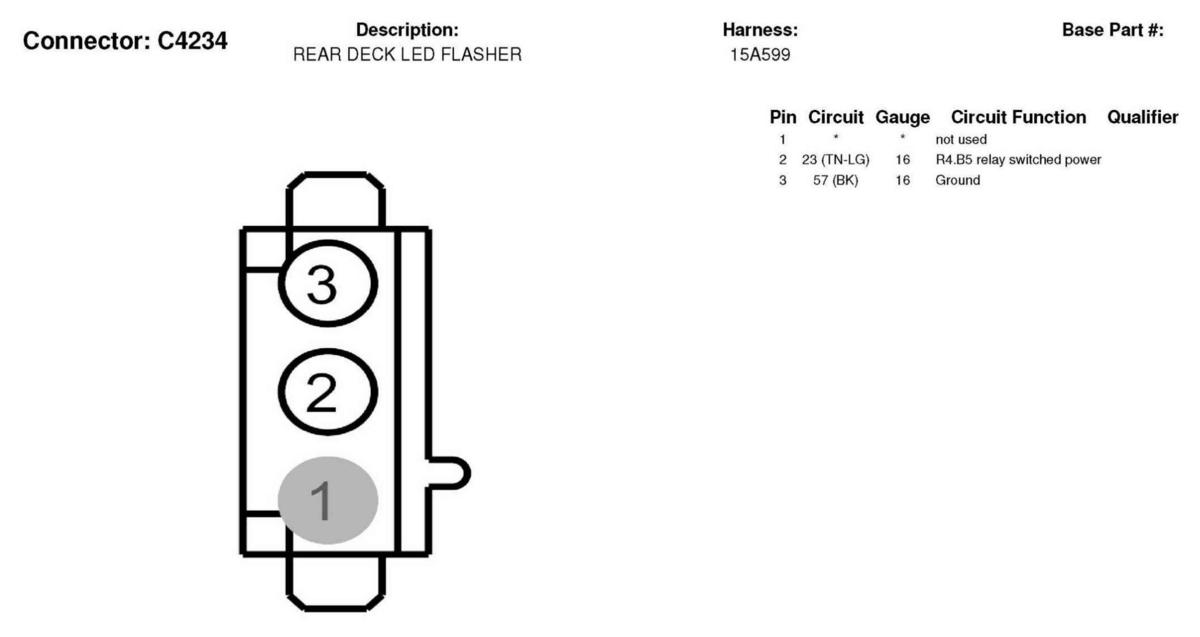

Fig 332: Rear Deck Led Flasher Connector End View (C4234)
Courtesy of FORD MOTOR CO.

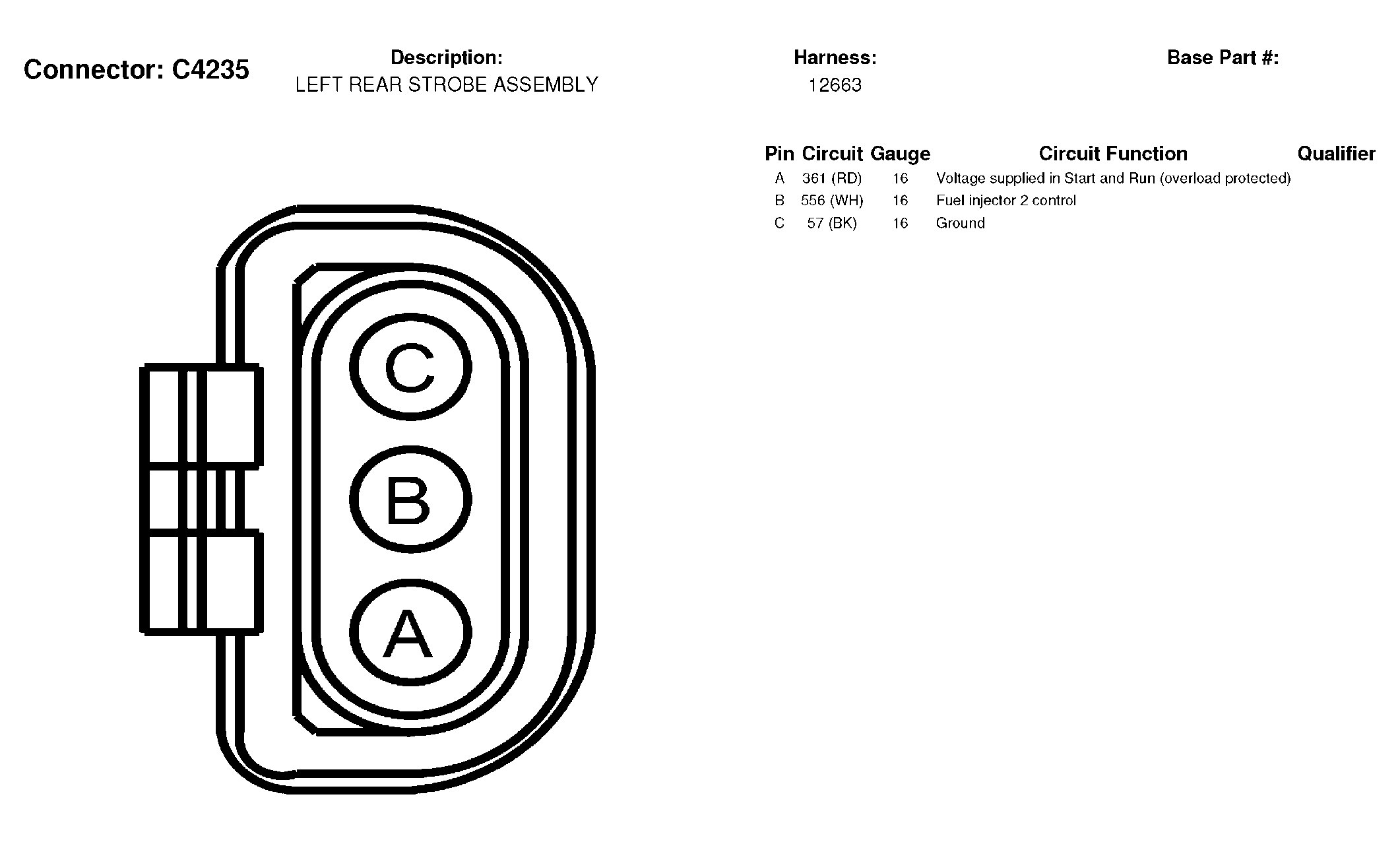

Fig 333: Left Rear Strobe Assembly Connector End View (C4235)
Courtesy of FORD MOTOR CO.

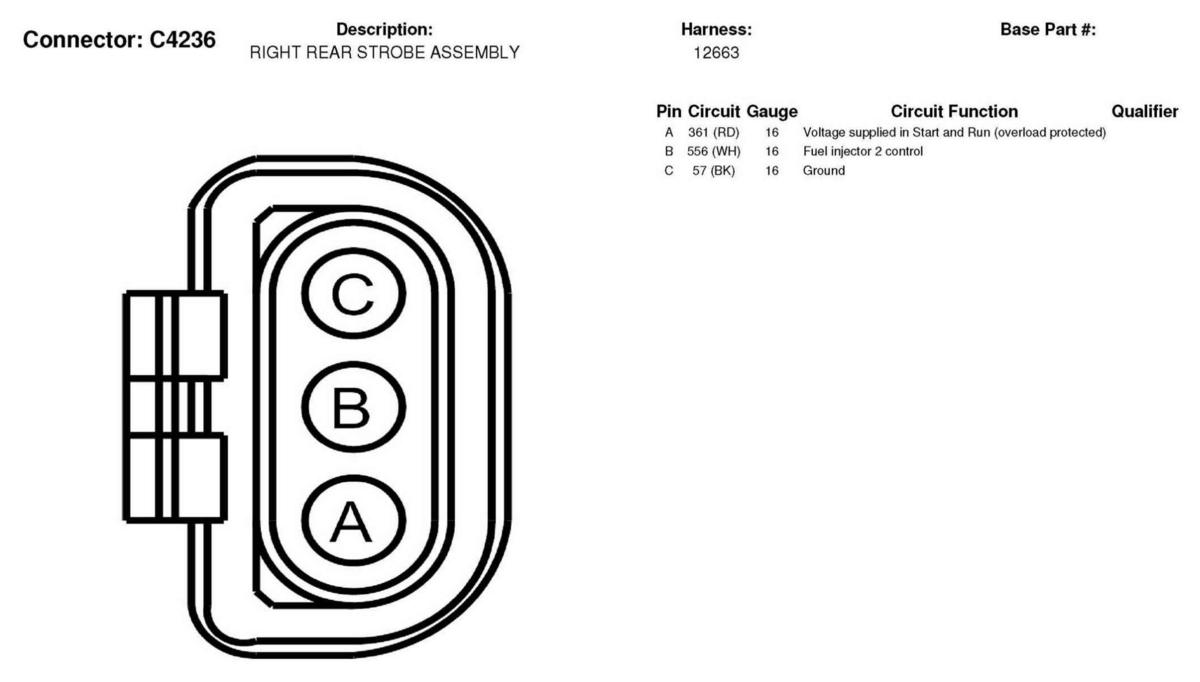

Fig 334: Right Rear Strobe Assembly Connector End View (C4236)
Courtesy of FORD MOTOR CO.

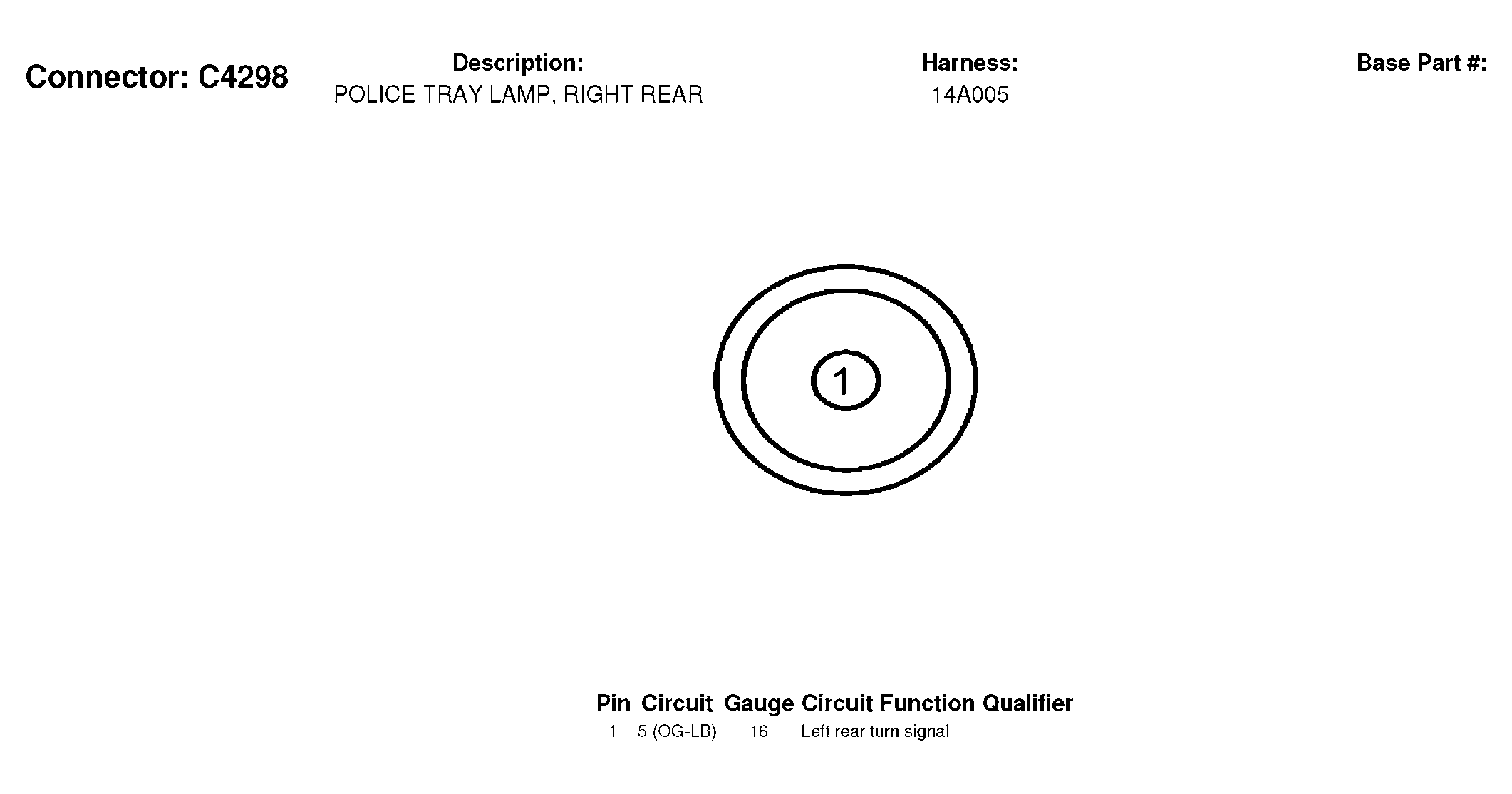

Fig 335: Police Tray Lamp, Right Rear Connector End View (C4298)
Courtesy of FORD MOTOR CO.

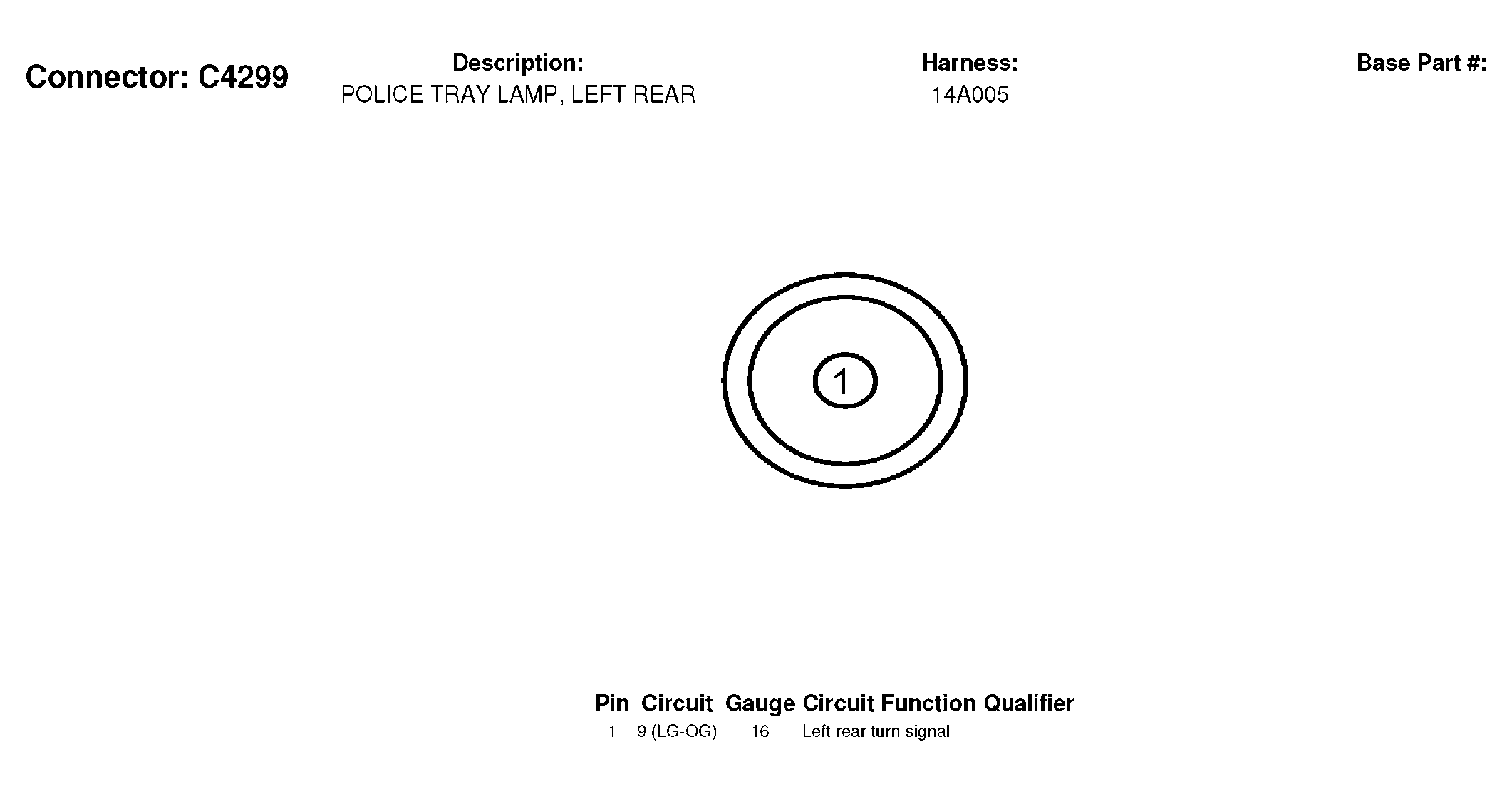

Fig 336: Police Tray Lamp, Left Rear Connector End View (C4299)
Courtesy of FORD MOTOR CO.

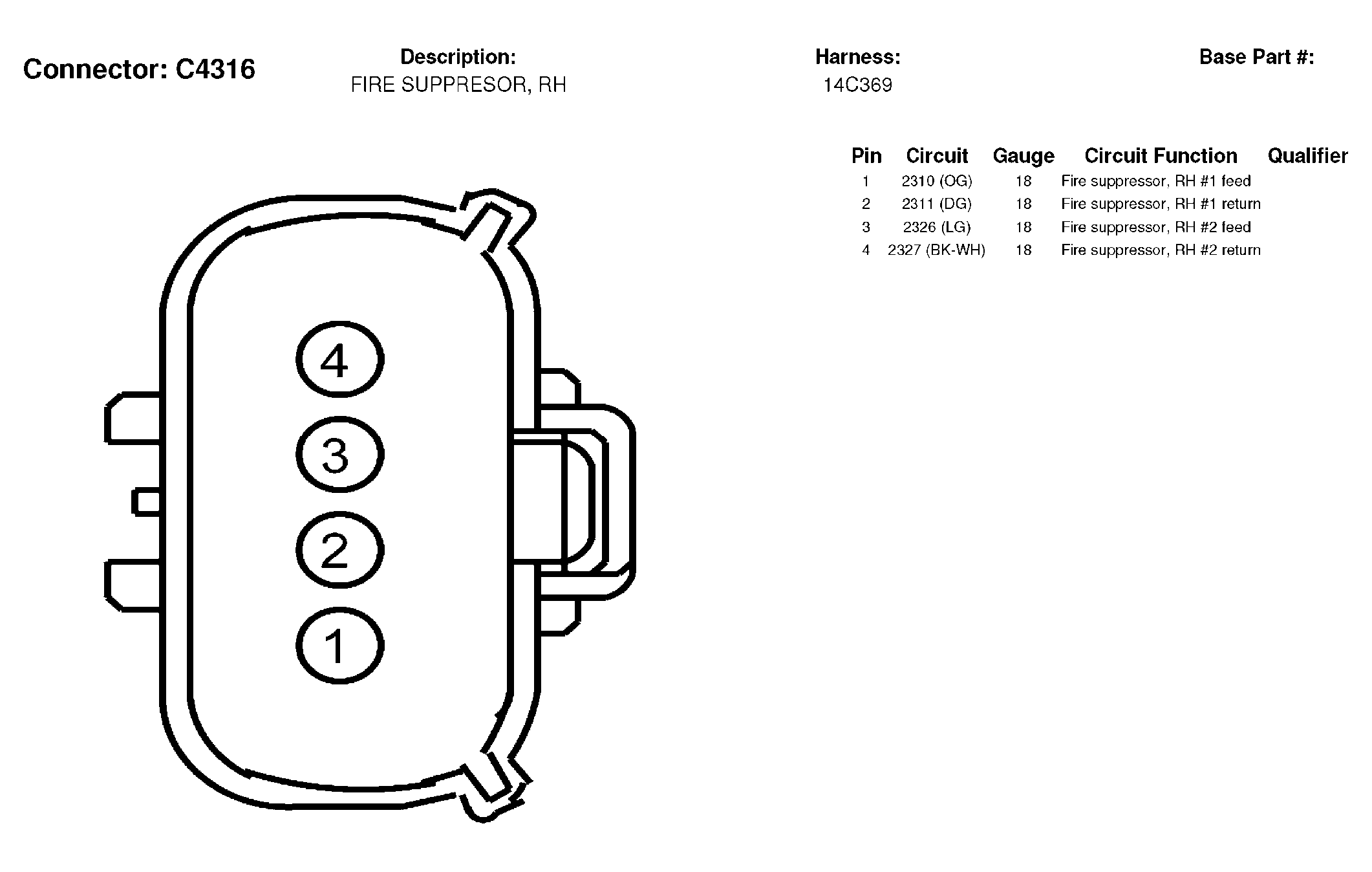

Fig 337: Fire Suppressor, RH Connector End View (C4316)
Courtesy of FORD MOTOR CO.

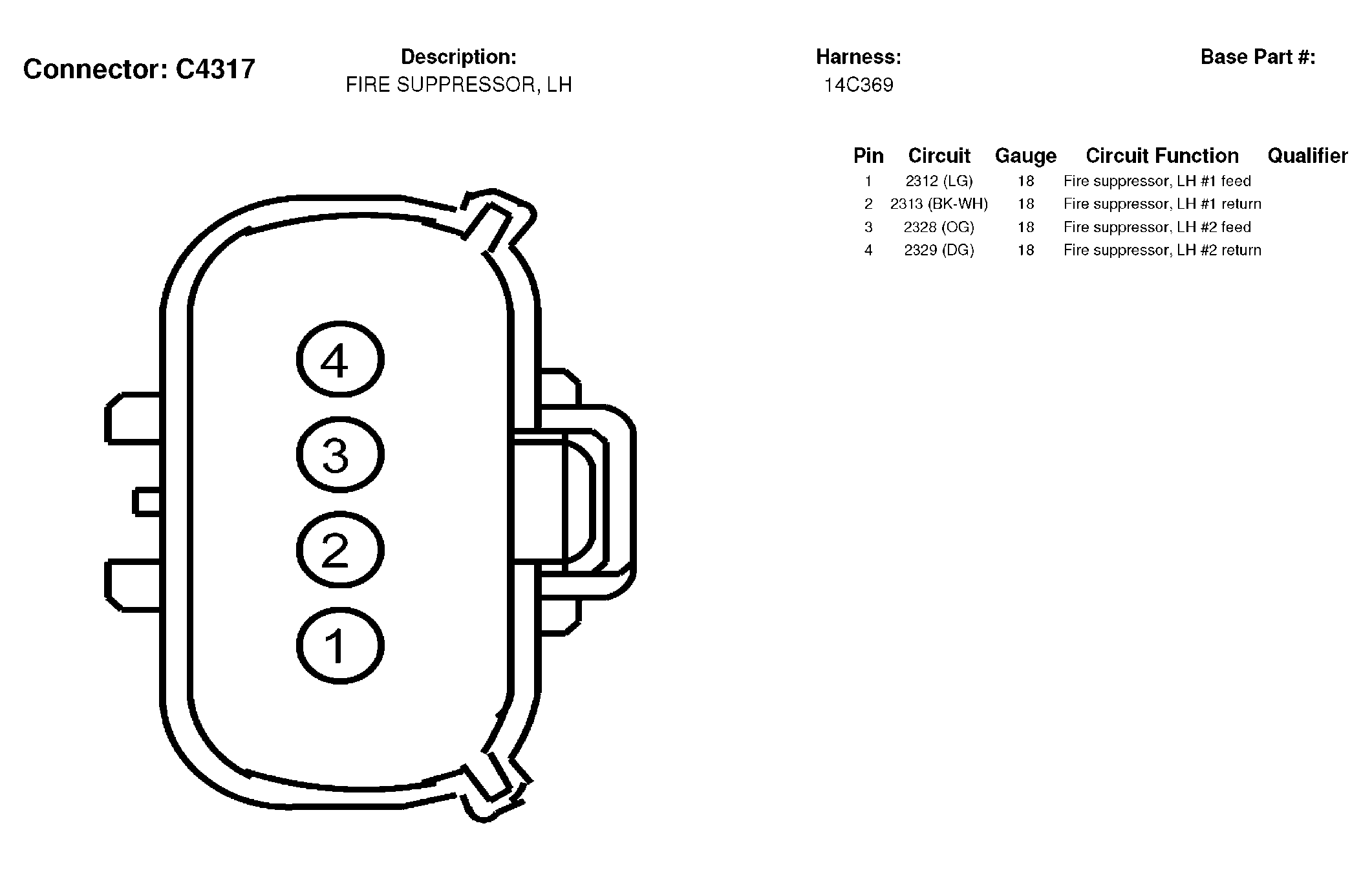

Fig 338: Fire Suppressor, LH Connector End View (C4317)
Courtesy of FORD MOTOR CO.

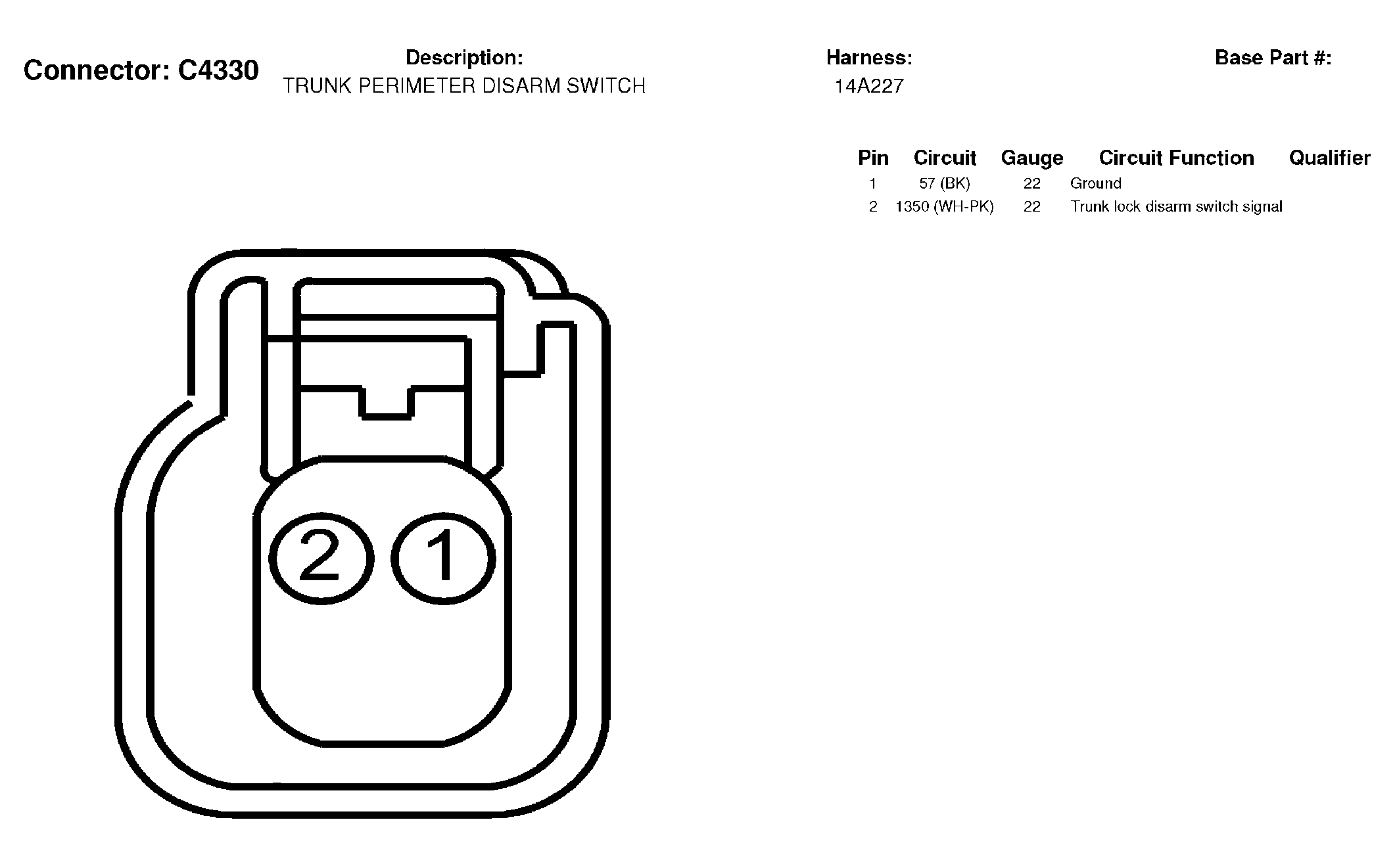

Fig 339: Trunk Perimeter Disarm Switch Connector End View (C4330)
Courtesy of FORD MOTOR CO.

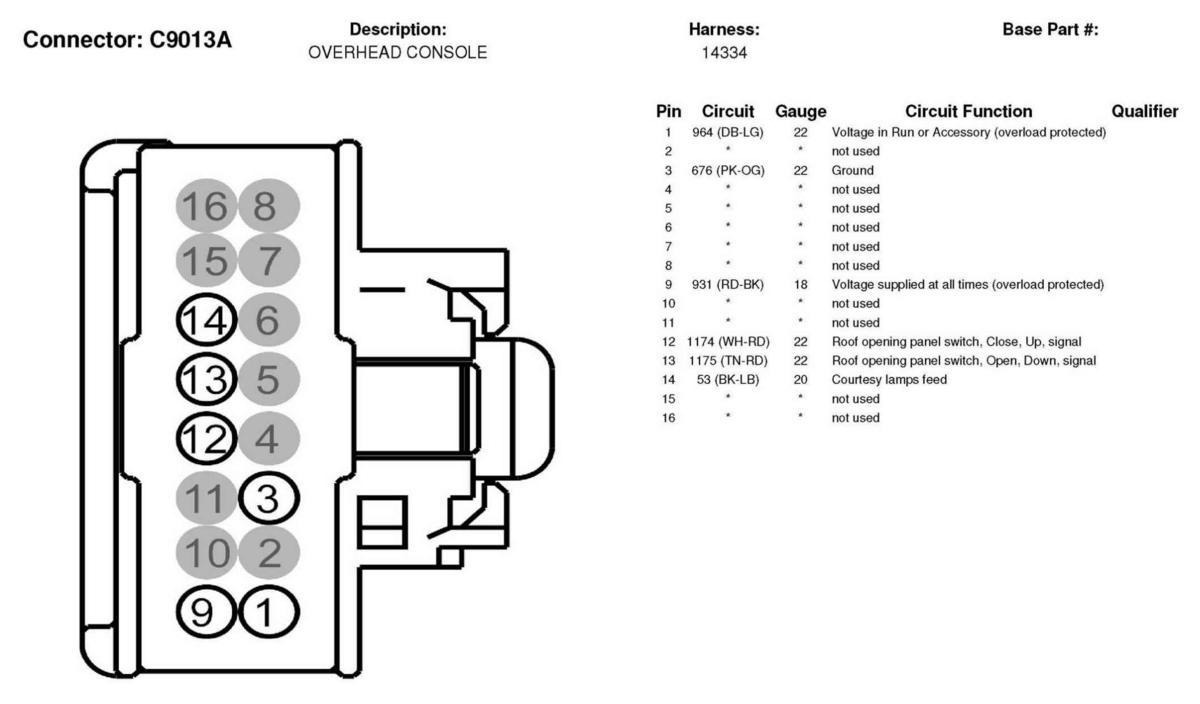

Fig 340: Overhead Console Connector End View (C9013A)
Courtesy of FORD MOTOR CO.

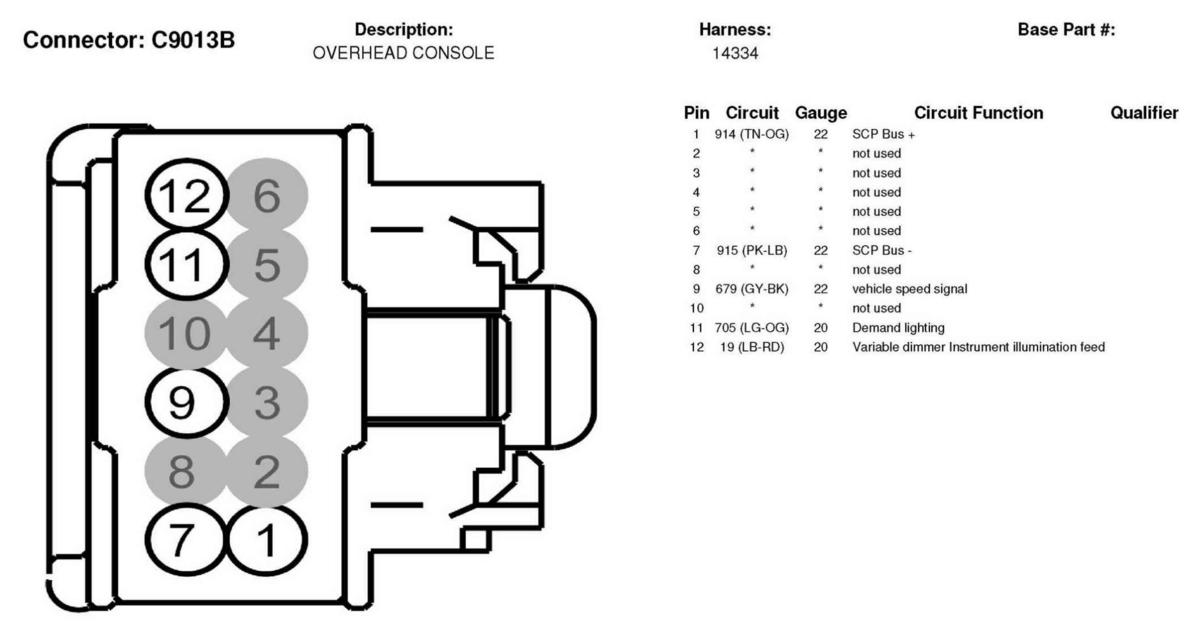

Fig 341: Overhead Console Connector End View (C9013B)
Courtesy of FORD MOTOR CO.

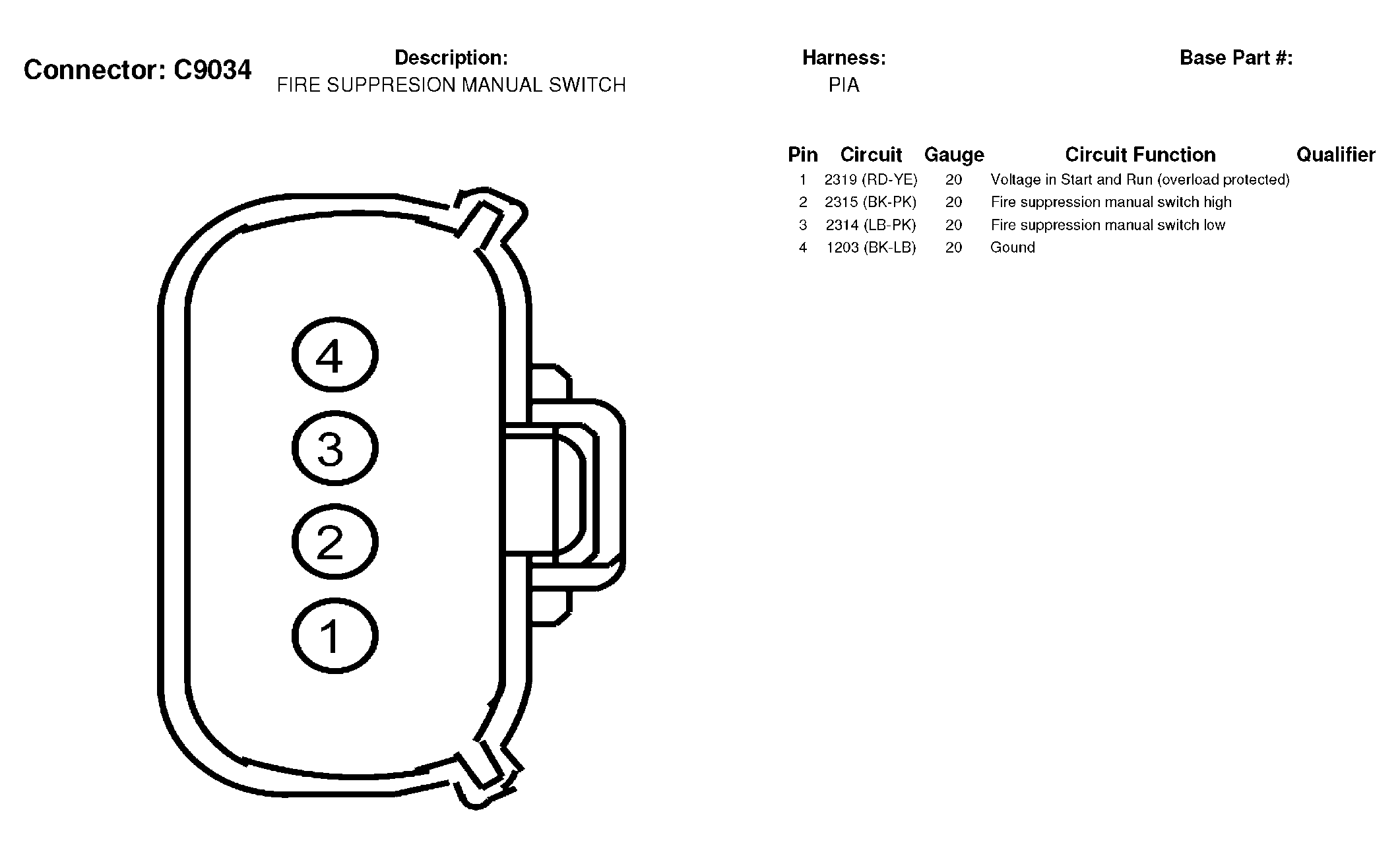

Fig 342: Fire Suppression Manual Switch Connector End View (C9034)
Courtesy of FORD MOTOR CO.
