Seat Adjust Switch: Terminals

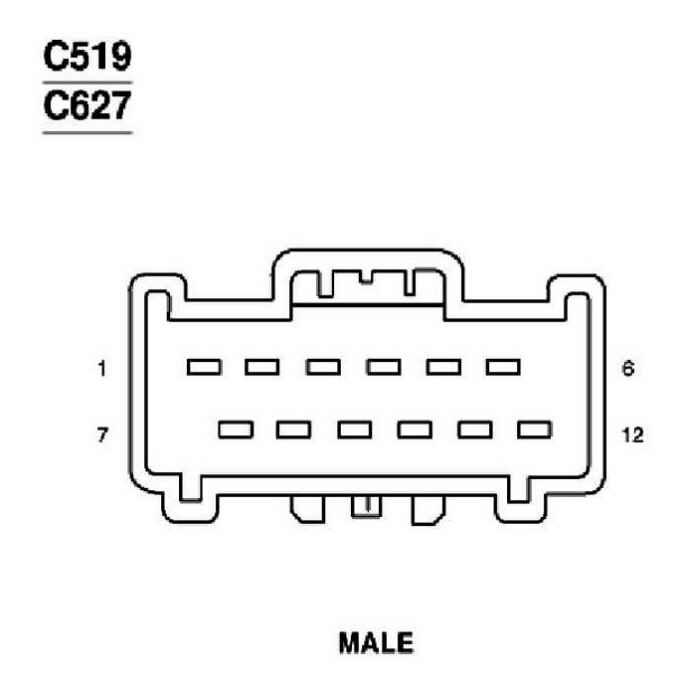

Fig 1: Identifying C519 And C627 Connector Terminals

G04595415

Courtesy of FORD MOTOR CO.
