Thunderbird
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Starter
>>
Starting System
>>
Diagnosis And Testing
>>
Starting System
>>
Connector Circuit Reference
>>
Starter Motor Relay
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Starter Motor Relay

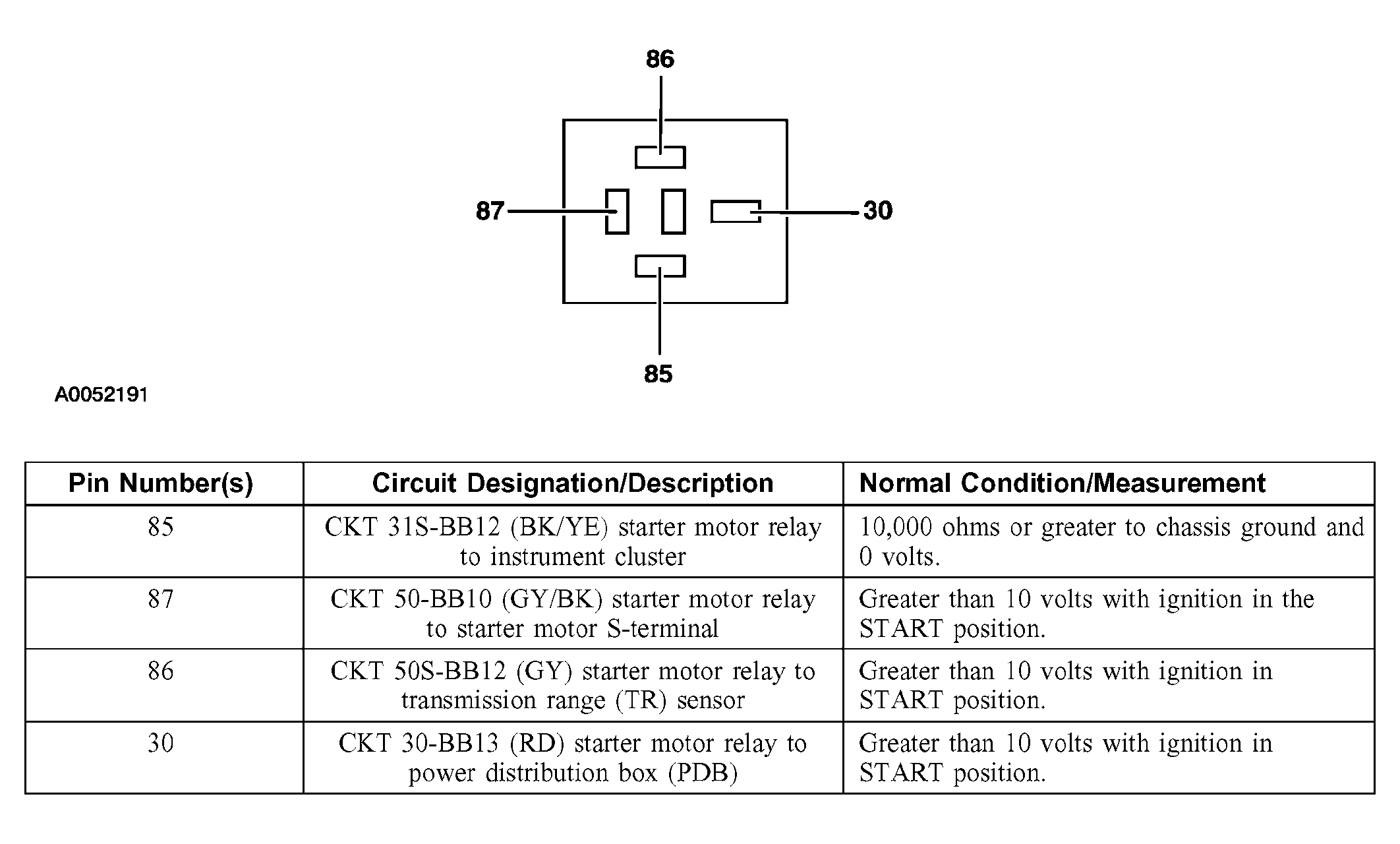

Fig 1: Identifying Starter Motor Relay Connector Pins
Courtesy of FORD MOTOR CO.
