Front Seat Cushion: Notes

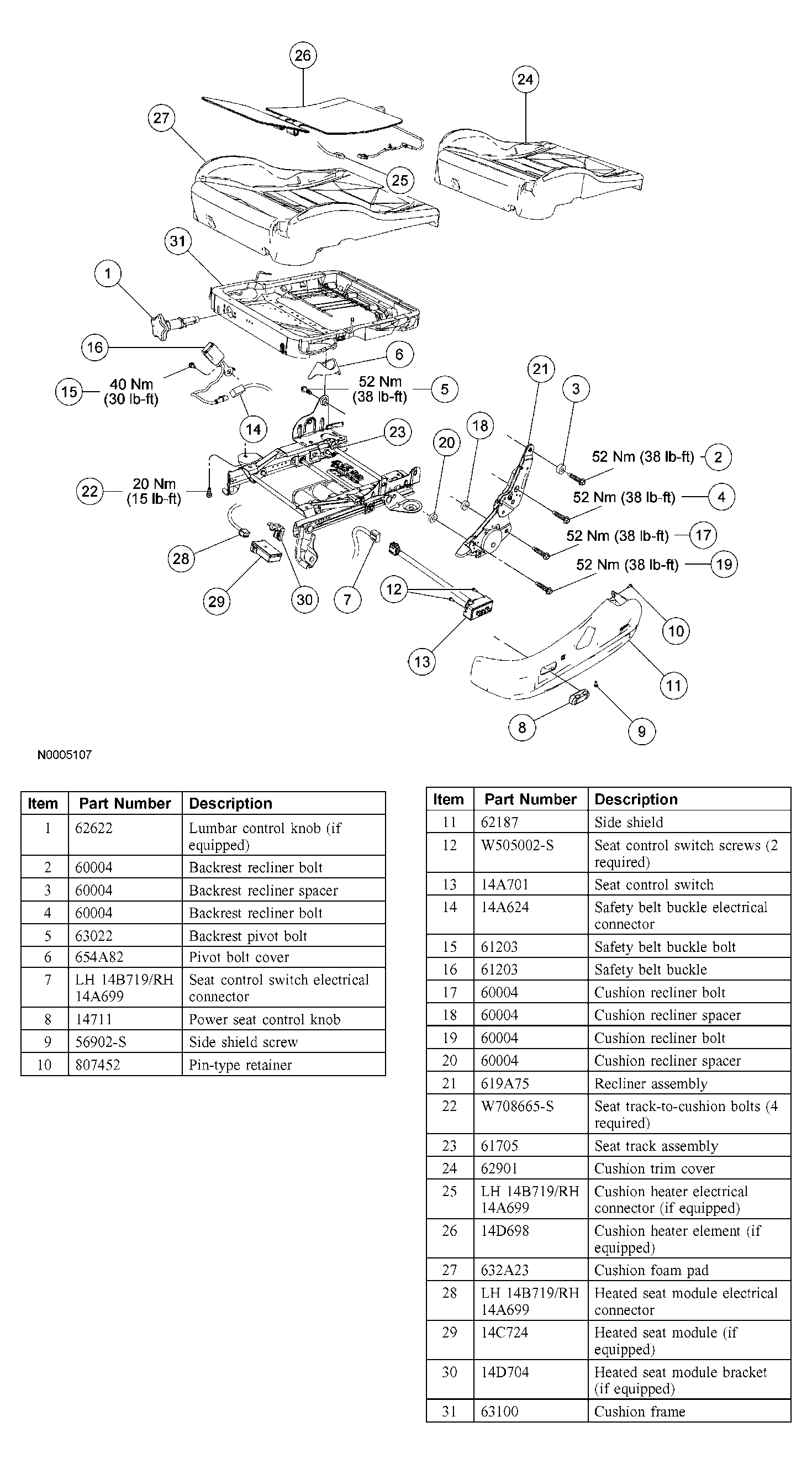

Fig 1: Exploded View Of Front Seat Cushion With Torque Specification
G04009763Courtesy of FORD MOTOR CO.
