Diagnostic Trouble Code Descriptions

DIAGNOSTIC TROUBLE CODE (DTC) CHART

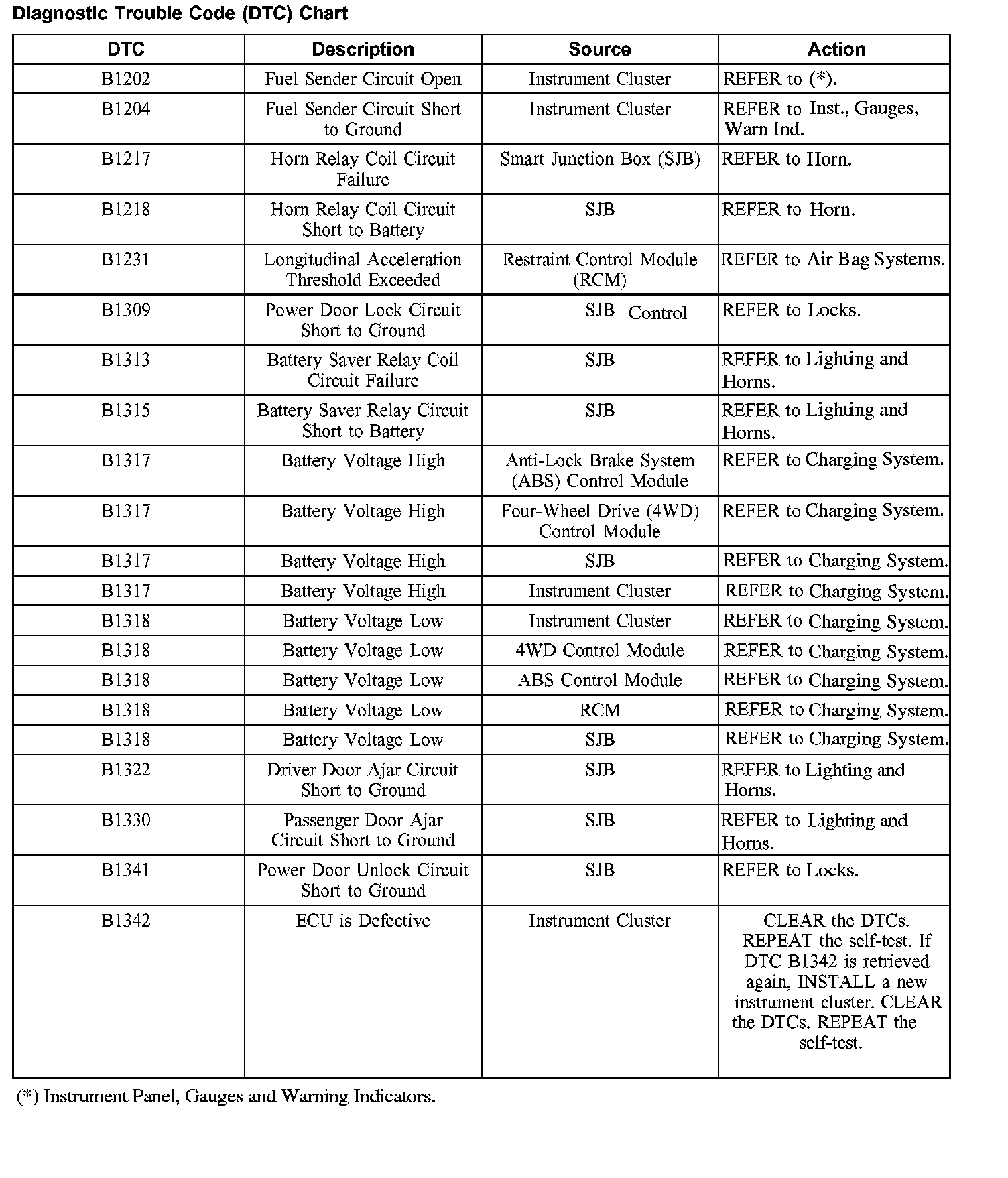

B1202-B1342:

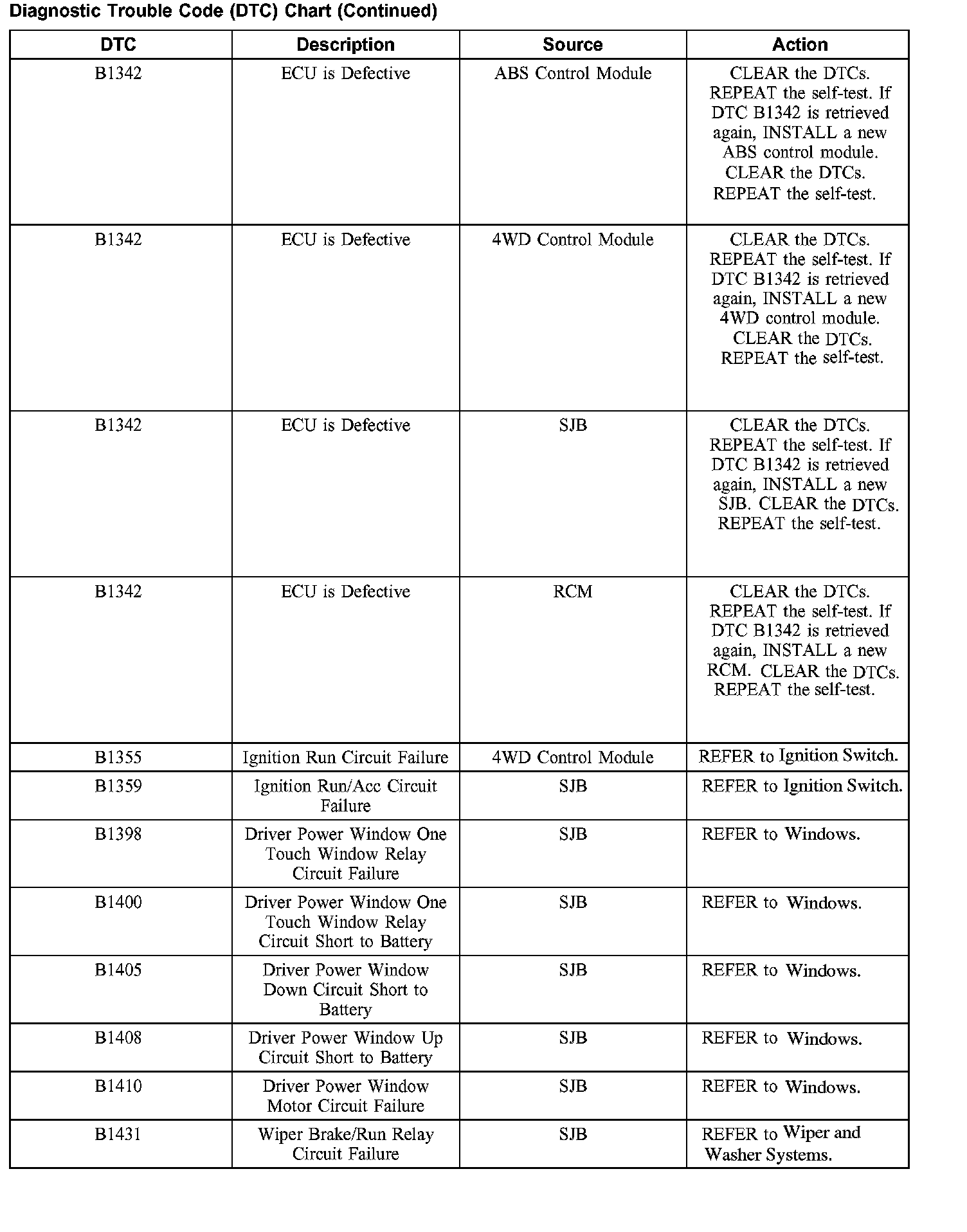

B1342-B1431:

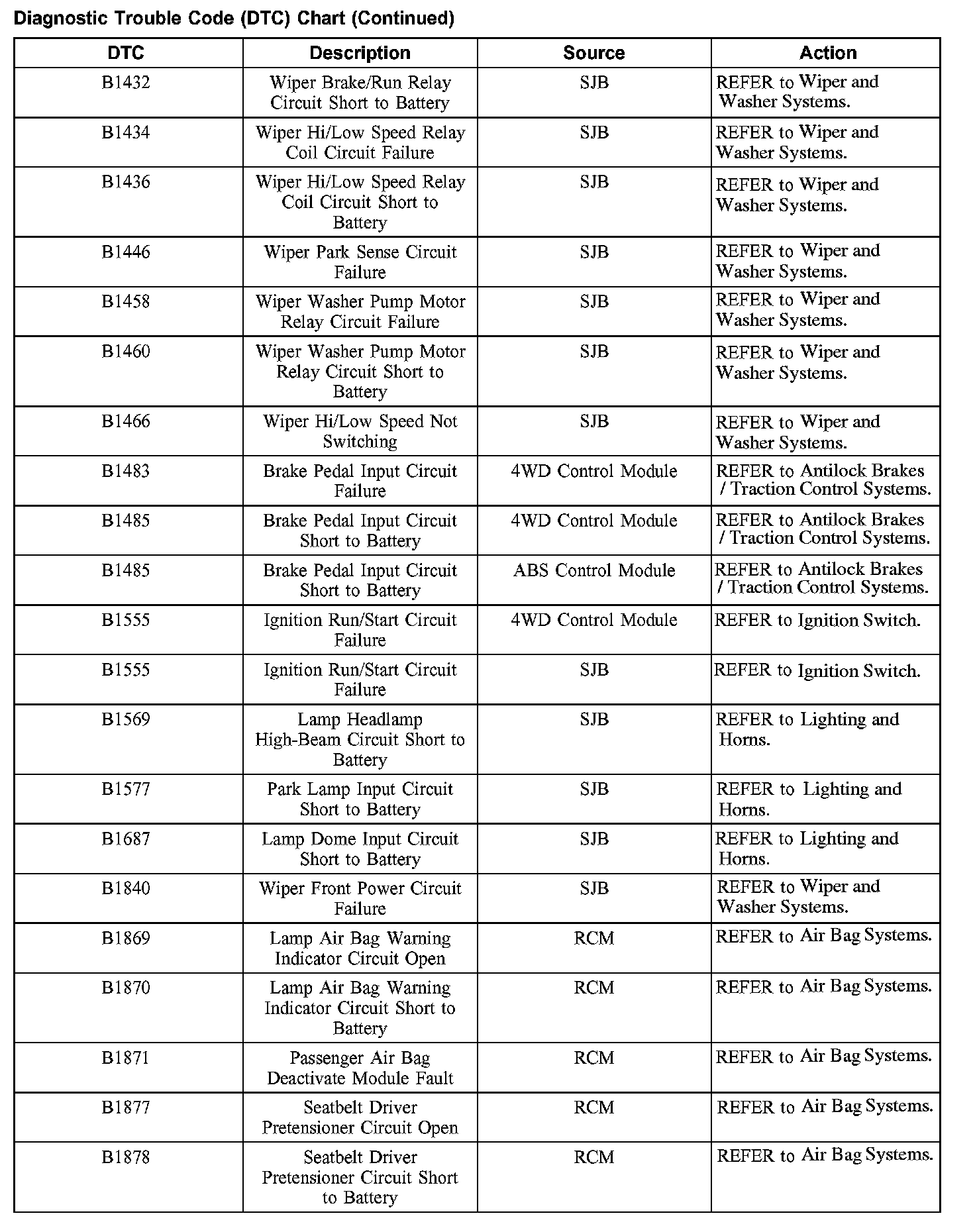

B1432-B1878:

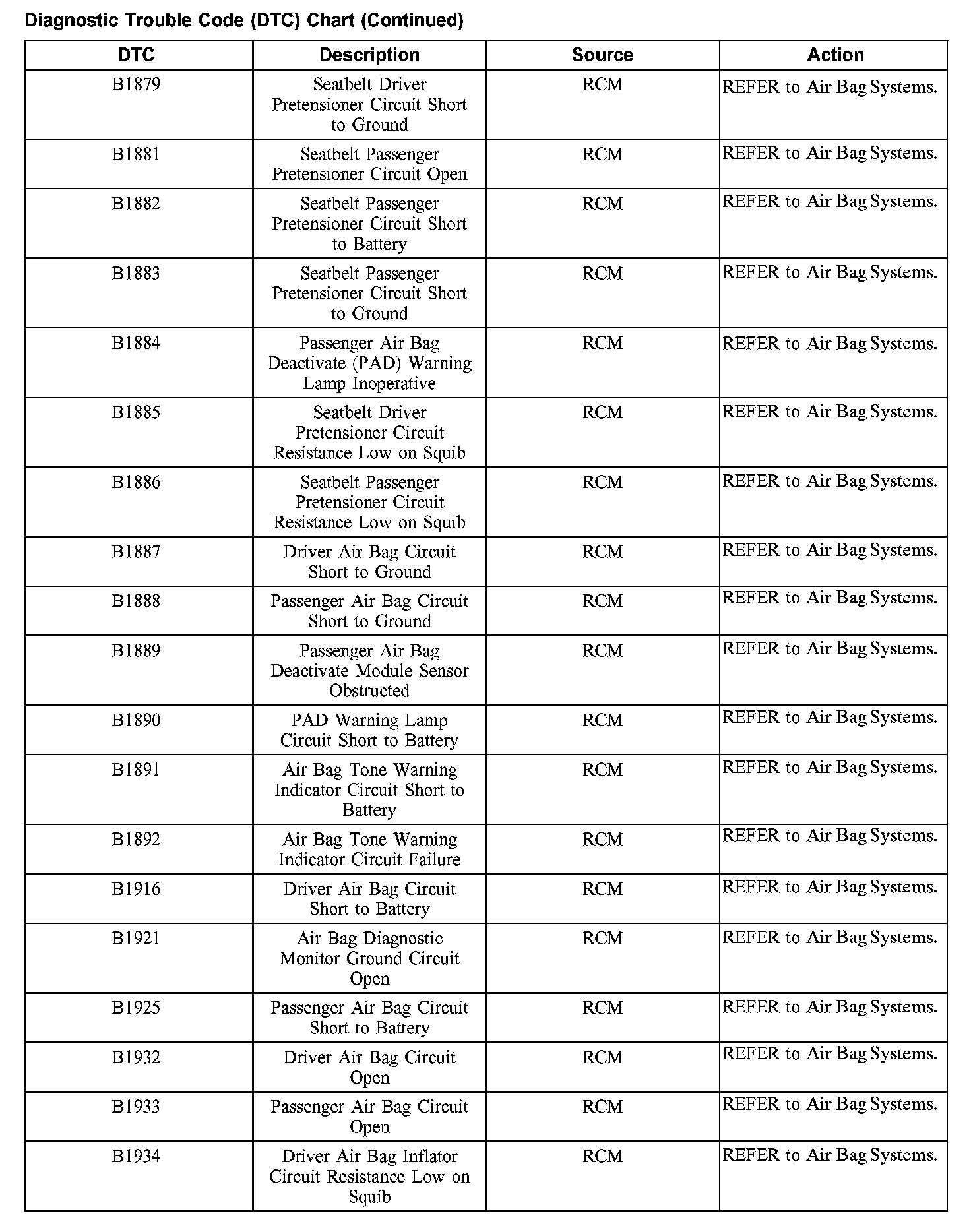

B1879-B1934:

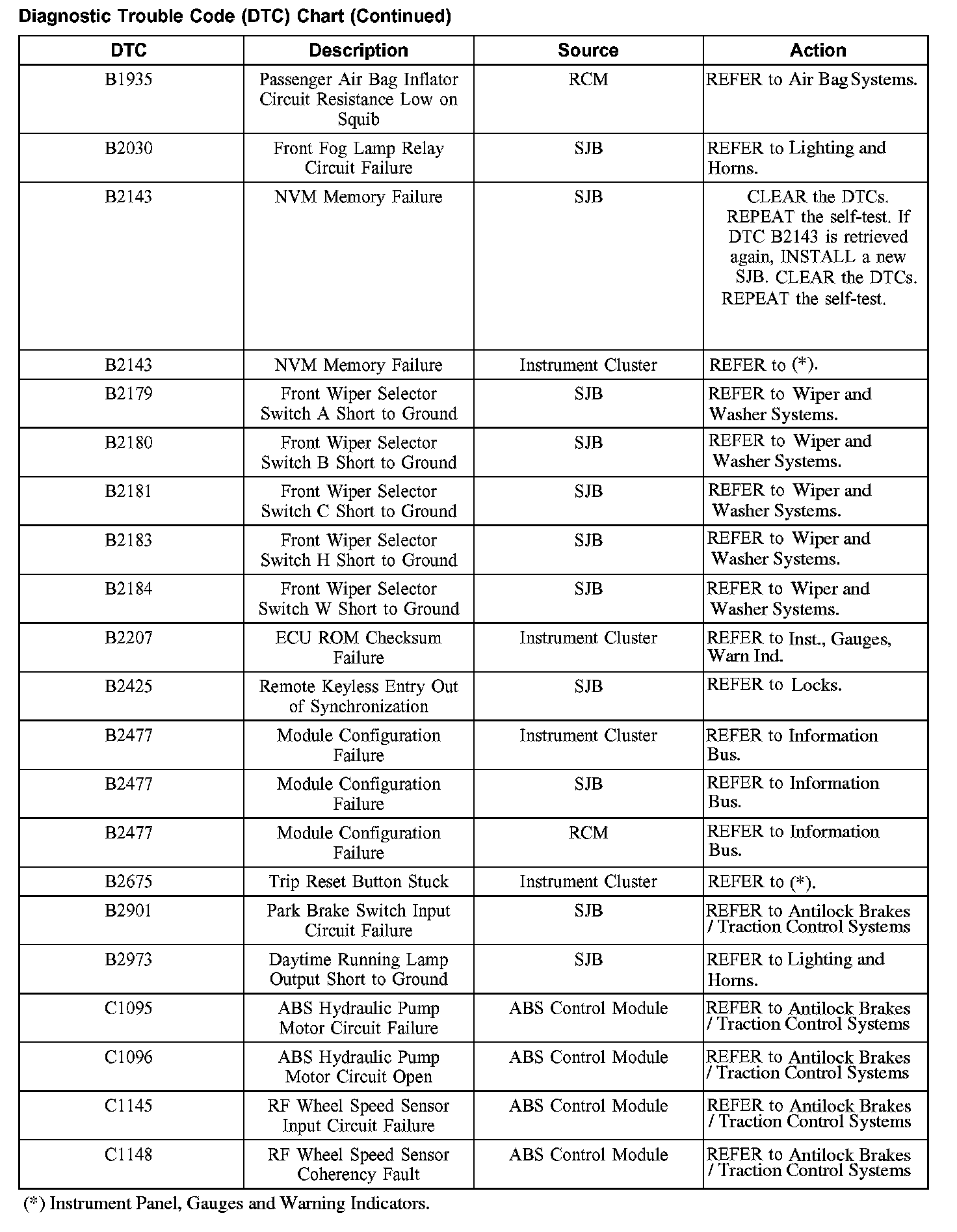

B1935-C1148:

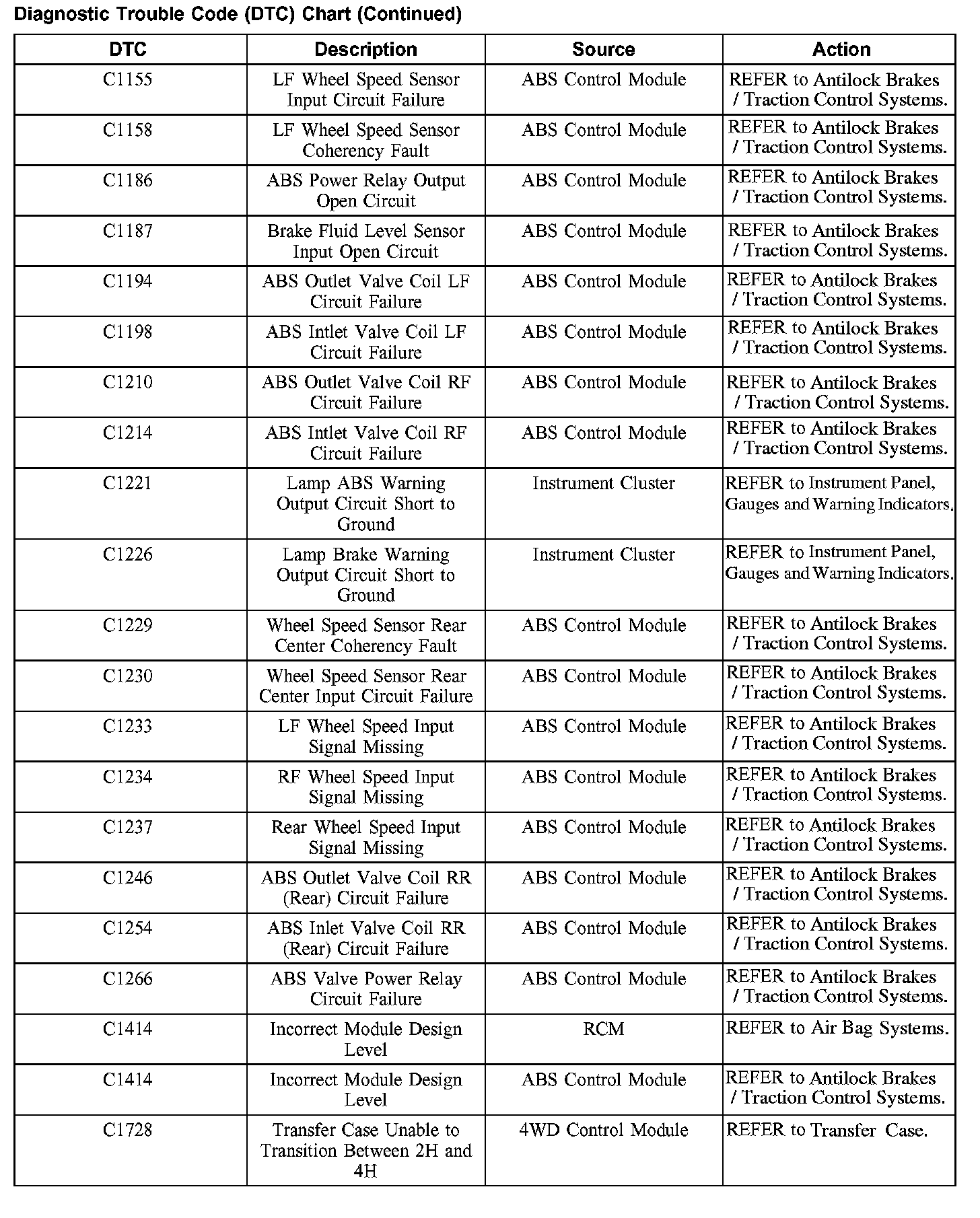

C1155-C1728:

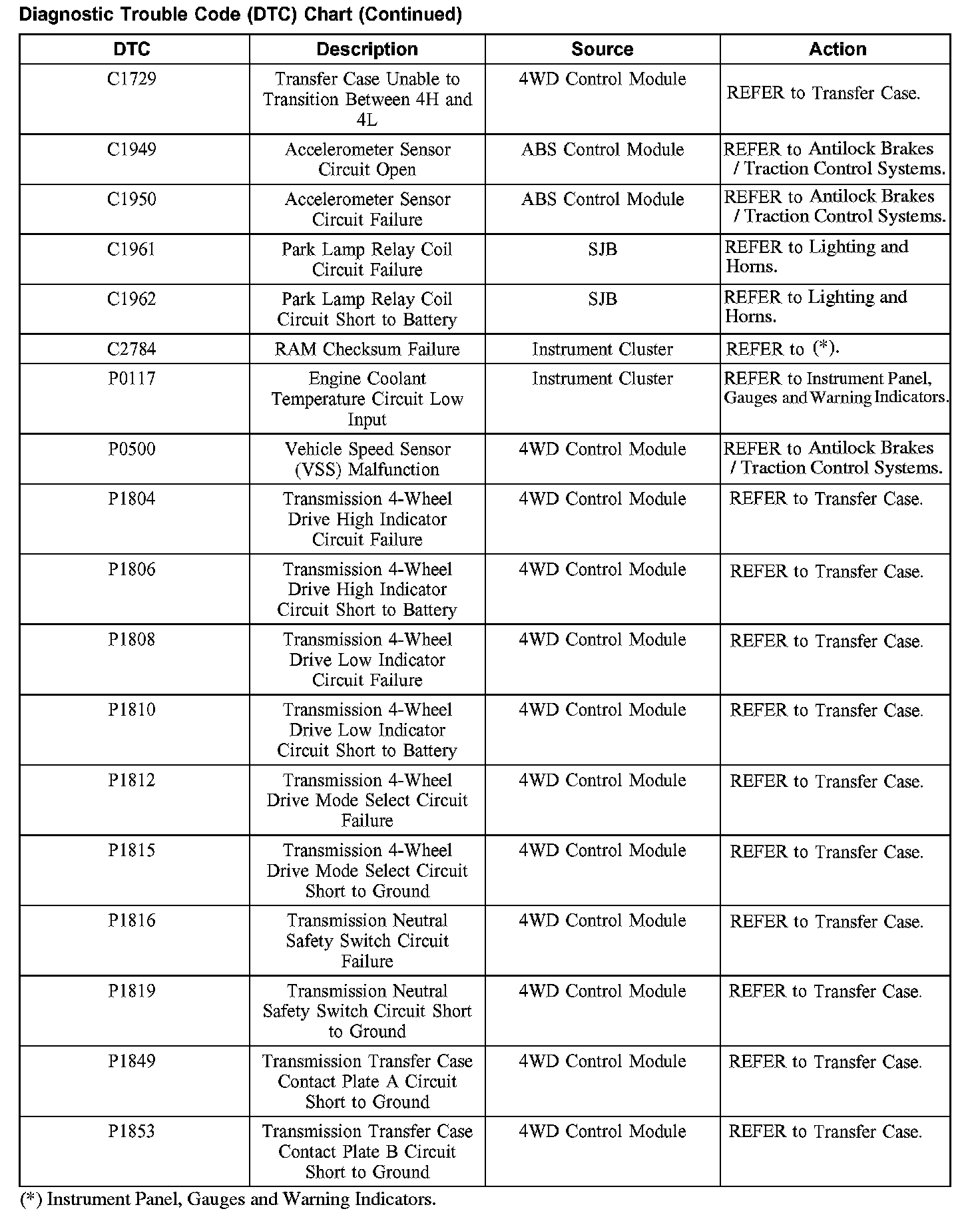

C1729-P1853:






P1857-P1891:
