Brake Codes

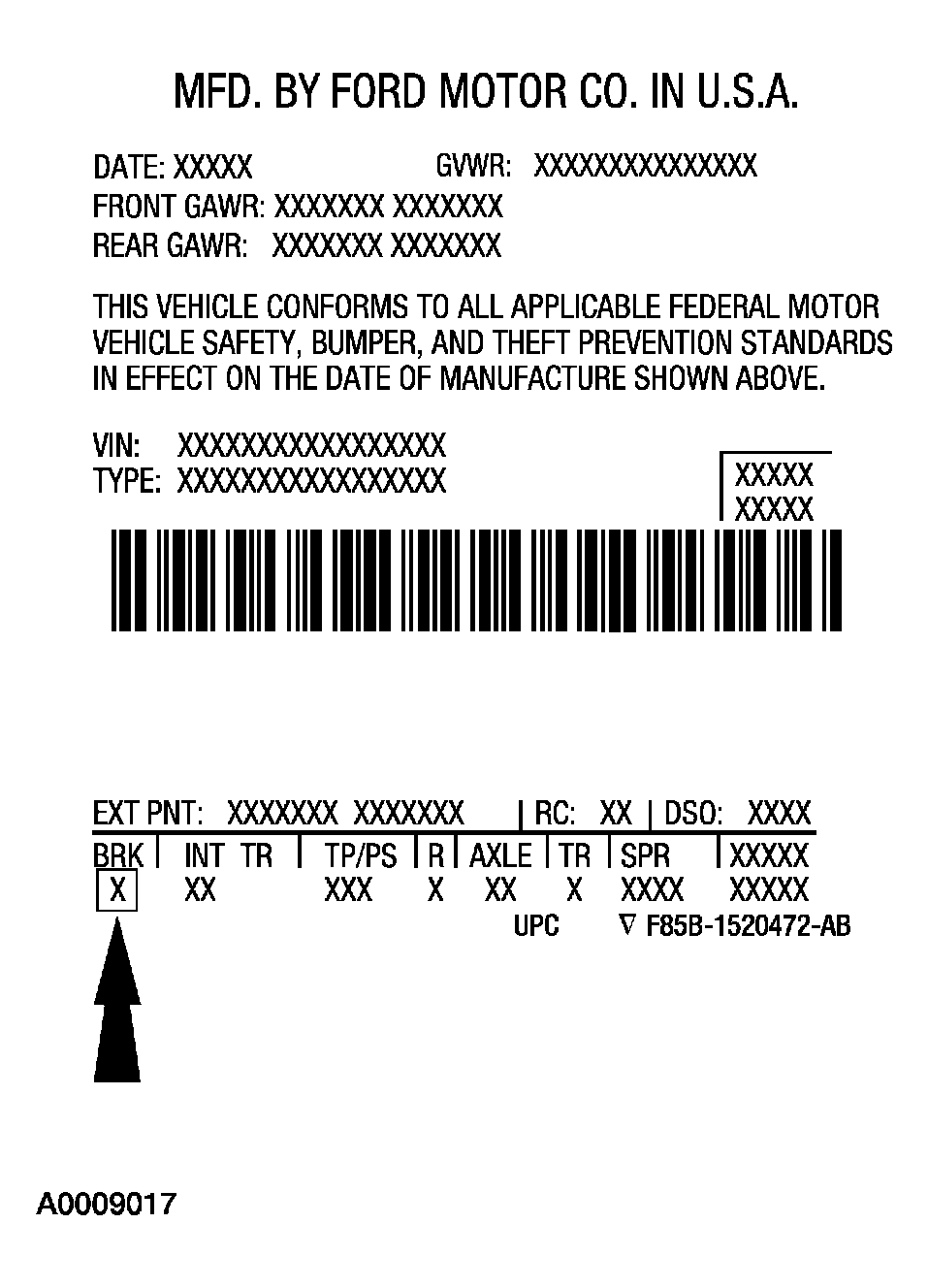

Fig 1: Identifying Vehicle Certification (VC) Label - Brake Code
Courtesy of FORD MOTOR CO.
The brake type codes are:
2 - 4-wheel disc with anti-lock brake system (ABS)
3 - Traction control
5 - 4-wheel disc with anti-lock brake system (ABS) and traction control
Blank - Standard (non-ABS) brake system
