Wheel Speed Sensor - Rear: Notes

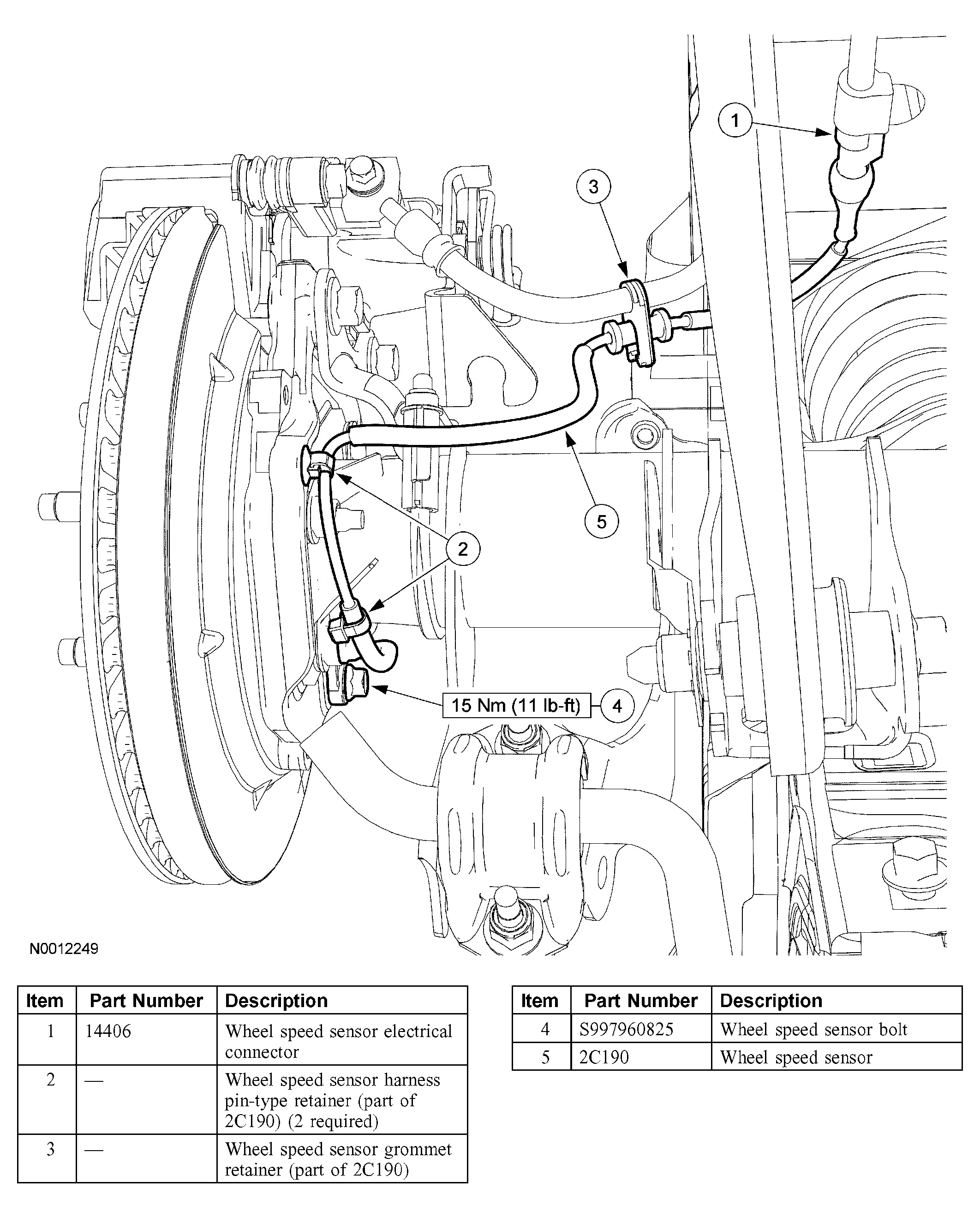

Fig 1: Identifying Rear Wheel Speed Sensor

G03983487

Courtesy of FORD MOTOR CO.
