Mustang Base, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Diagnosis And Testing
>>
Anti-Lock Control
>>
Connector Circuit Reference
>>
Instrument Cluster C220
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Instrument Cluster C220

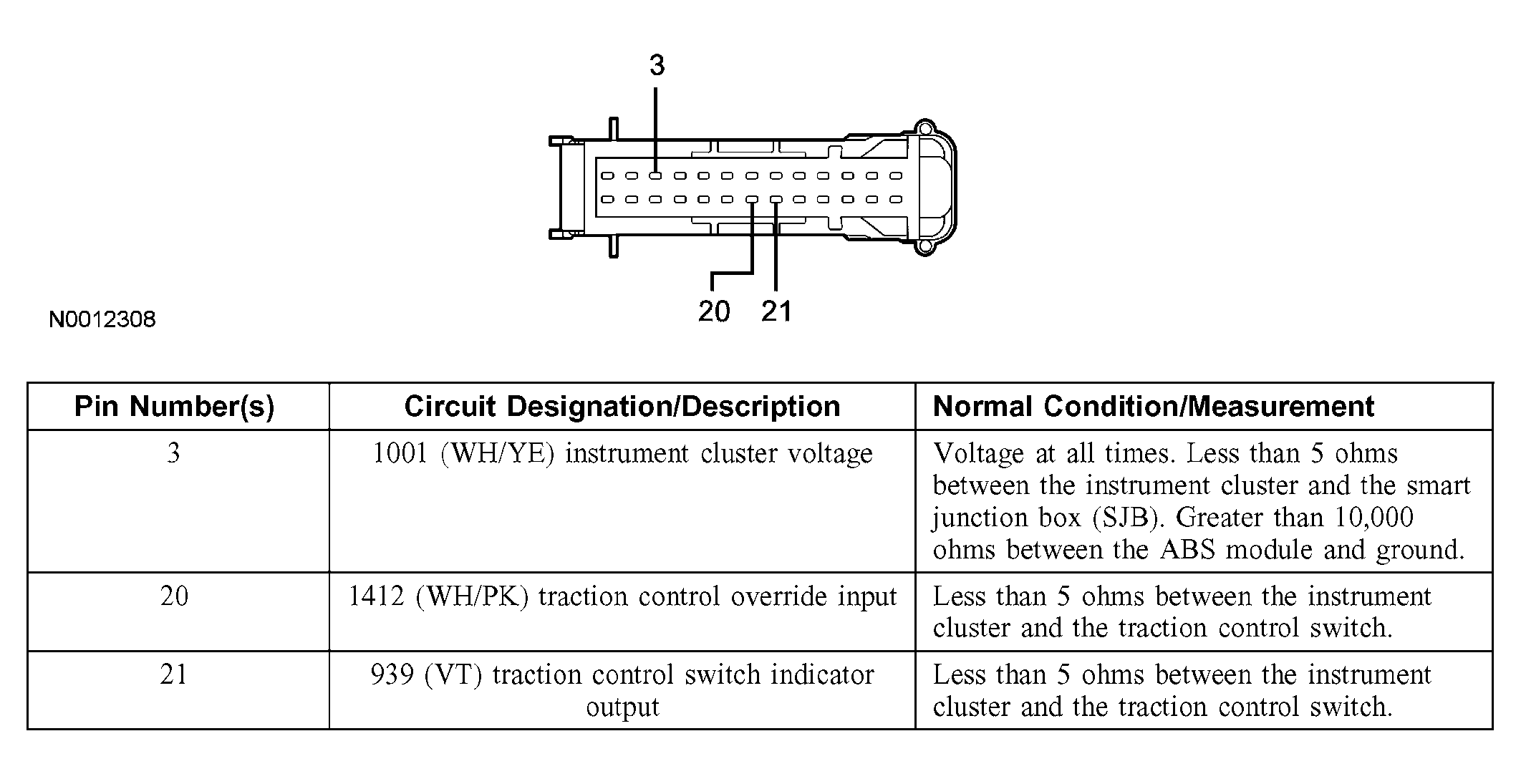

Fig 1: Identifying Connector Terminals Instrument Cluster C220
Courtesy of FORD MOTOR CO.
