Overdrive Planetary and One-Way Clutch Assembly: Notes

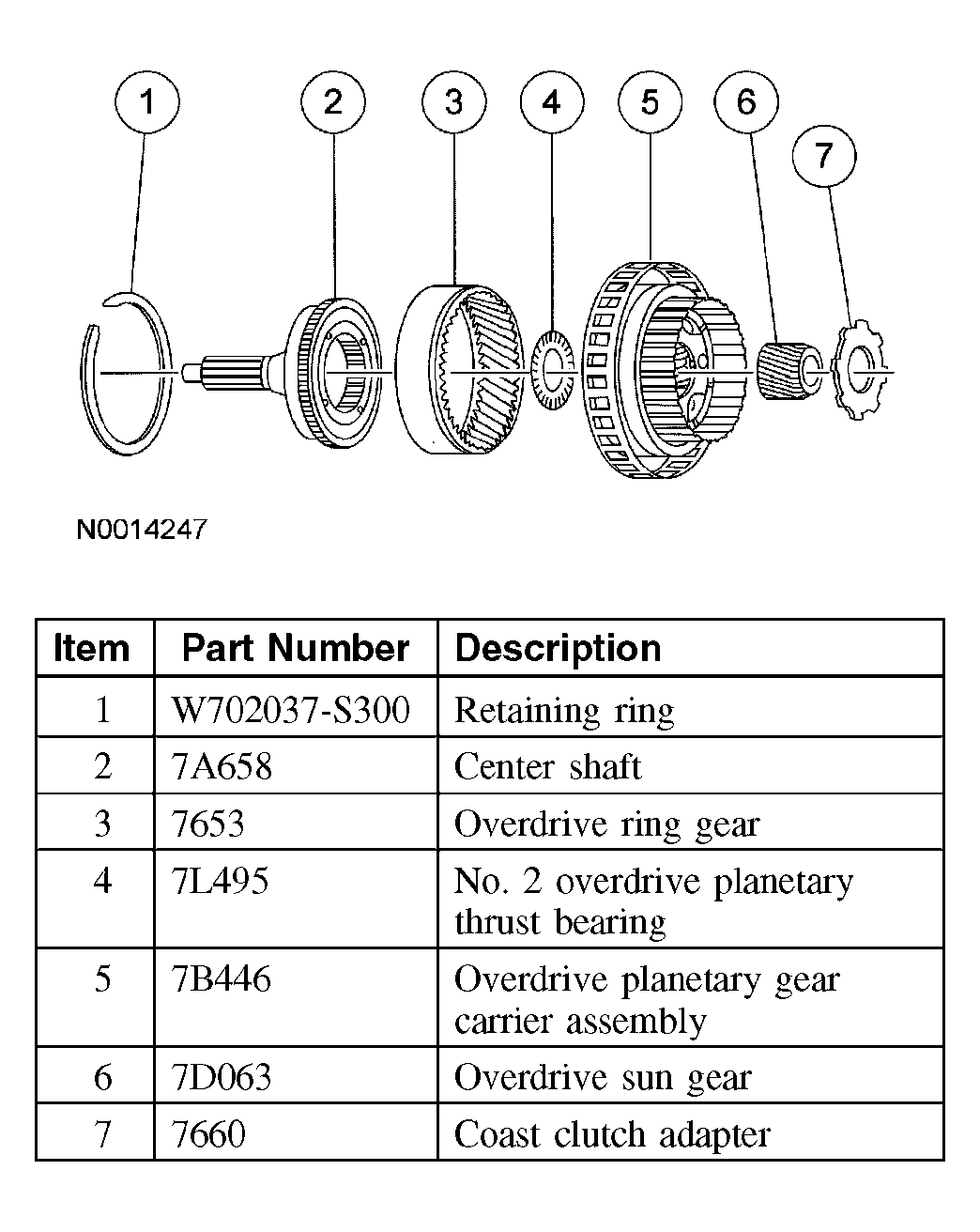

Fig 1: Identifying Overdrive Planetary And One-Way Clutch Assembly Components
G03985414Courtesy of FORD MOTOR CO.
