Power Steering Pump Pulley: Removal

  1. Remove the power steering pump. For additional information, refer to POWER STEERING PUMP .
  2. Using the special tool, remove the power steering pump pulley.

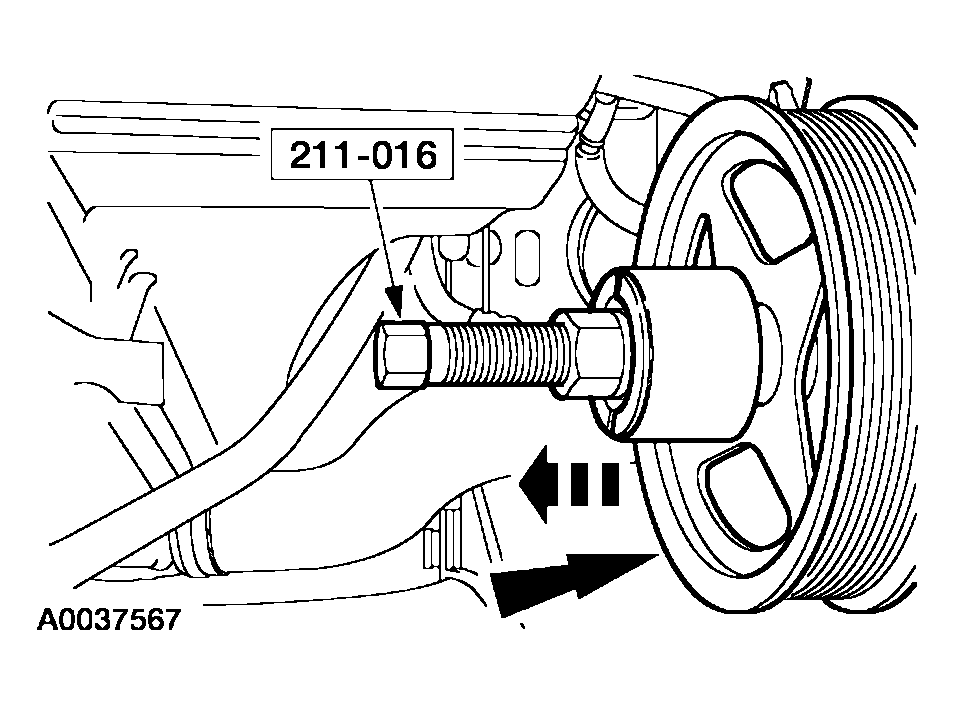

    Fig 1: Removing Power Steering Pump Pulley
    G03945466Courtesy of FORD MOTOR CO.
