Connector Circuit Reference

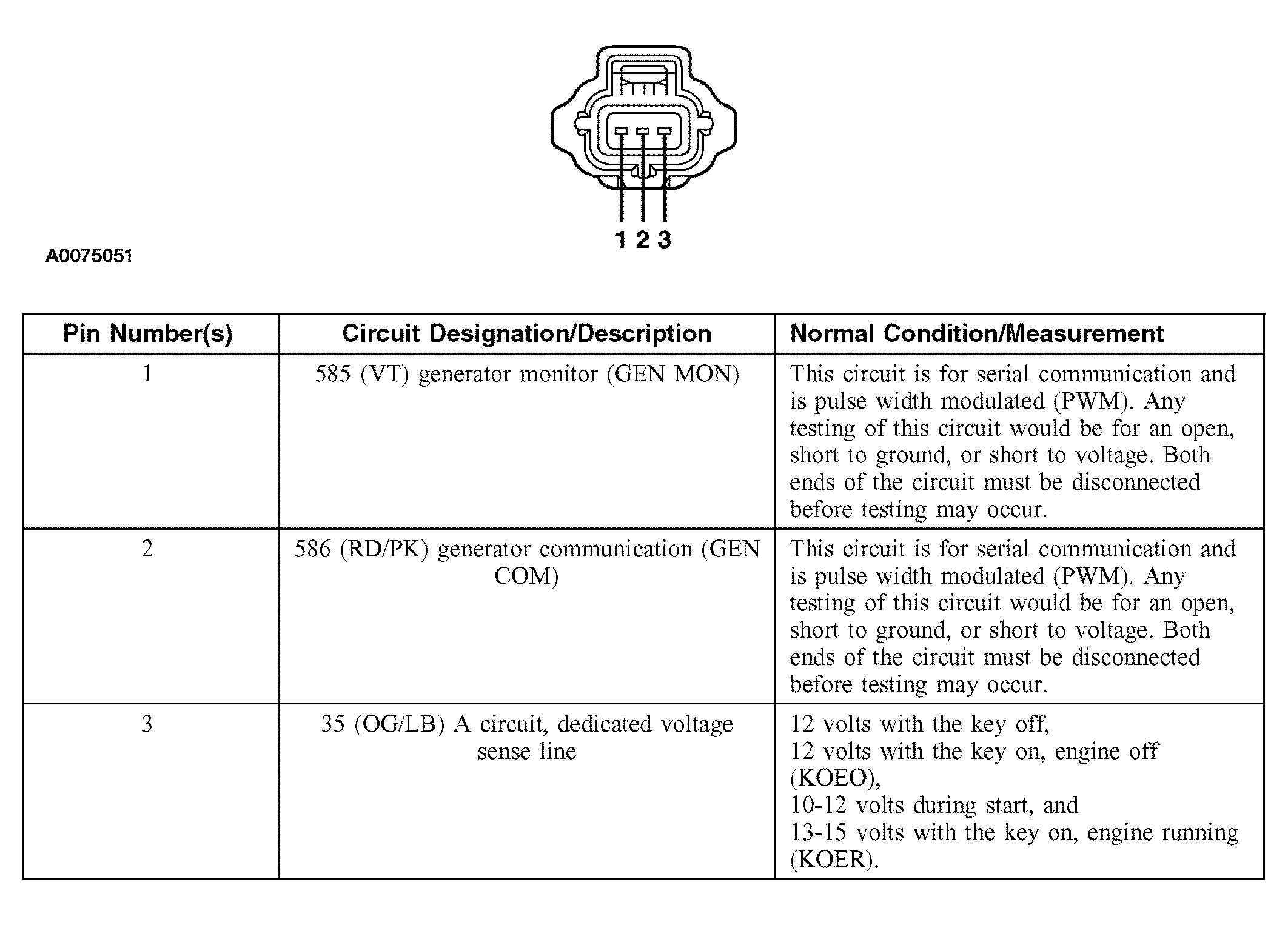

Fig 1: Identifying Generator C102a Connector Pinout
Courtesy of FORD MOTOR CO.

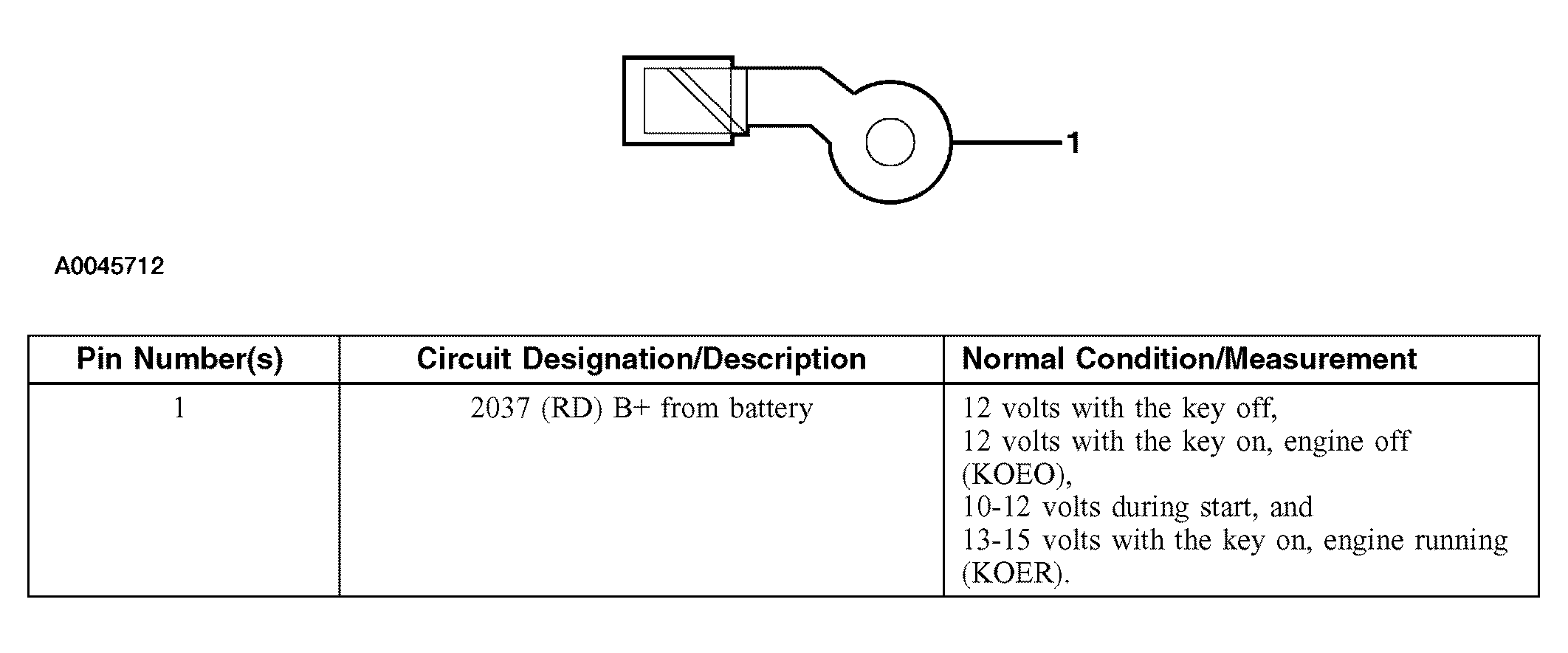

Fig 2: Identifying Generator C102b Connector Pinout
Courtesy of FORD MOTOR CO.

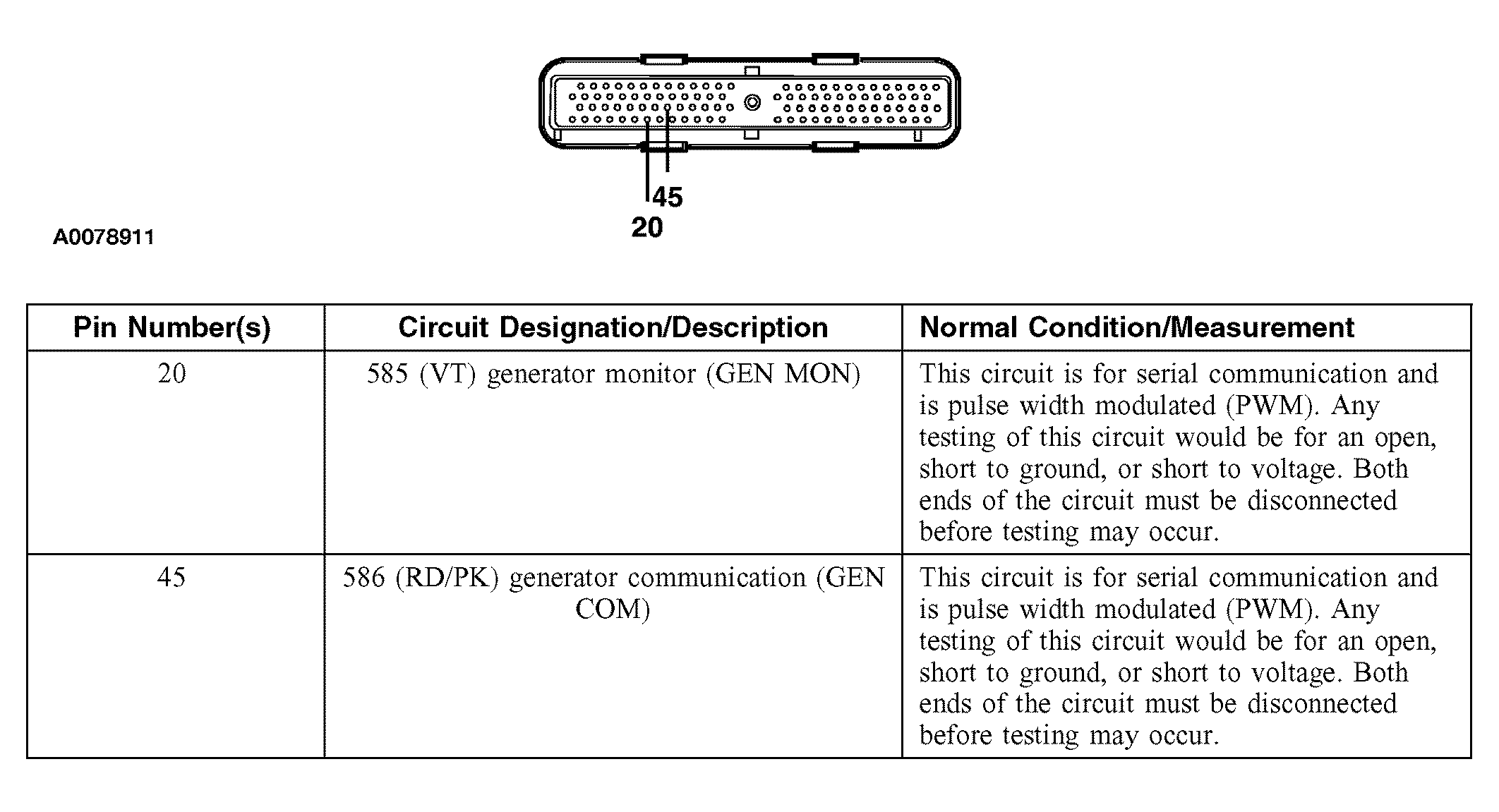

Fig 3: Identifying Powertrain Control Module (PCM) C175 Connector Pinout
Courtesy of FORD MOTOR CO.
