Connector Circuit Reference

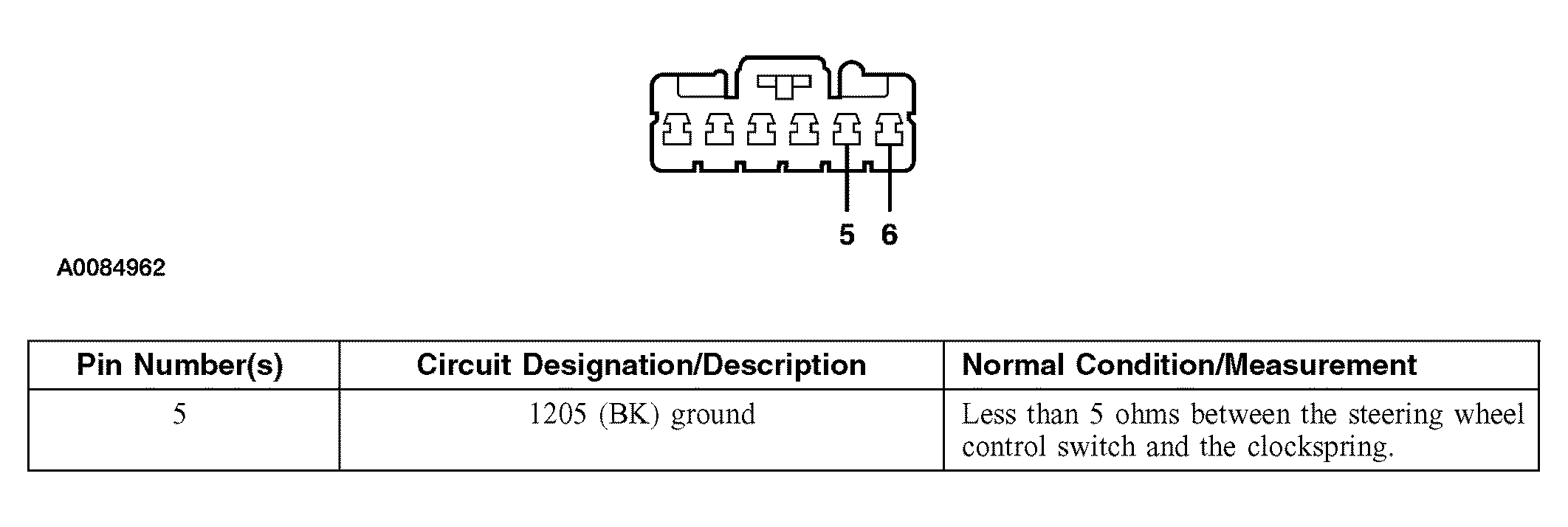

Fig 1: Identifying Upper Clockspring Connector Pinout

Courtesy of FORD MOTOR CO.

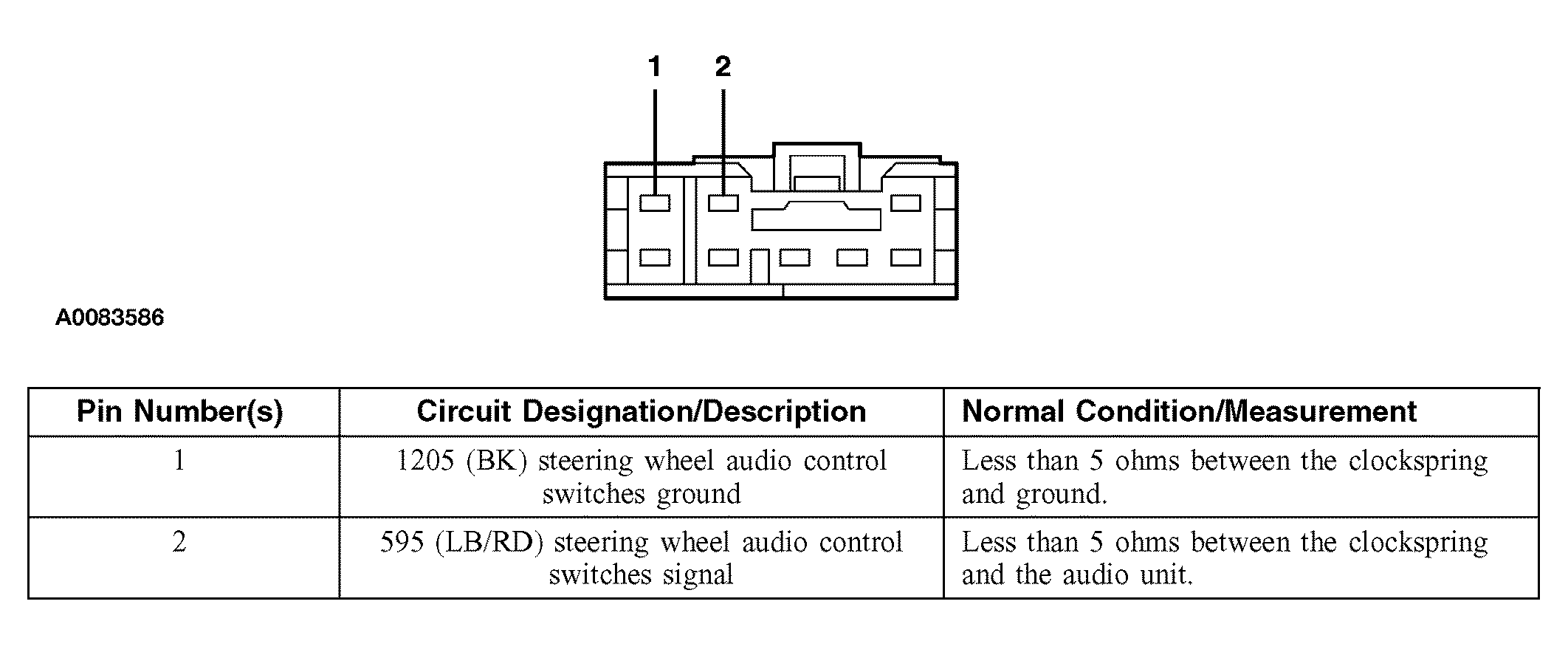

Fig 2: Identifying Clockspring C218b Connector Pinout

Courtesy of FORD MOTOR CO.

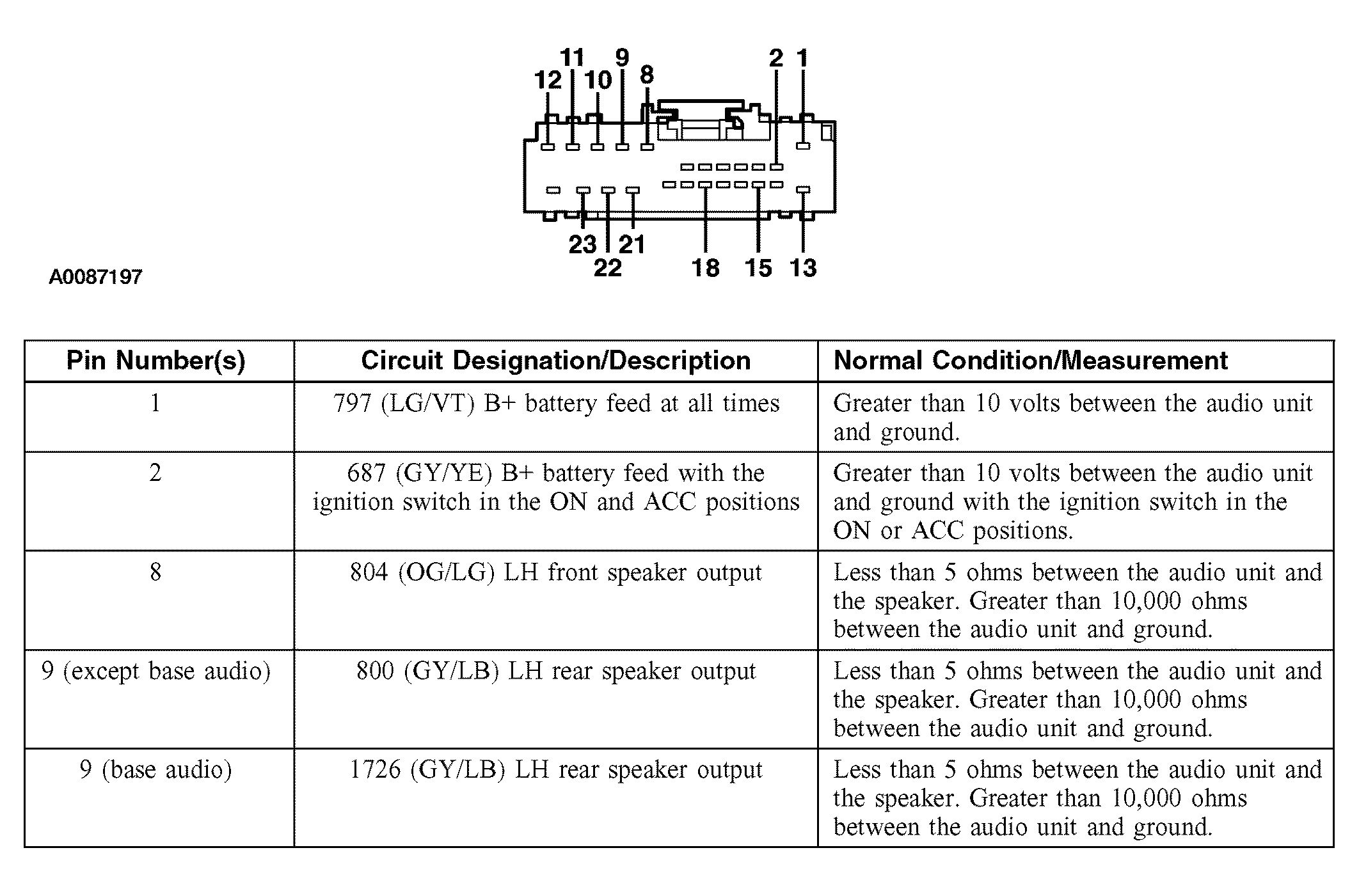

Fig 3: Identifying Audio Unit C240a Connector Pinout

Courtesy of FORD MOTOR CO.

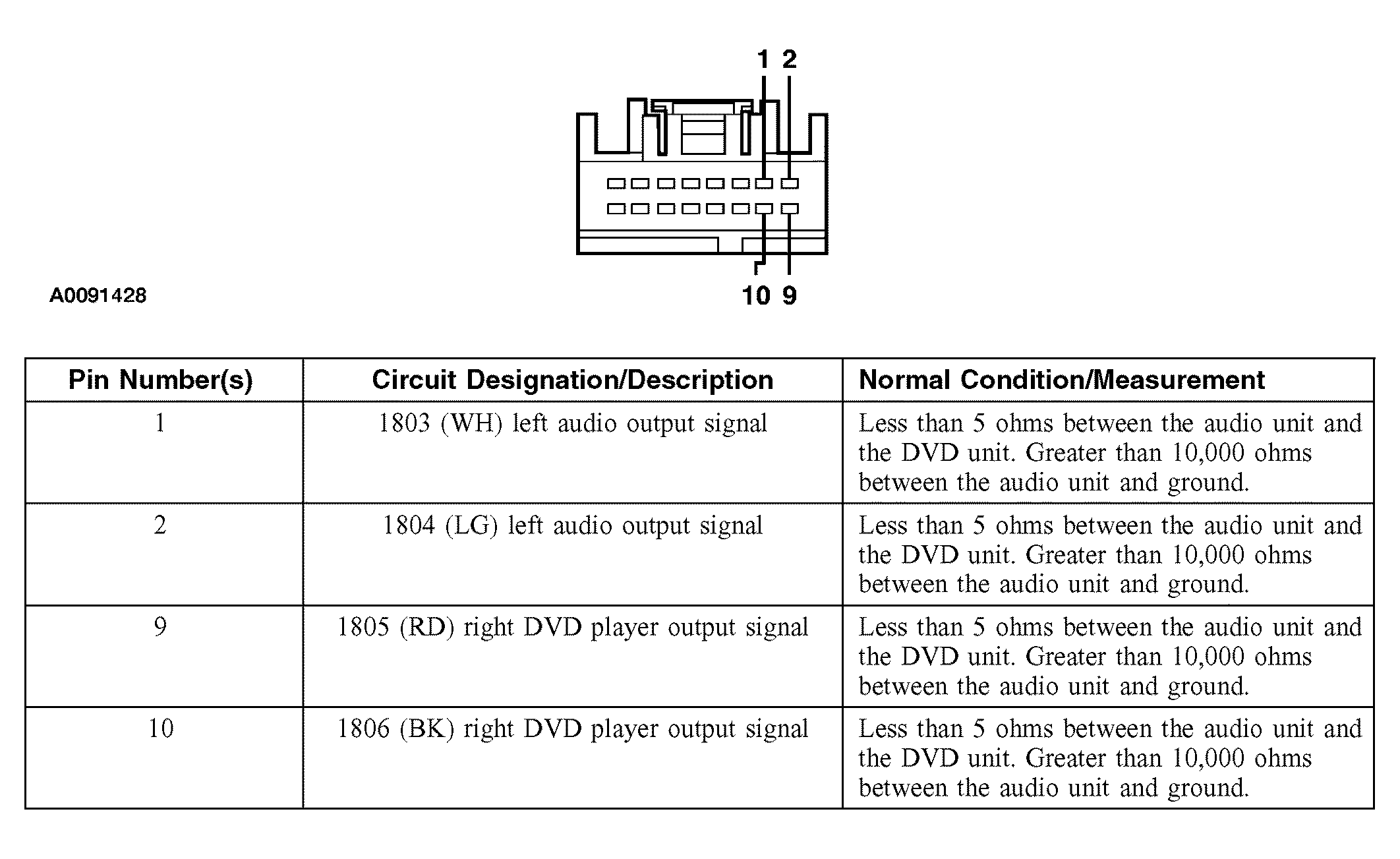

Fig 4: Identifying Audio Unit C240b Connector Pinout

Courtesy of FORD MOTOR CO.

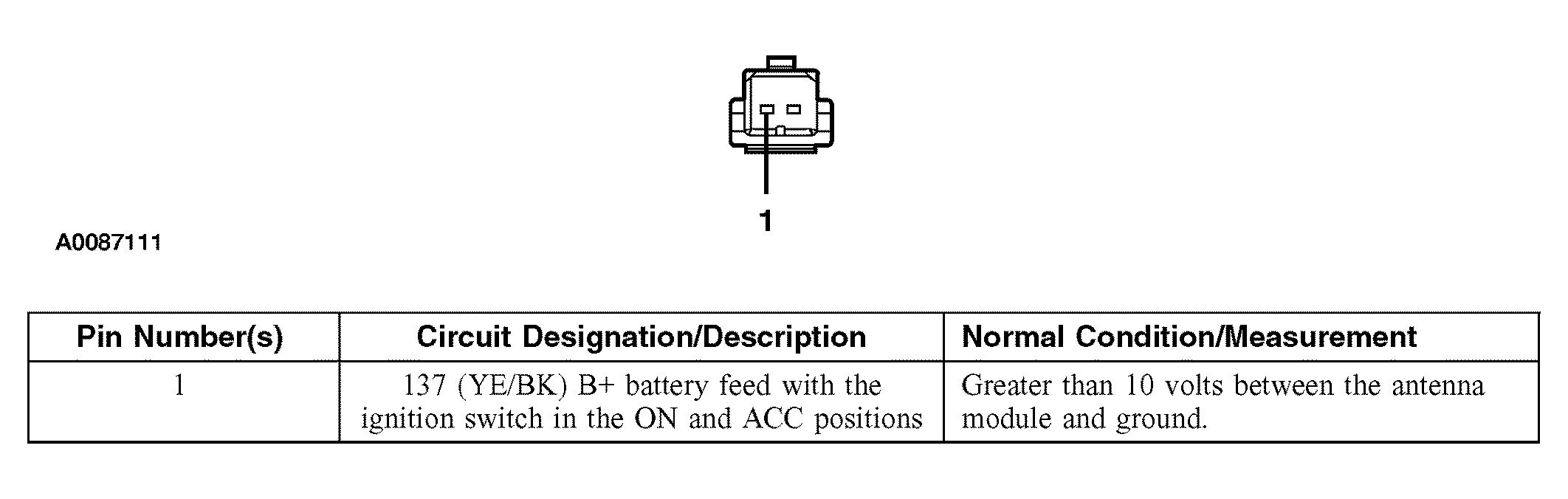

Fig 5: Identifying Power Antenna Module C387 Connector Pinout

Courtesy of FORD MOTOR CO.

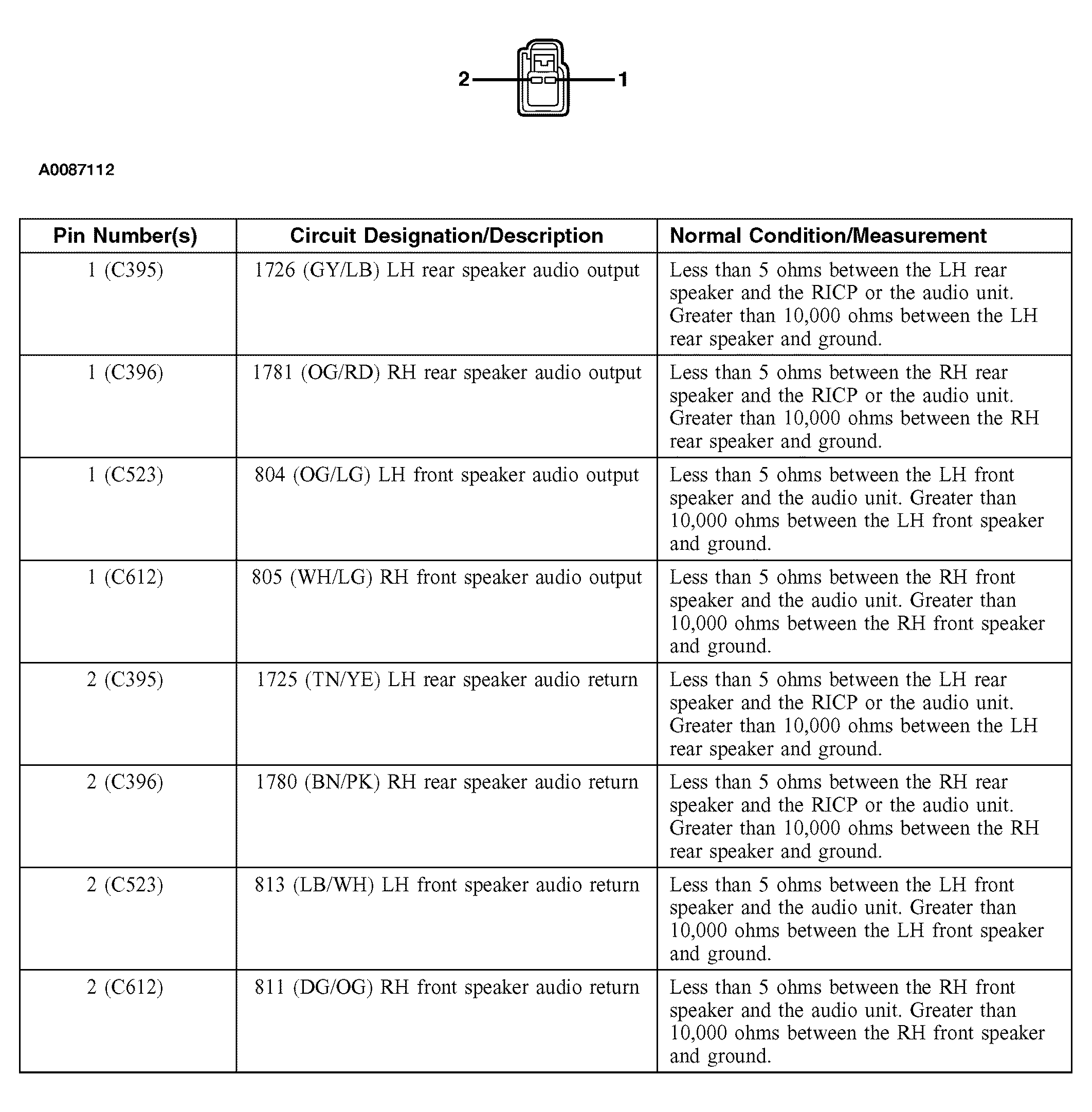

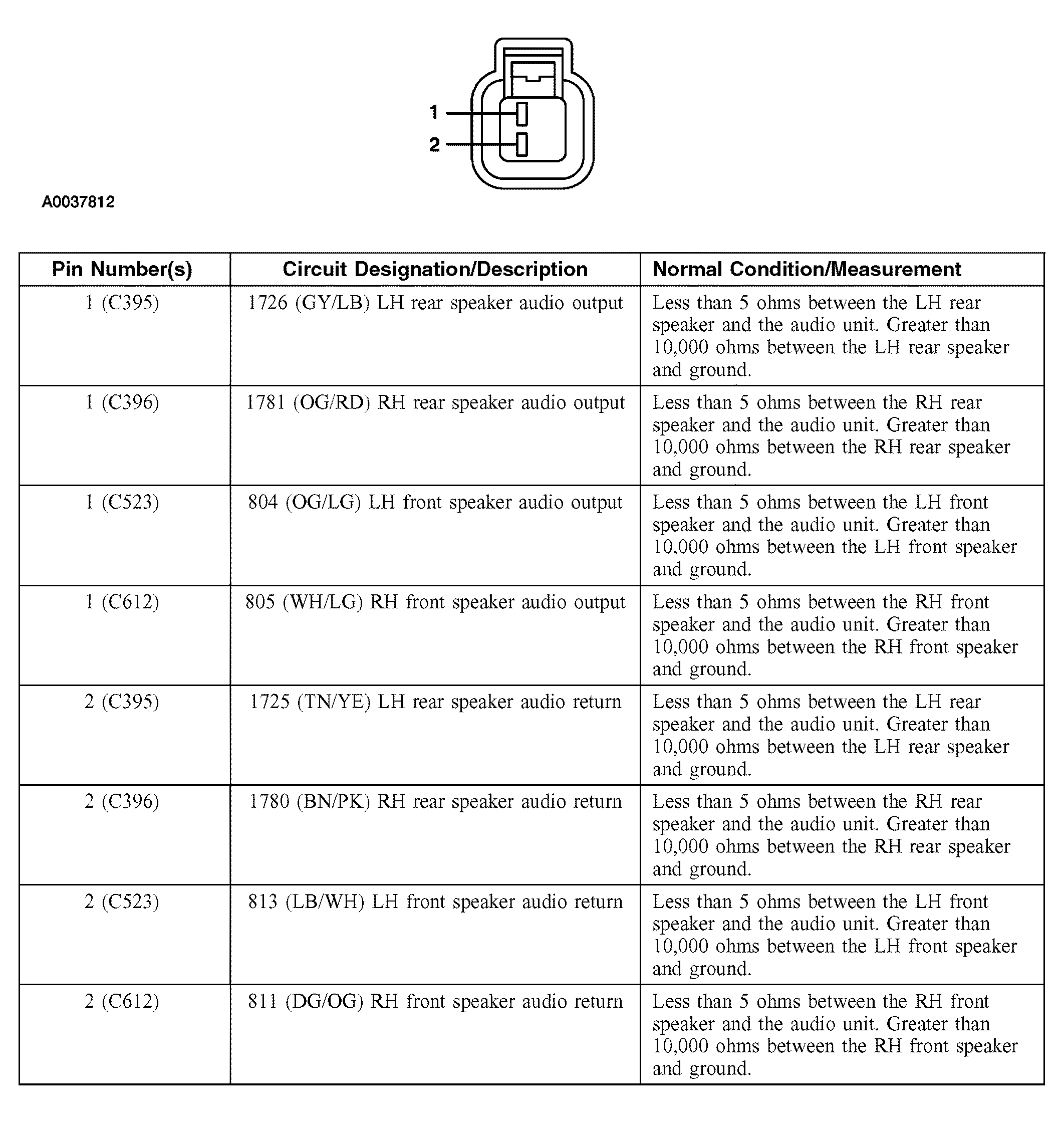

Fig 6: Identifying Speaker Connector Pinout (Vehicles Without RICP)

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Speaker Connector Pinout (Vehicles With RICP)

Courtesy of FORD MOTOR CO.

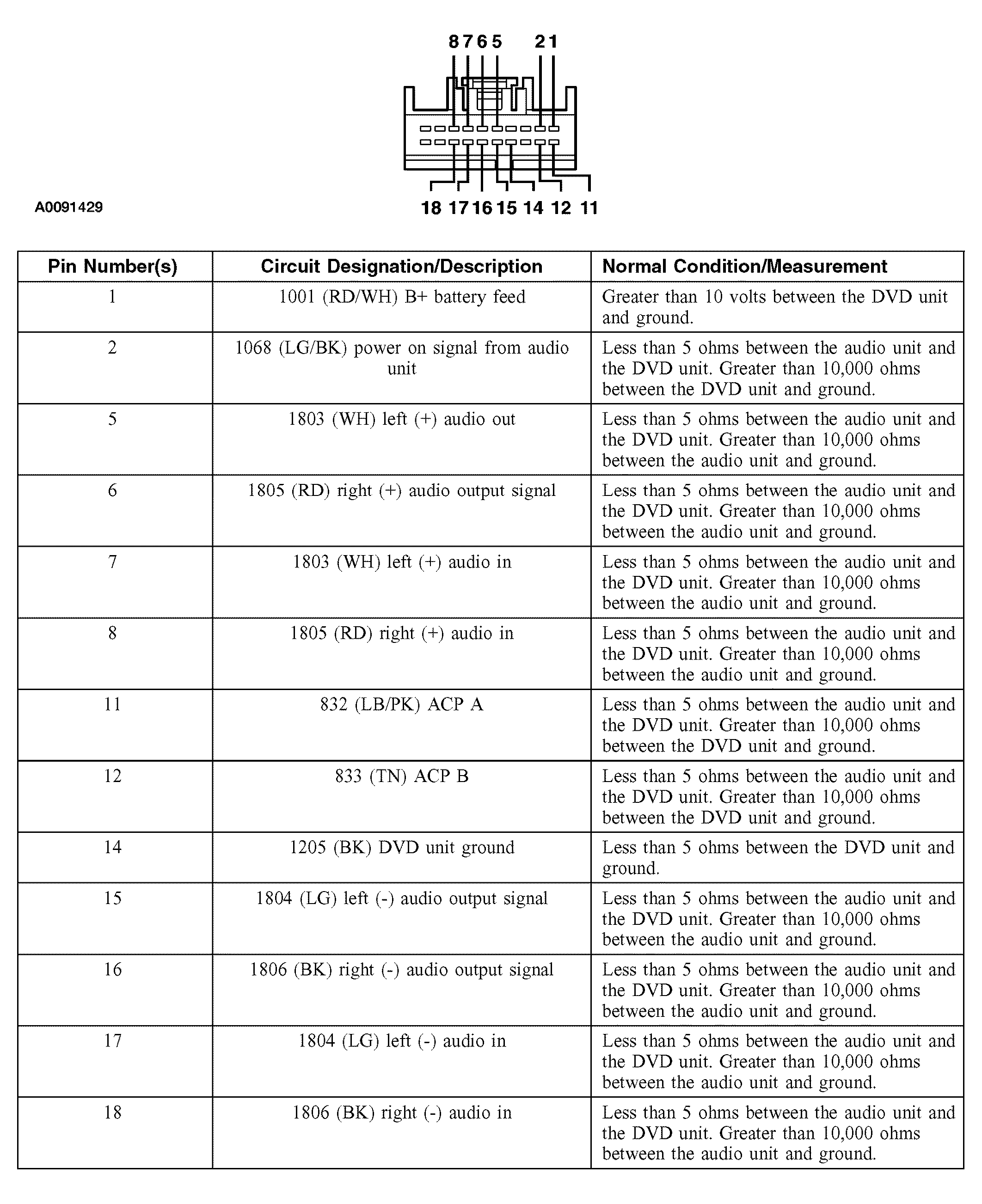

Fig 8: Identifying DVD Player C949 Connector Pinout

Courtesy of FORD MOTOR CO.

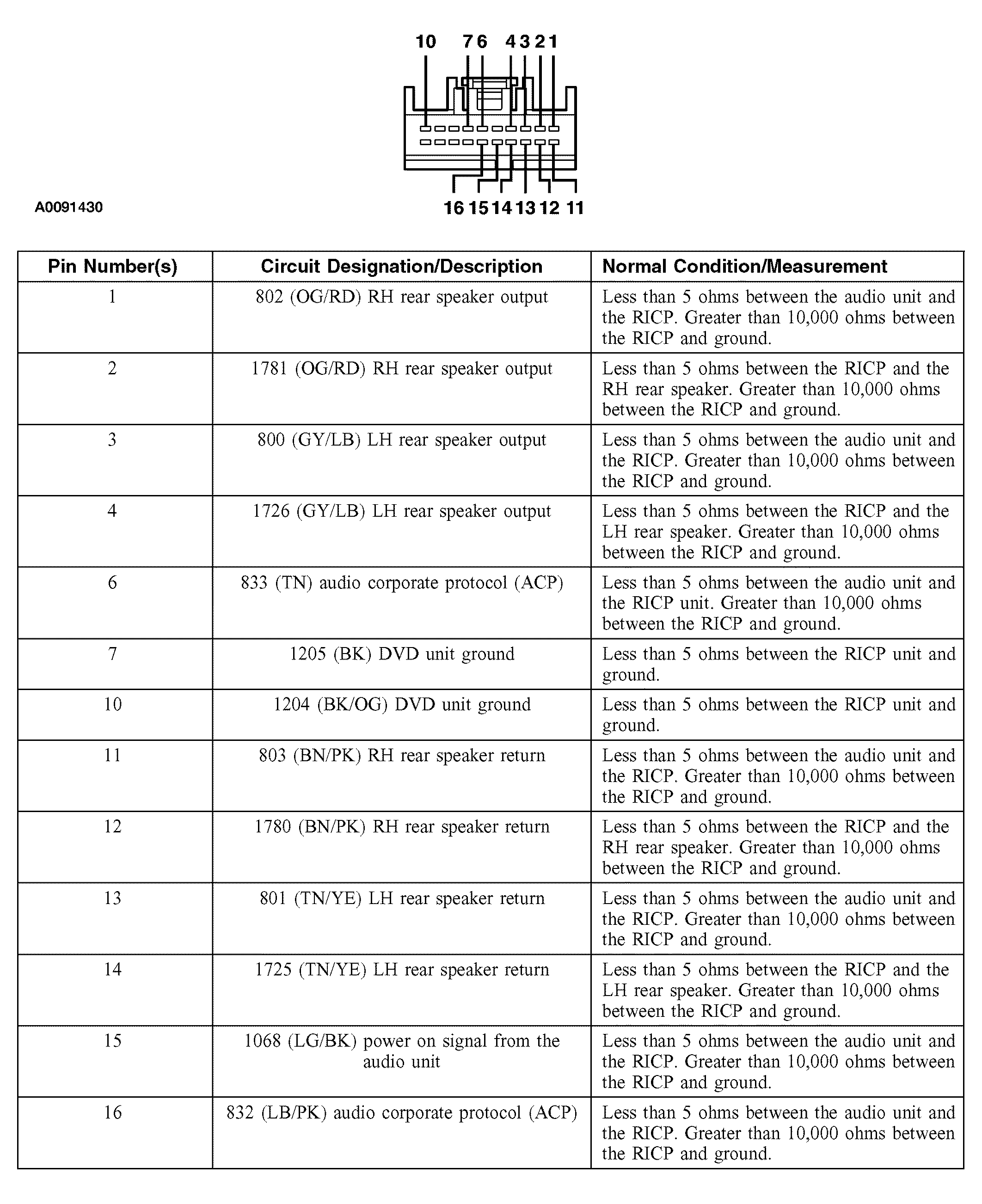

Fig 9: Identifying RICP C9025 Connector Pinout

Courtesy of FORD MOTOR CO.
