Connector Circuit Reference

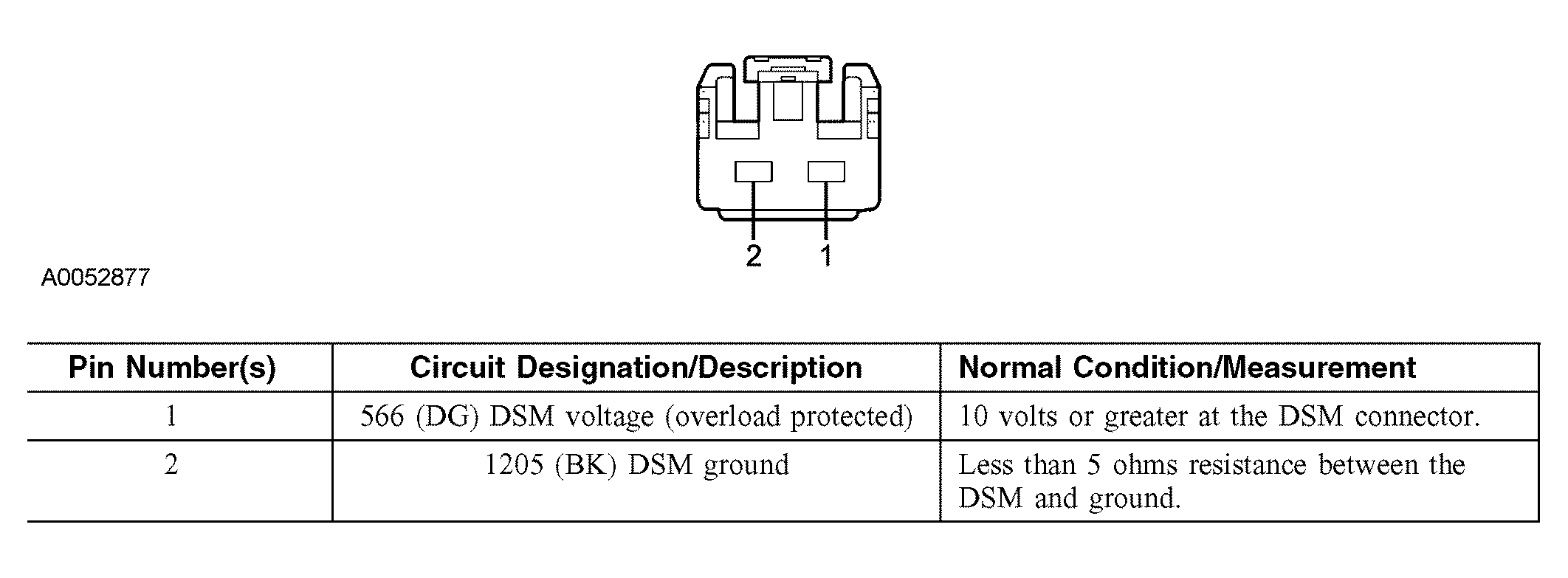

Fig 1: Connector Circuit Reference - Driver Seat Module (DSM) C341a
G04006455Courtesy of FORD MOTOR CO.

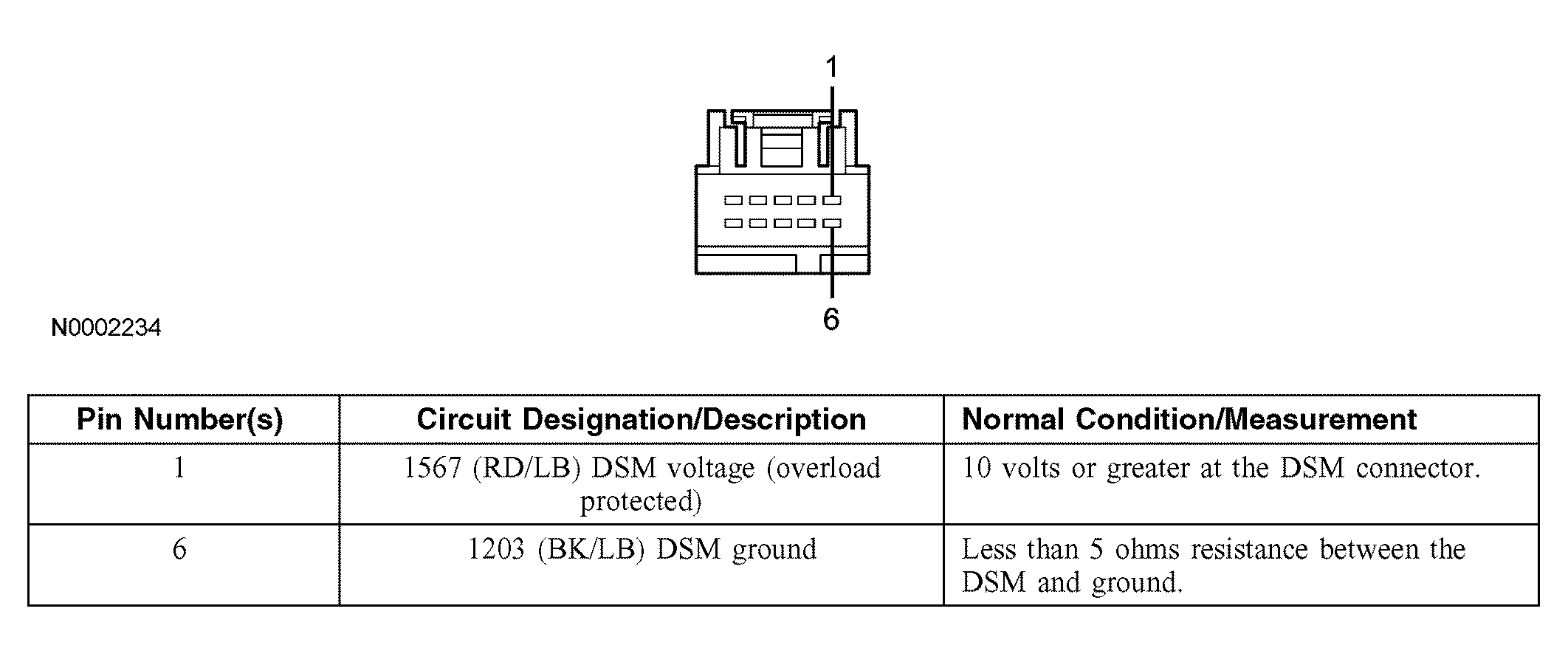

Fig 2: Connector Circuit Reference - Driver Seat Module (DSM) C341c
G04006456Courtesy of FORD MOTOR CO.
