Tests DX: Engine Coolant Temperature (ECT) Sensor



PINPOINT TEST DX: ENGINE COOLANT TEMPERATURE (ECT) SENSOR


DX Introduction:





DX Introduction:





DX Introduction:





DX Introduction:

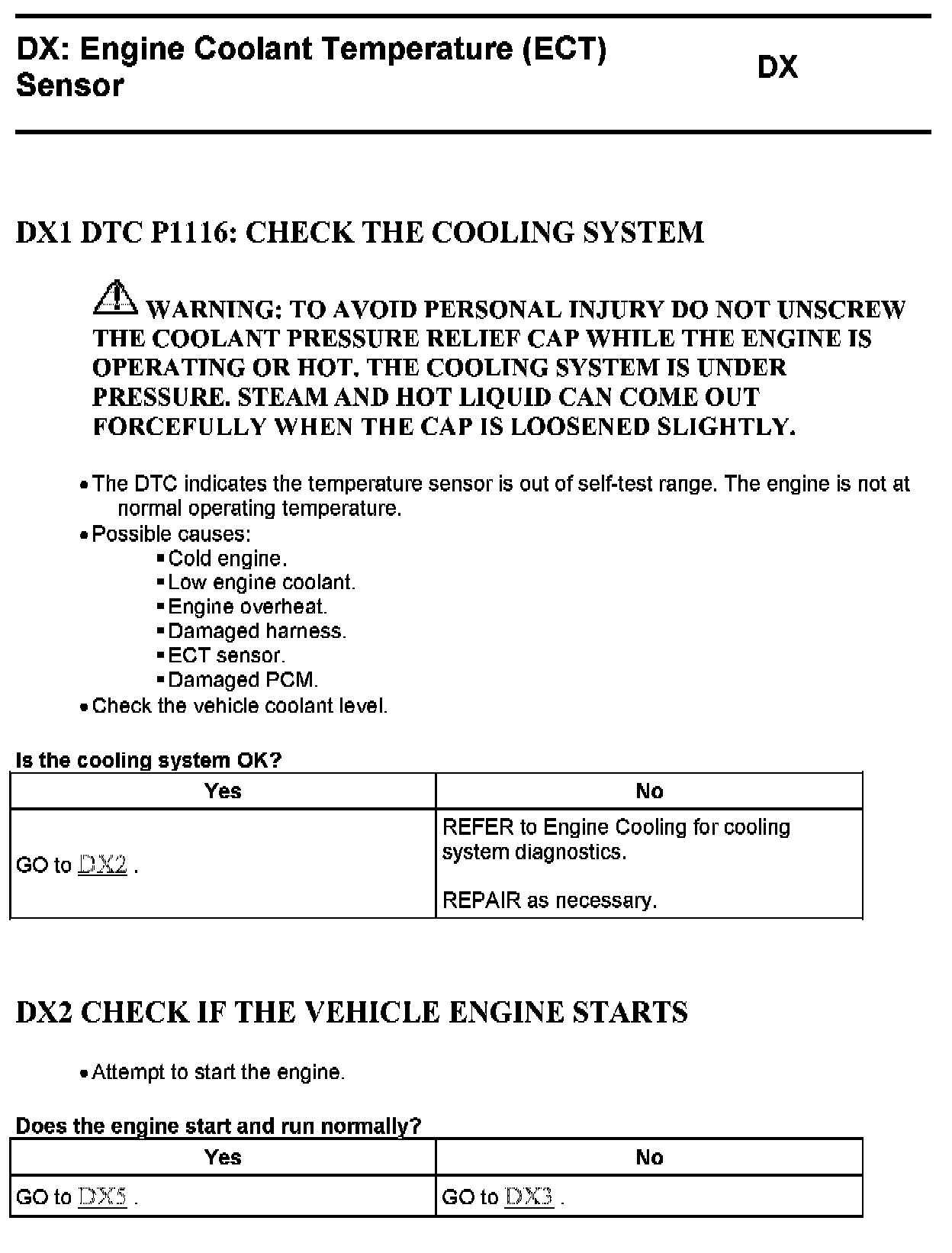

DX1 - DX2:

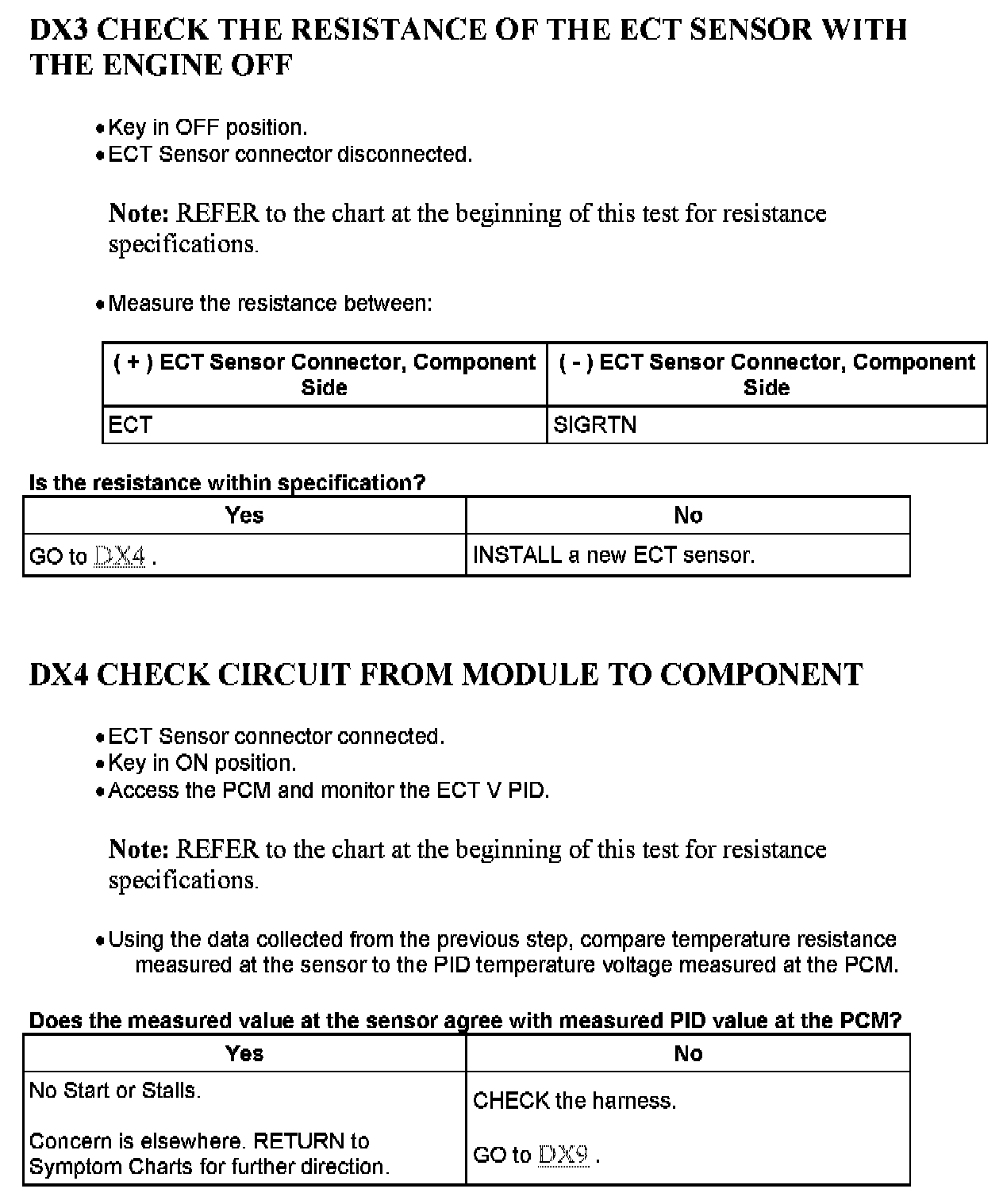

DX3 - DX4:

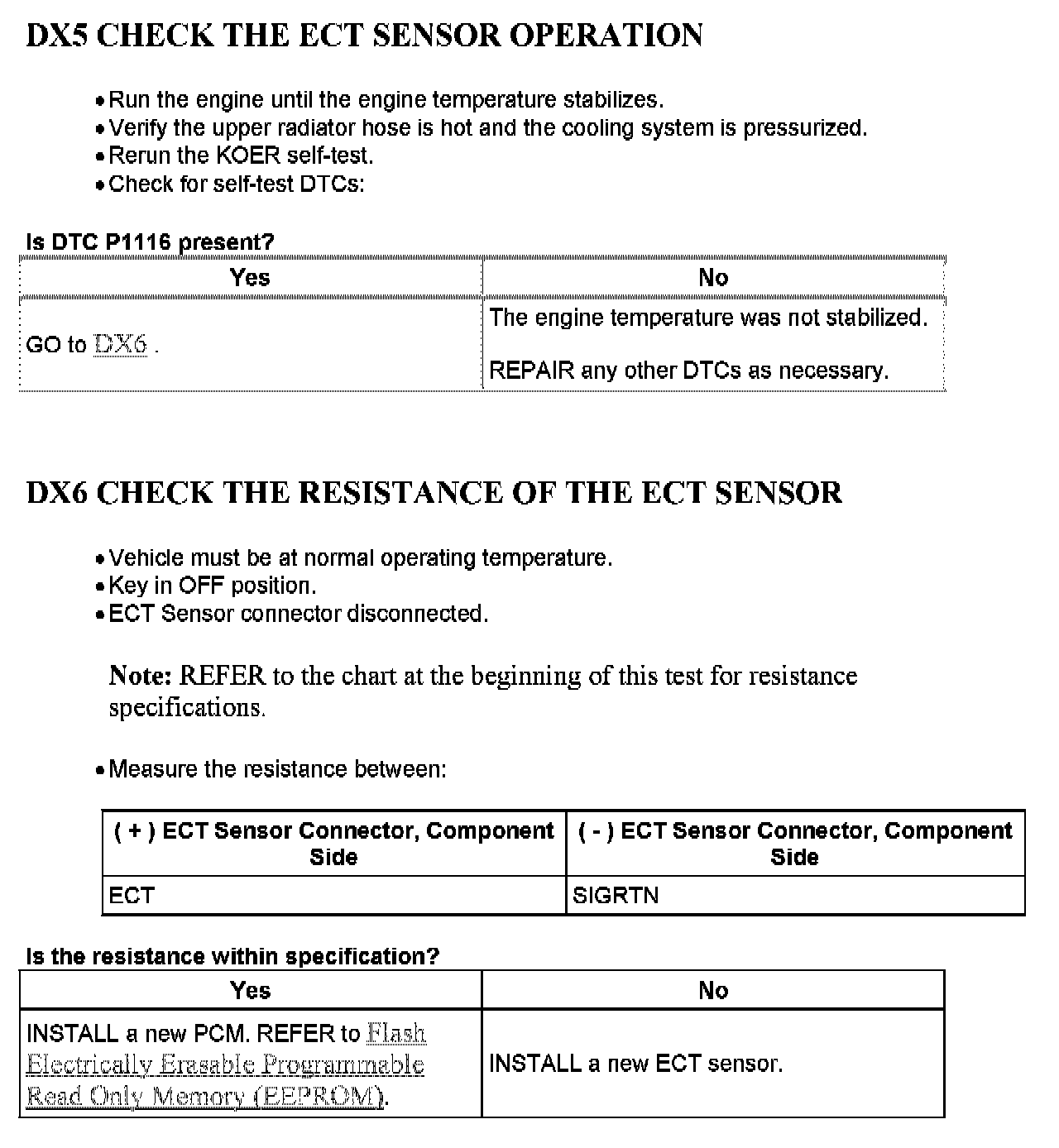

DX5 - DX6:

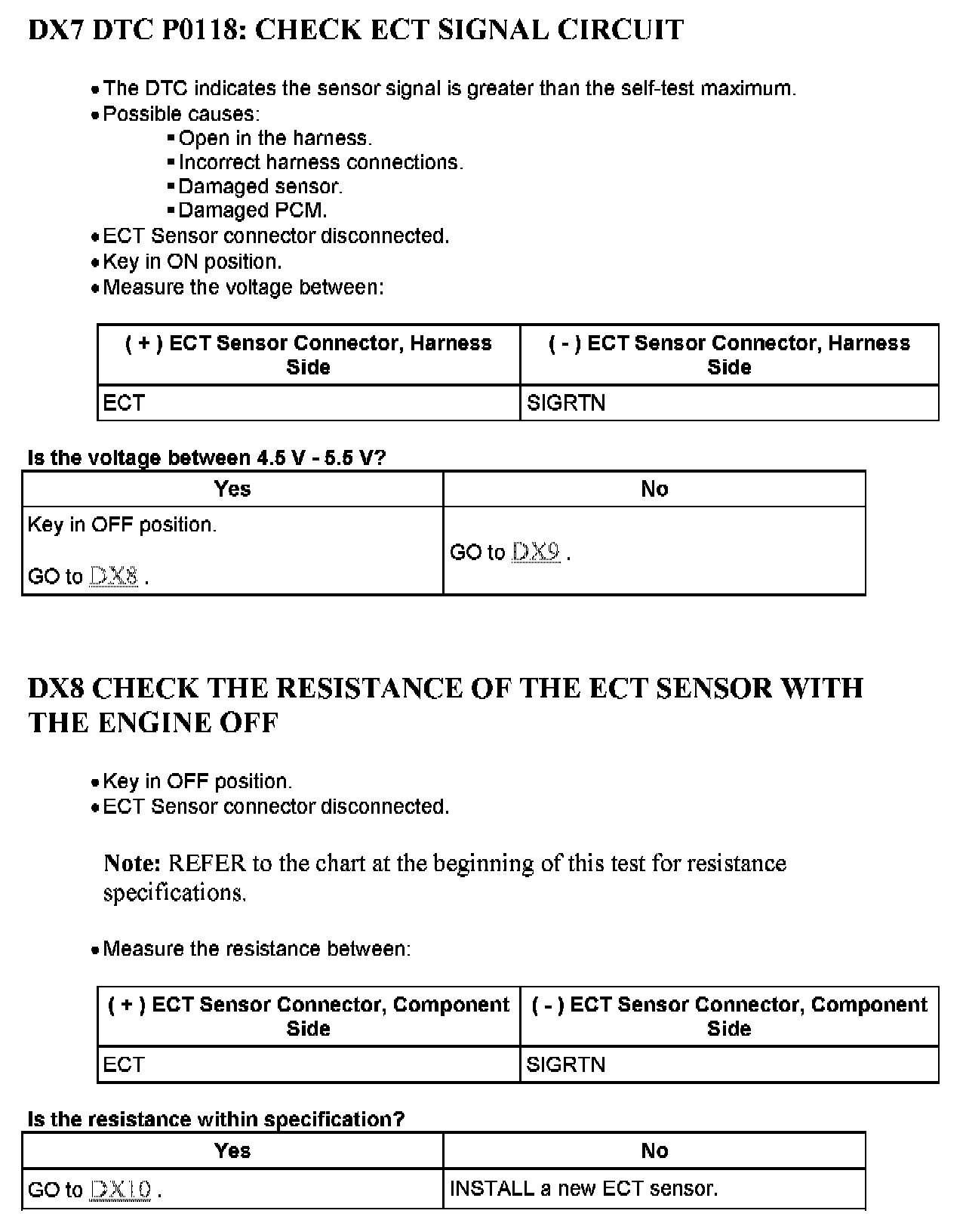

DX7 - DX8:





DX9 - DX10:

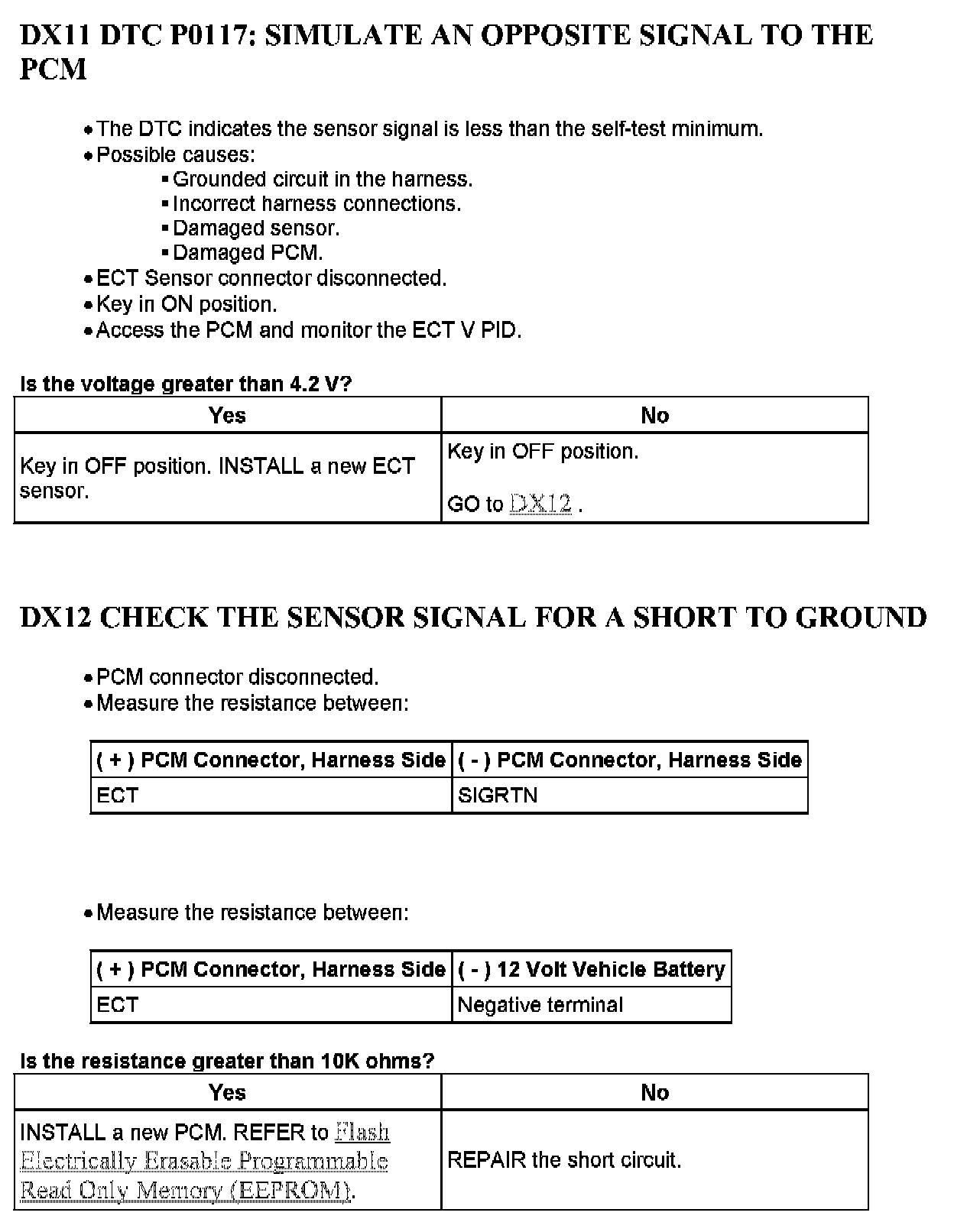

DX11 - DX12:





DX13:

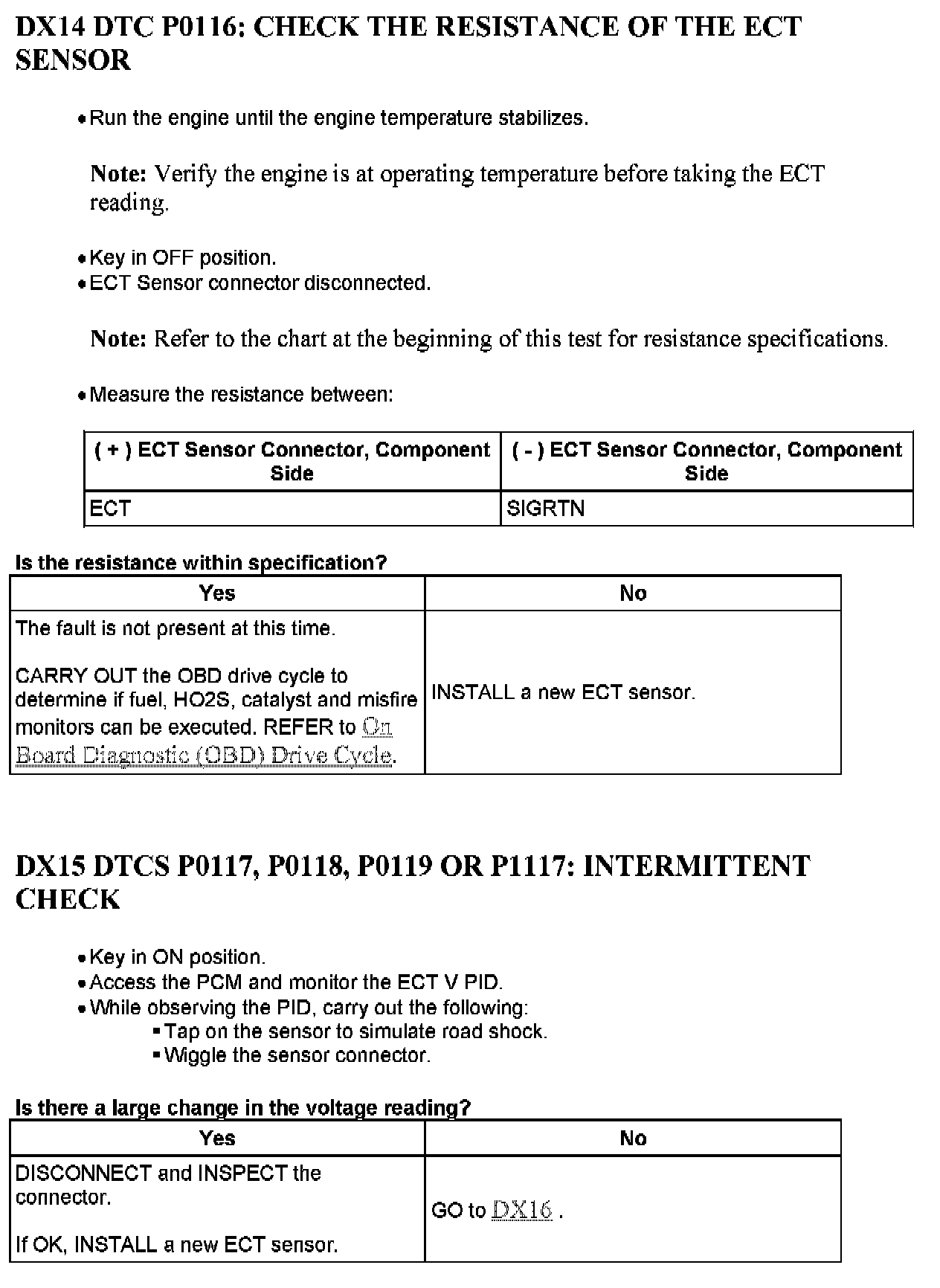

DX14 - DX15:





DX16 - DX17:

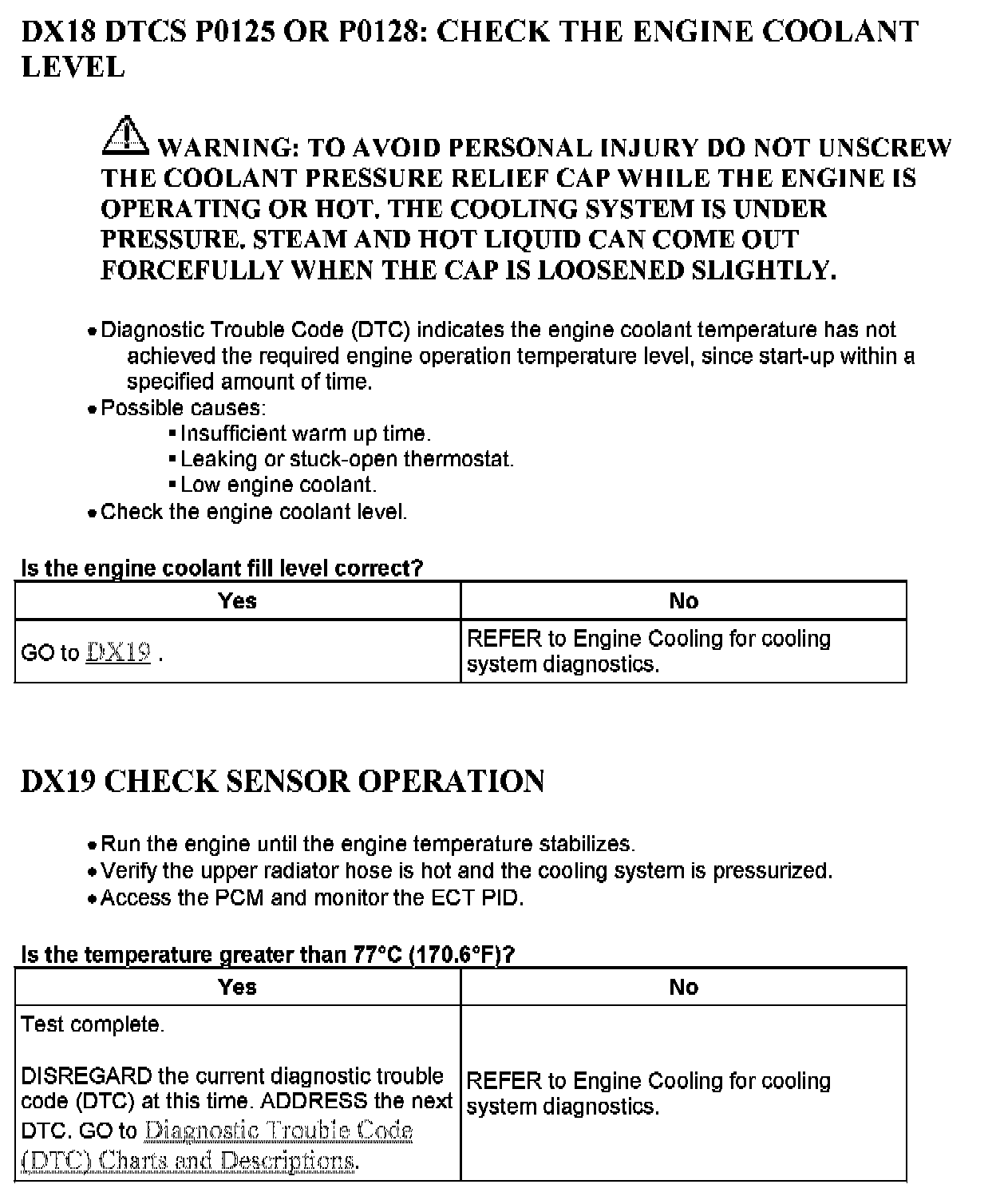

DX18 - DX19:

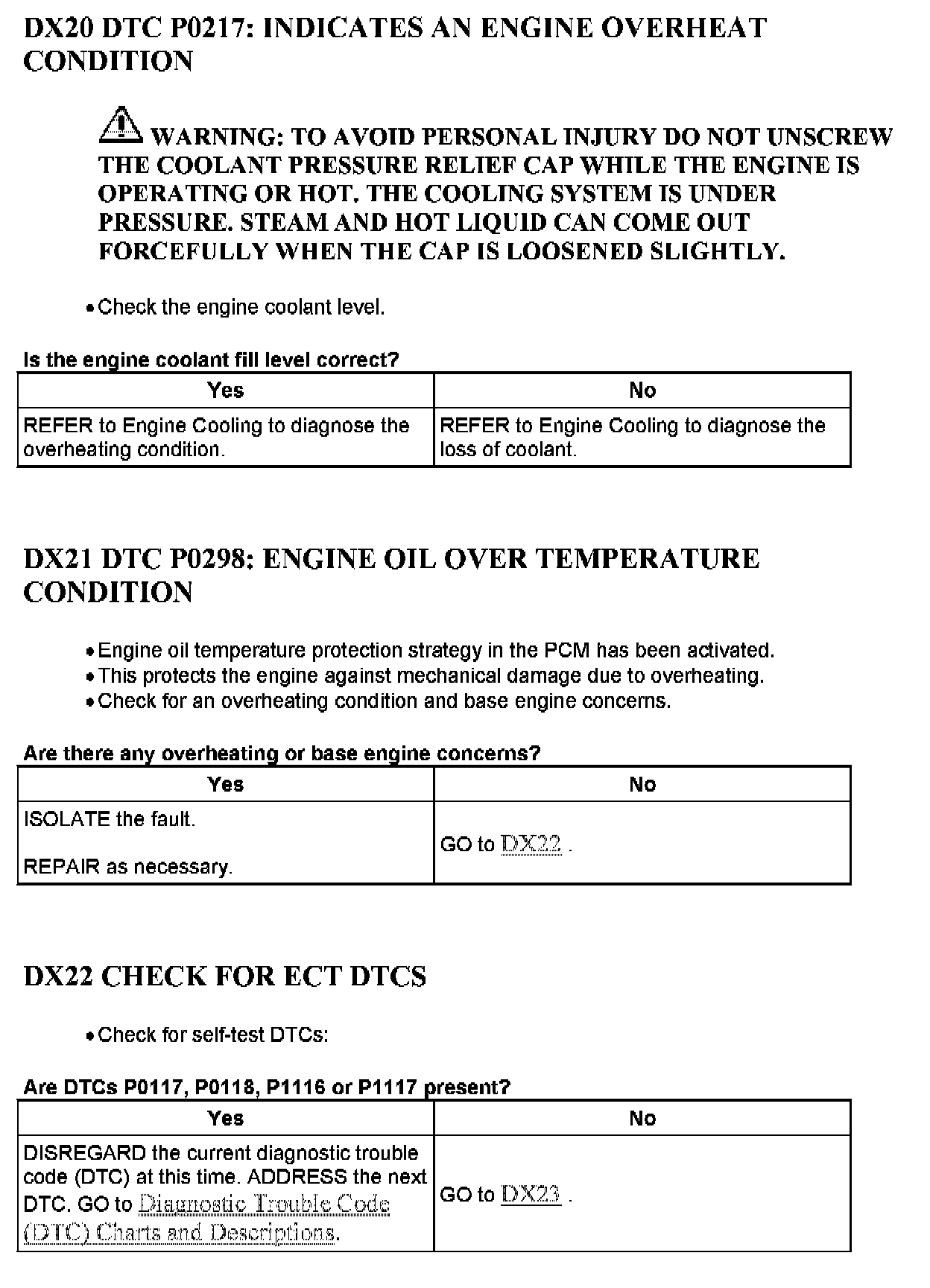

DX20 - DX22:





DX23:
