Explorer Sport Trac 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Description And Operation
>>
Disassembled Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Disassembled Views

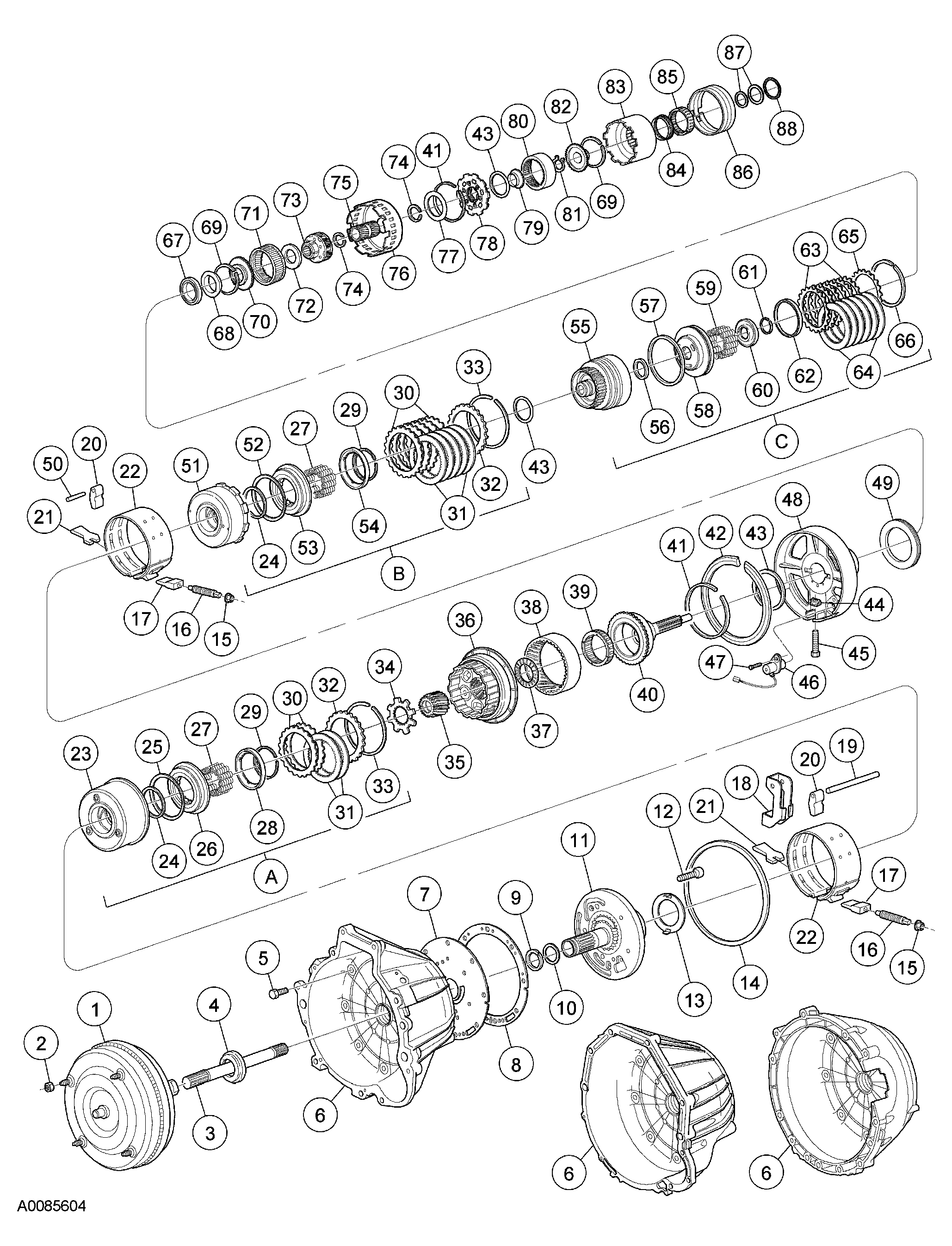

Fig 1: Disassembled View Of Automatic Transmission (1 Of 2)
Courtesy of FORD MOTOR CO.

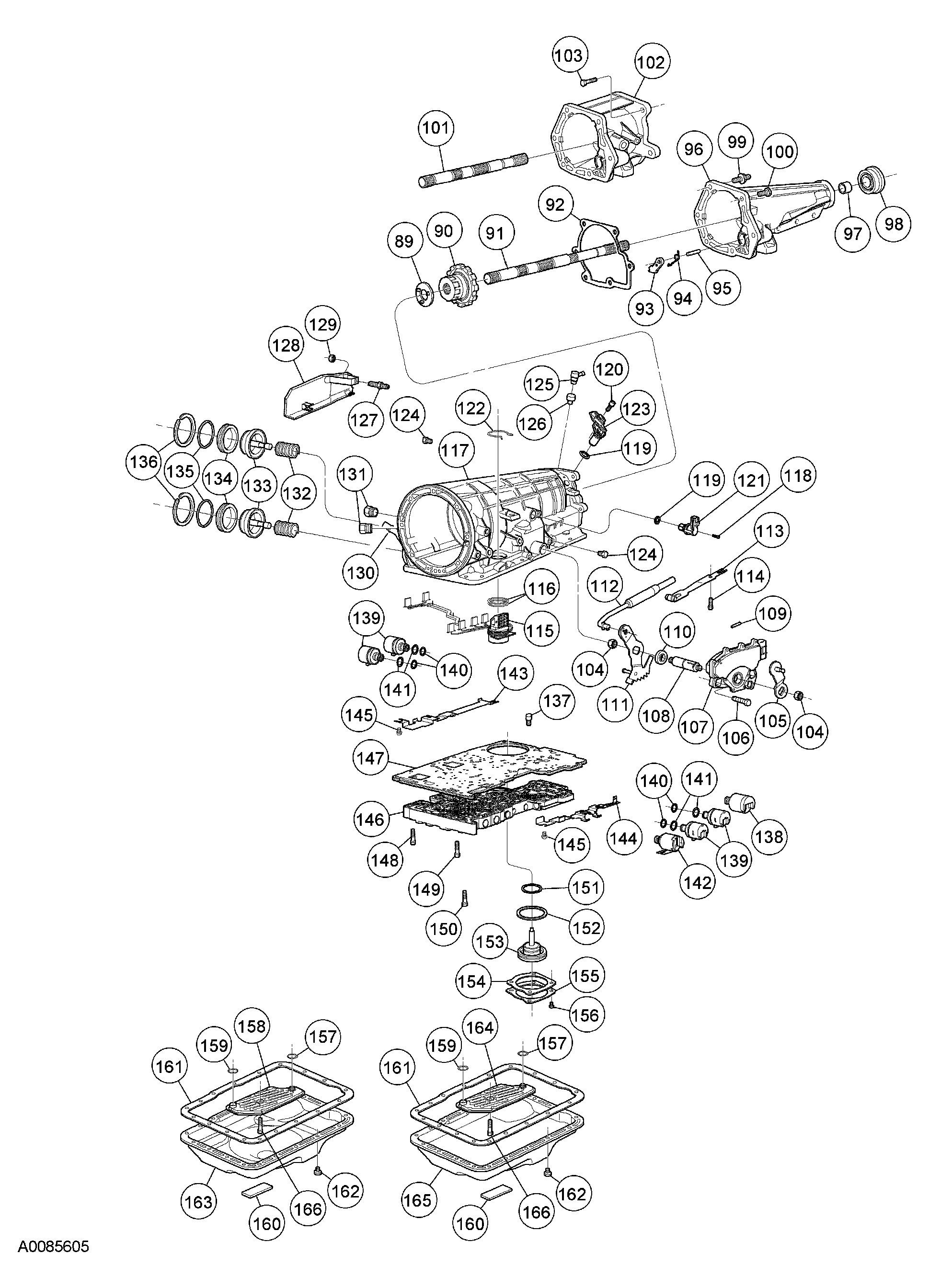

Fig 2: Disassembled View Of Automatic Transmission (2 Of 2)
Courtesy of FORD MOTOR CO.

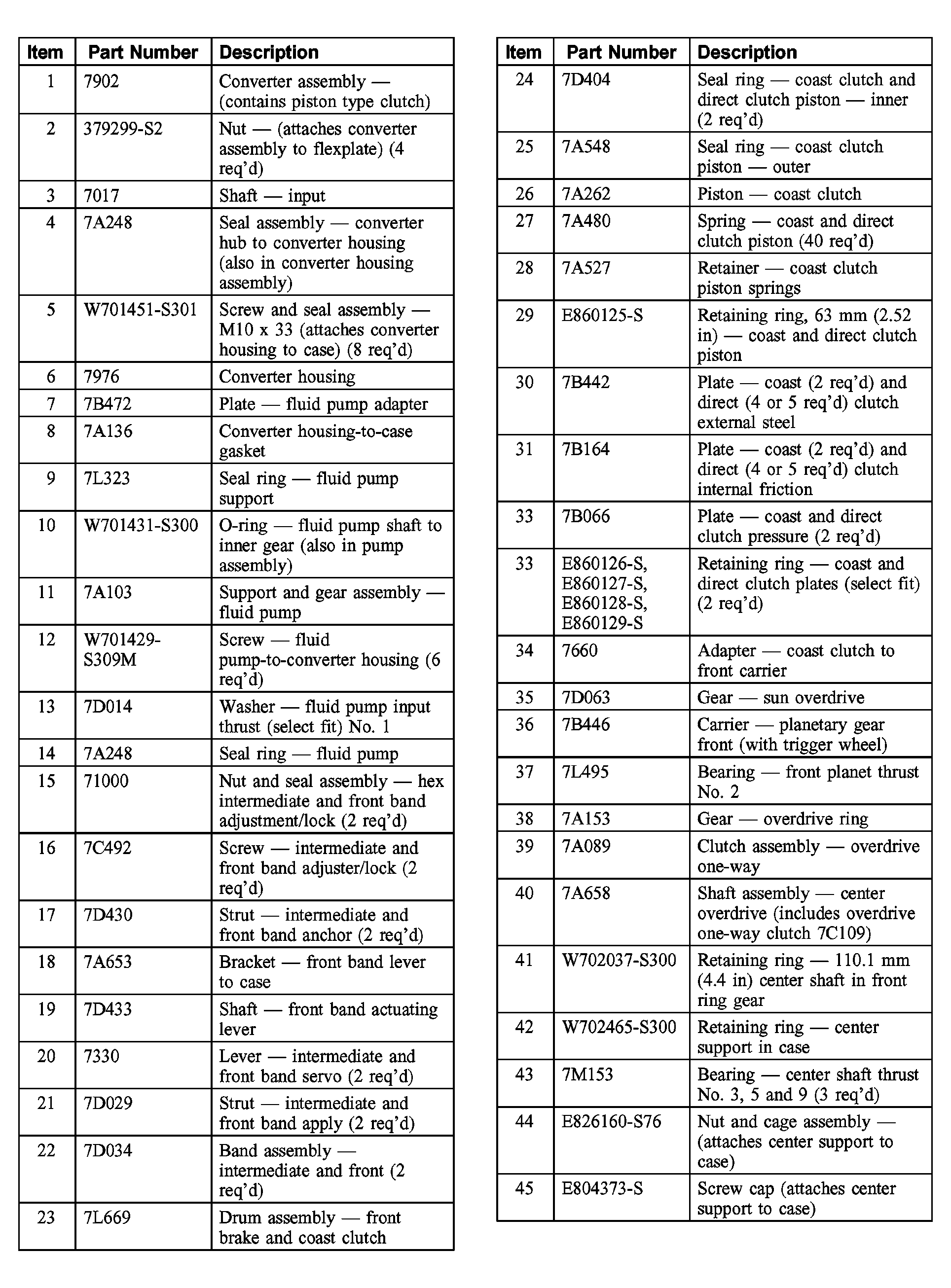

Fig 3: Identifying Automatic Transmission Components (1 Of 4)
Courtesy of FORD MOTOR CO.

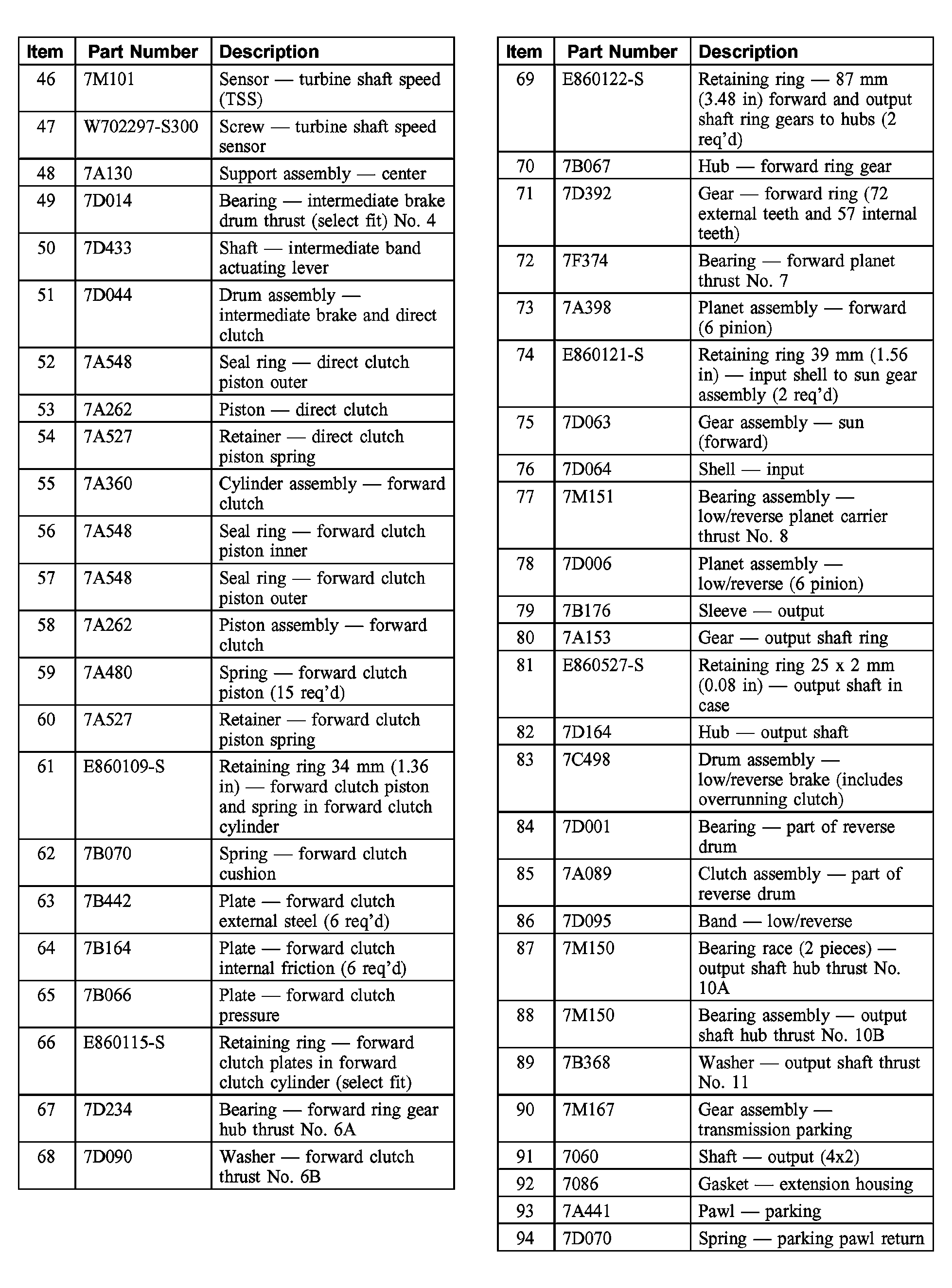

Fig 4: Identifying Automatic Transmission Components (2 Of 4)
Courtesy of FORD MOTOR CO.

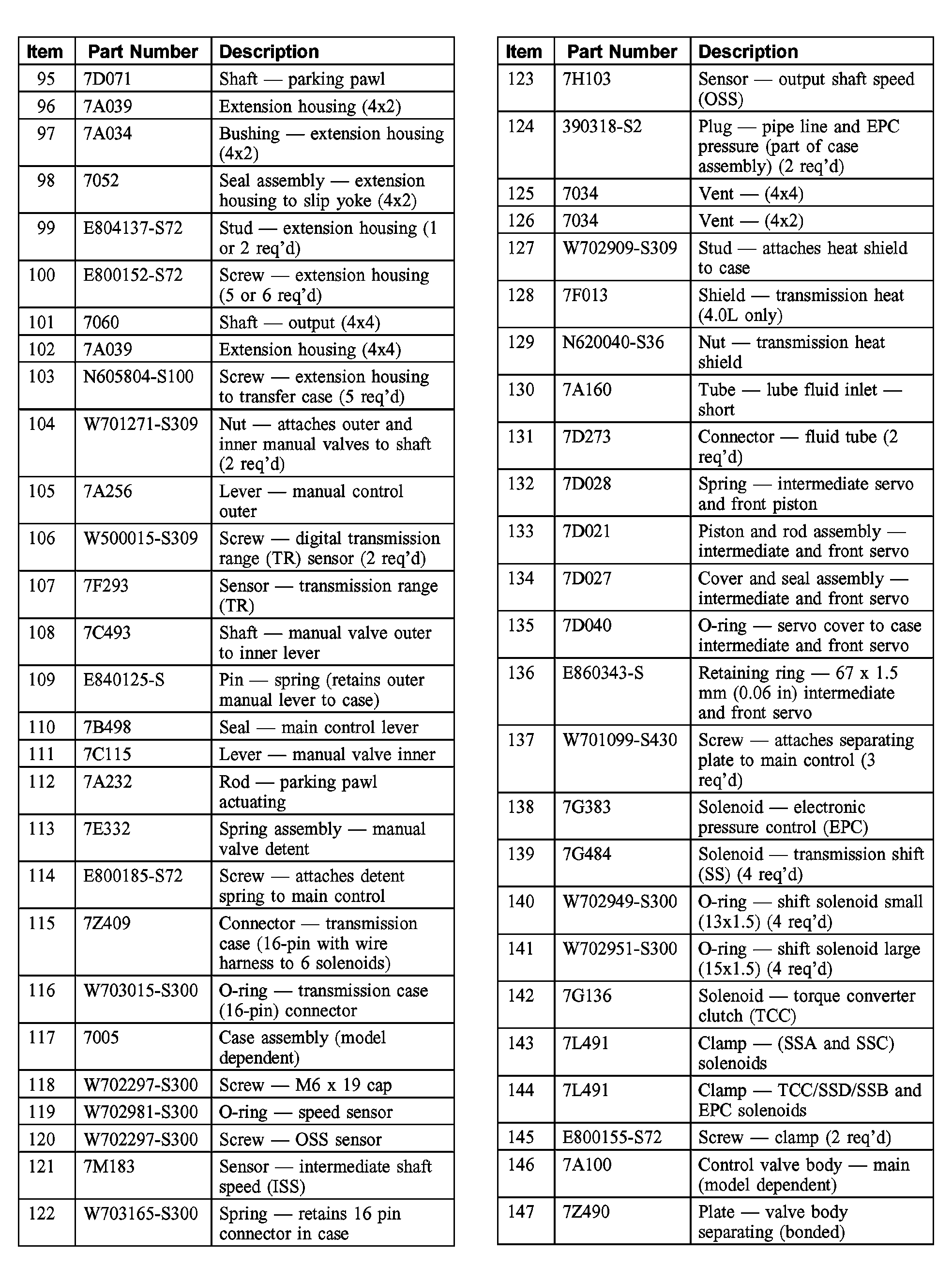

Fig 5: Identifying Automatic Transmission Components (3 Of 4)
Courtesy of FORD MOTOR CO.

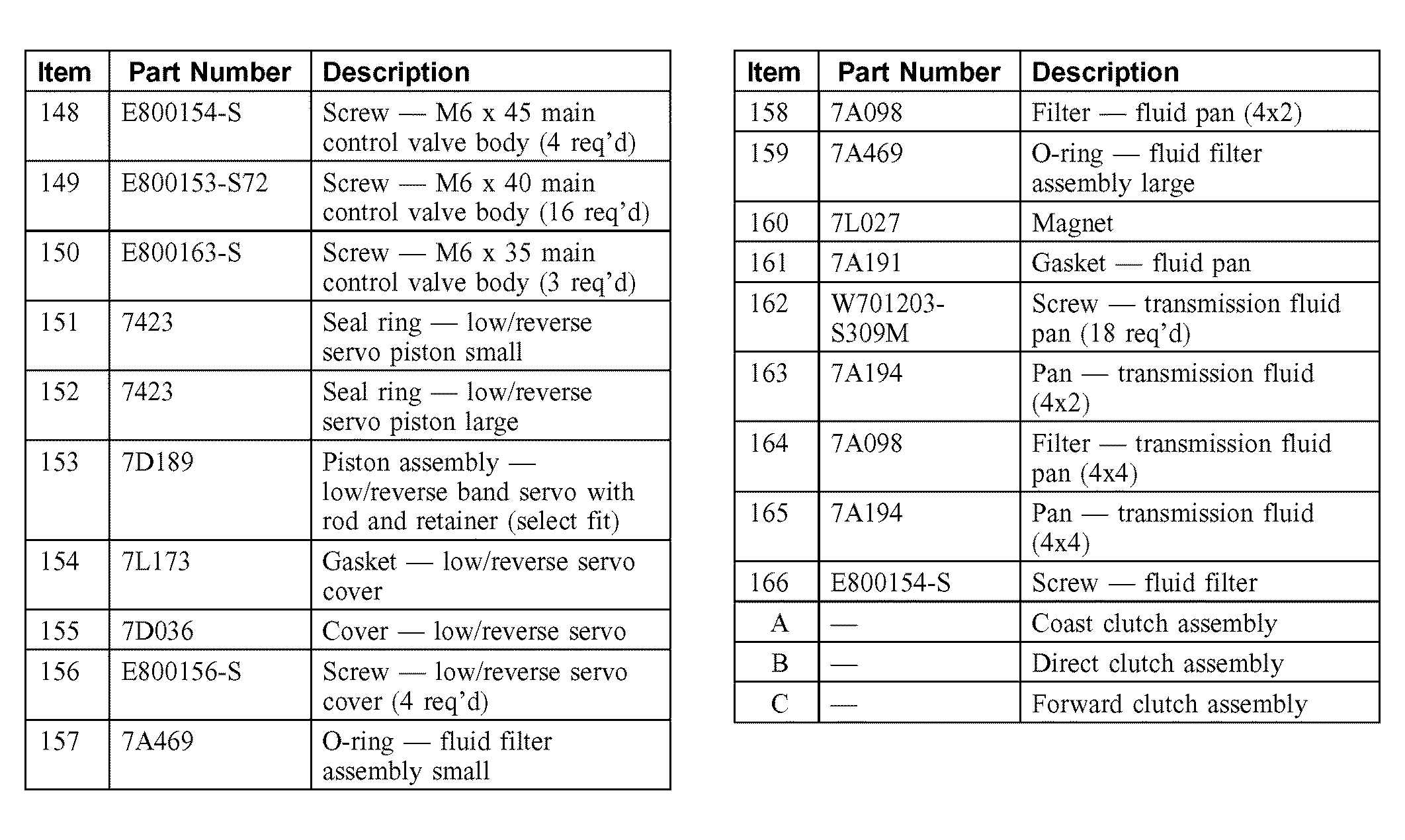

Fig 6: Identifying Automatic Transmission Components (4 Of 4)
