Main Components and Functions

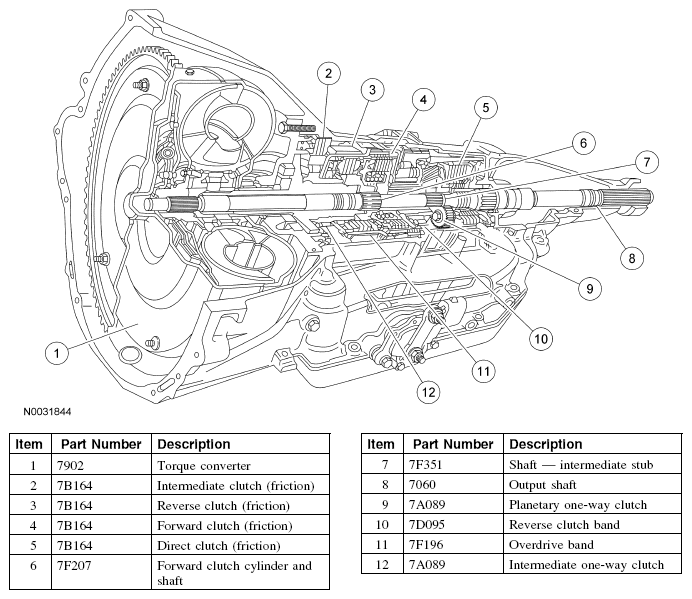

Transmission Main Components - Sectional View

Fig 1: Transmission Main Components - Sectional View
G04628118Courtesy of FORD MOTOR CO.
