Brake Shift Interlock Actuator - Column Shift: Notes

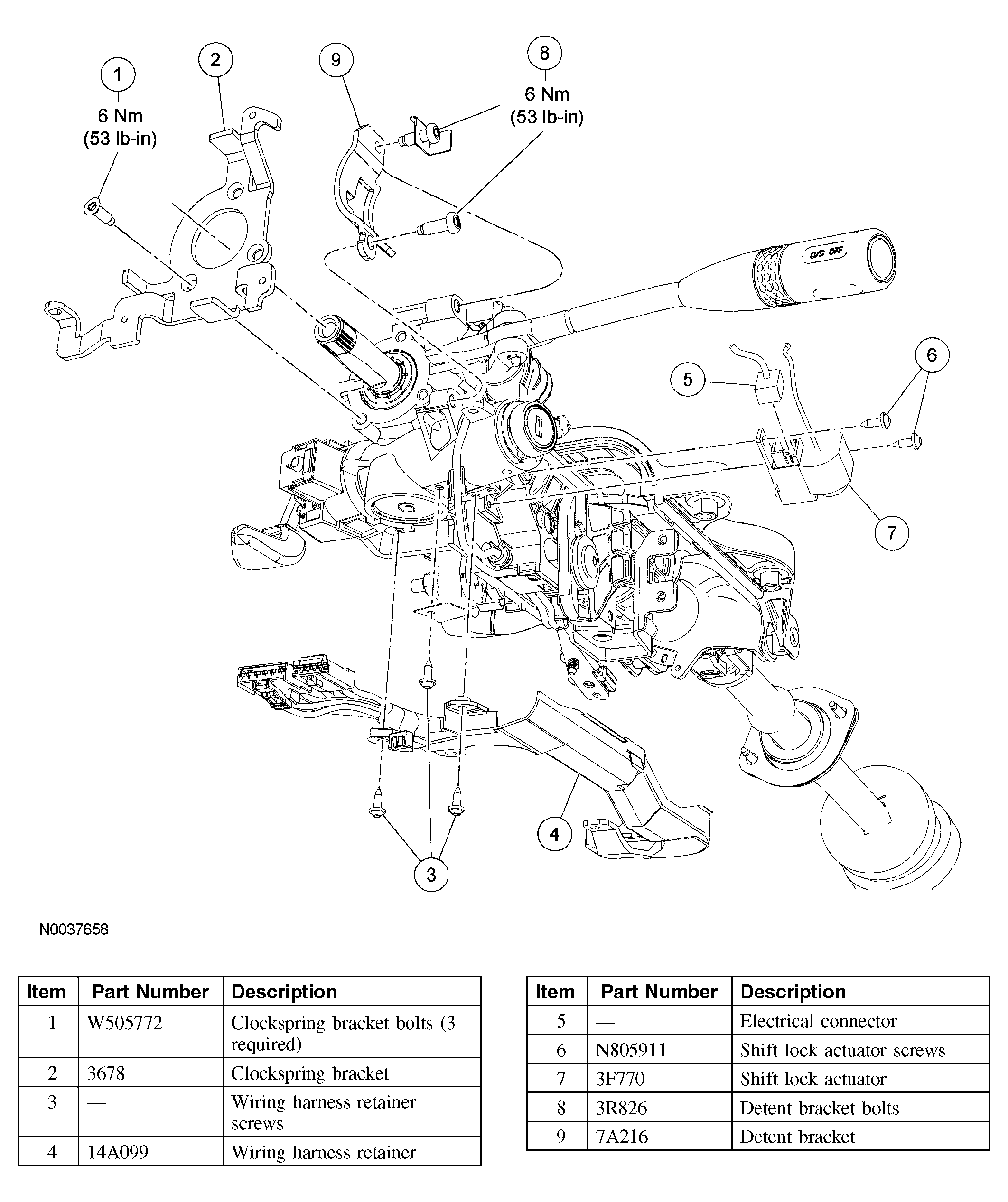

Fig 1: Exploded View Of Brake Shift Interlock Actuator - Column Shift
G03930302Courtesy of FORD MOTOR CO.
