Intake Manifold: Material

MATERIAL SPECIFICATIONS

Item Specification
Metal Surface Prep ZC-31 -
Silicone Gasket Remover ZC-30 -

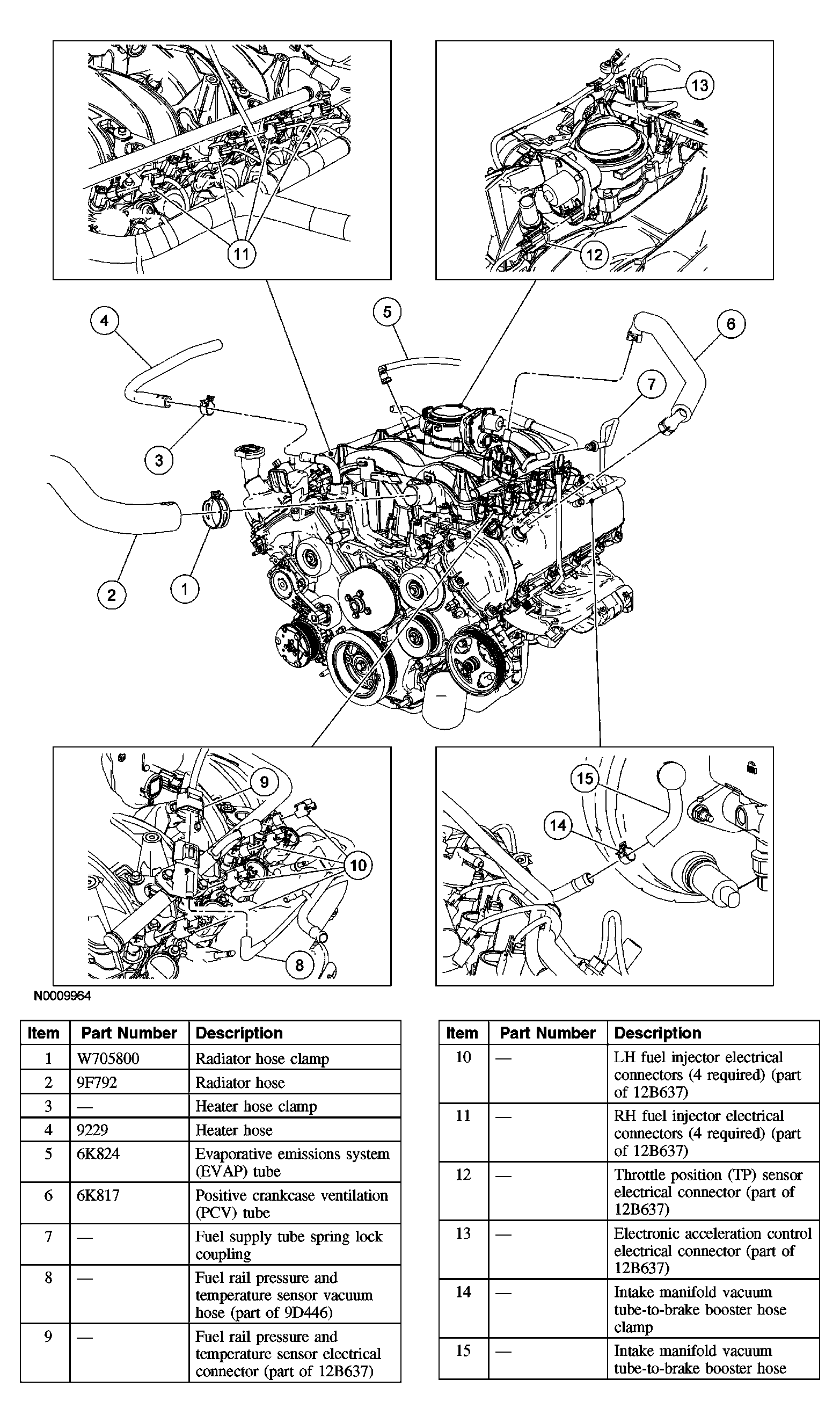

Fig 1: Exploded View Of Intake Manifold (Items 1-15)
G03933344Courtesy of FORD MOTOR CO.

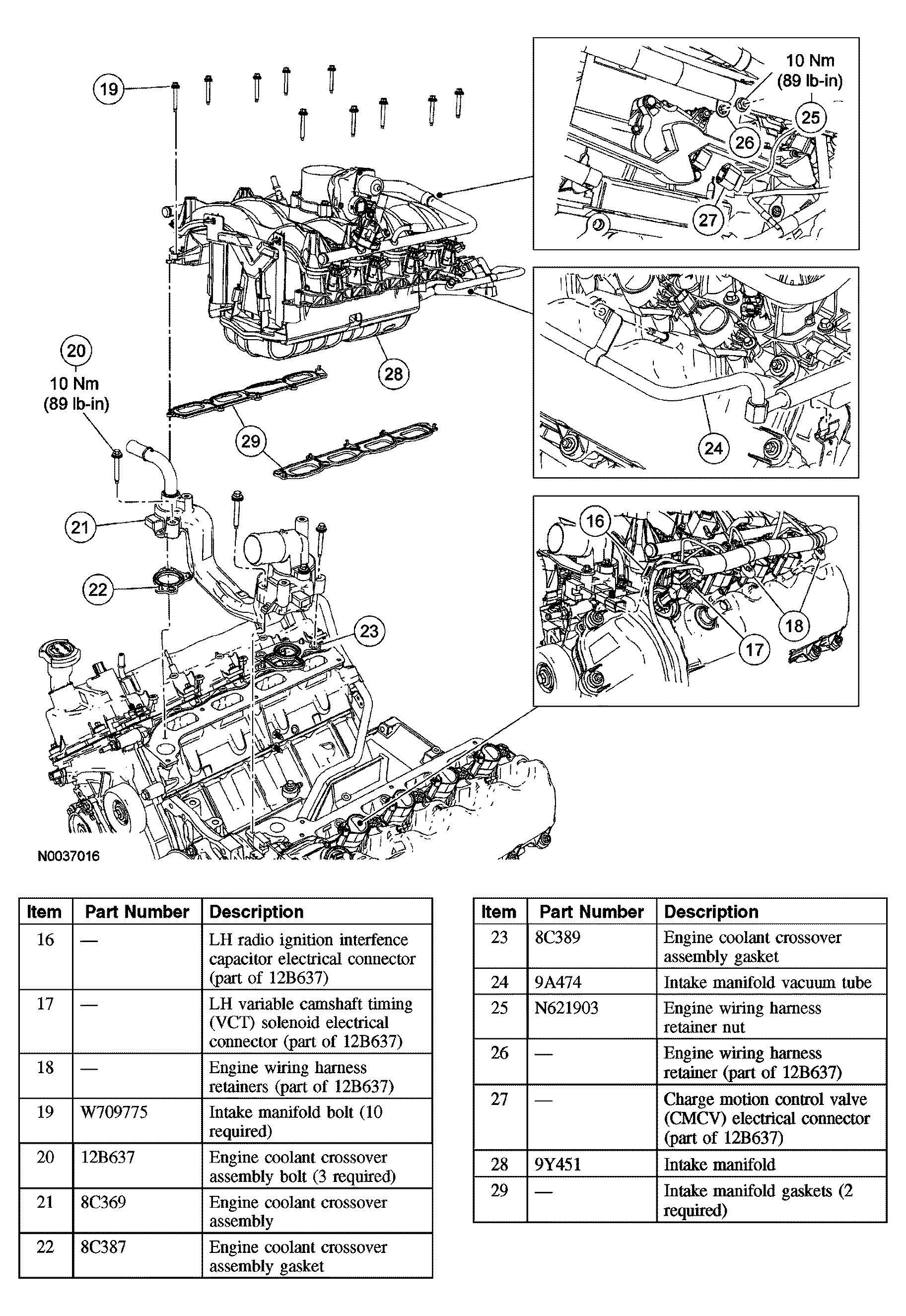

Fig 2: Exploded View Of Intake Manifold (Items 16-29)
G03933345Courtesy of FORD MOTOR CO.
