Steering Wheel Audio Controls

NOTE: When removing the steering wheel audio control switch be careful not to damage the leather wrap tied around the switch. New wire ties need to be installed when this procedure is complete to secure the audio control switch harness.

Remove the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Remove the steering wheel audio control switch.
- Cut the wire ties.
- Disconnect the electrical connector.

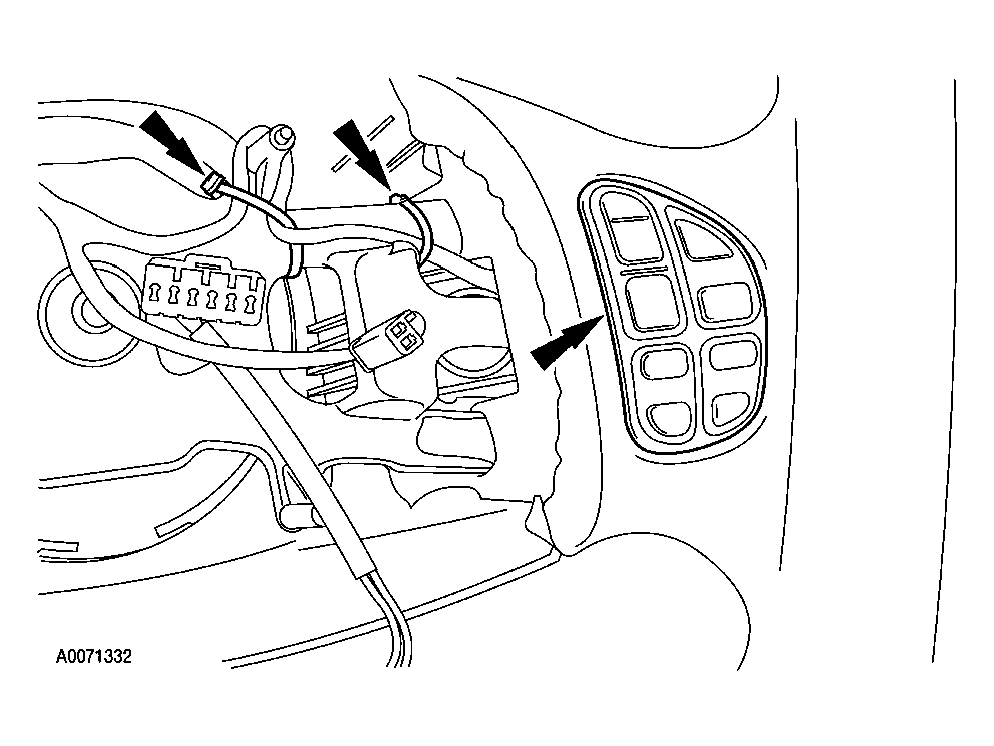

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
