Tests QH: Fuel Level Input (FLI)



PINPOINT TEST QH: FUEL LEVEL INPUT (FLI)

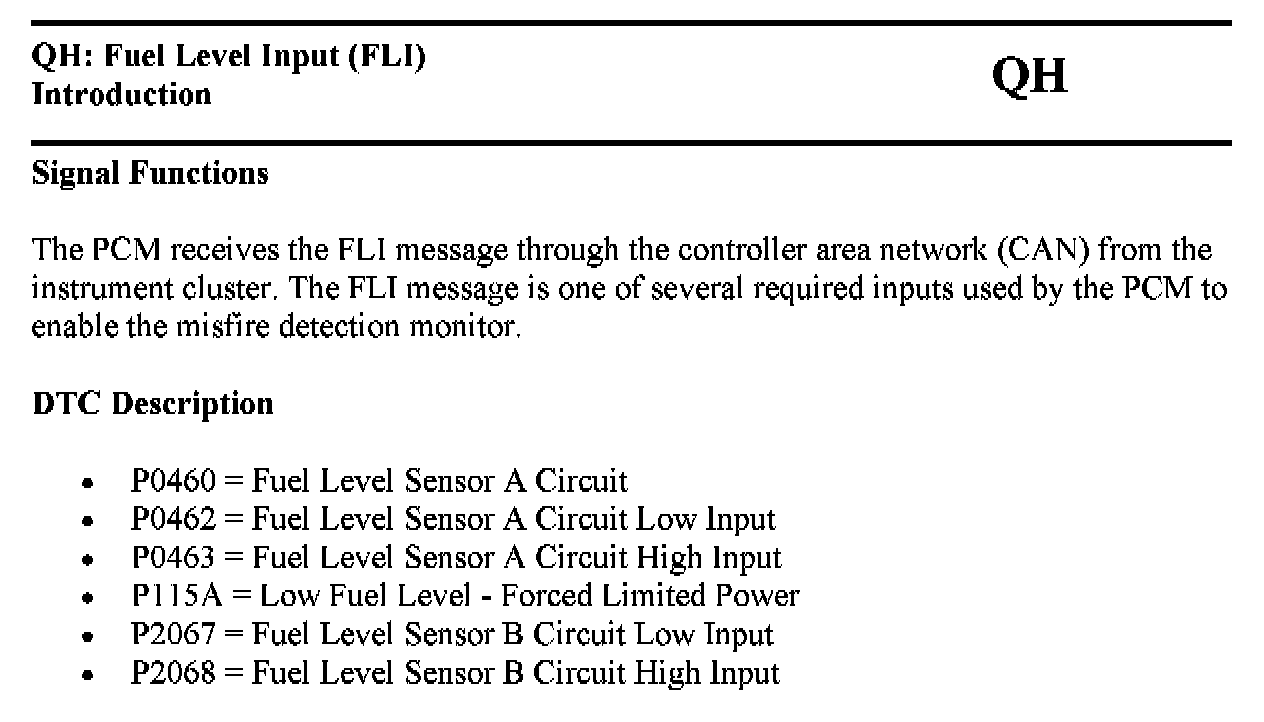

QH Introduction:

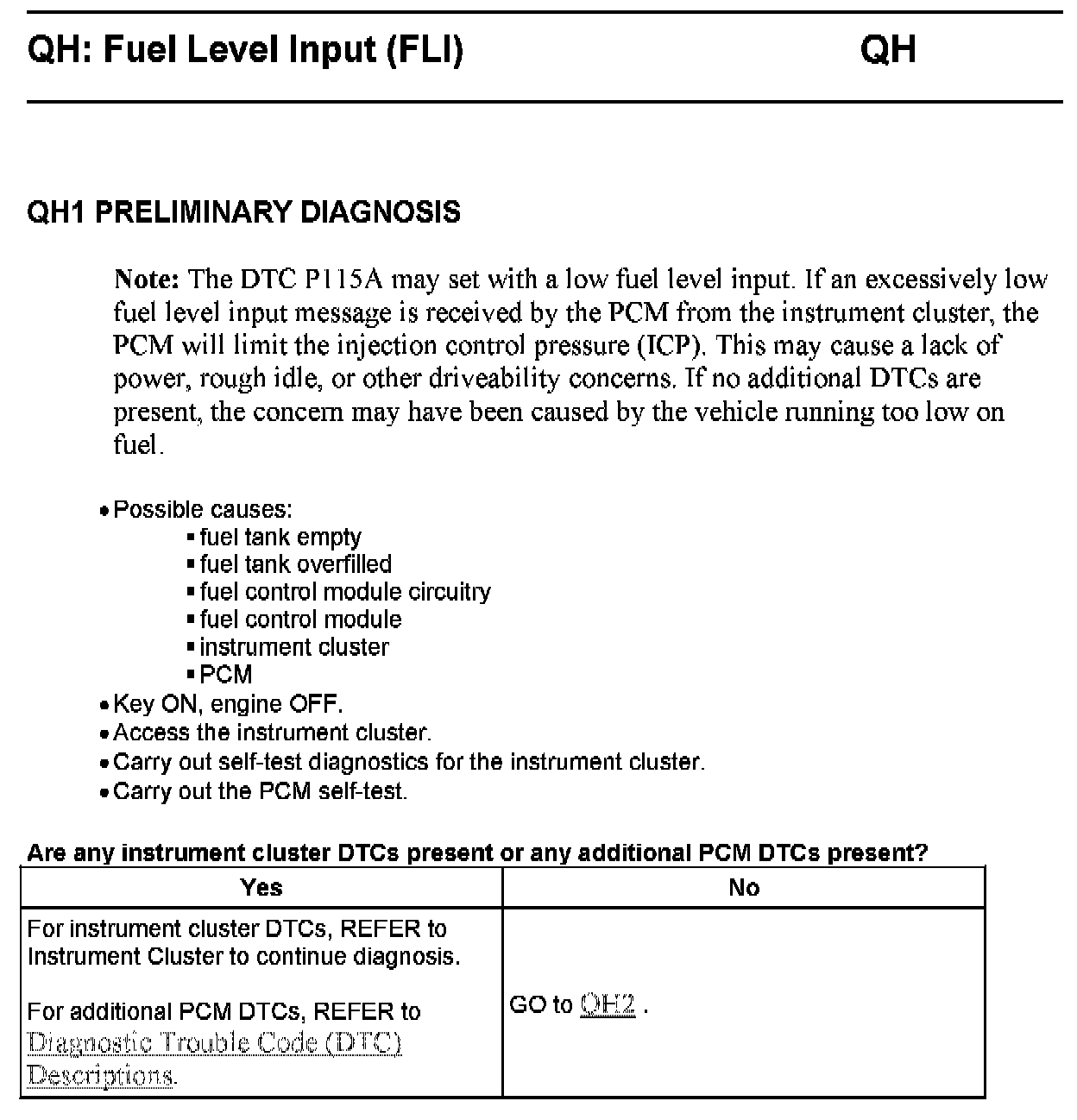

QH1:

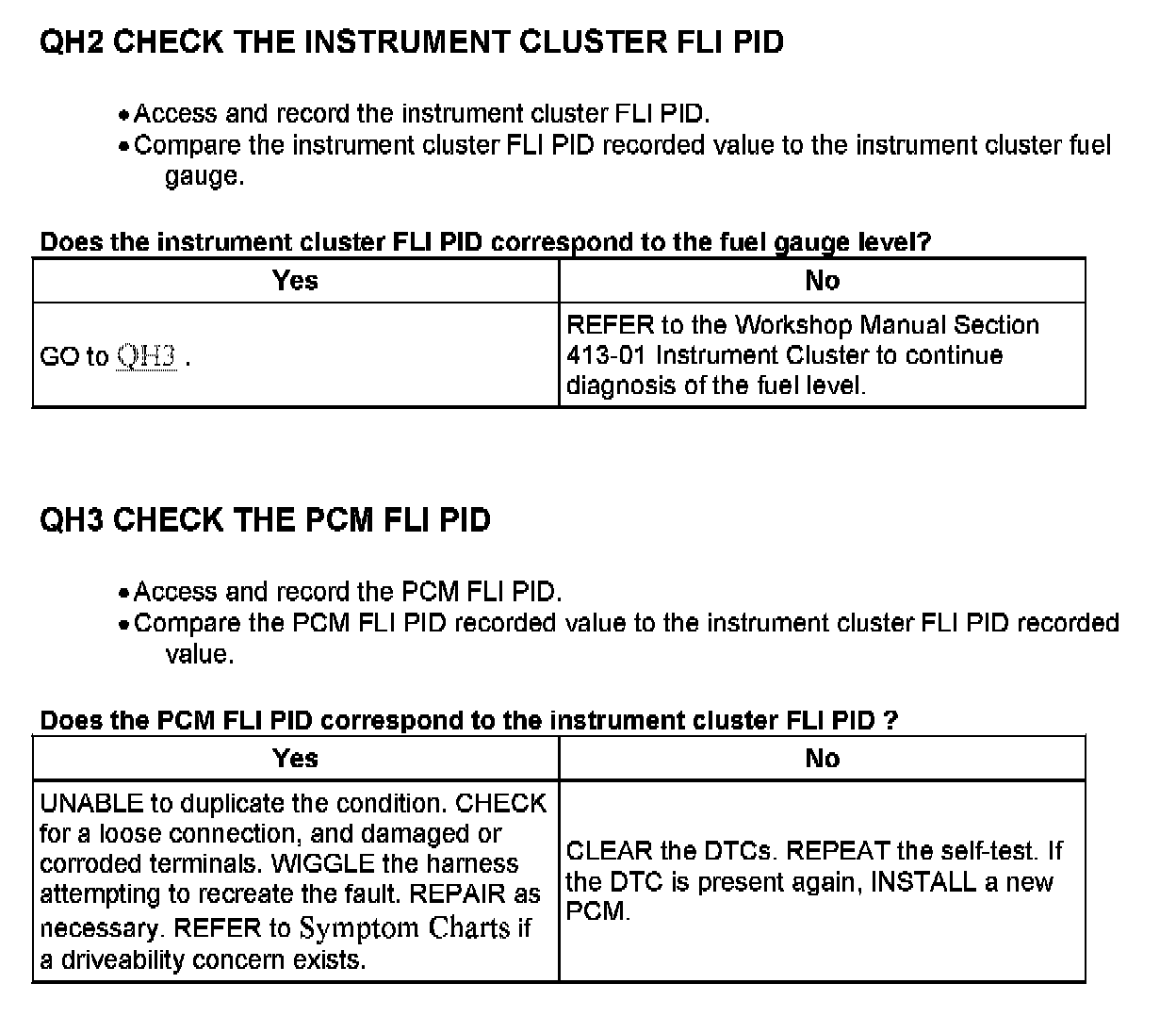

QH2 - QH3:
