Test F: Intake Air Temperature (IAT) Sensor



PINPOINT TEST F: INTAKE AIR TEMPERATURE (IAT) SENSOR

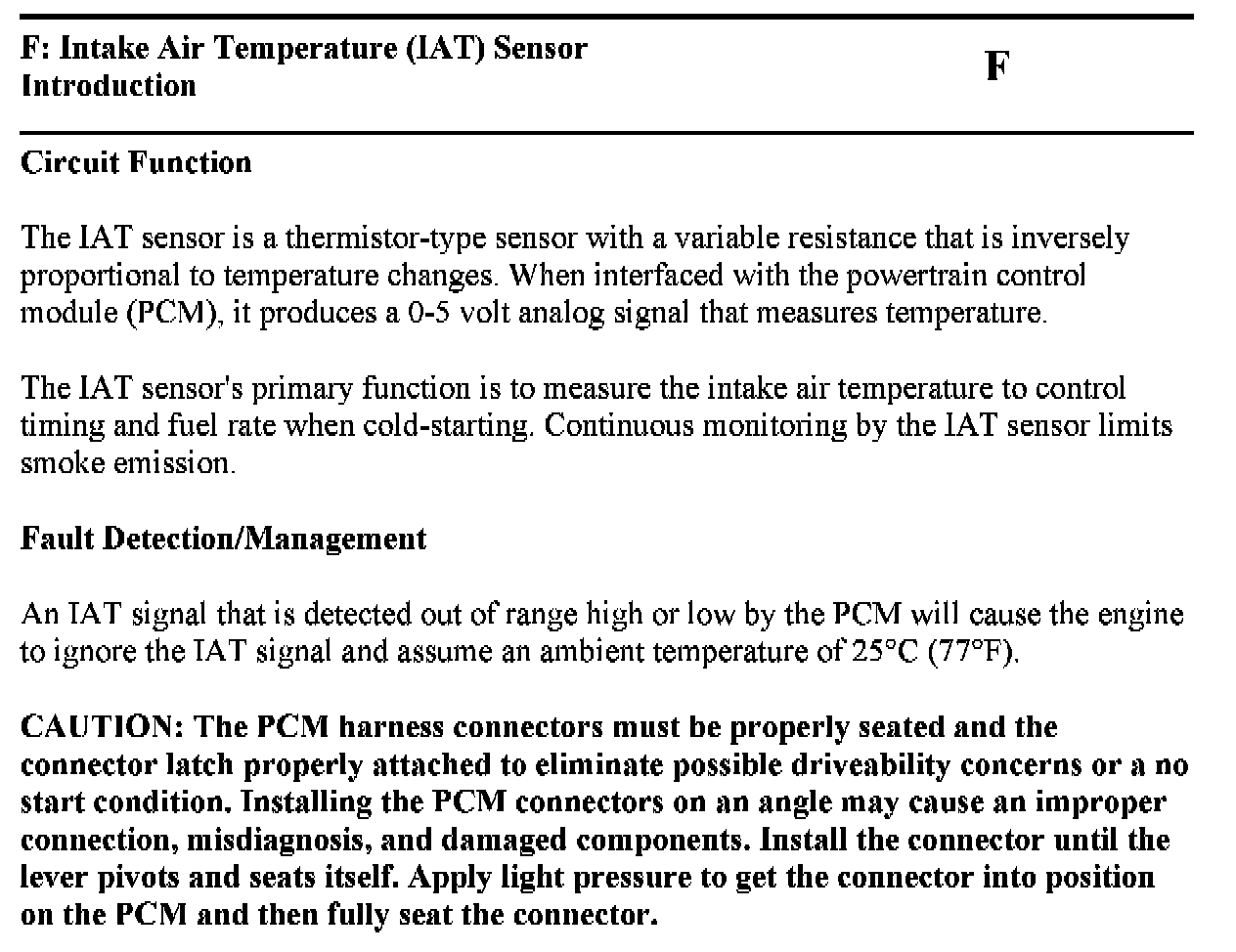

F Introduction:





F Introduction:





F1 - F2:

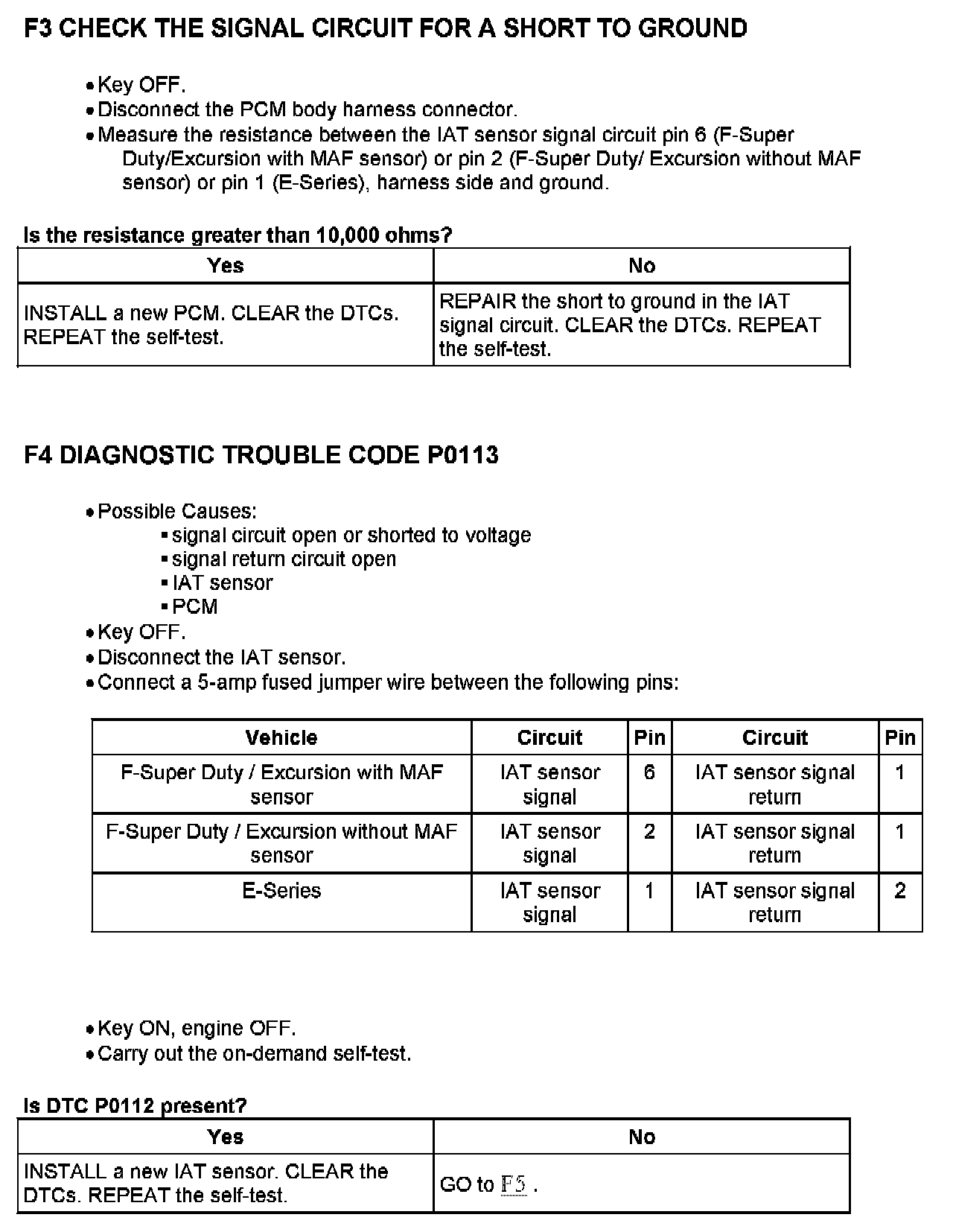

F3 - F4:

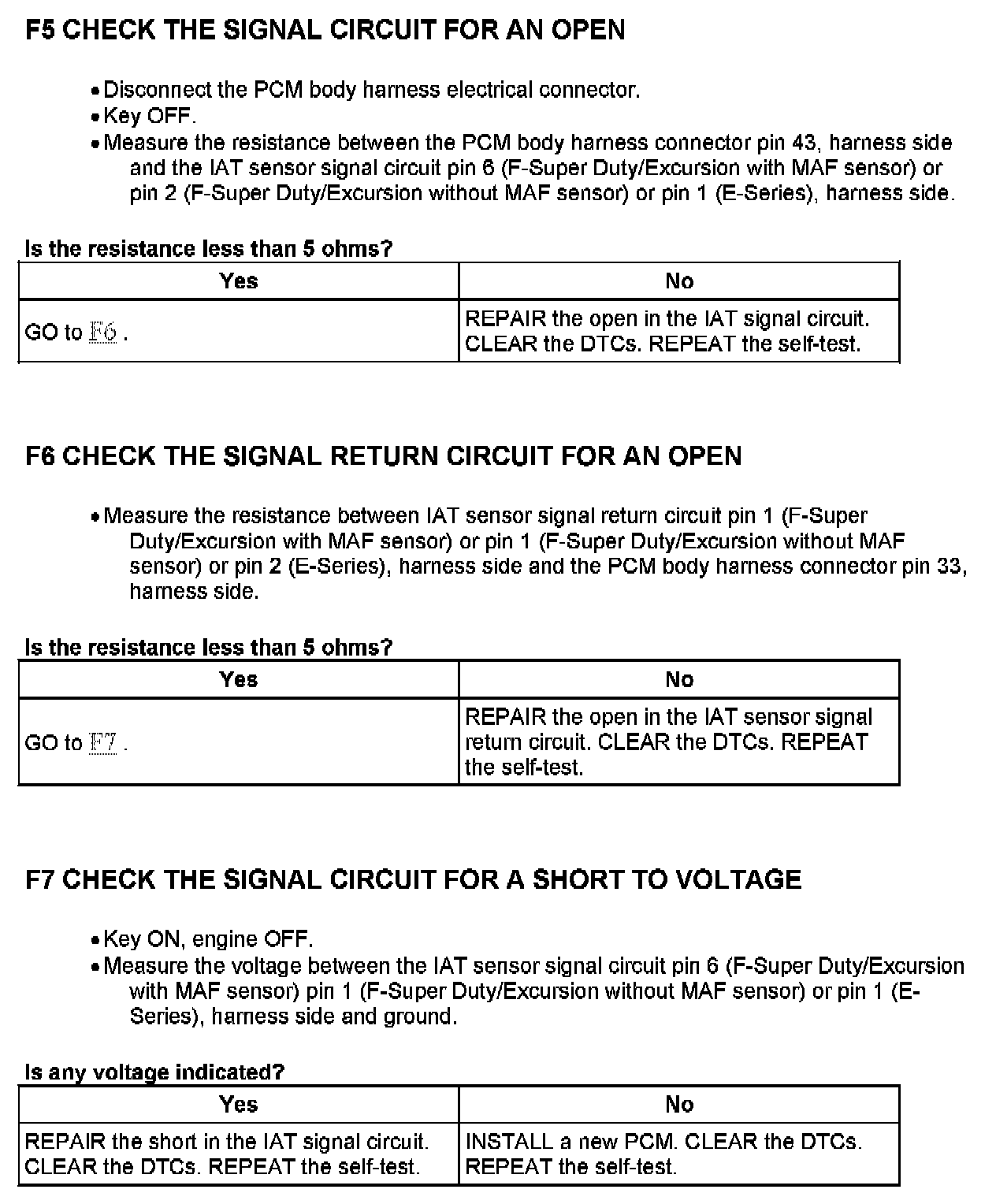

F5 - F7:
