Test E: No Communication With the Electronic Automatic Temperature Control Module

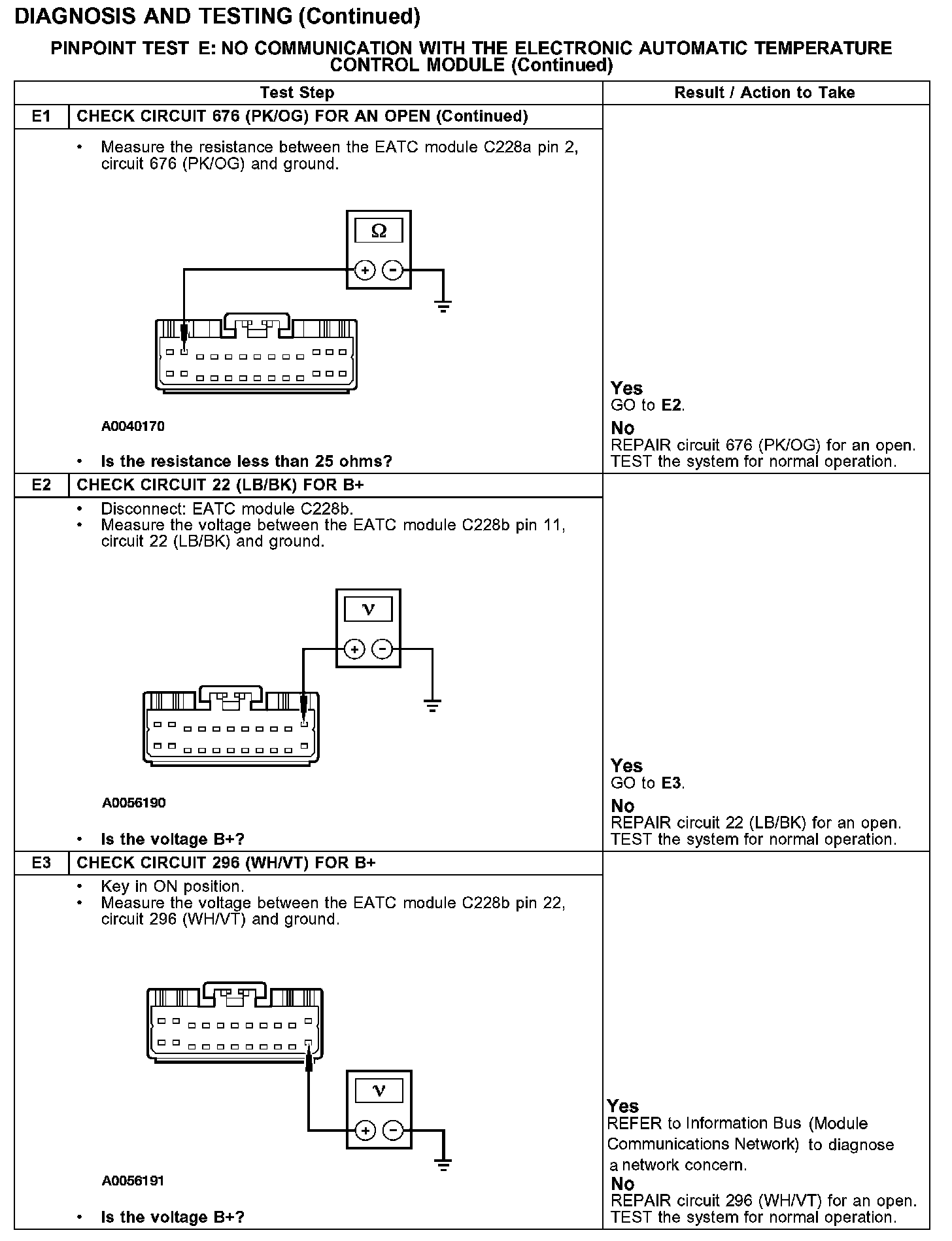

PINPOINT TEST E: NO COMMUNICATION WITH THE ELECTRONIC AUTOMATIC TEMPERATURE CONTROL MODULE


E1:






E1-E3:
