Ford
>>
2005
>>
Excursion 2WD V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Rear A/C Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

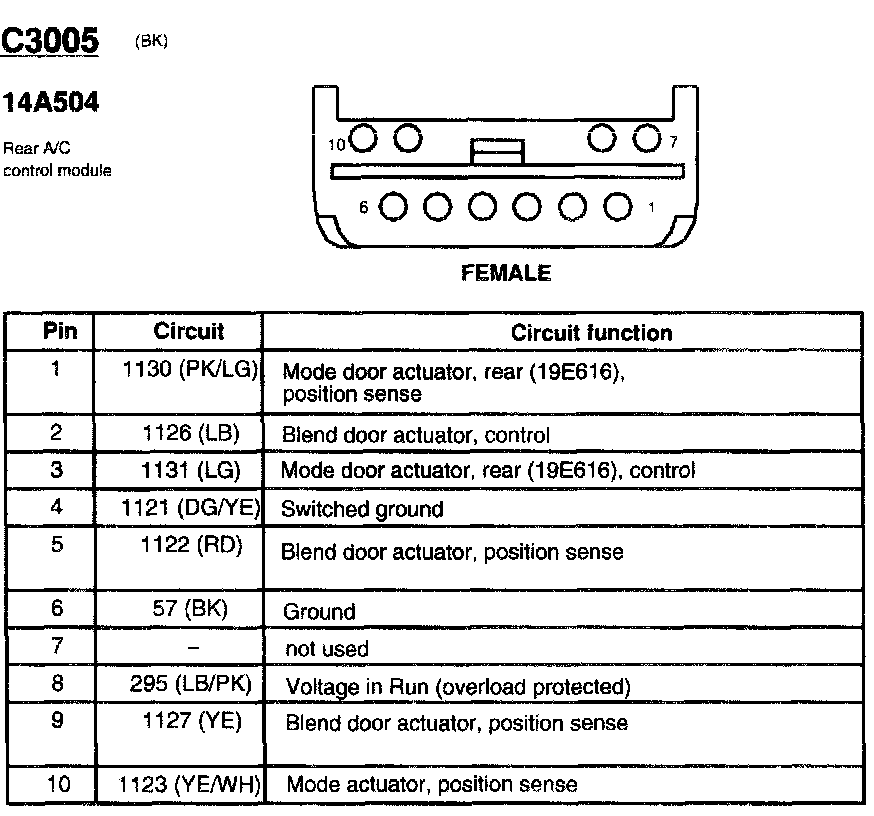

Rear A/C Control Module
