Transaxle Support Insulator - Lower, Front: Notes

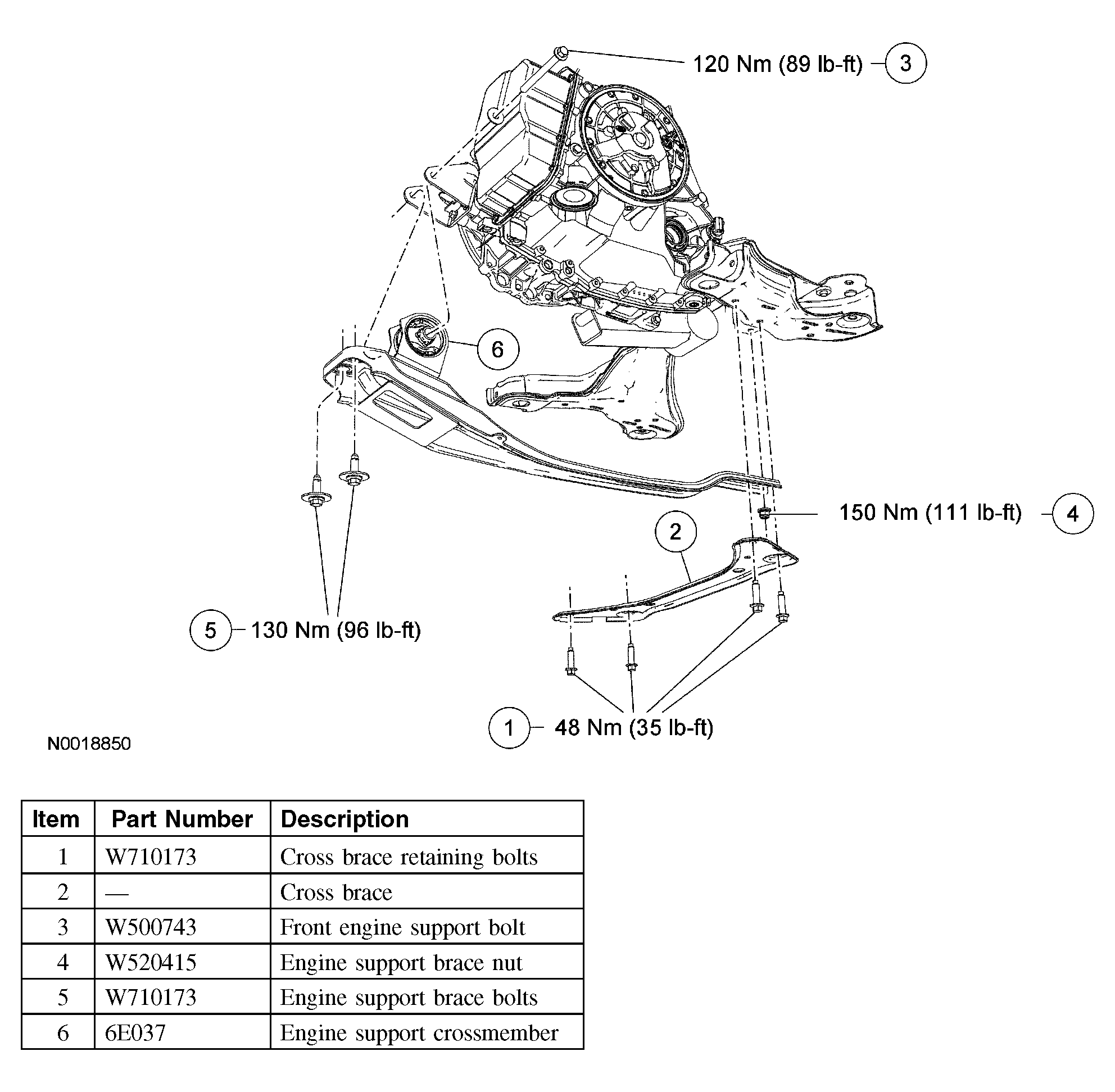

Fig 1: Transaxle Support Insulator Replacement Components -- Lower, Front With Torque Specifications
G03900710Courtesy of FORD MOTOR CO.
