Final Drive Carrier and Differential Assembly: Notes

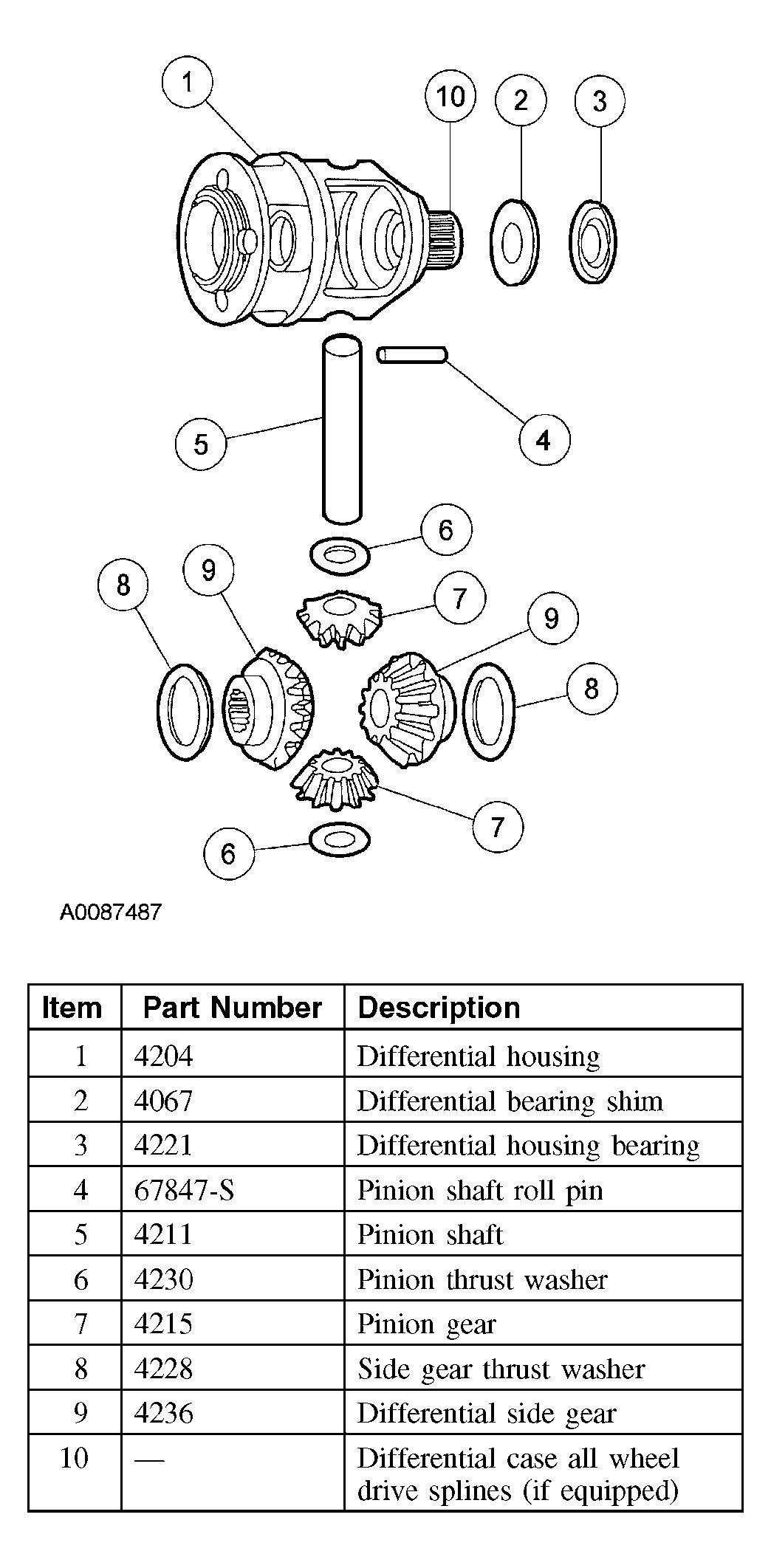

Fig 1: Identifying Final Drive Carrier And Differential Assembly
G03900962Courtesy of FORD MOTOR CO.
