Seat - Exploded View, Front

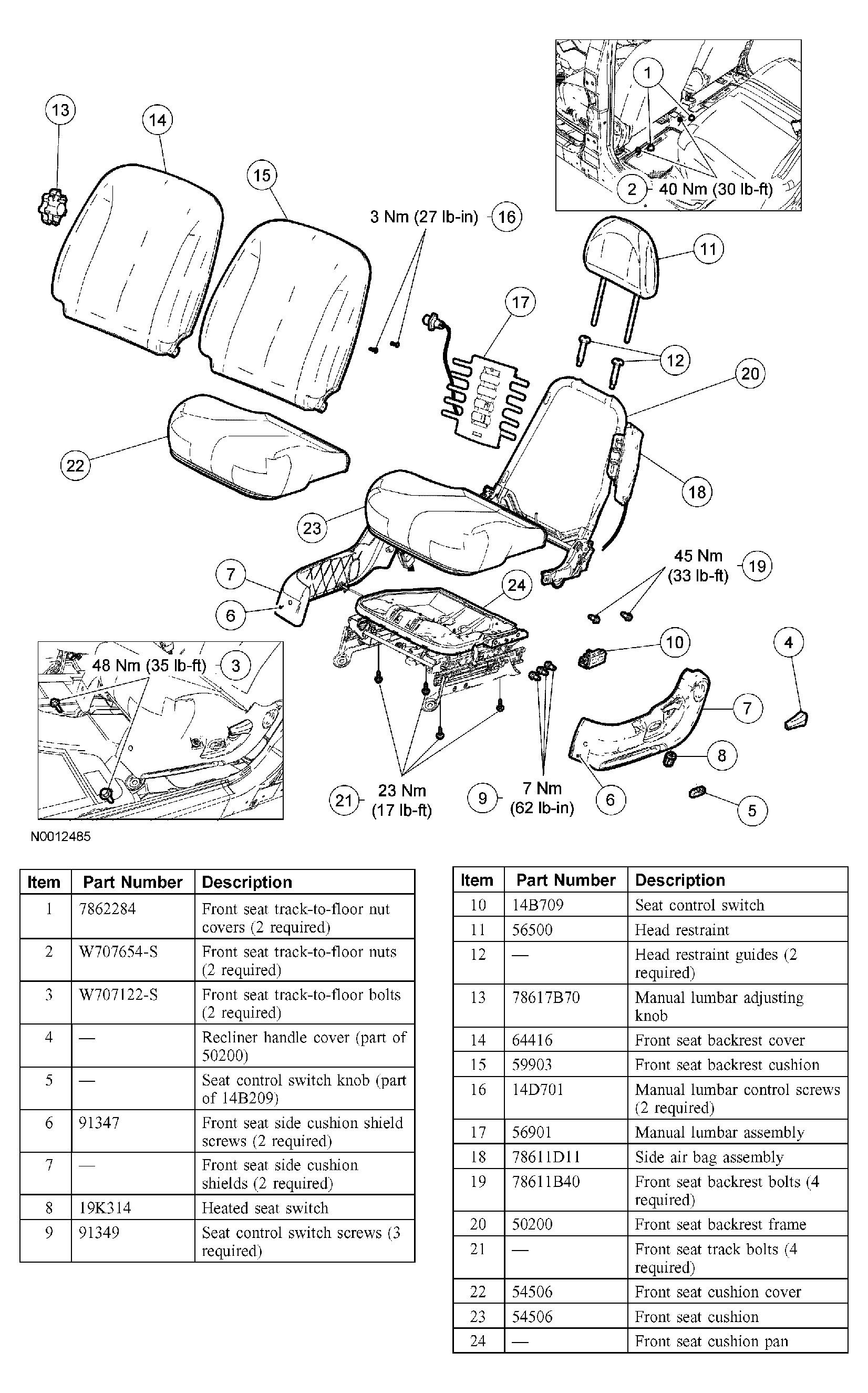

Fig 1: Exploded View Of Seat - Front
G03903244Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
