Speed Control Cable: Notes

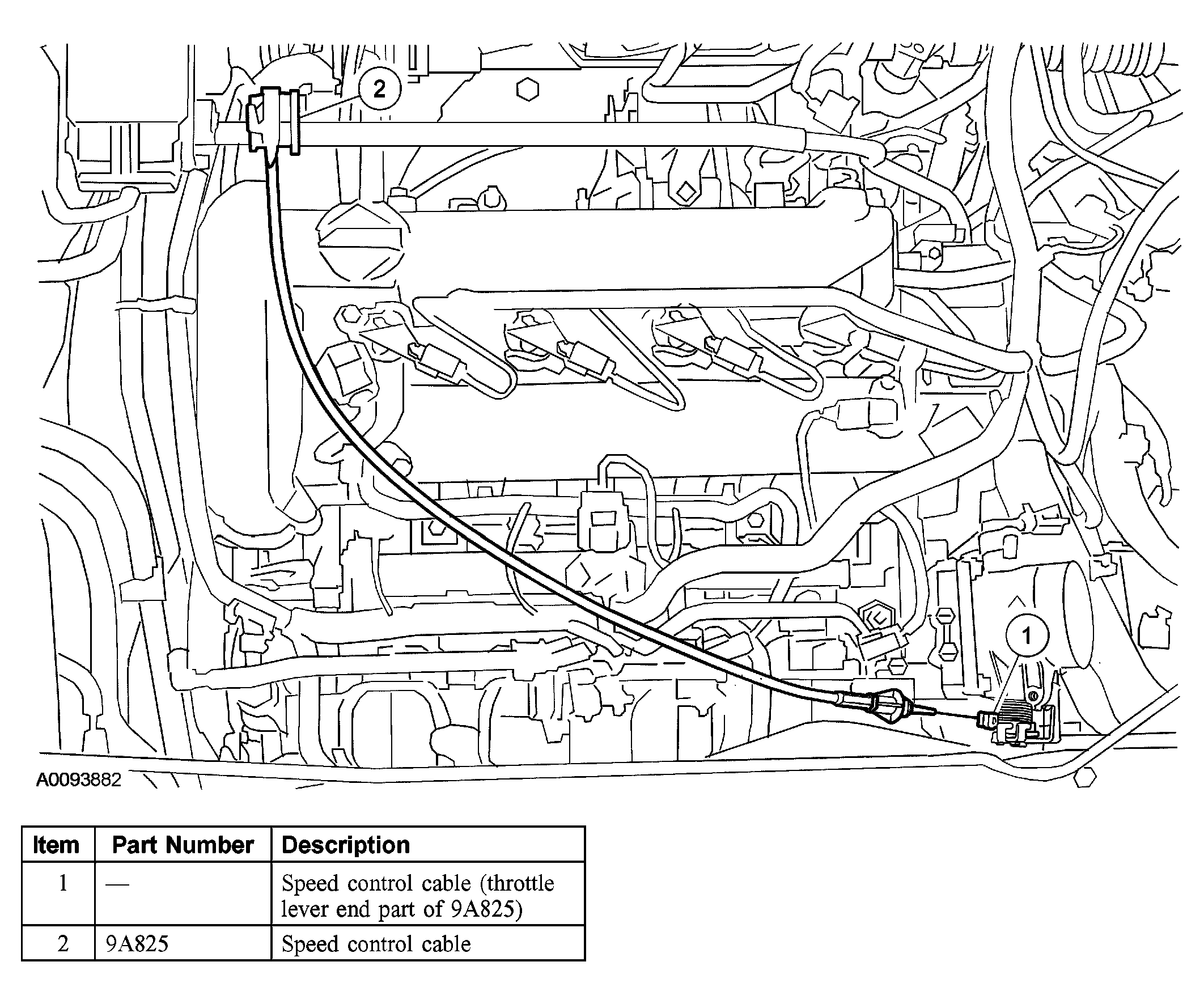

Fig 1: Identifying Components Of Speed Control Cable - 2.3L
G03902156Courtesy of FORD MOTOR CO.

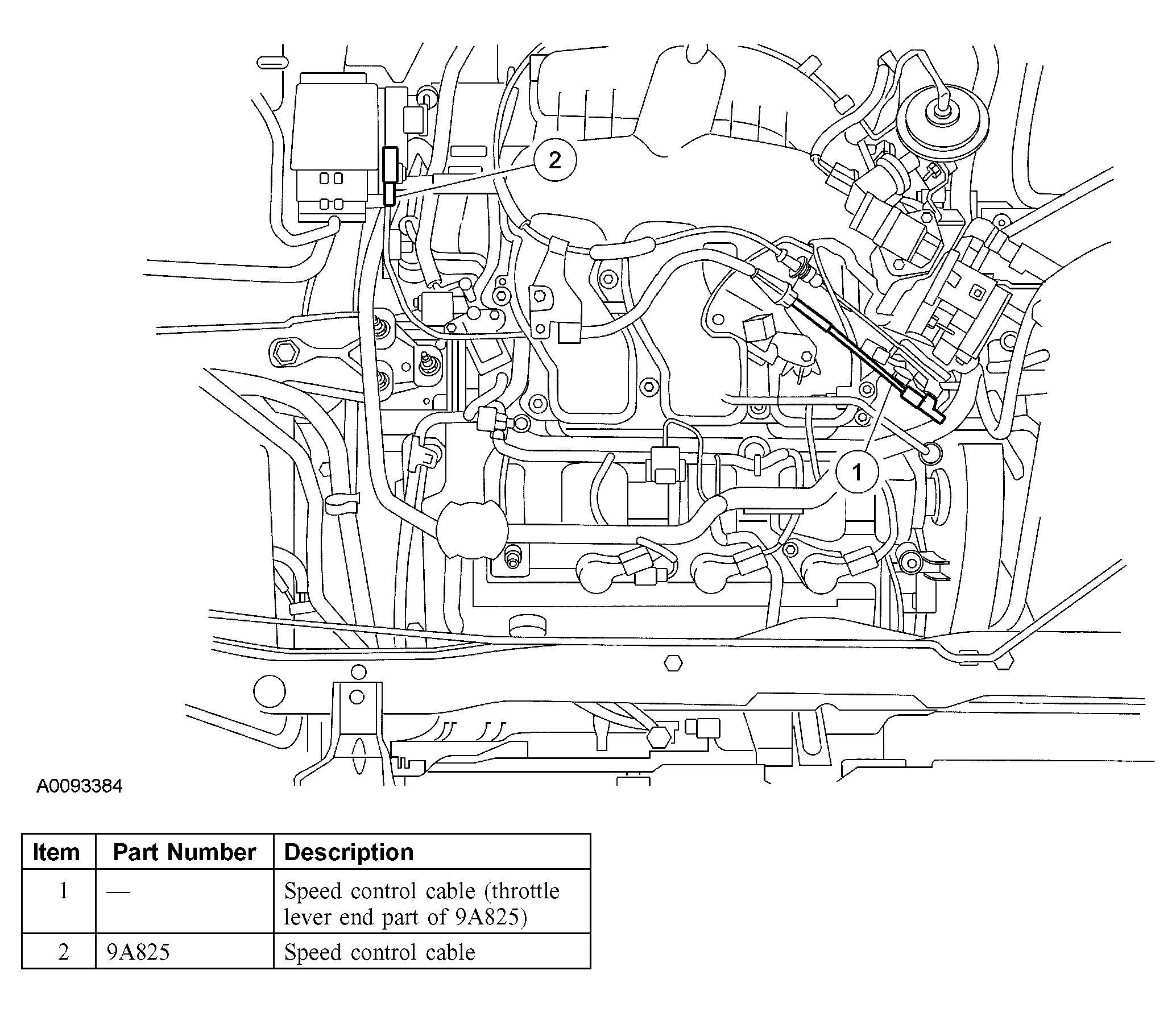

Fig 2: Identifying Components Of Speed Control Cable - 3.0L
G03902157Courtesy of FORD MOTOR CO.
